InSinkErator Invite H770-SS User manual

Instant Hot Water Dispenser
Owner’s Manual
TranScape™ View™
TranScape™ Wave™
HC3/GN3
H990
H770
Installation, Care & Use
Instalacion, cuidado & uso
Installation, soin et utilisation

Equipment You May Need:
We are delighted that you have chosen the InSinkErator®Instant Hot Water Dispenser
to be a part of your home. This unique appliance will save you time and effort in the
kitchen, and you’ll enjoy discovering new uses for it each day. That’s exactly why
millions of people are now using an InSinkErator Instant Hot Water Dispenser.
We are confident that by following our step-by-step instructions, you’ll soon be enjoying
the convenience of instant hot water.
For your satisfaction and safety, read all instructions, cautions, warnings and dangers before installing
or using this instant hot water dispenser.
This particular unit is not intended for commercial use.
Make sure that all electrical wiring and connections conform to local codes.
A standard 120-volt grounded electrical outlet is required under the sink for the dispenser’s electrical power.
The wall outlet powering your dispenser must have power supplied to it continuously.
This outlet must be fused and should not be controlled by the same wall switch that operates the
disposer, unless you have a SinkTop Switch™from InSinkErator®.
It is recommended that a dedicated control valve be installed on the cold water line supplying water
to this system.
If you suspect elevated levels of chlorine in your water, it is recommended to use our water
filtration system.
The use of a water filter should NOT result in the water pressure to drop below 30 psi (207kPa).
If it does, this will prevent your unit from operating properly.
Moving parts inside the tank causing a rattling noise is normal.
WHAT YOU SHOULD KNOW BEFORE YOU BEGIN
Equipment Required:
 Drill
 T-fitting
 Dedicated control valve
 Adjustable wrench
 Phillips and flat blade screwdrivers
 Pencil
 Tape measure
 Level
Anchors for drywall
Hole saw
Basin wrench
Hole punch
If you intend to use the sprayer hole in your sink for your dispenser, you may need a basin wrench and a
1/8" plug or a 1/4" cap (not supplied) for the faucet spray hose line. See Step 1-B.
If you need to cut a mounting hole in your stainless steel sink, you may need a 11 ⁄4" - 11 ⁄2" hole saw made
for cutting stainless steel or a hole punch. Consult a professional if you are drilling into a surface other
than stainless steel.
WHAT YOU NEED TO GET STARTED
2

HOW TO USE THIS INSTRUCTION MANUAL
Provides a step-by-step narrative describing the installation step, with check boxes that
can be marked as you progress through the installation.
Contains simple illustrations that provide visual instruction to support the narrative.
CAUTIONS, WARNINGS and DANGERS that will require your attention during the step.
These instructions are separated into main sections, indicated by numbers, and subsections,
indicated by capital letters. The manual is setup this way to allow you to take a break at any
point after completing a section or subsection without affecting the installation process.
What you’ll see in the
instruction manual:
1
2
3
OVERVIEW OF A
COMPLETED SETUP
HC3-SS GN3-SS H990-SS H770-SSHC-View-SS H-View-SS HC-Wave-SS H-Wave-SS
Identify the model of your instant hot water dispenser and record it here:________________
A
Property Damage: Do not pinch or break copper
tubing. Do not distort the last 1 inch of tubing.
INSTALLINGTHE FAUCET - View/Wave/HC3/GN3
Unpackdispenser components.
On a firm, flat surface, carefully
straighten the copper tubing.
Remove the wing nut from
the valve body.
View/Wave / HC3 / GN3
1
2
An imminently hazardous situation, which, if not avoided, will result in death or serious injury.
A potentially hazardous situation, which, if not avoided, could result in death or serious injury.
A potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
3
3

COMPONENTS IN THIS PACKAGE
Metal
Mounting Plate
Fiber Gasket Mounting Screw
H770-SS Tank
Snap-Connect
Fitting (3 pieces)
3/4" Screws(2)
Tank
Semi-Circular
Mounting Plate Rubber Gasket
H990-SS Wing Nut Tank
3/4" Screws(2)
Snap-Connect
Fitting (3 pieces)
HC3-SS
HC-View-SS
GN3-SS
H-View-SS
H-Wave-SS
HC-Wave-SS
3/4" Screws(2)
Small Steel FiberRubber Large Steel
Washers
2-1/4"
1-5/8" 1-5/8" 2-1/4"
Wing Nut
(HC3/GN3 only)
3/8" Tube
Brass Nut / Ferrule /
Tube Insert
QuickConnector
Snap-Connect
Fitting (3 pieces)
Extension & Star Nut
(View & Wave only)
Tank
3/4" Screws(2)
Wing Nut
(HC3/GN3 only)
Snap-Connect
Fitting (3 pieces)
Extension & Star Nut
(View & Wave only)
Small Steel FiberRubber Large Steel
Washers
2-1/4"
1-5/8" 1-5/8" 2-1/4"
4

The wall outlet for your dispenser must have power supplied to it continuously
and must be fused. It should not be controlled by the same wall switch
that operates your disposer, unless using an InSinkErator SinkTop SwitchTM.
PREPARATION
START HERE PROPER INSTALLATION SHOULD TAKE ABOUT 2-4 HOURS
Identify locations for the dispenser
faucet, tank and filter (if applicable).
Check to make sure there is proper
clearance (see chart at left) for
dispenser handles to be fully opened.
Check to make sure counter is not
too thick (see chart at left).
Make sure there is a grounded
electrical outlet under the sink.
Turn off water supply.
If using the sink sprayer hose hole,
remove nut that connects sprayer
hose at bottom of faucet.
Using adjustable wrench, remove nut
connecting sprayer washer flange in
sprayer hole.
Plug hose opening with either a 1/8"
plug or a 1/4"cap (not supplied).
1A
B
If you have to drill through sink or
countertop, you may need to rent or purchase
the appropriate tools.
Consult a professional before drilling into
a surface other than stainless steel.
C
Required minimum from
center of hole to wall Maximum counter thickness (depth)
What if you don’t have a sprayer hole or
don’t want to use it?
Many homeowners replace the soap
dispenser in their sink with an instant
hot water dispenser.
If drilling a hole into a stainless steel
sink or counter top, you can cut a
mounting hole for the dispenser with a
hole saw for stainless steel, or you can
use a hole punch.
Required Hole Size
11⁄4" - 11⁄2"
Dependent on model
HC-View-SS ...... 25⁄8" ..........................3"
H-View-SS ........ 25⁄8" ..........................3"
HC-Wave-SS .... 25⁄8" ..........................3"
H-Wave-SS ...... 23⁄8"..........................3"
HC3-SS ............ 21⁄4" ..........................3⁄4" *
GN3-SS ............ 21⁄2" ..........................3⁄4" *
H990-SS .......... 11⁄4" ..........................3"
H770-SS .......... 2" ............................3⁄4"
*HC3/GN3,extension is available by special order (EXT-10)
5

Star Nut
Fiber
Washer
 Unpack dispenser components.
 On a firm, flat surface, carefully
straighten the copper tubing using
hands only.
Unscrew and remove threaded extension
from valve body. Do not discard, as you
will need this later (See Figure 1).
Leave small washers in place.
Feed tubes down through the hole in
the sink/counter until the base is at
rest. Set faucet at desired angle.
From under sink, slide 21⁄4"fiber washer
over faucet base. Reinstall threaded
extension onto the base until snug.
Thread star nut onto extension until
snug (See Figure 2).
From under sink, slide 21⁄4"fiber washer
over threaded extension. Thread star
nut onto extension until snug.
Hot & Cool models only
Attach the quick connector to the ends
of the copper tubes running from the
dispenser.
Install a white 3/8"tube into other end
of quick connector.
If sink/counter thickness exceeds 3/4"
a hole diameter of 11⁄2" is required.
An assistant may be needed to hold
the dispenser head in place
while securing the dispenser.
2A
CView/Wave
View/Wave
Hot & Cool models only
6
For a standard 11⁄2" sink/counter hole
Feed tubes down through the hole in
the sink/counter until the base is at
rest. Set faucet at desired angle.
Large washer required for sink holes larger
than 11⁄2"or for porcelain sinks with radius
or beveled holes.
Before feeding tubes through sink
hole, remove extension. Place 21⁄4"
large steel washer over threads on
faucet base. Reinstall extension.
BView/Wave
Faucet is factory-ready for installation
into a standard 11⁄2"sink/counter hole.
15⁄8"Small
Steel Washer
21⁄4"Large
Steel Washer
15⁄8"Rubber
Washer
Standard 11⁄2" hole Hole larger than 11⁄2"
Installing into hole smaller than 11⁄2"
Star Nut
Fiber
Washer
Figure 1 Figure 2
Property Damage: Do not pinch or break copper
tubing. Do not distort the last 1 inch of tubing.
15⁄8"Small
Steel Washer
15⁄8"Small
Rubber Washer
15⁄8"Small
Steel Washer
15⁄8"Small
Rubber Washer
INSTALLING THE FAUCET - VIEW/WAVE

Wing Nut
Fiber
Washer
 Unpack dispenser components.
 On a firm, flat surface, carefully
straighten the copper tubing using
hands only.
Remove the wing nut from
the valve body.
HC3 only
Attach the quick connector to the
ends of the copper tubes running
from the dispenser.
Install a white 3/8"tube into
quick connector.

Feed tubes down through the hole
in the sink or counter until the base
is at rest.
Make sure faucet head is at the
desired angle.
Slide 21⁄4"fiber washer over faucet
base under sink. Tighten assembly
using black plastic wing nut.
An extension is available by special order
(EXT-10) for counters more than 3/4" thick.
Call 1-800-558-5700 to order.
An assistant may be needed to hold
the dispenser head in place
while securing the dispenser.
2A
C
D
HC3/GN3
HC3/GN3
Property Damage: Do not pinch or break copper
tubing. Do not distort the last 1 inch of tubing.
From faucet
7
11⁄4"Hole Hole larger than 11⁄4"
For a 11⁄4"sink hole, place the
washers on the faucet base in this
order (see diagram):
1) 15⁄8"small steel washer
2) 15⁄8"small rubber washer.
For a hole larger than 11⁄4", place the
washers on the facuet base in this
order (see diagram):
1) 15⁄8"small steel washer
2) 15⁄8"rubber washer
3) 21⁄4"large steel washer
BHC3/GN3
BOTH 15⁄8"small steel and rubber washers
MUST BE INSTALLED to ensure
proper operation and seal.
15⁄8"Small
Steel Washer
15⁄8"Small
Steel Washer
21⁄4"Large
Steel Washer
15⁄8"Small
Rubber Washer
15⁄8"Rubber
Washer
3/8" white tube
INSTALLING THE FAUCET - HC3/GN3

Property Damage: Do not pinch or break copper
tubing. Do not distort the last 1 inch of tubing.
Make sure to use rubber gasket
to ensure proper seal.
2
B
A
Unpack dispenser components.
 On a firm, flat surface, carefully
straighten the copper tubing using
hands only.
Ensure that the black rubber gasket
is properly seated into the base of
the dispenser head and will
surround the sink mount.
Feed tubes down the hole in the
sink or countertop until the base is
at rest on the sink or countertop
surface.
From under the sink, place the
semi-circular mounting plate onto the
threaded stud.
Place wing nut onto the threaded
stud. Make sure faucet head is at the
desired angle. Tighten the wing nut
until snug, while ensuring the semi-
circular mounting plate extends
beyond the sink hole.
An assistant may be needed to hold
the dispenser head in place
while securing the dispenser.
CH990
H990
H990
8
INSTALLING THE FAUCET - H990

Property Damage: Do not pinch or break copper
tubing. Do not distort the last 1 inch of tubing.
Make sure to use fiber gasket
to ensure proper seal.
 Unpack dispenser components.
 On a firm, flat surface, carefully
straighten the copper tubing using
hands only.
Ensure that the fiber gasket is
properly seated against the base
of the dispenser head.
2
B
A
Fiber
Gasket
H770
H770
From below the sink, place semi-
circular metal mounting plate over
the mounting screw, ensuring the
mounting plate covers the sink hole.
Slide washer over so that the screw
is now inside the smaller hole.
Tighten the screw until snug.
Feed tubes down the hole in the sink
or countertop until the base is at rest
on the sink or countertop surface.
Position faucet head at the
desired angle.
Half moon shaped metal mounting plate
should cradle all descending tubes.
An assistant may be needed to hold
the dispenser head in place
while securing the dispenser.
C
DH770
H770
DO NOT remove mounting screw or
fiber gasket from base of dispenser.
9
INSTALLING THE FAUCET - H770

ASelect a spot under the sink to mount
tank vertically within reach of both
plumbing and electrical connections.
The tank should be within 16"or less
of faucet water lines and within 30"
or less of a standard grounded outlet.
While holding tank in place on
the spot selected for installation,
use a pencil to mark locations for
2 hanging screws.
Property Damage: Tank must be locatedwithin 16" of
faucet andwithin 30" or less of a standardgrounded
outlet. DO NOT extendplumbingor electrical lines.
3
Without depressing the gray button,
place the snap-connect fitting at
the end of the blue 1/4"tube onto
the left fitting on the tank, pushing
until it clicks into place. (1)
Slip the flexible white 7/16"tube
over barbed middle fitting and slide
down approximately 1/2". (2)
Slip the clear 5/16"tube over the far
right smooth fitting and slide down
approximately 1/2". (3)
Visually check for pinched or
crimped tubes.
4A
Property Damage: Pinchedor blockedwater lines
may cause damage to the dispenser tank.
Tank must be
mountedlevel
to ensure
proper operation.
Hose clamps are not needed for any
of the connections.
Mount tank vertically in an area that
allows clearance on the underside of the
tank for drainage, if necessary.
DO NOT over tighten screws.
Pre-drill 1/8"pilot holes at marks.
Turn screws into pre-drilled holes,
leaving 1/4"exposed.
Hang the tank on the screws.
Tighten the screws with only 1/2 turn
clockwise.
B
Screws provided are for use in wood
studs or cabinets only. Use wall anchors
(not supplied) for installation into drywall.
Leave 1/4"for
hanging tank.
Property Damage: Check to make sure
tubesare connectedproperly andare
pusheddown asfar aspossible.
(1) (2) (3)
10
MOUNTING THE TANK
CONNECTING FAUCET TO TANK

11
Scalding Hazard: The faucet dispensesnear-boiling
(212ºF) water which can instantly cause scalds or
burns. Use care when operatingthisappliance.
Property Damage: Join remainingtube
to coldwater supply only.
Property Damage: Join remainingtube
to coldwater supply only.
B
 Turn on the cold water supply.
Depress the dispenser’s HOT handle
and hold it until water flows from
the spout (approximately 1 to 2 minutes).
 Run the water for at least 2 minutes to
flush lines (both the hot and cold handles
independently if applicable).
A
A
6
 Check all connections to ensure they are
tight
and that there are no leaks.
 Plug in instant hot water tank.
Water will be cold at first.
Allow 12-15 minutes for water to reach
target temperature.
Gurgling or hissing is normal during the
initial heating cycle.
5
Install a T-fitting (not included) onto the
cold water supply line.
 Install dedicated water control valve with
3/8"compression fitting.
 At the end of the white 3/8"tube from the
quick-connector, slide the supplied brass
nut and ferrule over the tube and then push
in the brass tube insert.
 Insert the white 3/8"tube into the 3/8"
compression fitting and tighten.
HC-View/HC-Wave / HC3
 Install a T-fitting (not included) onto the
cold water supply line.
 Install dedicated water control valve with
1/4"compression fitting (not included).
 At the end of the copper 1/4"tube,
slide the brass nut and ferrule provided
with the control valve over the tube.
 Insert the copper tube into the 1/4"
compression fitting and tighten.
H-View / H-Wave / GN3/ H990 / H770
A
Property Damage: A standardgroundedoutlet within
30" of the dispenser isrequiredunder the sink. Do
not use an extension cordset with the dispenser.
Brass Nut
Plastic
tube
Ferrule
Brass Inser
tube
Copper
Brass Nut
Ferrule
FINAL WATER CONNECTION
FILL TANK & THEN CONNECT POWER

Electric Shock Hazard: Using an ungrounded or improperly connected
appliance can result in serious injury or death from electrical shock.
Property Damage: To avoid water damage, replace any loose or split tubing.
Periodically inspect the unit for any signs of leakage and immediately remove from
service any unit suspected of leaking.
Personal Injury: This tank is a non-pressurized tank. DO NOT modify this system.
DO NOT close vent tube or connect other type dispensers or valves to the tank. Use only
the InSinkErator dispenser faucet supplied. Use only parts provided. Contact an
authorized InSinkErator Service agent for repairs or replacement components.
Dispenser: 3-year warranty
Stainless Steel Tank: 3-year warranty
Covers all replacement parts and labor to correct defects in material or workmanship in the
dispenser system, excluding the replaceable filter cartridge, for the full warranty period from
the date of installation in your home. If warranty service is required during the warranty period,
contact an authorized InSinkErator service agent to replace or repair the unit in your home at
no cost to you. If your dispenser is replaced rather than repaired, the warranty on the new unit
shall be for the duration of the remaining portion of the original dispenser’s warranty. Note:
Warranty is determined by unit serial number and/or date of installation. Purchase or
installation receipt may be required to verify warranty status. When service is required, and for
the location of your nearest factory authorized service center, call toll free 1-800-558-5700.
The foregoing warranty does not apply to damage or inoperation resulting from accident,
alteration, misuse, abuse, improper installation, installation not in accordance with these
instructions or local electrical and/or plumbing codes. We do not assume any responsibility for
consequential damage. Install using genuine InSinkErator®manufactured components only.
Use of non InSinkErator components will void your warranty.
Some states do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitations of incidental or consequential damages, so the above limitations or
exclusion may not apply to you. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
This appliance must be grounded. This instant hot water dispenser is equipped with a cord that
has a grounding conductor and a grounding pin. The plug must be connected to an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet
installed by a qualified electrician. Check with a qualified electrician or serviceman if you are in
doubt as to whether the instant hot water dispenser is properly grounded.
WARRANTY INFORMATION
Fire Hazard: To minimize possibility of fire, DO NOT store flammable items such as
rags, paper or aerosol cans near the tank. DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
An instant hot water dispenser, like any water heater, has a limited life and will eventually
fail. To avoid possible property damage, this instant hot water dispenser should be
regularly examined for leakage and replaced when necessary. A drain pan, plumbed to
an appropriate drain or outfitted with a leak detector, should be used in those
applications where any leakage could cause property damage.
12

13

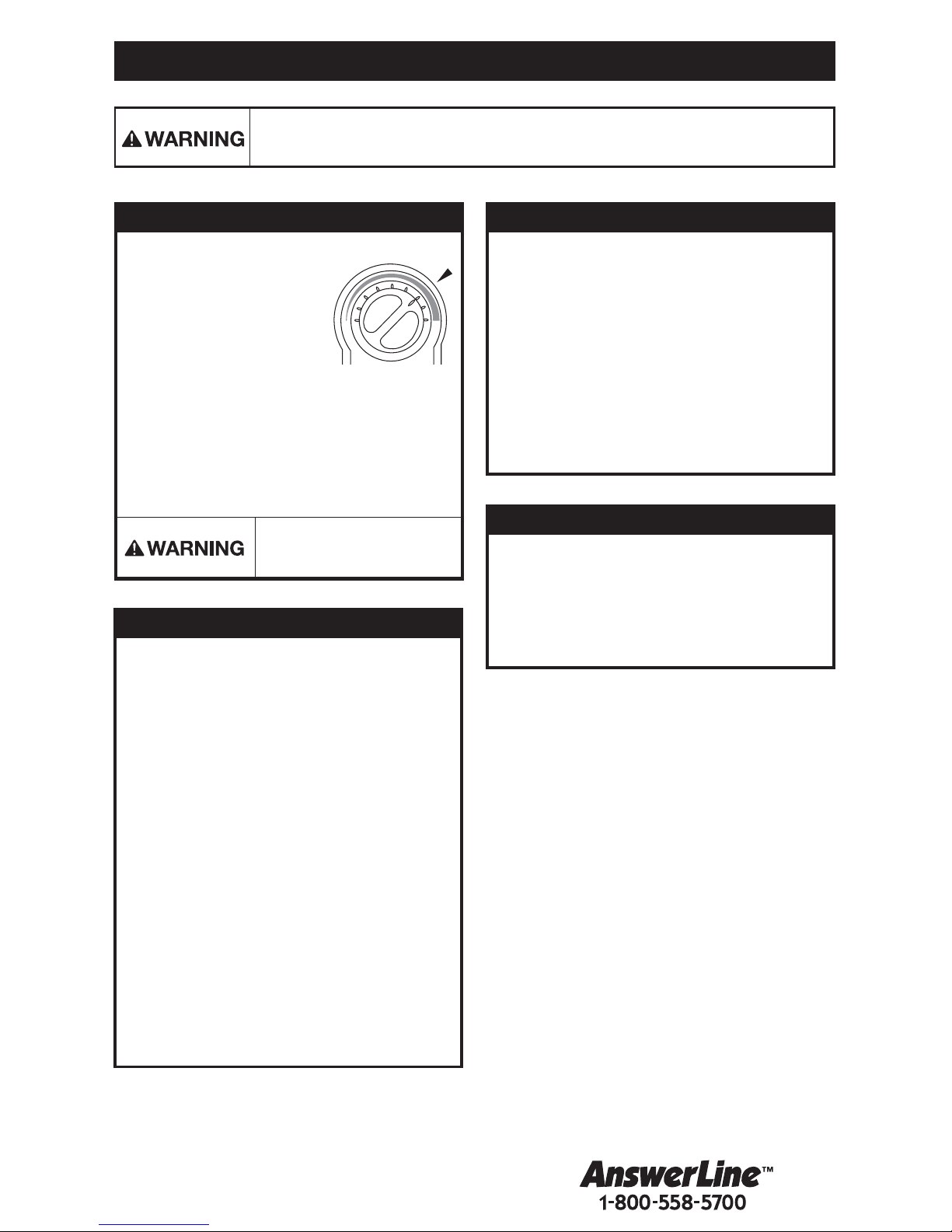

Electric Shock Hazard: To prevent electrical shock, disconnect power before
servicing unit. Use only a properly grounded and polarized electric outlet.
Scalding Hazard: Do not allow
water to boil. May result in
severe burns.
Factory temperature pre-set
is 200˚F. To reset the
thermostat to 200°, turn
the indicator two notches
to the right of vertical.
Adjust the thermostat
slowly, turning the dial
clockwise to increase temperature
or counter clockwise to decrease
temperature, then activate faucet
handle for 20 seconds to bring in fresh
water to be heated at the new setting.
Allow 5-7 minutes for water to reach
new temperature.
Regularly inspect the unit for any signs
of leakage. If there are signs of water
damage, immediately remove the unit
from service.
To avoid water damage from leakage,
replace all cut, loose or split tubing.
A drain pan, plumbed to an appropriate
drain or outfitted with a leak detector,
should be used in those applications
where any leakage could cause
property damage.
PROPERTY DAMAGE
CARE AND USE
approx. 200°
Only use mild cleaners to clean the
faucet and plastic components.
Cleaners with acids, abrasives,
alkaline or organic solvents will
result in deterioration of the plastic
components and void the warranty.
CLEANING THE FAUCET AND TANK
Anytime the instant hot water dispenser is not
used for extended periods of time, unplug and
drain unit. If it is below freezing you will need to
unplug the unit and drain it.
Disconnect power from unit.
Push hot water dispenser faucet lever
and allow water to flow until it is cool.
Shut the cold water supply off at the valve.
Locate and remove drain screw from
bottom center of water tank and drain
the water into empty pail.
Empty the tank and then reinstall drain
screw into the bottom of tank, turning
until snug. Do NOT over tighten.
If filter system installed, remove and
discard filter cartridge.
To put back into working order, install
new filter cartridge (if required), fill tank
with water and reconnect the electrical
cord. (Refer to Page 11, Step 6)
SEASONAL STORAGE/DRAINAGE
ADJUSTING THE THERMOSTAT
For fresher tasting water, add filtration to
your instant hot water dispenser system.
InSinkErator offers the only water filtration
system designed specifically for instant
hot water dispensers. For more information,
visit www.insinkerator.com.

TROUBLESHOOTING
WHAT TO DO
Water and steam spits
forcefully from spout
without turning on the
dispenser faucet.
Water is not hot.
• Unit is boiling.
May be normal during initial setup.
• The unit is unplugged.
• The electric outlet is inoperative.
•
Activate faucet lever to release some water from
the tank.
• Adjust water temperature using dial on tank front.
Remember that at higher altitudes, water boils
at lower temperatures.
• Make sure the unit is connected to a properly grounded
electric outlet.
• Make sure the circuit breaker or fuses are
functioning properly.
• Check that the outlet is not switched off.
Water is too hot
or not hot enough.
• Thermostat is not adjusted to
your needs.
•
Adjust the thermostat slowly, then activate faucet lever for 20
seconds to bring in fresh water to be heated at the new setting.
Allow 5-7 minutes for water to reach new temperature.
Water comes out the
vent instead of spout.
• Outlet tube is blocked. •
Check that outlet tube is not kinked, twisted or pinched.
• Unscrew spout end piece and clean out any debris.
Water is dripping from
the spout/vent
intermittently.
• The expansion chamber isn’t
draining properly due to low
water pressure.
• The spout is blocked.
• Unplug the unit. If the dripping doesn’t stop after a few
minutes, check the supply valve to ensure that is fully
open and there are no obstructions in the water line
reducing the pressure below 30 psi (
i.e., a poorly mounted
saddle valve, a clogged water filter, or a partially opened
shut-off valve).
• Unscrew spout end piece and clean out any debris.
Water is dripping
from the spout/vent
constantly.
• Debris in the water line may be
in the faucet valve seat causing a
slow water leak.
•
Unscrew spout end piece and clean out any debris.
• Activate faucet lever 7-10 times to flush faucet & lines.
Divided stream. • Debris in the end piece. •
Unscrew spout end piece and clean out any debris.
Water continues to run
after releasing lever.
(HC3/GN3/View/ Wave)
• Mounting nut too tight.
• Mounting washers not
installed properly
•
Loosen mounting nut, 1/4 turn at a time, until shut-off occurs.
• See page 6 or 7, Step 2B to check proper mounting
washer installation.
PROBLEM POSSIBLE CAUSE
If you are still experiencing trouble call the AnswerLine™1-800-558-5700.
Please read Troubleshooting Guide and/or visit
www.insinkerator.com before calling AnswerLine™
14

Dispensador de agua caliente instantánea
Manual del usuario
TranScape™ View™
TranScape™ Wave™
HC3/GN3
H990
H770
Instalacion, cuidado & uso
Installation, Care & Use
Installation, soin et utilisation

Equipo que puede necesitar:
Nos complace que haya elegido el dispensador de agua caliente instantánea
InSinkErator®para formar parte de su hogar. Con este singular electrodoméstico
usted ahorrará tiempo y esfuerzo en su cocina, y disfrutará al descubrir un nuevo
uso cada día. Es por eso que millones de personas utilizan hoy en día el dispensador
de agua caliente instantánea InSinkErator.
Confiamos en que al aplicar las instrucciones paso por paso, usted estará disfrutando
pronto de los beneficios del agua caliente instantánea.
Para su satisfacción y propia seguridad, lea todas las instrucciones, así como los enunciados de
precaución, advertencia y peligro antes de instalar o de utilizar su dispensador de agua instantánea.
Esta unidad en particular no está preparada para uso comercial.
Verifique que todo el cableado y conexiones eléctricas cumplan con las especificaciones de
las normas de su localidad.
El dispensador debe enchufarse en una toma eléctrica estándar de 120 voltios con conexión
a tierra ubicada bajo el fregadero.
Esta toma eléctrica debe tener energía ininterrumpida.
La toma debe contar con un fusible y no debe ser controlada por el mismo interruptor de pared con el
que funciona el dispensador, excepto si usted tiene un interruptor marca SinkTop Switch™de InSinkErator®.
Se recomienda la instalación de una válvula de corte en la línea de agua fría que alimenta de
agua al sistema.
Si usted sospecha de elevados niveles de cloro en el agua, le recomendamos que use
nuestro sistema de filtración de agua.
El uso de un filtro de agua NO DEBE causar disminución de la presión por abajo de 30 psi
(207 kPa). En caso de ocurrir, esto impedirá el funcionamiento correcto de la unidad.
Las partes internas del tanque provocan un traqueteo normal.
LO QUE USTED DEBE SABER ANTES DE COMENZAR
Herramientas:
 Taladro
 Conector “T”
 Válvula de control dedicada
 Llave ajustable
 Destornilladores Phillips y planos
 Lápiz
 Cinta métrica
 Nivel
Tarugos para panel de yeso
Broca corta-círculos
Llave para fregadero
Punzón
Si tiene planeado usar el orificio del rociador del fregadero para el dispensador, es posible que
necesite una llave para fregadero y un tapón de 1/8" ó 1/4" (no incluido) para la manguera del
rociador.
Vea el paso 1-B.
Si necesita hacer un orificio para montaje en un fregadero de acero inoxidable, es posible que
necesite una broca corta-círculos de 1 1⁄4" a 1 1⁄2" para cortar el acero inoxidable o un punzón. Si
va a perforar una superficie que no sea de acero inoxidable, solicite los servicios de un profesional.
LO QUE USTED NECESITA PARA COMENZAR
16

17
CÓMO USAR ESTE MANUAL DE INSTRUCCIONES
Describe paso a paso en forma narrativa el proceso de instalación, con cuadros que usted
puede ir marcando conforme avanza en la instalación.
Contiene ilustraciones sencillas como ayuda visual para la narración.
Enunciados de PRECAUCIÓN, ADVERTENCIA y PELIGRO que requieren su atención durante
el proceso.
Estas instrucciones están divididas en apartados principales indicados por números, y apartados
secundarios indicados por letras mayúsculas. El manual está organizado en esta forma para permitir
al usuario hacer una pausa en cualquier momento después de terminar un apartado principal o
secundario sin afectar el proceso de instalación.
Lo que usted verá en el
manual de instrucciones:
1
2
3
VISTA GENERAL DE LA
INSTALACIÓN TERMINADA
Una situación peligrosa inmediata que si no se evita puede causar la muerte o lesiones graves.
Una situación potencialmente peligrosa que si no se evita podría causar la muerte o lesiones graves.
Una situación potencialmente peligrosa que si no se evita podría causar lesiones menores o moderadas.
PRECAUCIÓN
ADVERTENCIA
PELIGRO
HC3-SS GN3-SS H990-SS H770-SSHC-View-SS H-View-SS HC-Wave-SS H-Wave-SS
Identifique el número de modelo de su dispensador y anótelo aquí:________________
AINSTALACIÓN DEL GRIFO - View/Wave/HC3/GN3
Desempaque loscomponentes
del dispensador.
Enderece con cuidado el tubo de cobre
sobre una superficie firme y plana.
Quite la tuerca de alasdel cuerpo
de la válvula.
Daños materiales: No apriete ni rompa el tubo de cobre.
No deforme la última pulgada (2.5 cm)
del extremo del tubo de cobre.
View/Wave / HC3 / GN3
1
2
3

CONTENIDO DE ESTE PAQUETE
Placa de soporte
de metal
Junta de fibra Tornillo de montaje
H770-SS Depósito
Adaptador de encaje
a presión (3 piezas)
Tornillosde 3/4" (2)
Placa de montaje
semicircular Junta de caucho
H990-SS Tuerca de alasDepósito
Tornillosde 3/4" (2)
Adaptador de encaje
a presión (3 piezas)
HC3-SS
HC-View-SS
GN3-SS
H-View-SS
H-Wave-SS
HC-Wave-SS
Tornillosde 3/4" (2)
De acero pequeña FibraCaucho De acero grande
Arandelas
2-1/4"
1-5/8" 1-5/8" 2-1/4"
Tuerca de alas
(únicamente en HC3/GN3)
Tubo de 3/8"
Tuerca de latón/Casquillo/
Inserto para tubo
Conector rápido
Adaptador de encaje
a presión (3 piezas)
Depósito
Tornillosde 3/4" (2)
Tuerca de alas
(únicamente en HC3/GN3)
Adaptador de encaje
a presión (3 piezas)
Extensión y tuerca de estrella
(únicamente en View & Wave)
Depósito
De acero pequeña FibraCaucho De acero grande
Arandelas
2-1/4"
1-5/8" 1-5/8" 2-1/4"
Extensión y tuerca de estrella
(únicamente en View & Wave)
18

19
PREPARACIÓN
COMIENCE AQUÍ
LA INSTALACIÓN CORRECTA DEBE HACERSE ENTRE 2-4 HORAS
Identifique las ubicaciones del grifo, tanque
y filtro (si es el caso) del dispensador.
Compruebe que haya espacio libre
suficiente (vea la tabla a la izquierda) para
poder abrir las manijas del dispensador.
Asegúrese de que la cubierta no sea
demasiado gruesa (vea la tabla a la izquierda).
Asegúrese de que haya una toma eléctrica
con conexión a tierra debajo del fregadero.
1A
Mínimo requerido del
centro del orificio a la pared
Grosor máximo de la
cubierta (profundidad)
El tomacorriente de pared para su surtidor debe estar constantemente
energizado y protegido con fusibles. No debe estar controlado por el
mismo interruptor de pared que opera su triturador de desechos, a
menos que use un interruptor InSinkErator SinkTop SwitchTM.
 Cierre la toma del agua.
 Si utiliza el orificio de la manguera del
rociador, quite la tuerca que conecta la
manguera del rociador debajo del grifo.
 Quite con la llave ajustable la pestaña
de la arandela del rociador que está en
el orificio del rociador.
 Tape la abertura de la manguera con un
tapón de 1/8"o de 1/4"(no incluido).
B
Si es necesario perforar el fregadero o la
cubierta, es posible que tenga que rentar o
comprar las herramientas apropiadas.
Consulte los servicios de un profesional
antes de perforar una superficie que no sea
de acero inoxidable.
CSi no hay un orificio para rociador
o si no lo usa
Muchas personas colocan un
dispensador de agua caliente
instantánea en lugar de un dispensador
para jabón en el fregadero.
Si perfora un fregadero de acero
inoxidable o una cubierta, puede hacer el
orificio de montaje para el dispensador
con una broca corta-círculos en el acero,
o puede usar un punzón.
Tamaño Requerido Del Agujero
11⁄4" - 11⁄2"(3.1 cm-3.8 cm)
Depende del modelo
HC-View-SS .... 25⁄8
" (6.5 cm) ................3" (7.5 cm)
H-View-SS ...... 25⁄8 "(6.5 cm) ................3" (7.5 cm)
HC-Wave-SS.... 25⁄8 "(6.5 cm) ................3" (7.5 cm)
H-Wave-SS...... 23⁄8 "(6 cm)....................3" (7.5 cm)
HC3 -SS ................ 21⁄4 " (6 cm) ..................
3⁄4
" (2 cm) *
GN3 -SS ................ 21⁄2 " (6.5 cm) ................
3⁄4
" (2 cm) *
H990 -SS .............. 11⁄4 " (3 cm) ..................3" (7.5 cm)
H770 -SS .............. 2" (5 cm) ......................
3⁄4
" (2 cm)
*HC3/GN3, la extensión está disponible mediante pedido
especial (EXT-10)

Instalación en un orificio menor que 11⁄2"
arandela
de fibra
tuerca de
estrella
20
 Desempaque los componentes
del dispensador.
 Sobre una superficie firme y plana,
enderece cuidadosamente el tubo de
cobre usando sólo las manos.
Desatornille y quite la extensión roscada del
cuerpo de la válvula. No la tire, ya que la
necesitará posteriormente (Vea la Figura 1).
Deje las arandelas pequeñas en su lugar.
Inserte los tubos por el orificio o cubierta
hasta que su extremo descanse. Coloque el
grifo en el ángulo deseado.
Desde abajo del fregadero, deslice la arandela
de fibra de 21⁄4"sobre la base del grifo.
Reinstale la extensión roscada en la base
hasta que quede apretada. Enrosque la tuerca
de estrella en la extensión hasta que quede
apretada (Vea la Figura 2).
Desde abajo del fregadero, deslice la
arandela de fibra de 21⁄4"sobre la
extensión roscada. Enrosque la tuerca
de estrella en la extensión hasta que
quede apretada.
Únicamente en los modelos caliente y frío
Fije el conectador rápido a los terminales
de las salidas de los tubos de cobre del
dispensador.
Instale un tubo blanco de 3/8"en el otro
extremo del conector rápido.
Si el espesor del gabinete o del fregadero
es mayor que 3/4", se requiere un orificio
de 11⁄2" de diámetro.
Puede ser necesario un ayudante para sostener
el dispensador mientrasse fija en su lugar.
2A
CView/Wave
View/Wave
Daños materiales: No apriete ni rompa el tubo de
cobre. No deforme la última pulgada (2.5 cm)
del extremo del tubo de cobre.
Únicamente en los
modelos caliente y frío
arandela
de fibra tuerca de
estrella
Orificio estándar de 11⁄2"Orificio mayor de 11⁄2"
Para un orificio estándar de 11⁄2"de fregaderos
o gabinetes
Inserte los tubos por el orificio o cubierta
hasta que su extremo descanse. Coloque
el grifo en el ángulo deseado.
Se requiere una arandela grande para orificios
mayores de 11⁄2"de fregaderos o para fregaderos
con orificios radiales o biselados.
Antes de pasar la tubería a través del orificio
del fregadero, quite la extensión. Coloque
una arandela grande de acero de 21⁄4"
sobre las roscas en la base del grifo.
Reinstale la extensión.
BView/Wave
El grifo sale de fábrica listo para su
instalación en un orificio estándar de 11⁄2"
de fregaderos o gabinetes.
15⁄8"(4.1 cm)
arandela de
acero pequeña
15⁄8"(4.1 cm)
arandelas
decaucho
INSTALACIÓN DEL GRIFO
- VIEW/WAVE
21⁄4"(5.7 cm)
arandela grande
de acero
Figura 1 Figura 2
15⁄8"(4.1 cm)
arandela de
acero pequeña
15⁄8"(4.1 cm)
arandelas
de caucho
15⁄8"(4.1 cm)
arandela de
acero pequeña
15⁄8"(4.1 cm)
arandelas
de caucho
