Inspire CBI User manual
2
TABLE OF CONTENTS
BEFORE YOU BEGIN .......................................................................................................................…………….… 2
IMPORTANT SAFETY NOTICES ..............................................................................................................................3
WARNING LABEL PLACEMENT………………………………………………………….……………….………….4
HARDWARE PACK…................................................................................................................................................ 5
ASSEMBLY INSTRUCTIONS...............................................................................................................................6-16
COMPUTER OPERATION GUIDELINE………………………………..……….………………….…………….17-18
PARTS LIST………..……………..………………………..…………………………………….………………....19-21
EXPLODED DIAGRAMS……....…………………………..……………………..……………….……………….22-23
WARRANTY................................................................................................................................................………..24
BEFORE YOU BEGIN
Thank you for selecting the INSPIRE CB1. For your safety and benefit, read this manual carefully before
using the machine. As a manufacturer, we are committed to providing you complete customer satisfaction.
If you have any questions, or find there are missing or damaged parts, please call our TOLL FREE
customer service number. Our Customer Service Agents will provide immediate assistance to you.
Toll-Free Customer Service Number
1-877-738-1729
Mon. - Fri. 8 a.m. - 5 p.m. PST
www.inspirefitness.net
3
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be
sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT leave children unattended in the same room with the
machine. The linkages on this machine can cause serious injury if used improperly.
2. Never place your hands or feet in the path of the linkages because injury may occur to you or damage may occur to the equipment. Never
allow children to come near or approach the moving linkages while in use.
3. Always engage the CHILD SAFETY LOCK after use.
4. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
5. Position the machine on a clear, leveled surface. DO NOT use the machine near water or outdoors.
6. Keep hands away from all moving parts.
7. Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that could become caught in the machine.
Running or aerobic shoes are also required when using the machine.
8. Use the machine only for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.
9. Do not place any sharp object around the machine.
10. Disabled persons should not use the machine without a qualified person or physician in attendance.
11. Before using the machine to exercise, always do stretching exercises to properly warm up.
12. Never operate the machine if the machine is not functioning properly.
13. Maximum user weight 300 lbs.
CARE AND MAINTENANCE
1. Keep seat slider clean
2. Inspect and tighten all parts before using the machine.
3. Keep objects away from the fan area. Never stick anything inside the fan grill.
3. The Frame, Shrouds and Seat Pad of the machine can be cleaned using a damp cloth and mild non-abrasive detergent. DO NOT use solvents.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY
IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. NEITHER HEALTH IN MOTION, LLC. NOR FG1, LLC. ASSUME
ANY RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS
PRODUCT. SAVE THESE INSTRUCTIONS.
4
WARNING LABEL PLACEMENT
5

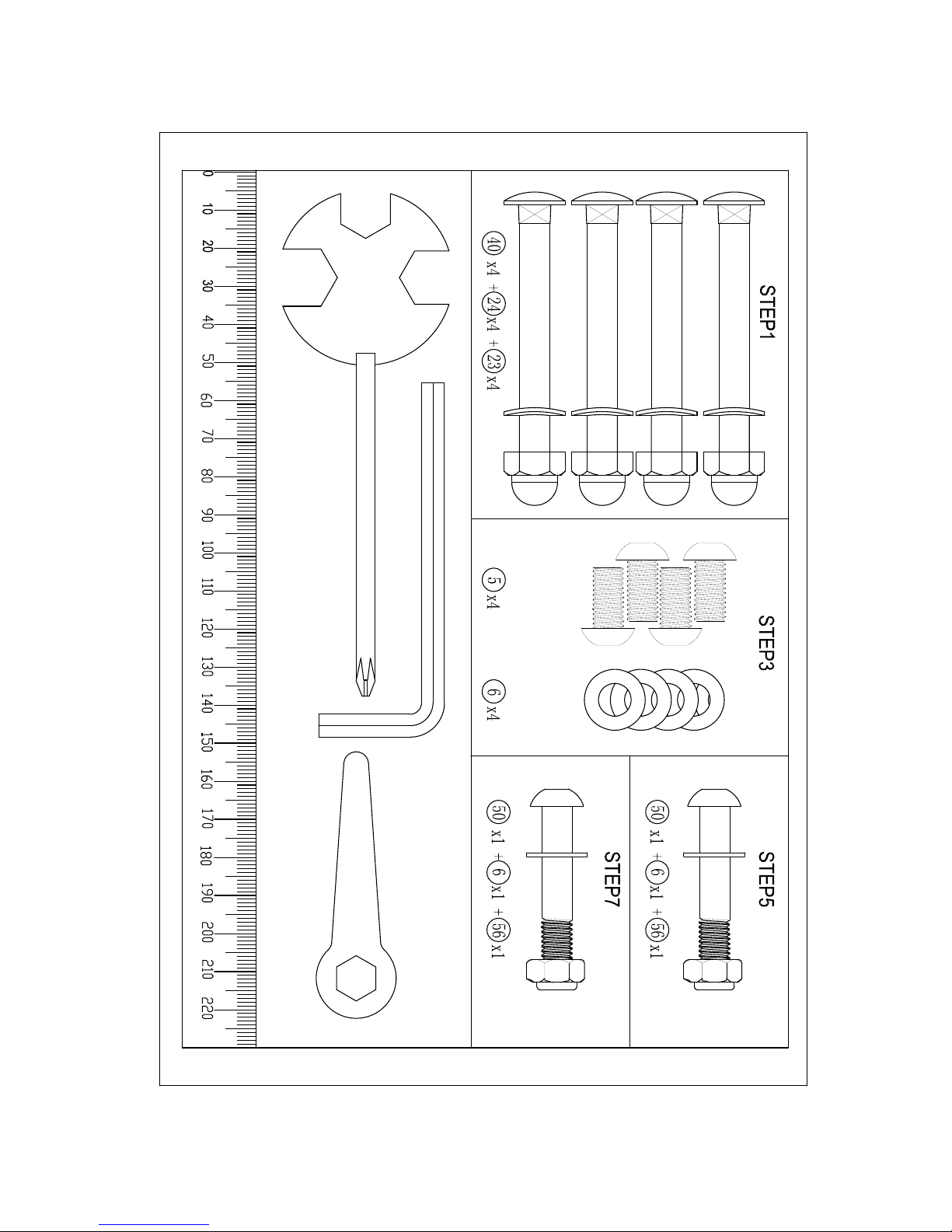

HARDWARE PACK
6
CB1 ASSEMBLY INSTRUCTIONS

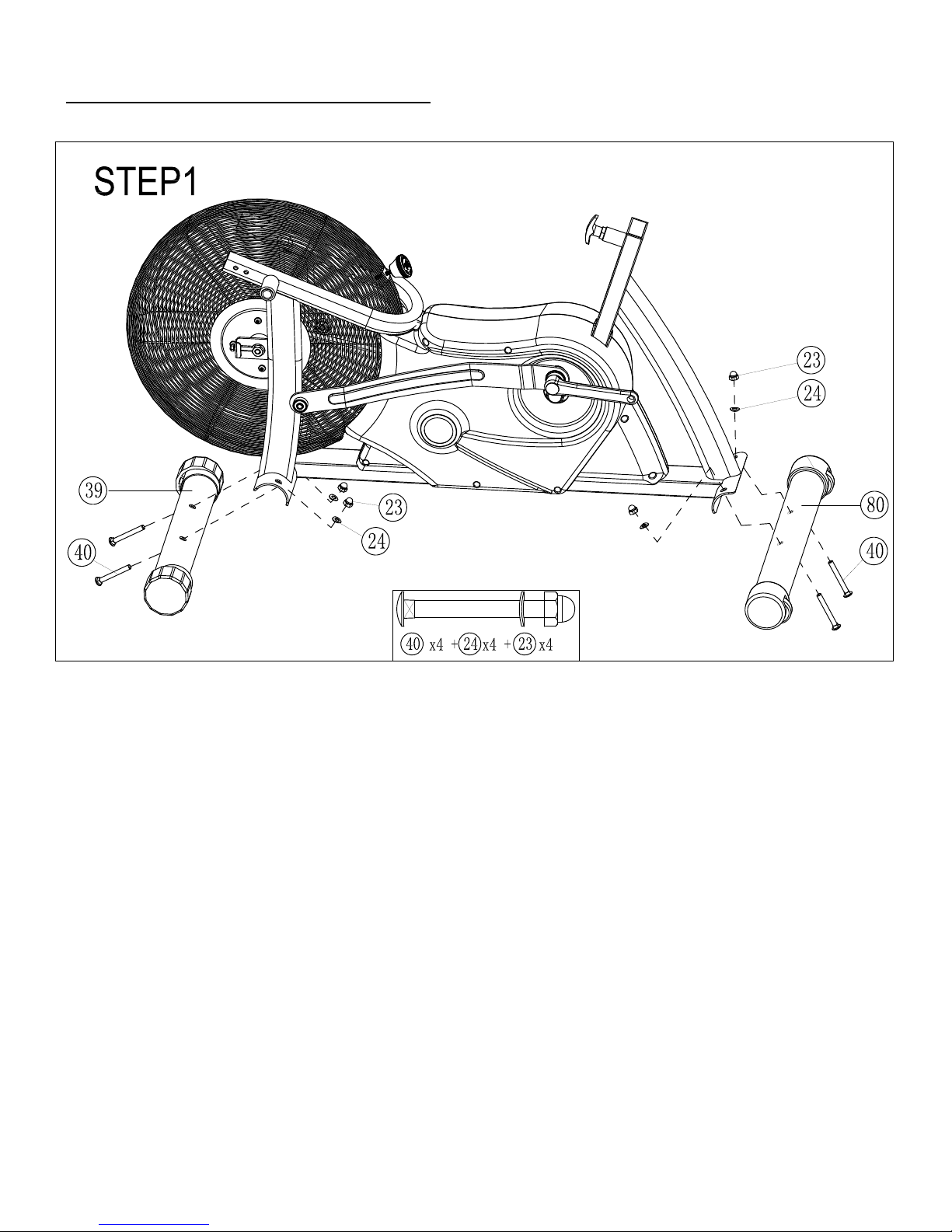

STEP 1: FRAME STABILIZER ASSEMBLY
1. AttachFrontStabilizerAssembly(#39)totheFrontMountingBracketusingQty.2CarriageBolts(#40),
Qty.2FlatWashers(#24)andQty.2AcornNuts(#23).
2. AttachRearStabilizerAssembly(#39)totheRearMountingBracketusingQty.2CarriageBolts(#40),
Qty.2FlatWashers(#24)andQty.2AcornNuts(#23).Ensuretherollerwheelsarefacing
backwards.
7

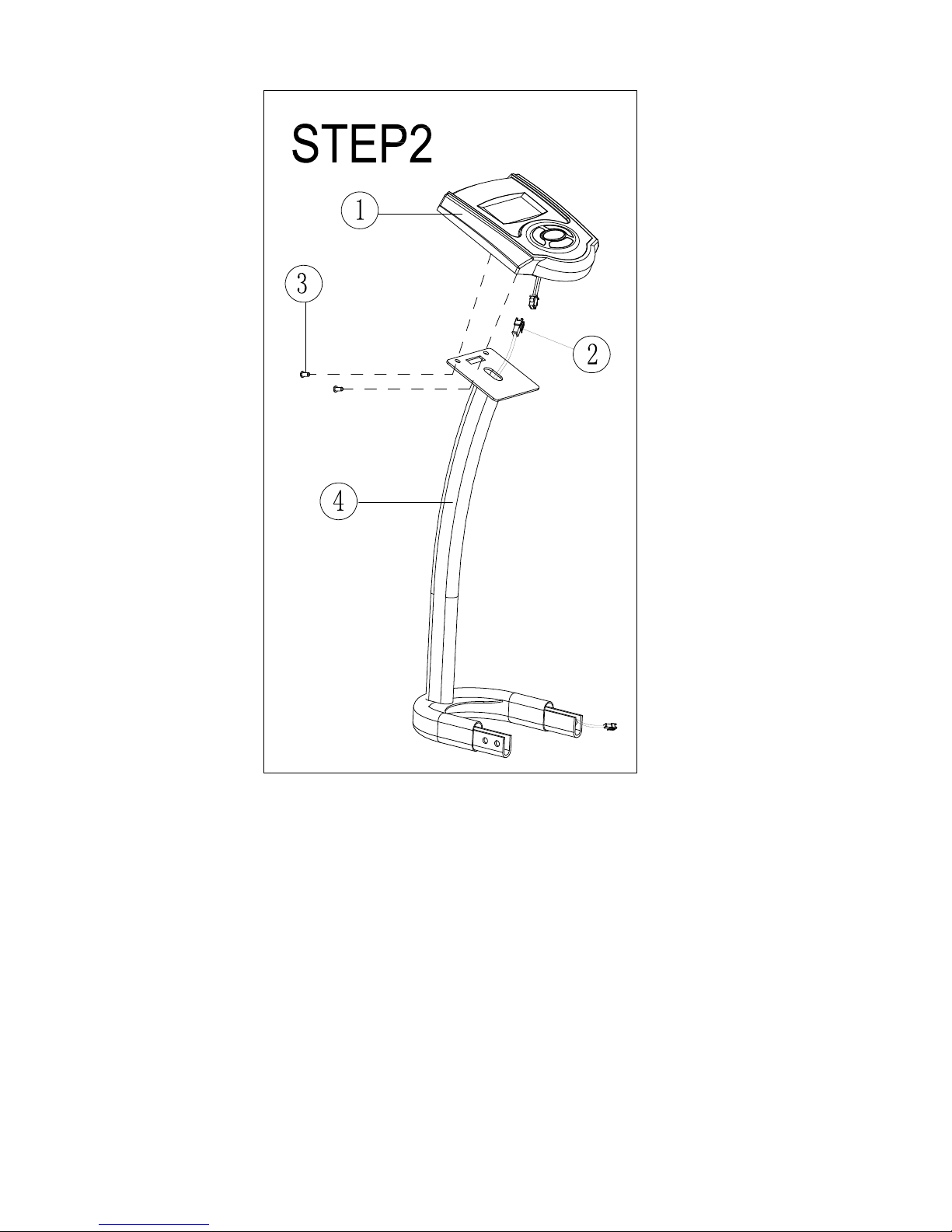

STEP 2: CONSOLE MAST ASSEMBLY
1. Connectwire(#2)totheconsole(#1).Pushconnectionthroughconsolemastopeningsothatconsole
sitsflatonconsolemountingplate.
2. SecureConsole(#1)toConsoleMast(#4)usingqty.2screws(#3).
8
STEP 3 CONSOLE ASSEMBLY
1. Connecttheconsolewire(#2)tomainframewire(#37)thenattachconsolemast(#4)tomainframe(#35)
usingqty.4button‐headscrews(#5)andqty.4washers(#6).
9
STEP 4: LEFT SWING ARM
1. Slidefrontpivotaxle(#28)throughtheLeftSwingArmAssembly(#30L)andscrewintomainframe(#35).
NOTE:TheLeftSwingArmbearingassemblycontainsaspacerbetweenbothbearingswhichmayprevent
thepivotaxlefrompassingthroughsmoothly.Topassthepivotaxlethrough,placeyourfingerinthe
bearingholeandcenterthespacer.
10
STEP 5: LEFT CONNECTING LINK
1. AttachLeftSwingArmAssembly(#30L)atbottomtoConnectingLink(#48L)usingqty.1bolt(#50),qty.
washer(#6)andqty.1nut(#56).
11
STEP 6: RIGHT SWING ARM
1. SlideFrontPivotAxle(#28)throughtheRightSwingArmAssembly(#30R)andscrewintomainframe(#35).
NOTE:TheLeftSwingArmbearingassemblycontainsaspacerbetweenbothbearingswhichmayprevent
thepivotaxlefrompassingthroughsmoothly.Topassthepivotaxlethrough,placeyourfingerinthe
bearingholeandcenterthespacer.
12

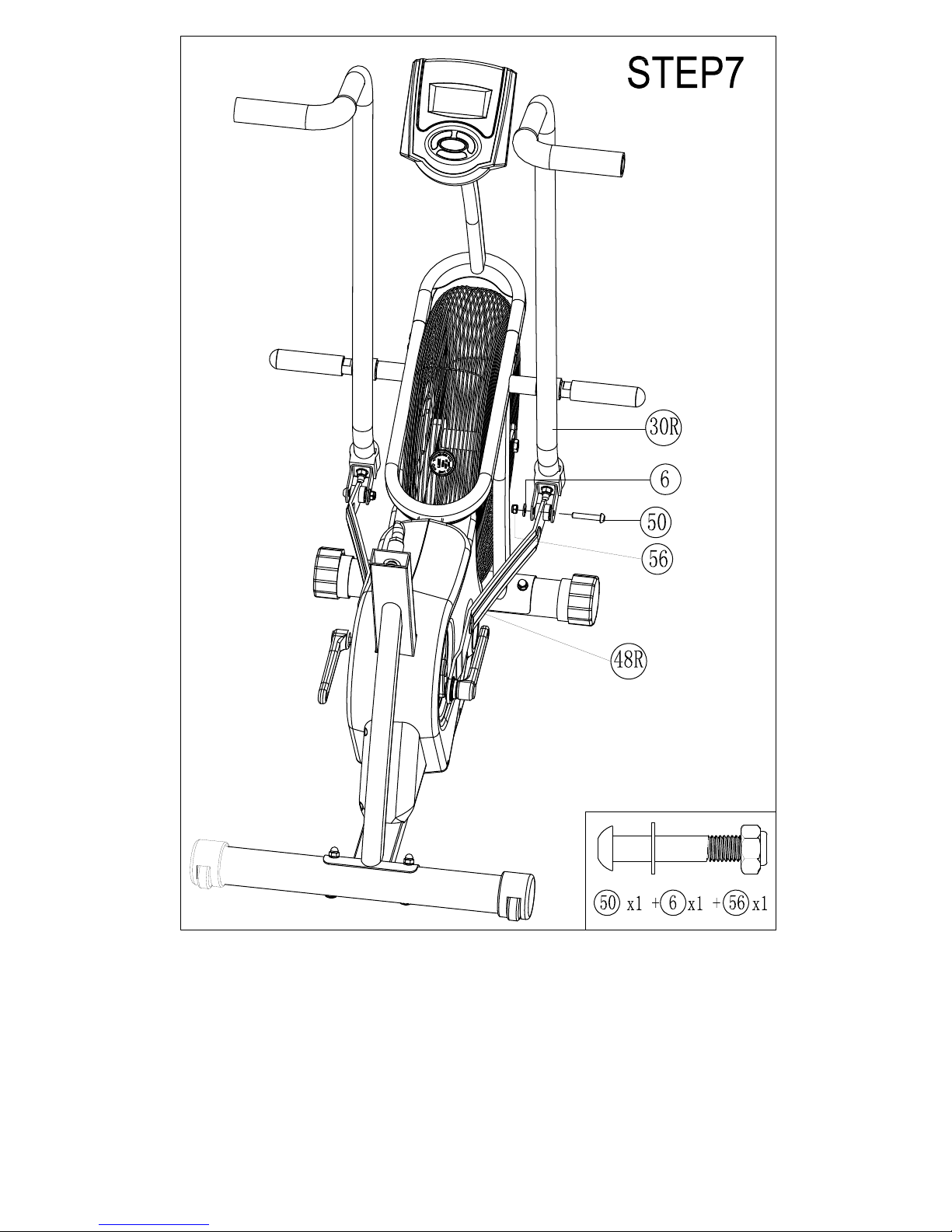

STEP 7: RIGHT CONNECTING LINK
1. Attach Right Swing Arm Assembly (#30R) at bottom to Connecting Link crank (#48R) using qty. 1 bolt (#50), qty.
1 washer (#6) and qty. nut (#56).
13
STEP 8 PEDALS
1. ScrewLeftPedal(#41L)ontoLeftCrank(#44L).
NOTE:TheLeftPedalhasand“L”stickerandisaLEFTHANDEDthread.TurnCOUNTER‐CLOCKWISEtotighten.
2. ScrewRightPedal(#41R)toRightCrank(#44R).
14
STEP 9: SEAT POST
1. Attach Seat (#31) to Seat Mast (#34) using qty. 3 washers (#32) and qty. 3 nuts (#33).
15

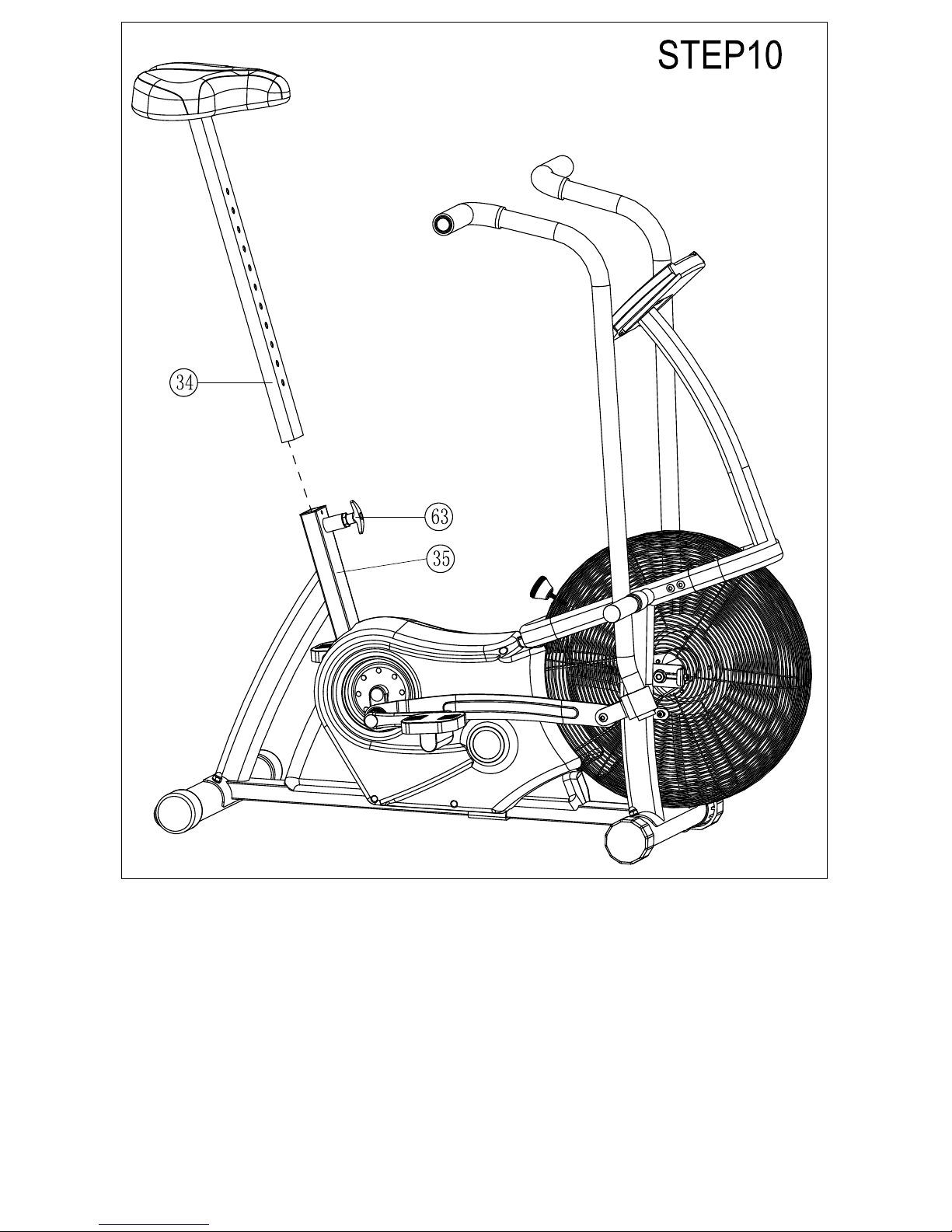

STEP 10: SEAT POST ASSEMBLY
1. Slide Seat Mast (#34) into Main Frame (#35). Insert the Adjustment Knob (#63).
16
STEP 11: CHILD SAFETY KNOB
1. ScrewintheChildSafetyKnob(#22)asshown.
IMPORTANT!
AlwaysengagetheChildSafetyKnob(#22)whennotusingtheunit.Failuretodosoposesadangerto
children.
17

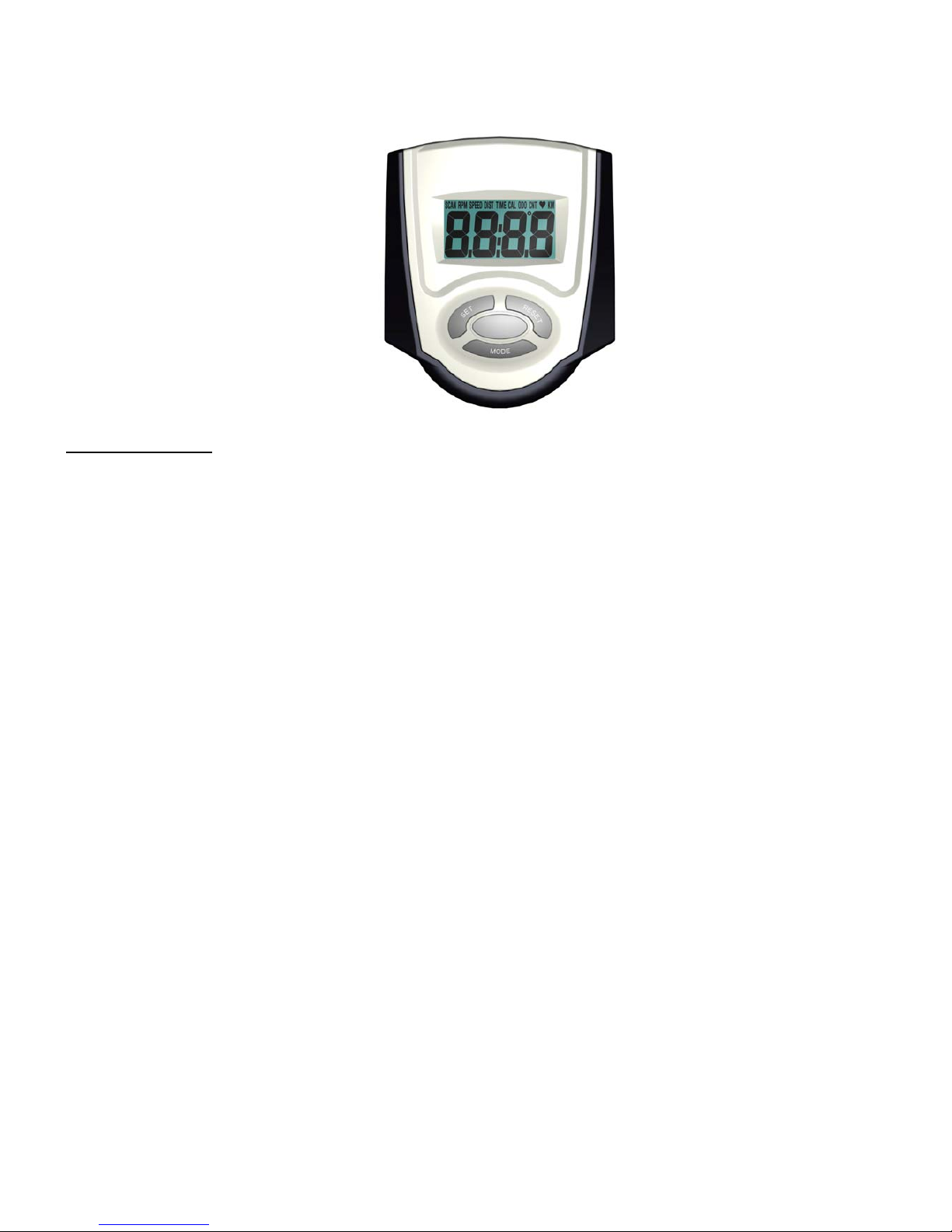

COMPUTER OPERATION
FUNCTION BUTTONS
MODE
- Press to display different values on LCD screen. LCD can display SPEED, DISTANCE,
SCAN (Auto), TIME, CALORIES, ODOMETER.
- Press and hold for 2 seconds to reset all values to zero (except ODOMETER).
(When user replaces the batteries, all the values will reset to ZERO automatically.)
SET
- Set a target value for TIME, DISTANCE or CAL. When you start pedaling the target value will begin
counting down to zero. NOTE: When setting a target you cannot be pedaling or computer will not set
target.
- Press and hold for 2 seconds to speed up the increment.
RESET
- Press to reset value to zero when setting target value. Press and hold the RESET button to reset the
computer and set the target.
- Press and hold for 2 seconds to restart the computer.
(When the user replace batteries, all the values will reset to ZERO automatically.)
18
FUNCTIONS & OPERATION
1. Battery Installation
Install 2 AA 1.5V batteries in the battery case on the back of monitor.
(Whenever the batteries are removed, all the values will be reset to zero.)
2. Auto On/Off
When the user starts to pedal, the display will start automatically. After pedaling has stopped for over 256 sec, the display will
turn off, but the value of odometer will be stored. When the user starts pedaling again, the odometer will continue to count
incrementally.
3. Auto Scan
Press the MODE button until “SCAN” is displayed in the UPPER LEFT corner of the LCD. SCAN function will display all
values for TIME-CAL-ODOMETER-SPEED- DISTANCE. Each value will display for 6 seconds.
4. Speed
Shows the current training speed (MPH).
5. Distance
Accumulates the total distance from 0.0 up to 999.9 Miles. The user may preset a target distance by pressing SET button when
DIST is displayed (Do NOT pedal when setting target). Each increment is 0.1 Miles when distance is less than 100 Miles,
each increment is 1 Mile for distances between 100 and 999 miles. The unit counts down from the target to 0 when a target is
set. The computer beeps when the target DISTANCE is reached
6. Time
Accumulates total workout time from 00:00 up to 99:59. The user may preset a target TIME by pressing SET button when
TIME is displayed (Do NOT pedal when setting target). The unit counts down to 0 after target TIME is set. The computer
beeps when target TIME is reached.
7. Calories
Accumulates calorie consumption during training from 0 up to 9999 calories. The user may also preset a calorie target
before training by pressing SET when CAL is displayed (Do NOT pedal when setting target). Each incremental increase is 1
calorie until 1000, then each incremental increase will be 10 calories until 9990. When a calorie target is set, the computer
counts down to 0 calories. Computer beeps when calorie target is reached.
Note : This data is a rough guide and should not be used for medical treatment or analysis.
8. Odometer
Displays the total accumulated distance from 0.0 to 999.0 Miles. User may press MODE key to display the Odometer value.
9. Reset
Press and hold for 2 seconds to reset all values to zero (except ODOMETER).
Note:
1. If the computer displays abnormally, please remove and reinstall the batteries and try again.
2. Battery Spec: 1.5V UM-3 or AA (2PCS).
19
PARTS LIST
1BC865‐630‐001RSComputer1TZ‐2153
2computerconnection
cable
1
3 crossrecessedpan
headscrew
2
4BC865‐220‐002Frontposttube
assembly
1
50113‐208‐158Ahexsocketpanhead
screws
4
M8*15
60116‐008‐028Flatwasher6φ8,blackzincplated
70110‐410‐06Hexflangenut4M10*1；Zincplated(Grade:8.8)
8B430‐561‐020LockingBolt3M6*60
9BC12‐011‐92Ushapeplate3δ1.5
100116‐306‐02SpringWasher4Φ6
110110‐006‐12Hexnut4M6
120113‐106‐128crossrecessedpan
headscrew
5
M6*12，BlackZincplated
130110‐010‐91XHexthinnut4M10*1,Zincplated
14BC866‐380‐002FlywheelShaft
Assembly
1
150117‐110‐118Axlering4φ10
160110‐705‐009NylonNut3M5,black
170171‐600‐01Bearing46000Z
18BC865‐560‐006Leftnetcoverassembly 1φ490*56，Black
19BC866‐881‐001PlasticFlywheel1φ460*70，Black
20BC865‐560‐007Rightnetcover
assembly
1
φ490*56，Black
210113‐105‐108crossrecessedpan
headscrew
3
M5*10,black
22BC865‐881‐016Knob1M6*25
230110‐308‐008Acornnut4M8
240116‐608‐008Arcshapespringring4φ8,blackzincplated
25BC866‐861‐001FoamGrip2φ37*φ30*230mmblack
260240‐031‐09EndCap2Fitwithφ31.8*1.5mmroungtube,
black
27G810‐821‐003HandlebarGrip32120（onesidesealed）
28BC866‐220‐004Handlebarmainshaft2
290171‐690‐093Bearing46903ZZ
30LBC865‐320‐001LeftHandlebar
Assembly
1
30RBC865‐320‐002RightHandlebar
Assembly
1
31BC865‐400‐001Seat1SB‐31w/ologoprinting
20
32 Flatwasher3φ8(w/seat)
33 NylonNut3M8，(w/seat)
34BC865‐400‐001SeatPostassembly1
35BC865‐220‐001MainFrameAssembly1
36M310‐881‐003cableplug2Fitw/Φ12mmhole
37 Lowerconnectioncable
(forcomputer)
1
38A910‐0001‐017FrontFootTubeend
cap
2
Fitw/Φ60mmroundtube
39BC865‐221‐007RearFootTube
1
Φ60
400111‐408‐708Panheadsquareneck
bolt
4
M8*70
41LBC865‐341‐001LeftPedal1
41RBC865‐341‐001RightPedal1
42BC12‐221‐41Cap4
430110‐410‐01Hexflangenut4M10*1.25
44LBC128‐561‐015LeftCrank15.5"(black)
44RBC128‐561‐016RightCrank15.5"(black)
45BC866‐881‐003Nylonwasher2φ30*φ16*5
46 Cring4forbearing
47BC865‐561‐011Bearing299502ZZw/2C‐ring&slots
48LBC865‐380‐001Leftsidepedalarm
connectionplate
1
48RBC865‐380‐002Rightsidepedalarm
connectionplate
1
49BC865‐561‐012Shoulderbearing4
608Z，Shouldersize:2.5mm,5.5mm;
Centerhole:Φ8mm
500113‐208‐458AHexagonsockethead
capscrews
2M8*45，Threadlength:
15mm;blackzincplated
510251‐610‐02Plasticspacer2
520116‐210‐02Bigflatwasher2
530110‐710‐11Nylonnut2M10*1
54BE865‐561‐003CrankConnector1Blackzincplated
55BC865‐350‐001Ushapebracket2
560110‐708‐028NylonNut2M8
570114‐142‐198Philipheadtapping
screw
3
ST4.2*19
580116‐418‐31Arcshapespring
washer
2
φ26*φ17.8*0.3
59BC15‐340‐01PlasticSleeve2Black
600114‐142‐608Panheadtappingscrew 1ST4.2*60
