Inspire IC 1 User manual

2
Table of Contents
Before You Begin ........................................................................................2
Important Safety Notices .............................................................................4
Warning Label Placement ............................................................................5
Contents of Pac aging .................................................................................6
Hardware Pac .............................................................................................7
Assembly Instructions ............................................................................ 8-15
Parts List .............................................................................................. 16-18
Exploded Diagrams ....................................................................................19
Warranty ....................................................................................................20
Before You Begin
Than you for selecting the INSPIRE SPIN BIKE. For your safety and benefit,
read this manual carefully before using the machine. As a manufacturer, we are
committed to providing you complete customer satisfaction. If you have any
questions, or find there are missing or damaged parts, please call our TOLL-
FREE customer service number. Our Customer Service Agents will provide
immediate assistance to you.
Toll-Free Customer Service Number
1-877-738-1729
on. - Fri. 8 a.m. - 5 p.m. PST
www.inspirefitness.net
www.cardiostrider.com

3
This Page Intentionally
Left Blank

4
I PORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual before
you assemble or operate your machine. In particular, note the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine. The linkages on this
machine can cause serious injury or death if used improperly.
2. Never place your hands or feet in the path of the lin ages because injury may occur to you
or damage may occur to the equipment. Never allow children to come near or approach
the moving lin ages while in use.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the wor out at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate wor out clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp objects around the machine.
9. Disabled persons should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. Maximum user weight 300 lbs.
CARE AND AINTENANCE
1. Keep seat slider clean
2. Inspect and tighten all parts before using the machine.
3. The Frame and Seat Pad of the machine can be cleaned using a damp cloth and mild
non-abrasive detergent. DO NOT use solvents.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRA , CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY I PORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLE S. READ
ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIP ENT. Neither Health
In otion, LLC. nor FG1, LLC. ASSU ES ANY RESPONSIBILITY FOR PERSONAL
INJURY OR PROPERTY DA AGE SUSTAINED BY OR THROUGH THE USE OF
THIS PRODUCT.

5
Warning Label Placement
The warning labels have been placed on the unit in location shown. If the labels are missing
or illegible, please call customer service at 1-877-738-1729 for replacements. Apply the labels
in the location shown.

6
Contents of Packaging

7
IC1 Hardware Pack
NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure
the size.

8

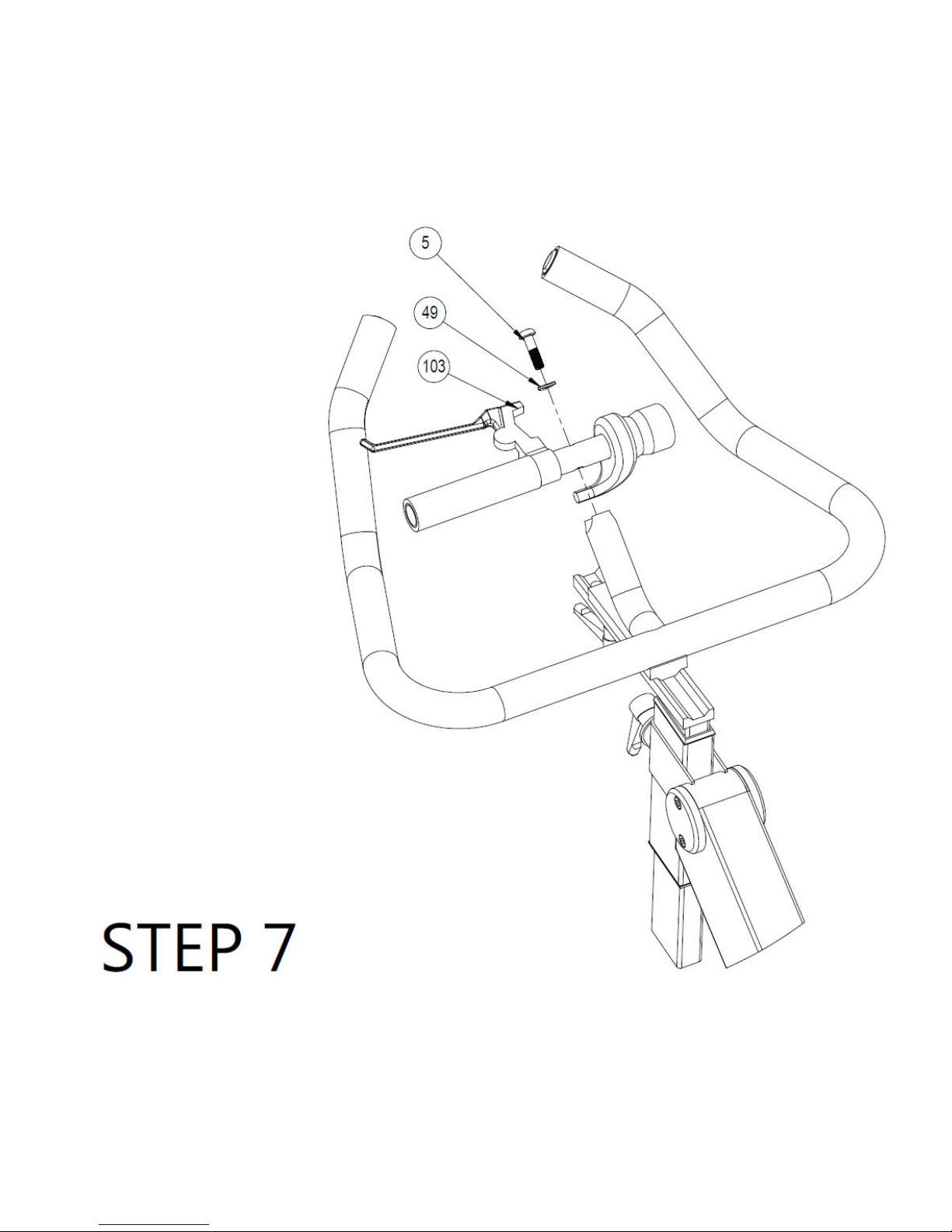

Spin Bike Assembly Instructions

9

10

11

12

13

14

15

16
Parts List
Part
No. Description odel Qty
1 Round Tube plug 2
5 Allen Head Screw M8 X 40 1
6 Resistance Adjuster 1
7 Foam Cover 2
8 Handlebar Assembly 1
9 Enlarged Washer Ø10 1
10 L Shaped Handlebar 2
16 Plastic Tubing Sleeve 1
17 Handlebar Support Tube Assembly 1
18 Tube Bushing 1
19 Square Tube plug 1
20 Handlebar Adjuster Tube Assembly 1
21 Bra e pad 1
23 Fixed Bra e plate 1
24 Bra e Spring plate 1
25 Pan Head Screw M5 X 8 1
26 Hex Nut M5 1
28 Pan Head Screw M6 X 8 4
29 Bra e Spring plate Washer 1
30 Cap Nut M6 2
37 Flywheel 1
43 Flywheel Shaft 1
44 Hex Head Bolt M6 X 40 2
45 Roller Bushing 2
46 Roller Wheel 2
47 Loc Nut M6 4
48 Front Support Tube 1
49 Arc Spacer Ø8 X δ1.5 5
50 Cap Nut M8 4
51 Front Round Tube plug 2
52 Leveling pad 4
53 Hex Nut M8 4
54 Pan Head Square Nec Bolt M8 X 70 2

17
55 Cap 2
56 Pedal, L 1
57 Hex Flange Nut M12 X 1.25 2
58 Cran , L 1
63 Spindle Shaft 1
64 Belt Pulley 1
65 Hex Soc et Countersun Head Screws M8 X 20 4
66 Ribbed Belt 1
67 Cran , R 1
68 Pedal, R 1
69 Round Tube Plug 2
70 Rear Foot Assembly 1
71 Pan Head Square Nec Bolt M8 X 85 2
72 Tube Bushing 1
73 Square Tube Bushing 1
74 Cross Pan Head Screw ST4.2 X 13 2
75 Main Tube Lower Trim Cover 1
78 Threaded Pressure Peg Holder Ø38 X δ11 1
79 Hex Bolt M6 X 4.5 1
80 Bra e Lever Arm 1
81 Tension Spring 1
82 Washer Ø6 2
83 Roller Wheel 1
84 Bra e Cable 1
85 Bra ing Box 1
86 Primary Tube Upper Trim Cover 1
87 Cross Pan Head Screw ST4.2 X 10 1
88 Bottle Cage 1
89 Cross Pan Head Screw M5 X 10 2
90 Bottle 1
91 Square Tube Plug 3
93 Seat Tube Assembly 1
95 Seat Cushion 1
96 Seat Tube 1
97 Loc Nut 24 X 24
X12 1
98 Allen Wrench 5MM 1
99 Wrench with Crosshead Screwdriver 1

18
100 Cross Recessed Countersun Head Screw M5 X 20 1
101 Front Support Tube Assembly 1
102 Rear Support Tube Assembly 1
103 Resistance & Bra e Handle Assembly 1
104 Belt Tension Brac et Assembly 1
105 Flywheel Assembly 1
106 Bra e Box Assembly 1

19
EXPLODED DIAGRA S

20
Warranty
