IC1.5C PARTS LIST...........................................................................................................14
REGISTER WARRANTY ONLINE
To register your product for warranty, visit www.puretecfitness.com
BEFORE YOU BEGIN
Thank you for choosing the Inspire IC1.5 Indoor Cycle. For your safety and benefit, read this manual carefully before
using the machine. We are committed to providing you complete customer satisfaction. If you have any questions,
or find there are missing or damaged parts, please contact our Customer Solution Department. Our
Customer Service Agents will provide immediate assistance to you.

Pg. 3
IMPORTANT SAFETY NOTICE
Precautions
This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of
exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. Please note the
following safety precautions:
1. Always keep children and pets away from the machine. DO NOT leave children unattended in the same room with the
machine. The linkages on this machine can cause serious injury or death if used improperly.
2. Never place your hands or feet in the path of the pedals because injury may occur to you or damage may occur to the
equipment. Never allow children to come near or approach the moving linkages while in use.
3. Feet should be fully rested and securely strapped onto the pedals during the entire workout.
4. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout at once.
CONSULT A PHYSICIAN IMMEDIATELY.
5. Position the machine on a clear, leveled surface. DO NOT use the machine near water or outdoors.
6. Keep hands away from all moving parts and flywheel.
7. Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that could become
caught in the machine. Running or aerobic shoes are also required when using the machine.
8. Use the machine only for its intended use as described in this manual. DO NOT use attachments not recommended
by the manufacturer.
9. Do not place any sharp objects around the machine.
10. Disabled persons should not use the machine without a qualified person or physician in attendance.
11. Before using the machine to exercise, always do stretching exercises to properly warm up.
12. Never operate the machine if the machine is not functioning properly.
13. Maximum user weight 136 kg (300 lbs).
14. Operating frequency: 2402-2800MHz, Max transmit power: 1mW.
Care and Maintenance
1. Inspect and tighten all parts before using the machine.
2. The Frame and Seat Pad of the machine can be cleaned using a damp cloth and mild non-abrasive detergent. DO NOT
use solvents.
WARNING
BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY
IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH
PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. PURE-TEC LTD
DOES NOT ASSUME ANY RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED
BY OR THROUGH THE USE OF THIS PRODUCT.

Pg. 4 V1.0-CCA
FAILURE TO FOLLOW INSTRUCTIONS MAY LEAD TO SERIOUS
PERSONAL INJURY. FLYWHEEL MOMENTUM WILL KEEP PEDALS
TURNING EVEN AFTER YOU STOP PEDALING. DO NOT ATTEMPT TO
DISMOUNT BIKE OR REMOVE FEET FROM PEDALS UNTIL PEDALS
HAVE COMPLETELY STOPPED. ALWAYS RIDE IN CONTROL. MAKE
SURE ALL PULL PINS, LOCKS, AND SAFETY LATCHES ARE IN PLACE
AND FULLY ENGAGED BEFORE EACH USE.
WARNING
PURE-TEC LIMITED
SALES & SERVICE: [email protected]
MODEL: IC15
MADE IN CHINA
SERIAL NUMBER
IC15-20-XX-XXXXXX
Model name:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
FCC ID:
IC1.5
2ATO8INSPIREIC105
Health in Motion, LLC.
255 Airport Circle, Suite 101.
Corona, California 92880, United States.

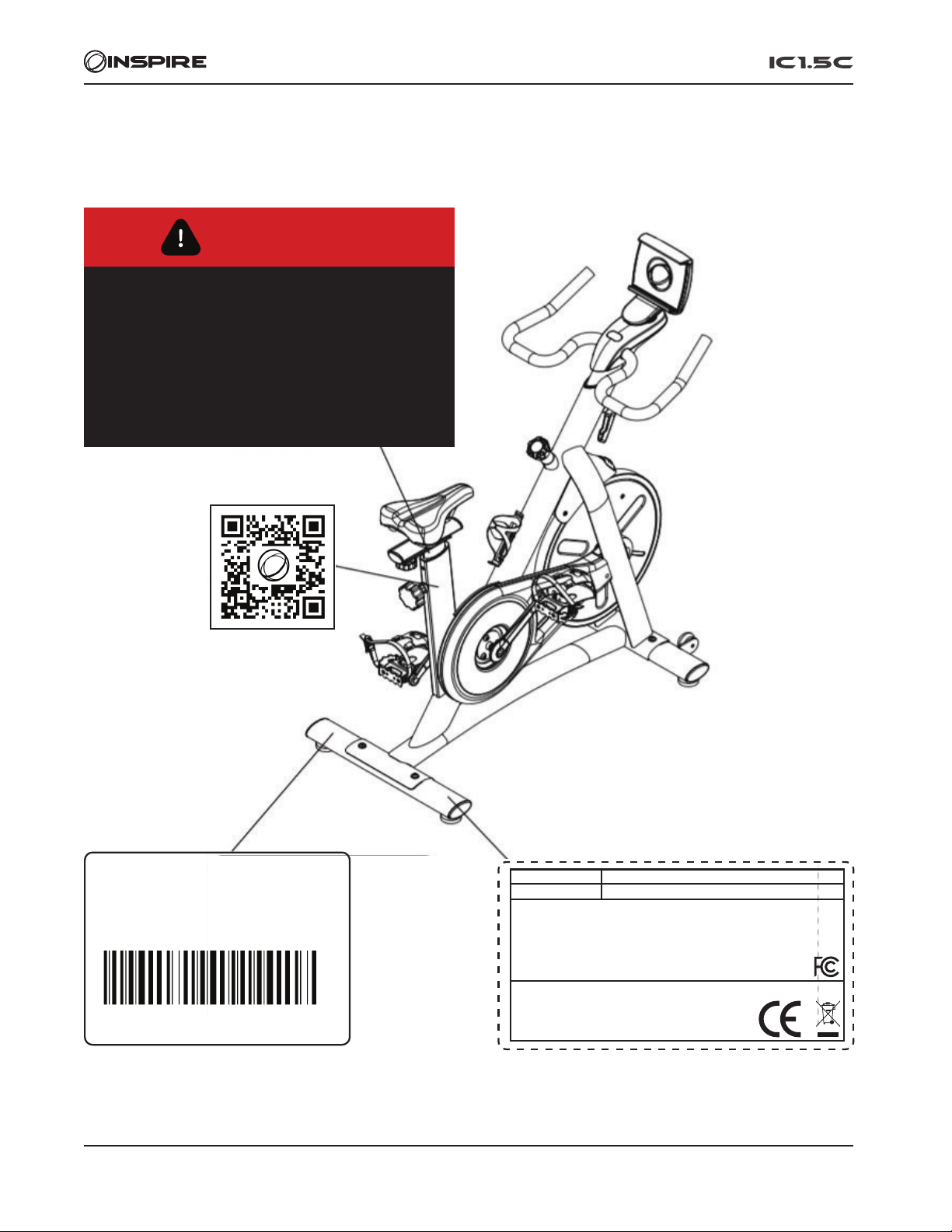

WARNING AND IMPORTANT LABEL PLACEMENT

Pg. 5
ASSEMBLY AND SETUP
Package Contents
ID. NAME QTY. ID. NAME QTY.
1 Frame 15Pedals, Right & Left 2
2 Handlebars 1118 Tablet Mount 1
3Front Foot Tube 1119 Hardware Kit 1
4Rear Foot Tube 1

Pg. 6 V1.0-CCA
IC1.5C Assembly Hardware Kit
NOTE: The parts shown are not drawn to scale. Please use your own ruler or scale to measure the size.
ID. NAME QTY.
20 Button Head Cap Screw (M8*45) 4
22 Socket Head Cap Screw (M8*60) 2
BBattery 1
21 Flat Washer 6
24 Handlebar Logo Cover 1
T1 Wrench 1
T2 Allen Wrench #5 1
T3 Allen Wrench #6 1
114 Socket Head Cap Screw (M6*16) 2
Button Head Cap Screw (M8*45)
Flat Washer
Wrench
Battery
Allen Wrench #5
Allen Wrench #6
Handlebar Logo Cover
Socket Head Cap Screw (M8*60)
Socket Head Cap Screw (M6*16)
Flat Washer

Pg. 7
ASSEMBLY INSTRUCTIONS
Step 1
Attach the front foot tube (3) and rear foot tube (4), using button head cap screws (20) with washers (21). Use the Allen
wrench #5 (T2).
Step 2
Slide the handlebars (2) into position on the frame (1), secure with two socket head cap screws (22) with washers (21). Use
the Allen wrench #6 (T3). After tightening the cap screws insert the handlebar logo cover (24) into place as shown.

Pg. 8 V1.0-CCA
Step 3
Attach the right and left pedals (5), keep in mind when installing the left pedal that it has left-handed thread. Use the
wrench (T1). Attach the tablet mount (118) to the handlebars (2) using two socket head cap screws (114). Use the allen
wrench #5 (T2).
Step 4
Remove the battery cover and carefully pull out the battery holder circuit board. Install the provided battery (B) into the
circuit board. Then reinstall the circuit board and cover.
1.WARNING – KEEP BATTERIES OUT OF
REACH OF CHILDREN.
2. Swallowing may lead to serious injury in
as little as 2 hours or death, due to chemical
burns and potential perforation of the
esophagus.
3. If you suspect your child has swallowed or
inserted a button battery, immediately seek
urgent
medical assistance.
4. Examine devices and make sure the
battery compartment is correctly secured,
e.g. that the screw or other mechanical
fastener is tightened. Do not use if
compartment is not secure.
5. Dispose of used button batteries
immediately and safely. Flat batteries can
still be dangerous.
6. Tell others about the risk associated with
button batteries and how to keep their
children safe.

Pg. 9
ADJUSTMENT FEATURES
Handlebar Hand Positions
• Seated Flat – Hand Position 1 or 2
• Seated Climb – Hand Position 2
• Standing Flat – Hand Position 2
• Standing Climb – Hand Position 3
• Jumps – Hand Position 2
RESISTANCE ADJUSTMENT AND
PUSH TO STOP KNOB TABLET MOUNT ANGLE
ADJUSTMENT
SEAT FORE AND AFT
ADJUSTMENT
SEAT HEIGHT
ADJUSTMENT
FRAME LEVELING PADS
HANDLEBAR HEIGHT
ADJUSTMENT

Pg. 10 V1.0-CCA
APP DOWNLOAD
Need some workout ideas and motivation? Ready to ride with some
of the best trainers in the nation? Start your FREE trial of our all-new
mobile app. It’s filled with live and on demand video workouts, as
well as written workout plans designed by our very own trainers.
NOTES
ANT, ANT+ and the ANT+ logo are trademarks of Garmin Switzerland GmbH. The Bluetooth® trademarks—including the
BLUETOOTH word mark, the gure mark (the letter “B” and oval design), and the combination mark (Bluetooth word mark
and design)—are owned by the Bluetooth SIG.
REGULATORY INFORMATION
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in an individual installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try
to correct the interference by one of the following measures:
• Reorient or relocate the bike.
•Increase the distance between the bike and the affected receiver.
•Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance,
any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
IC Statement
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development
Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre
le fonctionnement.

Pg. 11
Hazardous Materials and Proper Disposal
The batteries within self-powered equipment contain materials considered hazardous to the environment. Federal law
requires proper disposal.
Product Recycling and Disposal
This equipment must be recycled or discarded per applicable local and national regulations. Product labels, in accordance
with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE, determine the
framework for the return and recycling of used equipment as applicable throughout the European Union. The WEEE label
indicates that the product is not to be thrown away, but rather reclaimed upon end of life per this Directive. In accordance
with the European WEEE Directive, electrical and electronic equipment (EEE is to be collected separately and to be reused,
recycled, or recovered at end of life. Users of EEE with the WEEE label per Annex IV of the WEEE Directive must not dispose
of end of life EEE as unsorted municipal waste. Always use the collection framework available to customers for the return,
recycling, and recovery of WEEE. Customer participation is important to minimize any potential eects of EEE on the
environment and human health due to the potential presence of hazardous substances in EEE. For proper collection and
treatment, contact Pure-Tec Ltd Customer Solution Department.
RED Declaration of Conformity (DOC)
Health In Motion, LLC 255 Airport Circle, Suite 101 Corona,
California 92880, United States declare under our sole responsibility
that the product: Spin Bike IC1.5 to which this declaration relates is in
conformity with the essential requirements and other relevant
requirements of the RED Directive (2014/53/EU).
The product is in conformity with the following standards and/or other
normative documents:
Health & Safety (Art. 3(1)(a)): EN 62479:2010
EMC (Art. 3(1)(b)): EN 55014-1:2017 + EN55014-2:2015 + Draft ETSI EN
301 489-1 V2.2.0:2017 +
Draft ETSI EN 301 489-17 V3.2.0:2017
Spectrum (Art. 3(2)): EN 300 328 V2.1.1:2016
Technical File Held by: Health in Motion, LLC
Place and Date of Issue: 2020/5/14

Pg. 12 V1.0-CCA
WARRANTY
This Warranty applies to Inspire cardio products manufactured or distributed by Pure-Tec Ltd
Inspire IC1.5C Warranty Periods
RESIDENTIAL WARRANTY
10 Years
3 Years
1 Year
FRAME – Includes Main Frame and Welds
PARTS – Excluding Paint and Finish (unless defective out of box)
LABOR
Pure-Tec Ltd warrants that the Product you have purchased for personal, family or household use from Pure-Tec Ltd
is free from defects in materials or workmanship under normal use during the warranty period. Your sales receipt,
showing the date of purchase of the Product, is your proof of the date of purchase. This warranty extends only to you, the
original purchaser. It is not transferable to anyone who subsequently purchases the Product from you. It excludes
expendable parts such as paint and finish. This Warranty becomes VALID ONLY if the Product is assembled / installed
according to the instructions / directions included with the Product. Please visit www.puretecfitness.com to register
your product ahead of time and stay up to date with product updates.
Replacement and Repair of Parts
During the warranty period Pure-Tec Ltd will, at no additional charge, repair or replace the Product if it becomes
defective, malfunctions, or otherwise fails to conform with this Warranty under normal personal, family, or household use.
In repairing the product Pure-Tec Ltd may replace defective parts with, at the option of Pure-Tec Ltd, serviceable
used parts that are equivalent to new parts in performance, or new parts. All exchanged parts and Products replaced
under this warranty will become the property of Pure-Tec Ltd. Pure-Tec Ltd reserves the right to change
manufacturers and or specification of any part to cover any existing warranty.
Service Procedures
To obtain warranty parts, you must return the parts to Pure-Tec Ltd in its original container (or equivalent). You must
pre-pay any shipping charges, taxes, or any other charges associated with transportation of the Product. In addition, you
are responsible for insuring any Product shipped or returned. You assume the risk of loss during shipment. You must
present Pure-Tec Ltd with proof-of-purchase documents (including the date of purchase, Model, and Serial Number.
Any evidence of alteration, erasing or forgery of proof-of-purchase documents will be cause to void this Warranty. To
register your warranty visit: www.puretecfitness.com/warranty-registration-page
Conditions and Exceptions
This Warranty does not extend to any Product not purchased from Pure-Tec Ltd. This Warranty does not extend to any
Product that has been damaged or rendered defective; (a) as a result of accident, misuse, or abuse; (b) by the use of
parts not manufactured or sold by Pure-Tec Ltd; (c) by modification of the Product; (d) as a result of service by anyone
other than Pure-Tec Ltd or an authorized Pure-Tec Ltd warranty service provider; (e) product that has not been
properly maintained (follow maintenance schedule found on product. Should any product submitted for Warranty service
be found to be ineligible, an estimate of repair cost will be furnished, and the repair will be made if requested by you
upon Pure-Tec Ltd receipt of payment or acceptable arrangement of payment.

Pg. 13
IC1.5C EXPLODED VIEW

Pg. 14 V1.0-CCA
No. SKU Description Qty.
1BC423-200-010 Main Frame 1
2BC423-320-006PZ Handlebar Assembly 1
3 BC423-220-004 Front Stabilizer 1
4BC423-220-003 Rear Stabilizer 1
5 L/R B465-340-001 Crank Pedal Right and Left 1
6 BC423-320-007 Handlebar Post 1
7 BC423-320-005 Seat Post Support 1
8 BC423-320-004 Seat Post Free Rail 1
9 BC423-340-001PZ Magnet Holder Assembly 1
10 BC423-380-001 Crankshaft Assembly 1
11 BC423-881-026 Resistance Knob Cover 1
12 BC423-881-025 Resistance Assembly Dial 1
13 BC423-561-024 Resistance Assembly Bolt 1
14 BC423-881-009A Decoration Cover 1
15 BC423-881-010 Square Nut-Top 1
16 BC423-881-011 Square Nut-Bottom 1
17 BC423-561-019 Sleeve 1
18 BC423-400-003 Seat 1
19 BC423-881-012B Plug 2
20 0117-208-004 Socket Cap Screw 2
21 0116-608-008 Arc Washer 6
22 0113-208-458A Hexagon Socket Button Head Screw 4
23 BC423-630-018/023 Battery Board (with Button Battery) 1
24 BC423-881-062 Logo Cover 1
25 BC423-321-009 Adjustment Plate 1
26 BC423-881-032A Slide Plate 1
27 BC423-881-034A Adjustment Knob 1
28 BC423-881-006A Tube Sleeve 1
29 BC423-881-027A Tube Sleeve 1
30 BC423-881-061 Seat Adjustment Knob 1
31 BC423-881-014A Plug 4
32 BE920-881-011 Rear Foot Pad 4
33 BC423-881-055A Transportation Rollers 2
34 BC423-881-001 Right Shroud 1
35 BE480-881-005 Cover 2
36 0110-410-592 Flange Nut 2
37 BC850-561-022 Right Crank 1
38 BC850-561-032 Left Crank 1
39 BC423-881-007A Bottom Bracket Cover 1
40 BC423-501-001 Belt 1
41 BC423-630-017 PCB Board 1
42 BC423-630-022 Plastic Washer 3
43 BC423-881-003 Cover 1
44 BC423-881-004 PCB Board Cover - A 1
45 BC423-881-005B PCB Board Cover - B 1
46 0110-720-101 Nylon Nut 1
47 0200-231-31C Bearing 2
48 BC423-881-035A L Knob 1
49 BC423-561-051 Sleeve 1
50 BC423-561-027 Magnet 1
51 BC423-561-055 Space 1
52 BC423-881-002 Left Shroud 1
53 BC423-380-001A Water Bottle Holder 1
54 0110-708-028 Nylon Nut 1
55 0110-706-028 Nylon Nut 2
56 BC12-011-92A U Bracket 1
57 BC12-011-72B Tension Bolt 1
58 BC423-561-011 Axle 1
59 0171-600-03C Bearing 2
No. SKU Description Qty.
60 BC423-561-031 Press Pulley Sleeve 1
61 BC423-881-050 Press Pulley 1
62 0116-006-008 Flat Washer 3
63 0111-006-128A Hex Bolt 1
64 BC423-321-010 Fix Plate 1
65 BC770-801-011 Sensor Holder 1
66 BC423-630-019/021 Speed Sensor with Wire 1
67 BC423-881-008A Small Cover 1
68 0110-308-008 Acorn Nut 1
69 0110-008-008 Hex Nut 1
70 BC423-561-028A Brake Sleeve 1
71 BC423-561-018 Square Nut 1
72 BC423-561-012 Flywheel with Aluminum Ring 1
73 0171-630-000 Bearing 2
74 BC423-561-025 Flywheel Sleeve 1
75 0116-010-008 Flat Washer 1
76 0110-110-102 Nut 1
77 BC423-881-022A Small Cover-Flywheel 2
78 0114-142-138 Cross Recessed Pan Head Tapping Screws 6
79 BC423-881-023A Rubber Plug 6
80 BC423-561-013 Flywheel Shaft 1
81 0110-010-101A Hex Nut-Thin 2
82 BC423-881-047 Flywheel 1
83 0110-010-158 Hex Nut-Thin 3
84 0113-105-108A Cross Recessed Pan Head Screw 15
85 0116-005-03 Flat Washer 2
86 0110-305-008 Acron Nut 2
87 0113-105-058 Cross Recessed Pan Head Screw 4
88 0113-104-110 Cross Recessed Pan Head Screw 4
89 0114-142-198 Cross Recessed Pan Head Tapping Screw 5
90 0113-105-158 Cross Recessed Pan Head Screw 2
91 0113-206-458 Hexagon Socket Button Head Screw 1
92 0117-112-08 Spring Ring 2
93 BC423-561-016 Axle 1
94 BC423-340-001 Magnet Holder 1
95 BC423-561-014A Tension Spring 1
96 BC423-321-016 Sensor Fixture 1
97 BC423-881-024A Magnet Cradle 1
98 BC423-881-019A Brake Pad 1
99 BC423-561-015 Magnet 2
100 BC423-320-006 Handlebar 1
102 BC423-861-004 Dipping Grip 2
103 0113-706-108 Socket Cap Screw 3
104 BC423-881-031A Handlebar Cover 1
105 BC423-321-015 Plate 1
108 BC423-881-028 iPad Holder Base-Top 1
110 0114-152-102 Cross Recessed Pan Head Screw 2
111 0113-135-138 Cross Recessed Pan Head Tapping Screw 8
112 BC423-881-053B iPad Holder Support-Upper 1
113 BC423-881-054A iPad Holder Support-Bottom 1
114 0113-206-004 Socket Cap Screw 2
115 BC423-561-029A Rotation Rivet 1
116 BC423-881-052A Support Base 1
117 0114-142-108A Cross Recessed Pan Head Tapping Screw 4
118 BC423-880-057 iPad Holder Assembly 1
119 BC423-890-018 Hardware Pack 1
IC1.5C PARTS LIST

V1.0-CCA
www.puretecfitness.com
