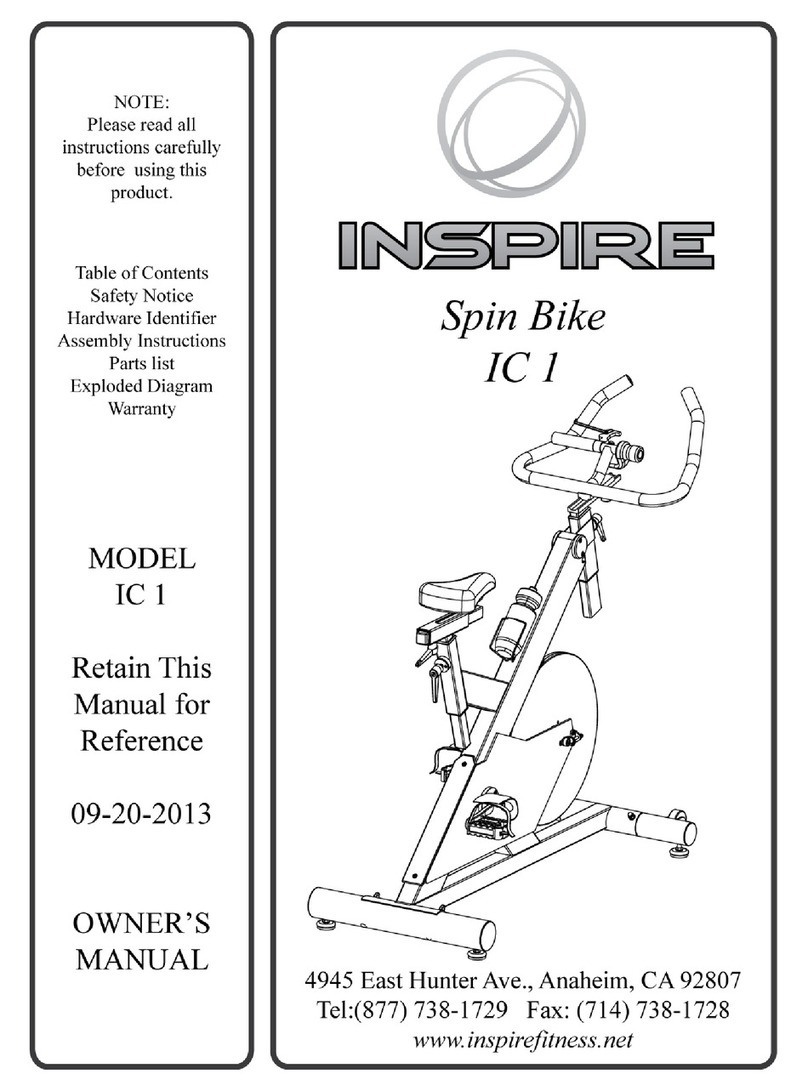

Inspire IC 1 User manual

NOTE:
Please read all
instructions carefully
before using this
product.
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instructions
Parts list
Exploded Diagram
Warranty
MODEL
IC 1
Retain This
Manual for
Reference
02-2015
OWNER’S
MANUAL 255 Airport Cir., Corona, CA 92880
Tel:[phone] Fax: [phone]
www.inspirefitness.net
Spin Bike
IC 1

Table of Contents
Before You Begin ....................................................... 2
Important Safety Notices ............................................ 3
Warning Label Placement ............................................ 4
Contents of Packaging ................................................ 5
Hardware Pack .......................................................... 6
Assembly Instructions.............................................7-14
Console Instructions..................................................15
Parts List .................................................................16
Exploded Diagrams ...................................................17
Warranty .................................................................18
Before You Begin
Thank you for selecting the INSPIRE SPIN BIKE. For your safety
and benefit, read this manual carefully before using the
machine. As a manufacturer, we are committed to providing you
complete customer satisfaction. If you have any questions, or
find there are missing or damaged parts, please call our TOLL-
FREE customer service number. Our Customer Service Agents
will provide

PAGE 3
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine. The linkages
on this machine can cause serious injury or death if used improperly.
2. Never place your hands or feet in the path of the linkages because injury may occur
to you or damage may occur to the equipment. Never allow children to come near
or approach the moving linkages while in use.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp objects around the machine.
9. Disabled persons should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. Maximum user weight 300 lbs.
CARE AND MAINTENANCE
1. Keep seat slider clean
2. Inspect and tighten all parts before using the machine.
3. The Frame and Seat Pad of the machine can be cleaned using a damp cloth and mild
non-abrasive detergent. DO NOT use solvents.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. Neither Health In
Motion, LLC. nor FG1, LLC. ASSUMES ANY RESPONSIBILITY FOR PERSONAL
INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS
PRODUCT.

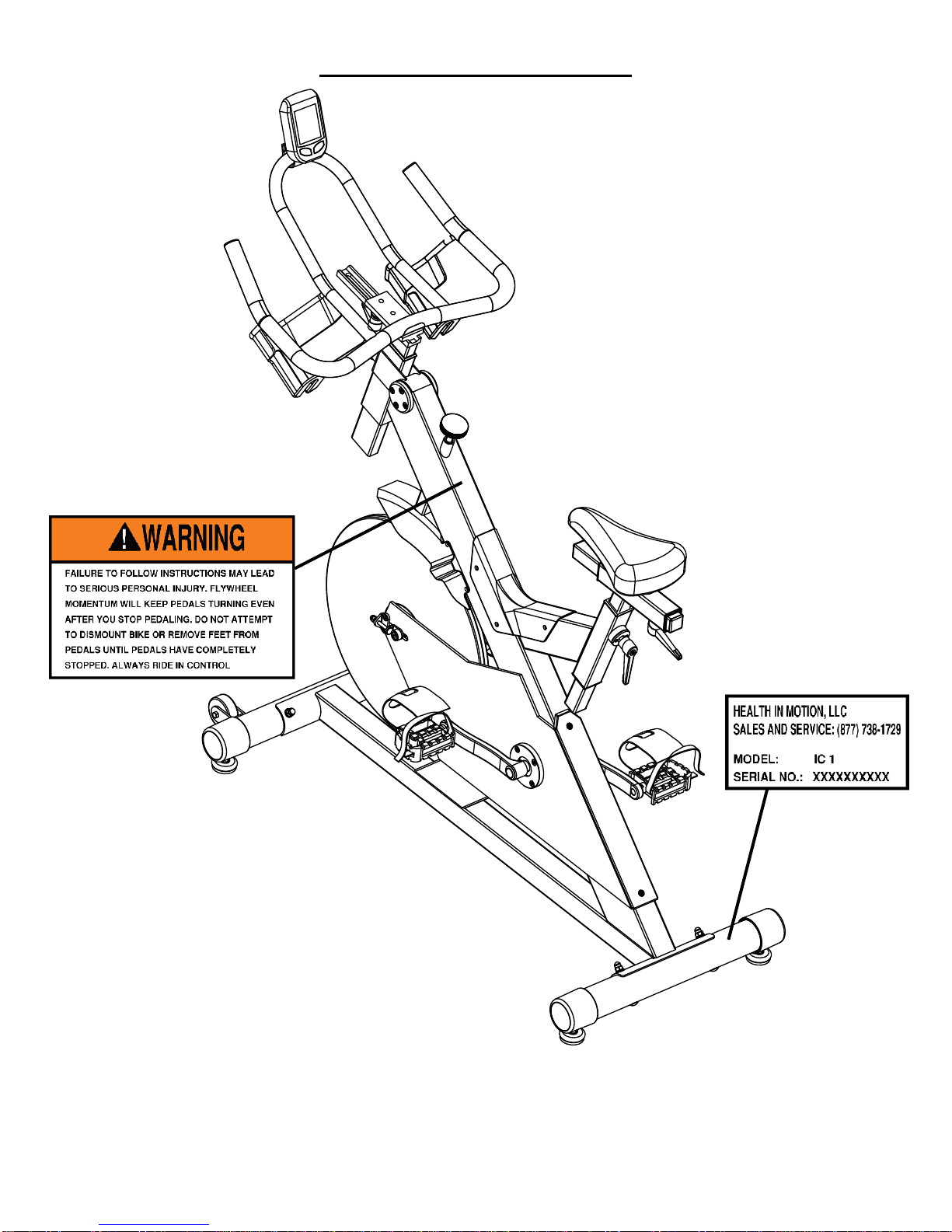

Apply the labels in the location shown.
missing or illegible, please call customer service at 1-877-738-1729 for replacements.
PAGE 4
The warning labels have been placed on the unit in the locations shown. If the labels are
Warning Label Placement

PAGE 5

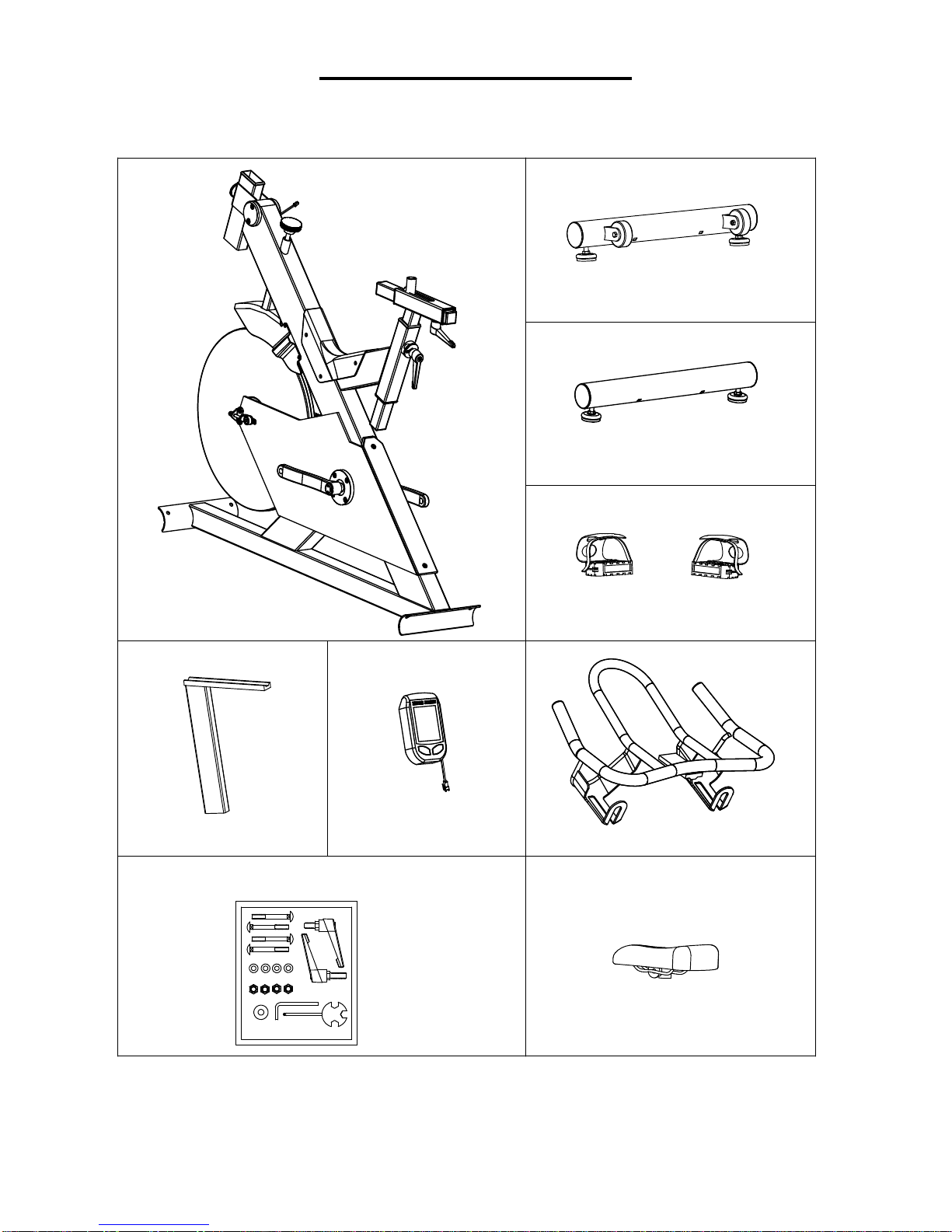

Contents of Packaging

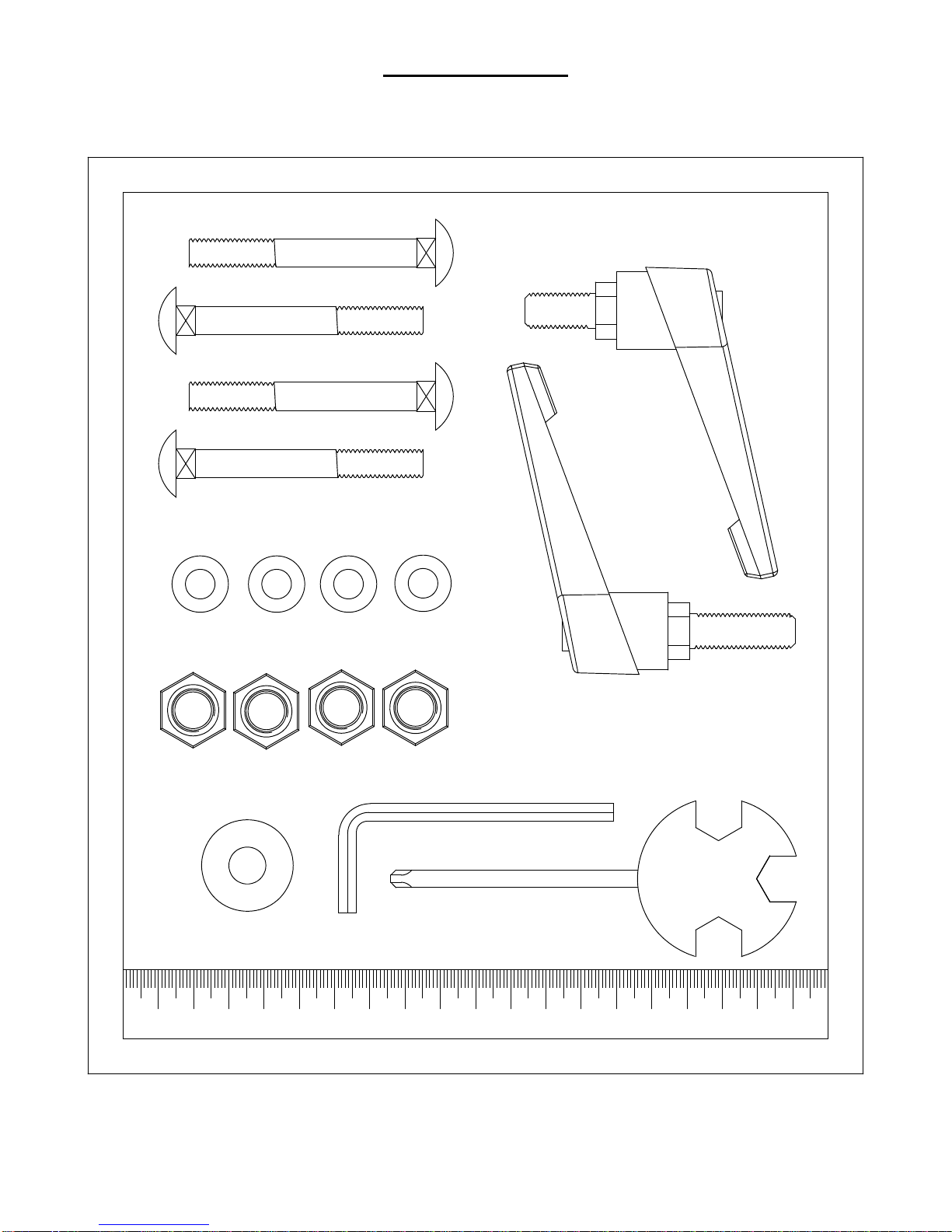

Hardware Pack
PAGE 6
NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to
measure components.
(98)5#,1PCS
(54)M8x70，4PCS
(50)M8，4PCS
(49)Ø8，4PCS
（9）Ø10，1PCS
(10)M10x30，1PCS
(99)1PCS
(11)M10x20，1PCS

PAGE 7

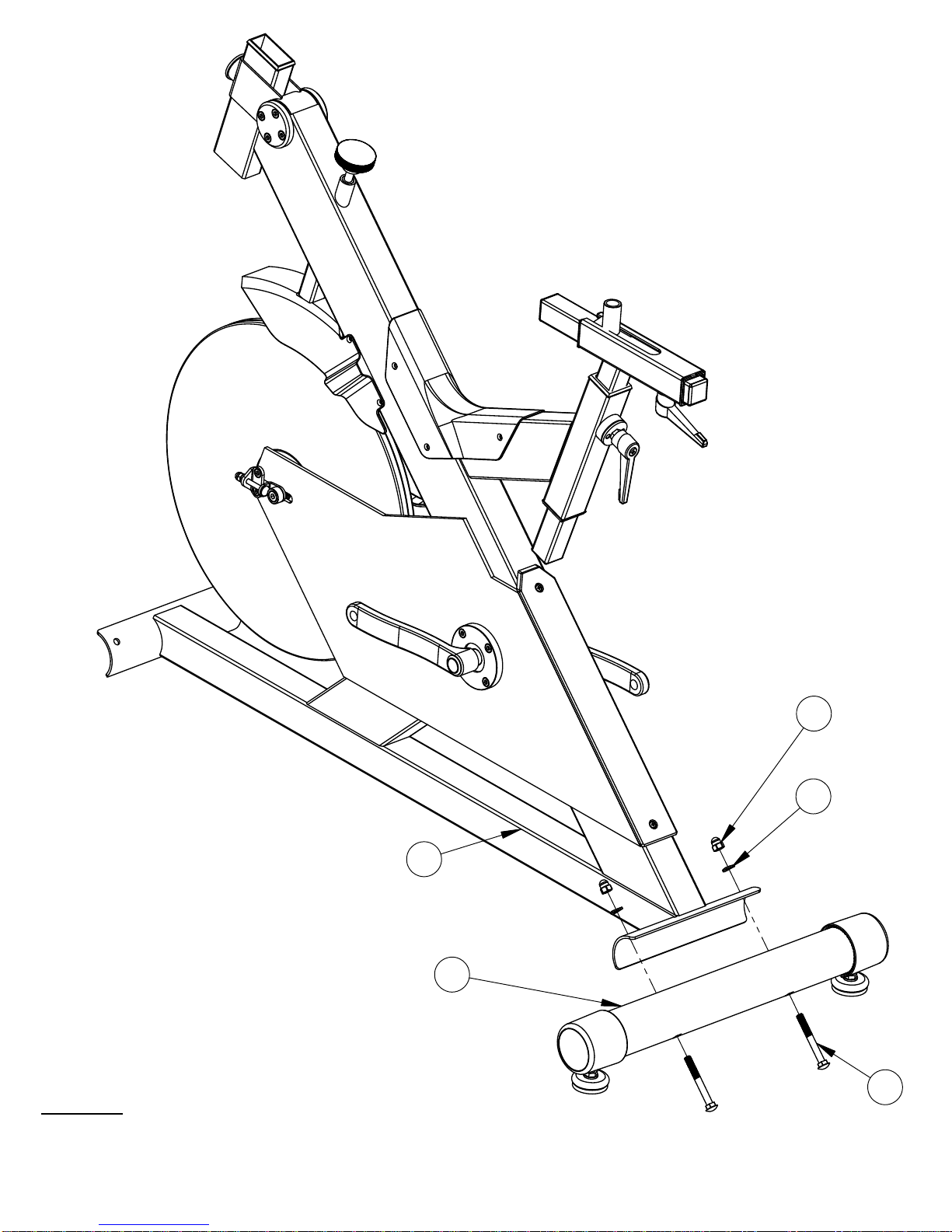

Step 1
Install the Rear Stabilizer(21) onto the Main Frame (12) using 2-M8 Bolts (54), 2-M8AWashers (49), and 2-M8 Nuts (50).
21
54
49
50
12

PAGE 8
Step 2
Install the Front Stabilizer (16) onto the Main Frame (12) using 2-M8 Bolts (54), 2-M8AWashers (49), and 2-M8 Nuts (50).
54
49
50
16
12

PAGE 9

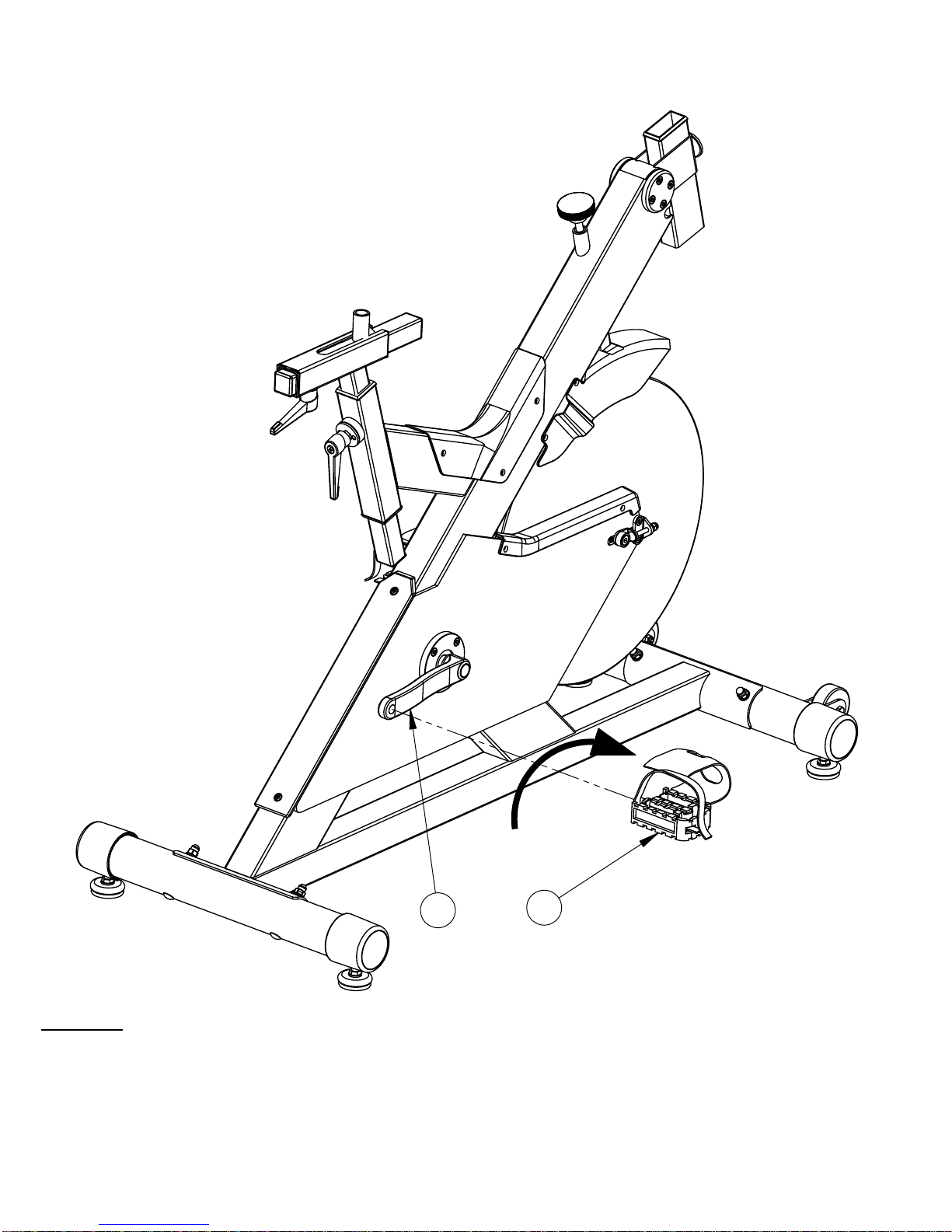

Step 3
Attach the Left Pedal (17) to the Left Crank (20). Turn the threadsACOUNTERCLOCKWISE in order to install the Left Pedal(17).
17 20

PAGE 10
Step 4
Attach the Right Pedal (27) to the Right Crank (26). Turn the threads CLOCKWISE inAorder to install the Right Pedal(27).
27
26

PAGE 11

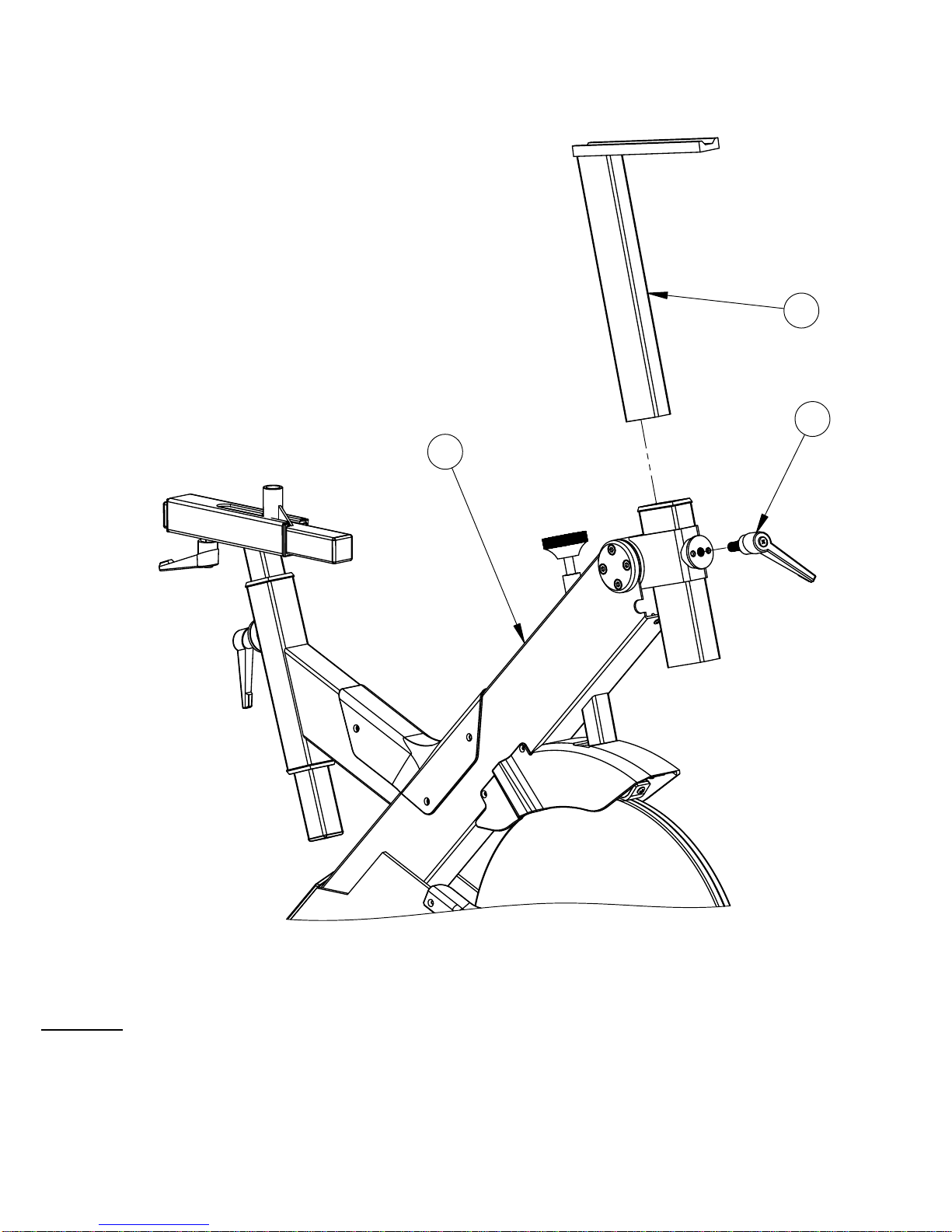

Step 5
Insert the Handlebar Tube (2) into the Main Frame (12).AThread the L-Handle Handle (11) into the Main Frame (12) to secure theBHandlebar Tube (2).
11
2
12

PAGE 12

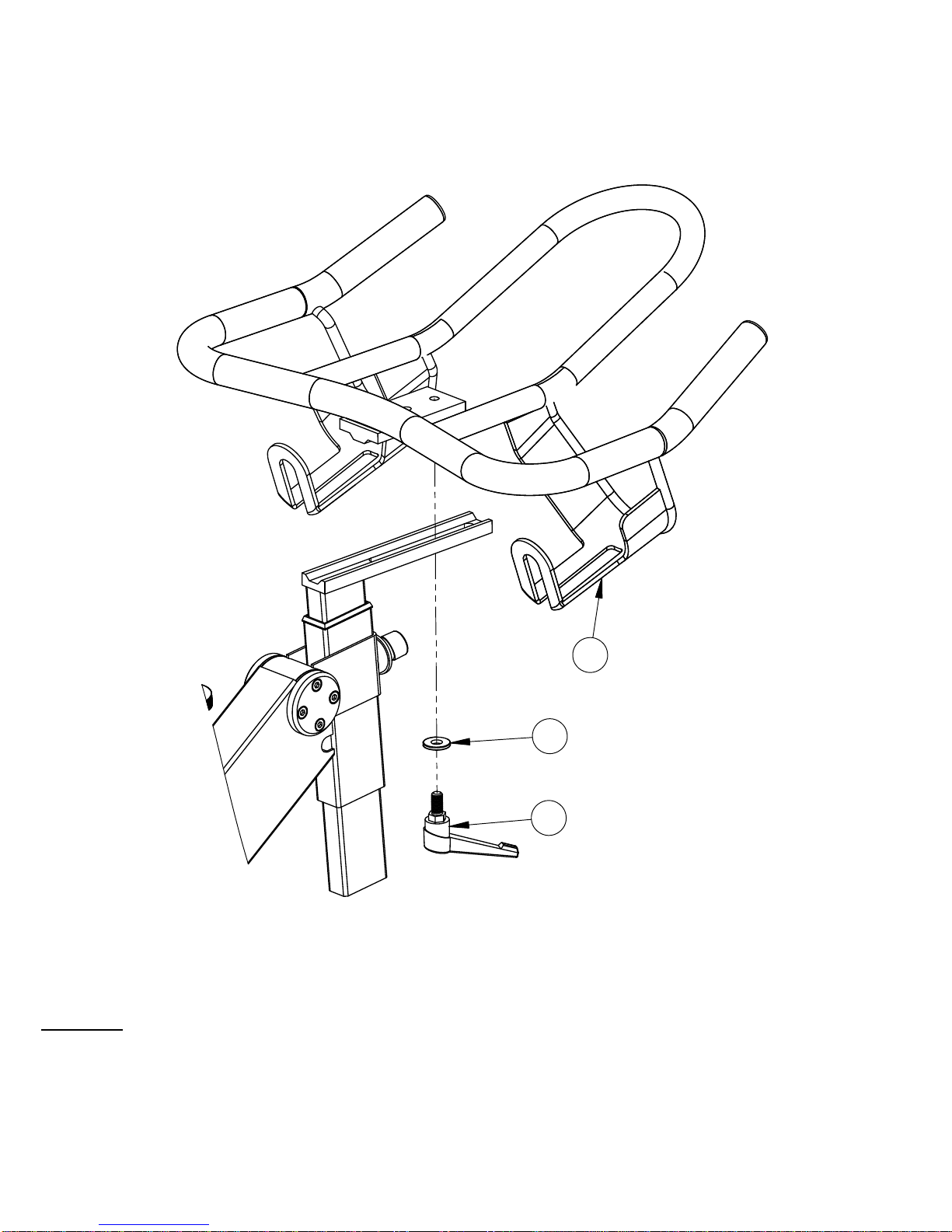

Step 6
Attach the Handlebars (1) from the top and use the flat washer (9) and the L-AHandle(10) to secure the Handle Bars (1) to the Frame.
1
9
10

PAGE 13
Step 7
Attach the Seat(37) to the Adjustable Seat Tube(36) and use the handle under theAseat to secure the seat.
37
36

PAGE 14
Step 8
Attach the Computer Bracket (41) onto the Handlebars (1).ASlip the Computer(40) into the Computer Bracket (41).BSecure the Bracket (41) by tightening the M3.5 screw until the Bracket (41) is tightCon the Handlebars (1).
Attach the Lower Computer Wire (33) to the Handlebar Computer Cable (38).DConnect the Handlebar Computer Cable (38) to the Console (40).E
40
1
41
33
38
38

will return to the original display automatically.
ODO KCAL
INSPIRE FITNESS
COMPUTER OPERATION
This unit is equipped with a Telemetric Heart Rate transmitter that allows the user to
monitor their heart rate while wearing a Chest Strap. A Chest Strap is included with this
unit. For any questions please contact Inspire by calling [phone].

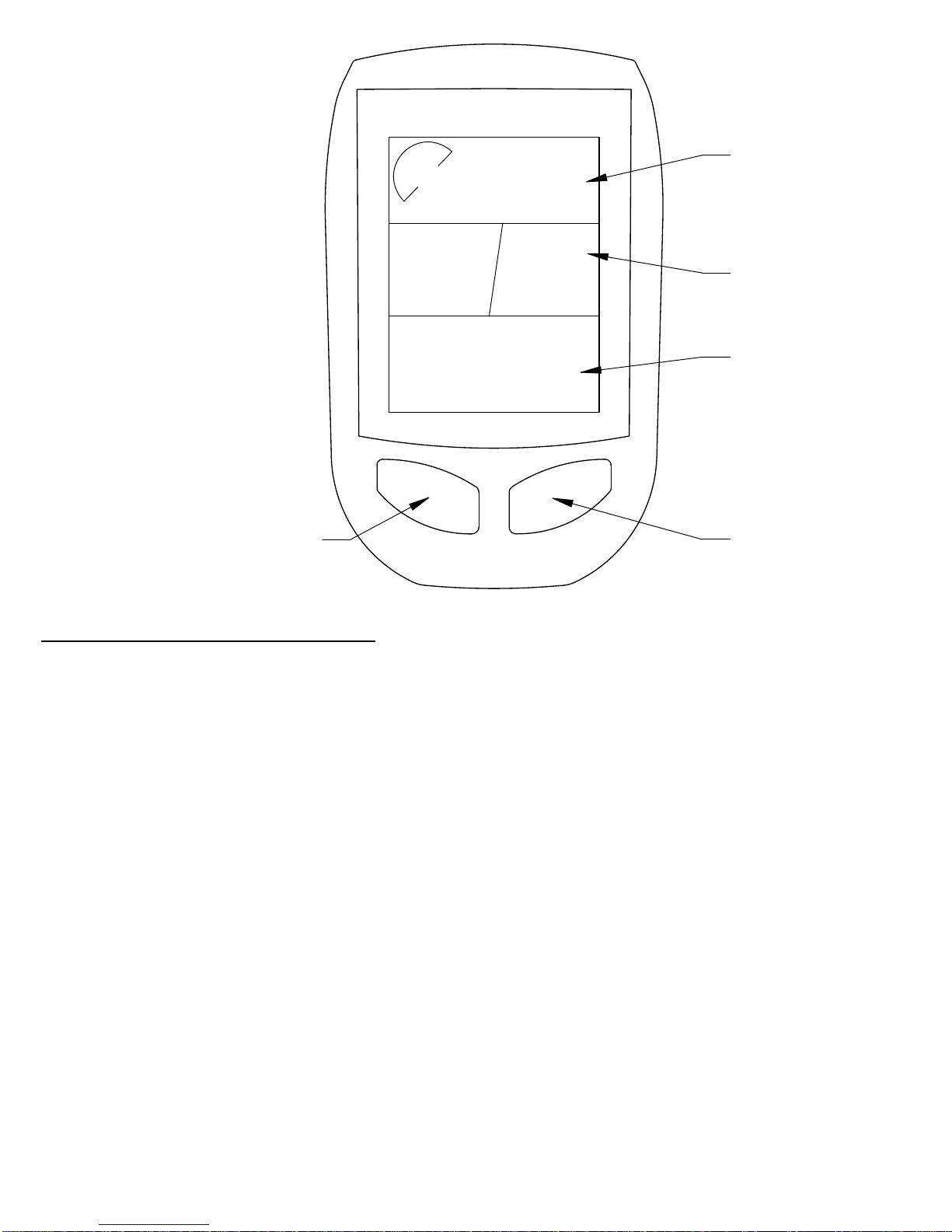

BASIC OPERATION
Begin pedaling to immediately begin workout in Manual Mode.•DISPLAY 1: RPM display.•DISPLAY 2: During a workout ODO and KCAL are displayed. ODO will display the•heart rate of the user. KCAL will display the calories burned by the user.
DISPLAY 3: During a workout SPEED, DIST, TIME , and CLOCK are displayed. SPEED•will display in either KM/H(KILOMETERS/HOUR) or M/H(MILES/HOUR). DISTANCE will
display in either KM or MI.TIME will display the workout time. CLOCK will display the
current time.
Press "BUTTON 1" to alternate between the different displays.•
DISPLAY SETTINGS
Press and hold "BUTTON 2" for 3 seconds to enter the "Settings Mode". Settings mode•allows the user to change units and enter user information.
Once inside the "Settings Mode"press "BUTTON 1" to switch between settings.•To change a specific setting, press "BUTTON 2".•For example, to input the users weight press "BUTTON 1" until the digits•on "DISPLAY 3" start to flash. Then press "BUTTON 2" to increase the
weight. If you hold "BUTTON 2" for 3 seconds, the digits will increase
automatically until the button is released. After your settings have been
set, do not touch the console for Approximately 6 seconds and the screen
SPEED DIST TIME
PAGE 15
0 00
KM/H
0.0
BUTTON 2
DISPLAY 1
000
DISPLAY 2
RPM
BUTTON 1
DISPLAY 3

PAGE 16
Parts List
Item Part No. Part Description Qty
1 BC481-881-001 Handlebars 1
2 BC480-300-003 Handlebar Tube Assembly 1
3 0242-060-31 Handlebar Tube Sleeve, Upper 1
4 BC480-561-014 Pressure Peg Nut 1
5 BC480-300-004 Handle Support Assembly 1
6 A890-881-011 Handlebar Tube Sleeve, Lower 1
7 BC480-561-015 Belt Tension Bracket Assembly 2
8 BC481-881-003 Belt Cover 1
9 0116-210-005 Flat Washer 1
10 B465-561-011 L-Handle, Long 2
11 B470-560-001 L-Handle, Short 2
12 BC481-200-001 Main Frame 1
13 BC481-881-004 Brake Assembly 1
14 BC481-381-001 Brake Cover 1
15 B465-521-003 Flywheel Assembly 1
16 BC480-340-001 Front Stabilizer Assembly 1
17 BC481-341-001 Pedal, L 1
18 BE480-881-005 Crank Cap 2
19 0110-412-591 Flange Nut 2
20 BC480-561-010 Crank, L 1
21 BC481-340-001 Rear Stabilizer Assembly 1
22 Sensor Fixture 1
23 BC480-801-002 Rear Cover 1
24 BC480-501-003 Pulley Assembly 1
25 BC480-501-004 Belt 1
26 BC480-561-011 Crank, R 1
27 BC481-341-001 Pedal, R 1
28 0242-038-08 Seat Tube Sleeve, Lower 1
29 B465-561-018 Pressure Peg Nut 1
30 B465-881-003 Seat Tube Sleeve, Upper 1
31 BC481-881-005 Upper Cover 1
32 BC480-801-001 Cover Assembly 1
33 Computer Wire, Lower 1
34 BC481-561-001 Resistance Knob Assembly 1
35 BC480-300-002 Seat Tube Assembly 1
36 BC480-300-001 Adjustable Seat Tube 1
37 B465-401-004 Seat Pad 1
38 Handlebar Computer Cable 1
39 Chest Strap Sensor 1
40 BC481-630-001 Computer 1
41 Computer Bracket 1
49 0116-608-03 Curved Washer 4
50 0110-308-03 Cap Nut 4
54 0111-408-70L M8 Bolt 4
98 0511-605-002 Wrench 5# 1
99 0511-800-100 Wrench 1

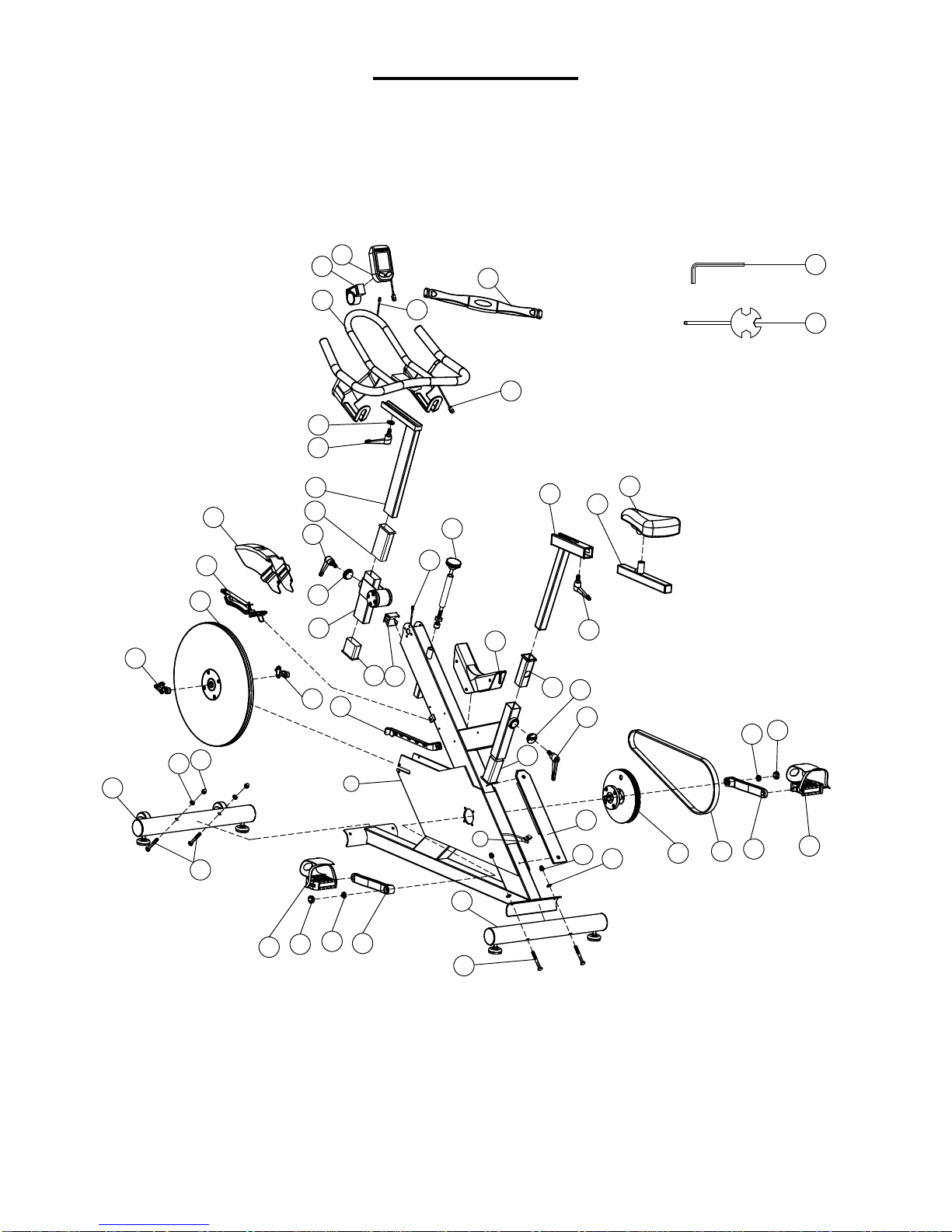

Exploded View
PAGE 17
19
39
21
16
22
6
40
1
3
4
5
13
14
15
7
7
18 19
17 20
35 36 37
10
29
11
30
24 25 26 27
41
31
8
2
38
33
32
23
12
28
34
18
38
98
54
50 49
49 50
54
9
10
11
99

PAGE 18
Warranty
This Warranty applies to Inspire Strength products manufactured or distributed by FG1 LLC. This Product is NOT intended for
HEALTH CLUB use:
CONSUMER USE:
10 YEAR FRAME:
Includes Main Frame and Welds
3YEARPARTS:
Excluding Paint and Finish (unless defective out of box)
1YEARLABOR
FG1, LLC. warrants that the Product you have purchased for personal, family or household use from FG1 LLC or from an authorized FG1
reseller is free from defects in materials or workmanship under normal use during the warranty period. Your sales receipt, showing the date
of purchase of the Product, is your proof of the date of purchase. This warranty extends only to you, the original purchaser. It is not
transferable to anyone who subsequently purchases the Product from you. It excludes expendable parts such as paint and finish. This
Warranty becomes VALID ONLY if the Product is assembled / installed according to the instructions / directions included with the Product.
Replacement and repair of parts.
During the warranty period FG1 will, at no additional charge, repair or replace the Product if it becomes defective, malfunctions, or
otherwise fails to conform with this Warranty under normal personal, family, or household use. In repairing the product FG1 may replace
defective parts with, at the option of FG1, serviceable used parts that are equivalent to new parts in performance, or new parts. All exchanged
parts and Products replaced under this warranty will become the property of FG1. FG1 reserves the right to change manufacturers and or
specification of any part to cover any existing warranty.
Service procedures.
To obtain warranty parts, you must return the parts to FG1 or an authorized FG1 retailer in its original container (or equivalent). You must
pre-pay any shipping charges, taxes, or any other charges associated with transportation of the Product. In addition, you are responsible for
insuring any Product shipped or returned. You assume the risk of loss during shipment. You must present FG1 with proof-of-purchase
documents (including the date of purchase, Model, and Serial Number). Any evidence of alteration, erasing or forgery of proof -of-purchase
documents will be cause to void this Warranty. Register your warranty online visit www.inspirefitness.net
Conditions and Exceptions.
This Warranty does not extend to any Product not purchased from FG1 LLC or from an authorized FG1 reseller. This Warranty does not
extend to any Product that has been damaged or rendered defective; (a) as a result of accident, misuse, or abuse; (b) by the use of parts not
manufactured or sold by FG1; (c) by modification of the Product; (d) as a result of service by anyone other than FG1, or an authorized FG1
warranty service provider; (e) product that has not been properly maintained (follow maintenance schedule found on product). Should any
product submitted for Warranty service be found to be ineligible, an estimate of repair cost will be furnished and the repair will be made if
requested by you upon FG1 receipt of payment or acceptable arrangement of payment.
Disclaimer
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY FG1 MAKES NO OTHER WARRANTIES; EXPRESSED OR IMPLIED
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. FG1, LLC.
EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS WARRANTY. ANY IMPLIED WARRANTIES THAT MAY
BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS WARRANTY. NEITHER FG1 NOR ANY OF ITS AFFILIATES
SHALL BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. FG1 IS NOT RESPOSIBLE FOR THE REPAIR
OR REPLACEMENT OF ANY PARTS THAT FG1 DETERMINES HAVE BEEN SUBJECTED AFTER THE DATE OF
MANUFACTURE TO ALTERATION, NEGLECT, ABUSE, MISUSE, NORMAL WEAR & TEAR, ACCIDENT, DAMAGE DURING
TRANSIT OR INSTALLATION, FIRE, FLOOD, OR ANY ACT OF GOD. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU. This Warranty gives you specific legal
rights and you may also have other rights that may vary from state to state. This is the only express warranty applicable to FG1’s “Inspire”
branded strength products. FG1 neither assumes nor authorizes anyone to assume for it any other express warranty.
