Before You Begin
Thank you for selecting the INSPIRE INDOOR CYCLE. For your
safety and benefit, read this manual carefully before using the
machine. As a manufacturer, we are committed to providing you
complete customer satisfaction. If you have any questions, or
find there are missing or damaged parts, please call our TOLL-
FREE customer service number. Our Customer Service Agents
will provide immediate assistance to you.

PAGE 3
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine. The
mechanism on this machine can cause serious injury or death if used
improperly.
2. Never place your hands or feet in the path of the pedals because injury may occur to
you or damage may occur to the equipment. Never allow children to come near or
approach the moving pedals while in use.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp objects around the machine.
9. Disabled persons should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. Maximum user weight 300 lbs.
CARE AND MAINTENANCE
1. Keep seat and handlebar sliders clean.
2. Lubricate the adjustment tubes by spraying a coat of WD40 and wiping it off, monthly.
3. Inspect and tighten all parts before using the machine.
4. The Frame and Seat Pad of the machine can be cleaned using a damp cloth and mild
non-abrasive detergent. DO NOT use solvents.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. Neither Health In
Motion, LLC. nor FG1, LLC. ASSUMES ANY RESPONSIBILITY FOR PERSONAL
INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS
PRODUCT.

PAGE 4

missing or illegible, please call customer service at 1-877-738-1729 for replacements.
PAGE 4

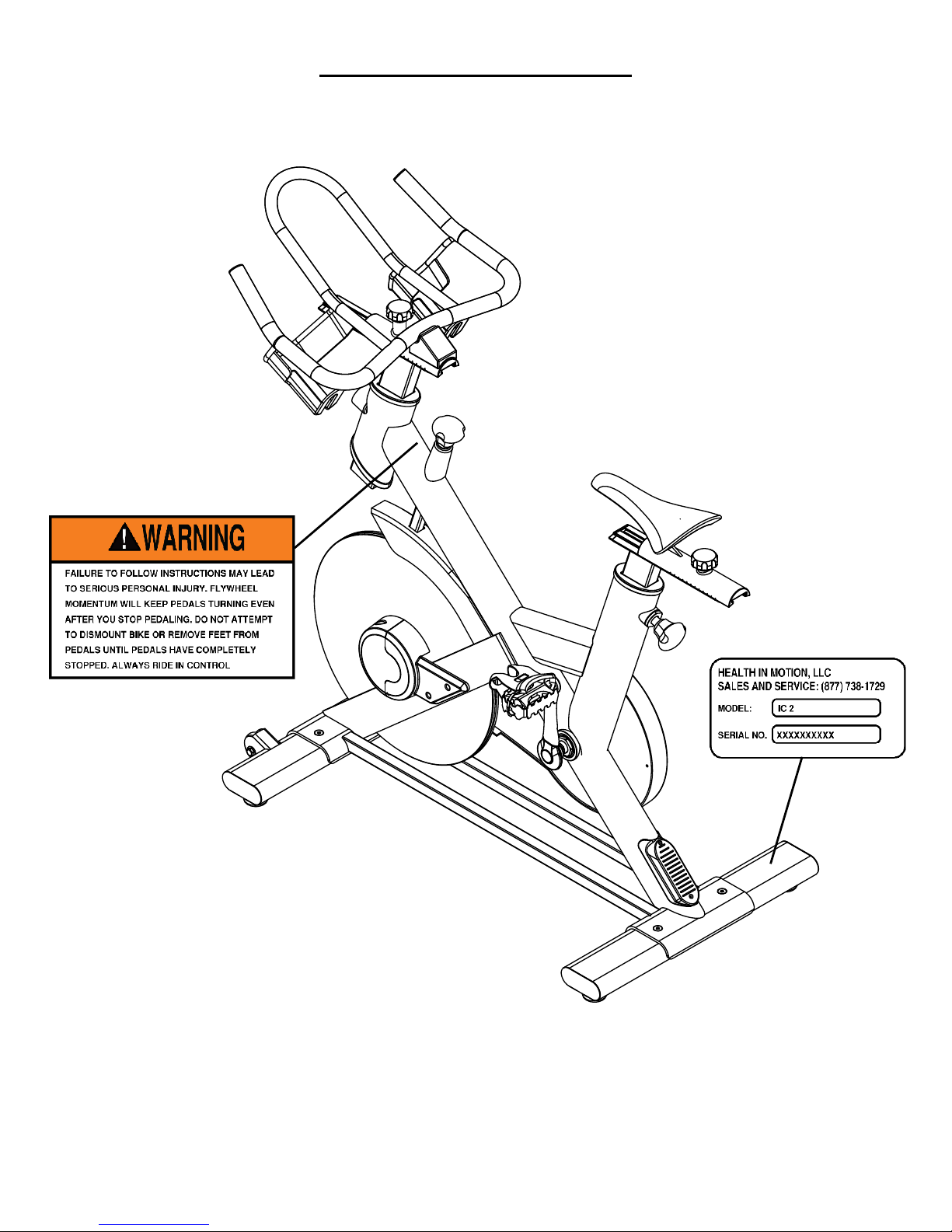

Apply the labels in the locations shown.
The warning label has been placed on the unit at the location shown. If the label is
Warning Label Placement

1
1
1
1
1
1
1
TOOL
STEP3
STEP1&2
Part# 39 (4pcs)
Part# 30 (1pcs)
Part# 42 (4pcs)
Part# 43 (4pcs)
Part# 31(1pcs) 1pcs
PAGE 5

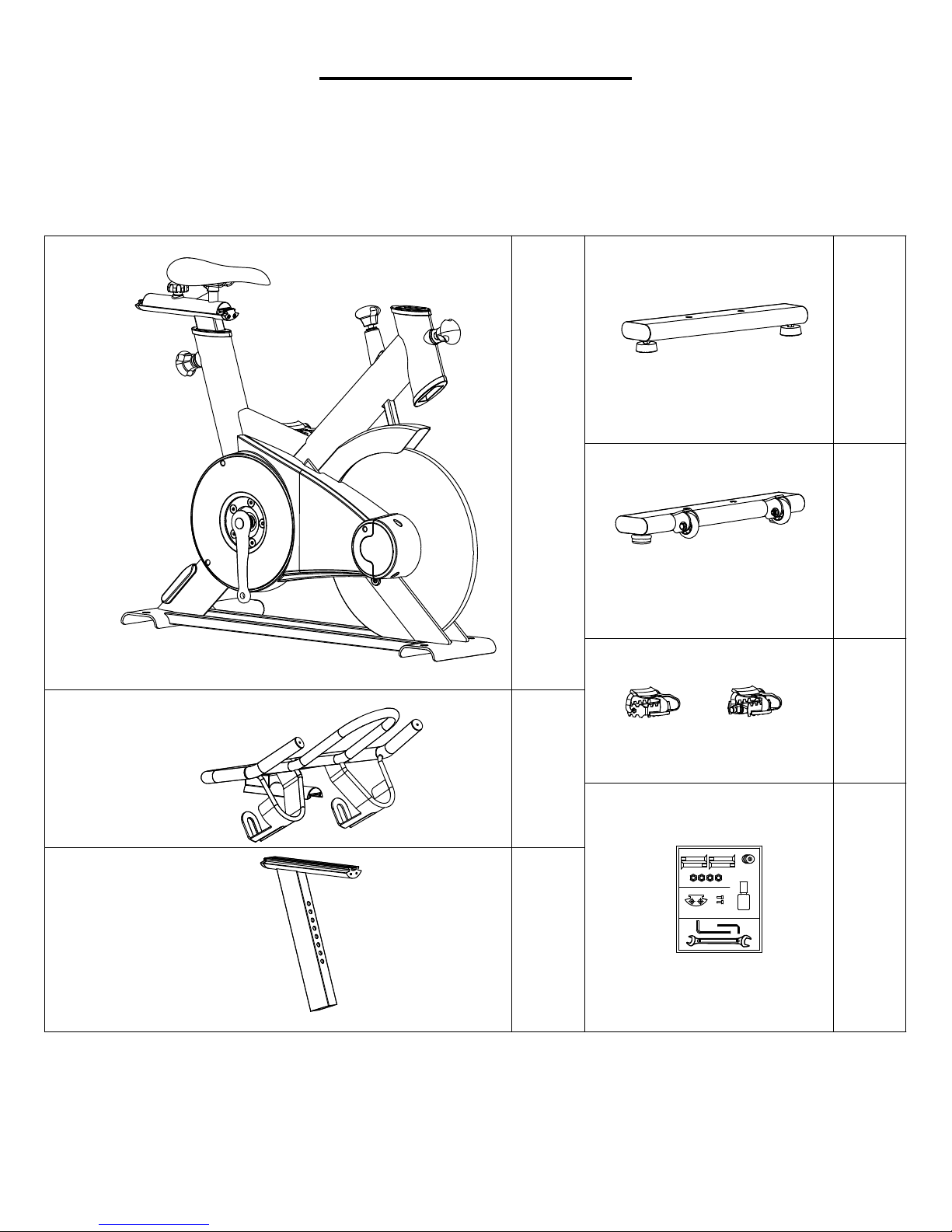

Contents of Packaging

TOOL
STEP3
STEP1&2
Part# 39 (4pcs)
Part# 30 (1pcs)
Part# 42 (4pcs)
Part# 43 (4pcs)
Part# 31(1pcs) 1pcs

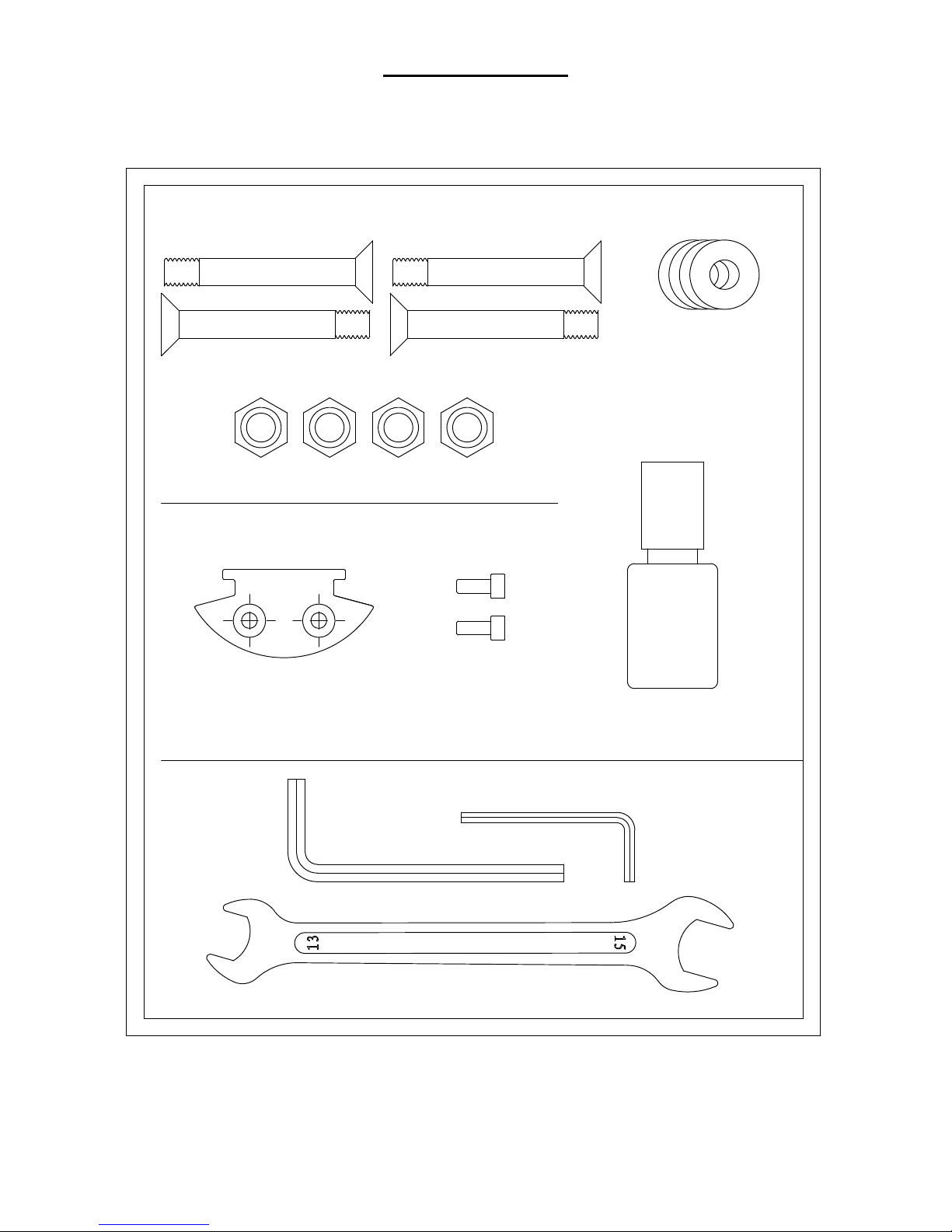

Hardware Pack
PAGE 6
NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to
measure components.

42
39
1
2
43
39
1
3
42
43 REAR
PAGE 7
FRONT
Step 1
Install the Rear Stabilizer (3) onto the Main Frame (1) using 2-M8 Bolts (39), 2-M8AWashers (42), and 2-M8 Nuts (43).
Install the Front Stabilizer (2) onto the Main Frame (1) using 2-M8 Bolts (39), 2-M8BWashers (42), and 2-M8 Nuts (43).

PAGE 8
Step 2
Insert the Handlebar Post (26) into the front of the Main Frame (1).ALock down or loosen the Handlebar Post (26) by threading the Pop Pin (16).B
1
26
16

2630
31
7
PAGE 9
Step 3

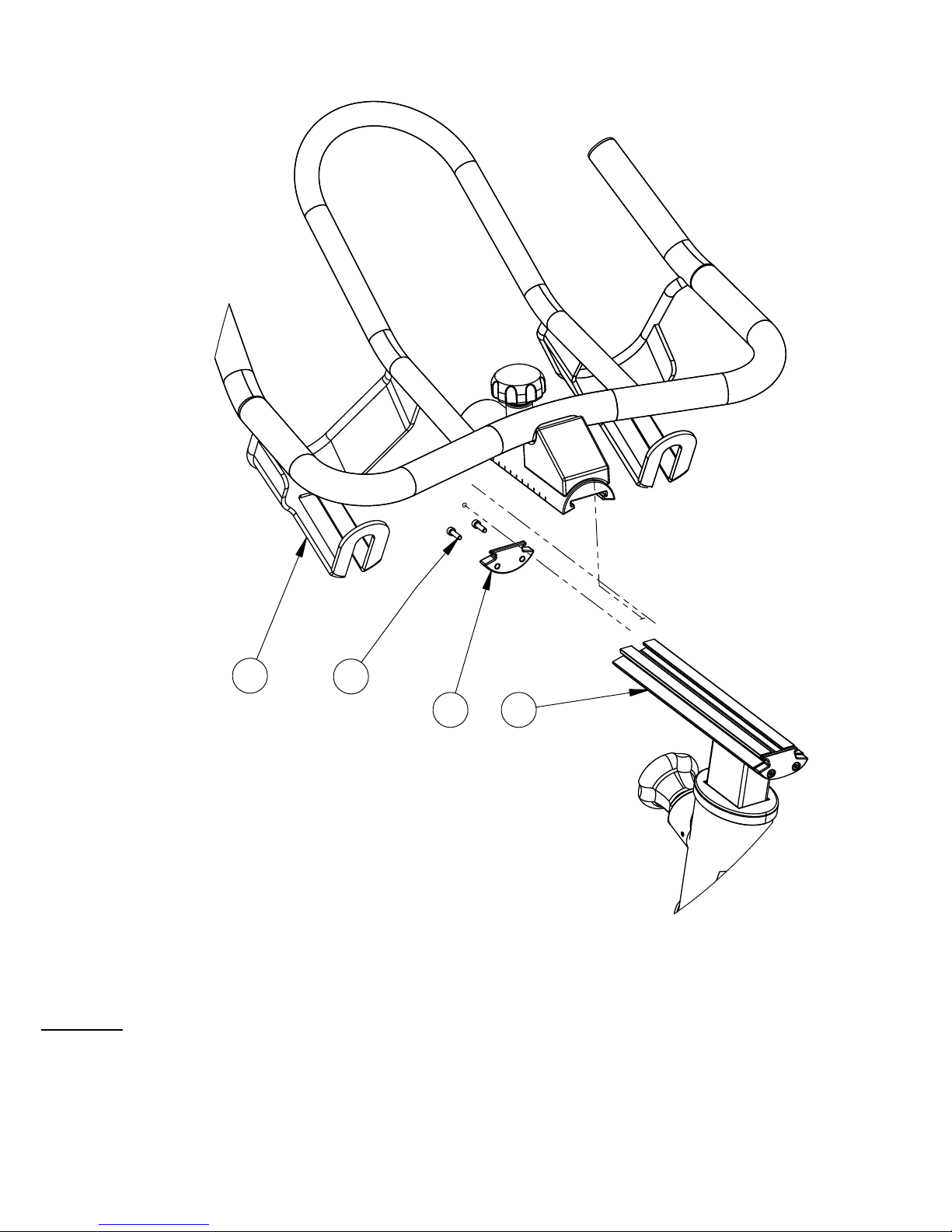

Insert the Handlebars (7) into the Lower Handlebar Post (26).AAttach the Handlebar Slider End Cap (30) using 2-M4 Bolts (31).B

20L19L
PAGE 10
Step 4

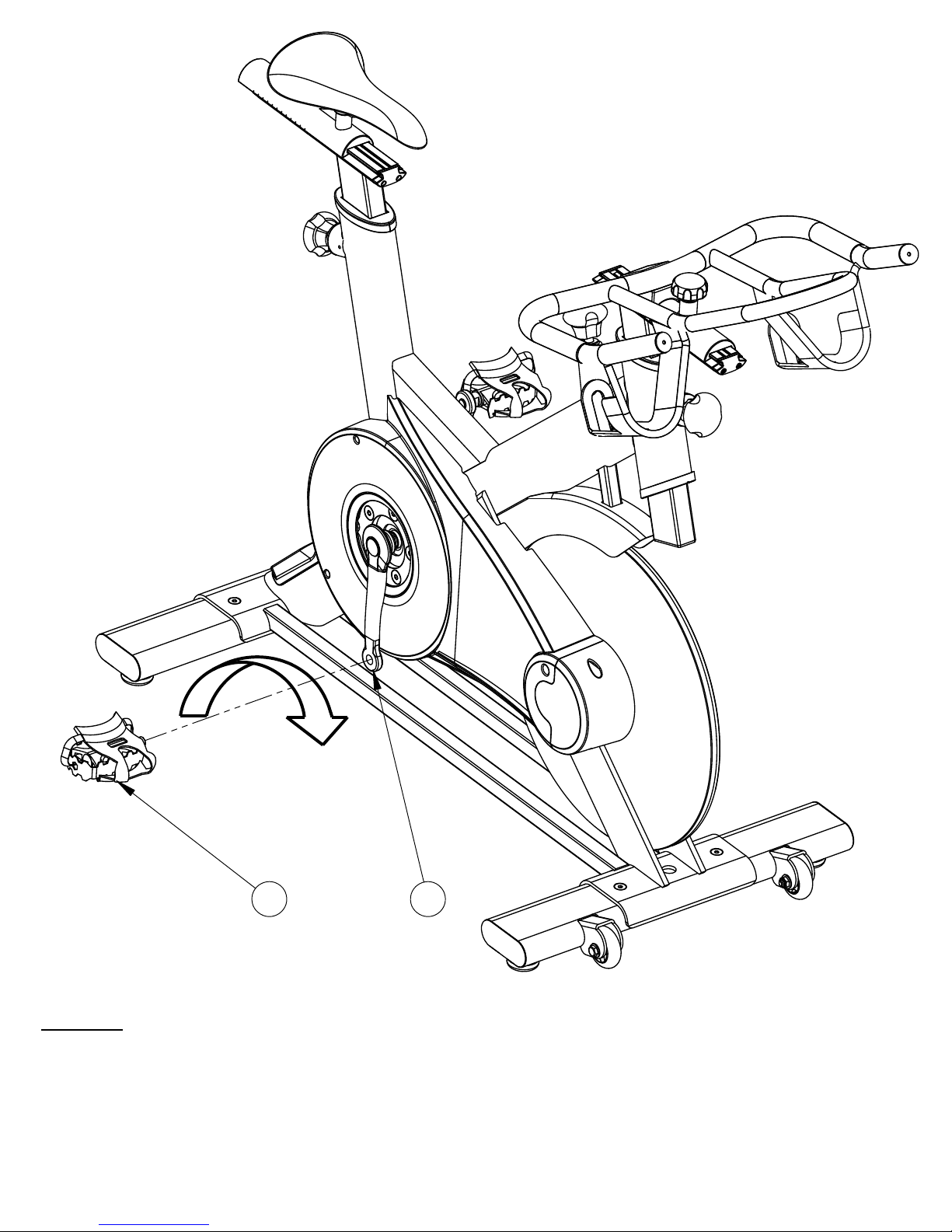

Attach the Left Pedal (20L) to the Left Crank (19L). Turn the threadsACOUNTERCLOCKWISE to install the Left Pedal(20L).

20R 19R
PAGE 11
Step 5
Attach the Right Pedal (20R) to the Right Crank (19R). Turn the threadsACLOCKWISE to install the Right Pedal(20R).

PAGE 12

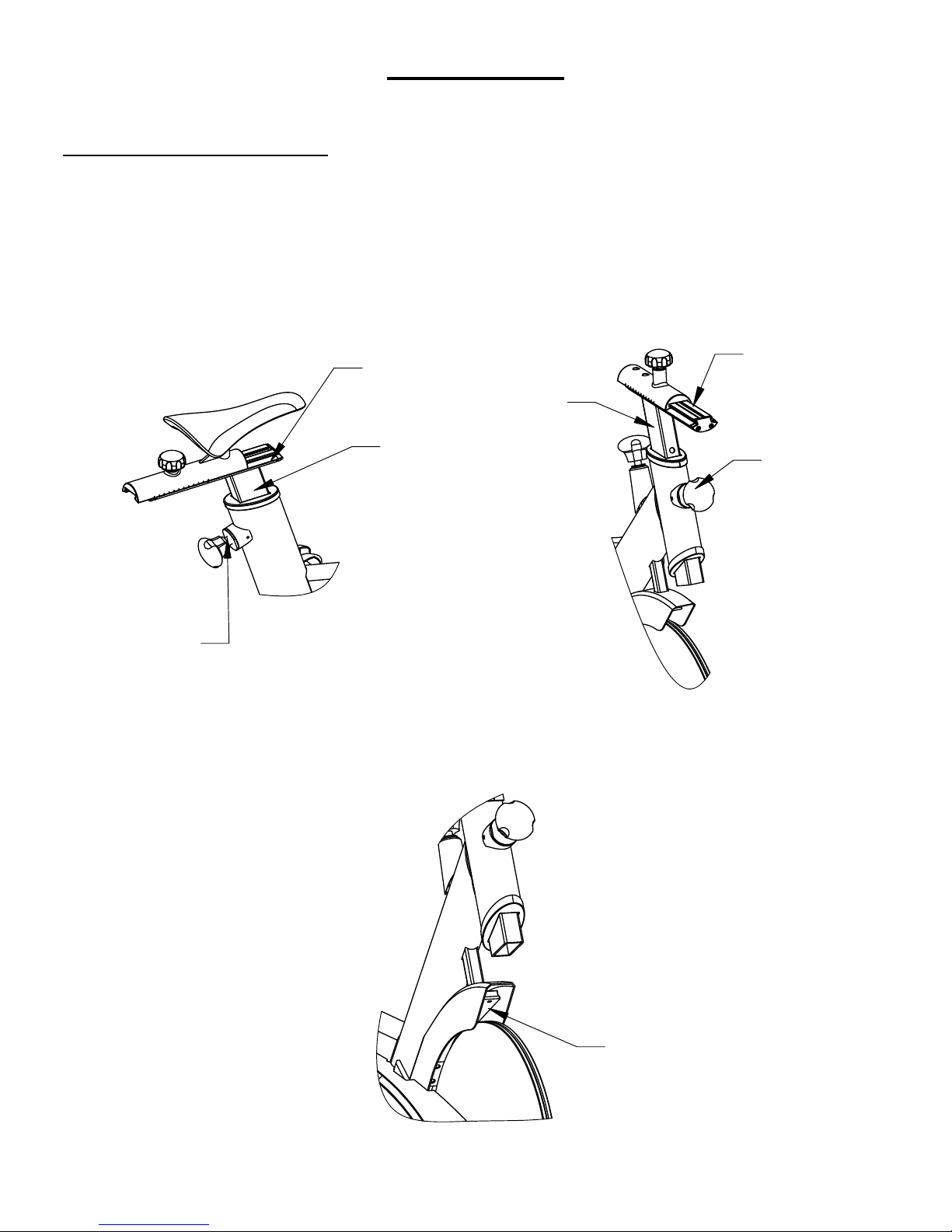

Maintenance
Monthly Maintenance
The adjustment tubes should be lubricated monthly to ensure smooth1. adjustability. Raise the Seat Post and Handlebar Post to their highest positions.
Apply WD40 or a similar spray lubricant at locations A, B, D, and E. Rub the
lubrication with a soft cloth. Unthread the pop pins shown at C and F on the
picture. Lubricate the threads and wipe off any excess spray.
Apply lubrication to the resistance pad. We recommend using 3-in-1 Oil to2. lubricate the leather pad.Do NOT use any lubrication containing silicone. Make
sure the brake pad is throughly oiled from end to end. Wipe off any excess oil.
Lubricate this resistance pad
E
D
F
A
B
C

PAGE 13
Parts List
Item # Part No. Description Qty
1 BC497-200-000 Main Frame Weldment 1
2 BC497-330-002PZ Front Stabilizer 1
3 BC497-330-001PZ Rear Stabilizer 1
4 BC496-561-003PZ Flywheel Assembly 1
5 BC497-881-007PZ Inner Shroud 1
6 BC497-881-001PZ Outer Shroud 1
7 BC497-881-008 Handle Bar 1
8 BC497-560-001 Seat Post Weldment 1
9 BC497-560-002PZ Seat Post Free Rail 1
10 BC495-401-001A Seat Pad 1
11 BC497-561-003 Friction Plate Housing Nut 2
12 BC497-881-011PZ Seat Lock Knob Assembly 1
13 BC496-881-003PZ Resistance Assembly Dial 1
14 BC495-801-005PZ Flywheel Shroud 1
15 BC497-881-012PZ Upper Plastic Sleeve 2
16 BC497-881-009 Pop Pin 2
17 BC497-561-011 Friction Plate 2
18 BC495-881-002PZ Resistance Pad Assembly 1
19L BC850-561-012 Crank Pedal, L 1
19R BC850-561-002 Crank Pedal, R 1
20L BC495-340-001L Pedal, L 1
20R BC495-340-001R Pedal, R 1
21 0111-208-251 Hex Flanged Bolt 2
22 0111-012-509PZ Idler Assembly 1
23 BC496-561-004PZ Belt Tensioning Assembly 2
24 BC496-561-007 Belt 1
25 BC497-881-004PZ Left Shroud Cap 1
26 BC497-560-003 Handlebar Post Weldment 1

PAGE 14
27 0110-412-599 Hex Flange Nut 2
28 BC20-221-41 Plastic Cap 2
29 BC497-881-003PZ Shroud, L 1
30 BC497-881-005 Adjustable Rail End Cap 4
31 0113-204-109 Hex Bolt 8
32 BC495-881-013APZ Lower Plastic Sleeve 1
33 BC496-561-010APZ Crankshaft Assembly 1
34 0200-300-086 Crankshaft Bearing 2
35 BC497-561-005 Crankshaft Bearing Spacer 1
36 BC497-881-002PZ Right Shroud Cap 1
37 BC496-561-014 Crankshaft Locknut 2
38 BC497-560-004PZ Handlebar Rail, Free 1
39 0113-310-259 Hex Bolt 2
40 BC497-881-006PZ Calf Stretcher 1
41 BC497-881-010PZ Handlebar Adjustment Knob 1
42 0116-008-009 Flat Washer 4
43 0110-708-029A Lock Nut 4
44 BC497-891-002PZ Hardware Pack 4

42
43
3
39
39
42
43
13
18
37
34
22
4
23
14
27 23
32
10
9
8
15
31 30
31
30
7
26
15
16
12
16
5
20R
28
19R
21
636
33
24
40
17
11
35
34
128
21
20L
19L
11
17
29 25
31
30
31 30
41
38
39
2
27
