Insportline Numana User manual

USER MANUAL –EN
IN 23656 Massage chair inSPORTline Numana

2
CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................... 3
WARNING ............................................................................................................................................... 5
PRODUCT DESCRIPTION..................................................................................................................... 6
FUNCTIONS............................................................................................................................................ 7
CONTROLLER........................................................................................................................................ 8
CONTROLLER BUTTONS...................................................................................................................... 9
USE ....................................................................................................................................................... 10
POWER UP AND START-UP............................................................................................................ 10
STANDBY MODE .............................................................................................................................. 10
STARTING THE MASSAGE.............................................................................................................. 10
PAUSE............................................................................................................................................... 11
MENU................................................................................................................................................. 12
MANUAL MODE ................................................................................................................................ 13
SPEED, WIDTH AND INTENSITY ADJUSTMENT........................................................................... 19
CUSTOM MASSAGE......................................................................................................................... 21
SETTINGS......................................................................................................................................... 22
ARMREST CONTROLLER................................................................................................................ 26
VOICE CONTROL................................................................................................................................. 27
SWITCH OFF THE CHAIR.................................................................................................................... 28
BLUETOOTH......................................................................................................................................... 28
ASSEMBLY ........................................................................................................................................... 28
ASSEMBLY OF ARMRESTS............................................................................................................. 28
LEG REST ASSEMBLY..................................................................................................................... 30
PILLOWS........................................................................................................................................... 31
FLOOR PROTECTION.......................................................................................................................... 32
SPECIFICATIONS................................................................................................................................. 32
ENVIRONMENT PROTECTION ........................................................................................................... 33
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 33

3
SAFETY INSTRUCTIONS
IMPORTANT SAFETY WARNINGS
•Place the product on flat and solid surface and keep at least 0.6 m free space around the
product.
•Kids can move around this product only under adult supervision.
•Use only well-grounded socket and proper power cord.
•Pull out the plug after every use or during maintenance to avoid injury or damaging the
product.
•Please use this product according to the manual.
•Do not use unauthorized modifications or accessories.
•Only for indoor use.
•Before first use, please read the manual carefully.
•Use this product as is described in the manual.
•Recommended maximum use time is 20 minutes.
•Do not use the device if it is damaged. (frame, leather etc.)
•Do not use the chair if the ventilation is blocked.
•No not put on chair heavy items or objects with sharp edge.
•Do not fall asleep during massage for safety reasons.
•Do not use the chair after you consumed alcohol or other drugs or if you are sick or dizzy.
•Do not use within one hour after meal.
•Please be caution and do not use too strong massage.
•Weight limit: 150 kg
POSITION OF MASSAGE CHAIR
•Do not use the chair in high temperatures or moist environments (e.g. bathroom).
•Do not use the chair immediately after temperature change.
•Do not use in dust or impropriety rooms.
•In is important to secure enough space and ventilation.
PEOPLE THAT SOULD NOT USE THE PRODUCT
•People suffering from osteoporosis.
•People who have hearth problems or are using electronic medical equipment (e.g.
peacemaker).
•People suffering fever.
•Pregnant women.
•People suffering skin diseases.
•Kids younger 14 years old or people suffering mental illness can use this product only under
adult supervision.
•People that are recommended rest from the doctor or people suffering from sickness.
•Do not use this chair if you have wet body.
•Do not use the heat function if you are heat sensitive.

4
SAFETY
•Maintenance should be done only by qualify person. Use should not disassemble the chair or
do the maintenance by themselves.
•After every use unplug the cord.
•Do not use the product if the power cord, plug or socked are damaged.
•If you are not using the chair for long period of time, store it at a clean and dry place and
secure the power cord.
•Do not expose the chair to high temperatures, direct sunlight and do not place the chair near
heat source.
•If the power cord, plug or socked are damaged, ask professional or qualified person for help.
•For cleaning use wet sponge only. Do not use thinner, gasoline or alcohol for cleaning.
•Mechanical parts are assembled and made to require minimum maintenance.
•Pay extra attention to not damage the chair with sharp objects.
•Do not push the chair on uneven ground, always pick the chair up and then move.
•Do not let the chair to work for long periods of time.
COMMON PROBLEMS AND SOLUTIONS
•It is common that the motor is making sounds.
•If the chair is not working, please check the power cord, plug and socket and that the switch is
ON.
•After the massage time is over the massage chair will turn OFF. The product will automatically
shut down if it is overheated –wait at least half an hour before next massage.

5
WARNING
If the footrest rises, do not apply pressure to the
footrest. You may damage the product or injure
yourself.
Before sitting down, make sure that the massage
heads do not protrude from the seat. You may
damage the heads or be injured.
Never unplug the power cord during use or when
the chair is in standby mode. After use, we
recommend switching off the chair and unplugging
the power cord.
Before using the angle adjustment function,
make sure that you have enough free space and
that there are no other people or pets behind the
chair.

6
PRODUCT DESCRIPTION
1.
3D digital speakers with voice control
on the left
2.
Pillow
3.
Anion generator
4.
Air cushions for upper arms
5.
Controller
6.
Air cushions for palms
7.
Quick control
8.
Massage magnetic tapes
9.
Seat
10.
Leg rest
11.
Footrest
12.
Backrest
13.
USB charging port
14.
Controller holder
15.
LED lighting
16.
Cover
17.
Side covers
18.
Backrest cover
19.
Drive cover
20.
Wheels
21.
Power cord and plug
22.
Device socket
23.
Switch

7
FUNCTIONS
•This product is designed with a set of massage heads that can move up and down in quiet
operation.
•Five types of massages: Shiatsu, Kneading, Tapping, Knocking and simultaneous kneading
and tapping.
•This product is equipped with automatic shoulder detection and positioning.
•There are eight special automatic massage functions: quick massage, comfortable massage,
relaxation massage, stretching massage, full body massage, chiropractic massage, neck and
shoulder massage and back and waist massage.
•Two saving slots for storing massages.
•Manual massage for the upper body; five massage position options (full range, local, fixed
point, upper back and lower back), five massage techniques (shiatsu, kneading, tapping,
knocking, simultaneous kneading and tapping). Five speed levels can be set for each
massage technique; during the tapping, shiatsu and knocking massage you can set three
levels of width of the massage heads.
•Airbag massage function available: upper arm airbag massage function (4 built-in airbags),
arm airbag massage function (8 built-in airbags), leg massage airbag function (6 built-in
airbags) and foot airbag massage function (22 built-in airbags); there are three levels of air
pressure intensity for the setting.
•The chair supports 3 levels of heating with carbon fiber.
•The backrest is sliding inside to minimize the space required.
•The backrest is ergonomically adapted.
•3D audio system for playing music via Bluetooth.
•Voice control.
•Buttons for quick operation are located on the right armrest.
•The chair supports independent adjustment of the backrest and footrest, connected
adjustment of the inclination of the backrest and leg rest, zero gravity and timer.
•The chair supports adjusting the length of the footrest.
•The chair contains foot massage rollers.
•For palm massage, air cushions contain magnetic tapes.
•The chair supports the kneading of the legs.
•USB charging in the holder for the controller.
•Anion generator.
•Controller with TFT color display.
•Shutdown, automatic shutdown, restart.
•The headrest cushion contains two layers.

8
CONTROLLER
1.
TFT color LCD display
12.
Adjusting the position of the shoulders
2.
Type of massage
13.
Bluetooth
3.
Anion generator
14.
Type of massage
4.
Timer
15.
Massage location
5.
Zero gravity
16.
Back and leg heating
6.
Massage of the back
17.
Width adjustment
7.
Arm cushion pressure
18.
Massage intensity
8.
Leg rest pressure
19.
The intensity of the air cushions of the
arms
9.
Foot massage rollers
20.
Intensity of lower body air cushions
10.
Speed setting
21.
Information
11.
Adjustment

9
CONTROLLER BUTTONS
1.
Switch
12.
Lowering the backrest and raising the leg
rest
2.
Edit button
13.
Time setting
3.
Automatic massage
14.
Pause
4.
Menu
15.
Manual mode
5.
Navigation key up
16.
Return button
6.
Confirm button
17.
Right navigation button
7.
Navigation key left
18.
Lifting the leg rest
8.
Raising the backrest
19.
Lowering the leg rest
9.
Lowering the backrest
20.
Switching to zero gravity I
10.
Navigation key down
21.
Switching to zero gravity II
11.
Raising the backrest and lowering the leg
rest

10

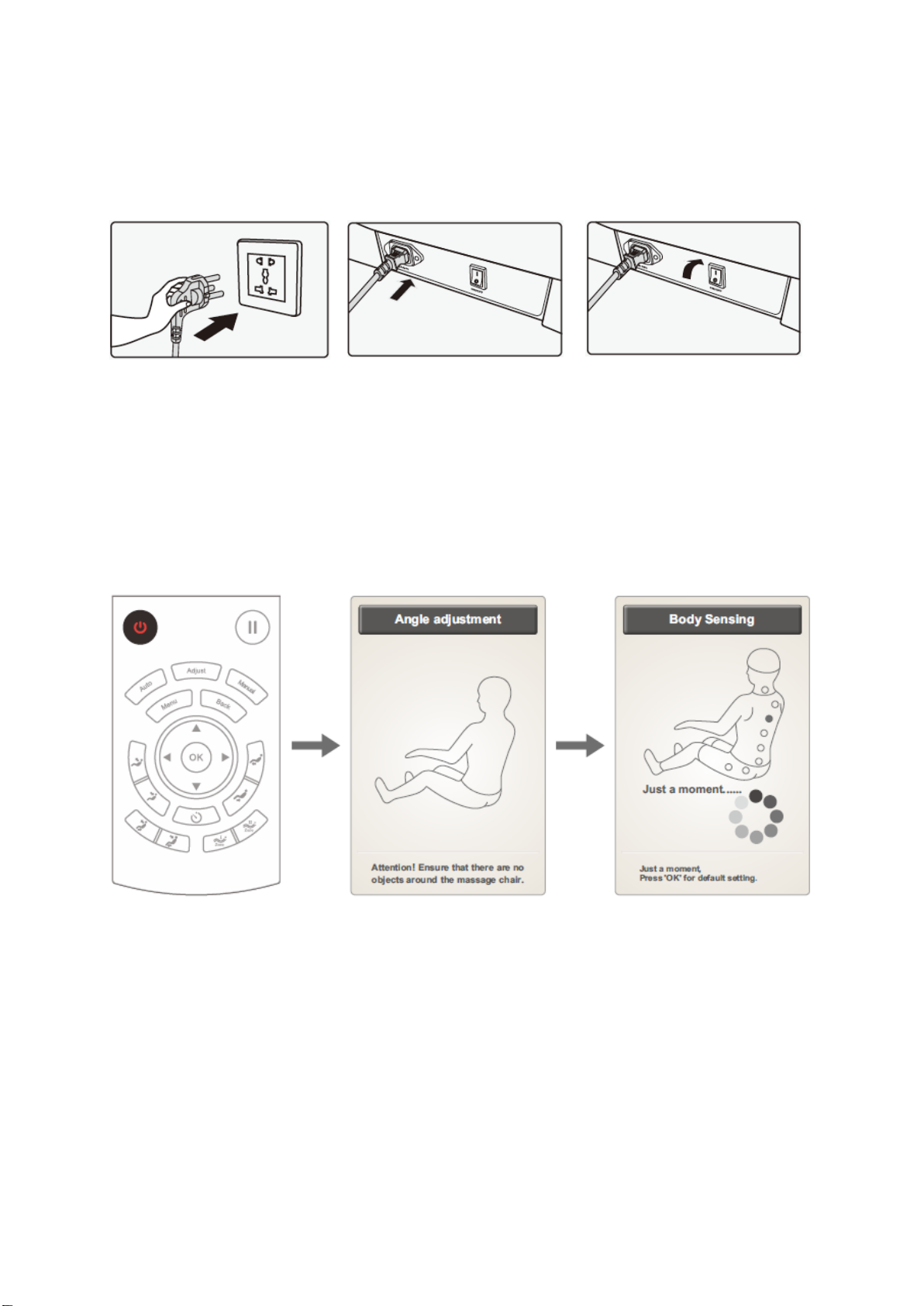

USE
POWER UP AND START-UP
1. Plug in the socket
2. Plug in the chair
3. Turn the switch up
STANDBY MODE
No function can be selected in standby mode.
STARTING THE MASSAGE
Press the chair switch to start. The back and leg rests are adjusted to their default position.
After sitting, the chair automatically detects the position of the shoulders and body. Wait until detection
is complete, or press "OK" to skip detection. After starting the automatic massage, the massage starts
with preset values.
An audible signal sounds when the shoulder detection is complete. You can adjust the position of the
shoulder massage heads manually using the "UP" and "DOWN" buttons. You can set up to 11
positions of the massage heads. If the position of the shoulders is not adjusted within 10 seconds, the
massage will start automatically. You can skip the settings by pressing "OK". If the position of the arms
cannot be detected, the automatic massage starts with preset values.

11
Button
Description
Moves the shoulder massage head up
Moves the massage head of the shoulders down

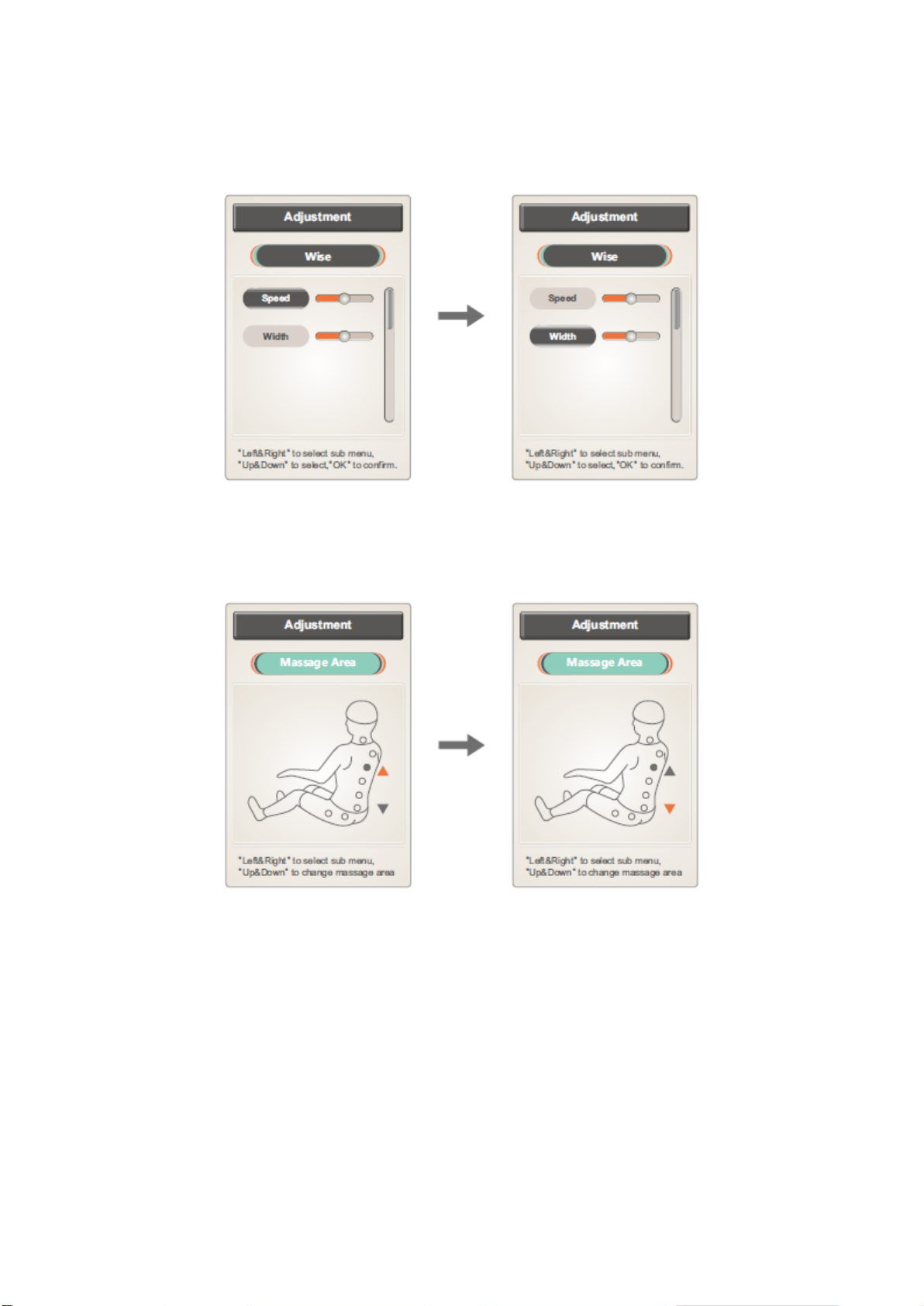

In the interface below, you can select "Adjustment" or "Shoulder" to adjust the heads. Then confirm
the adjustment by pressing "OK".

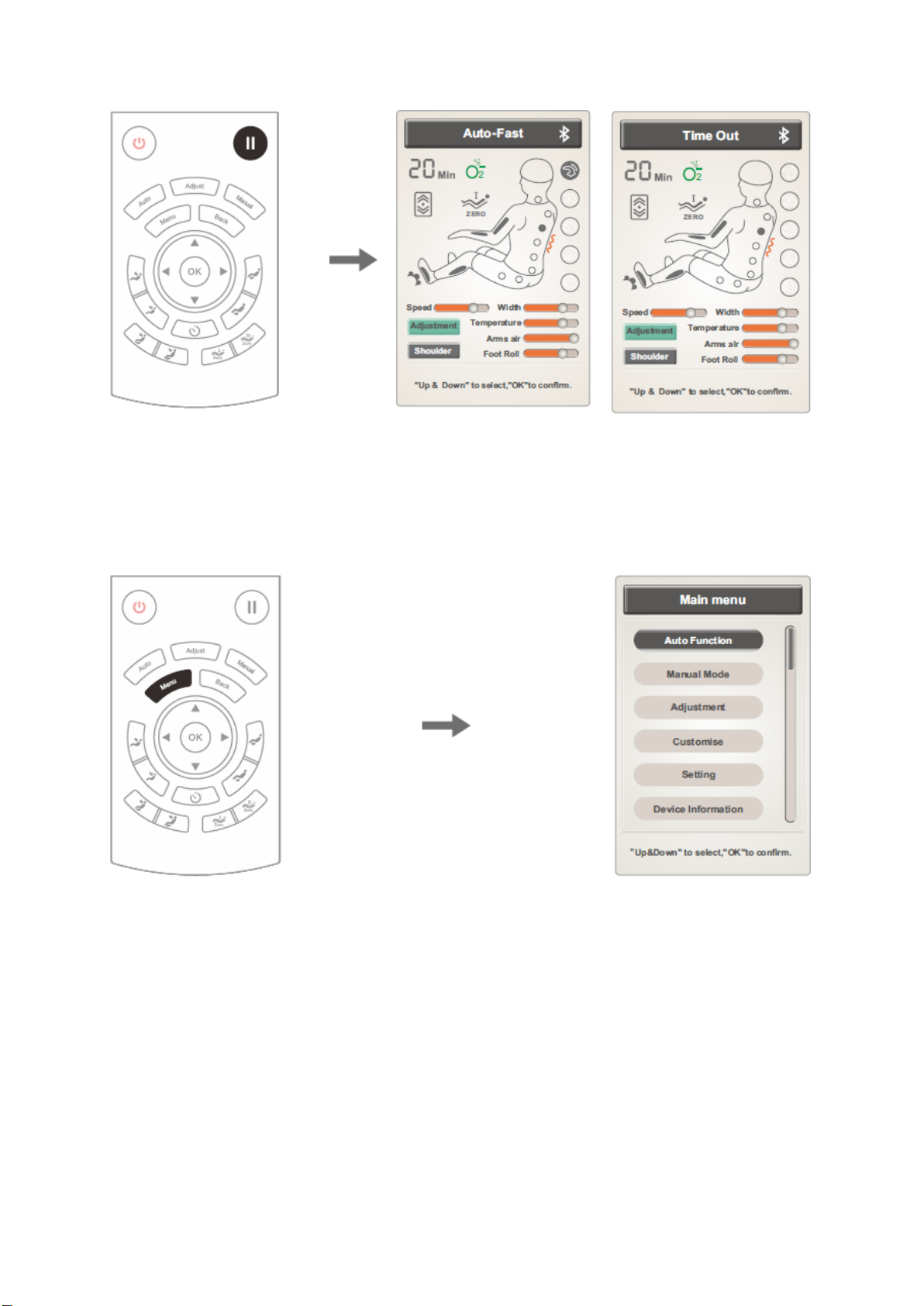

PAUSE
If the massage is running, you can pause the massage by pressing "pause". Press "pause" repeatedly
to start the massage again. If the pause is longer than 20 minutes, the massage will automatically
switch off.

12
In operation
Paused massage
MENU
Press "menu" to enter the main menu, in the main menu you can select "auto" automatic massage,
"manual" manual massage, "adjustment" adjustment, "customize" to adjust, "setting" settings, device
information "device information".
AUTOMATIC MASSAGE
You can select an automatic massage via the main menu "menu" or via the "auto" button, which will
take you to the automatic massage interface.
Types of automatic massages: "Fast massage" fast, "Comfortable massage" comfortable, "Relax
massage" relaxation, "Stretch massage" stretching, "Full body massage" full body massage,
"Chiropractic massage" chiropractic massage, "Neck & shoulder massage" neck and shoulder
massage, "Back & waist massage" back and waist massage.
Navigate in the menu using the "up" and "down" buttons, confirm the free time by pressing "Ok". Press
"Back" to return to the previous menu.

13
Function
Description
Fast massage
Quick massage
Comfortable massage
Comfortable massage
Relax massage
Gentle and comfortable full body massage for relaxation
Stretch massage
Stretching the legs, waist and back to restore energy
Full body massage
Deep full body massage
Chiropractic massage
Chiropractic massage for body relaxation
Neck & shoulder massage
Special neck and shoulder massage
Back & waist massage
Special back and waist massage
Note: The selected function is displayed in the information bar, you can press "Back" to display the
progress.
MANUAL MODE
Press "Menu" to enter the main menu, select "manual".
You can set: "Massage technique" massage technique, "Massage part" instead of massage, "Airbag
massage" massage with air cushions, "Other massage functions" other functions.
Use the "Left" and "Right" buttons to enter the function settings, use the "Up" and "Down" buttons to
move in the menu. Press "Back" to return to the main interface.

14
MANUAL MODE - SELECTION OF MASSAGE TYPE
Techniques: "Kneading" kneading, "Tapping" tapping, "Kneading and tapping" kneading and tapping,
"Shiatsu" and "tapping". In Shiatsu and tapping mode, you can adjust the width of the massage heads.
Use the "Up" and "Down" buttons to select the technique, confirm with "Ok".

15
Note: Press "Stop" to stop all functions
Function
Settings
Kneading
Speed
5 speed levels
3 width levels
Tapping
Speed and width
Kneading and tapping
Speed
Shiatsu
Speed and width
Knocking
Speed and width
MANUAL MODE - SELECTING THE MASSAGE LOCATION
Fixation in one place, partial, whole back, upper and lower back.
Use the up and down buttons to select the type, confirm by pressing "ok".
Fixed
Partial
Whole back
Upper back
Lower back

16
Function
Description
In one place
Massage in one place
In these modes, use the up and
down buttons to select a range
Partial
Partial massage on a small scale
Upper back
Upper back massage
Lower back
Lower back massage
Whole back
Total massage
Air cushions
Upper or lower limb air cushions
Use the up and down buttons to select the function, confirm by pressing "ok".
Function
Description
Upper limbs
Turn on or turn off the function
Lower limbs
Turn on or turn off the function
Other functions
Heating, kneading of legs, foot massage rollers, anion production, Bluetooth.
Use the up and down buttons to select the function, confirm by pressing "ok".

17
Use the up and down buttons to select the function, confirm by pressing "ok".
Press "confirm" to start / stop heating.
Use the up and down buttons to select the function, confirm by pressing "ok".
Press "confirm" to start / stop kneading the legs.
Use the up and down buttons to select the function, confirm by pressing "ok".
To start / stop foot massage, press "confirm".

18
Use the up and down buttons to select the function, confirm by pressing "ok".
To start / stop anion generation, press "confirm".
Use the up and down buttons to select the function, confirm by pressing "ok".
Press "confirm" to turn Bluetooth on / off.
You can use Bluetooth to play music.

19
SPEED, WIDTH AND INTENSITY ADJUSTMENT
In the main menu, select "adjustment"
An interface appears where you can select a function by pressing the up and down buttons and adjust
their value by pressing the right and left buttons. After setting, confirm by pressing "ok" or return to the
menu without changes by pressing "back"

20
SPEED AND WIDTH
You can adjust the speed and width of the massage heads.
Navigate in the menu using the Up and Down buttons, confirm the selection by pressing "Ok".
Note: 5 speed levels can be set and for tapping, Shiatsu and knocking massages, 3 levels of shoulder
massage head width can be set.
PLACE / SCOPE OF MASSAGE
You can set the place or range of the massage in single place massage or partial massage modes.
You can adjust the range using the up and down buttons.
INTENSITY
The chair supports 5 levels of massage intensity with air cushions and foot rollers.
The chair supports 3 levels of heating.
Use the up and down buttons to select the function, adjust the value by pressing right and left, confirm
by pressing "ok"
