Intellinet 524704 User manual

Wireless-N
Access PoiNt
quick
iNstAll
guide
MODELS:
524704
524728
524735
INT-524704/524728/524735-QIG-0809-01
Shown: Model 524728

2
Thank you for purchasing the INTELLINET NETWORK SOLUTIONS
™
Wireless 150N Access Point, Model 524704, Wireless 300N Access
Point, Model 524728 or Wireless 300N PoE Access Point, Model 524735.
This guide presents the basic steps to set up and operate this device.
For detailed instructions and specications, refer to the user manual on
the CD enclosed with this product or at www.intellinet-network.com.
Installation
1. Connect your router or switch/hub to the LAN port on the back panel
of the device using Ethernet cable.
2. Attach the antenna(s).
3. Connect the A/C power adapter to a wall socket, and then connect it
to the power socket of the access point.
4. Check all LEDs on the front panel. The PWR and LAN LEDs should
both be on, indicating the device is powered on and properly/securely
connected. NOTE: The WLAN LED will blink once the LAN connection
is made.

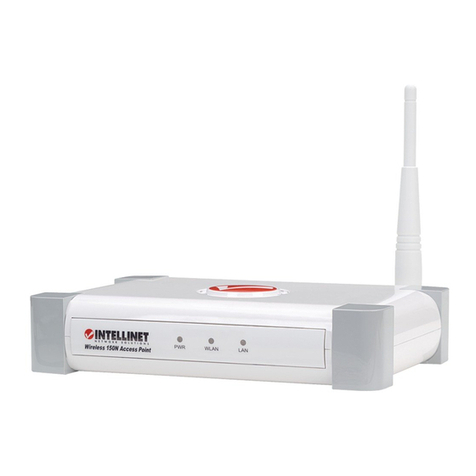

Wireless 150N Access Point
NOTE: Model 524704 Wireless
150N Access Point features
only one antenna.

5. Start your Web browser —
MS Internet Explorer, for
example — and open
http://192.168.2.1 to display
a login window.
6. Enter “admin” for username
and “1234” for password.
Additional install instructions —
as well as explanations for all
the setup options — can be
found in the user manual on the enclosed CD.
Safety Guidelines
• Do not place this device outdoors or near excessive heat or humidity.
• Do not yank any connected cables; disconnect them gently.
• If placing this device at heights or on a wall, make sure it’s rmly
secured to prevent damage or possible injury.
• Access point parts (antennas, power supply, etc.) are dangerous should
children put them in their nose or mouth. Keep out of the reach of
children!
• It’s normal for the device to become hot when used for a long time, so
keep it away from paper, cloth and other ammable materials.
• There’s no user-serviceable part inside the device. If you nd that it
isn’t working properly, contact your dealer (place of purchase) and
ask for help. Do not disassemble the device: Doing so will void
the warranty.
• If the device falls into water while turned on, do not touch it to remove
it! Turn off its power source before you do anything, or contact an
experienced technician for help.
• If smoke or strange odors emanate from the device or power supply,
remove the power supply or turn the power off immediately.
3

INTELLINET NETWORK SOLUTIONS™offers a complete line
of active and passive networking products.
Ask your local computer dealer for more information or visit
www.intellinet-network.com.
