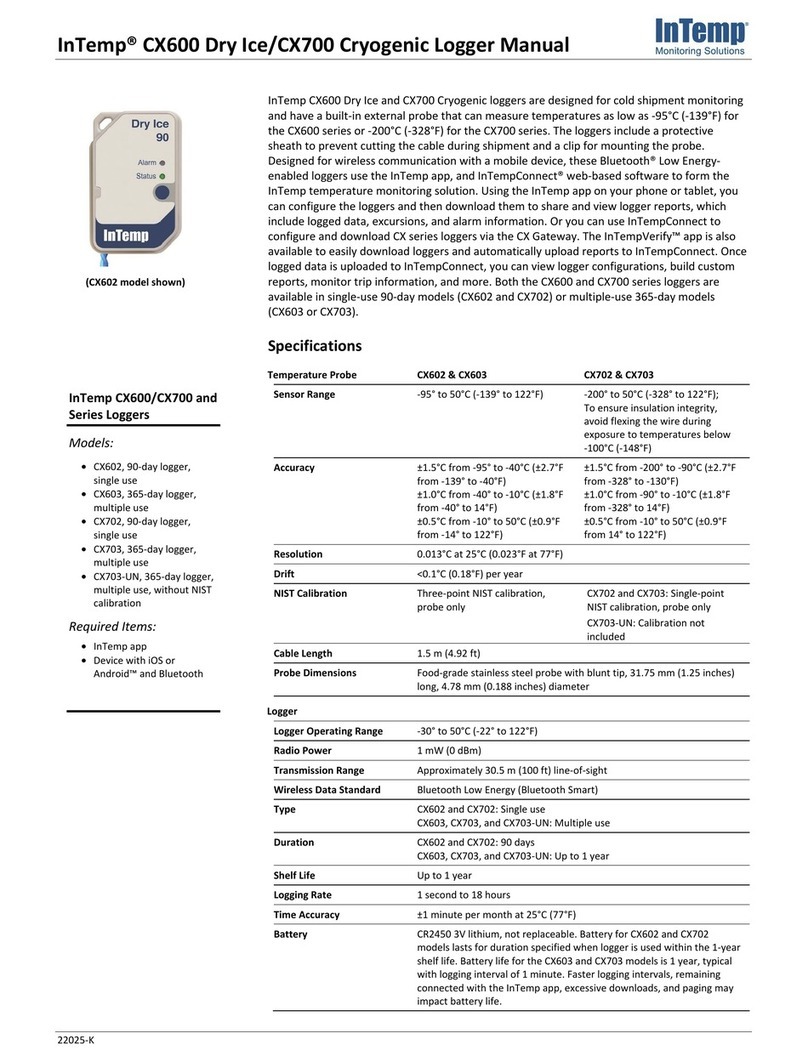

Intempco CX600 Series User manual

InTemp® CX600 Dry Ice/CX700 Cryogenic Logger Manual
22025-G
InTemp CX600 Dry Ice and CX700 Cryogenic loggers are designed for cold shipment monitoring
and have a built-in external probe that can measure temperatures as low as -95°C (-139°F) for
the CX600 series or -200°C (-328°F) for the CX700 series. The loggers include a protecve
sheath to prevent cung the cable during shipment and a clip for mounng the probe.
Designed for wireless communicaon with a mobile device, these Bluetooth® Low Energy-
enabled loggers use the InTemp app, and InTempConnect® web-based soware to form the
InTemp temperature monitoring soluon. Using the InTemp app on your phone or tablet, you
can configure the loggers and then download them to share and view logger reports, which
include logged data, excursions, and alarm informaon. Or, you can use InTempConnect to
configure and download CX series loggers via the CX5000 Gateway. The InTempVerify™ app is
also available to easily download loggers and automacally upload reports to InTempConnect.
Once logged data is uploaded to InTempConnect, you can view logger configuraons, build
custom reports, monitor trip informaon, and more. Both the CX600 and CX700 series loggers
are available in single-use 90-day models (CX602 and CX702) or mulple-use 365-day models
(CX603 or CX703).
Specications
Temperature ProbeCX602 & CX603 CX702 & CX703
Sensor Range -95° to 50°C (-139° to 122°F) -200° to 50°C (-328° to 122°F);
To ensure insulaon integrity,
avoid flexing the wire during
exposure to temperatures below
-100°C (-148°F)
Accuracy ±1.5°C from -95° to -40°C (±2.7°F
from -139° to -40°F)
±1.0°C from -40° to -10°C (±1.8°F
from -40° to 14°F)
±0.5°C from -10° to 50°C (±0.9°F
from -14° to 122°F)
±1.5°C from -200° to -90°C (±2.7°F
from -328° to -130°F)
±1.0°C from -90° to -10°C (±1.8°F
from -328° to 14°F)
±0.5°C from -10° to 50°C (±0.9°F
from 14° to 122°F)
Resolution 0.013°C at 25°C (0.023°F at 77°F)
Drift <0.1°C (0.18°F) per year
NIST Calibration Three-point NIST calibraon,
probe only
CX702 and CX703: Single-point
NIST calibraon, probe only
CX703-UN: Calibraon not
included
Cable Length 1.5 m (4.92 )
Probe Dimensions Food-grade stainless steel probe with blunt p, 31.75 mm (1.25 inches)
long, 4.78 mm (0.188 inches) diameter
Logger
Logger Operating Range -30° to 50°C (-22° to 122°F)
Radio Power 1 mW (0 dBm)
Transmission Range Approximately 30.5 m (100 ) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Type CX602 and CX702: Single use
CX603, CX703, and CX703-UN: Mulple use
Duration CX602 and CX702: 90 days
CX603, CX703, and CX703-UN: Up to 1 year
Shelf Life Up to 1 year
Logging Rate 1 second to 18 hours
Time Accuracy ±1 minute per month at 25°C (77°F)
Battery CR2450 3V lithium, not replaceable. Baery for CX602 and CX702
models lasts for duraon specified when logger is used within the 1-year
shelf life. Baery life for the CX603 and CX703 models is 1 year, typical
with logging interval of 1 minute. Faster logging intervals, remaining
connected with the InTemp app, excessive downloads, and paging may
impact baery life.
(CX602 model shown)
InTemp CX600/CX700 and
Series Loggers
Models:
•CX602, 90-day logger,
single use
•CX603, 365-day logger,
mulple use
•CX702, 90-day logger,
single use
•CX703, 365-day logger,
mulple use
•CX703-UN, 365-day logger,
mulple use, without NIST
calibraon
Required Items:
•InTemp app
•Device with iOS or
Android™ and Bluetooth
All manuals and user guides at all-guides.com

InTemp CX600 Dry Ice/CX700 Cryogenic Logger Manual
www.prosensor.com2
Specications (continued)
Memory 16,000 measurements
Full Memory Download
Time
Approximately 30 seconds; may take longer the farther the device is
from the logger
Dimensions 6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches)
W
eight 25.5 g (0.90 oz)
Environmental Rating IP65
The CE Marking idenfies this product as complying with all relevant
direcves in the European Union (EU).
See last page
Passed RTCA DO160G, part 21H
Logger Components and Operation
Mounting Loop: Use this to e the logger to the materials being
monitored.
Duration: This number indicates how many days the logger will
last: 90 days for the CX602 and CX702 or 365 days for the
CX603 and CX703 models.
Alarm LED: This LED blinks red every 4 seconds when an alarm
is tripped. Both this LED and the status LED will blink once when
you press the start buon to wake up the logger before
configuring it. If you select Page Logger LED in the InTemp app,
both LEDs will be illuminated for 4 seconds.
Status LED: This LED blinks green every 4 seconds when the
logger is logging. If the logger is waing to start logging
(because it was configured to start “On buon push,” “On
buon push with fixed delay,” or with a delayed start), it will
blink green every 8 seconds.
Start Button:Press this buon for 1 second to wake up the
logger to begin using it. Once the logger is awake, press this
buon for 1 second to move it to the top of the loggers list in
the InTemp app. Press this buon for 4 seconds to start the
logger when it is configured to start “On buon push” or “On
buon push with fixed delay.” Both LEDs will blink four mes
when you press the start buon to begin logging. You can also
press this buon to stop the logger when it is configured to
“Stop on buon push.”
Temperature Probe: This is the built-in external probe for
measuring temperature.
Getting Started
InTempConnect is web-based soware where you can monitor
CX600 and CX700 series logger configuraons and view
downloaded data online. Using the InTemp app, you can
configure the logger with your phone or tablet and then
download reports, which are saved in the app and
automacally uploaded to InTempConnect. Or, anyone can
download a logger using the InTempVerify app if the loggers
are enabled to be used with InTempVerify. See
www.intempconnect.com/help for details on both the gateway
and InTempVerify. If you do not need to access logged data via
the cloud-based InTempConnect soware, then you also have
the opon to use the logger with the InTemp app only.
Follow these steps to begin using the loggers with
InTempConnect and the InTemp app.
1. Set up an InTempConnect account and create roles,
privileges, proles, and trip information elds. If you are
using the logger with the InTemp app only, skip to step 2.
a. Go to www.intempconnect.com and follow the prompts
to set up an administrator account. You’ll receive an
email to acvate the account.
b. Log into www.intempconnect.com and add roles for the
users you will be adding to the account. Click Sengs and
then Roles. Click Add Role, enter a descripon, select the
privileges for the role and click Save.
c. Click Sengs and then Users to add users to your
account. Click Add User enter the email address and first
and last name of the user. Select the roles for the user
and click Save.
d. New users will receive an email to acvate their user
accounts.
e. Click Loggers and then Logger Profiles if you want to add
a custom profile. (If you want to use the preset logger
profiles only, skip to step f.) Click Add Logger Profile and
fill out the fields. Click Save.
f. Click the Trip Informaon tab if you want to set up trip
informaon fields. Click Add Trip Info Field and fill out the
fields. Click Save.
2. Download the InTemp app and log in.
a. Download InTemp to a phone or tablet from the App
Store® or Google Play™.
b. Open the app and enable Bluetooth in the device sengs
if prompted.
Duraon
Alarm LED
Status LED
Mounng
Loop
Start Buon
Temperature
Probe
All manuals and user guides at all-guides.com

InTemp CX600 Dry Ice/CX700 Cryogenic Logger Manual
www.prosensor.com3
c. InTempConnect users:Log in with your InTempConnect
user credenals. Make sure to check the box that says “I
am an InTempConnect user” when signing in.
InTemp app only users: If you will not be using
InTempConnect, create a user account and log in when
prompted. DO NOT check the box that says “I am an
InTempConnect user” when signing in.
3. Congure the logger.Note that InTempConnect users
require privileges for configuring the logger.
Important: CX602 and CX702 loggers cannot be
restarted once logging begins. Do not connue with
these steps unl you are ready to use these loggers.
InTempConnect users: Configuring the logger requires
privileges. Administrators or those with the required
privileges can also set up custom profiles and trip
informaon fields. This should be done before compleng
these steps. If you plan to use the logger with the
InTempVerify app, then you must create a logger profile
with InTempVerify enabled. See
www.intempconnect.com/help for details.
InTemp App only users: The logger includes preset profiles.
To set up a custom profile, tap the Sengs icon and tap
CX600 or CX700 Logger before compleng these steps.
a. Press the buon on the logger to wake it up.
b. Tap the Devices icon in the app. Find the logger in the list
and tap it to connect to it. If you are working with
mulple loggers, press the buon again to bring the
logger to the top of the list.
If you are having trouble connecng:
•Make sure the logger is within range of your mobile
device. The range for successful wireless
communicaon is approximately 30.5 m (100 ) with
full line-of-sight.
•If your device can connect to the logger intermiently
or loses its connecon, move closer to the logger,
within sight if possible.
•Change the orientaon of your phone or tablet to
ensure the antenna in your device is pointed toward
the logger. Obstacles between the antenna in the
device and the logger may result in intermient
connecons.
•If the logger appears in the list, but you cannot connect
to it, close the app, power down the mobile device,
and then turn it back on. This forces the previous
Bluetooth connecon to close.
c.Once connected, tap Configure. Swipe le and right to
select a logger profile. Type a name or label for the
logger. Tap Start to load the selected profile to the
logger. InTempConnect users: If trip informaon fields
were set up, you will be prompted to enter addional
informaon. Tap Start in the upper right corner when
done.
4. Deploy and start the logger.
Important: Reminder, CX601 and CX602 loggers cannot
be restarted once logging begins. Do not connue with
these steps unl you are ready to use these loggers.
a. Deploy the logger to the locaon where you will be
monitoring the temperature.
b. Press the buon on the logger when you want logging to
begin (or if you chose a custom profile, logging will begin
based on the sengs in the profile).
If the logger was configured with alarm sengs, an alarm will
trip when the temperature reading is outside the range
specified in the logger profile. The logger alarm LED will blink
every 4 seconds, an alarm icon appears in the app, and an
Alarm Out of Range event is logged. You can review alarm
informaon in the logger report (see Downloading the Logger).
InTempConnect users can also receive noficaons when an
alarm is tripped. See www.intempconnect.com/help for more
details on configuring the logger and monitoring alarms.
Passkey Protection
The logger is protected by an encrypted passkey automacally
generated by the InTemp app for InTempConnect users and
oponally available if you are using the InTemp app only. The
passkey uses a proprietary encrypon algorithm that changes
with every connecon.
InTempConnect Users
Only InTempConnect users belonging to the same
InTempConnect account can connect to a logger once it is
configured. When an InTempConnect user first configures a
logger, it is locked with an encrypted passkey that is
automacally generated by the InTemp app. Aer the logger is
configured, only acve users associated with that account will
be able to connect to it. If a user belongs to a different account,
that user will not be able to connect to the logger with the
InTemp app, which will display an invalid passkey message.
Administrators or users with the required privileges can also
view the passkey from the device configuraon page in
InTempConnect and share them if needed. See
www.intempconnect.com/help for more details. Note: This
does not apply to InTempVerify. if the logger was configured
with a logger profile in which InTempVerify was enabled, then
anyone can download the logger with the InTempVerify app.
InTemp App Only Users
If you are using the InTemp app only (not logging in as an
InTempConnect user), you can create an encrypted passkey for
the logger that will be required if another phone or tablet
aempts to connect to it. This is recommended to ensure that
a deployed logger is not mistakenly stopped or purposely
altered by others.
To set a passkey:
1. Press the buon on the logger to wake it up.
2. Tap the Devices icon and connect to the logger.
All manuals and user guides at all-guides.com

InTemp CX600 Dry Ice/CX700 Cryogenic Logger Manual
www.prosensor.com4
3. Tap Set Logger Passkey.
4. Type a passkey up to 10 characters.
5. Tap Save.
6. Tap Disconnect.
Only the phone or tablet used to set the passkey can then
connect to the logger without entering a passkey; all other
mobile devices will be required to enter the passkey. For
example, if you set the passkey for the logger with your tablet
and then try to connect to the device later with your phone,
you will be required to enter the passkey on the phone but not
with your tablet. Similarly, if others aempt to connect to the
logger with different devices, then they would also be required
to enter the passkey. To reset a passkey, connect to the logger,
tap Set Logger Passkey, and select Reset to Factory Default.
Downloading the Logger
You can download the logger to a phone or tablet and generate
reports that include logged data and alarm informaon.
Reports can be shared immediately upon download or accessed
later in the InTemp app.
InTempConnect users: Privileges are required to download,
preview, and share reports in the InTemp app. Report data is
automacally uploaded to InTempConnect when you download
the logger. Log in to InTempConnect to build custom reports
(requires privileges). In addion, InTempConnect users can also
download CX loggers automacally on a regular basis using the
CX5000 Gateway. Or, if the logger was configured with a logger
profile in which InTempVerify was enabled, then anyone can
download the logger with the InTempVerify app. For details on
the gateway and InTempVerify, see www.intempconnect/help.
To download the logger with the InTemp app:
1. Press the buon on the logger to wake it up.
2. Tap the Devices icon and connect to the logger.
3. Tap Download.
4. Choose a download opon:
Important: CX602 and CX702 loggers cannot be
restarted. If you want a CX602 or CX702 logger to
connue logging aer the download is complete, select
Download & Connue.
•Download & Connue. The logger will connue logging
once the download is complete.
•Download & Restart (CX603 models only). The logger will
start a new data set using the same profile once the
download is complete. Note that if the logger was
originally configured with a push buon start, you must
push the start buon for logging to restart.
•Download & Stop. The logger will stop logging once the
download is complete.
A report of the download is generated and is also uploaded to
InTempConnect if you are logged in to the InTemp app with
your InTempConnect user credenals.
In the app, tap Sengs to change the default report type
(Secure PDF or XLSX) and report sharing opons. The report is
also available in in both formats for sharing at a later me. Tap
the Reports icon to access previously downloaded reports. See
www.intempconnect.com/help for details on working with
reports in both the InTemp app and InTempConnect.
Logger Events
The logger records the following events to track logger
operaon and status. These events are listed in reports
downloaded from the logger.
Event Name Denition
Configured The logger was configured by a user.
Connected The logger was connected to the InTemp
app.
Started The logger started logging.
Stopped The logger stopped logging.
Downloaded The logger was downloaded.
Alarm Out of
Range/In Range
An alarm has occurred because the reading
was outside the alarm limits or back within
range. Note:Although the reading may
return to a normal range, the alarm
indicator will not clear in the InTemp app
and the alarm LED will connue to blink.
Safe Shutdown The baery level dropped below a safe
operang voltage and performed a safe
shutdown.
Deploying the Logger
Use the mounng loop on the logger to secure it to a shipment
or other applicaon you are monitoring. You can also remove
the backing on the tape that is adhered to the top and boom
of the logger to mount it on a flat surface.
Place the stainless steel probe in the plasc clip included with
the logger and clip it to a box or other item.
The external probe cable has a protecve sheath. Move the
sheath as needed to posion it where the cable will be
protected during shipments from inadvertent cuts.
Protecting the Logger
Note: Static electricity may cause the logger to stop logging.
The logger has been tested to 8 KV, but avoid electrostac
discharge by grounding yourself to protect the logger. For more
informaon, search for “stac discharge” on onsetcomp.com.
Battery Information
The logger uses one CR2450 non-replaceable lithium baery.
Baery life is not guaranteed past the 1-year logger shelf life.
Baery life for the CX603 and CX703 models is 1 year, typical
with a logging interval of 1 minute. Expected baery life for the
CX603 and CX703 models vary based on the ambient
temperature where the logger is deployed and the frequency of
connecons, downloads, and paging. Deployments in extremely
cold or hot temperatures or a logging interval faster than 1
minute can impact baery life. Esmates are not guaranteed
due to uncertaines in inial baery condions and operang
environment.
All manuals and user guides at all-guides.com

InTemp CX600 Dry Ice/CX700 Cryogenic Logger Manual
www.prosensor.com
WARNING: Do not cut open, incinerate, heat above 85°C
(185°F), or recharge the lithium baery. The baery may
explode if the logger is exposed to extreme heat or condions
that could damage or destroy the baery case. Do not dispose
of the logger or baery in fire. Do not expose the contents of
the baery to water. Dispose of the baery according to local
regulaons for lithium baeries.
All manuals and user guides at all-guides.com
