Technogym Artis Vario User manual

ARTIS CARDIO
Vario
User manual

2
Vario Artis
Contents
Contents..................................................................................................... 2
Important safety instruction................................................................... 3
Personal safety ......................................................................................... 5
Manufacturer and equipment identication.......................................... 7
Description of the equipment.................................................................. 8
Technical data............................................................................................ 9
Accessories ............................................................................................. 13
Safety devices and warnings................................................................ 14
Place of usage ......................................................................................... 16
Moving the equipment ........................................................................... 17
Levelling................................................................................................... 19
Electrical connection (mains powered version).................................20
Connection to another device................................................................ 23
Routine maintenance ............................................................................ 25
Changing the fuses (mains powered version and Renew) ...............26
Recharging the battery (battery-powered version).......................... 27
Troubleshooting.......................................................................................28
Technical assistance..............................................................................30
Storage ..................................................................................................... 31
Disposal ................................................................................................... 32
Switching on and o............................................................................... 33
Monitoring the heart rate....................................................................... 35
Using the equipment ..............................................................................38

3
Vario Artis
Important safety instruction
You should always consult with a qualied and licensed medical professional or healthcare practitioner before starting any nutritional, diet, stretching or exercise
program. You are advised to investigate and inform yourself about any health related actions and choices you make.
Please read all instructions before using the equipment. These instructions were written to ensure your safety and to protect the unit.
When using an electrical appliance, basic precautions should be always followed, including the following.
D
To reduce the risk of electric shock, always unplug the unit from the electrical outlet immediately after using and before cleaning or
performing any maintenance tasks.
W
To reduce the risk of burns, re, electric shock or injury to person, take the following precautions.
The equipment should never be left unattended when plugged in. Unplug from outlet when not in use, before cleaning it, and before putting on or taking o
electrical parts.
Do not allow unsupervised children close to the equipment.
Close supervision by qualied personnel is necessary when the equipment is used by or near children, invalids or disabled persons.
Use the equipment only for its intended use as described in the user manual. Only perform the exercises for which the equipment has been designed, following
the instructions given in the manual. Any other use is to be considered improper and therefore dangerous.
Do not use attachments not recommended by Technogym.
Never operate the equipment if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. In this case,
contact the Technogym Technical Support service.
Do not carry the equipment by supply cord or use cord as handle.

4
Vario Artis
Important safety instruction
Keep the cord away from heated surfaces.
Keep hands and feet away from moving parts.
Never drop or insert any object into any opening.
Do not use outdoors. Do not leave the equipment outdoors, exposed to the elements (rain, sun, wind, etc.). Do not expose the equipment to water jets.
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
To disconnect, turn all controls to the o position, then remove plug from outlet.
SAVE THESE INSTRUCTIONS
W
Do not connect a device with load exceeding 7A.
Risk Of Electric Shock. Do Not Disconnect Under Load.
Do not connect to a circuit operating at more than 150V to Ground.

5
Vario Artis
Personal safety
Use of the equipment is subject to a medical examination in relation to the intended type of exercise, and compliance with the conditions of use laid down by
the manufacturer.
Persons suering from certain physical conditions may only use the equipment under the strict supervision of a specialist doctor.
If, during exercise, the message “HIGH HEART RATE” appears, your heart rate is too high and you should slow down the exercise.
Before starting an exercise, make sure your position on the equipment is correct, and be careful with any components that might constitute an obstruction.
Choose suitable exercises for your physical characteristics and state of health, starting out with light loads.
Do not overexert yourself or work to exhaustion. Incorrect or excessive exercise may cause serious physical harm or even death. If you feel any pain or abnormal
symptoms, stop your workout immediately and consult your physician.
Wear proper exercise clothing and shoes during a workout, no loose clothing. Tie long hair back. Keep garments or towels away from moving parts.
During use people must remain at a safe distance.
Do not use the equipment in presence of small children or pets.
The person in charge of the gym must explain to the users about proper and improper use of the equipment.
Completely assemble the equipment before using it. Check the equipment before each use. Do not continue to operate the equipment when it is not working
properly.
Assemble and operate the equipment on a solid, level surface.
Keep all electrical components, such as the power cable and I/0 switch, away from liquids to prevent shock.
Maintain the equipment in good working condition. If there are signs of wear, contact the Technogym Technical Support service.
Do not attempt to service the equipment yourself other than the maintenance instructions found in the user manual.
The installation, maintenance and setting must be done by qualied Technogym sta or persons authorised by Technogym.
The electrical system must conform to the standards and legal requirements in the country of use.

6
Vario Artis
Personal safety
Do not set anything on the casing or control panel.
Technogym is not responsible for any damages due to any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly
or installation, debris resulting from any construction activities in the product’s environment, rust or corrosion as a result of the product’s location, alterations
or modications without Technogym’s written authorization or for failure on your part to use, operate and maintain the products as set out in this User Manual.
W
There are high voltages inside the equipment, therefore the guard must be removed by authorised personnel only.

7
Vario Artis
Made in Italy
Technogym S.p.A.via Calcinaro 2861, Cesena (FC)
CLIMB ARTIS Model no. DBE03U
Fuse/Fusible: 3.15 A (F) 250V
Maximum User’s Weight: 180 kg
Class: SA ISO EN20957-1 EN957-8
S/N DBE03U16000001 01/17
100 - 240 Vac 1.4-0.9A 50/60 Hz
Contains FCC ID: Z64 - WL18DBMOD
XZRBD01793, XZRBRD01794
Massage and exercise machine: 2AD3
F
C B A G
E
D
Manufacturer and equipment identication
A- Manufacturer’s name and address
B- Place of manufacture
C- Description of product
D- Electrical specications
E- Tells you to consult the User manual
F- Serial number and date of manufacture
G- Product model
The Vario is acommercial device,designed foruse in residential andprofessional
environments. It is a class SA device, pursuant to ISO EN 20957-1.
The values stated in the illustration are purely indicative; refer to the label
attached to the equipment or the data in "Technical data" section for the correct
information.

8
Vario Artis
E
C
A
B
E
L
C
G
D
F
F
H
Description of the equipment
Control panel (A): it allows you to view and control information, settings and
contents both for workouts and for entertainment. The tablet-style touch screen
interfaceallowsyoutoincludethecontentsoeredbytheTechnogymApp Store.
Please see the control panel's manual to see how it works.
Object holder (B): for standing the water bottle or other useful items on during
the workout.
Levers (C): they are gripped during the exercise to combine training of legs
and arms.
Fixed handgrips (D): they are gripped when working out only with legs.
Side supports (E): to guarantee stable and safe access.
Hand sensor (F): for constant heart rate monitoring.
Fast Track Control (G): they allow users to change the level of intensity of the
exercise without removing their hands from the levers, ensuring a correct and
safe posture.
Platforms (H): the specic shape of the platforms means that the user's ankles
are exercised in optimum conditions.
Water bottle holder (L): where you can place water bottles during workout.

9
Vario Artis
Technical data
Mains powered Vario Battery-powered Vario
Power supply 100÷240 Vac 50/60 Hz _
Mains power input 100 VA max (160 VA max with Unity) _
Fuses 2 x 3,15A (F) _
Braking power (130 spm) 3310 W ± 10% 390 W ± 10%
Weight of equipment 200 kg (441 lb) 200 kg (441 lb)
Maximum user weight 160 kg (352 lb) 160 kg (352 lb)
Time 0÷999 min ± 1% 0÷999 min ± 1%
Distance 0÷99.99 km ± 5% (0÷99.99 mls ± 5%) 0÷99.99 km ± 5% (0÷99.99 mls ± 5%)
Protection grade IP 20 IP 20
Electric isolation class Class I Class I
Noise level Less than 70 dB (A) Less than 70 dB (A)
Adjustable braking system; power depends on the level set and speed.

10
Vario Artis
Technical data
Vario Renew - Europe Vario Renew - USA
Power supply 100-240 VAC ± 10% 50/60 Hz 120 Vac ± 10% 60 Hz
Rated output voltage 230 VAC 100-120 VAC
Rated voltage 230 VAC 100-120 VAC
Rated output current 0-1.4 A 0-3 A
Maximum output current 1.43 A @ 330 W 3 A @ 330 W
Maximum apparent power 3.3 var 3.3 var
Rated apparent power (peak generated power) 330 W 330 W
Maximum cosφ0.98 _
Minimum cosφ-0.98 _
Short circuit current 7 A 7 A
Transient connection current 0 A 0 A
Direct current generation in the event of faults <0.25% of the rated output current <0.25% of the rated output current
Fuses 2 x 3.15A (F) 2 x 3.15A (F)
Weight of the equipment 200 kg (441 lb) 200 kg (441 lb)
Maximum user weight 160 kg (352 lb) 160 kg (352 lb)
Time 0 - 999 min ± 1% 0 - 999 min ± 1%
Distance 0 - 99.99 km ± 5% 0 - 99.99 km ± 5%
Degree of protection IP 20 IP 20
Class of electric insulation Class I Class I

11
Vario Artis
Technical data
Vario Renew
Minimum resistance at 480 spm 30 W
Maximum resistance at 130 spm 401 W

12
Vario Artis
750 mm
(30")
1690 mm
(67")
2040 mm (80")
1910 mm (75")
Technical data

13
Vario Artis
A
B
C
E
F
D
Accessories
The equipment’s standard outt comprises:
ASet of wrenches
BUser manual
CWarranty certicate
DCEE Power Supply cable with SH socket
ECloth for cleaning
FTwo replacement fuses (2 x 3.15A (F)
The charger comes with the battery-powered version.
Charger electrical specications:
Input 100÷240 Vac 0,8 A 50/60 Hz
Output 15 V dc 24W
Class II

14
Vario Artis
A
D
C
B

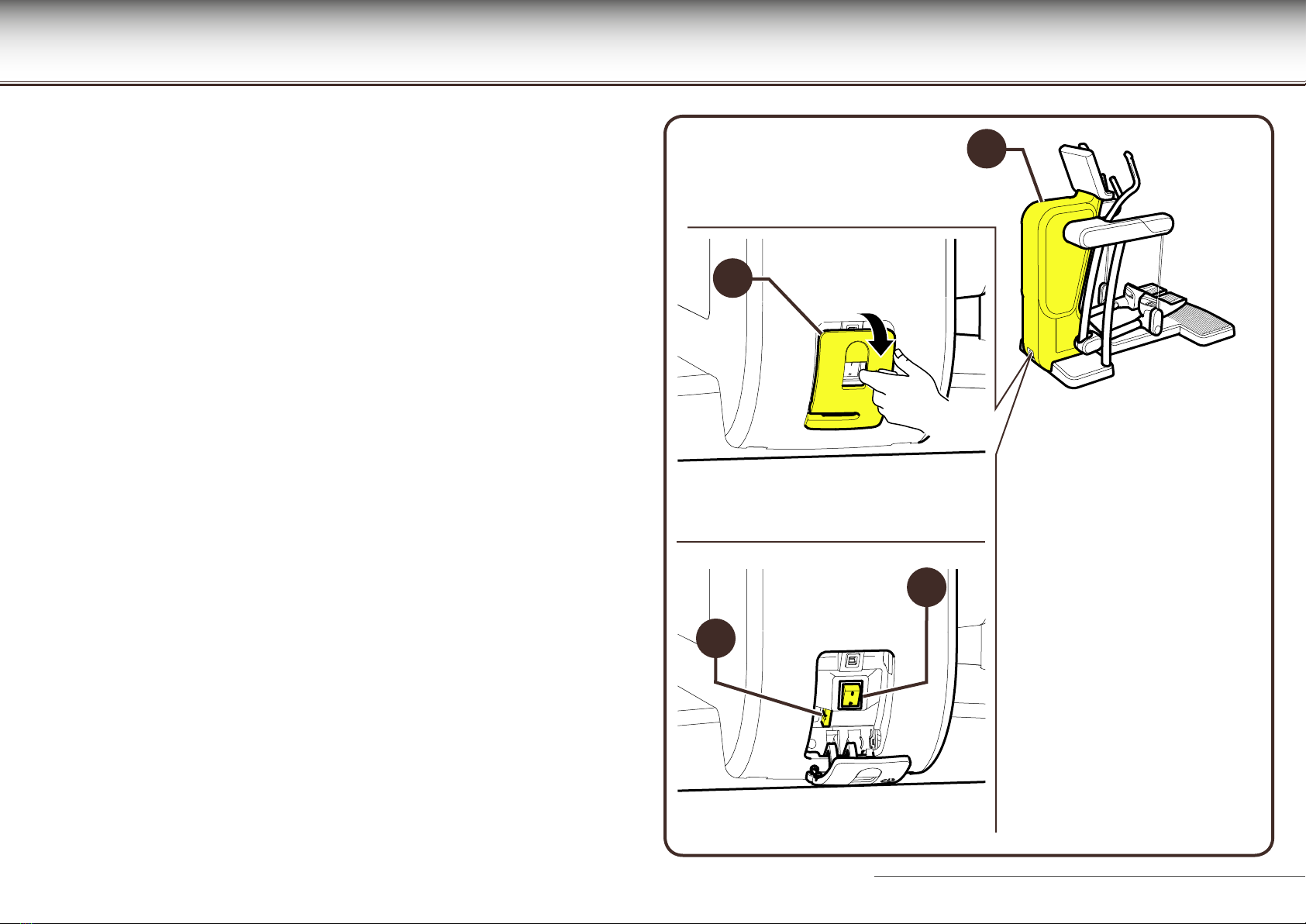

Safety devices and warnings
In all versions:
A Fixed guard: guards against access to the inside of the equipment.
In the mains powered version:
B Main switch: turns the equipment’s power on and o.
C Fuses: they protect the equipment’s electrical parts. When the current
reaches an excessive value, the fuses melt thus protecting the internal
electronics.
Open panel (D) to reach the fuses: put a nger in the hole and pull.
In the battery-powered version the main switch (B) connects or disconnects
the battery to preserve it.

15
Vario Artis
F
E
Safety devices and warnings
EThe label axed close to the main switch states the electrical specications
and safety indications.
FThe label which can be axed to the power supply cable states the electrical
specications for the cable.
W
Please read the adhesive labels on the equipment, which provide
information about possible risks and hazards.

16
Vario Artis
Place of usage
To ensure that exercising with the equipment is easy, safe and eective, the place where it is used should comply with certain specic requirements; in particular,
before choosing the place where the equipment will be installed, please ensure that the following conditions are satised:
- the temperature is between +10°C and +25°C;
- enough air is circulating to keep humidity during exercise to between 20% and 90%;
- the lighting is good enough to make the area safe and relaxing place to exercise in;
- free space of at least 60 cm around the entire perimeter of each product;
- the oor is at, stable and vibration-free, and strong enough to bear the weight of the equipment plus user.
Do not expose the equipment to direct sunlight.
Do not install the equipment in areas with high humidity levels, for example close to swimming pools, whirlpools or saunas.
The place of installation must comply with all the suitability requirements laid down in current legislation on this matter.
ARTIS RENEW
Since the equipment in the Artis Renew line are classed as renewable energy generation systems and their users are "active users", the owner of the
equipment must apply to the local electricity distributor for the appropriate contract agreements, before connecting the equipment to the electrical system.
Technical and commercial details of the equipment depend on the Country or Region where they are installed.
The local electricity distributor may require the installation of a bi-directional meter, to meter the quantity of electricity exchanged between the equipment
of the Artis Renew line and the electricity distribution network.

17
Vario Artis
Moving the equipment
W
Take great care when moving the equipment, as it may
overbalance.
When lifting or moving the equipment, do not take hold of the
platforms, levers or the control panel as hand holds.

18
Vario Artis
Moving the equipment
The equipment has xed front wheels. To move the equipment, lift it up slightly,
gripping the metal part under the plastic platform, as shown in the illustration,
and push it forwards and backwards.
Given the weight of the equipment, we recommend that more than one person
be involved in moving it.
If wheels cannot be used on the oor, move the equipment with normal lifting
and transport methods.

19
Vario Artis
B
A
A
A
Levelling
Use the three feet shown in the illustration to level the equipment:
- loosen the lock nut (B);
- screw the front feet (A) in or out until the frame is in a stable position;
- tighten up the lock nut (B) after adjusting.

20
Vario Artis
A
Electrical connection (mains powered version)
Before connecting the equipment to the mains power supply, ensure that the electrical system specications comply to binding regulations. Verify the main
power supply specications on the label axed close to the main switch.
Open panel (A) to reach the label and connector: put a nger in the hole and pull.
W
The wall socket must be located in a place where the plugging and unplugging can be done easily and safely.
When plugging in, the switch on the equipment must be in the 0 position (i.e. the equipment must be switched o).
Plug the power cable rst into the equipment socket and then into the wall socket.
Close panel (A) putting the cable through the slot.
