Operation Manual
Multi Source Player
CD-6208
* Rack mount products in the Western Hemisphere(North America, South America,
and the Caribbean) do not have handles installed due to customer preference.

MULTI SOURCE PLAYER
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
RI K OF ELECTRIC HOCK
DO NOT OPEN
CAutION
CAUTION: TO REDUCE THE RI K OF ELECTRIC HOCK.
DO NOT REMOVE COVER (OR BACK).
NO U ER- ERVICEABLE PART IN IDE.
REFER ERVICING TO QUALIFIED ERVICE PER ONNEL.
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PROTECTION PLEA E READ THE FOLLOWING-WATER AND MOI TURE: Unit should not be used near water(e.g.
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do
not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*This apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
It has heed to be easy to disconnect the device. To disconnect the device from power, separate AC input cable from inlet or unplug the AC Cord.
* The socket-outlet shall be installed near the equipment and shall be easily accessible.
CAutION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
NOtE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: To prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.

MULTI SOURCE PLAYER
1
CD-6208
Contents
Contents
Unpacking .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Features............................................................................................................................................3
Additional Descriptions .................................................................................................................4
Method to treat Compact Disc (CD).............................................................................................5
Front Panel ......................................................................................................................................6
Rear Panel .......................................................................................................................................9
Operating Method .......................................................................................................................10
1. PLAYBACK................................................................................................................................10
2. REPEAT ....................................................................................................................................13
3. INSTANT PLAY .........................................................................................................................13
4. AUTO PLAY..............................................................................................................................14
5. RECORDING ............................................................................................................................15
6. DELETE.....................................................................................................................................16
7. CUE .........................................................................................................................................18
8. PITCH.......................................................................................................................................18
9. EJECT.......................................................................................................................................18
10. DISPLAY MODE ......................................................................................................................19
11. CAUTION...............................................................................................................................19
Block Diagram ..............................................................................................................................20
Specifications ................................................................................................................................21
Service
Procedures....................................................................................................................................23
Schematic.....................................................................................................................................23
Parts List .......................................................................................................................................23
Variations and Options ...............................................................................................................23
Warranty .......................................................................................................................................23

MULTI SOURCE PLAYER
Unpacking
2CD-6208
Unpacking
Please take a few minutes to read this manual to familiarize yourself with important information regarding
installation, product features, and operation.
As with most electronic devices, ORIGINAL PACKAGING (OR EQUAL) IS REQUIRED in the unlikely event that
the product needs to be returned for servicing.
Installation
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
S3125A
3125A

MULTI SOURCE PLAYER
3
CD-6208
Features
Features
- HIGH PERFORMANCE DAC
One of the best-sounding D/A chip, PCM1796 of Burr Brown is used.
- MEMORY FUNCTION
Reaping a CD with mp3 format into the built-in memory or copying USB files into the built-in memory.
Using memory function instead of CD playback can greatly save the lifetime of the CD mechanism.
- USB
MP3 files in a USB can be played directly.
- INSTANT PLAY FUNCTION
Can be set 10 tracks in 6 memory discs into 10 instant play buttons and it can play the track directly using 10
instant play buttons.
- MP3/WMA
Can be playback CD-DA, MP3 or WMA.
- AUTO PLAY
Automatically playback the preset source when the unit is turned on.
- PITCH CONTROL
Controls play speed rapidly or slowly as your preference.
- DIGITAL AUDIO OUTPUTS
Optical and coaxial output provides the S/PDIF digital audio.
- ANTI SHOCK FUNCTION
Strong anti-shock function
- RS-232C
Can be controlled by a remote controller such as AMX or CRESTRON system.
* Internal Memory
Adopting a built-in memory (8G Byte) enables to save files up to 300 files per each memory disc. The built-in
memory consists of 6 memory discs.

MULTI SOURCE PLAYER
4CD-6208
Additional Descriptions
Additional Descriptions
- MP3 (MPEG AUDIO LAYER-3)
MP3 is one of music file formats that can contain music with stereo sound quality as good as audio which is a
type of MPEG as audio, video compression standards. Compression rate is 1Mb by 1 and thus about 3~ 5
minutes are sufficient if recording songs of 3~ 5 min or so. Differently from audio a music file made of MP3 can
contain over 130 songs for popular songs or folk songs and playing also about 10 hours. MP3 clears frequency
range for a human being not to discernable and advantage to compact it to 1/12 or so while maintaining
music as sound quality equivalent to CD level.
Example, deriving a song in a music CD while maintaining music as sound quality equivalent to CD becomes
capacity of 50MB or so but if compressing and converting it to a MP3, size of the MP3 reduces to 4~5MB.
- WMA (WINDOWS MEDIA AUDIO)
WMA is a multimedia compression method developed by Microsoft Corporation and is technology compress
only music from ‘Window Media Technologies’, and provides same sound quality as format MP3 up to
128Kbps, which has lower 64Kbps format than MP3.
In other words, it has a file size of the half of the MP3 and provides same sound quality as MP3.
- DIGITAL OUTPUT AND STANDARDS
Audio signal of a CD records digitalized signal. Usually digital audio signals are converted to analog signals
with a Digital Analog Converter (DAC) within a player. On the other hand, digital signal is replaced with
optical signal by coaxial cables, semiconductor laser or light emitting diode (LED), etc and can be connected to
the other devices with optical fiber cables. The unit receiving optical signal converts optical signals to electrical
signals again for various processes. Transmitting digital data as they are is less affected by electrical noise than
electrical signals, and thus less data error occurs.
The digital interface used in this product is a form of S/PDIF (Sony/Philips Digital Interface) and complies with
standards called as IEC958.
- RS-232C SERIAL INTERFACE
AMX or CRESTRON remote control system can be used with this RS-232C terminal.
The maximum cable length should be below 15m.
1. RS-232C Terminal
2. Remote control function
Play/Pause, Stop, Skip down/up, Search Down/up, etc can be controlled by a remote controller.
3. Downloading of the control protocol
You can download the protocol at the home page (www.inter-m.com).
Pin 123456-9
Purpose X Receive Transmit X Ground X

MULTI SOURCE PLAYER
5
CD-6208
Method to treat Compact Disc (CD)
Method to treat Compact Disc (CD)
The CD-6208 is designed for the playback of CD-DA, MP3, or WMA.
Please use a CD with following mark
- Make the label side upward when inserting a CD in the disc slot.
- Open a CD case with holding the right ending part of a case with the left hand and hold the both sides with the
right hand from below.
- Take off the CD with lightly holding both sides with the right hand while pressing the center of the case with
index finger.
- Lightly wipe out the CD with a soft cloth if fingerprint or dirt is stained on the signal side (opposite the label
side). Wiping out dirt or fingerprint gently with a smooth cloth. Keep disc clean and store it in its case when not
being played.
- Do not use any record spray, anti-static solutions, benzene and paint thinner or other chemical agents to clean
a CD. The surface of a CD may be damaged by these chemical agents.
- Please keep the disc in its case after use to avoid serious scratches that could cause the laser pickup to skip.
- Keep discs away from direct sunlight, and places of high heat and humidity. It may cause deformation.
- Do not paste papers, etc to the label side. Do not write on the disc with a ballpoint pen.
- Only use circular compact discs, Avoid using non-circular promotional, etc. discs.
- The CD-6208 cannot play unfinalized CD-R/RW discs.

MULTI SOURCE PLAYER
6CD-6208
Front Panel
Front Panel

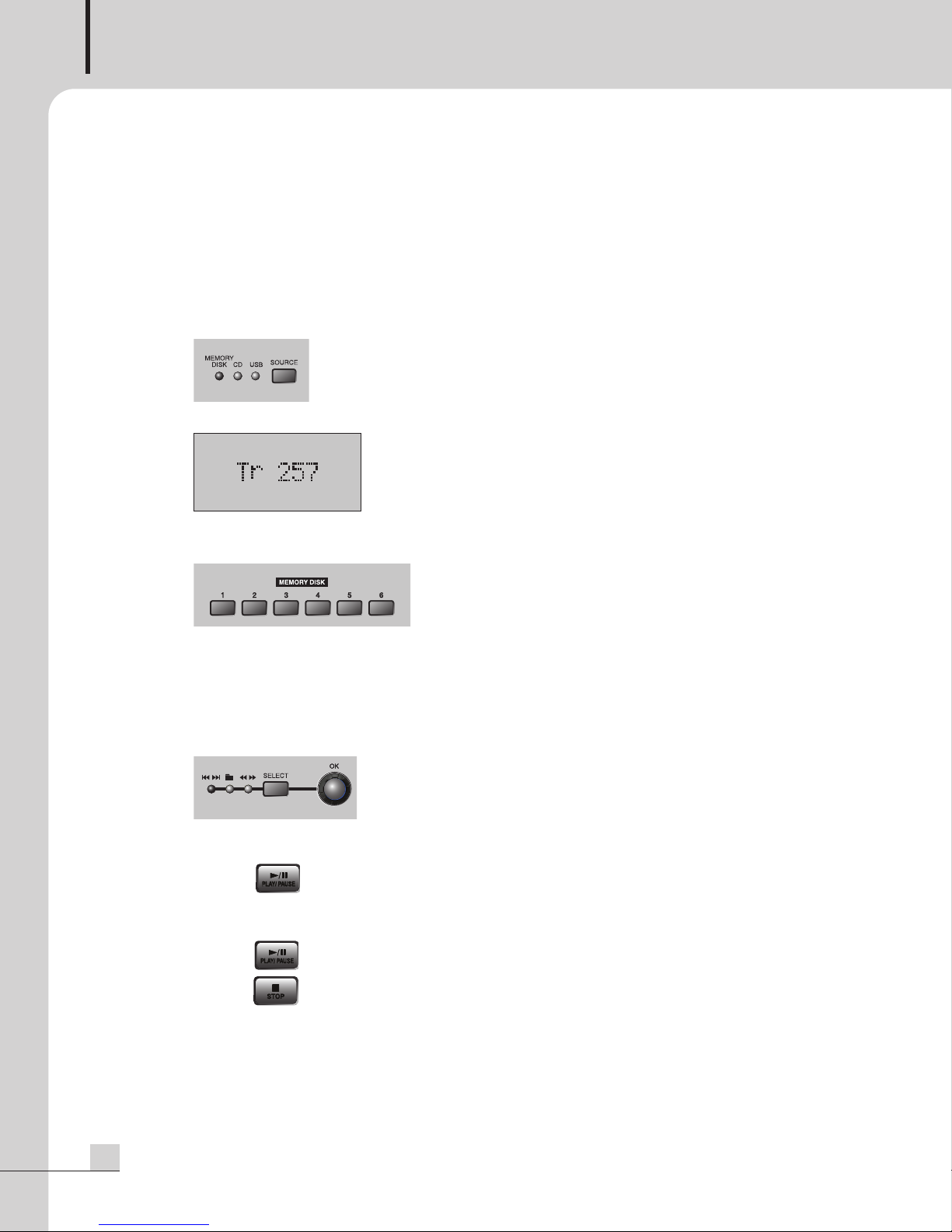

1. SOURCE SELECT LED
Indicating LED for the selected source.
󱈇CD 󱈇USB 󱈇Memory Disc
2. SOURCE SELECT BUTTON
Push this button to select the source.
󱈇CD 󱈇USB 󱈇Memory Disc
3. MEMORY DISK INSTANT PLAY BUTTON
Use this button to memory 10 tracks in 6 memory discs and to play the preset track directly.
4. DISC SLOT
Insert a CD into the slot, label side upwards.
The unit will pulls the disc when the CD is partially inserted.
※DO NOT INSERT a CD of 8 cm size into the slot.
5. EJECT BUTTON
Ejects a disc.
6. SELECT LED
The LEDs indicates the Skip (I◀◀▶▶I), Folder (111) or Search (◀◀▶▶) mode.
7. SELECT BUTTON
Use this button to select the Skip (I◀◀▶▶I), Folder (111) or Search (◀◀▶▶) mode.
After select the mode, skip, folder or search function can be performed using the ENCODER switch.
- Skip (I◀◀▶▶I) skips a track or a folder.
- Folder (111) skips a folder.
56711 891012
13141517181921222324
1620

MULTI SOURCE PLAYER
7
CD-6208
- Search (◀◀▶▶) turning the ENCODER switch to the clockwise, then it searches forward continuously.
Turning the encoder switch to the counter clockwise, then it searches backward continuously. Press the OK
button to stop searching and playback the track.
8. ENCODER SWITCH / OK BUTTON
Rotates this ENCODER switch to perform skip, folder change or search function after select the
Skip (I◀◀▶▶I), Folder (111) or Search (◀◀▶▶) mode. In menu mode, turning this ENCODER switch can
changes the menu and pushing this button can change the setting.
9. MENU BUTTON
Use this button to select the menu, DELETE MDISK, AUTO PLAY, DELETE INSTANT or PITCH setting.
※MENU button can be used when the unit is in stop mode.
10. ESC BUTTON
Use this button to move back the menu in menu mode.
11. MEMORY DISC SELECT BUTTON
Use this button to select the one of the 6 memory discs.
12. AUTO PLAY SWITCH
Use this switch to set the auto play function.
By setting this switch on, the preset source of a memory disc, CD or USB is automatically played when the
unit is turned on.
Playback starts from the first track of the preset source.
13. POWER SWITCH
Use this switch to turn the power on or off.
14. PITCH LED
This LED indicates that the pitch function is on.
15. PITCH CONTROL BUTTON (+ /-)
Push this button to control the pitch function.
16. PLAY MODE
Use this button to stop the playback after 1 track is played.
When the PLAY mode button is pressed during the playback, playback is stopped after the playback of the
track is end.
17. REPEAT BUTTON
Use this button to select repeat mode, REPEAT 1, REPEAT GROUP, or REPEAT ALL.
18. INSTANT PROGRAM BUTTON
Use this button to memory 10 tracks in 6 memory discs into 10 instant play buttons.
※In CD or USB function the Instant Program button or the Instant Play function can not be used.

MULTI SOURCE PLAYER
8CD-6208
19. DISPLAY BUTTON
Use this button to select time mode, playback time or remaining time.
20. DISPLAY WINDOW
The display shows the current status of the unit or the current menu setting.
21. RECORD BUTTON
Use this button to reap a CD into the internal memory with mp3 format or copy the files of USB to the internal
memory.
※The memory disc (1~5) has 1 Gbyte memory and the memory disc (6) has 3 Gbyte memory.
22. PLAY / PAUSE BUTTON
Use this button to play or pause.
23. STOP BUTTON
Use this button to stop playback, reaping, or copying files from USB.
Also this button can exit all the menu mode.
24. CUE BUTTON
When the CUE is on and a track is selected, the point where sound begins on that track is located to and the
unit enters into pause mode.
When the play button is pressed, playback begins at exactly that point.
25. USB
Use this terminal to mount USB memory.
MP3 or WMA files in the USB memory can be played or can be copied to the internal memory.
The unit supports USB 1.1.
