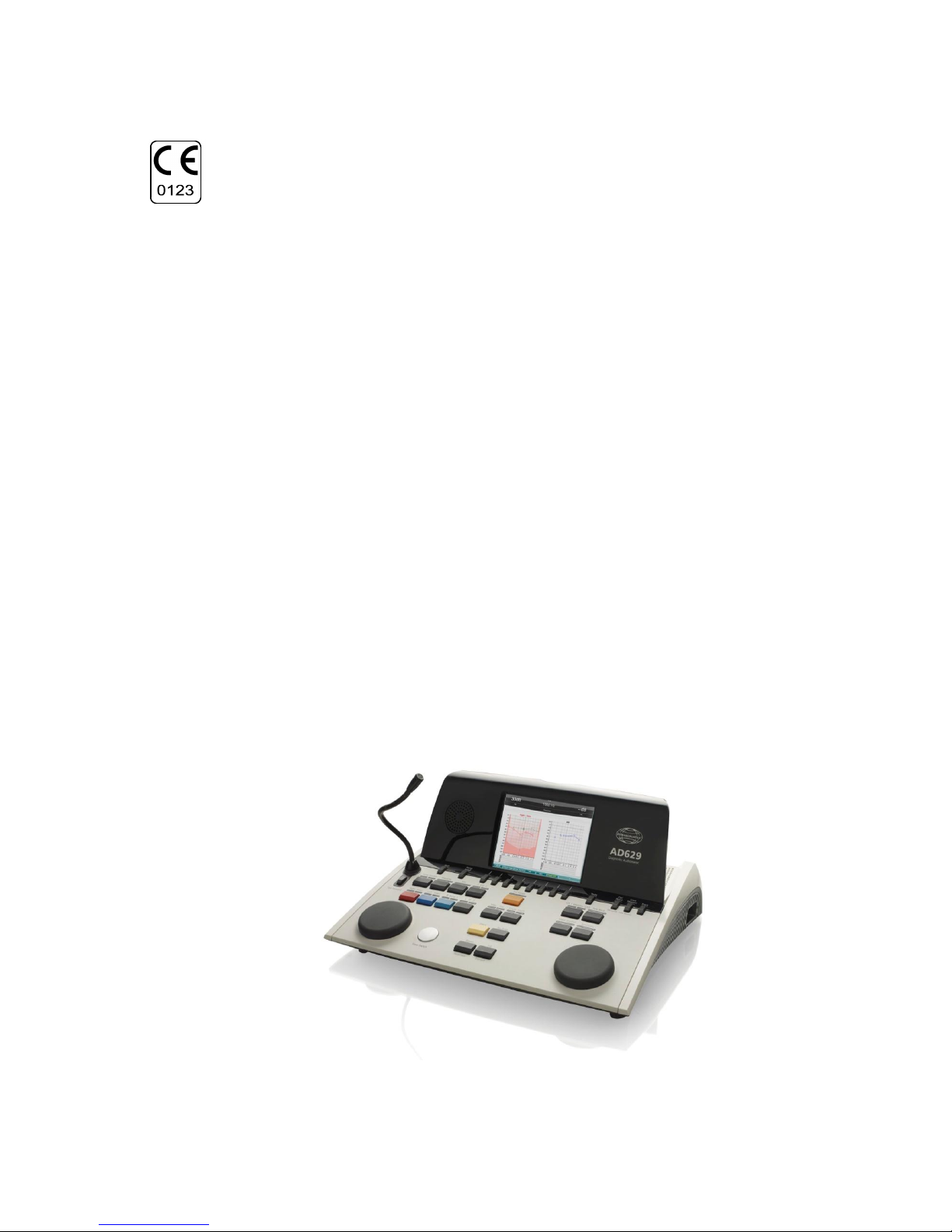

Diagnostic Audiometer AD629
80659302 ver. 02/2012

Instructions for Use - GB
Diagnostic Audiometer AD629

AD629 Instruction for Use English
Date: 2012-01-19 Page 1/17
Intended Use
The AD629 diagnostic audiometer is designed to be a device for diagnosing hearing loss. Output and
specificity of this type of device are based on the test characteristics defined by the user, and may
vary depending on environmental and operating conditions. The diagnosing of hearing loss using this
kind of diagnostic audiometer depends on the interaction with the patient. However, for patients not
responding well possibilities of various tests allow the tester to have at least some evaluative result.
result should not allow for ignoring other contra indications in this case. A full
audiologic evaluation should be administered if concerns about hearing sensitivity persist.
The AD629 audiometer is intended to be used by and audiologist, hearing healthcare professional or
trained technician in an extremely quiet environment. . This instrument is intended for all patient
groups regarding sex, age and health. Careful handling of the instrument whenever in contact with a
patient should be of high priority. Calm and stable positioning while testing is preferred for optimal
accuracy.
Precautions
1. No modification of this equipment is allowed without Interacoustics authorization.
Interacoustics will make available on request circuit diagrams, component part lists,
descriptions, calibration instructions, or other information that will assist service personnel to
repair those parts of this audiometer that are designated by the Interacoustics as repairable
by service personnel
1. Never insert or in any way use the insert headset without a new clean non defect test tip.
Always make sure that foam or ear-tip is mounted correctly. Ear tips and foam are single
use.
2. It is recommended that parts which are in direct contact with the patient (e.g. earphone
cushions) are subjected to standard disinfecting procedure between patients. This includes
physically cleaning and use of a recognized disinfectant. Individual manufacturer's instruction
should be followed for use of this disinfecting agent to provide an appropriated level of
cleanliness.
3. It is recommended that the disposable foam ear tips supplied with the optional EarTone5A
insert transducers are replaced after each patient tested. Disposable plugs also insure that
sanitary conditions exist for each of your patients, and that periodic cleaning of a headband or
cushion is no longer required.
indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
used with the safety alert symbol, indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
is used to address practices not related to personal injury

AD629 Instruction for Use English
Date: 2012-01-19 Page 2/17
 The black tubing protruding the foam ear tip is attached to the sound tube nipple of the
insert transducer.
 Roll the foam tip into the smallest possible diameter.
 Insert into the ear canal of the patient.
 Hold the foam tip until expanded and a seal is achieved.
 After testing the patient the foam tip including the black tubing is detached from the sound
tube nipple.
 The insert transducer should be examined prior to attaching a new foam tip.
4. If this apparatus is connected to one or more other devices with medical CE marking, to make
up a system or pack, the CE marking is only valid also for the combination if the supplier has
issued a declaration stating that the requirements in the Medical Device Directive article 12
are fulfilled for the combination.
5. When the instrument is conneted to a PC be aware of not touching the PC and patient
simultaneously
1. Be sure to use only stimulation intensities, which will be acceptable for the patient.
2. The transducers (headphones, bone conductor, etc.) supplied with the instrument are
calibrated to this instrument - exchange of transducers requires a new calibration.
3. Airborne sound radiation of the bone vibrator may effect the measurement if no masking is
used. Therefore, masking is mandatory when using bone vibrator.
4. Although the instrument fulfils the relevant EMC requirements precautions should be taken to
avoid unnecessary exposure to electromagnetic fields, e.g. from mobile phones etc. If the
device is used adjacent to other equipment it must be observed that no mutual disturbance
appears.
5. Within the European Union it is illegal to dispose electric and electronic waste as unsorted
municipal waste. Electric and electronic waste may contain hazardous
substances and therefore has to be collected separately. Such products will be
marked with the crossed-out wheeled bin shown below. The cooperation of the
user is important in order to ensure a high level of reuse and recycling of
electric and electronic waste. Failing to recycle such waste products in an
appropriate way may endanger the environment and consequently the health of
human beings.
6. To prevent system faults take appropriate precautions to avoid PC viruses and similar.
Warranty
INTERACOUSTICS warrants that:
The AD629 is free from defects in material and workman ship under normal use and
service for a period of 24 months from the date of delivery by Interacoustics to the first
purchaser.
Accessories are free from defects in material and workmanship under normal use and
service for a period of ninety (90) days from the date of delivery by Interacoustics to the
first purchaser.

AD629 Instruction for Use English
Date: 2012-01-19 Page 3/17
If any product requires service during the applicable warranty period, the purchaser should
communicate directly with the local Interacoustics service centre to determine the appropriate repair
facility. Repair or repl
this warranty. The product requiring service should be returned promptly, properly packed, and
postage prepaid. Loss or damage in return shipment to Interacoustics shall be at purchaser's risk.
In no event shall Interacoustics be liable for any incidental, indirect or consequential damages in
connection with the purchase or use of any Interacoustics product.
This shall apply solely to the original purchaser. This warranty shall not apply to any subsequent
owner or holder of the product. Furthermore, this warranty shall not apply to, and Interacoustics shall
not be responsible for, any loss arising in connection with the purchase or use of any Interacoustics
product that has been:
repaired by anyone other than an authorized Interacoustics service representative;
altered in any way so as, in Interacoustics judgement, to affect its stability or reliability;
subject to misuse or negligence or accident, or which has had the serial or lot number
altered, effaced or removed; or
improperly maintained or used in any manner other than in accordance with the
instructions furnished by Interacoustics.
This warranty is in lieu of all other warranties, express or implied, and of all other obligations or
liabilities of Interacoustics, and Interacoustics does not give or grant, directly or indirectly, the
authority to any representative or other person to assume on behalf of Interacoustics any other liability
in connection with the sale of Interacoustics products.
INTERACOUSTICS DISCLAIMS ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FOR FUNCTION OF FITNESS FOR A
PARTICULAR PURPOSE OR APPLICATION.
Safety Regulations
Electrical Safety:
This audiometer is specified to comply with the international standard IEC 60601-1.
This audiometer is guaranteed according to IEC 60601-1 safety against electrical hazard only when
the connected notebook/computer is powered by batteries or the computers power supply complies
with IEC 60601-1 or IEC 60950-1 safety regulations.
To avoid the risk of electric shock, this equipment must only be connected
to a supply main with protective earth."
This audiometer is not suitable for operation in an oxygen rich environment, in conjunction with
flammable agents or flammable anesthetics.

AD629 Instruction for Use English
Date: 2012-01-19 Page 4/17

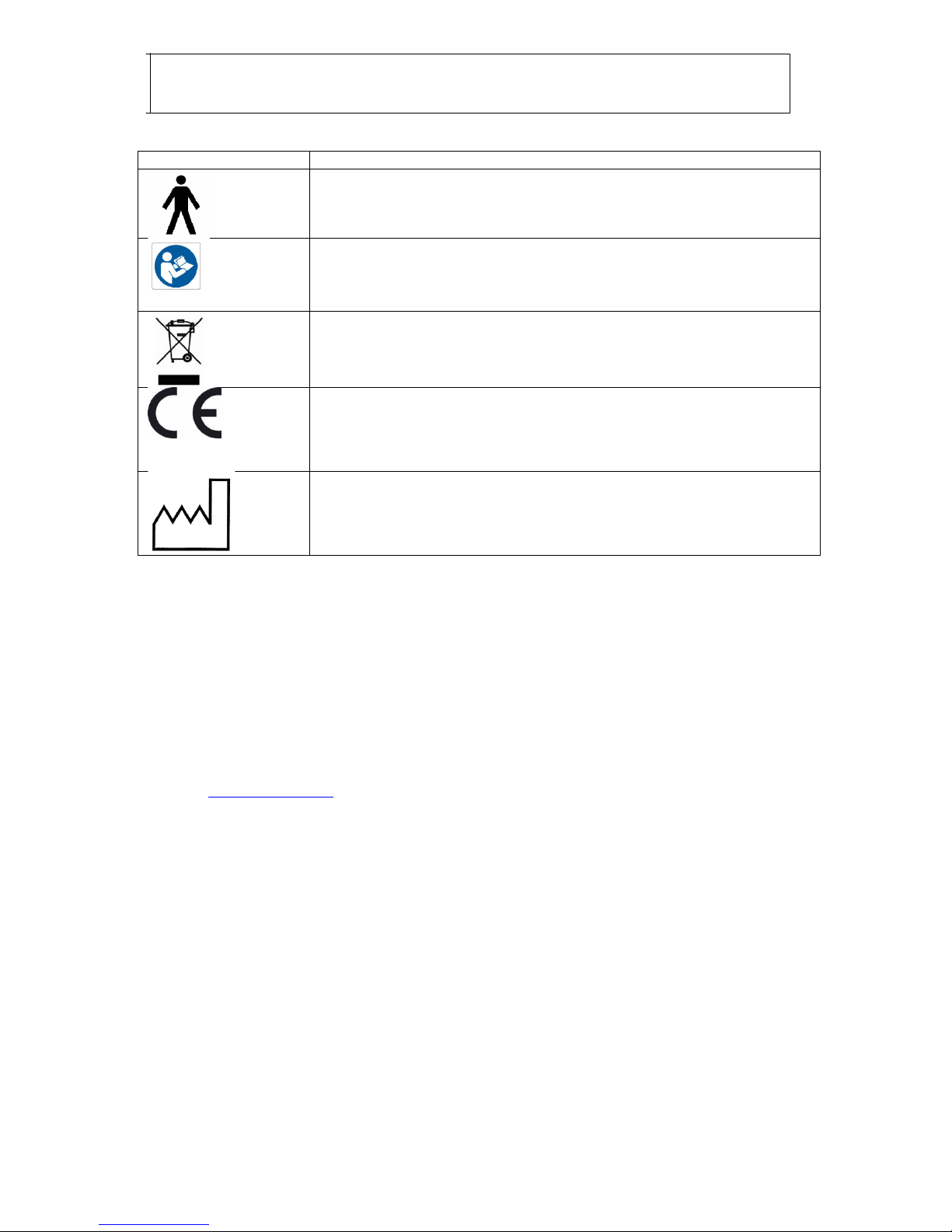

List of Symbols
Symbol
Explanation
Type B applied parts.
Patient applied parts that are not conductive and can be immediately
released from the patient.
Refer to instruction manual
WEEE (EU-directive)
This symbol indicates that when the end-user wishes to discard this product,
it must be sent to separate collection facilities for recovery and recycling.
0123
The CE-mark indicates that Interacoustics A/S meets the
requirements of Annex II of the Medical Device Directive
93/42/EEC. TÜV Product Service, Identification No. 0123,
has approved the quality system.
Year of manufacture
Manufacturer
Interacoustics A/S
Drejervænget 8
DK 5610 Assens
Denmark
Phone: [phone]
Fax: [phone]
E-mail: [email protected]om
Web: www.interacoustics.com
Unpacking/Inspection
Check Box and Contents for Damage
When the instrument is received please check the shipping box for any rough handling or damage. If
the box is damaged it should be kept until the contents of the shipment have been checked
mechanically and electrically. If the instrument is faulty, please contact the nearest service office.
Keep the shi
Store Carton for future Shipment
The AD629 comes in its own shipping carton which is specially designed for the AD629. Please store
this carton; it will be needed if the instrument has to be returned for service. If service is required
please contact your nearest sales and service office.

AD629 Instruction for Use English
Date: 2012-01-19 Page 5/17
Contents of Shipment
As standard, AD629 is delivered with the following:
Check numbers on AD629
The identification label on the connection panel holds the serial number. This should be checked with
the manual number and written down for later service claims.
Reporting Imperfections
Inspect before connection:
Prior to connecting the AD629 to the Power Supply it should be inspected once more for damage. All
of the cabinet and the accessories should be checked visually for scratches and missing parts.
Report any faults immediately:
Any missing part or malfunction should be reported immediately to the supplier of the instrument
together with the invoice, serial number and detailed report of the problem. In the back of this manual
can be found, where you can describe the problem.

Please realize that if the service engineer does not know what the problem is to look for, he may not
find it. Therefore using the Return Record will be of great help to us and at the same time it is
guaranteed that the correction to your problem will be to satisfaction.
Care and Maintenance
The performance and reliability of the AD629 will be prolonged if the following recommendations for
care and maintenance are adhered to:
Great care when handling the headset:
Great care should be considered when handling the headset as dropping it may alter the calibration.
Included parts
DD45 Audiometric headset
B71 Bone conductor
APS3 Patient response button
Goose neck microphone
Power cable
Operation manual CD
Multilingual CE instructions for use
Optional parts
Diagnostic Suite software
OtoAccess database
21925 Amplivox audiocups, noise reducing headset
Carrying case (Standard or Trolly Style)
EARTone3A/5A Audiometric insert phones
HDA200 Audiometric headset with double mono 6.3mm jack
TDH39 Audiometric headset
HDA280 Phone headset with double mono 6.3mm jack
CIR33 Insert earphone set for masking or monitoring
Talk back microphone
Sound field speakers SP90 (with external power amp)
AP12 Power Amplifier 2x12 Watt
AP70 Power Amplifier 2x70 Watt

AD629 Instruction for Use English
Date: 2012-01-19 Page 6/17
Annual Calibration:
The AD629 had been designed to provide many years of reliable service, but annual calibration is
recommended due to possible impact on transducers.
We also required calibrating the AD629; if something drastic happens to a part of it (e.g. headset or
bone conductor is dropped on a hard surface).
How to clean Interacoustics Products
Caution:
Before cleaning always switch off and disconnect from the power supply
Use a soft cloth lightly dampened with cleaning solution to clean all exposed surfaces
Do not allow liquid to come in contact with the metal parts inside the earphones / headphones
Do not autoclave, sterilize or immerse the instrument or accessory in any fluid
Do not use hard or pointed objects to clean any part of the instrument or accessory
Do not let parts that have been in contact with fluids dry before cleaning
Rubber ear-tips or foam ear-tips are single use components
Ensure that isopropyl alcohol does not come into contact with any screens on the instruments
Ensure that isopropyl alcohol does not come into contact with any silicone tubes or rubber
parts
Recommended cleaning and disinfection solutions:
Warm water with mild, nonabrasive cleaning solution (soap)
Normal hospital bactericides
70% isopropyl alcohol only on hard cover surfaces
Procedure
Clean the instrument by wiping outer case with a lint free cloth lightly dampened in cleaning
solution.
Clean cushions and patient hand switch and other parts with a lint free cloth lightly dampened
in cleaning solution.
Make sure not to get moisture in the speaker portion of the earphones and similar parts

AD629 Instruction for Use English
Date: 2012-01-19 Page 7/17
Getting Started: Setup and Installation
The following shows an overview of the AD629:
The top left part of the AD629 (display holder) contains monitor speaker.
The left side of the instrument contains two mini jack connectors for a microphone and a headphone 
or a headset. This is used for talkback headphone/speaker (TB) and talk forward microphone (TF).
A goose neck microphone can be plugged into the top part of the instrument just above the Talk
Forward button. This can be used for talk forward. When not plugged in the goose neck microphone
can be placed underneath the display. Please refer to the section about patient communication for
more details.
The upper right side of the instrument holds the on/off switch of the instrument.
Back Panel - connectors
Microphone
and
Headphone
(Headset)
mini jacks
Power
on/off
Front Panel
display &
buttons/dials
Talk
forward
mic.
Monitor
speaker

AD629 Instruction for Use English
Date: 2012-01-19 Page 8/17

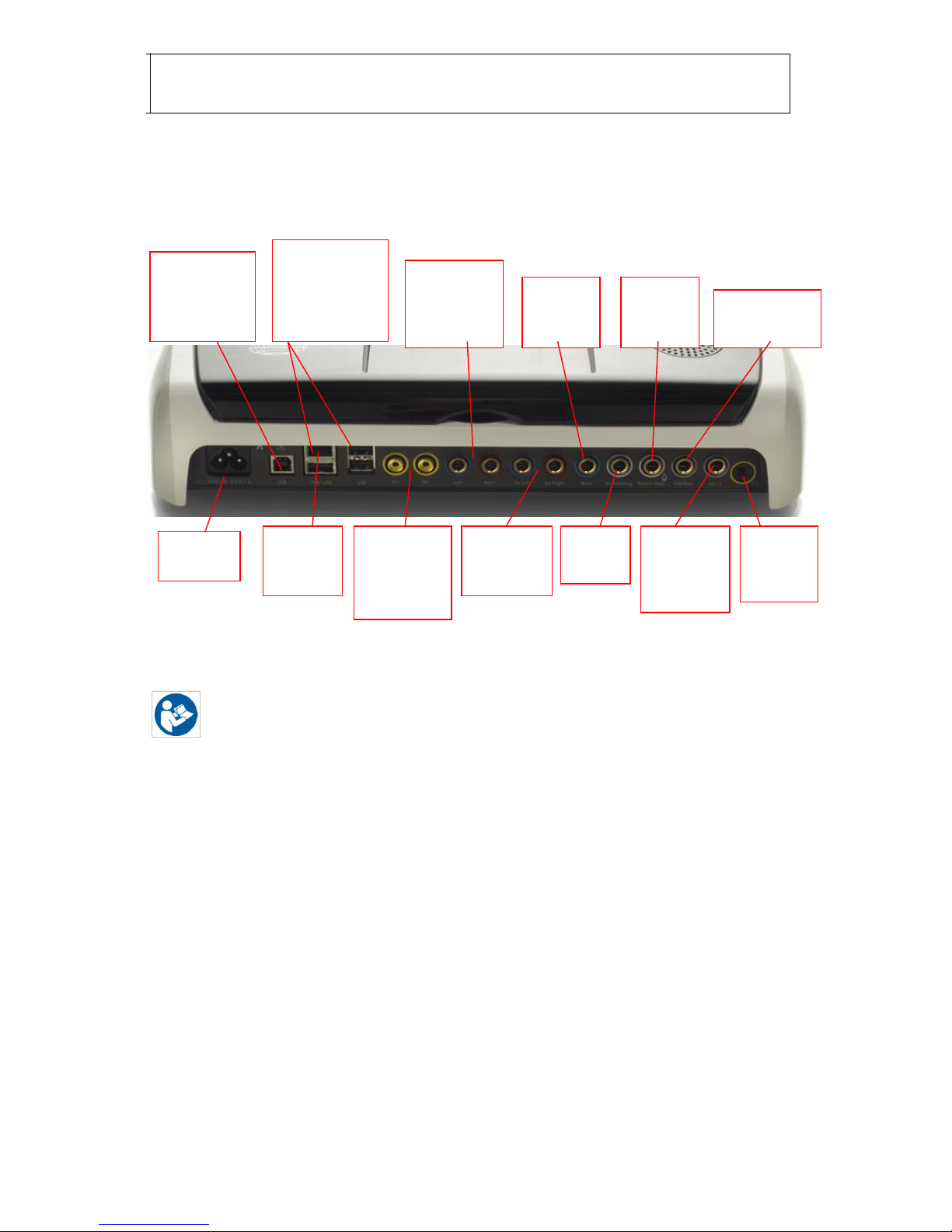

Back Panel External Connections Standard Accessories
The back panel contains all the rest of the main connectors (sockets):
PC-Interface
Please refer to the Diagnostic Suite operation manual regarding on-line and PC-operated mode as
well as patient/session data transfer.
Power
connector
4 USB A
connectors for
printer , mouse
keyboard and
memory stick
LAN (for
future
use)
Free Field 1
and 2
(external
amplification)
Standard
Headphones
DD45/TDH39/
HDA200
Standard
Insert Phone
EarTone 3A
Bone
conductor
B71
Insert
masking
Patient
Response
Switch
Extra Talk
forward
mic., e.g. for
table mic.
External
CD / MP3
input
For Talk Back
Mic.
USB B
Connector for
PC connection

AD629 Instruction for Use English
Date: 2012-01-19 Page 9/17

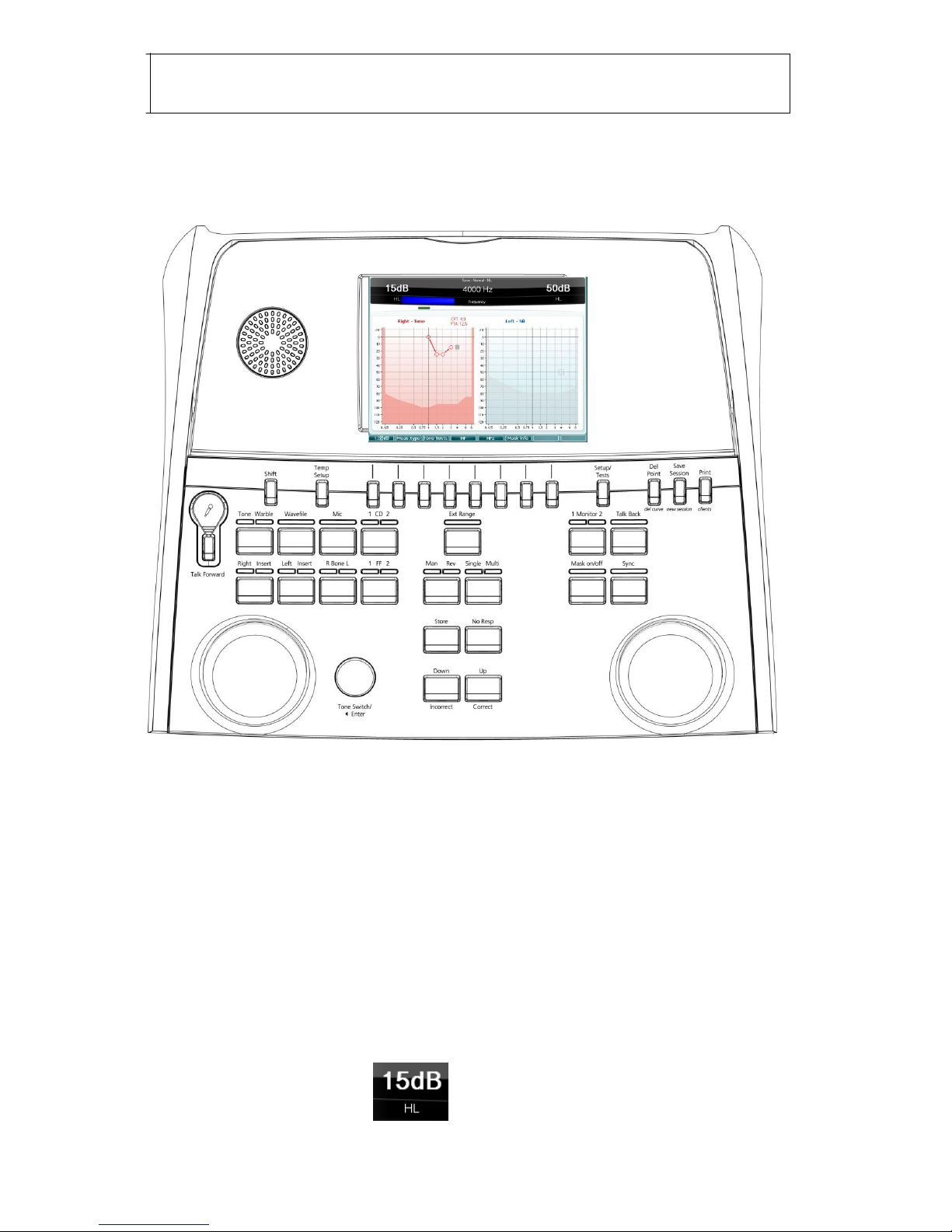

Functions of Buttons
The figure below shows the outline of the front plate of the AD629 including buttons, dials and display:
The following table describes the functions of the various buttons and dials.
Name(s)/Function(s)
Description
1
Microphone
For live voice speech and talk forward instruction to the patient in
the test cabin.
2
Talk back Speaker
For speech feedback from the patient in the test cabin.
3
Color Display Screen
For displaying the different test screens. Will be further explained
in the sections describing the individual tests.
4
Tone and Response
Indicator
Indication light seen when a tone is presented to the patient.
Indication light seen when the patient activates the patient signal
using the patient response.
5
Channel 1
Indicates intensity level for channel 1, e.g.:
(21)
(4)
(3)
(5)
(15)
(16)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(17)
(18)
(19)
(20)
(22)
(23)
(24)
(25)
(26)
(27)
(28)
(29)
(30)
(31)
(32)
(33)
(34)
(35)
(36)
(37)
(38)
(39)
(40)
(41)
(43)
(42)
(2)
(6)
(1)

AD629 Instruction for Use English
Date: 2012-01-19 Page 10/17
6
Masking / Channel 2
Indicates masking or Intensity level for channel 2, e.g.:
7-14
Function Keys
These keys are context sensitive and depend on the selected test
screen. Will be further explained in the sections describing the
individual tests.
15
Shift
The shift function will enable the clinician to activate the sub
functions written in italic underneath the buttons.
16
Temp Setup
Allows the clinician to make temporary changes in certain settings
within each test. To save the changes as default (for the next
 (14). Choose
between the different settings using the right rotary wheel (43).
Change the individual settings using the left rotary wheel (41).
17
Setup /
Tests
The common setting menu can be accessed for more specific
tests and changes to general settings can be made. This is also
where the special tests are accessed: Auto tests (HW, Békésy),
MHA, SISI. To save the changes as default (for the next session)
   (14). Choose between
the different settings using the right rotary wheel (43). Change the
individual settings using the left rotary wheel (41).
18
Delete /
del curve
Delete points during testing delete. Delete the entire test curve of
gether with this button.
19
Save Session/
New Session
Saving a session after testing or alternatively add a new session
          
session will recall the default settings saved in 16 and 17)
20
Print
Allows results to be printed directly after testing (via a supported
USB printer).
21
Talk Forward
Instruction to the patient directly through his headphones via the
microphone can be given. The intensity changes by turning the

22
Tone / Warble
Pure tones or warble tones can be chosen as stimuli by activating
this button once or twice. The stimuli chosen will be shown on the
display, e.g.:
23
Wavefile
Enables one to perform speech testing using loaded wavefiles, i.e.
pre-recorded speech material. Please see setup under Temp
Setup (15). Requires installation of speech material.
24
Mic
For live speech testing through the microphone (1). The VU meter
can be seen on the display screen. Adjust the microphone gain by
holding down the Mic button for one second.

AD629 Instruction for Use English
Date: 2012-01-19 Page 11/17
25
1 CD 2
By pressing this function once or twice it is possible to have
recorded speech in either channel 1 or channel 2 separately.
Adjust the gain of CD 1 and 2 by holding down the CD button for
one second.
26
Ext Range
Extended Range: Usually the maximum output is e.g. 100dB but if

activated when reaching a certain level.
27
Ch 1 Monitor 2
With the activation of this button, presentation to the patient from
e.g. CD can be heard through the built in monitor of the AD629 or
monitor headset in both channel 1 or 2. Adjust the gain by holding
down the button for one second.
28
Talk Back
Talk back, when active allows the clinician to hear comments or
responses from the patient through the AD629 or monitor
headset. Adjust the gain by holding down the button for one
second.
29
Right / Insert
For selecting the right ear during testing. Insert phones for the
right ear can be activated by pressing twice.
30
Left / Insert
For selecting the left ear during testing. Insert phones for the left
ear can be activated by pressing twice.
31
R Bone L
For bone conduction testing.
First push: selects the right ear for testing.
Second push: selects the left ear for testing.
32
1 FF 2
           
Channel 1.
First push: Free Field speaker 1
Second push: Free Field speaker 2
33
Man / Rev
Manual / Reverse tone presentation modes:
       

Second push: The reverse function- continuous tone
       

34
Single / Multi
Pulsing modes:
First push: the tone presented will have a pre-set length
        

Second push: the tone will be pulsing continuously.
Third push: returns back to normal mode.

AD629 Instruction for Use English
Date: 2012-01-19 Page 12/17
35
Mask On/Off
Masking channel on/off:
First push: turns masking on
Second push: turns masking off
36
Sync
This allows the masking attenuator to the tone attenuator to be
activated. This option is used for e.g. synchronous masking.
37
Store
Use this function to store test thresholds / results.
38
No Resp
Use this function if the patient has shown no response to stimuli.
39
Down / Incorrect
Used to decrease the frequency level.
The AD629 has an incorporated automatic speech score counter.
Therefore as a second function you can use this button as an

speech score counting while testing speech push this button after
each word not heard correctly by the patient.
40
Up / Correct
Used to increase the frequency level.
The AD629 has an incorporated automatic speech score counter.
Therefore as a second function you can use this button as a
       
speech score counting while testing speech push this button after
each word heard correctly by the patient.
41
HL db Channel 1
This allows for the adjusting of the intensity in channel 1 shown at
(5) in the display.
42
Tone Switch / Enter


43
Masking Channel 2
Adjust the intensity level in channel 2 or masking levels when
masking is used. Shown at (6) in the display.

AD629 Instruction for Use English
Date: 2012-01-19 Page 13/17
Technical Specifications
Safety Standards
IEC 60601-1, ES60601-1, CAN/CSA-C22.2 No.60601-1
Class I, Applied parts type B, Continuous operation
EMC Standard
IEC 60601-1-2:2001 + A1:2004
Audiometer Standards
Tone Audiometer: IEC 60645 -1, ANSI S3.6 -2010, Type 2, HF IEC 60645-4.
Speech Audiometer: IEC 60645-2/ANSI S3.6 type B or B-E.
Auto threshold tests: ISO 8253-1
Calibration
Calibration information and instructions is located in the AD629 Service manual
Air Conduction
DD45: PTB/DTU report 2009
TDH39: ISO 389-1 1998, ANSI S3.6-2010
HDA200: ISO 389-8 2006, ANSI S3.6-2010
HDA280 PTB report 2004
E.A.R Tone 3A/5A: ISO 389-2 1994, ANSI S3.6-2010
CIR 33 ISO 389-2
Bone Conduction
B71: ISO 389-3 1994, ANSI S3.6-2010
Placement: Mastoid
Free Field
ISO 389-7 2005, ANSI S3.6-2010
High Frequency
ISO 389-5 2004, ANSI S3.6-2010
Effective masking
ISO 389-4 1994, ANSI S3.6-2010
Transducers
DD45 Headband Static Force 4.5N 0.5N
TDH39 Headband Static Force 4.5N 0.5N
HDA200 Headband Static Force 4.5N 0.5N
HDA280 Headband Static Force 5N 0.5N
B71 Bone Headband Static Force 5.4N 0.5N
E.A.R Tone 3A/5A:
CIR 33
Patient Response switch
One hand held push button.
Patient communication
Talk Forward (TF) and Talk Back (TB).
Monitor
Output through built-in speaker or through external earphone or speaker.
Special tests/test battery
SISI. ABLB. Stenger. Stenger Speech. Langenbeck (tone in noise). Békésy Test.
2 channel speech, 2 channels Master Hearing Aid, Auto threshold.
Auto threshold tests:
Available time for patient to respond: Same as tone presentation
Increment of hearing level: 5dB.
Auto threshold test (Békésy):
Mode of operation: Békésy
Rate of level change: 2.5 dB/s ±20%
Smallest increment of level: 0.5 dB
Stimuli
Tone
125-20000Hz separated in two ranges 125-8000Hz and 8000-20000Hz.
Resolution 1/2-1/24 octave.
Warble Tone
1-10 Hz sine +/- 5% modulation
Wave file
44100Hz sampling, 16 bits, 2 channels

AD629 Instruction for Use English
Date: 2012-01-19 Page 14/17
Masking
Automatic selection of narrow band noise (or white noise) for tone presentation and
speech noise for speech presentation.
Narrow band noise:
IEC 60645-1:2001, 5/12 Octave filter with the same centre frequency resolution as pure
Tone.
White noise:
80-20000Hz measured with constant bandwidth
Speech Noise.
IEC 60645-2:1993 125-6000Hz falling 12dB/octave above 1KHz +/-5dB
Presentation
Manual or Reverse. Single or multiple pulses.
Intensity
Check the accompanying Appendix
Available Intensity Steps is 1, 2 or 5dB
Extended range function: If not activated, the Air Conduction output will be limited to 20 dB
below maximum output.
Frequency range
125Hz to 8kHz (Optional High Frequency: 8 kHz to 20 kHz)
125Hz, 250Hz, 750Hz, 1500Hz and 8kHz may freely be deselected
Speech
Frequency Response:
(Typical)
Frequecy
(Hz)
Linear (dB)
Ext sign1Int. Sign2
FFequv (dB
Ext sign1Int. Sign2
TDH39
(IEC 60318-3 Coupler)
125-250
250-4000
4000-6300
+0/-2
+2/-2
+1/-0
+0/-2
+2/-1
+1/-0
+0/-8
+2/-2
+1/-0
+0/-8
+2/-2
+1/-0
DD45
(IEC 60318-3 Coupler)
125-250
250-4000
4000-6300
+0/-2
+1/-1
+0/-2
+1/-0
+1/-1
+0/-2
+0/-
+2/-2
+1/-1
+0/-7
+2/-3
+1/-1
E.A.R Tone 3A
(IEC 60318-5 Coupler)
250-4000
+2/-3
+4/-1
(Non linear)
B71 Bone Conductor
(IEC 60318-6 Coupler)
250-4000
+12/-12
+12/-12
(Non linear)
2% THD at 1000 Hz max output +9
dB (increasing at lower frequency)
Level range: -10 to 50 dB HL
1. Ext. sign: CD input
2. Int. sign: Wave files
External signal
Speech replaying equipment connected to the CD input must have a signal-to-noise ratio
of 45 dB or higher.
The speech material used must include a calibration signal suitable for adjusting the input
to 0 dBVU.
Free Field
Power amplifier and loudspeakers
With an input of 7 Vrms - Amplifier and loudspeakers must be able to create a Sound
Pressure Level of 100 dB in a distance of 1 meter - and meet the following requirements:
Frequency Response
125-250 Hz +0/-10 dB
250-4000 Hz ±3 dB
4000-6300 Hz ±5 dB
Total Harmonic Distortion
80 dB SPL < 3%
100 dB SPL < 10%
Internal storage
250 patients and unlimited sessions/measurements/audiograms

AD629 Instruction for Use English
Date: 2012-01-19 Page 15/17
Signal Indicator(VU)
Time weighting: 300mS
Dynamic range: 23dB
Rectifier characteristics: RMS
Selectable inputs are provide with an attenuator by which the level can be adjusted to the
indicator reference position(0dB)
Data Connections (sockets)
4 x USB A (compatible with USB 1.1 and later)
1 x USB B (compatible with USB 1.1 and later)
1 x LAN Ethernet
External devices (USB)
Standard PC mouse and keyboard (for data entry)
Supported printers: Standard PCL3 printers (HP, Epson, Canon)
Input Specifications
TB
100uVrms at max. gain for 0dB reading
Input impedance : 3.2KOhm
Mic.2
100uVrms at max. gain for 0dB reading
Input impedance : 3.2KOhm
CD
7mVrms at max. gain for 0dB reading
Input impedance : 47KOhm
TF (side panel)
100uVrms at max. gain for 0dB reading
Input impedance : 3.2KOhm
TF (front panel)
100uVrms at max. gain for 0dB reading
Input impedance : 3.2KOhm
Wave files
Plays wave file from hard disk drive
Output Specifications
FF1 & 2
7Vrms at min. 2KOhm load
60-20000Hz -3dB
Left & Right
7Vrms at 10 Ohms load
60-20000Hz -3dB
Ins. Left & Right
7Vrms at 10 Ohms load
60-20000Hz -3dB
Bone
7Vrms at 10 Ohms load
60-10000Hz -3dB
Ins. Mask
7Vrms at 10 Ohms load
60-20000Hz -3dB
Monitor(side panel)
2x 3Vrms at 32 Ohms / 1.5Vrms at 8 Ohms load
60-20000Hz -3dB
Display
5,7 inch high resolution color display 640x480 pixels
Compatible software
Diagnostic Suite - Noah, OtoAccess and XML compatible
Dimensions (LxWxH)
36.5 x 29.5 x 6.5 cm / 14.4 x 11.6 x 2.6 inches
Weight
3.3kg/6.3lb
Power supply
100-240 V~, 50-60Hz max 0.5A
Operation environment
Temperature: 15-35°C
Re. Humidity: 30-90% Non condensing
Transport and storage
Transport temperature: -20-50°C
Storage temperature: 0-50°C
Re. Humidity: 10-95% Non condensing

AD629 Instruction for Use English
Date: 2012-01-19 Page 16/17
Reference Equivalent Threshold Values for transducers
See Appendix in English in the bag of the manual.
Maximum hearing level settings provided at each test frequency
See Appendix in English in the bag of the manual.
