Interlogix TruVision TVP-1101 Instruction sheet

TruVision IP PTZ Camera
FW 5.1 Configuration
Manual
P/N 1073030-EN • REV A • ISS 27MAY15

Copyright
©
2015 United Technologies Corporation.
Interlogix is part of UTC
Building & Industrial Systems, a unit of
United Technologies Corporation.
All rights reserved.
Trademarks and
patents
T
rade names used in this document may be trademarks or
registered trademarks of the manufacturers or vendors of the
respective products.
Manufacturer
Interlogix
2955 Red Hill Avenue, Costa Mesa, CA 92626
-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Certification
N4131
Contact information
For contact information
, see www.interlogix.com or
www.utcfssecurityproducts.eu
.

TruVision IP PTZ Camera FW 5.1 Configuration Manual 1
Content
Important information 3
Limitation of liability 3
Advisory messages 3
Introduction 4
Network connection 5
Checking your web browser security level 5
Accessing the camera over the internet 6
Overview of the camera web browser 7
Camera configuration 10
Configuration menu overview 10

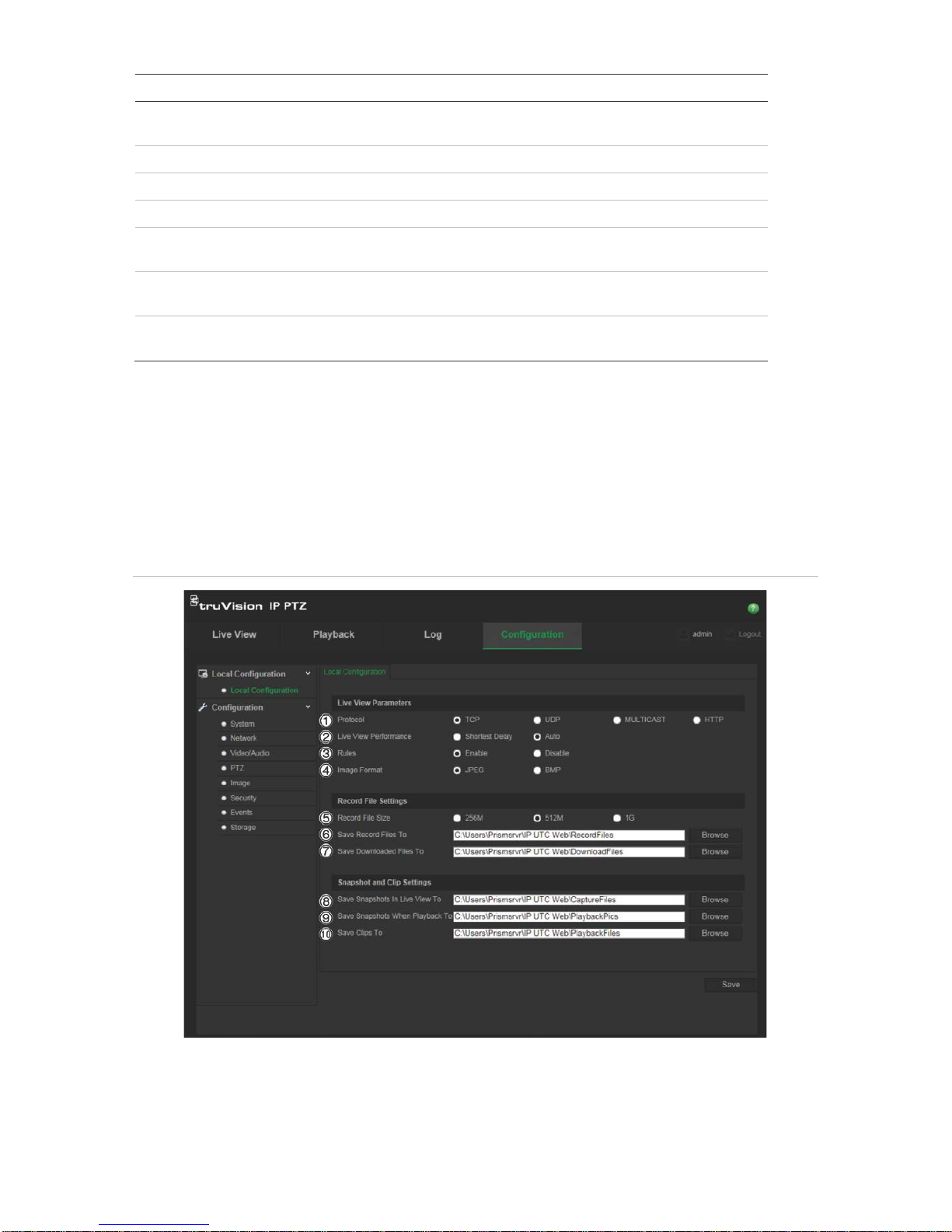

Local configuration 11

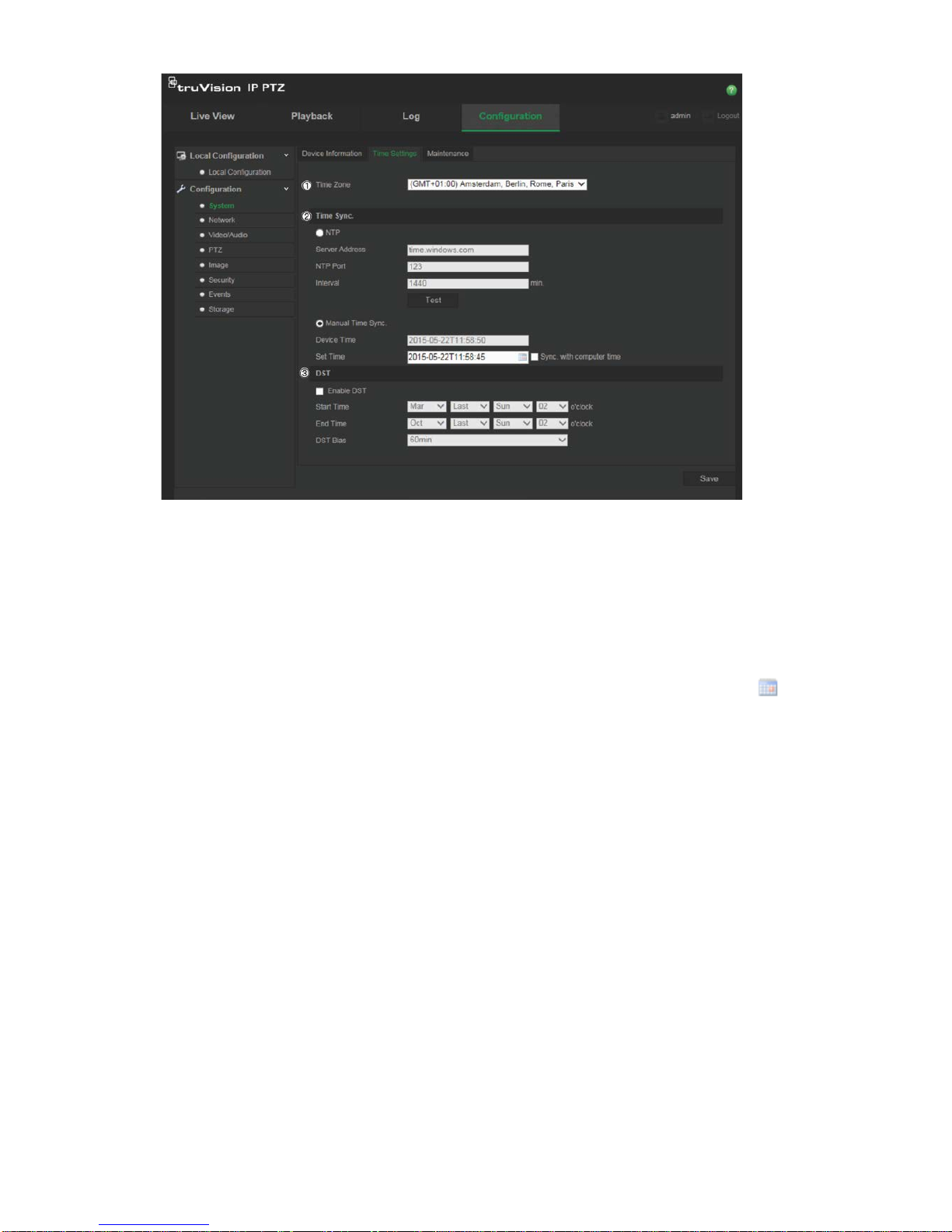

System time 12
Network settings 14
Recording parameters 18
ROI encoding of an image 19
PTZ parameters 20
Intelligent tracking 27
Overlay text 28
Video image 28
OSD 31
Motion detection alarms 33
Tamper-proof alarms 35
Video loss alarms 36
Alarm inputs and outputs 36
Exception alarms 37
Audio exception detection 38
Recording schedule 39
Format storage devices 41
NAS settings 42
Snapshot parameters 42
Camera management 44
User management 44
RTSP authentication 46
IP address filter 47
Telnet 48
Restore default settings 48
Import/export a configuration file 49
Upgrade firmware 49
Reboot camera 49

2 TruVision IP PTZ Camera FW 5.1 Configuration Manual
Camera operation 51
Logging on and off 51
Live view mode 51
Playing back recorded video 51
Searching event logs 54
Index 60

TruVision IP PTZ Camera FW 5.1 Configuration Manual 3
Important information
Limitation of liability
To the maximum extent permitted by applicable law, in no event will UTCFS be liable
for any lost profits or business opportunities, loss of use, business interruption, loss of
data, or any other indirect, special, incidental, or consequential damages under any
theory of liability, whether based in contract, tort, negligence, product liability, or
otherwise. Because some jurisdictions do not allow the exclusion or limitation of liability
for consequential or incidental damages the preceding limitation may not apply to you.
In any event the total liability of UTCFS shall not exceed the purchase price of the
product. The foregoing limitation will apply to the maximum extent permitted by
applicable law, regardless of whether UTCFS has been advised of the possibility of
such damages and regardless of whether any remedy fails of its essential purpose.
Installation in accordance with this manual, applicable codes, and the instructions of the
authority having jurisdiction is mandatory.
While every precaution has been taken during the preparation of this manual to ensure
the accuracy of its contents, UTCFS assumes no responsibility for errors or omissions.
Advisory messages
Advisory messages alert you to conditions or practices that can cause unwanted
results. The advisory messages used in this document are shown and described below.
WARNING: Warning messages advise you of hazards that could result in injury or loss
of life. They tell you which actions to take or to avoid in order to prevent the injury or
loss of life.
Caution: Caution messages advise you of possible equipment damage. They tell you
which actions to take or to avoid in order to prevent damage.
Note: Note messages advise you of the possible loss of time or effort. They describe
how to avoid the loss. Notes are also used to point out important information that you
should read.

4 TruVision IP PTZ Camera FW 5.1 Configuration Manual
Introduction
This is the configuration manual for the following TruVision IP PTZ camera models:
TVP-1101 (1.3 MPX pendant, 20X, PAL)
TVP-3101 (1.3 MPX pendant, 20X, NTSC)
TVP-1102 (1.3 MPX surface, 20X, PAL)
TVP-3102 (1.3 MPX surface, 20X, NTSC)
TVP-1103 (1.3 MPX flush, 20X, PAL)
TVP-3103 (1.3 MPX flush, 20X, NTSC)
TVP-1104 (2 MPX pendant, 20X, PAL)
TVP-3104 (2 MPX pendant, 20X, NTSC)
TVP-1105 (2 MPX surface, 20X, PAL)
TVP-3105 (2 MPX surface, 20X, NTSC)
TVP-1106 (2 MPX flush, 20X, PAL)
TVP-3106 (2 MPX flush, 20X, NTSC)
TVP-1107 (2 MPX pendant, 30X, PAL)
TVP-3107 (2 MPX pendant, 30X, NTSC)
TVP-1122 (2 MPX pendant, 30X, IR, PAL)
TVP-3122 (2 MPX pendant, 30X, IR, NTSC)

TruVision IP PTZ Camera FW 5.1 Configuration Manual 5
Network connection
This manual explains how to configure the camera over the network with a web
browser.
TruVision IP PTZ cameras can be configured and controlled using Microsoft Internet
Explorer (IE) and other browsers. The procedures described use Microsoft Internet
Explorer (IE) web browser.
Checking your web browser security level
When using the web browser interface, you can install ActiveX controls to connect and
view video using Internet Explorer. However, you cannot download data, such as video
and images due to the increased security measure. Consequently you should check the
security level of your PC so that you are able to interact with the cameras over the web
and, if necessary, modify the Active X settings.
Configuring IE ActiveX controls
You should confirm the ActiveX settings of your web browser.

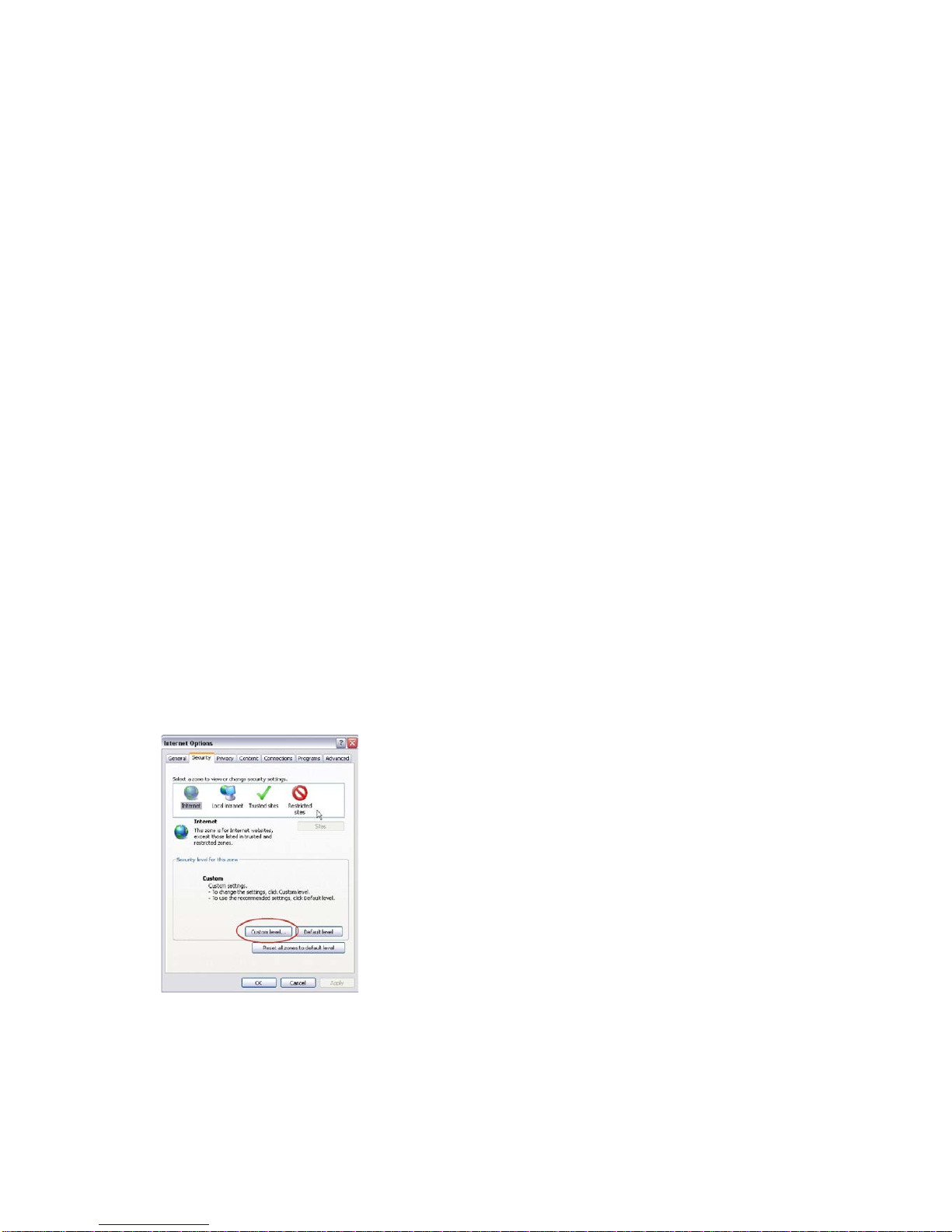

To change the web browser’s security level:
1. In Internet Explorer click Internet Options on the Tools menu.
2. On the Security tab, click the zone to which you want to assign a web site under
“Select a web content zone to specify its security settings”.
3. Click Custom Level.
4. Change the ActiveX controls and plug-ins options that are signed or marked as
safe to Enable. Change the ActiveX controls and plug-ins options that are
unsigned to Prompt or Disable. Click OK.
- Or -

6 TruVision IP PTZ Camera FW 5.1 Configuration Manual
Under Reset Custom Settings, click the security level for the whole zone in the
Reset To box, and select Medium. Click Reset.
Then click OK to the Internet Options Security tab window.
5. Click Apply in the Internet Options Security tab window.
Windows 7 and Windows 8 users
Internet Explorer for Windows 7 and Windows 8 operating systems have increased
security measures to protect your PC from any malicious software being installed.
To have complete functionality of the web browser interface with Windows 7 and
Windows 8, do the following:
• Run the Browser interface as an administrator in your workstation
• Add the camera’s IP address to your browser’s list of trusted sites
To add the camera’s IP address to Internet Explorer’s list of trusted sites:
1. Open Internet Explorer.
2. Click Tools, and then Internet Options.
3. Click the Security tab, and then select the Trusted sites icon.
4. Click the Sites button.
5. Clear the “Require server verification (https:) for all sites in this zone box.
6. Enter the IP address in the “Add this website to the zone” field.
7. Click Add, and then click Close.
8. Click OK in the Internet Options dialog window.
9. Connect to the camera for full browser functionality.
Accessing the camera over the internet
Use the web browser to access and configure the camera over the internet.

TruVision IP PTZ Camera FW 5.1 Configuration Manual 7
It is recommended that you change the administrator password once the setup is
complete. Only authorized users should be able to modify camera settings. See “User
management” on page 44 for further information.
To access the camera online:
1. In the web browser enter the camera’s IP address (default is 192.168.1.70). Use the
tool, TruVision Device Finder, enclosed on the CD to find the IP address of the
camera.
The Login dialog box appears.
Note: Ensure that the Active X controls are enabled.
2. Enter your user name and password.
User name: admin
Password: 1234
3. Click Login. The web browser window appears in live view mode.
Overview of the camera web browser
The camera web browser lets you view, record, and play back recorded videos as well
as manage the camera from any PC with Internet access. The browser’s easy-to-use
controls give you quick access to all camera functions. See Figure 1 on page 8.
If there is more than one camera connected over the network, open a separate web
browser window for each individual camera.

8 TruVision IP PTZ Camera FW 5.1 Configuration Manual
Figure 1: Web browser interface
Table 1: Overview of the web browser interface
Name
Description
1. Live view Click to view live video.
2. Playback Click to play back video.
3. Log Click to search for event logs. There are three main types: Alarm,
Exception, and Operation.
4. Configuration Click to display the configuration window for setting up the camera.
5. Viewer View live video. Time, date and camera name are displayed here.
6. PTZ controls Direction actions, zoom, focus, iris, light, and wiper control.
7. Current user Displays current user logged on.
8. Logout Click to log out from the system. This can be done at any time.
9. Display Control Click each tab to adjust the layout and the stream type of the live
view. You can also click the drop-down menu to select the plug-in
(WebComponents or QuickTime).
For IE (internet Explorer) users, web components and Quick Time are
selectable. For non-IE users, web components, QuickTime, VLC, or
MJPEG are selectable if they are supported by the web browser.
10. Start/stop live
view Click to start/stop live view.
11. Audio Click to adjust the volume.
12. Bidirectional
audio Turn on/off the microphone.
13. Capture Click to take a snapshot of the video. The snapshot will be saved to
the default folder in JPEG (or BMP) format.

TruVision IP PTZ Camera FW 5.1 Configuration Manual 9
Name
Description
14. Start/stop
recording Click to record live video.
15. 3D Zoom Click to enable 3D zoom.
16. Manual Tracking Click to enable manual tracking.

10 TruVision IP PTZ Camera FW 5.1 Configuration Manual
Camera configuration
This chapter explains how to configure the cameras through a web browser.
Once the camera hardware has been installed, configure the camera’s settings through
the web browser. You must have administrator rights in order to configure the cameras
over the internet.
The camera web browser lets you configure the camera remotely using your PC. Web
browser options may vary depending on camera model. The camera is configured
using on-screen display (OSD) menus.
There are two main folders in the configuration panel:
Local configuration
Configuration
Configuration menu overview
Use the Configuration panel to configure the server, network, camera, alarms, users,
transactions, and other parameters such as upgrading the firmware. See Figure 2 and
Table 2 below for descriptions of the configuration folders available.
Figure 2: Configuration panel (Device Information tab of the System folder selected)
Table 2: Overview of the Configuration panel
Item Description
1.
System
Defines device basic information including SN and the current firmware
version, time settings, and maintenance parameters.

TruVision IP PTZ Camera FW 5.1 Configuration Manual 11
Item Description
2.
Network
Defines the network parameters required to access the camera over the
internet.
3.
Video/Audio
Defines recording parameters.
4.
PTZ
Defines the PTZ parameters and privacy masking.
5.
Defines the image parameters, OSD settings and text overlay.
6.
Security
Defines who can use the camera, their passwords and access privileges
,
RTSP authentication, IP address filter, and telnet access.
7.
Events
Defines motion detection, tamper-proof, alarm input/output, exception,
and audio exception detection.
8.
Storage
Defines recording schedule, storage management, NAS configuration
and snapshot configuration.
Local configuration
Use the Local menu to manage the protocol type, live view performance, and local
storage paths. In the Configuration panel, click Local Configuration to display the local
configuration window. See Figure 3 and Table 3 below for descriptions of the different
menu parameters.
Figure 3: Example of a configuration window

12 TruVision IP PTZ Camera FW 5.1 Configuration Manual
Table 3: Overview of the Local configuration window
Parameters
Description
Live View Parameters
1.
Protocol
Specifies the network protocol used.
Options include: TCP, UDP, MULTICAST and HTTP.
2.
Live View Performance
Specifies the transmission speed.
Options include: Shortest Delay or Auto.
3.
Rules
It refers to the rules on your local browser. Specify whether or not
to display the colored marks when motion detection, face
detection, and intrusion detection are triggered. For example,
when the rules option is enabled and a face is detected, the face
will be marked with a green rectangle in live view.
4.
Image Format
Choose the image format for a snapshot: JPEG or BMP.
Record File Settings
5.
Record F
ile Size Specifies the maximum file size.
Options include: 256 MB, 512 MB and 1G.
6.
Save
Record Files to Specifies the directory for recorded files.
7.
Save
Downloaded Files to Specifies the directory for downloaded files.
Snapshot
and Clip Settings
8.
Save
Snapshots In Live
View To
Specifies the directory for saving snapshots in live view mode.
9.
Save
Snapshots When
Playback To
Specifies the directory for saving snapshots in playback mode.
10.
Save Clips To
Specifies the directory for saving video clips in playback mode.
System time
NTP (Network Time Protocol) is a protocol for synchronizing the clocks of network
devices, such as IP cameras and computers. Connecting network devices to a
dedicated NTP time server ensures that they are all synchronized.
To define the system time and date:
1. From the menu toolbar, click Configuration > System > Time Settings.

TruVision IP PTZ Camera FW 5.1 Configuration Manual 13
2. From the Time Zone drop-down menu (1), select the time zone that is the closest to
the camera’s location.
3. Under Time Sync (2), check one of the options for setting the time and date:
NTP: Check the NTP enable box and enter the server NTP address to synchronize
with an NTP server. The time interval can be set from 1 to 10080 minutes.
- Or -
Manual Time Sync.: Enable the Manual Time Sync function and then click to
set the system time from the pop-up calendar.
Note: You can also check the Sync with computer time checkbox to synchronize the
time of the camera with the time of your computer.
4. Check Enable DST (3) to enable the DST function, and set the date of the DST
period.
5. Click Save to save changes.

14 TruVision IP PTZ Camera FW 5.1 Configuration Manual
Network settings
Accessing the camera through a network requires that you define certain network
settings. Use the “Network” folder to define the network settings. See Figure 4 and
Table 4 below for further information.
Figure 4: Network window (TCP/IP tab shown)
Table 4: Network parameters
Parameters
Description
1.
TCP/IP
NIC Type: Specifies the NIC type. Default is Auto. Other options include: 10M
Half-dup, 10M Full-dup, 100M Half-dup and 100M Full-dup.
DHCP: Enable to automatically obtain an IP address and other network
settings from that server.
IPv4 Address: Specifies the IPv4 address of the camera.
IPv4 Subnet Mask: Specifies the IPv4 subnet mask.
IPv4 Default Gateway: Specifies the IPv4 gateway IP address.
IPv6 Mode: Specifies the IPv6 mode, including Manual, DHCP and Router
Advertisement.
IPv6 Address: Specifies the IPv6 address of the camera.
IPv6 Subnet Prefix Length: Specifies the IPv6 prefix length.
IPv6 Default Gateway: Specifies the IPv6 gateway IP address.
Mac Address: Set to 00:4d:c1:33:11:d4.
MTU: Specifies the valid value range of MTU. Default is 1500.
Multicast Address: Specifies a D-class IP address between 224.0.0.0 to
239.255.255.255. Only specify this option if you are using the multicast
function. Some routers prohibit the use of multicast function in case of a
network storm.
DNS server: Specifies the DNS server for your network.
2.
Port
HTTP Port: Specifies the port used for the Internet Explorer (IE) browser.

TruVision IP PTZ Camera FW 5.1 Configuration Manual 15
Parameters
Description
Default value is 80.
RTSP Port: Specifies the RTSP port. The default port number is 554.
HTTPS Port: Specifies the HTTPS port. The default port number is 443.
Server Port: Specifies the SDK port. The default port number is 8000.
3.
DDNS
Specifies IP server, DynDNS and ezDDNS.
4.
PPPoE
Use this option to retrieve a dynamic IP address.
5.
SNMP
Enable SNMP to get camera status and parameters related information.
6.
802.1.X
When the feature is enabled, the camera data is secured and user
authentication is needed when connecting the camera to the network.
7.
QoS
Enable to solve the network delay and network congestion by configuring the
priority of data sending.
8.
UPnP
Specifies the UPnP friendly name.
9.
FTP
Specifies the FTP address and folder to which snapshots of the camera
can be
uploaded.
10.
Email
Specifies the email address to which messages are sent when an alarm
occurs.
11.
NAT
A NAT (Network Address Translation) is used for network connection. Select
the port mapping mode: auto or manual.
To define the TCP/IP parameters:
1. From the menu toolbar, click Configuration > Network > TCP/IP.
2. Configure the NIC settings, including the NIC Type, IPv4 settings, IPv6 settings,
MTU settings, and Multicast Address.
3. If the DHCP server is available, check DHCP.
4. If the DNS server settings are required for some applications (e.g., sending email),
you should configure the Preferred DNS Server or Alternate DNS Server.
5. Click Save to save changes.
To define the port parameters:
1. In Configuration > Network > Port.
2. Set the HTTP port, RTSP port, HTTPS port and Server port of the camera.
3. Click Save to save changes.
To define the DDNS parameters:
1. From the menu toolbar, click Configuration > Network > DDNS.
2. Check Enable DDNS to enable this feature.
3. Select DDNS Type. Two options are available: DynDNS and IPServer.
• DynDNS: Enter the user name and password registered to the DynDNS web
site. The domain name is that of the DynDNS web site.
• ezDDNS: Enter the host name. It will automatically register it online.
• IPServer: Enter the address of the IP Server.

16 TruVision IP PTZ Camera FW 5.1 Configuration Manual
4. Click Save to save changes.
To define the PPPoE parameters:
1. From the menu toolbar, click Configuration > Network > PPPoE.
2. Check Enable PPPoE to enable this feature. The dynamic IP address is assigned
automatically form the modem.
3. Enter User Name, Password, and Confirm password for PPPoE access.
4. Click Save to save changes.
To define the SNMP parameters:
Note: Before setting the SNMP, please download the SNMP software and manage to
receive the camera information via SNMP port. By setting the Trap Address, the
camera can send the alarm event and exception messages to the surveillance center.
The SNMP version you select should be the same as that of the SNMP software.
1. From the menu toolbar, click Configuration > Network > SNMP.
2. Select the corresponding version of SNMP: v1, v2c or v3.
Note: Contact your network administrator for specific information on setting up this
function.
3. Configure the SNMP settings. The configuration of the SNMP software should be
the same as the settings you configure here.
4. Click Save to save changes.
To define the 802.1x parameters:
Note: The switch or router to which the camera is connected must also support the
IEEE 802.1X standard, and a server must be configured. Please apply and register a
user name and password for 802.1X in the server.
1. From the menu toolbar, click Configuration > Network > 802.1X.
2. Check Enable IEEE 802.1X to enable the feature.
Note: Contact your network administrator for specific information on setting up this
function.
3. Configure the 802.1X settings, including EAPOL version, user name, and password.
The EAPOL version must be identical with that of the router or the switch.
4. Click Save to save changes.
To define the QoS parameters:
1. From the menu toolbar, click Configuration > Network > QoS.
2. Configure the QoS settings, including Video / Audio DSCP, Event / Alarm DSCP
and Management DSCP. The valid value range of the DSCP is 0 to 63. The bigger
the DSCP value is the higher the priority is.
3. Click Save to save changes.

TruVision IP PTZ Camera FW 5.1 Configuration Manual 17
To define the FTP parameters:
1. From the menu toolbar, click Configuration > Network > FTP.
2. Configure the FTP settings, including server address, port, user name, password,
directory structure, main directory, subdirectory, and upload type.
Directory: In the Directory Structure field, you can select the root directory, main
directory and tab. When the main directory is selected, you have the option to use
the Device Name, Device Number or Device IP for the name of the directory. When
the tab is selected, you can use the Camera Name, Camera No., or Custom as the
name of the directory.
Upload type: To enable uploading the snapshots to the FTP server.
3. Click Save to save changes.
To define the UPnP parameters:
1. Click Configuration > Network > UPnP.
4. Check the checkbox to enable the UPnP function. Edit the friendly name of the
device when detected online can be edited.
4. Click Save to save changes.
To set up the Email parameters:
1. In Configuration > Network > Email.
2. Configure the following settings:
Sender: The name of the email sender.
Sender’s Address: The email address of the sender.
SMTP Server: The SMTP Server IP address or host name.
SMTP Port: The SMTP port. The default is 25.
Enable SSL: Check the checkbox to enable SSL if it is required by the SMTP
server.
Attached Snapshot: Check the checkbox of Attached Snapshot if you want to
send emails with attached alarm snapshots.
Interval: This is the time between two actions of sending attached images.
Authentication: If your email server requires authentication, check this checkbox to
use authentication to log in to this server. Enter the login user name and password.
Receiver: The name of the user to be notified.
Receiver’s Address: The email address of user to be notified.
3. Click Save to save changes.
To set up the NAT parameters:
1. Click Configuration > Network > NAT.
2. Check the checkbox to enable the NAT function.

18 TruVision IP PTZ Camera FW 5.1 Configuration Manual
3. Select Port Mapping Mode to be Auto or Manual. When you choose Manual mode,
you can set the external port as you want.
4. Click Save to save changes.
Recording parameters
You can adjust the video and audio recording parameters to obtain the picture quality
and file size best suited to your needs. Figure 5 and Table 5 below list the video and
audio recording options you can configure for the camera.
Figure 5: Video/Audio Settings menu (Video tab shown)
Table 5: Video setting parameters
Parameter
Description
A. Video
1.
Stream
Type Specifies the streaming method used.
Options include: Main Stream (Normal), Substream, and Third Stream.
Use main stream for live viewing and recording with high resolutions and
bandwidth. Use substream when there is a bandwidth limitation, such as
when using a mobile app. The third stream can be used for local live
viewing or as a backup to the other streams.
2.
Video Type
Specifies the stream type you wish to record.
Select Video Stream to record video stream only. Select Video&Audio to
record both video and audio streams.
Note: Video&Audio is only available for those camera models that
support
audio.
3.
Resolution
Specifies the recording resolution. A higher image resolution provides a
higher image quality but also requires a higher bit rate. The resolution
options listed depend on the type of camera and on whether main or sub
stream is being used.
Note: Resolutions can vary depending on the camera model.
