Interlogix TruVision 12 Series User manual

TruVision
12/32 Series
IP Camera Installation
Guide
P/N 1072880-EN • REV C • ISS 02FEB15

Copyright © 2015 United Technologies Corporation,
Interlogix is part of UTC Building & Industrial
Systems, a unit of United Technologies
Corporation. All rights reserved.
Trademarks and
patents
Trade names used in this document may be trademarks
or registered trademarks of the manufacturers or
vendors of the respective products.
Manufacturer Interlogix
2955 Red Hill Avenue, Costa Mesa, CA 92626-5923,
USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Certification
N4131
FCC compliance Class A: This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated in
a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
ACMA compliance Notice! This is a Class A product. In a domestic
environment this product may cause radio interference
in which case the user may be required to take
adequate measures.
Canada This Class A digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe A est conforme à

la norme NMB-0330 du Canada.
European Union
directives
12004/108/EC (EMC directive): Hereby, UTC Fire &
Security declares that this device is in compliance with
the essential requirements and other relevant
provisions of Directive 2004/108/EC.
2012/19/EU (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon
the purchase of equivalent new equipment, or dispose
of it at designated collection points. For more
information see: www.recyclethis.info.
Contact information For contact information, see www.interlogix.com or
www.utcfssecurityproducts.eu.

Installation Guide 1
Content
Introduction 2
Product overview 2
Installation 3
Installation environment 3
Package contents 4
Cable requirements 11
Camera description 12
Setting up the camera 16
IR illuminators 17
Accessing the SD card 18
Mounting the bullet camera 18
Mounting the VF dome camera 19
Mounting the outdoor dome camera 23
Using the camera with an Interlogix NVR or Hybrid DVR or
another system 28
Using the camera with TruVision Navigator 28
Specifications 28
TruVision IP box cameras 28
TruVision IP VF mini dome 29
TruVision IP VF bullet cameras 30
TruVision IP VF outdoor dome cameras 30
Pin definitions 31

2 Installation Guide
Introduction
Product overview
This is the installation guide for TruVision 12/32 Series IP
camera models:
TVC-1201 (1.3MPX IP box camera, PAL)
TVC-3201 (1.3MPX IP box camera, NTSC)
TVC-1202 (3MPX IP box camera, PAL)
TVC-3202 (3MPX IP box camera, NTSC)
TVB-1201 (1.3MPX IP bullet camera, 2.8-12mm, PAL)
TVB-3201 (1.3MPX IP bullet camera, 2.8-12mm, NTSC)
TVB-1202 (3MPX IP bullet camera, 2.8-12mm, PAL)
TVB-3202 (3MPX IP bullet camera, 2.8-12mm, NTSC)
TVB-1203 (3MPX IP bullet camera, 8-32mm, PAL)
TVB-3203 (3MPX IP bullet camera, 8-32mm, NTSC)
TVD-1201 (1.3MPX IP VF mini dome, 2.8-12mm, PAL)
TVD-3201 (1.3MPX IP VF mini dome, 2.8-12mm,
NTSC)
TVD-1202 (3MPX IP VF mini dome, 2.8-12mm, PAL)
TVD-3202 (3MPX IP VF mini dome, 2.8-12mm, NTSC)
TVD-1203 (1.3MPX IP outdoor dome, 2.8-12mm, PAL)

Installation Guide 3
TVD-3203 (1.3MPX IP outdoor dome, 2.8-12mm,
NTSC)
TVD-1204 (3MPX IP outdoor dome, 2.8-12mm, PAL)
TVD-3204 (3MPX IP outdoor dome, 2.8-12mm, NTSC)
TVD-1205 (3MPX IP outdoor dome, 8-32mm, PAL)
TVD-3205 (3MPX IP outdoor dome, 8-32mm, NTSC)
Installation
This section provides information on how to install the
cameras.
Installation environment
When installing your product, consider these factors:
•Electrical: Install electrical wiring carefully. It should be
done by qualified service personnel. Always use a proper
PoE switch or a 12 VDC UL listed Class 2 or CE certified
power supply to power the camera. Do not overload the
power cord or adapter.
•Ventilation: Ensure that the location planned for the
installation of the camera is well ventilated.
•Temperature: Do not operate the camera beyond the
specified temperature, humidity or power source ratings.
The operating temperature of the camera without heater
is between -30 to +60°C (-22 to 140°F). Humidity is below
90%. For the outdoor cameras have built-in heaters, the
operating temperature range is -40°C to 60°C(-40°F
to140°F)
•Moisture: Do not expose the camera to rain or moisture,
or try to operate it in wet areas. Turn the power off

4 Installation Guide
immediately if the camera is wet and ask a qualified
service person for servicing. Moisture can damage the
camera and also create the danger of electric shock.
•Servicing: Do not attempt to service this camera
yourself. Any attempt to dismantle or remove the covers
from this product will invalidate the warranty and may
also result in serious injury. Refer all servicing to qualified
service personnel.
•Cleaning: Do not touch the sensor modules with fingers.
If cleaning is necessary, use a clean cloth with some
ethanol and wipe the camera gently. If the camera will not
be used for an extended period of time, put on the lens
cap to protect the sensors from dirt.
Package contents
Check the package and contents for visible damage. If any
components are damaged or missing, do not attempt to use
the unit; contact the supplier immediately. If the unit is
returned, it must be shipped back in its original packaging.

Installation Guide 5

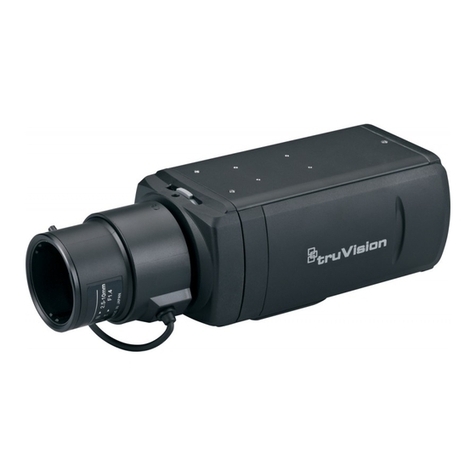

IP box camera
•Camera
•C-CS adaptor
•CD with Configuration
manual and TruVision
Device Finder
•Installation manual
•WEEE and Battery
Disposal

6Installation Guide
IP VF bullet camera
•Camera
•Back box
•Template •Alarm connector
(2 pcs)
•Screws M4.8 × 18, 4pcs
to attach the back box
•Screws (4 pcs)
Ceiling Mounting
11
11
2
22
2
1:Screw Hole for
Bracket
2:Screw Hole for
Mounting Base

Installation Guide 7
•Water joint: provide
water resistance to
network connection.
•Video cable
•CD with Configuration
manual and TruVision
Device Finder
•Wrench
•Installation manual •WEEE and Battery
Disposal

8 Installation Guide
IP VF dome camera
•Camera
•Adaptor: for TVD-CB3
cup base
•Template •12 VDC Connector:
DC jack socket to
terminal connectors
with positive and
negative indicators.
•Water joint: provide
water resistance to
network connection.
•Screws (4 pcs)
Drilling Templater

Installation Guide 9
•Screws C: M4×8, 3pcs •Alarm connector
(2 pcs)
•Hex wrench •CD with Configuration
manual and TruVision
Device Finder
•Installation manual
•WEEE and Battery
Disposal
IP VF outdoor dome camera
•Camera •Back box

10 Installation Guide
•Template (flush mount)
•Template (back box)
•Screws(4 pcs)
•Screws B (3 pcs)
•Screws M4 × 9.5, 3pcs
to attach the back box
•Wrench
•Alarm connector(4 pcs) •Water joint: provide
water resistance to
network connection.
Drill Template

Installation Guide 11
•Installation manual
•CD with Configuration
manual and TruVision
Device Finder
•WEEE and Battery
Disposal
CAUTION: Use direct plug-in UL listed power supplies
marked Class 2/CE certified or LPS (limited power source) of
the required output rating as listed on the unit.
Cable requirements
For proper operation, adhere to the following cable and power
requirements for the cameras. Category 5 cabling or better is
recommended. All network cabling must be installed according
to applicable codes and regulations.
Table 1 on page 12 lists the requirements for the cables that
connect to the camera.

12 Installation Guide
Table 1: Recommended power cable requirements
Box camera
: 12 VDC/24 VAC power wires or PoE
(802.3af)
VF
bullet camera:
VF
mini dome:
12 VDC power wires or PoE (802.3af)
12 VDC power wires or PoE (802.3af)
VF
outdoor dome: 24 VAC power wires or PoE (802.3af)
Camera description
Figure 1: IP bullet camera

Installation Guide 13
1. Ethernet RJ45 PoE port
2. Power supply
3. Reset button
4. SD card
5. BNC port
6. Ground
7. Alarm Out
8. RS-232 serial port
9. RS-485 port
10. Alarm In
11. Audio Out
12. ABF (automatic back
focus) button
13. Audio In
Note:
1. To reset the camera to default settings, you need to
press and hold the RESET button and power on the
camera. After the camera is started up, please still hold
the Reset button for about 20 seconds.
2. The type of auto-iris interface is shown as below figure:
No. DC-driven
1 Damp-
2 Damp+
3 Drive+
4 Drive-
Power, Video and GND pins are used when the auto-iris is
driven by video. Damp+, Damp-, Drive+ and Drive- pins are

14 Installation Guide
used when the auto-iris is driven by DC.

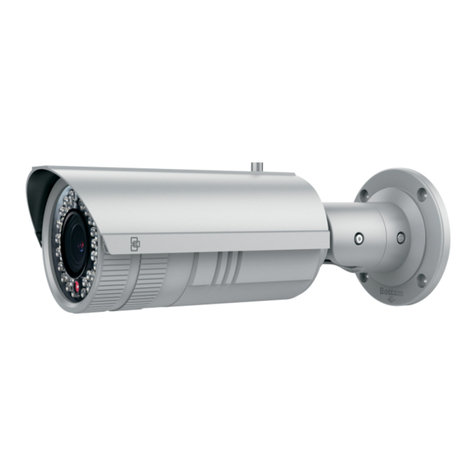

Figure 2: IP VF bullet camera
1. Shield
2. Mounting base
3. Back box
4. Reset button
5. SD card slot
6. Lens cover
7. BNC output
8. Alarm I/O
9. Power supply
10. Ethernet RJ45 PoE port
1
2
3
654
7
8
9
10

Installation Guide 15
Figure 3: IP VF dome camera
1. Dome liner
2. Bubble Assembly
3. Ethernet RJ45
4. Power cable
5. Alarm cable
6. Lens
7. Adaptor
8. Reset button
9. RS485
10. BNC cable
11. SD card slot
5
11
9
8
7
2
6
4
3
1
10

16 Installation Guide
Figure 4: IP VF outdoor dome camera
1. Dome liner
2. Bubble Assembly
3. SD card
4. Analog video output
5. Reset button
6. Ethernet RJ45 PoE port
7. Power supply
8. Lens
9. Alarm I/O
Setting up the camera
Note: If the light source where the camera is installed
experiences rapid, wide- variations in lighting, the camera may
not operate as intended.
12
3
4
5
89
67
