Interlogix MC352-1P/1S User manual

IFS MC352-1P/1S User Manual
P/N 1072579 • REV 00.005 • ISS 30JAN13

Copyright © 2013 UTC Fire & Security Americas Corporation, Inc.
Interlogix is part of UTC Climate Controls & Security, a unit of
United Technologies Corporation. All rights reserved.
Trademarks and
patents The IFS MC352-1P/1S and logo are trademarks of United
Technologies.
Other trade names used in this document may be trademarks or
registered trademarks of the manufacturers or vendors of the
respective products.
Intended use Use this product only for the purpose it was designed for; refer to
the data sheet and user documentation for details. For the latest
product information, contact your local supplier or visit us online
at www.interlogix.com.
Manufacture
r
UTC Fire & Security Americas Corporation, Inc.
2955 Red Hill Avenue
Costa Mesa, CA 92626-5923, USA
EU authorized manufacturing representative:
UTC Fire & Security B.V., Kelvinstraat 7,
6003 DH Weert, The Netherlands
Certification
N4131
FCC compliance This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
You are cautioned that any changes or modifications not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
ACMA compliance Notice! This is a Class A product. In a domestic environment
this product may cause radio interference in which case the user
may be required to take adequate measures.
Canada This Class A digital apparatus complies with Canadian ICES-
003. Cet appareil numérique de la classe A est conforme á la
norme NMB-003du Canada.
European Union
directives 2004/108/EC (EMC Directive): Hereby, UTC Fire & Security
Americas Corporation, Inc. declares that this device is in
compliance with the essential requirements and other relevant
provisions of Directive 2004/108/EC.
2002/96/EC (WEEE directive): Products marked with this
symbol cannot be disposed of as unsorted municipal waste in
the European Union. For proper recycling, return this product to
your local supplier upon the purchase of equivalent new
equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info.
Contact information For contact information see our Web site: www.interlogix.com.
Contact support www.interlogix.com/customer support

IFS MC352-1P/1S User Manual i
Contents
Overview 1
Package Contents 1
Product Description 2
Hardware Overview 4
Front Panel 5
Top Panel 6
Wiring the Power Inputs 6
Wiring the Fault Alarm Contact 7
Mounting Installation 8
Link Fault Pass through (LFP) 12
Link Loss Carry Forward (LLCF) 12
Link Loss Return (LLR) 13
Stand-alone Installation 15
802.3at/802.3af Installation 16
LED indicators 17
Cable Connection 20
Specifications 21
RJ45 Pin Assignments 23
Contacting Technical Support 25

IFS MC352-1P/1S User Manual 1
Overview
The MC352-1P/1S Industrial 802.3at High Power over Ethernet
Gigabit Media converter fully complies with IEEE 802.3
10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab
1000Base-T and IEEE 802.3z 1000Base-SX / LX standards.
The Gigabit media conversion is quick and easy by simple
plug and play installation. The MC352-1P/1S series Industrial
802.3at High Power over Ethernet Gigabit Media converter
also supports flow control and back pressure in half-duplex
operation to eliminate packet loss.
Package Contents
Check the contents of your package for the following parts:
• MC352-1P/1S x1
• User’s Manual x1
• DIN Rail Kit x 1
• Wall Mount Kit x 1
If any of these items are missing or damaged, please contact
your distributor or IFS sales rep immediately. If possible, retain
the original carton and packaging material in case you need to
return the product for repair/replacement.

2 IFS MC352-1P/1S User Manual
Product Description
The MC352-1P/1S extends communication distance with high
Gigabit performance via fiber optical wire, in which the
extension distance can be up to 70km. The MC352-1P/1S is
specifically designed with durable components and an IP-30
rated enclosure to operate reliably in electrically and
demanding environments. The industrial Gigabit media
converter provides a high level of immunity to electromagnetic
interference and heavy electrical surges which are usually
found on plant floors or traffic control cabinets along highways.
Being able to operate under the temperature range from -40 to
75 Degree C allows the MC352-1P/1S to be used in almost
any demanding environment.
The maximum distance between the PoE PSE to PD is 100
meters. To extend the network device deployment range, the
MC352-1P/1S is designed with a fiber interface. The MC352-
1P/1S is used to convert an optical Ethernet signal to an
electrical Ethernet signal that allows two type segments to
connect easily, efficiently and inexpensively. It can convert
10/100/1000Base-T signal to 1000Base-SX / LX and provides
the diverse options of fiber connecting types to meet different
network applications.
With the long Fiber distance support, it still sustains the
transmission performance as high as 1000Mbps. It works in a
high performance Store and Forward mechanism, and also
can prevent packet loss with IEEE 802.3x Flow Control (Full-
Duplex) and the LFP (Link Fault Pass Through function)
(LLCF/LLR) with a DIP Switch setting. Furthermore, it can
immediately notify the network administrator the issue with an
alarm from the link media which provides an efficient solution
to monitor the network power usage.
To fill the growing demand of Industrial PoE PD devices that
need higher Power Input and long distance transmission, the

IFS MC352-1P/1S User Manual 3
MC352-1P/1S Industrial Media converter that complies with
IEEE 802.3at High Power over Ethernet technology. The
MC352-1P/1S provides the following key features:
• IEEE 802.3at Power over Ethernet standard compliance
• IEEE 802.3af Power over Ethernet standard compliance
• Maximum 30 Watts power output
• 10/100/1000Mbps duplex mode support on the1000Base-T
port
• 1000Mbps support on the fiber optic port
The MC352-1P/1S is a Single-Port, End-Span Industrial IEEE
802.3at High Power over Ethernet Gigabit Media converter
with maximum power output of up to 30 Watts over Ethernet
cables. It is designed specifically to meet the power
requirements of network equipment such as PTZ (Pan, Tilt &
Zoom) network cameras, PTZ Speed Dome cameras, color
touch-screen / Video and Voice over IP (VoIP) telephones,
multi- channel (11a / b / g / n) wireless LAN access points and
other Network devices that need higher power to function
normally. The MC352-1P/1S Industrial High Power over
Ethernet Gigabit Media converter is an ideal solution to deliver
data and power to network devices directly via the RJ-45 Port
interface without the need of installing extra power outlets and
electrical cabling.

4 IFS MC352-1P/1S User Manual
Hardware Overview
Figure 1: All Panel Views

IFS MC352-1P/1S User Manual 5

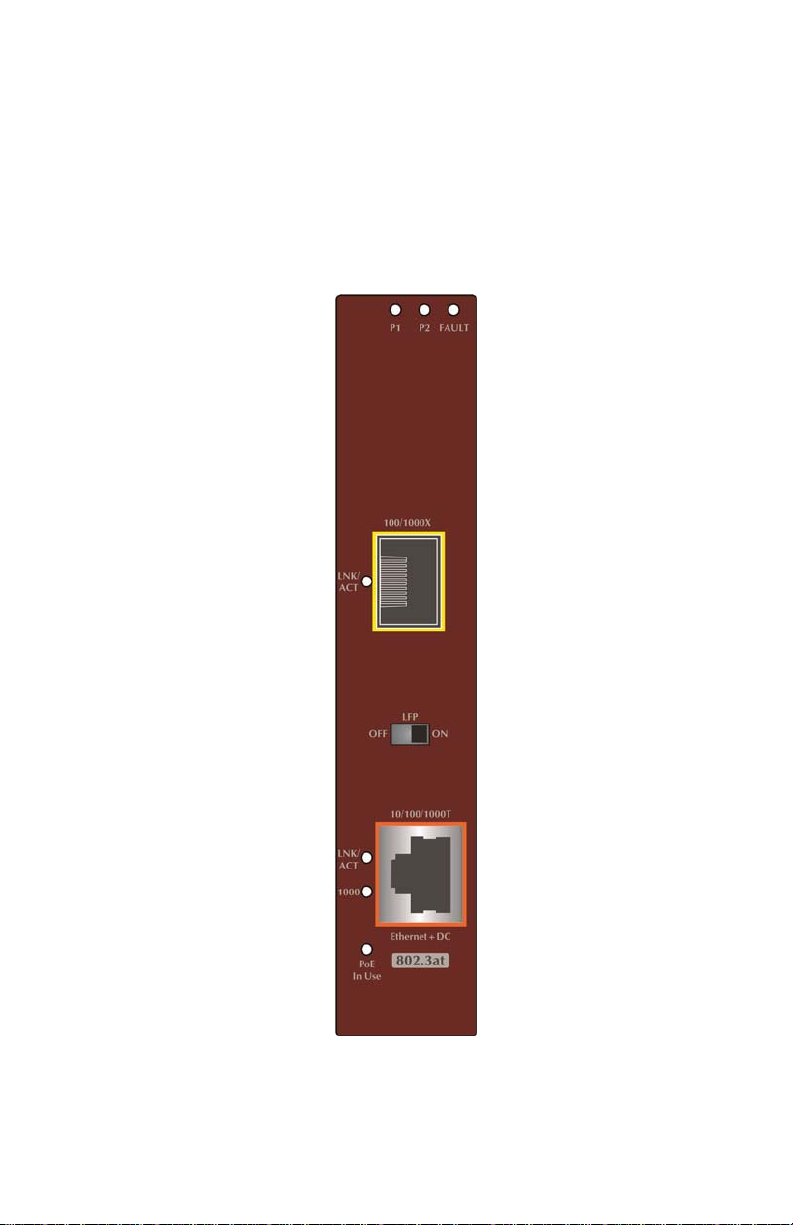

Front Panel
The Front Panel of the Industrial 802.3at PoE Media Converter
consists of one 1000Base-SX / 1000Base-LX / mini-GBIC SFP
port and one Auto-Sensing 10/100/1000Mbps Ethernet RJ-45
Port.

6 IFS MC352-1P/1S User Manual
Top Panel
The top panel of the MC352-1P/1S Media Converter consists of
one terminal block connector within two DC power inputs.

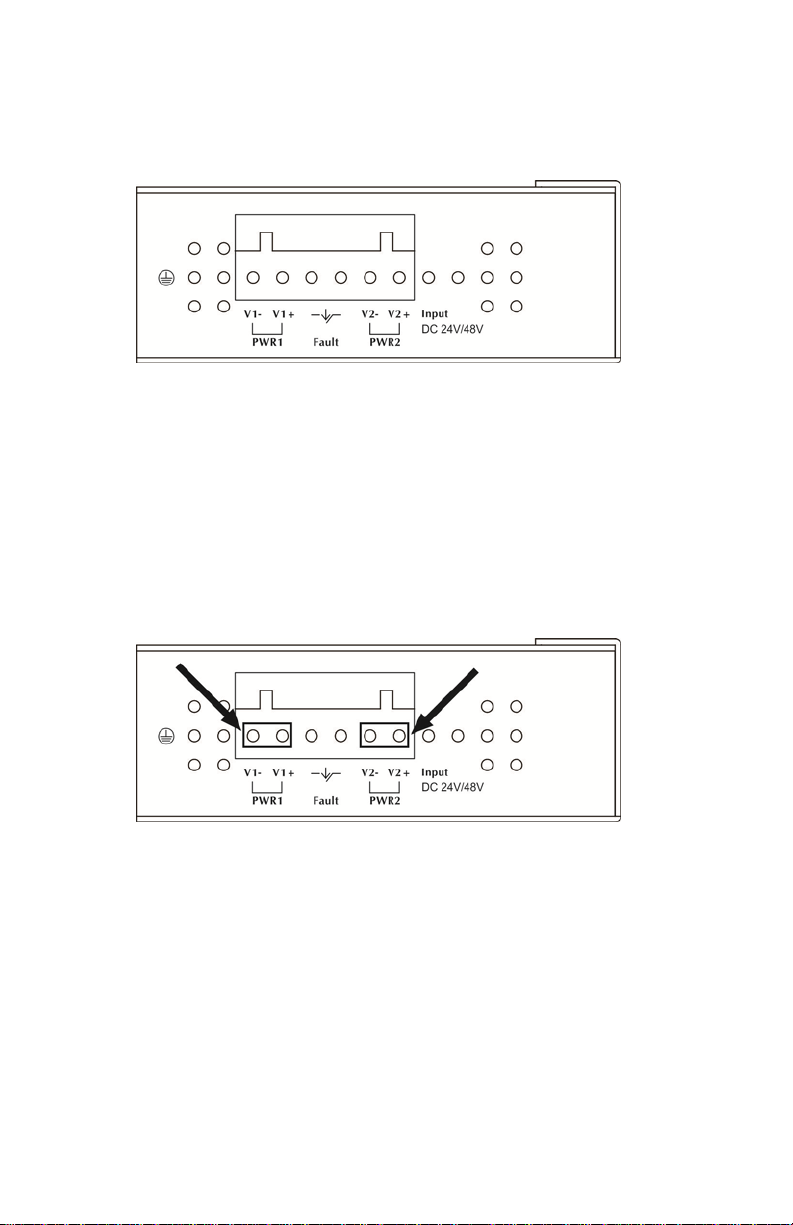

Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of the
MC352-1P/1S is used for two DC redundant power inputs.
Please follow the steps below to insert the power wires.
1. Insert positive / negative DC power wires into the contacts
1 and 2 for POWER 1, or 5 and 6 for POWER 2.
V1-V1+ V2- V2+
2. Tighten the wire-clamp screws to prevent the wires from
disconnecting.

IFS MC352-1P/1S User Manual 7
1 2 3 4 5 6
Power 1 Fault Power 2
- + - +
Wiring the Fault Alarm Contact
The fault alarm contacts are in the middle of the terminal block
connector as the picture shows below. Inserting the wires, the
MC352-1P/1S will detect the fault status of the power failure
and then forms an open circuit. The following illustration shows
an application example for wiring the fault alarm contacts.
1 2 3 4 5 6
Insert the wires into the fault alarm contacts

8 IFS MC352-1P/1S User Manual
Note: The wire gauge for the terminal block should be in the
range between 12 ~ 24 AWG.
The alarm relay circuit accepts up to 30V, max. 3A currents.
Mounting Installation
This section describes how to mount the MC352-1P/1S and
make connections to it. Please read the following sections and
perform the procedures in the order presented.
Note: In the installation steps below, this Manual uses the IFS
GE-DSGH-8 as an example. However, the steps for any IFS
Industrial Switch & Industrial Media Converter are similar.

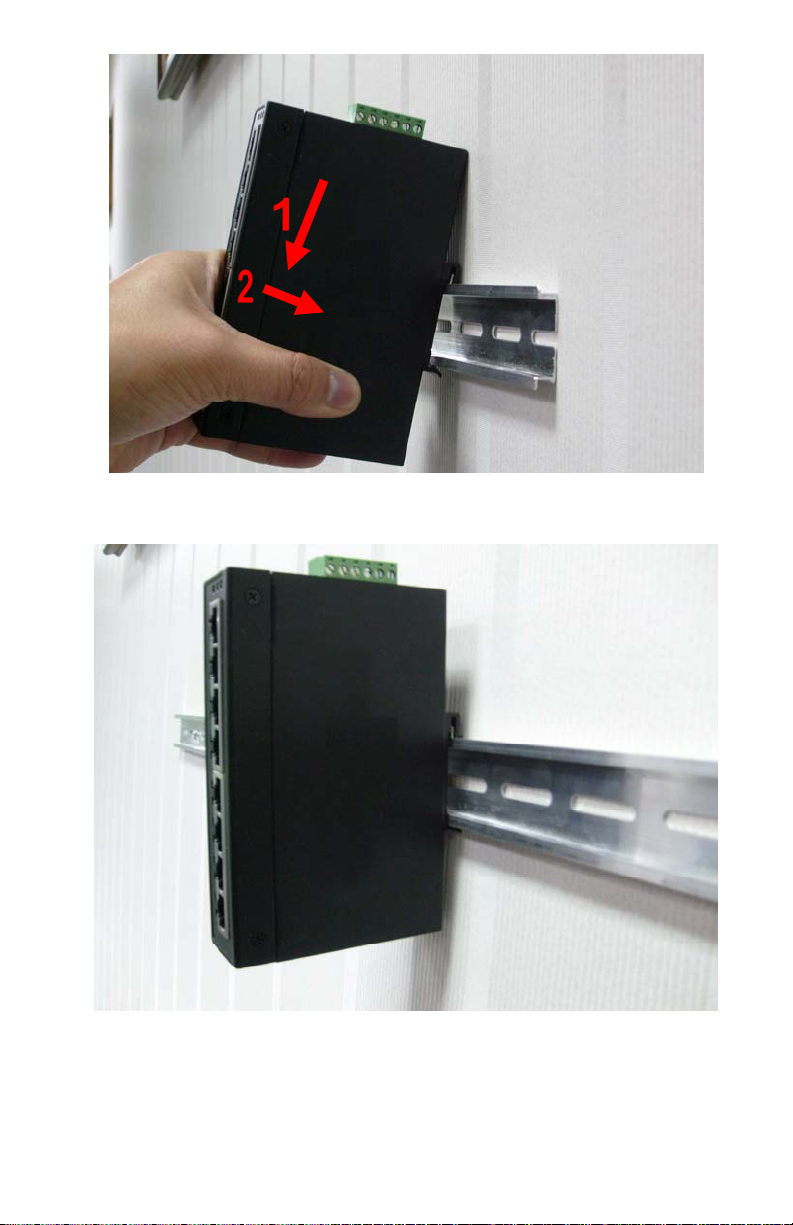

Mounting to a DIN-Rail
The DIN-Rail kit comes assembled on the MC352-1P/1S out of
the box. Please refer to following figures to mount the MC352-
1P/1S on a DIN-Rail.

IFS MC352-1P/1S User Manual 9
1. Lightly press down and push the bottom of the DIN-Rail
connector mount into the track.
2. Check that the DIN-Rail connector mount is tightly mounted
on the track.
3. Please refer to following procedures to remove the MC352-
1P/1S from the track.

10 IFS MC352-1P/1S User Manual
4. Lightly press down and pull the bottom of the DIN-Rail
connector mount to remove it from the track.
Mounting to a Wall
To install the MC352-1P/1S on the wall, please follow the
instructions described below.
1. Loosen the screws to remove the DIN Rail from the Media
Converter.

IFS MC352-1P/1S User Manual 11
2. Place the wall mount plate on the rear panel of the MC352-
1P/1S.
3. Assemble the wall mount plate on the MC352-1P/1S.
4. Use the hook holes at the corners of the wall mount plate
to mount the MC352-1P/1S on the wall.

12 IFS MC352-1P/1S User Manual
Link Fault Pass through (LFP)
The LFP refers to the Link Fault Pass Through function
(LLCF/LLR) and the DIP Switch settings. LLCF/LLR can
immediately notify administrators about a problem with the link
media. The DIP Switch enables or disables the LFP function.
LLCF (Link Loss Carry Forward) detects the connection loss
on the TP line, and LLR (Link Loss Return) detects the
connection loss on the fiber line.
Link Loss Carry Forward (LLCF)
MC352-1P/1S incorporates an LLCF function for
troubleshooting a remote connection. When the LFP function
is enabled, the FL/TP ports do not transmit a link signal until
they receive a link signal from the opposite port.

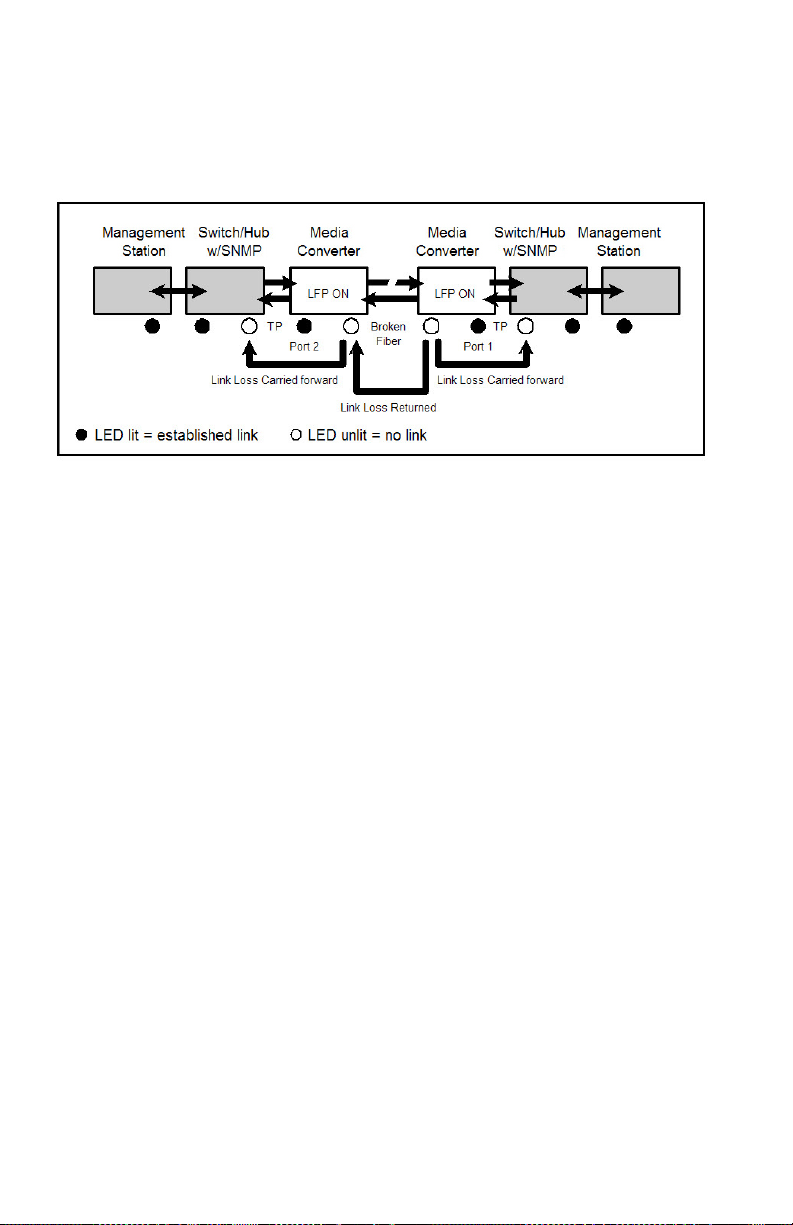

The diagram below shows a typical network configuration with
a good link status using MC352-1P/1S for remote connectivity.
In case of a connectivity issue, the MC352-1P/1S media
converter LLCF sends the notification to the switch/hub that
generates a trap to the management station.

IFS MC352-1P/1S User Manual 13
* The factory default setting for the LFP function is "off".
Link Loss Return (LLR)
The fiber ports of the MC352-1P/1S have been designed with
an LLR function for troubleshooting a remote connection. LLR
works in conjunction with LLCF.
When the LFP function is enabled, the port’s transmitter shuts
down when its receiver fails to detect a valid connection. LLR
should only be enabled on one end of the link and is typically
enabled on either the unmanaged or remote device.
The diagram below shows a typical network configuration with
a good link status using MC352-1P/1S for remote connectivity.
Note that LLR and LLCF are enabled as indicated in the
diagram.
If one of the optical conductors is bad (as shown in the
diagram box below), the converter with LLR function will return

14 IFS MC352-1P/1S User Manual
a no-link condition to its link partner. With LLCF function also
enabled, the no-link condition is carried forward to the
switch/hub where a trap is generated to the management
station.
Note: The factory default setting for the LFP function is "off".
This feature can also be turned on via the side DIP-switch. If
the installer is familiar with the network installation and
diagnostics (i.e. checking which end is broken in a
connection), you can turn the switch to the on position and
reset the converter for changes to take effect. Otherwise, it's
recommended to keep the DIP switch in its default position.

IFS MC352-1P/1S User Manual 15
Stand-alone Installation
Please follow these steps to install the MC352-1P/1S:
The SFP transceivers are hot-swappable, you can insert or
remove the transceiver from an SFP port without having to
power down the Industrial 802.3at PoE Media Converter.
To install the MC352-1P/1S with 100Base-FX, 1000Base-SX /
LX SFP, simply complete the following steps:
Step 1: Insert in the 100Base-FX, or 1000Base-SX / LX SFP.
Make sure the same type of SFP modules are used on both
side, i.e. 100Base-FX / 2km to 100Base-FX / 2km, 1000Base-
SX / 220m & 550m to 1000Base-SX / 220m & 550m, etc.
Step 2: Connect the fiber cable. Attach the duplex LC
connector on the network cable into the SFP transceiver.
Note: It is recommended to use 1000Base-SX / LX SFP
modules available in the IFS Transmission product line. A SFP
transceiver module that is not supported will not be recognized
by MC352-1P/1S media converter.

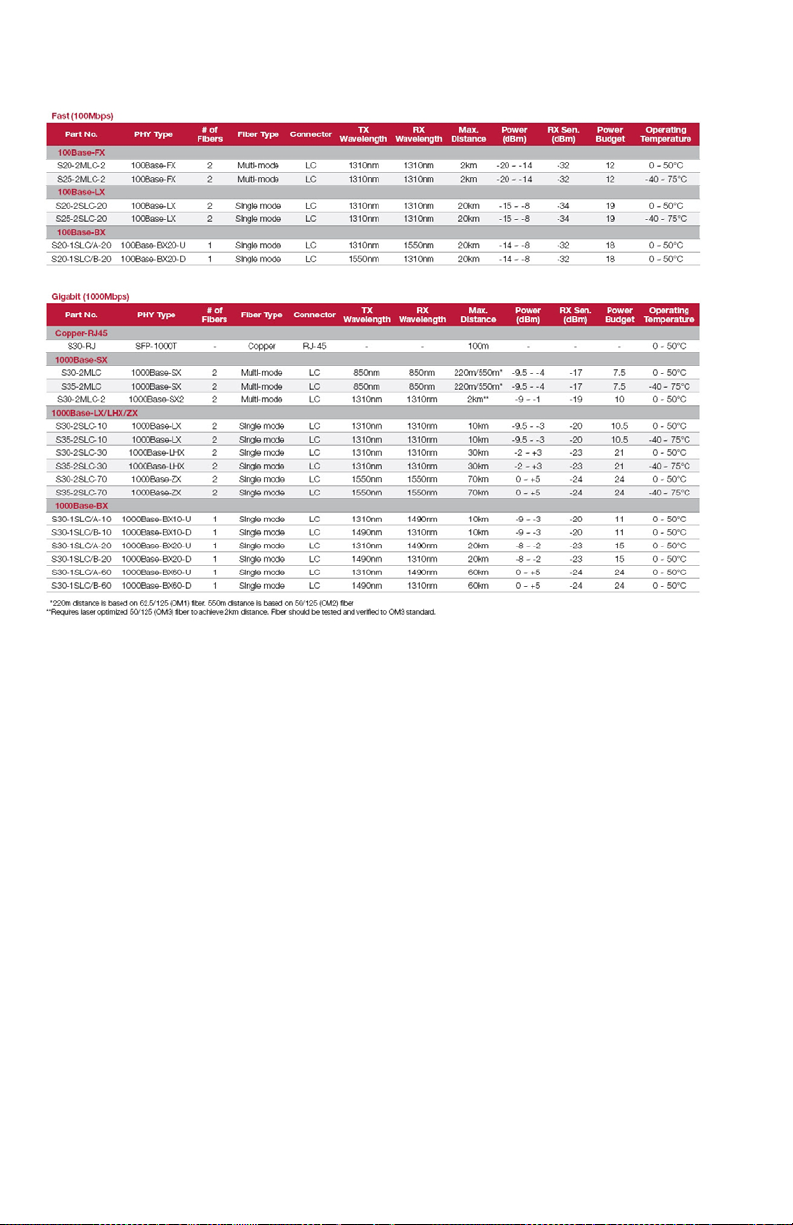

The following list provides the available SFP modules for the
MC352-1P/1S.

16 IFS MC352-1P/1S User Manual
SFP Table
802.3at/802.3af Installation
Before your installation, it is recommended to check your
network environment.
The MC352-1P/1S requires 48VDC or 24VDC input and it
injects the DC power into the pin of the twisted pair cable (Pin
1, 2, 3 and 6).
