Overview
Thank you for purchasing the IFS MCR300-1T/1S
10/100/1000Mbps Ethernet Twisted pair to 1000Base-SX/LX
SFP Gigabit Media Converter. This MCR300-1T/1S is used to
convert one type of media signal to another equivalent type
that allows two different segments to connect easily, efficiently
and inexpensively.
This MCR300-1T/1S can be used as a standalone unit or as a
slide-in module in the MCR-R15 19” media chassis (up to 15
modules) for a combined multi-mode and single-mode fiber
network at a central wiring closet.
Package Contents
Check the contents of your package for the following parts:
• MCR300-1T/1S x1
• User’s Manual x1
If any of these items are missing or damaged, please contact
your dealer immediately. If possible, retain the product box
including the original packing material to return it to for
repair/replacement.
Note: The MCR300-1T/1S comes with one vacant SFP
module slot. The mini GBIC SFP module is not included in the
package.

2 IFS MCR300-1T/1S User Manual
Product Features
The MCR300-1T/1S provides the following key features:
• Complies with the IEEE 802.3 10Base-T, IEEE 802.3u
100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z
1000Base-SX/LX Ethernet standard
• Bridge mode Media Converter with TP port supports
10/100/1000Base-T and auto-MDI/MDIX
• Auto-Negotiation for 10/100/1000Base-T; Half-duplex or
Full-duplex for 10Mbps and 100Mbps, full-duplex for
1000Mbps
• LED indicators for simple diagnostics and management
• Provides DIP switch for LFP function (Disable/Enable)
setting
• Compact in size, easy installation
• OAM (TS-1000 and IEEE 802.3ah) supported
• 9K Jumbo frame supported
• Can be installed in the IFS MCR-R15 19" Media Converter
Chassis

IFS MCR300-1T/1S User Manual 3
Hardware Overview

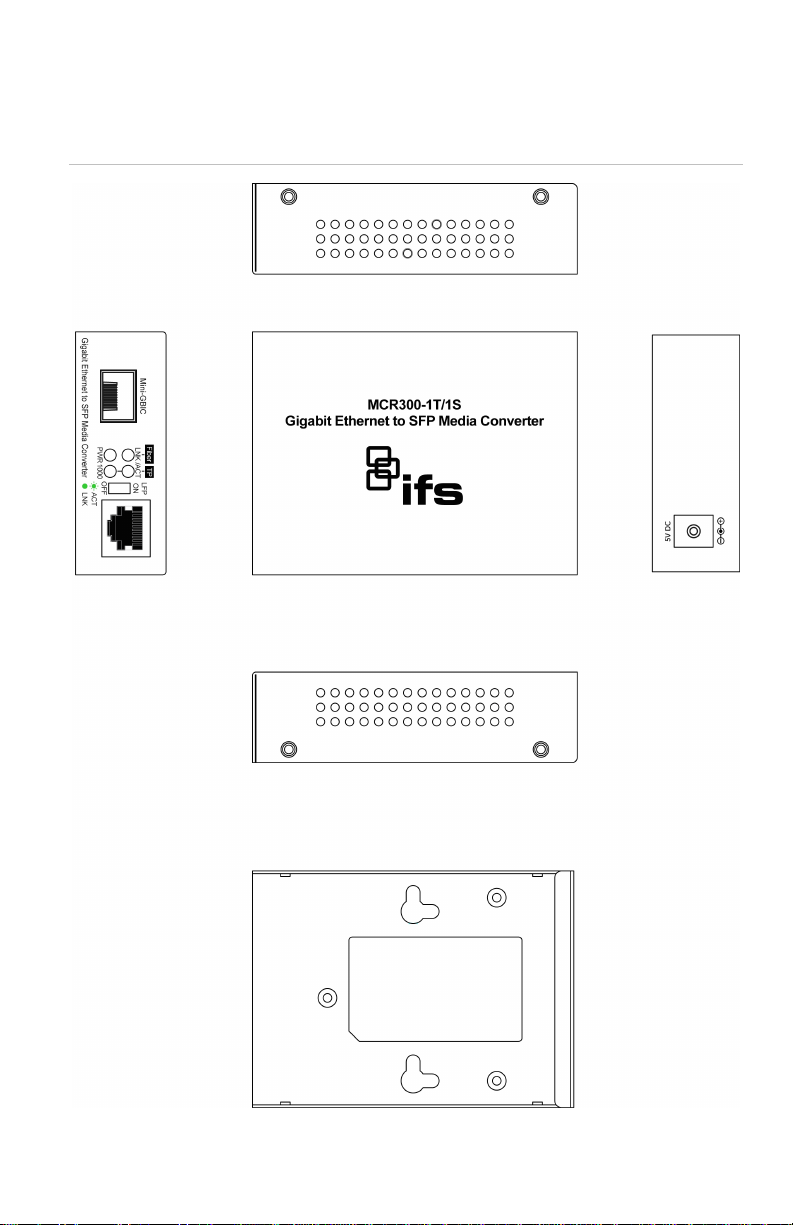

Figure 1: All Panel Views

4 IFS MCR300-1T/1S User Manual
Front Panel
The Front Panel of the MCR300-1T/1S consists of one
1000Base-SX / LX mini-GBIC SFP slot and one Auto-Sensing
10/100/1000Mbps Ethernet RJ-45 Port, status LEDs and one
DIP switch for LFP ON/OFF.
Back Panel
The back panel of the MCR300-1T/1S indicates one DC jack,
which accepts input power with 5V DC 2A.
Power Notice:
This device will not work without power. For continuous
functionality of the device, using an UPS (Uninterrupted Power
Supply) is recommended to prevent data loss or network
downtime. In some applications, installing a surge suppression
device may help to protect the Gigabit Media Converter from
being damaged by unregulated surge or current.

IFS MCR300-1T/1S User Manual 5
Link Fault Pass through (LFP)
The LFP refers to the Link Fault Pass Through function
(LLCF/LLR) and the DIP Switch design. LLCF/LLR can
immediately notify administrators about a problem with the link
media. The DIP Switch enables or disables the LFP function.
LLCF (Link Loss Carry Forward) detects and the connection
loss on the TP line, and LLR (Link Loss Return) detects the
connection loss on the fiber line.
Link Loss Carry Forward (LLCF)
MCR300-1T/1S incorporates an LLCF function for
troubleshooting a remote connection. When the LFP function
is enabled, the FL/TP ports do not transmit a link signal until
they receive a link signal from the opposite port.

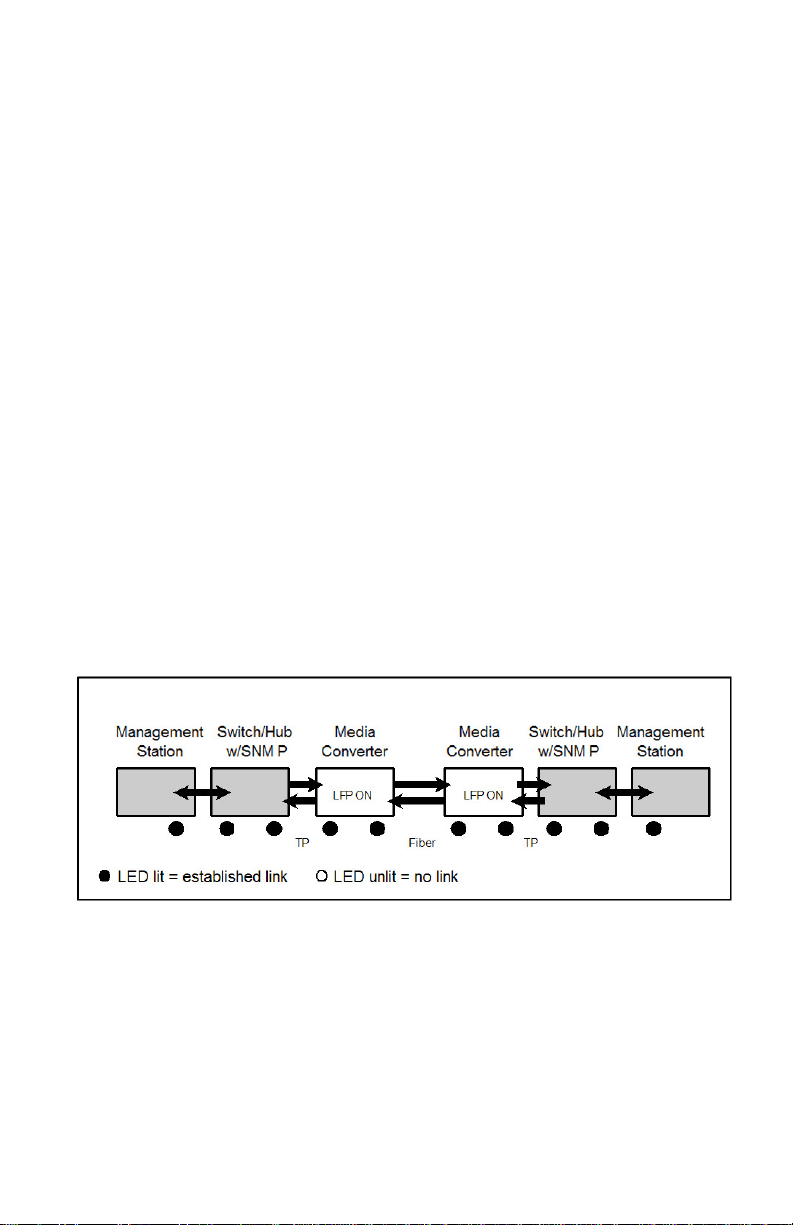

The diagram below shows a typical network configuration with
a good link status using MCR300-1T/1S for remote
connectivity.
In case of a connectivity issue, the MCR300-1T/1S media
converter LLCF sends the notification to the switch/hub that
generates a trap to the management station.

6 IFS MCR300-1T/1S User Manual
LFP ON
TP
Station
Management Switch/Hub Switch/HubMedia Media Management
w/SNM P Converter Converter w/SNM P Station
Broken
Fiber
Cable
TP
LFP ON
LED lit = established link LED unlit = no link
* The factory default setting for the LFP function is "off".
Link Loss Return (LLR)
The fiber ports of MCR300-1T/1S have been designed with an
LLR function for troubleshooting a remote connection. LLR
works in conjunction with LLCF.
When the LFP function is enabled, the port’s transmitter shuts
down when its receiver fails to detect a valid connection. LLR
should only be enabled on one end of the link and is typically
enabled on either the unmanaged or remote device.
The diagram below shows a typical network configuration with
a good link status using MCR300-1T/1S for remote
connectivity. Note that LLR and LLCF are enabled as indicated
in the diagram.
If one of the optical conductors is bad (as shown in the
diagram box below), the converter with LLR function will return
a no-link condition to its link partner. With LLCF function also
enabled, the no-link condition is carried forward to the

IFS MCR300-1T/1S User Manual 7
switch/hub where a trap is generated to the management
station.
Note: The factory default setting for the LFP function "off".
This feature can also be turned via the side DIP-switch. If
installer is familiar with the network installation and diagnostics
(i.e. checking which end is broken in a connection), you can
turn the switch to on position and reset the converter for
changes to take effect. Otherwise, it's recommended to keep
the DIP switch in its default position.

8 IFS MCR300-1T/1S User Manual
Installing the MCR300-1T/1S
Please follow these steps to install the MCR300-1T/1S:
1. Turn off the power of the device/station in a network to
which the MCR300-1T/1S will be attached.
2. Ensure that there is no activity in the network.
3. Connect the fiber cable. Attach the duplex LC connector on
the network cable into the SFP transceiver.
4. Attach fiber cable from the MCR300-1T/1S to the fiber
network. TX, RX must be paired at both ends.
5. Connect a 5 VDC power adapter to the MCR300-1T/1S
and verify that the Power LED powers up.
6. Turn on the power of the device/station; the PWR LEDs
should light when all cables are attached.
Note: It is recommended to use 1000Base-SX / LX SFP
modules available in the IFS Transmission product line. A SFP
transceiver module that is not supported will not be recognized
by MCR300-1T/1S media converter.

IFS MCR300-1T/1S User Manual 9
Duplex Mode Support
The MCR300-1T/1S is a one-channel media converter
between 10/100/1000Base-T and 1000Base-SX/LX. The
10/100/1000Base-T port can operate under Auto-negotiation
mode. The 1000Base-SX/LX SFP fiber port allows only fixed
1000Mbps full duplex mode.
LED indicators
System
LED Color Function
PWR Green Lit: Indicates the device is powered.
10/100/1000Base-TX Port
LED Color Function
Lit: Indicates the link through that port is successfully
established.
TP
LNK/ACT Green Blinking: Indicate that the port is actively sending or
receiving data.
Lit: Indicates a 1000Mbps Full duplex connection.
TP 1000 Green Off: Indicates a 10/100 Mbps Full duplex connection.
1000Base-SX/LX SFP Slot
LED Color Function
Lit: Indicates a successful link through the fiber port.
Fiber
LNK/ACT Green Blinking: Indicates the data activity through the fiber port.

10 IFS MCR300-1T/1S User Manual
Cable Connection
The recommended cable types are listed below:
Cables:
Standard Fiber Type Cable Specification
1000Base-SX
(850nm)
Multi-mode 50/125μm or 62.5/125μm
Multi-mode 50/125μm or 62.5/125μm1000Base-LX
(1300nm) Single Mode 9/125μm
Fiber Distances:
Standard Fiber Diameter
(micron)
Modal Bandwidth
(MHz * km)
Max. Distance
(meters)
1000Base
-SX
MM 62.5
62.5
50
50
100
200
400
500
220
275
500
550
MM 62.5
50
50
5
4
5
550
1000Base
-LX
SM 9 N/A 5000*
Note:
The single mode port (1000Base-LX port) of the MCR300-1T/1S, is compliant
with LX 5 kilometers and provides additional margin allowing for a 10/30/70
kilometer Gigabit Ethernet links on single mode fiber.

IFS MCR300-1T/1S User Manual 11
Specifications
The MCR300-1T/1S comes with the following standard
features:
Model MCR300-1T/1S
Connector – Fiber SFP, LC type
Mode Vary on module
Fiber Maximum
Distance
Vary on module
Connector - Copper 10/100/1000Mbps RJ-45
Modes Full Duplex, auto-negotiation
Packet Forwarding
Rate (64bytes)
14880pps @10Mbps
148810pps @100Mbps
1488000pps @ 1000Mbps
LED indicators: PWR, Fiber/LNK/ACT, TP/LNK/ACT, TP/1000
DIP switch LFP function (Disable / Enable) setting
Protocols and
Standards:
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-SX/LX
Cable 10/100/1000Base-T:
1000Base-T-2-pair UTP Cat. 5/5e/6, up to 100m
1000Base-SX :
50/125μm or 62.5/125μm multi-mode fiber optic cable,
up to 220/550m (vary on SFP module)
1000Base-LX :
9/125μm single-mode fiber optic cable, up to
10/30/70km (vary on SFP module)
OAM TS-1000, IEEE 802.3ah terminal
Jumbo Packet Size 9K
Dimensions 26 x 70 x 97mm (H x W x D)
Weight 0.41lbs / 190g
Power External power adaptor 5V 2A max.
EMI Compatibility: FCC Class A, CE Certification Class A
Temperature: Storage: -10°C ~ 70°C / Operating: 0°C ~ 50°C
Humidity: 5% ~90% non-condensing
When connecting to other Ethernet equipment such as a
Router, Bridge, Switch, or Hub, please refer to that device’s
Technical Manual.

12 IFS MCR300-1T/1S User Manual
RJ45 Pin Assignments
1000Mbps, 1000BaseT
RJ-45 Connector pin assignment
Contact MDI MDI-X
1 BI_DA+ BI_DB+
2 BI_DA- BI_DB-
3 BI_DB+ BI_DA+
4 BI_DC+ BI_DD+
5 BI_DC- BI_DD-
6 BI_DB- BI_DA-
7 BI_DD+ BI_DC+
8 BI_DD- BI_DC-
10/100Mbps, 10/100Base-TX
RJ-45 Connector pin assignment
Contact
MDI
Media Dependant
Interface
MDI-X
Media Dependant
Interface -Cross
1 Tx + (transmit) Rx + (receive)
2 Tx - (transmit) Rx - (receive)
3 Rx + (receive) Tx + (transmit)
4, 5 Not used
6 Rx - (receive) Tx - (transmit)
7, 8 Not used
RJ45 Cable Drawing
Error! Objects cannot be created from editing field codes.
The following figure shows the pin allocation and color of a
straight cable, and connection of a crossover cable.

IFS MCR300-1T/1S User Manual 13
Please make sure your connected cables are with same pin
assignment and color as above picture before deploying the
cables into your network.
Fiber Optical Cable Connection Parameter
Fiber Optical patch Cables:
Standard Fiber Diameter
(micron) Modal Bandwidth (MHz * km) Max. Distance
(meters)
1000Base-SX Multi- mode 62.5
62.5
50
50
100
200
400
500
220
275
500
550
Multi-mode 62.5
50
50
5
4
5
550 1000Base-LX
Single Mode 9 N/A 5000*

14 IFS MCR300-1T/1S User Manual
Contacting Technical Support
Contact technical support if you encounter any difficulties
during this installation. Please make sure you have the
requested diagnostic or log files ready before you contact us
by phone or go to www.interlogix.com/customer-support.
Technical Support
Europe, Middle East and Africa
W Select Contact Us at www.utcfssecurityproducts.eu
North America
T +1 855.286.8889
E [email protected]
Australia
E [email protected]
