Intermatic Intouch ca9000 User manual

Model CA9000

Passive Infrared (PIR) Occupancy Sensor

Specifications:

Ratings:

RF Information:

Network Information:

Wireless RF Control

Frequency: 908.42 MHz

Mesh Network - Each line powered

node acts as a repeater to route

distant signals.

Data Rate: 9600 bits/second

Size: 232 Z-Wave™ Nodes

Operating Temperature Range:

32°F (0°C) to 104°F (40°C)

3x AA Alkaline Batteries

Wall-pack Transformer:

Input:120VAC, 50/60Hz;

Output 9VDC 500mA (CATRFM)

Minimum Range:

50ft indoor; 100ft outdoor

Passive Infrared (PIR)

INSTALLATION:

Passive Infrared occupancy sensors are designed to sense the motion of objects or bodies that are

radiating heat. These sensors are installed to monitor areas where there are limited physical obstructions

that could block the sensor’s field of vision.

HOW THEY WORK: The human body naturally radiates heat in the form of infrared energy. As a body

crosses through the sensor’s field of vision, it “sees” the motion as a change in the pattern of infrared

energy it is receiving.

1. Mount sensor in location with clear view of area to be monitored using included tilt-swivel base or

adhesive strips.

2. Separate rear housing from front by lifting upwards, install three (3) AA alkaline batteries in front housing

and reattach to rear housing.

Operation: Press the activator button to enable and disable the sensor. Set the mode selector switch to

desired mode: Pulse, 5 Min delay, 10 Min delay, 15 Min Delay or Manual Off mode.

For programming instructions refer to the (158CA12789).InTouch Installer & Users Guide

The CA9000 PIR Occupancy Sensor is a Z-wave™ enabled device which is fully compatible with any Z-

wave enabled network. Z-wave enabled devices display the Z-wave logo and guarantee connectivity and

interoperability between devices. Each line powered node in a Z-wave network is designed to act as a

repeater forming a mesh network eliminating radio “dead spots” and providing the highest level of

reliability.

Features

- Multiple location On/Off control when used with Z-wave enabled devices.

- Pre-set scene control when used with up to 5 Z-wave enabled devices.

- Full 229 device scene control when used with Intermatic InTouch™ server (CA5500B).

- Twin pyro sensor elements provide for high accuracy and reliability.

- Wide detection pattern can be used for whole room coverage.

- 3-Mounting options; Adjustable swivel neck rotates 30° vertically and 30° horizontally, Flat on wall, or

Corner mount.

- Adjustable timing interval features settings for pulse, 5 minute, 10 minute, 15 minute, and Manual Off time

ranges.

- Meets ASHRAE Standard 90.1 requirements.

Optional Transformer Adapter (CATRFM)

Snap-on

Swivel

Base

Corner Mount

Bevels w/ Adhesive

Strips

Wide Angle

Lens

Activator

Button

LED Status

Indicator

Timing Mode

Selector Switch

Power Connector

Jack For Use With

Optional CATRFM Supply

Side View

Bottom View

Front View

This product is compatible with other Z-Wave enabled products™

Providing a Brighter Solution™

158CA12475REF

WIRELESS CONTROLS

0510 15 20 25 30

(feet)

0510 15 20 25 30

(feet)

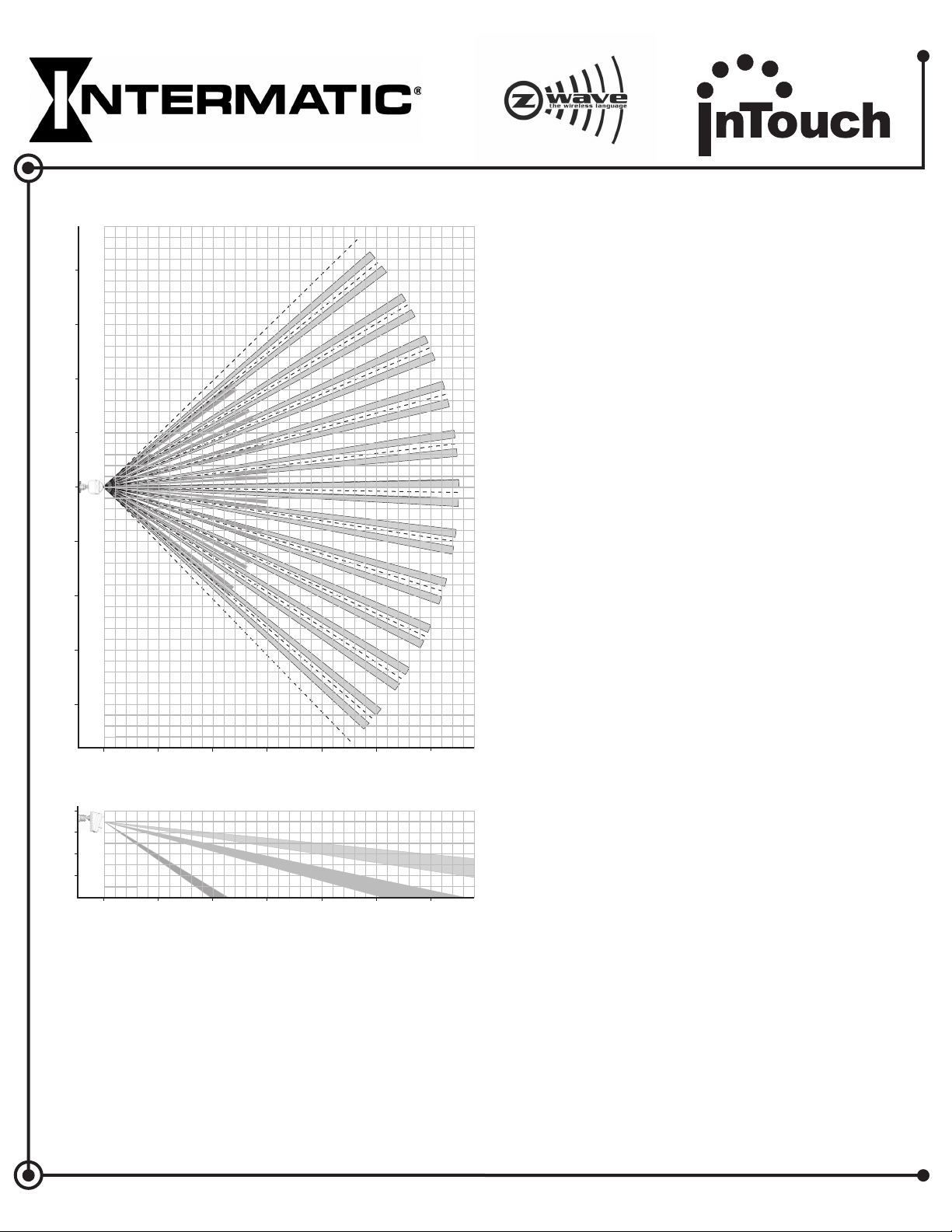

CA9000 Coverage Pattern FCC STATEMENT OF COMPLIANCE

WARNING! Changes or modifications not expressly

approved by Intermatic Inc. could void the user’s

authority to operate the equipment.

This device complies with part 15 of the FCC rules.

Operation of this device is subject to the following two

conditions:

(1) This device may not cause harmful

interference, and

(2) This device must accept any interference,

including interference that may cause undesired

operation.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more

of the following measures:

-- Reorient or relocate the receiving antenna or

device.

-- Increase the separation between the equipment

and receiver.

-- Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

-- Consult the dealer or an experienced radio/TV

technician for help.

This product is compatible with other Z-Wave enabled products™

LIMITED TEN YEAR WARRANTY

If within ten (10) years from date of purchase, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace, at its

sole option. This warranty applies only to the original purchaser and is not transferable. This warranty excludes and this is disclaimed liability for labor for

removal of this product or reinstallation. The warranty does not apply to: (a) damage caused by accident, abuse, mishandling, dropping, acts of God, or any

negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart, or otherwise modified; (c) units not used in accordance with

directions; (d) damages exceeding the cost of the product. Some states do not allow a limitation of damages, so the foregoing limitation may not apply to you.

This warranty gives you specific legal rights and you may have other rights that vary from state to state.

This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased, or (b) mailing postage prepaid to the

nearest authorized service center listed. Please be sure to wrap the product securely when mailing to avoid shipping damage. This warranty is made by:
