Interpump Group General Pump DHRGH150 User manual

DHRGH150
ACCESSORIES ACCESSORIES
GENERAL PUMP A member of the Interpump Group
SPECIFICATIONS
PART NUMBER DHRGH150
3/8" Hose Capacity 150 ft.
Max Pressure Rating 150 PSI
Inlet 3/4" GH-F
Outlet 3/4" GH-M
Ship Weight 22.0 lbs.
Materials Aluminum, Steel, Brass, Rubber
FEATURES / BENEFITS
• Low pressure garden hose reel
• Durable gray high-gloss powder coated finish
• Can be set up for left- or right-hand orientation
• Can be mounted parallel or perpendicular to a
wall
Garden Hose Reel
DIMENSIONS (in/mm)
General Pump
is a member of
the Interpump Group Ref 301079 Rev A
01-22
• Robust high flow brass swivel
• HD pedestal stand - mount on wall, workbench
or pressure washer
• Includes 6', 5/8"connection hose, brass fittings,
and mounting hardware.
• One-piece welded drum

ASSEMBLY INSTRUCTIONS
GENERAL PUMP • 1174 Northland Drive • Mendota Heights, MN 55120
Phone: [phone] • Fax: [phone] • email: [email protected] • www.generalpump.com
Ref 301079 Rev A
01-22
GENERAL PUMP A member of the Interpump Group
SAFTY PRECAUTIONS
WARNING!
Exposure of skin directly to
pressurized air or fluids could
result in severe bodily injury!
1. Make sure incoming pressure does not exceed the rated pressure.
2. Use proper eye protection when assembling and using the hose reel.
3. Assemble the hose reel on a clean workbench free of debris and moisture.
4. Use soap and water when checking for air leaks.
5. Keep children away from work area.

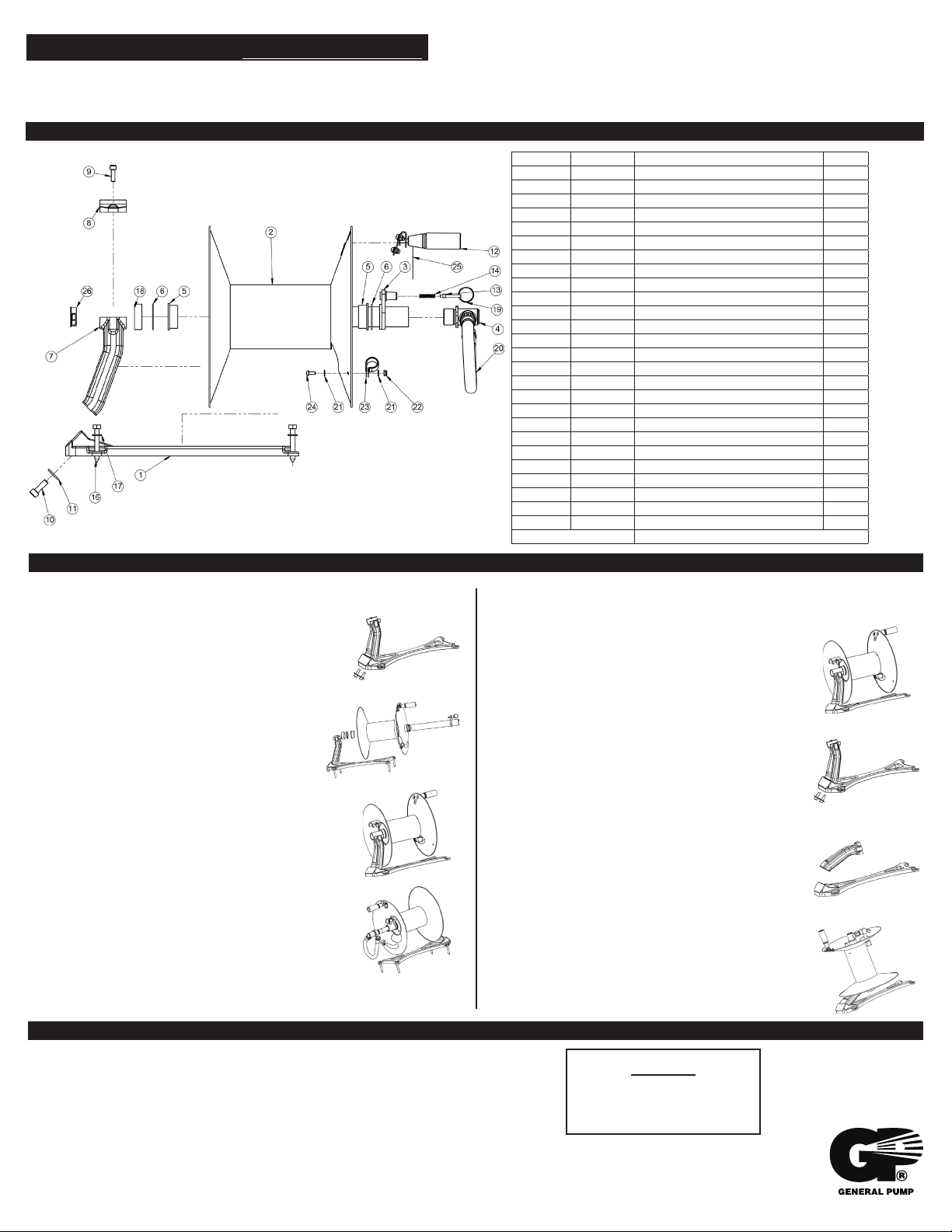

PARTS LIST
DHRGH150
Garden Hose Reel
Item No. Part No. Description Qty.
1 2450009 BASE 1
2 2103270 ASSY, FLANGE 1
3 2530119 TUBE, MOUNTING 1
4 2103081 SWIVEL 1
5 2530025 BUSHING 2
6 2203403 WASHER 2
7 2450013 STAND 1
8 2450010 CAP 1
9 2200054 SHCS 2
10 2200077 SHCS, M10 X 30 2
11 2200042 WASHER, M10, FLAT, SST 2
12 100056 HANDLE KIT 1
13 2530078 PIN, LOCK 1
14 2720004 SPRING 1
15 2103082 HOSE, ASSY, 6'(not shown) 1
16 2200078 BOLT, LAG 4
17 2200008 WASHER, FLAT, M10 4
18 2660199 SPACER 1
19 2200032 RING 1
20 2103096 ASSY, HOSE 1
21 2200018 WASHER, M6 2
22 2200026 NUT, NYLOK, M6 1
23 2202025 CLAMP, HOSE 1
24 2200083 BOLT, M6 1
25 2400004 DECAL, GP 1
26 2660440 LOCKING GROMMET, 38MM 1
1. Attach stand (Item 7) to base (Item 1) with M8
SHCS (Item 10) and washers (Item 11).
ASSEMBLY INSTRUCTIONS
Changing from right hand orientation to left
2. Slide items 18, 6, 5, and 2 on to
preassembled mounting tube.
3. Insert cap (Item 8) onto stand and
tighten bolts (Items 9).
4. Attach hose (Item 15) to swivel (Item 4) and thread
swivel into mounting tube. A little light oil or
grease helps with threading.
5. Attach your garden hose to the swivel and you
are ready to use your garden hose reel.
4. Reassemble the hose reel assembly
and mounting tube.
3. Rotate the stand 180°and reattach to base.
2. Remove the (2) M10 SHCS holding the stand to the
base.
1. Remove the mounting tube and hose reel assembly
by removing the cap fastened by (2) M8 x 25 hex
head bolts. This makes the switch easier.
ASSEMBLY INSTRUCTIONS
Changing from Perpendicular Mount to Parallel Mount
