Interquartz 9339HS Setup guide

1/16
Interquartz 9339HS
VoIP Phone
Quick Start User Guide
Rev 3a

2/16
9339HS VoIP Phone Quick Start Up Guide
The 9339HS VoIP (Voice over Internet Protocol) Phone provides a cost-saving solution for
small business/home users’ telecommunication needs. This phone is designed in a
user-friendly way and is very easy to operate. It complies with the SIP (Session Initiation
Protocol) protocol open standard, which can be easily used with most existing VoIP services.
With the built in LCD display, the user can easily configure the VoIP Phone for first time
installation in a few minutes. Moreover, the 9339HS also provides rich telephone features such
as a phone book, speed dials, call history, last number redial, call forward, transfer, volume
adjustment and speakerphone etc. It is your best VoIP solution for new generation
communication.

3/16
Installation
Step 1：
：：
：Unpack the phone
VoIP Phone
Handset
Power Adaptor (Use only Power Supplies listed in the user instructions)
Network cable
Handset Cord

4/16
Step 2：
：：
：Connection
Connect the handset to the phone body with the handset cord by plugging it into
the jack on the left hand side of phone. Connect the Headset if necessary.
Connect the network cable to the WAN port, such as NAT, HUB and ADSL for
broadband connection.
If you would like to have PC online at the same time, please connect the PC port
to your PC using another network (RJ45) cable.
Plug in the AC power adaptor to the electrical outlet and connect to the DC 6V
jack. (Important: Do not interrupt this process by unplugging the power or lifting
the receiver on your phone during the startup process. Interruption of start up may
result in interruption of the service. Wait until the indicators and backlight stop
blinking before setup.)

5/16
Step 3：
：：
：Booting Up
After the power is connected, the phone will boot up automatically. The LCD will display as
below:
L o a d i n g P r o g r a m !
All LED indicators and LCD backlight ON and blink once.
I n i t i a l i z e d
I P P H O N E
B o o t u p . . . .
The LCD will automatically update the date and time. The format is shown below:
M M - D D h h : m m
N o s e r v i c E
MM – Month
DD – Day
hh – hour
mm – minutes
Wait approximately 10 seconds the unit is ready to configure the phone.
Default Setting: WAN Port set to DHCP client mode; NAT is enabled and PC Port set to
DHCP server mode.
If the network cable has not been connected or if there is no NAT, HUB and ADSL on line, the
LCD will display as below:
0 1 - 0 1 0 0 : 0 0
E t h e r N e t E r r o r !

6/16
Configuration
Note: Press “MENU” key to enter the sub-menu and press “ENTER” Key to confirm. If you need
to go back to main menu, press “MENU” to return.
By Keypad
The VoIP Phone can be configured by keypad easily. Almost all the configurations can be done
through the keypad and LCD screen display on the phone set in a few seconds. In order to
make a VoIP call, please do the configurations through the keypad and check the VoIP Phone
status as below:
“MENU” →“4 – Network” →“5 – Status” →ENTER →the LCD will show as below:
W
X X X . X X X . X X X . X X X
L 1 9 2 . 1 6 8 . 1 2 3 . 0 0 1
Where W represents the WAN Port IP Address; L represents the PC port IP Address. Then
press “DOWN” Key once, the LCD will show as below:
W
X X X . X X X . X X X . X X X
M A C : 0 0 1 C A 7 0 0 0 1 2 3
Notice:
When you need to input a character in any menu item, please press that key button quickly to
switch between different characters to set the correct one.

7/16
Network Configuration
The first thing in using the VoIP Phone is to set the network configuration to let the VoIP Phone
connect to Internet. Depending on your network environment and VoIP phone, please use the
proper method to configure the VoIP Phone to connect Internet.
Dynamic IP Method (DHCP)
Most of the network environment in an office, in a hotel room or at home is under a NAT
(Network address translation) IP sharing device/router device. In this environment, the
easiest way to connect to Internet is using the DHCP (Dynamic Host Configuration Protocol)
method. Using this method, the 9339HS will get the IP parameters dynamically and connect
to Internet automatically. Most cable modem connections also use this DHCP method.
Under the “DHCP” setting submenu, please key in the DNS server settings provided by the
ISP.
Step1:
“MENU” →“4 – Network” →“1 – WAN Setup” →“1 – IP client type” →“2 – DHCP” →
“ENTER” to activate
Step 2:
“MENU” →“4 – Network” →“3 – DNS”
→“1 – Primary DNS →Key in the number, which provided by the ISP
→“2 – Secondary DNS →Key in the number, which provided by the ISP
PPPoE Method
Most of the broadband network environment provided by ISPs (Internet service provider) is
on ADSL (Asymmetric Digital Subscriber Line) connections. Under this environment, the VoIP
Phone can be directly connected to the ADSL modem by setting PPPoE (Point-to-Point
Protocol over Ethernet) account details (user name and password) provided by ADSL service
provider, please follow below.
Step 1:
“MENU” →“4 – Network” →“1 – WAN Setup” →“1 – IP client type” →“3 – PPPoE” →
“ENTER” to activate

8/16
Step 2:
“MENU” →“4 – Network” →“1 – WAN Setup” →“3 – PPPoE setting”
→“1 – User name” →input the user name of the account provided by the ADSL ISP
→“2 – Password” →input the user name of the account provided by theADSL ISP
Fixed IP Method
For other network environments, users will need to set the static IP provided by their ISP or
from the IT administrator at office.
Under the “Fixed IP” setting submenu, please key in the IP host, Network mask, Gateway IP
and DNS Server settings provided by your ISP, or private IP address.
Step 1:
“MENU” →“4 – Network” →“1 – WAN Setup” →“1 – IP client type” →“1 – Fixed IP” →
“ENTER” to activate
Step 2:
“MENU” →“4 – Network” →“1 – WAN Setup” →“2 – Fixed IP setup”
→“1 – IP Address” →Key in the number, which provided by the ISP
→“2 – Subnet mask” →Key in the number, which provided by the ISP
→“3 – Default G-way” →Key in the number, which provided by the ISP
Step 3:
“MENU” →“4 – Network” →“3 – DNS”
→“1 – Primary DNS →Key in the number, which provided by the ISP
→“2 – Secondary DNS →Key in the number, which provided by the ISP
Once all the network settings are completed, please restart your VoIP Phone. Then you are
able to check whether your Internet connection is working properly or not by going to network
status.

9/16
Registration to Proxy Server
After the network environment has been set and the VoIP Phone is connected to Internet, you
can register the VoIP Phone to the SIP Proxy server by the account from your VoIP
vendor/operator. Please choose one of the following methods to register to a gatekeeper or
proxy server.
Set up the VoIP Phone by Web Browser
The default of the 9339 VoIP Phone is: NAT is enabled, WAN port is in DHCP client Mode
and PC Port is in DHCP Server Mode. When you connect a computer to the PC port, you will
get an IP Address from the VoIP Phone. Make sure that your computer is set to ‘Obtain an IP
Address Automatically’.
The VoIP Phone provides a built-in web server. You can use the web browser to configure
the VoIP Phone. First please input the IP address http://192.168.123.1:9999 in the Web
page. Please remember to add the port number “:9999”.
Login
Step 1: Input the username and password into the blank field. The default setting is:
For Administrator, the username is: setup; and the password is: test. If you use
this account login, you can configure all the settings.
For normal user, the username is: user; and the password is: 9339. If you use this
account login, you cannot configure the SIP settings.

10/16
System Information
Step 2: Click the “Login” button will move to web based System Information page. The
Model Name, Firmware version and Codec Version are displayed. Also, you can see the
function lists in the left side and navigate for further set up.
Step 3: If you changed the setting(s) in the Web Management interface, please do
remember to click the “Submit” button in that page. After you have finished changing the
setting(s), click the “Save Changes” function in the left side, and click the “Save Change”
Key. After the system restarts, all the settings have been saved and become effective.

11/16
Setting the Network

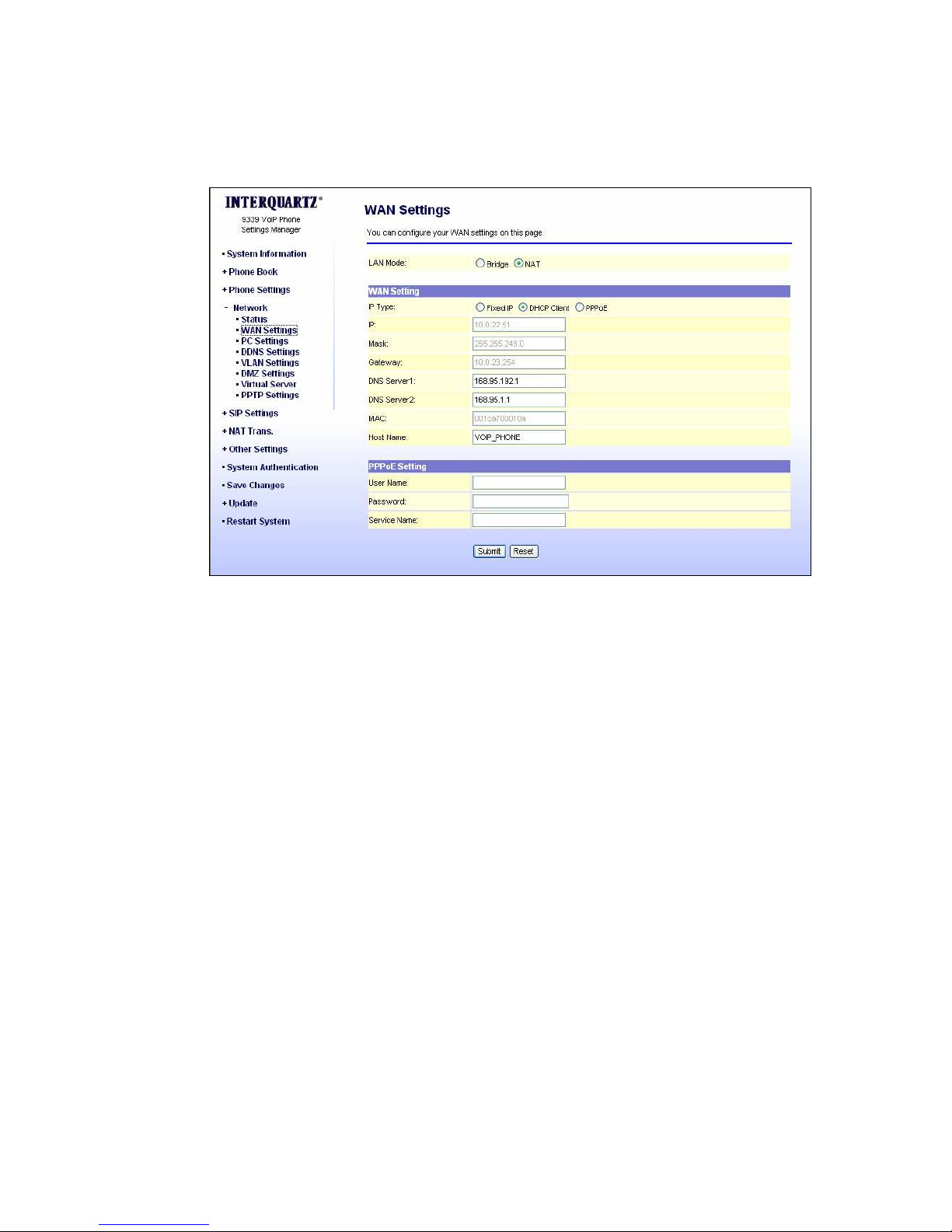

From the left-hand side menu bar, click “Network”, then WAN Settings. Here, you can
select the IP Type such as Fixed IP, DHCP Client and PPPoE. Enter the relevant
information provided by your ISP.
Fixed IP:
Step 1: Select the Fixed IP checkbox.
Step 2: Fill in the IP Address, Subnet Mask, Default Gateway, DNS Server 1 and DNS
Server 2 which provided by the ISP.
Step 3: Click the “Submit” button in that page when you finished the settings, click “Save
Changes” on the left side, and click the “Save Change” Button. Then, the system will reboot
the VoIP Phone and all settings will be saved and effective.

12/16
DHCP Client:
:
Step 1: Select the DHCP Client checkbox.
Step 2: Fill in the DNS Server 1 and DNS Server 2 which provided by the ISP.
Step 3: Click the “Submit” button in that page when you have finished entering the settings.
Click “Save Changes” on the left side, and click the “Save Change” Button. Then, the
system will reboot the VoIP Phone and all settings will be saved and effective.

13/16
PPPoE:
Step 1: Select the PPPoE checkbox.
Step 2: Fill in the User Name, Password and Service Name (if required), which were
provided by theADSL ISP.
Step 3: Click the “Submit” button in that page when you finished the settings, click “Save
Changes” on the left side, and click the “Save Change” Button. Then, the system will reboot
the VoIP Phone and all settings will be saved and effective.

14/16
Setting Date and Time
Step 1:
“MENU” →“3 – Phone Setting” →“4 – Date/Time” →“2 – SNTP Setting” →“1 – SNTP” →“2
- Disable” →“ENTER” to activate
Step 2:
“MENU” →“3 – Phone Setting” →“4 – Date/Time” →“1 – Date & Time” →Enter the Date and
Time (in the format of Year-Month-Day Hour:Minutes)
Step 3:
“MENU” →“3 – Phone Setting” →“4 – Date/Time” →“2 – SNTP Setting” →“4 – GMT time
zone” →Enter appropriated time zone to activate
Call Functions
Making Calls
To make a call, users can pick up the handset, dial the party’s number that wish to call. An
alternative way to make a call is to press the number, then pick up the handset or press
HANDSFREE/HEADSET key at the down left corner to make the call.
Receiving Calls
When a call is incoming and the VoIP Phone is ringing, to receive this call, just pick up the
handset or press HANDSFREE/HEADSET key to answer.
Check call history (Incoming calls/ Dialled numbers)
The call history can be displayed on the LCD screen by pressing the submenu and then
“▲” key or “▼” key when the VoIP Phone is in idle state.
There are two kinds of call history:
The call history will show in <Call Number> MM-DD hh:mm (V/M) format. The last digit ‘V’
represents the answered incoming call while ‘M’ represents the unanswered incoming
calls.
“Incoming calls” is the record of numbers and time of last 64 incoming calls when answered
or unanswered.

15/16
“Dialled numbers” is the record of numbers and time of last 64 successful dialled numbers.
When viewing the number of any call history, you can pick up the handset or press
“HANDSFREE/HEADSET” Key to dial out. Or you can press “ENTER” key to do the
following actions:
1. Press “1 – Save” to save the number into the “PHONE BOOK”
2. Press “2 – Erase” to delete the record
Auto Redial
Press “REDIAL” to dial the last number dialled in Handsfree/Headset mode.
Pick up the handset, press “REDIAL” Key to dial the last number dialled.
Call Forward
You can set the call forward functions through keypad or web configurations.
Phone Book and Speed Dial
Users are able to store 140 phone numbers from Phone Book. Users can use the PHONE
BOOK by the following methods.
Press “Phone Book” Key, the display will show “Search by name”, enter the name and
press “ENTER”, then the relevant phone list will be shown and search by “” or “” keys
Or
“MENU” →“1 – Phone book” →“1 – Search” →“ENTER” to search
“MENU” →“1 – Phone book” →“2 – Add entry” →“ENTER” to add the name and number
“MENU”→“1 – Phone book” →“3 – Speed dial →“ENTER” to number →Press Speed dial
keys M1~M10 to store
“MENU” →“1 – Phone book” →“4 – Erase all →Select “1 – Yes” to erase all phone book
and speed dial memories or select “2 – No” to cancel.
After the speed dial items M1-M10 were set, user can make speed dial call by directly
pressing the M1-M10 key when the phone picked up or Handsfree/Headset Mode.

16/16
