Invacare HomeFill II User manual

User: Before using the product, read this manual
and save for future reference.
Dealer: This manual must be given to the end user.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com
Operator’s Manual
HomeFill™II Compressor

WARNING
HomeFill™II Compressor 2 Part No 1100873
 WARNING
DO NOT OPERATE THIS EQUIPMENT WITHOUT
FIRST READING AND UNDERSTANDING THIS
MANUAL. IF YOU ARE UNABLE TO
UNDERSTAND THE DANGERS, WARNINGS,
CAUTIONS, AND INSTRUCTIONS, CONTACT
INVACARE TECHNICAL SERVICES BEFORE
ATTEMPTING TO USE THIS EQUIPMENT -
OTHERWISE, SERIOUS INJURY OR PROPERTY
DAMAGE MAY RESULT.
NOTICE
The information contained in this document is subject to
change without notice.
 WARNING
Users MUST NOT SMOKE while using this device. Keep
all matches, lighted cigarettes or other sources of ignition
out of the room in which this product is located. Textiles
and other materials that normall would not burn are
easil ignited and burn with great intensit in ox gen
enriched air. Failure to observe this warning can result in
severe fire, propert damage and cause ph sical injur or
DEATH.
NOTE: Updated versions of this manual are available on
www.invacare.com.

TABLE OF CONTENTS
TABLE OF CONTENTS
HomeFill™II Compressor 3 Part No 1100873
SPECIAL NOTES ............................................... 4
TYPICAL PRODUCT ......................................... 5
PARAMETERS ................................................. 5
LABEL LOCATION ............................................ 6
DEALER INFORMATION ................................... 6
HOMEFILL II INFORMATION ............................. 7
SECTION 1—IMPORTANT SAFETY
INSTRUCTIONS ............................................... 8
Servicing of Double-Insula ed Produc s.......................................11
SECTION 2—INITIAL SETUP ............................ 12
Ini ial Se Up of Compressor..........................................................12
SECTION 3—CHECKLIST AND CYLINDER
INSPECTION .................................................. 16
Compressor Opera ion Checklis ................................................. 16
Cylinder Prefill Inspec ion ...............................................................16
SECTION 4—COMPRESSOR OPERATION .......... 23
Connec ing/Disconnec ing he Cylinder o/from he
Compressor........................................................................................23
Turning he Compressor On .........................................................29
Se ing he Flow Knob o he Prescribed Se ing ......................31
SECTION 5—INDICATOR LIGHTS .................... 32
SECTION 6—TROUBLESHOOTING CYLINDER
FILL TIMES ..................................................... 34
SECTION 7—MAINTENANCE .......................... 37
Cleaning he Compressor Fil er ....................................................37
Cabine ................................................................................................38
LIMITED WARRANTY .................................... 38

SPECIAL NOTES
HomeFill™II Compressor 4 Part No 1100873
SPECIAL NOTES
Check all parts for shipping damage. In case of damage, DO
NOT use. Contact Invacare for further instruction.
ignal words are used in this manual and apply to hazards or
unsafe practices which could result in personal injury or
property damage. Refer to the following table for definitions
of the signal words.
ACCESSORIES
There are many different types of humidifiers, oxygen tubing,
cannulas and masks that can be used with this device. You
should contact your local home care provider for
recommendations on which of these devices will be best for
you. They should also give you advice on the proper usage,
maintenance, and cleaning.
 WARNING
Invacare products are specificall designed and
manufactured for use in conjunction with Invacare
accessories. Accessories designed b other manufacturers
have not been tested b Invacare and are not
recommended for use with Invacare products.
SIGNAL WORD MEANING
DANGER Danger indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARN NG Warning indicates a potentially hazardous
situation which, if not avoided, could result
in death or serious injury.
CAUT ON Caution indicates a potentially hazardous
situation which, if not avoided, may result in
property damage.

Part No 1100873 5 HomeFill™II Compressor
TYPICAL PRODUCT
PARAMETERS
TYPICAL PRODUCT PARAMETERS
- COMPRESSOR
Regulatory Listing: Double Insulated Product
ETL ertified omplying with
UL73 and UL1097 (US)
ETL ertified omplying with
AN/ SA 22.2 No. 68 ( anada)
For household use only.
Operating temperature: 50 to 95° F (10 to 35° C) @ 20 to 60%
non-condensing humidity
Storage temperature: -10 to 150° F (-23 to 65° ) @ 15
to 95% humidity
Input Pressure Required: 14 - 21 psi
Input Flow Required: 2 L/min
Input O2 Required: >90% O2
Width: 20 ¼ inches
Height: 15 inches
Depth: 16 inches
Weight: 33 lbs
Shipping Weight: 39 lbs

HomeFill™II Compressor 6 Part No 1100873

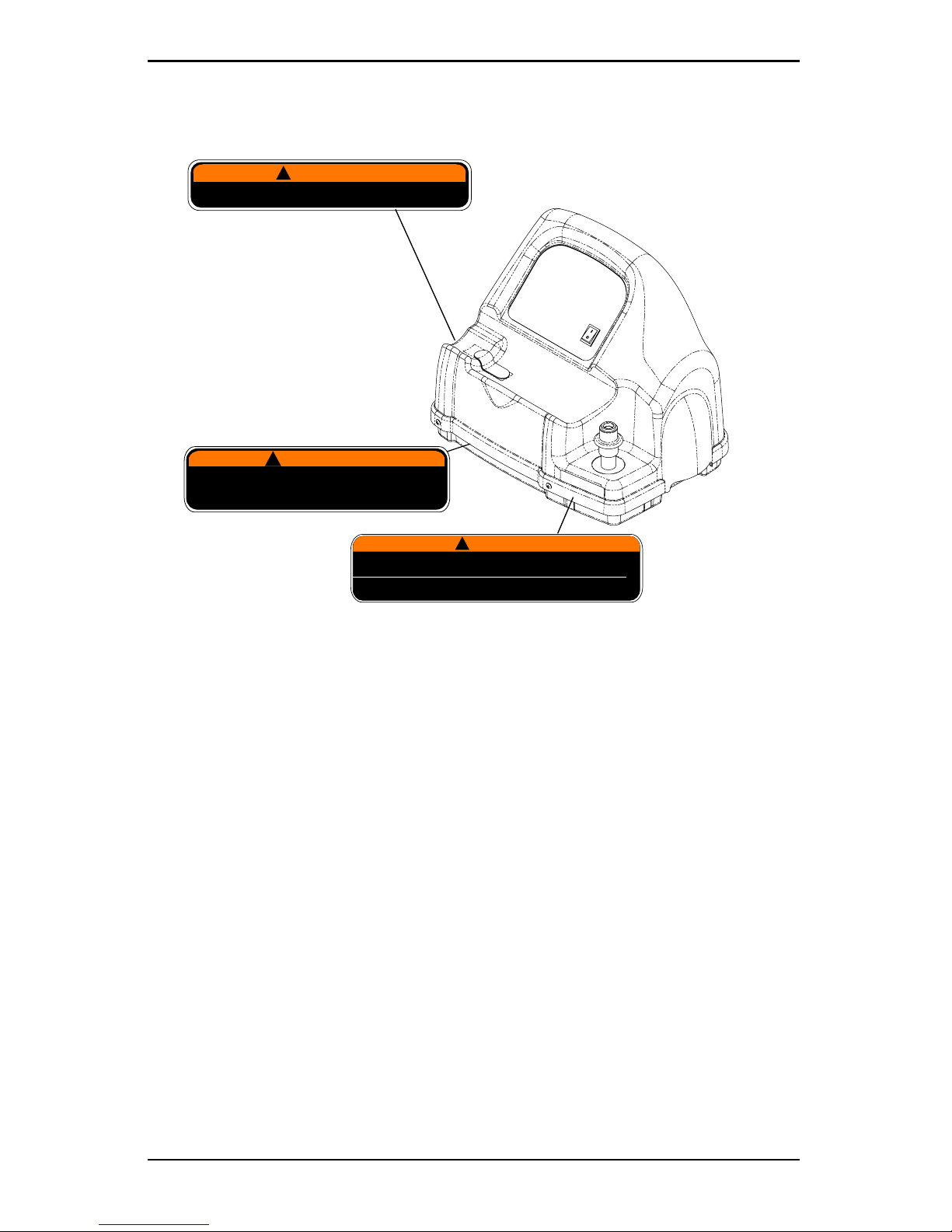

LABEL LOCATION
DEALER INFORMATION
NOTE: Invacare recommends leaving a full cylinder of oxygen with
the patient after setting up the omeFill II compressor.
Before leaving a HomeFill II Compressor with a user, the
following checklist MU T be completed:
❑Make sure the pressure test on cylinder has not expired.
❑Instruct the user on the safe operation of the concentrator
and review all warnings.
❑Instruct the user on the safe operation of the HomeFill II
compressor and review all warnings.
❑Leave a full cylinder of oxygen with the user.
❑Leave a copy of all warnings and filling instructions with
the user.
Keep all connections free of oil and grease to avoid violent
ignition. See Owner's Manual before cleaning.
P/N 1075220 Rev C - 10/04
WARNING
!
DO NOT REMOVE UNIT COVER
This unit contains moving and high pressure
components. Manufacturer Service Only.
P/N 1075221
Rev B - 10/04
WARNING
!
Keep all connections free of oil and grease.
See Owner's Manual before cleaning.
Cylinders filled on this unit must be labeled "Contents of
this cylinder are the product of an oxygen concentrator."
P/N 1075238
Rev B - 10/04
WARNING
!

HOMEFILL II INFORMATION
HomeFill™II Compressor 7 Part No 1100873
HOMEFILL II INFORMATION
HomeFill II is an accessory device to the oxygen concentrator
that enables the patient to refill custom portable oxygen
cylinders for personal use.
NOTICE
The HomeFill II compressor is for use with speciall
designed Invacare Platinum™5, 10 and XL HomeFill II
compatible ox gen concentrators.
The ox gen concentrator can be set to the following
maximum flowrates when operating with HomeFill II
compressor:
Platinum 5 and XL: 3 L/min. or less.
Platinum 10: 5 L/min. or less.
To determine if our ox gen concentrator is HomeFill II
compatible, examine the lower right corner of the rear of
the ox gen concentrator for an outlet fitting. Refer to the
illustration below.

SECTION 1—IMPORTANT SAFETY INSTRUCTIONS
Part No 1100873 8 HomeFill™II Compressor
SECTION 1—IMPORTANT SAFETY
INSTRUCTIONS
 WARNING
SECTION 1 - IMPORTANT SAFETY INSTRUCTIONS
contains important information for the safe operation and
use of this product. DO NOT use this product or an
available optional equipment without first completel
reading and understanding these instructions and an
additional instructional material such as Owner’s
Manuals, Service Manuals or Instruction Sheets supplied
with this product or optional equipment. If ou are unable
to understand the Warnings, Cautions or Instructions,
contact a health care professional, dealer or technical
personnel before attempting to use this equipment -
otherwise, injur or damage ma occur.
CAUTION
“Caution: Federal law restricts this device to sale b or on
order of a ph sician, or an other practitioner licensed b
the law of the State in which he/she practices to use or
order the use of this device.”
When using the HomeFill II, basic precautions should
ALWAY be followed, including the following:
 WARNING
TO REDUCE THE RI K OF BURN ,ELECTROCUTION,
FIRE, OR INJURY TO PER ON .
NEVER use near any type of flame or flammable/explosive
substances, vapors or atmosphere.

SECTION 1—IMPORTANT SAFETY INSTRUCTIONS
HomeFill™II Compressor 9 Part No 1100873
DO NOT allow oil from your hands or other sources to come
into contact with the compressor coupling or bottle fittings.
These substances may become flammable in the presence of
oxygen and cause injury. Avoid touching the bottle fitting
whenever possible. Example of items to avoid are hand
creams or lotions, cooking oils, suntan oils or sunblocks and
similar oily products. If you use these types of products
Invacare suggests you wash your hands prior to using the
HomeFill unit. If the bottle fitting should come in contact with
such substances it should be cleaned off with a damp cloth
prior to connecting it to the compressor.
NEVER oil or lubricate the compressor coupler or bottle
fittings. NEVER use any penetrating oil or lubricant such as
WD-40 or 3 in One. If connection difficulty is experienced
verify that the bottle fitting is being inserted straight down
into the compressor coupler. If continued difficulty is
experienced contact your supplier for assistance.

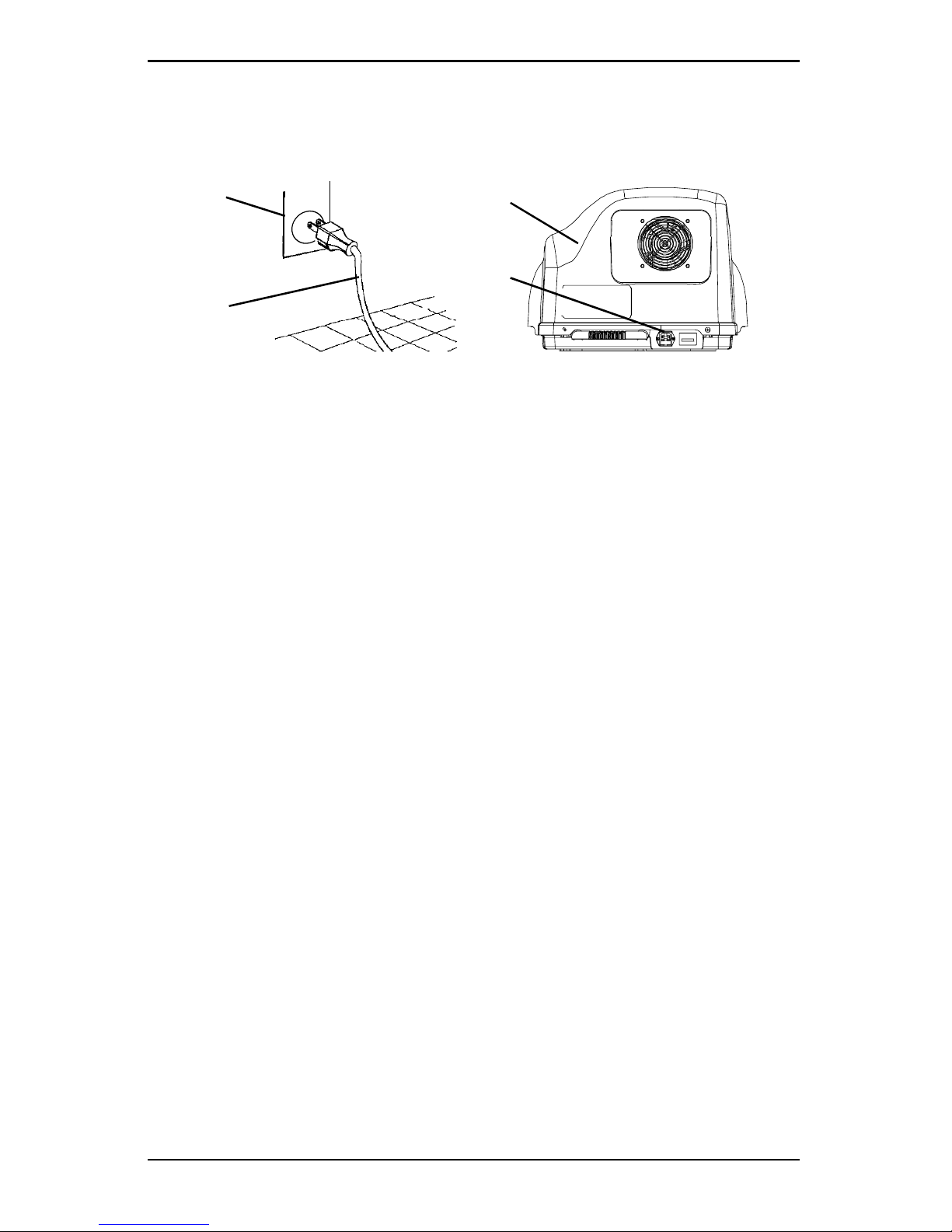

Before moving or repositioning either the compressor or
concentrator, ALWAY push the power switch to the Off (O)
position, disconnect the AC power cord and the interconnect
hose between the compressor and concentrator. Failure to do
so may result in damage to the unit or personal injury.
Children should ALWAY be supervised around the
HomeFill II unit. When used with the HomeFill table or
similar elevated support surfaces, a child could pull over any
such table causing the unit to fall. Failure to observe this
warning may result in personal injury or product damage.
Use extreme care when handling and filling an oxygen
cylinder. Full oxygen cylinders are under pressure and can
become a projectile if dropped or mishandled.
NEVER transport a compressor with a cylinder connected to
or stored on the compressor, otherwise injury or damage can
occur.

SECTION 1—IMPORTANT SAFETY INSTRUCTIONS
Part No 1100873 10 HomeFill™II Compressor
DO NOT store filled oxygen cylinders near a furnace, hot
water tank, in the trunk of a car or other high temperature
area. torage in areas such as this can result in bursting of the
cylinder or fire.
The use of this device is limited to the oxygen patient.
Cylinders MU T be used ONLY by the oxygen patient and are
not to be distributed to any other individual for any purpose.
Invacare products are specifically designed and
manufactured for use in conjunction with Invacare
accessories. Accessories designed by other manufacturers
have not been tested by Invacare and are not recommended
for use with Invacare products.
DO NOT use outdoors.
The maximum patient flow while filling cylinders with the
IOH200 is 3 L/min. for Platinum 5 and XL, 5 L/min. for
Platinum 10. Patients with a higher prescribed flow should
not transfill while receiving supplemental oxygen treatment
from the Platinum Concentrator.
NEVER block the air openings of the product or place it on a
soft surface, such as a bed or couch, where the air opening
may be blocked. Keep the openings free from lint, hair and the
like.
DO NOT disassemble. The unit is provided with double
insulation and has no serviceable parts. Refer to ervicing of
Double-Insulated Products on page 11. If any service is
required, contact Invacare Technical ervice.
If the compressor has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or
submersed in water, call a qualified technician for
examination and repair.

SECTION 1—IMPORTANT SAFETY INSTRUCTIONS
HomeFill™II Compressor 11 Part No 1100873
If any leakage of the oxygen cylinder is detected DO NOT
attempt to use the cylinder. Turn the flow selector knob on the
regulator to Off. If leakage persists, place the cylinder
outdoors and notify your Home Health Care Provider or
ervice Representative of this condition.
The HomeFill II is equipped with a high pressure relief valve
to ensure the user’s safety. When activated, this safety feature
will make an extremely loud noise. If this noise occurs, turn
the unit Off and contact your Home Health Care Provider or
ervice Representative.
Unplug unit from outlet when not in use and before cleaning.
This appliance is provided with double insulation. Use only
identical replacement parts. Refer to ervicing of
Double-Insulated Products on page 11.
Servicing of Double-Insulated Products
In a double-insulated product, two systems of insulation are
provided instead of grounding. No grounding means is
provided on a double-insulated product, nor is a means for
grounding to be added to the product. ervicing a
double-insulated product requires extreme care and
knowledge of the system, and is to be done only by qualified
service personnel. Replacement parts for a double-insulated
product MU T be identical to the parts they replace. A
double-insulated product is marked with the words
"DOUBLE IN ULATION" or "DOUBLE IN ULATED". The
symbol ( ) is also able to be marked on the product.
CAUTION
DO NOT unplug the power cord by pulling on the cord. To
unplug, grasp the plug not the cord, otherwise damage may
occur.
SAVE THESE INSTRUCTIONS

SECTION 2—INITIAL SETUP
Part No 1100873 12 HomeFill™II Compressor
SECTION 2—INITIAL SETUP
NOTE: Dealers Only - Refer to Dealer Information on page 6 before
performing this procedure.
Initial Set Up of Compressor
Compressor Initial Setup Checklist
Before operating the HomeFill II Compressor for the first
time, complete the following checklist:
❑Choose a location for the compressor.
❑Transport the compressor to the desired location.
❑Connect the power cord to the compressor.
❑Connect the compressor to the concentrator.
Choosing a location
The compressor should be at least three inches away from
walls, draperies or furniture to ensure sufficient air flow.
Avoid placing the compressor next to heaters, radiators or hot
air registers.
DO NOT use in a closet.
The compressor should sit on a hard flat stable surface, such
as a table or the Ready Rack.
 WARNING
NEVER use near an t pe of flame or flammable/explosive
substances, vapors or atmosphere.

SECTION 2—INITIAL SETUP
HomeFill™II Compressor 13 Part No 1100873
Transporting the Compressor
 WARNING
NEVER transport a compressor with a c linder connected
to or stored on the compressor, otherwise injur or
damage can occur.
CAUTION
When transporting the compressor, be careful not to
bump the compressor or the connectors into obstacles.
Otherwise, damage to the compressor ma occur.
NOTE: For this procedure, refer to FIGURE 2.1.
1. There are two methods to
safely transport the
compressor:
A. One hand - Grasp the
hand grip at the
bottom rear of the
compressor.
B. Two hands - Grasp
the hand grips on the
sides of compressor. FIGURE 2.1 Transpor ing
he Compressor
Installing the Power Cord
NOTE: For this procedure, refer to FIGURE 2.2 on page 14.
1. Ensure the compressor is on a hard flat stable surface, such
as a table or the Ready Rack.
2. Make sure the power switch is in the Off (O) position
3. Plug the power cord into the electric connector in the back
of the compressor.
Hand Grip
Hand Grip
Hand Grip

SECTION 2—INITIAL SETUP
Part No 1100873 14 HomeFill™II Compressor
4. Plug the opposite end of the power cord into the wall
outlet.
FIGURE 2.2 Ins alling he Power Cord
Connecting the Compressor to the Concentrator
NOTE: For this procedure, refer to FIGURE 2.3 on page 15.
1. Insert one end of the interconnect hose into the outlet
fitting on the back of the concentrator (Detail “A”).
2. Insert the opposite end of the interconnect hose into the
inlet fitting on the side of the compressor (Detail “B”).
NOTE: The metal tabs on the concentrator outlet fitting and the
compressor inlet fitting will pop out with an audible “click” when
the end of the interconnect hose is properly installed (Detail “C”).
3. Loop any excess interconnect hose and secure to the back
of the concentrator with the fastening straps.
Wall
Outlet
Power
Cord
Compressor
(REAR)
Electrical
Connection
NOTE: This product has a polarized plug (one blade is wider than
the other). As a safety feature, this plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician. DO NOT
attempt to defeat this safety feature.

SECTION 2—INITIAL SETUP
HomeFill™II Compressor 15 Part No 1100873

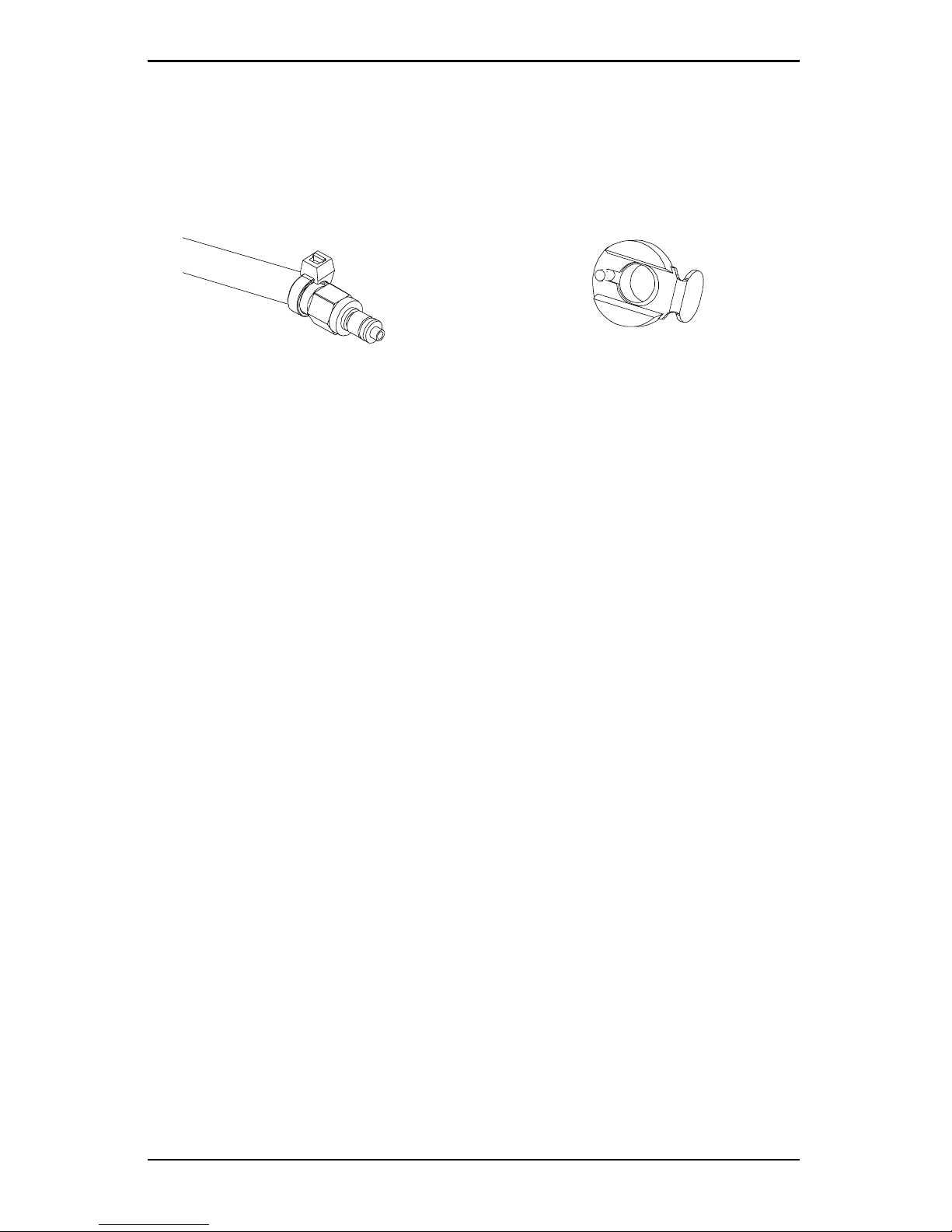

FIGURE 2.3 Connec ing he Compressor o he Concen ra or

SECTION 3—CHECKLIST AND CYLINDER INSPECTION
Part No 1100873 16 HomeFill™II Compressor
SECTION 3—CHECKLIST AND
CYLINDER INSPECTION
Compressor Operation Checklist
Each time the HomeFill II Compressor is used to fill a
cylinder, complete the following checklist:
❑Ensure the concentrator has been On for at least thirty
minutes. Refer to the concentrator Owner’s Manual.
❑Perform the prefill inspection on the cylinder.
❑Connect the cylinder to the compressor.
❑Push the compressor power switch to the on ( ) position.
❑Examine the indicator lights on the control panel.
❑Disconnect and remove the full cylinder.
❑Push the compressor power switch to the Off (O) position.
❑If filling another cylinder, repeat this checklist.
Cylinder Prefill Inspection
 WARNING
ONLY use c linders that have the Invacare HomeFill II
connection and the label.
All c linders MUST be inspected before attempting to fill.
Otherwise, injur or damage ma occur.
NOTE: For this procedure, refer to FIGURE 3.1 on page 17.

SECTION 3—CHECKLIST AND CYLINDER INSPECTION
HomeFill™II Compressor 17 Part No 1100873
FIGURE 3.1 Cylinder Prefill Inspec ion
DO NOT REMOVE THIS PRODUCT LABEL
Not for Commercial Resale
Invacare Corporation
2101 E. Lake Mary Blvd.
Sanford, FL 32773
1-800-832-4707
Part Number 1125090 Rev B - 11/04
OXYGEN
2
This cylinder is to be used with the Invacare Venture
HomeFill system. This cylinder contains
93 + 3%
oxygen produced by an oxygen concentrator using
the pressure swing adsorption process.
DO NOT handle cylinder or use contents until you are
professionally trained, including emergency procedures.
WARNING
For medical applications. Use only
as directed by a licensed
practitioner. Uninterrupted use of
high concentrations of oxygen
over a long duration, without
monitoring its effect on oxygen
content of arterial blood, may be harmful.
Oxygen Cylinders filled by the Venture HomeFill
shall be used for personal use only. "Not to be
filled for resale or use by professional users".
!
!
DANGER
Improper filling or abuse of this cylinder, or failure to follow
these safety instructions may cause serious bodily injury or
death. High pressure oxidizing gas vigorously accelerates
combustion.
DO NOT alter or modify cylinder or related components.
DO NOT use Oil or Grease. Keep cylinder, cylinder valve, all
equipment and connections free of oil and grease to avoid
violent ignition resulting in serious bodily injury or death.
Use in accordance with Venture HomeFill Operator’s Manual.
Open valve slowly. Close valve after each use and when empty.
S
ecure cylinder during s torage and use. No smoking in cylinder
area.
Keep away from heat, flame and spark. Keep out of
reach of children. DO NOT drop.
Transfilling of this gas is performed by Venture HomeFill Only.
Cylinders that have been refinished and/or exposed to
elevated temperatures must be hydrostatically tested before
filling.
Cylinder temperature should not exceed 125°F (52°C).
Aluminum cylinders subject to the action of fire or heated to
temperatures in excess of 350°F
must be withdrawn from
service and condemned by trained
personnel. DO NOT use
caustic paint strippers. Valve and safety relief devices must be
removed and replaced by trained and authorized
personnel. DO NOT alter or change valve assembly.
+

SECTION 3—CHECKLIST AND CYLINDER INSPECTION
Part No 1100873 18 HomeFill™II Compressor
The Hydrostatic Testing Date
Aluminum cylinders MU T undergo testing every five years.
 WARNING
DO NOT fill c linders that have not been tested in the
past five ears. Otherwise, serious personal injur ma
result. Contact our dealer for replacement.
External Examination
1. Examine the outside of the cylinder for the following
conditions, and replace the cylinder if they exist:
• Dents or dings
•Arc burns
• Oil or grease
• Any other signs of damage that might cause a cylinder
to be unacceptable or unsafe for use.
2. Examine the cylinder for evidence of fire or thermal
damage. Evidence includes charring or blistering of the
paint, or other protective coating or heat sensitive
indicator. If fire or thermal damage is found, replace the
cylinder.
3. Inspect the cylinder/regulator assembly for the following
and replace if found:
• Debris, oil or grease
• Noticeable signs of damage
• igns of corrosion inside the valve
• igns of excessive heat or fire damage

Please Seal with
Tape Before Mailing

REGISTER YOUR PRODUCT!
The benefits of registering:
1. Safeguard your investment.
2. Ensure long term maintenance and servicing of your purchase.
3. Receive updates with product information, maintenance tips, and industry
news.
4. Invacare can contact you or your provider, if servicing is needed on your
product.
5. It will enable Invacare to improve product designs based on your input
and needs.
Register ONLINE at www.invacare.com
- or -
Complete form and mail.
Any registration information you submit will be used by Invacare Corporation
only, and protected as required by applicable laws and regulations.
NAME _____________________________________________________
ADDRESS __________________________________________________
CITY _______________________ STATE/PROVINCE _____________
ZIP/POSTAL CODE ________________
EMAIL ___________________________ PHONE NO. ____________
INVACARE MODEL NO. _____________________________________
SERIAL NO. ______________________
PURCHASED FROM _______________
DATE OF PURCHASE: _____________
PRODUCT REGISTRATION FORM
