Invacare IOH200AW User manual

User: Before using the product, read this manual
and save for future reference.
Supplier: This manual must be given to the end user.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.eu.com
Operator Manual
HomeFill®II Compressor
Model IOH200AW
English UK. . . . . . . . . . . . . . 2
Dutch . . . . . . . . . . . . . . . . 39
French . . . . . . . . . . . . . . . . 77
Greek . . . . . . . . . . . . . . . 120
Italian. . . . . . . . . . . . . . . . 163
Portuguese . . . . . . . . . . . 206
Spanish . . . . . . . . . . . . . . 246
0434

WARNING
HomeFill®II Compressor 2 Part No 1145805
 WARNING
DO NOT OPERATE THIS EQUIPMENT WITHOUT
FIRST READING AND UNDERSTANDING THIS
MANUAL. IF YOU ARE UNABLE TO
UNDERSTAND THE DANGERS, WARNINGS,
CAUTIONS, AND INSTRUCTIONS, CONTACT
INVACARE TECHNICAL SERVICES BEFORE
ATTEMPTING TO USE THIS EQUIPMENT -
OTHERWISE, SERIOUS INJURY OR PROPERTY
DAMAGE MAY RESULT.
 DANGER
Users MUST NOT SMOKE while using this device. Do not
keep matches, lit cigarettes or other sources of ignition in
the same room as this product. Textiles and other
materials which would are not normally flammable are
easily ignited and burn with great intensity in oxygen
enriched air. Failure to observe this warning can result in
severe fire, property damage and cause physical injury or
DEATH.
NOTE: Updated versions of this manual are available at
www.invacare.com.

TABLE OF CONTENTS
Part No 1145805 3 HomeFill®II Compressor
SPECIAL NOTES ...............................................4
TYPICAL PRODUCT PARAMETERS ...................6
LABEL LOCATION ............................................8
DEALER INFORMATION ................................... 9
HOMEFILL II INFORMATION ........................... 10
SECTION 1—GENERAL GUIDELINES ................ 11
SECTION 2—INITIAL SETUP ........................... 15
Initial Set Up of Compressor ........................................................15
SECTION 3—CHECKLIST AND CYLINDER
INSPECTION.................................................. 19
Compressor Operation Checklist ...............................................19
Cylinder Prefill Inspection ..............................................................19
SECTION 4—COMPRESSOR OPERATION.......... 22
Connecting/Disconnecting the Cylinder to/from the
Compressor ......................................................................................22
Turning the Compressor On ........................................................27
Setting the Flow Knob to the Prescribed Setting .....................28
Technical Description .....................................................................29
SECTION 5—INDICATOR LIGHTS .................... 31
SECTION 6—TROUBLESHOOTING/ CYLINDER FILL
TIMES ........................................................... 33
SECTION 7—MAINTENANCE.......................... 36
Cleaning the Compressor Filter ...................................................36
Cabinet ...............................................................................................37

HomeFill®II Compressor 4 Part No 1145805
SPECIAL NOTES
Check all parts for shipping damage. In the event of damage,
DO NOT use. Contact Invacare for further instruction.
Signal words are used throughout this manual and apply to
hazards or unsafe practices which could result in personal
injury or property damage. Refer to the following table for
definitions of the signal words.
ACCESSORIES
Many different types of humidifiers, oxygen tubing, cannulas
and masks can be used in conjunction with this device. You
should contact your local home care provider for advice on
which of these devices is most suitable for you. Your home
care provider can also provide advice on proper usage,
maintenance, and cleaning.
 WARNING
Invacare products are specifically designed and
manufactured for use in conjunction with Invacare
accessories. Accessories designed by other manufacturers
have not been tested by Invacare and are not
recommended for use with Invacare products.
SIGNAL WORD MEANING
DANGER Danger indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING Warning indicates a potentially hazardous
situation which, if not avoided, could result
in death or serious injury.
CAUTION Caution indicates a potentially hazardous
situation which, if not avoided, could result
in property damage.

Part No 1145805 5 HomeFill®II Compressor
RECYCLING INFORMATION
This product is supplied by an environmentally aware
manufacturer which adheres to the Waste Electrical and
Electronic Equipment (WEEE) Directive 2002/96/CE.
This product may contain substances that could be harmful to
the environment if disposed of in places (landfills) which are
not deemed appropriate by current legislation.
A 'crossed out wheelie bin' symbol has been placed on this
product to encourage you to recycle wherever possible.
Please be environmentally responsible and recycle this product
through your recycling facility at the end of it useful life.

HomeFill®II Compressor 6 Part No 1145805
TYPICAL PRODUCT
PARAMETERS
TYPICAL PRODUCT PARAMETERS
- COMPRESSOR
Regulatory Listing: EN/IEC 60601-1-2 EMC
Alternating Current
Type BF equipment
Unit running
Unit not running
Attention - Consider Accompanying Documents
DO NOT smoke
Class II, Double Insulation
This product complies with Directive 93/42/EEC
concerning medical devices.
The launch date of this product is stated in the CE
declaration of conformity.
Operating temperature: 50 to 95° F (10 to 35° C) @ 20 to 60%
non-condensing humidity
Storage temperature: -10 to 150° F (-23 to 65° C) @ 15 to 95%
humidity
Input Pressure Required: 14 - 21 PSI (96.5-144.7 kPa)
Input Flow Required: 2 L/min
Input O2% Required: >90% O2
Width: 20 ¼ inches (51.44 cm)
Height: 15 inches (38.1 cm)

Part No 1145805 7 HomeFill®II Compressor
CONSERVER/REGULATOR
SPECIFICATIONS
Depth: 16 inches (40.64 cm)
Weight: 33 lbs (14.97 kg)
Shipping Weight: 39 lbs (17.69 kg)
Oxygen Output Settings 1 - 5 L/min pulse
2 L/min. continuous

HomeFill®II Compressor 8 Part No 1145805
LABEL LOCATION
DANGER - RISK OF ELECTRIC SHOCK
DO NOT remove cover. Refer servicing to qualified
service personnel.
DANGER- RISK OF FIRE
NO SMOKING - Keep ALL sources of ignition out
of the room in which this product is located and
away from areas where oxygen is being delivered.
Textiles, oil and other combustibles are easily
ignited and will burn with great intensity in oxygen
enriched air.
P/N 1145730 Rev A - 4/18/07
WARNING
Keep all connections free of oil and grease. See Owner’s
Manual before cleaning. NEVER oil or lubricate coupling.
Cylinders filled on this unit MUST be labeled “Contents
of this cylinder are the product of an oxygen
concentrator.”
Keep all connections free of oil and grease to avoid
violent ignition. See Owner’s Manual before cleaning.
This unit contains moving and high pressure
components. Manufacturer Service Only.
BEFORE COUPLING CYLINDER,
PUSH DOWN ON SLEEVE UNTIL
GREEN DOTS ARE VISIBLE.
Serial Number
Label Location
Specification
Label Location
P/N 1048080 Rev A -4/11/07

Part No 1145805 9 HomeFill®II Compressor
DEALER INFORMATION
NOTE: Invacare recommends leaving a full cylinder of oxygen with
the patient after setting up the HomeFill II compressor.
Before leaving a HomeFill II Compressor with a user, the
following checklist MUST be completed:
❑Make sure the pressure test on cylinder has not expired.
❑Instruct the user on the safe operation of the concentrator
and review all warnings.
❑Instruct the user on the safe operation of the HomeFill II
compressor and review all warnings.
❑Leave a full cylinder of oxygen with the user.
❑Leave a copy of all warnings and filling instructions with
the user.

HomeFill®II Compressor 10 Part No 1145805
HOMEFILL II INFORMATION
HomeFill II is an accessory device to the oxygen concentrator,
which enables the patient to refill custom portable oxygen
cylinders for personal use.
NOTICE
The HomeFill II compressor is for use with specially
designed Invacare Platinum™5 and Platinum 9 HomeFill
II compatible oxygen concentrators.
The oxygen concentrator can be set to maximum flow
rate of when operating with HomeFill II compressor:
Platinum 5 - 2.5 L/min. or less
Platinum 9 - 5 L/min. or less
To determine if your oxygen concentrator is HomeFill II
compatible, examine the lower right corner of the rear of
the oxygen concentrator for an outlet fitting and refer to
the illustration below.

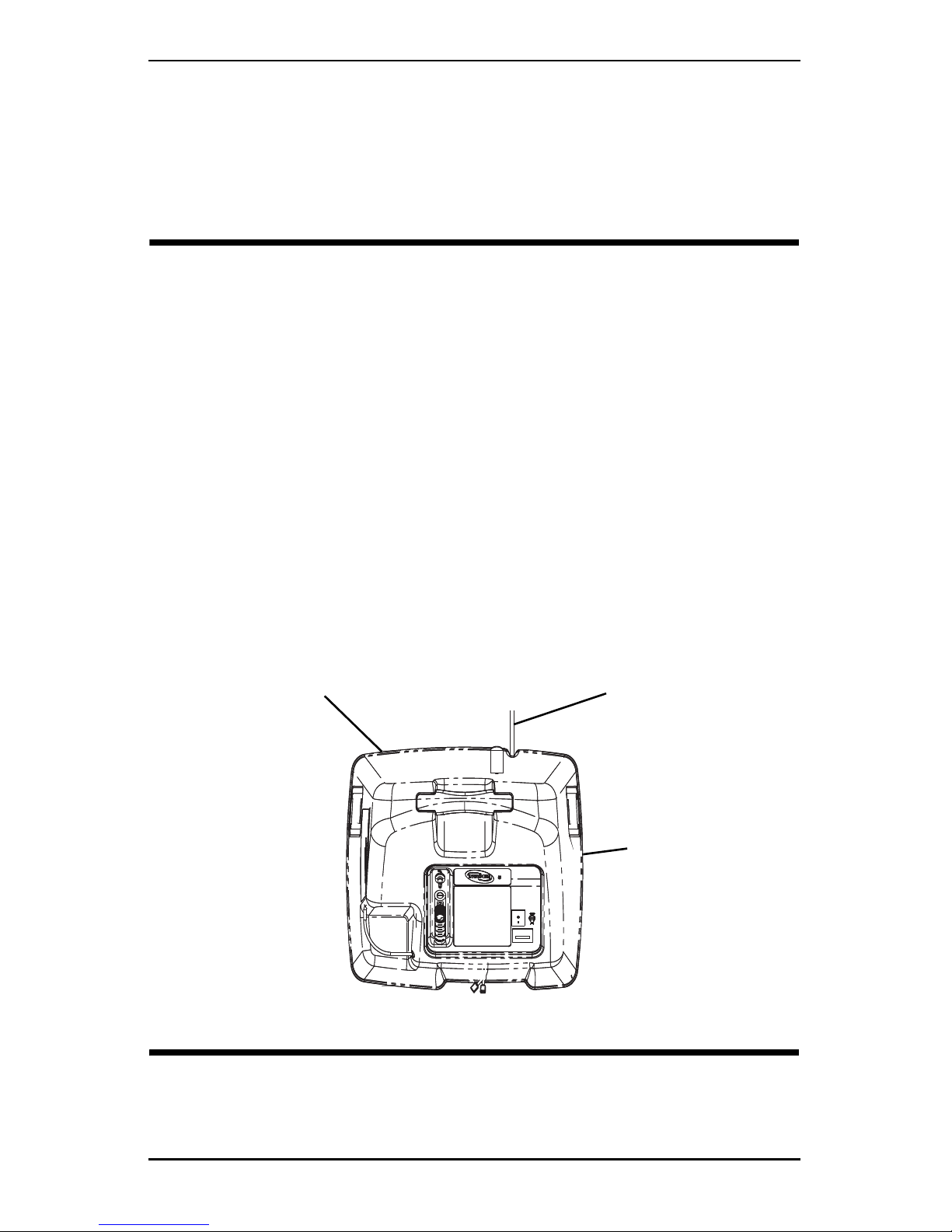

TOP VIEW
Concentrator
Power Cord
Outlet Fitting

Part No 1145805 11 HomeFill®II Compressor
SECTION 1—GENERAL GUIDELINES
 WARNING
SECTION 1 - GENERAL GUIDELINES contains
important information for the safe operation and use of
this product. DO NOT use this product or any available
optional equipment without first reading and fully
understanding these instructions and any additional
instructional material such as Owner’s Manuals, Service
Manuals or Instruction Sheets supplied with this product
or optional equipment. If you are unable to understand
the Warnings, Cautions or Instructions, contact a health
care professional, dealer or technician before attempting
to use this equipment - otherwise, injury or damage may
occur.
In order to ensure the safe installation, assembly and
operation of the HomeFill II Compressor these instructions
MUST be followed.
“Caution: Statutory law can restrict this device to sale by or on
order of a doctor, or any other practitioner licensed by the law
of the governmental agency in which he/she practices to use
or order the use of this device.”
 WARNING
This device is for the sole use of the oxygen patient. Cylinders
MUST ONLY be used by the oxygen patient and may not to be
distributed to any other individual for any purpose.
The maximum patient flow while filling the cylinders with
the IOH200AW is 2.5 L/min. for Platinum 5 and 5 L/min. for
Platinum 9.Patients with a higher prescribed flow should not
transfill while receiving supplemental oxygen treatment from
the Platinum Concentrator.

HomeFill®II Compressor 12 Part No 1145805
 WARNING (CONTINUED)
NEVER block product air openings or place the product on a
soft surface, such as a bed or couch, where the air opening
may be blocked. Keep the openings free from lint, hair and the
like.
DO NOT use outdoors.
NEVER use near any type of flame or flammable/explosive
substance, vapour or atmosphere.
DO NOT disassemble. The unit is provided with double
insulation and has no serviceable parts. Should any service be
required, contact Invacare Technical Service.
If the compressor has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or
immersed in water, please call a qualified technician for
inspection and repair.
If any leakage of the oxygen cylinder is detected DO NOT
attempt to use the cylinder. Turn the flow selector knob on the
regulator to “Off”. If leakage persists, place the cylinder
outdoors and notify your Home Health Care Provider or
Service Representative of this condition.
DO NOT allow oil from your hands or other sources to come
into contact with the compressor coupling or bottle fittings. In
the presence of oxygen, these substances may become
flammable and may cause injury. Avoid touching the bottle
fitting whenever possible. Some examples of items to be
avoided are hand creams and lotions, cooking oils, suntan oils
or sunblocks and similar oil-based products. If you use these
types of products Invacare suggests you wash your hands
prior to using the HomeFill unit. Should the bottle fitting
come into contact with any such substance it should be wiped
with a damp cloth prior to being connected to the compressor.

Part No 1145805 13 HomeFill®II Compressor
 WARNING (CONTINUED)
NEVER oil or lubricate the compressor coupler or bottle
fittings. NEVER use any penetrating oil or lubricant such as
WD-40 or 3 in One. If you experience connection difficulties,
please verify that the bottle fitting has been inserted straight
down into the compressor coupler. In the event of continued
difficulties, contact your supplier for assistance.
Keep the oxygen tubing, cord, and unit away from heated or
hot surfaces, including space heaters, blankets, cookers and
similar electrical appliances.
The HomeFill II is equipped with a high pressure relief valve
to ensure user safety. When activated, this safety feature will
emit an extremely loud noise. Should this noise occur, turn the
unit Off and contact your Home Health Care Provider or
Service Representative.
Before moving or repositioning either the compressor or
concentrator, ALWAYS push the power switch to the Off (O)
position and disconnect the AC power cords and the
interconnect hose between the compressor and concentrator.
Failure to follow this procedure may result in damage to the
unit or personal injury.
Children should ALWAYS be supervised around the
HomeFill II unit. When used with the HomeFill table or
similar elevated support surfaces, a child could knock over
the table or other surface thus causing the unit to fall. Failure
to observe this warning may result in personal injury or
product damage.
Handling
Use extreme care when handling and filling an oxygen
cylinder. Full oxygen cylinders are pressurised and can turn
into projectiles if dropped or mishandled.

HomeFill®II Compressor 14 Part No 1145805
 WARNING (CONTINUED)
NEVER transport a compressor with a cylinder connected to
or stored on the compressor, otherwise injury or damage can
occur.
DO NOT store filled oxygen bottles near a furnace, hot water
tank, in the trunk of a car or in other areas of high
temperature. Storage in such areas may cause the bottle to
explode or can result in fire.

Part No 1145805 15 HomeFill®II Compressor
SECTION 2—INITIAL SETUP
NOTE: Suppliers Only - Refer to Dealer Information on page 9
prior to performing this procedure.
Initial Set Up of Compressor
Compressor Initial Setup Checklist
Before operating the HomeFill II Compressor for the first
time, complete the following checklist:
❑Choose a location for the compressor.
❑Transport the compressor to the desired location.
❑Connect the power cord to the compressor.
❑Connect the compressor to the concentrator.
Choosing a location
 WARNING
NEVER use near any type of flame or flammable/explosive
substance, vapour or atmosphere.
Keep the oxygen tubing, cord, and unit away from heated
or hot surfaces, including space heaters, blankets, cookers
and similar electrical appliances.
The compressor should be at least three inches away from
walls, curtains or furniture to ensure sufficient air flow.
DO NOT use inside a cupboard.
The compressor should rest on a hard flat stable surface, such
as a table or the Ready Rack.

HomeFill®II Compressor 16 Part No 1145805
Compressor Transportation
NOTE: For this procedure, refer to FIGURE 2.1.
 WARNING
NEVER transport a compressor with a cylinder connected
to or stored on the compressor as this may result in injury
or damage.
CAUTION
When transporting the compressor, take care no to bump
the compressor or the connectors into obstacles.
Otherwise, damage to the compressor may occur.
NOTE: For this procedure, refer to FIGURE 2.1.
1. There are two
methods for the safe
transportation of the
compressor:
A. One hand - Hold the
hand grip at the
bottom rear of the
compressor.
B. Both hands - Hold the
hand grips on the
sides of compressor.

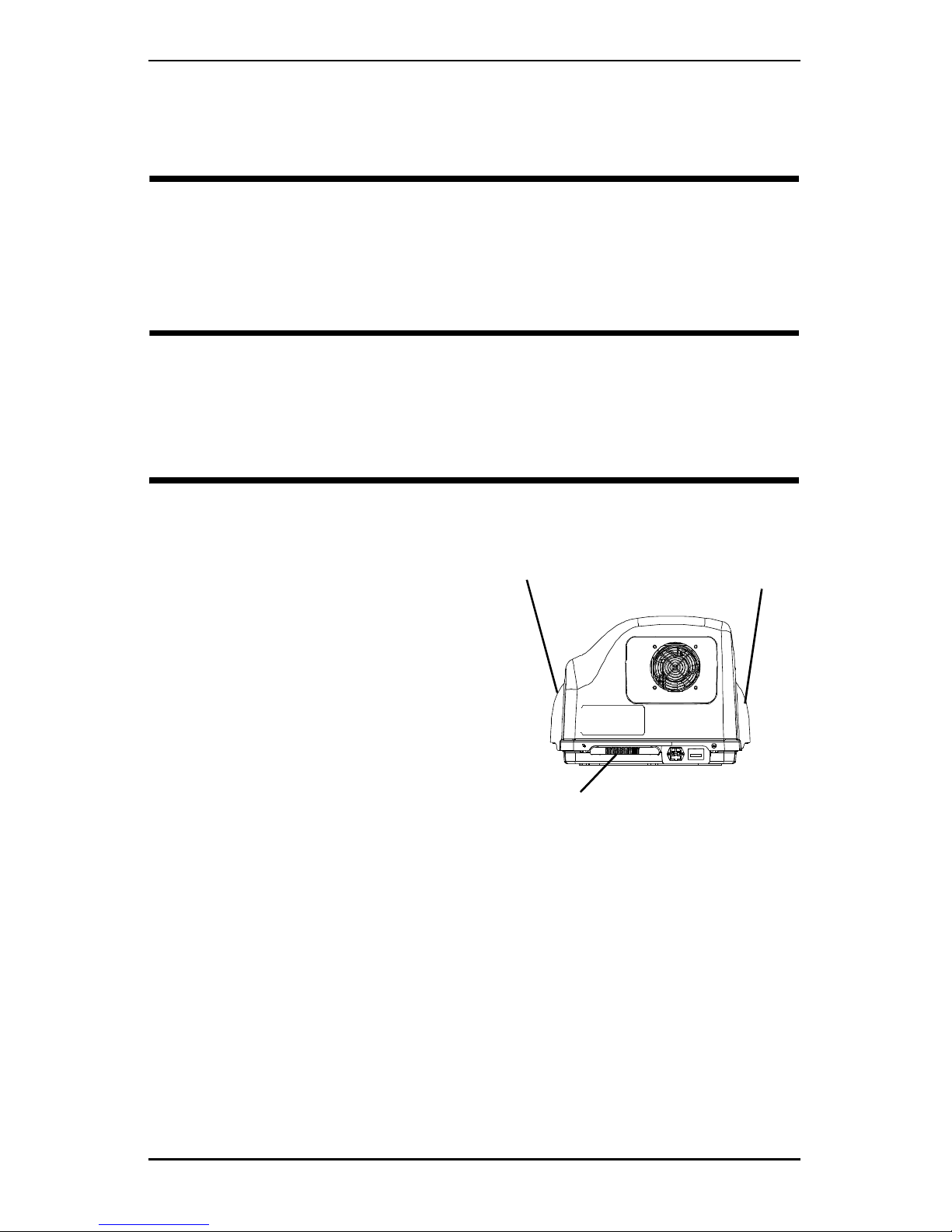

FIGURE 2.1 Compressor
Transportation
Installing the Power Cord
NOTE: For this procedure, refer to FIGURE 2.2 on page 17.
1. Ensure the compressor is on a hard flat stable surface, such
as a table or Ready Rack.
2. Make sure the power switch is in the Off (O) position.
3. Plug the power cord into the electric connector in the back
of the compressor.
Hand Grip
Hand Grip
Hand Grip

Part No 1145805 17 HomeFill®II Compressor
4. Plug the opposite end of the power cord into the wall
socket.

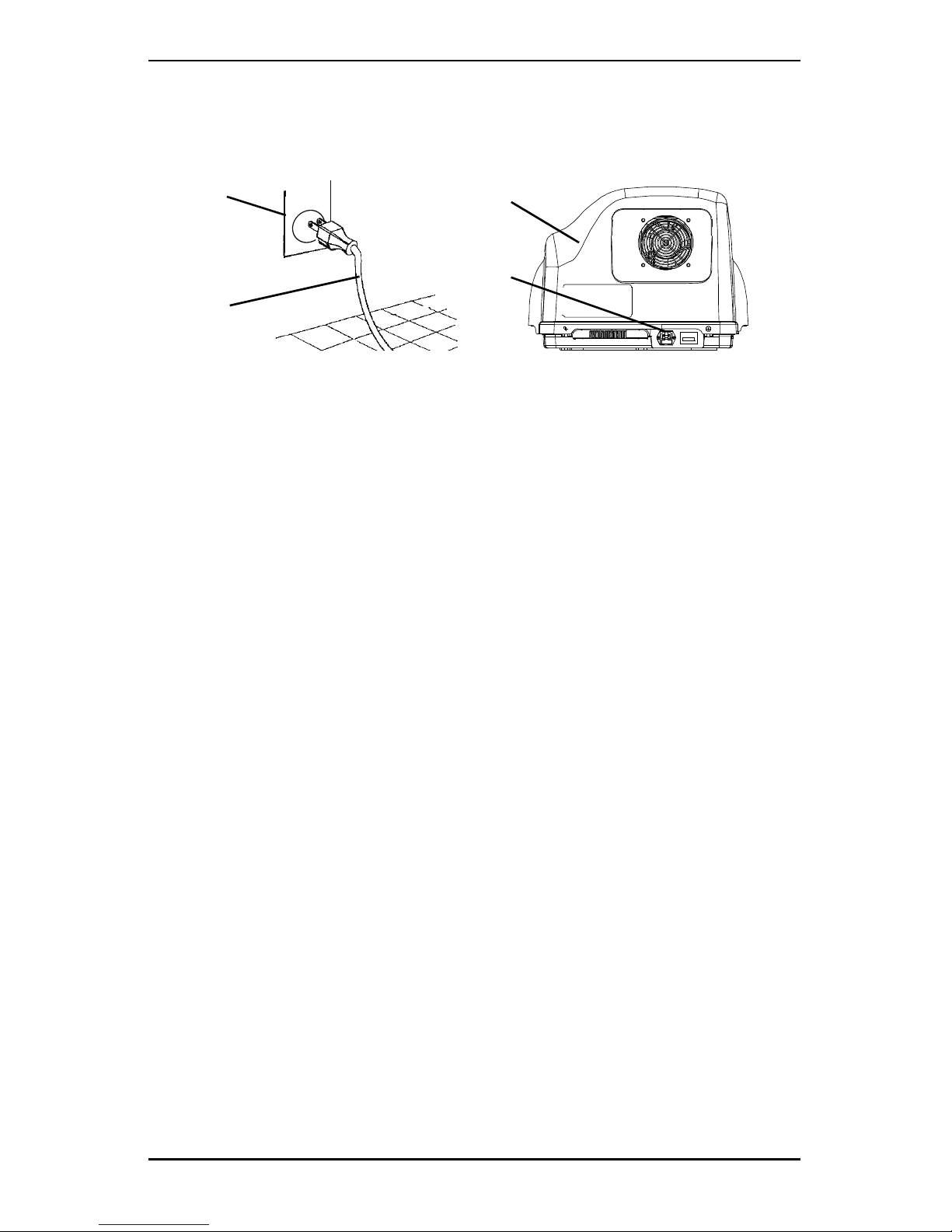

FIGURE 2.2 Installing the Power Cord
Connecting the Compressor to the Concentrator
NOTE: For this procedure, refer to FIGURE 2.3 on page 18.
1. Insert one end of the interconnect hose into the outlet
fitting on the back of the concentrator (Detail “A”).
2. Insert the opposite end of the interconnect hose into the
inlet fitting on the side of the compressor (Detail “B”).
NOTE: The metal tabs on the concentrator outlet fitting and the
compressor inlet fitting will pop out with an audible “click” when
the end of the interconnect hose is properly installed (Detail “C”).
3. Loop any excess interconnect hose and secure to the back
of the concentrator with the fastening straps.
Wall
Socket
Power
Cord
Compressor
(REAR)
Electrical
Connection

HomeFill®II Compressor 18 Part No 1145805
FIGURE 2.3 Connecting the Compressor to the Concentrator
Insert End of
Interconnect Hose into
Inlet/Outlet Fitting
Inlet/Outlet Fitting
Metal
Tab
Interconnect
Hose Compressor
Inlet Fitting
Power
Cord
Outlet Fitting
CONCENTRATOR
TOP VIEW
DETAIL “A”
DETAIL “C”
DETAIL “B”

Part No 1145805 19 HomeFill®II Compressor
SECTION 3—CHECKLIST AND
CYLINDER INSPECTION
Compressor Operation Checklist
Complete the following checklist each time the HomeFill II
Compressor is used to fill a cylinder:
❑Ensure that the concentrator has been On for at least thirty
minutes. Refer to the concentrator Owner's Manual.
❑Conduct the prefill inspection on the cylinder.
❑Connect the cylinder to the compressor.
❑Push the compressor power switch to the On ( ) position.
❑Examine the indicator lights on the control panel.
❑Disconnect and remove the full cylinder.
❑Push the compressor power switch to the Off (O) position.
❑Repeat this checklist when filling another cylinder.
Cylinder Prefill Inspection
 WARNING
ONLY use cylinders that have the Invacare HomeFill II
connection and label.
All cylinders MUST be inspected before attempting to fill.
Otherwise, injury or damage may occur.
NOTE: For this procedure, refer to FIGURE 3.1 on page 20.

HomeFill®II Compressor 20 Part No 1145805
FIGURE 3.1 Cylinder Prefill Inspection
