Invacare CareGuard Series Manual

Owner’s Operator and Maintenance Manual
DEALER: This manual MUST be given to
the user of the bed.
USER: BEFORE using this bed, read this
manual and save for future reference.
For more information regarding Invacare
products, parts, and services, please visit
www.invacare.com
CareGuard™Bed Series
Semi-Electric Bed

CareGuard™Bed Series 2Part No 1132730
 WARNING
DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST READING
AND UNDERSTANDING THIS MANUAL. IF YOU ARE UNABLE TO
UNDERSTAND THE WARNINGS, CAUTIONS, AND
INSTRUCTIONS, CONTACT A HEALTHCARE PROFESSIONAL,
DEALER OR TECHNICAL PERSONNEL IF APPLICABLE BEFORE
ATTEMPTING TO USE THIS EQUIPMENT - OTHERWISE INJURY
OR DAMAGE MAY RESULT.
THE INITIAL SET UP OF THIS BED MUST BE PERFORMED BY A
QUALIFIED TECHNICIAN.
PROCEDURES OTHER THAN THOSE DESCRIBED IN THIS
MANUAL MUST BE PERFORMED BY A QUALIFIED TECHNICIAN.

TABLE OF CONTENTS
CareGuard™Bed Series 3Part No 1132730
TABLE OF CONTENTS
SPECIAL NOTES ................................................................................ 4
TYPICAL PRODUCT PARAMETERS .................................................... 5
LABEL LOCATIONS ........................................................................... 6
SECTION 1—GENERAL GUIDELINES ................................................... 7
Important Safety Instructions ..................................................................................................................7
Operating Information...............................................................................................................................8
Replacement Parts/Accessories ..............................................................................................................8
Electrical .....................................................................................................................................................10
Servicing of Double-Insulated Products ..............................................................................................10
Radio Frequency Interference ...............................................................................................................10
Weight limitations ....................................................................................................................................10
SECTION 2—PACKAGING AND HANDLING ..................................... 11
Unpacking...................................................................................................................................................11
Inspection ...................................................................................................................................................12
Storage ........................................................................................................................................................12
SECTION 3—BED ASSEMBLY ........................................................... 13
Connecting the Head and Foot Spring Sections................................................................................13
Motor Installation .....................................................................................................................................15
Battery Installation for Emergency Operation...................................................................................16
Installing the Bed Ends.............................................................................................................................16

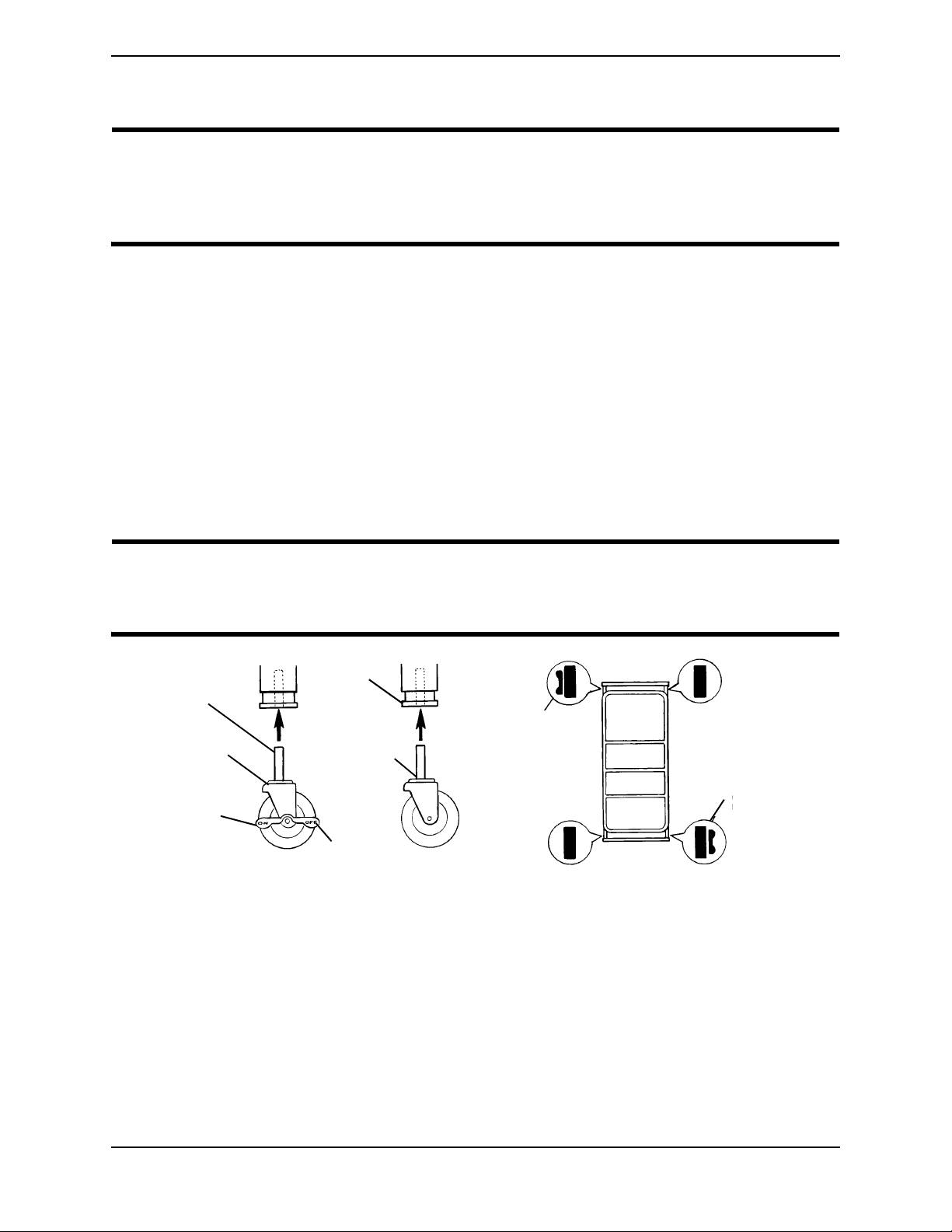

Installing the Casters................................................................................................................................17
SECTION 4—OPERATION AND ADJUSTMENT .................................. 18
Adjusting Height of Bed Ends ................................................................................................................18
Using the Pendant.....................................................................................................................................19
SECTION 5—MAINTENANCE AND CLEANING ................................. 21
Mechanical Inspection and Maintenance .............................................................................................21
Electrical Inspection and Maintenance.................................................................................................21
Cleaning and Disinfecting the Bed........................................................................................................21
Pass/Fail.......................................................................................................................................................21
LIMITED WARRANTY ..................................................................... 23

SPECIAL NOTES
CareGuard™Bed Series 4Part No 1132730
SPECIAL NOTES
WARNING/CAUTION notices as used in this manual apply to hazards or unsafe
practices which could result in personal injury or property damage.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO
CHANGE WITHOUT NOTICE.
PENDANT OPERATION
A safety feature of this product includes protection against overheating caused by
excessive or extended periods of operation. Depending on the duration, this
includes multiple or repeated adjustments or the use of multiple functions at one
time. To ensure trouble free operation, always allow a slight pause between
multiple adjustments and avoid pressing more than one function button at a time. If
thermal protection activation should occur, the bed will not respond to pendant
commands. Given this situation, release the pendant button and allow the bed unit
to sit for several minutes. This will allow the protection function time to reset and
restore bed function. Depending on severity of the initial overheating, this could
take up to 30 minutes.
Invacare products are specifically designed and manufactured for use in conjunction
with Invacare accessories. Accessories designed by other manufacturers have not
been tested by Invacare and are not recommended for use with Invacare products.

TYPICAL PRODUCT PARAMETERS
Part No 1132730 5CareGuard™Bed Series
TYPICAL PRODUCT PARAMETERS
ELECTRIC SPLIT SPRING BED SYSTEM
BED NO. DESCRIPTION SHIPPING WEIGHT
CG5310 (Single Motor Bed) Semi Electric Bed w/ fixed height bed
ends
139 lbs (63.1 kgs)
SPECIFICATIONS
CG5310
BED END HEIGHT
MINIMUM:
MAXIMUM:
14.25 in (36.2 cm)
23.24 in (59.0 cm)
FABRIC HEIGHT*
MINIMUM:
MAXIMUM:
11.25 in (28.6 cm)
20.25 in (51.4 cm)
OVERALL LENGTH: 88 in (223.5 cm)
BED WIDTH: 36 in (91.4 cm)
SPLIT SPRINGS TO ENDS
HEAD:
FOOT:
43 in (109.2 cm)
45 in (114.3 cm)
ELECTRICAL RATING: CG5310 - 120V 50/60 Hz, 1.0A
WEIGHT CAPACITY 450 lbs (204 kg.)
*NOTE: Height from floor to bottom of mattress.
NOTE: This bed is for household/residential use only.

LABEL LOCATIONS
CareGuard™Bed Series 6Part No 1132730
LABEL LOCATIONS
Refer to owner’s manual BEFOR
E
adjusting the height of the bed
.
DO NOT adjust the height of an
occupied bed, otherwise injury
can occur.
WARNING
54000M724
NOTE: Label is the same for both
bed ends.

SECTION 1—GENERAL GUIDELINES
Part No 1132730 7CareGuard™Bed Series
SECTION 1—GENERAL GUIDELINES
 WARNING
SECTION 1 - GENERAL GUIDELINES contains important information for the safe
operation and use of this product. DO NOT use this product or any available
optional equipment without first completely reading and understanding these
instructions and any additional instructional material such as Owner’s Manuals,
Service Manuals or Instruction Sheets supplied with this product or optional
equipment. If you are unable to understand the Warnings, Cautions or Instructions,
contact a healthcare professional, dealer or technical personnel before attempting
to use this equipment - otherwise, injury or damage may occur.
Important Safety Instructions
When using the bed, basic precautions should always be followed, including the
following:
Read all the instructions before using the bed.
DANGER - To reduce the risk of electric shock:
1. Always unplug the bed from the electrical outlet before cleaning.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Unplug from the outlet before servicing.
2. Close supervision is necessary when the bed is used by, or near children
and/or disabled persons.
3. Use this bed only for its intended use as described in these instructions. DO
NOT use attachments not recommended by the manufacturer.
4. NEVER operate this bed if it has a damaged cord or plug, if it is not working
properly, if it has been dropped, damaged, or dropped into water. Return the
bed to a service center for examination and repair.
5. Keep the cord away from heated surfaces.
6. DO NOT use outdoors.
7. Use masked or nasal type oxygen administering equipment only in
conjunction with the manual/electric bed. The use of ANY other type of
oxygen administering equipment can result in a fire hazard.
8. To disconnect, DO NOT depress pendant buttons.
9. Risk of electric shock - Connect this bed to a properly grounded outlet only.
See Grounding Instructions.
10. Risk of injury to persons - DO NOT place video equipment such as televisions
or computer monitors on bed.
SAVE THESE INSTRUCTIONS

SECTION 1—GENERAL GUIDELINES
CareGuard™Bed Series 8Part No 1132730
Operating Information
Check all parts for shipping damage and test before using. In case of damage, DO NOT
use. Contact a qualified technician for further instruction.
After any adjustments, repair or service and before use, make sure all attaching hardware
is tightened securely.
Close supervision is necessary when the manual/electric bed is used by or near children
and physically challenged individuals.
DO NOT let any individual underneath the bed or in between the raised bed frame
components at anytime.
When bed is not to be used for an extended period, unplug electric bed from the wall
outlet.
Keep the product a minimum of 12 inches away from any direct heat source.
DO NOT unplug power cord from junction box.
If a liquid is spilled in or around the electric bed, unplug the electric bed before cleaning.
Clean up the spill and allow the electric bed or the area around the electric bed to dry
thoroughly before using the electric controls again.
The manual/electric bed is not designed to be used as a patient transport. When
transporting a patient, use an approved patient transport. Otherwise, injury or damage
may result.
After the manual/electric bed has been assembled, always test to make sure that all
sections of the manual/electric bed are properly and securely in place before using.
Make sure head and foot springs/sections are connected securely to the universal bed
ends before use.
The pendant and power cords MUST be routed and secured properly to ensure that the
cords DO NOT become entangled, pinched and/or severed during operation of the
electric bed.
NEVER operate the unit if these cords are damaged.
If the unit is not working properly, call a qualified technician to examine the unit and
repair it.
Replacement Parts/Accessories
Use masked or nasal type oxygen administering equipment only in conjunction with the
manual/electric bed. The use of any other type of oxygen administering equipment can
result in a fire hazard.
When using nasal or masked type oxygen administering equipment, the oxygen or air
tubing MUST be routed and secured properly to ensure that the tubing does not become
entangled and/or severed during normal operation of manual/electric bed.

SECTION 1—GENERAL GUIDELINES
Part No 1132730 9CareGuard™Bed Series
Physically challenged individuals who cannot prevent themselves from rolling/climbing
out of the manual/electric bed may require alternative safe means of restraint.
Trapeze units MUST be positioned on either side of the drive shaft (head/foot;) as near as
possible to the center point of the manual/electric bed. The trapeze is to be used only in
assisting the patient in repositioning or transferring in or out of the manual/electric bed.
Traction units MUST be securely fastened to head/foot ends of the manual/electric bed.
These units are to be used only for immobilizing a patient in various traction setups or
assisting the patient in repositioning or transferring in or out of the manual/electric bed.
NEVER allow patients to use trapeze or traction units as a total individual weight
support.
When operating/moving manual/electric beds, always ensure that the individual
utilizing the bed is positioned properly within the confines of the bed. DO NOT let any
extremities protrude over the side or between the bed rails when performing these
functions.
Keep all moving parts, including the main frame, mattress deck (head and foot
springs/sections) and all drive shafts, free of obstruction (i.e. blankets/sheets, heating
blankets/pads, tubing, wiring, etc. and other types of products using electric cords which
may get tangled around the bed, side rails or legs) during operation of the manual/electric
bed.
Always test to make sure that the side rails are properly and securely in place before using
the manual/electric bed.
The manufacturer recommends that the mattress be centered on the bed frame.
Otherwise, individuals may become entangled between the bed rail and the bed frame.
When used with a manual/electrical bed, the bed rails DO NOT fall under any weight
limitations. Bed rails can be deformed or broken if excessive side pressure is exerted on
the bed rails. These bed rails are used for the purpose of preventing an individual from
inadvertently rolling out of bed. The bed rails are not intended nor may be used for
restraint purposes. If an individual is capable of injuring himself/herself, a physician or a
healthcare professional should be consulted for alternative means of safe restraint.
After raising/lowering the head/foot end of the manual/electric bed, check the distance
between the bottom of the bed rail and the mattress. If there is excessive distance between
the bottom of the bed rail and the mattress in which individuals may become entangled,
adjust the height of the bed rail (if applicable), or provide alternative means of patient
protection.
DO NOT use the side rails as push handles for moving the manual/electric bed.
Replacement mattresses and bed side rails with dimensions different from the original
equipment supplied or specified by the bed frame manufacturer are not interchangeable.
Variations in bed side rail design, width and thickness or firmness of the mattress could
cause/contribute to entrapment.

SECTION 1—GENERAL GUIDELINES
CareGuard™Bed Series 10 Part No 1132730
Electrical
NEVER operate if the unit has a damaged cord or plug. If it is not working properly, call
a qualified technician for examination and repair.
Keep all electrical cords away from heated or hot surfaces.
Ensure all cables and cords are routed such that they will not become entangled or
pinched. Otherwise, damage or injury may result.
Repair or Service Information
DO NOT open assemblies such as the motors, pendant, junction boxes or gear boxes. No
user serviceable parts are inside. Only qualified technicians are permitted to repair these
parts. If unqualified individuals perform any work on these beds, the warranty is void.
Unplug the power cord from its power source before performing any maintenance on the
manual/electric bed.
Servicing of Double-Insulated Products
In a double-insulated product, two systems of insulation are provided instead of
grounding. No grounding means is provided on a double-insulated product, nor is a
means for grounding to be added to the product. Servicing a double-insulated product
requires extreme care and knowledge of the system, and is to be done only by qualified
service personnel. Replacement parts for a double-insulated product MUST be identical
to the parts they replace. A double-insulated product is marked with the words
"DOUBLE INSULATION" or "DOUBLE INSULATED". The symbol (square within a
square) could also be marked on the product.
Radio Frequency Interference
Electronic equipment may be influenced by Radio Frequency Interference (RFI). Caution
should be exercised with regard to the use of portable communications equipment in the
area around such equipment. If RFI causes erratic behavior, unplug the electric bed
immediately. Leave unplugged while transmission is in progress.
Weight limitations
The total weight limit of the 36-inch (91.4 cm) wide Manual/Electric bed (including
accessories, mattress, occupant and any other person/object positioned on the bed) is 450
pounds (204 kgs).
DO NOT permit more than one (1) person on/in the manual/electric bed at any time.
Body weight should be evenly distributed over the surface of the manual/electric bed. DO
NOT lay, sit or lean in such a way that your entire body weight is placed only on raised
head or foot sections of the bed. This includes when repositioning or transferring in or out
of bed.

SECTION 2—PACKAGING AND HANDLING
Part No 1132730 11 CareGuard™Bed Series
SECTION 2—PACKAGING AND
HANDLING
Unpacking
 WARNING
DO NOT plug the power cord into a power source until assembly is complete. To
do so could result in damage or personal injury.
DO NOT attempt to operate bed controls prior to completion of assembly
otherwise damage to bed components may occur.
NOTE: For this procedure, refer to FIGURE 2.1.
1. Remove any loose packing from the cartons.
2. Carefully remove all components from the cartons.
3. Foot Spring carton includes:
• One (1) foot spring section, pendant, motor and cord.
4. Head Spring carton includes:
• One (1) head spring section.
• Two (2) bed ends.
\
FIGURE 2.1 Unpacking
Shipping Carton
Shipping Carton
Foot Spring Section
Bed End
Head Spring Section
Bed End

SECTION 2—PACKAGING AND HANDLING
CareGuard™Bed Series 12 Part No 1132730
Inspection
Examine each item carefully for scratches, nicks, dents or any other apparent damage.
NOTE: Check all parts for shipping damage. In case of shipping damage, DO NOT use. Contact
Dealer/Carrier for further instruction.
1. Inspect the power supply cord and cables for cuts or damage to the cord and/or plug.
2. Ensure that the motor plugs are plugged into the junction box and fit properly.
Storage
1. If bed is not to be assembled immediately, retain the cartons and packaging for storage
until assembly is to be performed.
2. DO NOT place other objects on top of the cartons.

SECTION 3—BED ASSEMBLY
Part No 1132730 13 CareGuard™Bed Series
SECTION 3—BED ASSEMBLY
Connecting the Head and Foot Spring Sections
 WARNING
DO NOT attempt to operate bed controls prior to completion of assembly as
damage to bed components or personal injury may occur.
NOTE: For this procedure, refer to FIGURE 3.1.
NOTE: Right and left are determined by facing the springs of the head and foot spring sections
(Detail “A”).
1. Place the head spring section on its side to your right so the center mounting latches
are as shown in Detail “A”.
2. Open the head spring section to a 45° to 90° angle to support the spring section.
3. Place the foot spring section on its side on your left so the center mounting rivets are
as shown in Detail “A”.
4. Place the head and foot springs approximately 90° from each other.
5. Hook the bottom head spring center mounting latch to the bottom center mounting
rivet. Refer to Detail “B”.
6. Hook the top head spring center mounting latch to the top center mounting rivet.
NOTE: It may be necessary to lift the head spring or foot spring slightly to secure the mounting
latches and rivets.
7. After head and foot springs are connected, pull the springs into a horizontal (straight)
position while keeping the springs on their sides.

SECTION 3—BED ASSEMBLY
CareGuard™Bed Series 14 Part No 1132730
FIGURE 3.1 Connecting the Head and Foot Spring Sections
Bottom Center Mounting
Latch
Head Spring
Section
45° - 90°
Top Center Mounting Latch
Foot Spring
Section
Top Center Mounting Rivet
Bottom Center Mounting Rivet
DETAIL “B”
RIGHT Side LEFT Side
DETAIL “A”

SECTION 3—BED ASSEMBLY
Part No 1132730 15 CareGuard™Bed Series
Motor Installation
 WARNING
Ensure motor assembly is properly oriented before installing. The motor has one
end that operates the head section and one end that operates the foot section. If the
motor is installed in the wrong direction, then the pendant functions will operate
the reverse feature. This will possibly result in injury to the user.
NOTE: For this procedure, refer to FIGURE 3.2.
1. Align the motor assembly over the cams (Detail “A”).
NOTE: If necessary, use a rubber mallet to tap the motor into position.
2. Snap the motor assembly onto the cams (Detail “B”).
3. Place the bed frame flat with the springs facing up.
4. Install slide caps onto motor assembly (Detail “B”).
FIGURE 3.2 Motor Installation
Head Spring Section
NOTE: Ensure proper orientation of motor assembly
so that pendant functions operate correctly.
Foot Spring Section
Motor Assembly
Motor Assembly
Slide Cap
Bed Frame
DETAIL “B”
Slide Cap
Cam (Foot End)
DETAIL “A”
Cam (Head End)
Bed Frame
Cam (Foot End)
Cam (Head End)

SECTION 3—BED ASSEMBLY
CareGuard™Bed Series 16 Part No 1132730

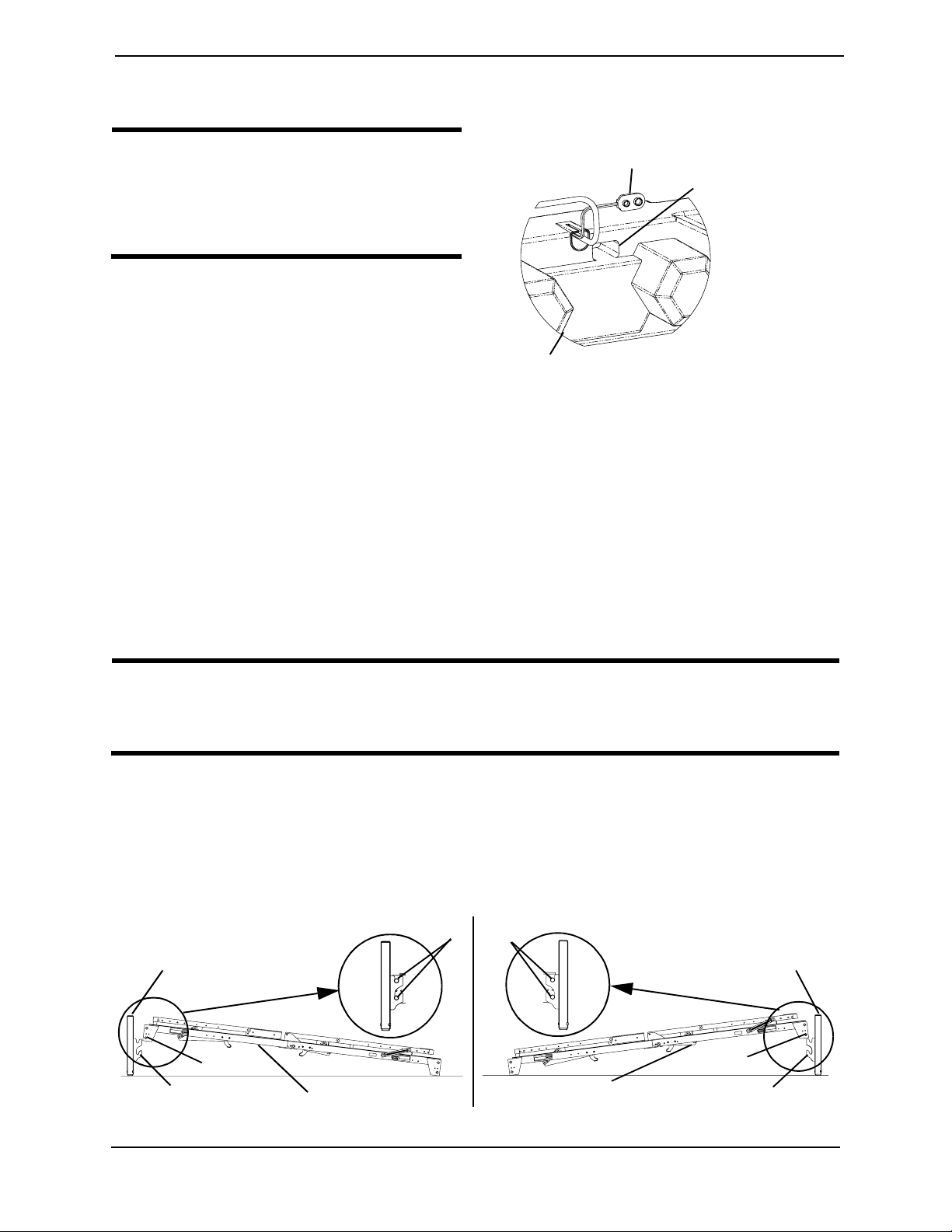

Battery Installation for Emergency Operation
 WARNING
Battery is to be used for lowering bed
only.
Battery MUST be replaced after using.
NOTE: For this procedure, refer to
FIGURE 3.3.
1. Install 9V battery into battery mount
location.
2. Connect 9V battery to the connector
lead coming out of the motor. FIGURE 3.3 Battery Installation for
Emergency Operation
Installing the Bed Ends
NOTE: For this procedure, refer to FIGURE 3.4.
NOTE: The bed ends are universal and can be mounted to the head or foot end of the bed.
1. Stand one (1) bed end as close to the head spring section as possible.
2. With one hand, grasp the head spring section and raise until the rivets on the corner
plates are at the correct height to fit into the corner locks on the bed end.
 WARNING
DO NOT place your hand between the head spring section and the bed end while
assembling, otherwise injury may occur.
3. Tilt the bed end backward slightly and the rivets should slide into the corner locks
more easily.
4. When the bed end is returned to its full upright position, the bed end will lock into
place.
5. Repeat STEPS 1-4 to install the remaining bed end to the foot spring section.
FIGURE 3.4 Installing the Bed Ends
Motor
Connect 9V
Battery Here
Battery Mount
Corner Locks
Rivets
Head Spring SectionCorner Locks
Rivets
Rivets
Bed End
Foot Spring Section
Bed End
Rivets

SECTION 3—BED ASSEMBLY
Part No 1132730 17 CareGuard™Bed Series
Installing the Casters
 WARNING
Ensure that the two (2) locking casters are installed diagonally opposite from each
other and are locked. Otherwise, damage or personal injury could occur. Refer to
Detail “A” in FIGURE 3.5.
NOTE: For this procedure, refer to FIGURE 3.5.
NOTE: If optional casters were purchased and two (2) locking casters are not included with the
bed, contact a qualified dealer.
1. Install casters by carefully lifting the bed ends approximately 5 inches (12.7 cm) from
the floor and inserting the shaft of caster assembly into the caster socket.
2. To prevent excess movement of the bed, lock each of the two (2) locking casters by
pushing down on the side of the caster lock that is labeled on.
NOTE: Locking the casters may not prevent the bed from moving on slick or slippery surfaces.
3. To unlock each of the two (2) locking casters, push down on the side of the caster lock
that is labeled off.
 WARNING
Ensure that casters are locked and that the bed does not move before transferring.
DO NOT transfer occupant if bed is not stable.
FIGURE 3.5 Installing the Casters
Locking
Caster
Locking
Caster
Push HERE
to Lock Push HERE
to Unlock
Locking Caster
Locking Caster
Caster
Shaft
Caster
Socket

SECTION 4—OPERATION AND ADJUSTMENT
CareGuard™Bed Series 18 Part No 1132730
SECTION 4—OPERATION AND
ADJUSTMENT
Adjusting Height of Bed Ends
 WARNING
DO NOT adjust the height of an occupied bed, otherwise injury can occur.
NOTE: For this procedure, refer to FIGURE 4.1.
NOTE: Both bed ends must be disassembled from the bed before a height adjustment can be made.
1. With one hand, hold down the head spring section bed end and tilt it backward
slightly. Refer to Detail “A”.
2. With the other hand, grasp the head spring section and raise it so that the rivets slide
out of the corner locks on the bed end.
 WARNING
DO NOT place your hand between the head spring section and the bed end while
disassembling. Otherwise, injury could occur.
3. Press the spring button on one of the bed end legs and slide the inner leg tube up or
down to one (1) of four (4) height adjustment holes until the spring button locks in
place. Refer to Detail “B”.
4. Repeat STEP 3 for the other bed end leg. Ensure that both bed end legs are adjusted to
the same height.
 WARNING
The spring buttons must be fully protruding out of the height adjustment holes
BEFORE using the bed.
5. Repeat STEPS 1 - 4 for the foot spring section bed end.
6. Ensure that all four (4) bed end legs are at the same height.
7. Install the bed ends. Refer to Installing the Bed Ends on page 16.

SECTION 4—OPERATION AND ADJUSTMENT
Part No 1132730 19 CareGuard™Bed Series

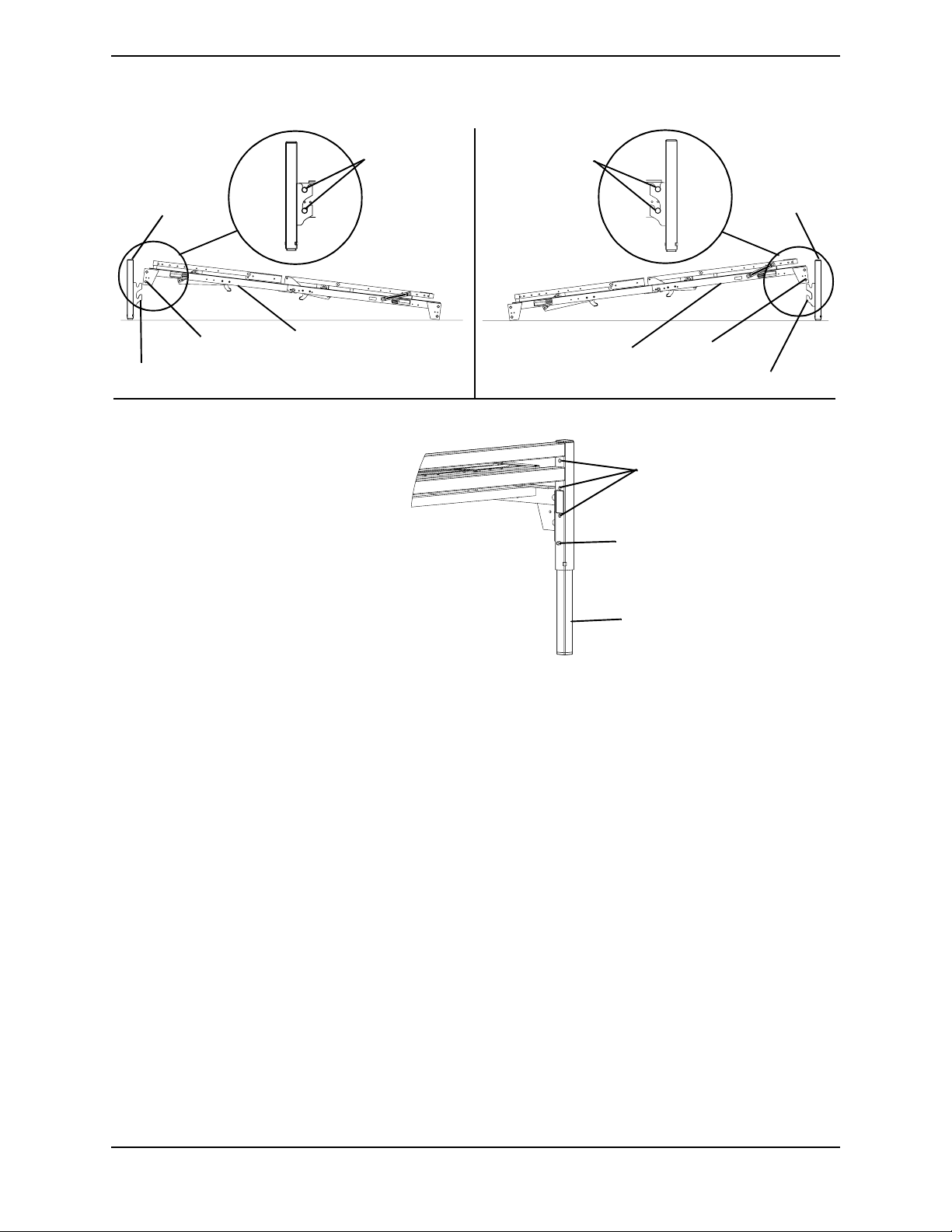

FIGURE 4.1 Adjusting Height of Bed Ends
Using the Pendant
NOTE: For this procedure, refer to FIGURE 4.2.
NOTE: This bed uses a four (4) function pendant for head and foot spring functions.
1. With the bed unoccupied, operate the bed through all phases of its operation as shown
in FIGURE 4.2.
2. If any problems arise during test, recheck all electrical connections and mechanical
hook-ups.
3. Repeat STEP 1. If the bed still does not function, contact a qualified technician or
Invacare at the number listed on the back cover.
Corner Locks
Rivets
Head Spring
Section
Corner Locks
Rivets
Rivets
Bed End
Foot Spring
Section
Bed End
Rivets
DETAIL “A”
Spring Button
Height Adjustment
Holes
NOTE: The bed end leg is shown
set at the highest height.
DETAIL “B”
Inner Leg Tube

SECTION 4—OPERATION AND ADJUSTMENT
CareGuard™Bed Series 20 Part No 1132730
FIGURE 4.2 Using the Pendant
Depress this set of buttons
to raise the head portion
and foot portion
simultaneously.
Depress this set of buttons to
lower the head portion and foot
portion simultaneously.
Depress button "HEAD UP"
as shown on pendant control.
This will raise the head
portion of the bed only.
Depress button "HEAD DOWN" as
shown on pendant control. This will
lower the head portion of the bed only.
Depress button "FOOT UP" as shown
on pendant control. This will raise the
foot portion of the bed only.
Depress button "FOOT
DOWN " as shown on pendant
control. This will lower the foot
portion of the bed only.
