Invacare ProntoTM R2TM Instruction Manual

Yes, you can. ™
Tarsys®
Weight Shifting Basic Tilt
Powered Seating
For
2G Storm Series®,
Ranger II™ MWD,
Pronto™ R2™
Powered Wheelchairs
Parts Catalog Issued: Apr 24, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 00-68. If you have any questions regarding this catalog, please contact one of
our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., Storm Series, the Blue Medallion Design, Arrow, and Tarsys are registered trademarks
and MKIV, Ranger II, and Pronto are trademarks of Invacare Corporation. and Otto Bock is a registered trademark of Otto Bock Orthopaedische Industrie
GMBH & Co.. Molex is a registered trademark of Molex Corporation.
Parts Catalog Usage Guide
1
Form No. 00-68
To order call toll free 1-800-333-6900, or www.invacare.com

Accessories - Arm Pads - Otto Bock ........................................................................................ 101
Accessories - Headrest Support Assembly - A.B.S. Curved Back ........................................... 103
Accessories - Headrest Support Assembly - Back Cane Only Option ..................................... 105
Accessories - Headrest Support Assembly - Profile Back ........................................................ 107
Accessories - Lateral Support Assembly - Tarsys ................................................................... 111
Accessories - Lateral Support Assembly - Otto Bock ............................................................... 109
Accessories - Miscellaneous .................................................................................................... 118
Accessories - Power Wheelchair Tool Kit ................................................................................ 116
Accessories - Universal Adapters For A.B.S. Curved and Profile Backs ................................. 113
Arms - Flip Back (After 10/14/98) ............................................................................................. 20
Arms - Non-Flip Back (Before 10/15/98) .................................................................................. 17
Backs - ABS Curved ................................................................................................................. 23
Backs - Profile - Fixed .............................................................................................................. 26
Canes - Back ............................................................................................................................ 15
Electronics - Mid-Line Swing Bracket Assembly ...................................................................... 99
Electronics - MK IV Recliner Controller and Recliner Cable ................................................... 92
Electronics - Quad Link (QLA) After 4/06/06 ............................................................................ 97
Electronics - Quad Link Assembly Before 4/07/06 ................................................................... 94
Electronics - Single Function Toggle Switch After 2/15/98 ....................................................... 90
Electronics - Single Function Toggle Switch Before 2/16/98 and DAD Box ............................. 88
Frames - Seat and Hardware - 2nd Generation Storm, Ranger II MWD and Pronto R2 ......... 7
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-68

Frames - Seat Attaching Hardware and Tilt Actuator (2nd Gen. Storm) .................................. 9
Frames - Seat Attaching Hardware and Tilt Actuator (RII MWD and ProntoR2) ...................... 12
Front Riggings - Adjustable Angle Footplates (AT5543) 60 Degree HD, 60 Degree MFX, 70
Degree MFX, PW93, PW93E and 90 Degree Swingaway Supports
70
Front Riggings - Calf Pads and Attaching Hardware ................................................................ 53
Front Riggings - Flip-Up Footplates (AT5043) - 70 Degree MFX and 90 Degree Swingaway
Supports
68
Front Riggings - Footboard Assembly 16"-18" Deep - 90 WSBT ............................................. 77
Front Riggings - Footboard Assembly Kit, 16" - 22" Deep - 90 WSBT ..................................... 83
Front Riggings - Footboard Assembly, 19"- 22" Deep - 90 WSBT ........................................... 80
Front Riggings - Footrest Support Assemblies - Center Pivot Sector Riggings ....................... 42
Front Riggings - Footrest Supports - Pin and Saddle - P93M .................................................. 61
Front Riggings - Footrest Supports - Pin and Saddle - PW93 .................................................. 55
Front Riggings - Footrest Supports - Pin and Saddle - PW93E ............................................... 59
Front Riggings - Footrest Supports - Pin and Saddle - PW93ST ............................................. 57
Front Riggings - Front Rigging Hanger Assembly - Center Pivot Sector, 90WSBT Footboard,
Pin & Saddle Style
40
Front Riggings - Legrest Release Handles and Ratchets ........................................................ 51
Front Riggings - Legrest Supports - Center Pivot Sector - AT5544 ......................................... 45
Front Riggings - Legrest Supports - Pin and Saddle - P904A .................................................. 47
Front Riggings - Legrest Tube Support Assembly - 90 WSBT ................................................. 75
Front Riggings - Legrests, Articulating - Pin and Saddle - PAS4A/PAL4A ............................... 49
Front Riggings - One Piece Wooden Footboard and Hardware - S1263 ................................. 72
Front Riggings - Pivot/ Slide Tube and STD. (1650), Deluxe (1450) and X-Large (1350)
Aluminum Footplates
65
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-68

Front Riggings - Pivot/Silde Tube and Composite (1651) Footplates ...................................... 63
Front Riggings - Reference Chart - 2G Storm and (RII MWD Before 3/1/00) Center Pivot Sector
Riggings
30
Front Riggings - Reference Chart - 2G Storm and (RII MWD Before 3/1/00) Pin and Saddle
Riggings
33
Front Riggings - Reference Chart - Pronto R2 and (RII MWD After 2/29/00) Center Pivot Sector
Riggings
37
Front Riggings - Reference Chart - Pronto R2 and (RII MWD After 2/29/00) Pin and Saddle
Riggings
39
Front Riggings- Footrest and Legrest Accessories .................................................................. 84
Packaging - Literature - Frame Finishes and Touch-Up Paint ................................................. 5
Seat Pans and Extensions ....................................................................................................... 28
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-68

Packaging, Literature, Frame Finishes and Touch-Up Paint
Packaging and Literature
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
0310600 Carton 1 1A 0310400 Insert, Carton 1 1A 0289400 Lid, Carton 1 2A 0289300 Carton, Skid Pack Sleeve 1 1A 0162400-NLA NLA - Carton, Outer Pack 1 1A 1068591-NLA NLA - Operator & Maintenance Manual 1 1A See Chart Frame Finishes and Touch-Up Paint 1 1A See Chart Sparkle Frame Finishes 1 1A
A - Not shown.
NOT
E: When adjusting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
Frame Finishes and Touch-Up Paint
Color Number Part Number Bottle Size Color
Pink Pearl.6 oz.103145202P Super Teal.6 oz.103145406P Deep Purple.6 oz.103145608P Cobalt Blue.6 oz.104631917P Anthracite.6 oz.103337622P Wet Black.6 oz.103145024P White.6 oz.103144729P Red.6 oz.103145533P Flat Black.6 oz.104632734P Electric Red.6 oz.104632161P Electric Blue.6 oz.104632062P Metallic Blue.6 oz.104632464P Teflon Black.6 oz.1101320-NLA69P Silver VeinN/AN/A71P Evergreen w/Navy.6 oz.107389280P Dark Olive w/Cooper.6 oz.107389381P Fruit Punch w/Fucshia.6 oz.107389482P Royal Blue w/Grape.6 oz.107389583P Lavender.6 oz.107389684P Jeweled Green.6 oz.1101325101P Denim Blue.6 oz.1101327102P Mocha Frost.6 oz.1101324103P Electric Teal.6 oz.1101316104P Midnight Blue.6 oz.1101326105P
Pronto R2 front rigging finish comes in 24P wet black only.
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-68

Packaging, Literature, Frame Finishes and Touch-Up Paint
Sparkle Frame Finishes
Color Number Color
Twilight Sparkle72P Gold Sparkle73P Green Sparkle74P Blue Sparkle75P Red Sparkle76P Wet Black w/ Twilight Sparkle88P
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-68

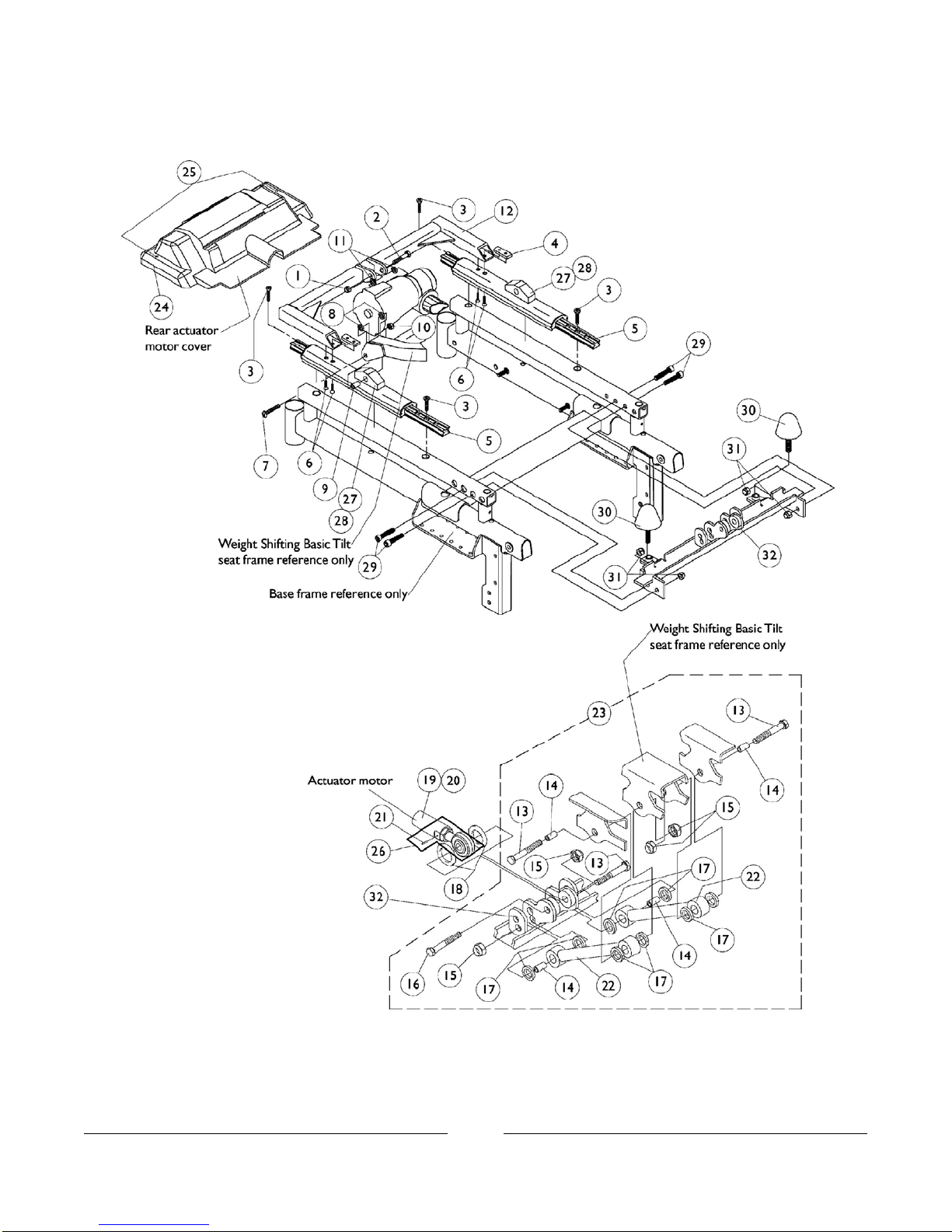

Seat Frame and Hardware
2nd Generation Storm, Ranger II MWD and Pronto R2
NOTE: Ranger II MWD and Pronto R2 share all the components on this page with the 2nd Generation
Storm except items 7-9.
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-68

Seat Frame and Hardware
2nd Generation Storm, Ranger II MWD and Pronto R2
NOTE: Ranger II MWD and Pronto R2 share all the components on this page with the 2nd Generation
Storm except items 7-9.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Seat Side Frame and Hardware 1 11 A 1068142 Frame, Seat, Black (14" - 20" W) 1 12 1068163-NLA NLA - Seat Frame, 21" - 22" Wide 1 12 1025736 Locknut (1/4-20) 1 23 0050406 Washer, Flat (1/4 x 5/8 x 1/16") 1 44 0050506 Lockwasher, High Collar, Split (1/4") 1 45 0051006-NLA NLA - Screw, Hex Head Full Thread (1/4-20 x
1-1/2") 1 26
0225100-NLA NLA - Bumper, Tilt 1 27 1077358 Lockwasher, Split (3/8-16) 1 28 1077359 Nut, Hex (3/8-16) 1 29 A - Includes seat side frame and items 3-6
NOTE:
#1 Seat Side Frame and Hardware
Chair Depth 14"-15" Width
Right 14"-15" Width Left 16"-22" Width Right 16"-22" Width Left
N/AN/A1072934107293314"-15" Depth
10727451072744
1072932-NLA 1072931-NLA
16"-20" Depth See Note(s) A See Note(s) A 10728081072807N/AN/A21"-22" Depth
A - When part number 1072931 or 1072932 are required, call Invacare Customer Service and order as a "Special Order".NOTE:
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-68

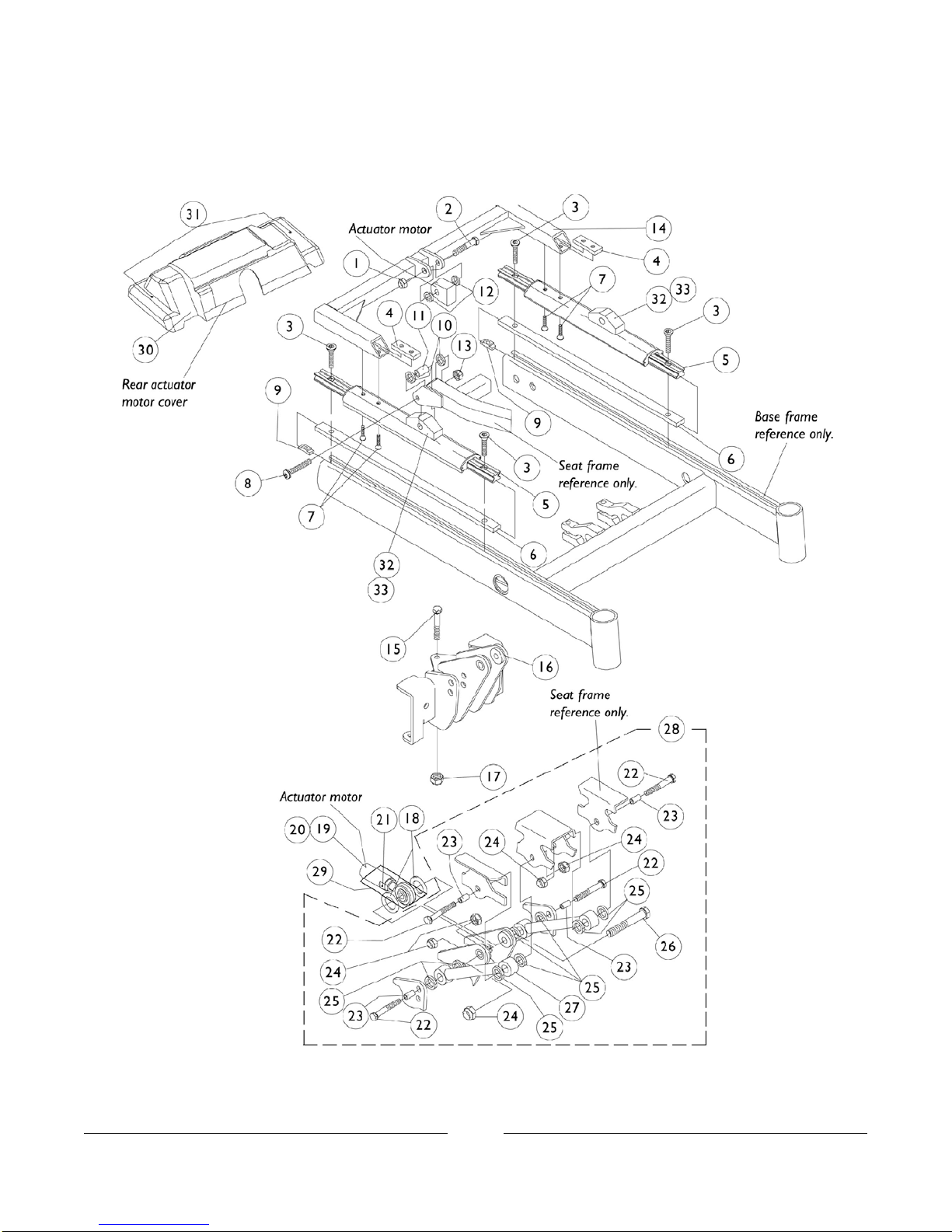

Seat Frame Attaching Hardware
2nd Generation Storm
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-68
