DOLOMITE®Melody/DOLOMITE®Soprano
1General
1.1Introduction
Thisusermanualcontainsimportantinformationaboutthe
handlingoftheproduct.Toensuresafetywhenusingthe
product,readtheusermanualcarefullyandfollowthe
safetyinstructions.
Notethattheremaybesectionsinthisdocument,whichare
notrelevanttoyourproduct,sincethisdocumentapplies
toallavailablemodels(onthedateofprinting).Ifnot
otherwisestated,eachsectioninthisdocumentreferstoall
modelsoftheproduct.
Themodelsandcongurationsavailableinyourcountrycan
befoundinthecountry-specicsalesdocuments.
Invacarereservestherighttoalterproductspecications
withoutfurthernotice.
Beforereadingthisdocument,makesureyouhavethe
latestversion.YoundthelatestversionasaPDFonthe
Invacarewebsite.
Ifyoundthatthefontsizeintheprinteddocumentis
difculttoread,youcandownloadthePDFversionfromthe
website.ThePDFcanthenbescaledonscreentoafont
sizethatismorecomfortableforyou.
Formoreinformationabouttheproduct,forexample
productsafetynoticesandproductrecalls,contactyour
Invacaredistributor.Seeaddressesattheendofthis
document.
Incaseofaseriousincidentwiththeproduct,youshould
informthemanufacturerandthecompetentauthorityin
yourcountry.
1.2SymbolsinthisDocument
Symbolsandsignalwordsareusedinthisdocumentand
applytohazardsorunsafepracticeswhichcouldresultin
personalinjuryorpropertydamage.Seetheinformation
belowfordenitionsofthesignalwords.
WARNING
Indicatesahazardoussituationthatcouldresult
inseriousinjuryordeathifitisnotavoided.
CAUTION
Indicatesahazardoussituationthatcouldresult
inminororslightinjuryifitisnotavoided.
IMPORTANT
Indicatesahazardoussituationthatcouldresult
indamagetopropertyifitisnotavoided.
TipsandRecommendations
Givesusefultips,recommendationsand
informationforefcient,trouble-freeuse.
1.3Compliance
Qualityisfundamentaltothecompany’soperation,working
withinthedisciplinesofISO13485.
ThisproductfeaturestheCEmark,incompliancewiththe
MedicalDeviceRegulation2017/745ClassI.Thelaunchdate
ofthisproductisstatedintheCEdeclarationofconformity.
482181-D

General
Wearecontinuouslyworkingtowardsensuringthatthe
company’simpactontheenvironment,locallyandglobally,
isreducedtoaminimum.
WeonlyuseREACHcompliantmaterialsandcomponents.
1.4ServiceLife
Theexpectedservicelifeofthisproductisveyearswhen
useddailyandinaccordancewiththesafetyinstructions,
maintenanceintervalsandcorrectuse,statedinthismanual.
Theeffectiveservicelifecanvaryaccordingtofrequency
andintensityofuse.
1.5WarrantyInformation
Weprovideamanufacturer’swarrantyfortheproduct
inaccordancewithourGeneralTermsandConditionsof
Businessintherespectivecountries.
Warrantyclaimscanonlybemadethroughtheprovider
fromwhomtheproductwasobtained.
1.6LimitationofLiability
Invacareacceptsnoliabilityfordamagearisingfrom:
•Non-compliancewiththeusermanual
•Incorrectuse
•Naturalwearandtear
•Incorrectassemblyorset-upbythepurchaserora
thirdparty
•Technicalmodications
•Unauthorisedmodicationsand/oruseofunsuitable
spareparts
82181-D5

DOLOMITE®Melody/DOLOMITE®Soprano
2Safety
2.1GeneralSafetyInformation
WARNING!
RiskofSeriousInjuryorDamage
Improperuseofthisproductmaycauseinjury
ordamage.
–Ifyouareunabletounderstandthewarnings,
cautionsorinstructions,contactahealthcare
professionalorproviderbeforeattemptingto
usethisequipment.
–Donotusethisproductoranyavailable
optionalequipmentwithoutrstcompletely
readingandunderstandingtheseinstructions
andanyadditionalinstructionalmaterialsuch
asusermanual,servicemanualorinstruction
sheetsuppliedwiththisproductoroptional
equipment.
WARNING!
RiskofSeriousInjury
Incorrectusecanleadtohazardoussituations.
–Donotuseonstairsoronescalators.
–Donotstandontheproduct.
–Becarefulwhenwalkingonslopingorslippery
groundoronunevensurfaces.
–Avoidwalkingagainstobstacles,bothforwards
andbackwards.
–Donotletchildrenplaywiththeproduct.
–Donotusetheproducttotransportaperson.
–Makesurethatnoclothes,suchaslongskirts,
cangetstuckinthewheels.
CAUTION!
RiskofInjury
Unbalancedorheavyloadmayleadto
overturning.
–Donothanganyloads,suchasbags,tothe
frame,thepushhandlesorhandknobs.
–Onlycarryloadswiththedesignated
equipment,likebasketortray.Donotexceed
themaximumloadfortheequipment.
–Thetotalload,includingtheweightoftheuser
andanyadditionalload,mustnotexceedthe
maximumuserweight.
–Refertochapter7TechnicalData,page19for
maximumuserweightandloadinformation.
682181-D

Safety
CAUTION!
RiskofInjury
Non-originalorwrongpartsmayaffectthe
functionandsafetyoftheproduct.
–Onlyuseoriginalpartsfortheproductinuse.
–Duetoregionaldifferences,refertoyour
localInvacarecatalogorwebsiteforavailable
optionsorcontactyourInvacaredistributor.
Seeaddressesattheendofthisdocument.
CAUTION!
RiskofFirstDegreeBurns
Partsoftheproductmayheatup,whenexposed
tohightemperatures(above41°C).
–Becarefuliftheproductisexposedtohigh
temperatures,e.g.directsunlight.
IMPORTANT!
Thereisariskofdamageduetowear,e.g.
corrosion.
–Donotusetheproductunderwater,e.g.in
pools.
–Donotusetheproductinhotareaslikesaunas.
–Donotstoretheproductinwetorhumid
environments.
2.2LabelsandSymbolsontheProduct
Identicationlabel
XX cm
XXX kg
XXXXX-XX-XX
G
O
0
0
0
-0
0
0
0
0
0
YYYY-MM
XXXXXXX XX
XX XXX XXXX
XX-XXXXXXX
XXXXXXX
XXXXXXX XXXXX
X XXXXXX XXXXXX
YYMXX0000
HMINR:XXXXX
CD F GE
A
B
AProductname
BPartnumber
CDateofmanufacture
DSerialnumber
EMaximumuserweight
FMaximumwidth
GManufactureraddress
Symbols
European
Conformity
MedicalDevice
ManufacturerReadusermanual
Dateof
manufacture
Serialnumber
82181-D7

DOLOMITE®Melody/DOLOMITE®Soprano
MaximumwidthMaximumuser
weight
Indoor/Outdoor
use
882181-D

ProductOverview
3ProductOverview
3.1ProductDescription
Thefour-wheeledwalkingaidisequippedwithacentral
seatthatcanbefoldedupforstorageandtransportation.
Frontwheelsaresteeringwheels.Rearwheelsareprovided
withabrakesystemforslowingdownandforlockingthe
wheels.Thewalkingaidisavailableindifferentsizesand
canbeequippedwithawiderangeofaccessories.
3.2IntendedUse
Thewalkingaidisintendedtosupportduringwalkingand
mayalsoserveasarestingseat.
Thewalkingaidissuitableforindoorandoutdooruseon
evenground.
Theintendeduserisanadultwithamaximumuserweight
asstatedontheproductlabelandinchapter7Technical
Data,page19.
3.3IndicationsforUse
Indications
Personswithimpairedmusclestrengthand/orbalance,
whoneedadditionalsupportwhilstwalking.Theremaining
walkingandcognitiveabilitymustbesufcientforsafeuse
ofawalkingaid.
Contraindications
Personswithsevereequilibriumdisordersorfunctional
perceptualdisorders.
3.4Scopeofdelivery
•Walkingaid,fullyassembled.
•Usermanual
Accessories,actuallyassembledtoyourwalkingaid,are
dependingonthecongurationandmightdifferperregion.
3.5Accessories
Variousaccessories,likeabasket/bag,areavailablefor
thisproductandcanbefoundinthecountry-specicsales
documents.Dependingonthecongurationaccessories
maybepre-assembled.
82181-D9

DOLOMITE®Melody/DOLOMITE®Soprano
4Usage
4.1BeforeUse
CAUTION!
RiskofInjuryorDamagetoProperty
–Beforeuse,verifythegeneralfunctionalityof
theproduct.
–Beforeuse,checktheproductforanydefect.
–Donotuseadefectiveproduct.
Invacarepresumeahealthcareprofessionalhasmadean
individualassessmentoftheusertodeterminehisrisklevel
ortherapyrequirements.Providersandcarershaveassessed
thattheproductgivestherequiredsupportandthatits
adjustmentsareappropriatefortheuser.Careranduser
havebeenappropriatelytrainedbyahealthcareprofessional
onhowtousetheproductcorrectlyandsafely.
4.2Foldingandunfoldingthewalkingaid
Whenunpackingorunfoldingfromtransportpositionlift
frontframeaccordingtoFigurebelow.
Unfoldingtooperatingposition
1.Unfoldthewalkingaidbypressingdowntheseating
tube.
WARNING!
–Beforeusingtheproduct,alwayscheckthat
thesafetylatchisinlockedpositionindicated
byaclearaudible“click”.
Flipuptheseatplate
Theseatcanbefoldeduptoprovidealargerwalking
space,andinordertoincreaseaccessibility.
1082181-D

Usage
Folding
IMPORTANT!
–Ifbasketisused,itmustbedismantledbefore
foldingthewalkingaid.
1.Pressdownthesafetycatch.
2.Pulltheseatingtubeupwards.
Thewalkingaidcanbefoldedintwodifferentpositions:
1.Thewalkingaidistobefoldedtotherstpositionifit
istobeparkedwhenfolded.
2.Itisrecommendedthatthewalkingaidisfolded
toafurtherstage,theinnerposition,ifitistobe
transportedwhenfolded.
Thewalkingaidcannotstanduprightwhenin
position2.
4.3AdjustingtheHandleHeight
WARNING!
Riskoffalling
–Alwaysensurethatthehandknobsare
tightenedsecurelytopreventthehandlefrom
unintendedlowering.
–Donotsetthehandlesabovetheirhighest
allowedposition,indicatedbythemarkingon
thetubes.
Iftheuserisnotsupposedtoadjusttheheight
ofthehandles,e.g.forsafetyreasons,thehand
knobscanbereplacedbylockingscrews(available
asaccessory).
82181-D11

DOLOMITE®Melody/DOLOMITE®Soprano
Recommendedheight:Thehandlesshouldbe
positionedatwristheightwhenstandingstraight
withrelaxedarms.Therapistmaysuggestdifferent
heightsdependingonspecicneedsoftheclient.
A
1.LoosenthehandknobA,butdonotremoveit.
2.Adjustthehandletosuitableheight.
3.Retightenthehandknob.Pressonthehandletocheck
forsecuret.
4.Repeattheprocedureontheotherside.
Foramorecomfortablehandposition,youmayswivelthe
handlestopointinwards.Alockingmechanismprevents
exceedingthemaximumallowedangle.
4.4Walking
WARNING!
Riskoffalling
–Becarefulifthewheelsstopagainstan
obstacle,e.g.akerb.
1.Placethewalkingaidslightlyinfrontofyouandtakea
steptowardsitwhileusingthehandgripsforsupport.
4.5SittingDownonaChair
1282181-D

Usage
1.Standinfrontofthechairwiththewalkingaid,the
backofyourlegsshouldtouchthechair.
2.Lockbothhandbrakesofthewalkingaid.
3.Placeyourhandsonthearmsofthechair,leanforward
slightlyandsitdowncarefully.
4.6RisingtoaStandingPosition
WARNING!
Riskoftipping
–Donotusethewalkingaidtopullyourselfup
fromasittingposition.
1.Placethewalkingaidinfrontofyouandlockboth
handbrakes.
2.Usethearmrestsofthechairassupportandrise
carefullytoastandingposition.
3.Oncestableinastandingposition,transferhandstothe
handgripsofthewalkingaid.
4.7SittingontheWalkingAid
WARNING!
RiskofFalling
–Usethewalkingaidforstationaryseatingonly.
–Beforesittingdown,lockbothbrakesinparking
positionandmakesurethewalkingaidstands
stable.
–Alwayssitonthewalkingaidfromtherear
side.Donotsitdownfromthefrontside.
–Donotsitonthewalkingaidonslopingground.
–Donotmaneuverthewalkingaidwithyour
feetwhilesittingonit.
4.8Usingthehandbrakes
1.Pullbothbrakehandlesupwards.
82181-D13

DOLOMITE®Melody/DOLOMITE®Soprano
Usingtheparkingbrake
1.Toapplytheparkingbrakes,pressthebrakehandles
carefullydownwards.
Anaudiblesoundindicatesthatthebrakeisinthe
correctposition.
IMPORTANT!
–Makesurethatbothbrakesareputinto
parkingposition.
2.Toreleasethebrakes,pullthebrakehandlesupwards.

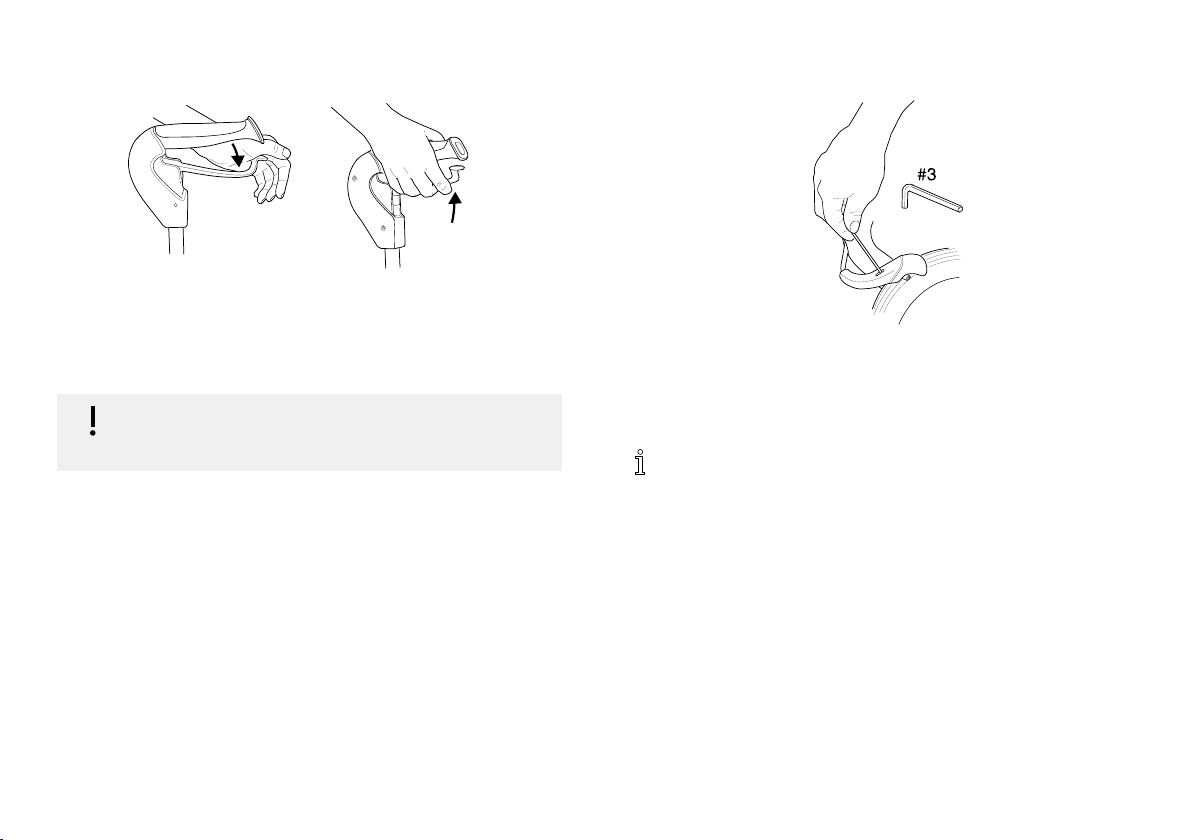

Adjustingthebrakingeffect
1.Adjustthedistancebetweenthebrakeshoeandthe
wheel.
Suitabletools:Allenkey3mm(notincluded).
Thedistancebetweenthebrakeheadandthewheel
shouldbe1.5mm.
1482181-D

Usage
4.9Accessories
Accessoriesarenotstandardonallmodels.Foralistof
availableaccessories,contactyourauthorizeddealerorthe
Invacarerepresentative(seerearpageofthismanual).
Attachingthetrayand/orthebasket
A
B
A
C
•SecurethetrayAbyusingtheplasticplugs.
•HangthebasketBwiththehooksonthefrontframe
(Melody).
•PlacethewirebasketCintheholdingdeviceonthe
frontside(Soprano).
82181-D15

DOLOMITE®Melody/DOLOMITE®Soprano
5Maintenance
5.1GeneralMaintenanceInformation
WARNING!
RiskofInjury
–Maintenanceshouldbedoneatleastoncea
year.
–Donotuseadefectiveproduct.
–Donotattemptrepairsyourself.Forrepairs
contactyourprovider.
5.2InspectionChecklist
Toensuregoodperformanceandsafety,inspectyour
productregularly.
qEnsurethatallscrewsandadjustmentsareproperly
tightened.
qEnsurethathandgripsaretight.
Ifhandgripsareloosedonotusethewalkingaid.
Instructionsonhowtochangehandgripscanbe
obtainedfromyourproviderorInvacaredistributor.
qVerifybrakeoperation.
Ifbrakeadjustmentisrequired,seechapter4Usage,
page10.
qInspecttheframeandloadedpartsforcracks.
qInspectthewheels’tightness,wearanddamage.
qMakesurethatthewheelsarefreeofhair,lintand
otherdebris.
5.3CleaningandDisinfection
5.3.1GeneralSafetyInformation
CAUTION!
RiskofContamination
–Takeprecautionsforyourselfanduse
appropriateprotectiveequipment.
IMPORTANT!
Wronguidsormethodscanharmordamage
theproduct.
–Allcleaningagentsanddisinfectantsusedmust
beeffective,compatiblewithoneanotherand
mustprotectthematerialstheyareusedto
clean.
–Neverusecorrosiveuids(alkalines,acidetc.)
orabrasivecleaningagents.Werecommend
anordinaryhouseholdcleaningagentsuchas
dishwashingliquid,ifnotspeciedotherwisein
thecleaninginstructions.
–Neveruseasolvent(cellulosethinner,acetone
etc.)thatchangesthestructureoftheplastic
ordissolvestheattachedlabels.
–Alwaysmakesurethattheproductis
completelydriedbeforetakingitintouseagain.
Forcleaninganddisinfectioninclinicalorlong-term
careenvironments,followyourin-houseprocedures.
1682181-D

Maintenance
5.3.2CleaningIntervals
IMPORTANT!
Regularcleaninganddisinfectionenhances
smoothoperation,increasestheservicelifeand
preventscontamination.
Cleananddisinfecttheproduct
–regularlywhileitisinuse,
–beforeandafteranyserviceprocedure,
–whenithasbeenincontactwithanybody
uids,
–beforeusingitforanewuser.
5.3.3CleaningInstructions
Theproductcanbewashedinawashingmachineorby
hand.
Whenusingahigh-pressurecleaneroranordinaryjetof
water,donotaimthejettowardsbearings,drainingholes
orlabels.
Themaximumcleaningtemperatureis60°C.Donotuse
asteamcleaner.
1.Cleanthewalkingaidwithadampclothandmild
detergent.
2.Cleanthewheelswithabrush(nowirebrush).
3.Afterwashing,wipetheproductdry.
Disinfection
•Wipedownallgenerallyaccessiblesurfaceswith
disinfectant.
Informationonrecommendeddisinfectants
andmethodscanbefoundonhttps://vah-
online.de/en/for-users.
82181-D17

DOLOMITE®Melody/DOLOMITE®Soprano
6AfterUse
6.1Disposal
Beenvironmentallyresponsibleandrecyclethisproduct
throughyourrecyclingfacilityatitsendoflife.
Disassembletheproductanditscomponents,sothedifferent
materialscanbeseparatedandrecycledindividually.
Thedisposalandrecyclingofusedproductsandpackaging
mustcomplywiththelawsandregulationsforwaste
handlingineachcountry.Contactyourlocalwaste
managementcompanyforinformation.
6.2Reconditioning
Thisproductissuitableforreuse.Toreconditiontheproduct
foranewuser,carryoutthefollowingactions:
•Inspection
•Cleaninganddisinfection
Fordetailedinformation,see5Maintenance,page16and
theservicemanualforthisproduct.
Makesurethattheusermanualishandedoverwiththe
product.
Ifanydamageormalfunctionisdetected,donotreuse
theproduct.
1882181-D

TechnicalData
7TechnicalData
7.1DimensionsandWeights
A
B
C
D
H
E
F
G
MelodySMelodyMMelodyLSoprano
SeatwidthA435mm
SeatdepthB220mm
SeatheightC485mm530mm610mm620mm
TotalwidthD545mm630mm630mm655mm
TotaldepthE645mm650mm680mm750mm
Totalheight(handleheight)
F660–810mm710–910mm790–990mm790–990mm
Distancebetweenhandles
G370mm420mm420mm440mm
82181-D19

DOLOMITE®Melody/DOLOMITE®Soprano
Distancebetweenrear
wheels485mm550mm550mm545mm
Front/rearwheeldiameter200mm260mm
Alldimensionsaresubjecttocertaintolerances.
MelodySMelodyMMelodyLSoprano
Weight17.3kg7.7kg7.9kg10.8kg
Max.userweight2135kg160kg
Max.loadbasket7kg10kg10kg12kg
Max.loadtray5kg
7.2Material
Melody/Soprano
FramePolyester(PES)powdercoatedsteel
HandlebarsAnodizedAluminium
HandgripsPolyamide(PA)partlycoverdwithThermoplasticElastomers(TPE)
WheelsPolypropylene(PP)withtreadsofThermoplasticElastomers(TPE)
PlasticpartsMaterialaccordingtomarking
Polyamide(PA),Polypropylene(PP),Polyethylene(PE)
ScrewsSteel,rustprotected(zincplated)
1.Totalweightexcludingequipment.
2.Thisweightlimitationincludestheweightoftheuser,whetherstandingorsitting,andanyadditionalload,e.g.thecontentofthebasket.
2082181-D
