Invacare AVIVA FX User manual

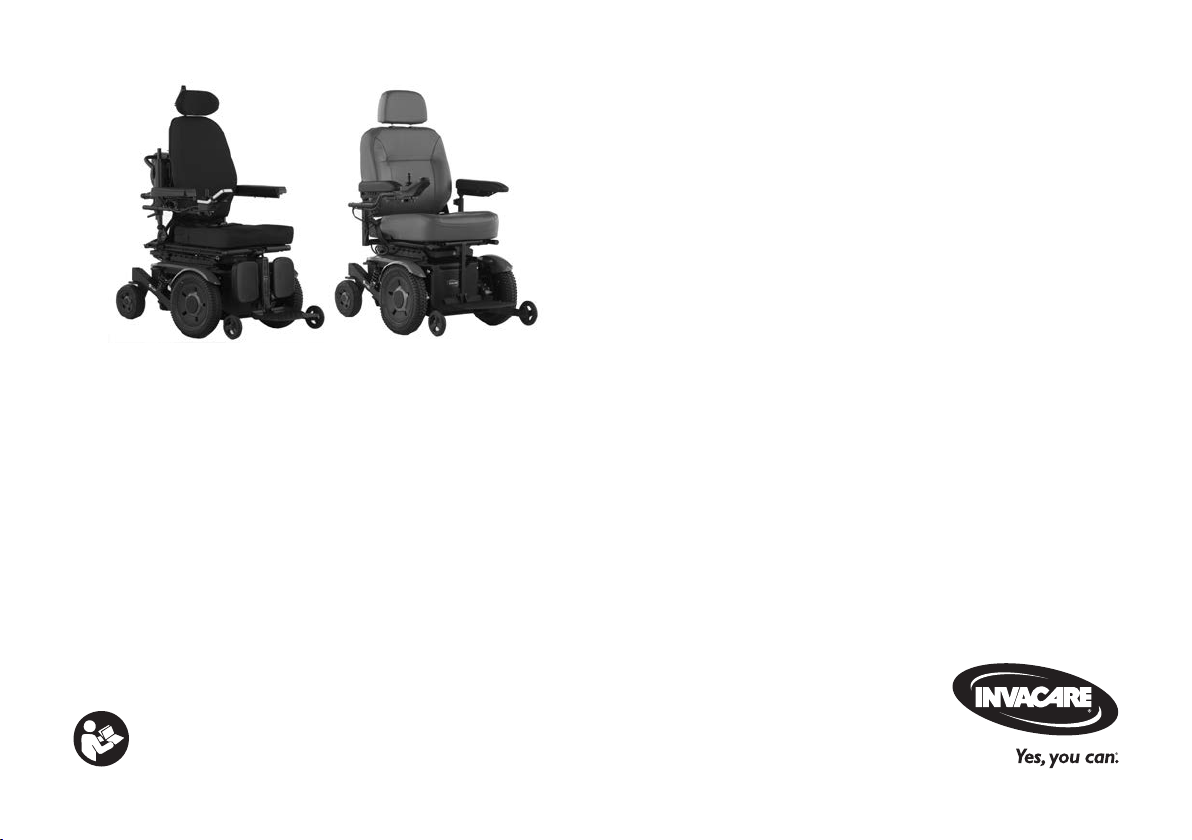

Invacare® AVIVA™ FX
IFX-20R, IFX-20SP, IFX-20MP, IFX-20C
en
Power Wheelchair Base
User Manual
This manual MUST be given to the user of the product.
BEFORE using this product, this manual MUST be read and saved for future reference.

© 2020 Invacare Corporation
All rights reserved. Republication, duplication or modification in whole or in part is prohibited
without prior written permission from Invacare. Trademarks are identified by ™ and ®. All
trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless
otherwise noted.
Invacare reserves the right to alter product specifications without further notice.
Making Life’s Experiences Possible is a registered trademark in the U.S.A.

Contents
1 General 5
1.1 Introduction 5
1.2 Symbols in This Manual 5
1.3 Type of Use 6
1.3.1 Prescription Statement 6
1.4 Intended Use 6
1.5 Indication for Use 6
1.6 Service Life 6
2 Safety 7
2.1 General Guidelines 7
2.1.1 USB Charger 10
2.2 Pinch Points 11
2.3 Footplates and Front Rigging 11
2.4 Storage 12
2.5 Travel Information 12
3 Electromagnetic Compatibility (EMC) Information 15
3.1 Electromagnetic Interference (EMI) From Radio Frequency
Sources 15
3.2 Powered Wheelchair Electromagnetic Interference (EMI) 16
3.3 Powered Wheelchair Electromagnetic Emissions 17
3.4 EMI Tables 18
4 Components 22
4.1 Component Overview 22
4.2 Remotes 23
4.3 The Powered Seating System 23
4.4 Labels on the Product 24
4.4.1 Symbols on the Labels 31
5 Setup 33
5.1 Setup/Delivery Inspection Information 33
6 Usage 34
6.1 Safety and Handling 34
6.1.1 A Note to Wheelchair Attendants 36
6.1.2 Stairways and Escalators 37
6.2 Stability and Balance 38
6.2.1 Driving Surfaces 39
6.2.2 Safety Information When Approaching Obstacles 39
6.2.3 The Correct Way to Approach Obstacles 40
6.2.4 Negotiating Inclines 41
6.2.5 Reaching, Leaning and Bending - Forward 42
6.2.6 Reaching, Leaning and Bending - Backward 43
6.2.7 Transferring To and From Other Seats 43
6.3 Weight Training and Other Activities 44
6.4 Pushing the Mobility Device in Freewheel Mode 45
6.4.1 Disengaging/Engaging the Motor Locks 45
7 Controls System 47
7.1 Electrical 47
7.2 Controls Protection System 47
7.3 Using the Battery Isolation Switch 48
7.4 Batteries 49
7.4.1 General Information on Charging 49
7.4.2 General Instructions on Charging 49
7.4.3 How to Charge the Batteries 50
7.4.4 How to Disconnect the Mobility Device After Charging 52
7.4.5 Storage and Maintenance 52
7.4.6 Using the Proper Batteries 52
7.4.7 Instructions on Using the Batteries 53
7.4.8 Transporting Batteries 55
7.4.9 General Instructions on Handling the Batteries 55

8 Transport - ISO 7176-19 56
8.1 Wheelchair Transport Brackets (TRBKTS) 56
8.2 Transport Ready Option (TRRO) 56
8.3 Transport—General information 57
8.4 Transferring Mobility Device to Vehicle 58
8.5 Use of the Mobility Device as a Seat in a Vehicle 59
8.5.1 How the Mobility Device is Anchored in a Vehicle 60
8.5.2 How The User is Secured Within the Mobility Device 61
8.6 Transporting the Mobility Device Without Occupant 63
9 Maintenance 64
9.1 Wear and Tear Information 64
9.2 User/Attendant Inspection Checklists 64
9.2.1 Inspect/Adjust Weekly 65
9.2.2 Inspect/Adjust Monthly 65
9.2.3 Inspect/Adjust Periodically 65
9.3 Service Inspection Information 66
9.4 Cleaning 66
9.5 Wheels and Tires 67
9.5.1 Damaged Wheels 67
9.5.2 Pneumatic Tires 67
10 Service 69
10.1 Safety Information 69
10.1.1 Set Up 69
10.1.2 Repair and Service Information — Providers and/or
Qualified Technicians 71
10.2 Setup/Delivery Inspection 72
10.3 Service Inspection 73
10.3.1 Six Month Inspection 73
10.3.2 Replace Every 18 Months 75
10.4 Removing/Installing the Shrouds 75
10.4.1 Removing/Installing the Rear Shroud Assembly 75
Removing the Rear Shroud Assembly 75
Installing the Rear Shroud Assembly 76
10.4.2 Removing/Installing the Front Shroud Assembly 77
10.5 Battery Service 78
10.5.1 General Instructions on Handling the Batteries 78
10.5.2 How to Handle Damaged Batteries Correctly 78
10.5.3 General Information on Battery Installation 79
10.5.4 Removing the Batteries from the Wheelchair 80
10.5.5 Installing Batteries into the Wheelchair 82
10.5.6 Replacing Battery Cables 84
10.5.7 Cleaning Battery Terminals 86
10.5.8 Recycling Batteries 87
11 After Use 88
11.1 Reuse 88
11.2 Disposal 88
12 Troubleshooting 89
12.1 Driving Performance 89
12.2 Control System 89
12.2.1 Battery and Charger Tips 91
13 Technical Data 92
13.1 Technical Specifications 92
13.2 ISO 7176-15 Annex A 97
13.2.1 AVIVA FX with LiNX and Captain's Seat 97
13.2.2 AVIVA FX with LiNX and Ultra Low Maxx Seat 100
14 Warranty 103
14.1 Limited Warranty—US 103
14.2 Limited Warranty—Canada 103
14.3 Repair or Replacement 103
14.4 Limitations and Exclusions 104
14.5 Disclaimers 104

1 General
1.1 Introduction
Thank you for choosing an Invacare product.
This user manual contains important information about the
handling of the product. In order to ensure safety when using
the product, read the user manual carefully and follow the
safety instructions.
Before reading this manual, make sure you have the latest
version. You can find the latest version as a pdf on the
Invacare website (see back page of this manual). If you find
that the font size in the print version of the user manual is
difficult to read, you can download the pdf from the
website. The pdf can then be scaled on screen to a font size
that is more comfortable for you.
The decision whether the model is suitable for the user may
only be taken by medical specialists with appropriate expertise.
Some maintenance and settings can be performed by the user
or his/her attendants. Certain adjustments do however require
technical training and may only be carried out by your Invacare
qualified service technician. Refer to the Inspection checklists in
Chapter 9 Maintenance, page 64. Damages and errors caused
by nonobservance of the user manual or as a result of incorrect
maintenance are excluded from all warranties.
For more information about the product, contact your local
Invacare representative. For address and website see the end
of this manual.
1.2 Symbols in This Manual
Signal symbols and/or words are used in this manual and apply
to hazards or unsafe practices which could result in personal
injury or property damage. See the information below for
definitions of the signal words.
DANGER!
-Danger indicates a imminently hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING!
-Warning indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION!
-Caution indicates a potentially hazardous situation
which, if not avoided, may result in property damage
or minor injury or both.
IMPORTANT
-Indicates a hazardous situation that could result in
damage to property if it is not avoided.
Gives useful tips, recommendations and information
for efficient, trouble-free use.
60101916-A 5
1 General

Identifies required tools, components and items which
are needed to carry out certain work.
Battery Recycling Symbol — Lead Acid
Recycle this product. Refer to Disposal and Recycling
sections.
Manufacturer
1.3 Type of Use
1.3.1 Prescription Statement
Per 21 CFR 801.109(b)(1) the device is labeled for
prescription use.
CAUTION!
Federal Law (USA) restricts this device to sale by or on
the order of a licensed physician.
1.4 Intended Use
The intended use of the device is to provide mobility and
positioning to persons limited to a sitting position.
1.5 Indication for Use
The Invacare® AVIVA FX Power Wheelchair is indicated to
provide mobility and positioning to persons limited to a sitting
position.
1.6 Service Life
The expected service life is five years, presuming that
the product is used daily and in accordance with
safety instructions, maintenance instructions and intended
use, stated in this manual.
6 60101916-A
Invacare® AVIVA™ FX

2 Safety
2.1 General Guidelines
The safety section contains important information for the safe
operation and use of this product.
WARNING!
Risk of Death, Injury or Damage
Improper use of this product may cause injury
or damage.
-If you are unable to understand the warnings,
cautions or instructions, contact a health care
professional or Provider before attempting to use
this equipment.
-DO NOT use this product or any available optional
equipment without first completely reading and
understanding these instructions and any additional
instructional material such as user manual, service
manuals or instruction sheets supplied with this
product or optional equipment.
WARNING!
Risk of Death, Injury or Damage
Continued use of the product with damaged parts
could lead to the product malfunctioning, causing
injury to the user and/or caregiver.
-Check all product components and carton for
damage and test components before use. In case of
damage or if the product is not working properly,
stop using the product and contact a qualified
technician or Invacare for repair.
WARNING!
Risk of Serious Injury or Damage
Use of unapproved accessories may result in serious
injury or damage.
-Invacare products are specifically designed and
manufactured for use in conjunction with
approved Invacare accessories. Unapproved
accessories have not been tested by Invacare
for use with Invacare products.
-DO NOT use unapproved accessories.
-To obtain approved Invacare accessories, contact
Invacare by phone or at www.invacare.com.
60101916-A 7
2 Safety

DANGER!
Risk of Death, Serious Injury, or Damage
Use of incorrect or improper replacement (service)
parts may cause death, serious injury, or damage.
-Replacement parts MUST match original
Invacare parts.
-ALWAYS provide the wheelchair serial number to
assist in ordering the correct replacement parts.
WARNING!
Risk of Serious Injury or Damage
Hardware that is loosely secured could cause loss of
stability resulting in serious injury or damage.
-After ANY adjustments, repair or service and before
use, make sure that all attaching hardware is
tightened securely.
WARNING!
Risk of Serious Injury or Damage
Loss of power due to loose electrical connections
could cause the wheelchair to suddenly stop resulting
in serious injury or damage.
-ALWAYS ensure that all electrical connections are
tightly connected so they don't vibrate loose.
DANGER!
Risk of Death, Serious Injury, or Damage
Lighted cigarettes dropped onto an upholstered
seating system can cause a fire resulting in death,
serious injury, or damage.
Wheelchair occupants are at particular risk of death or
serious injury from these fires and resulting fumes
because they may not have the ability to move away
from the wheelchair.
-DO NOT smoke while using this wheelchair.
WARNING!
Risk of Injury, Damage or Death
Improper monitoring or maintenance may cause
injury, damage or death due to ingestion or choking
on parts or materials.
-Closely supervise children, pets, or people with
physical/mental disabilities.
WARNING!
Risk of Injury
Operating the wheelchair with depleted batteries may
lead to stranding of the wheelchair user.
-ALWAYS check the battery charge level before using
the wheelchair.
-Before using the power wheelchair, charge the
batteries following the guidelines in this user manual.
-DO NOT use the wheelchair with depleted batteries.
8 60101916-A
Invacare® AVIVA™ FX

WARNING!
Risk of Injury or Damage
Improper mounting or maintenance of the Sip-n-Puff
control including the mouthpiece and breath tube
may cause injury or damage.
Water inside the Sip-n-Puff interface module may
cause damage to the unit.
Excessive saliva residue in the mouthpiece/straw can
reduce performance.
Blockages, a clogged saliva trap or air leaks in the
system may cause Sip-n-Puff not to function properly.
-Ensure moving parts of the wheelchair, including the
operation of powered seating, DO NOT pinch or
damage the Sip-n-Puff tubing.
-Saliva trap MUST be installed to reduce risk of water
or saliva entering the Sip-n-Puff interface module.
-Occasionally flush the mouthpiece to remove
saliva residue.
-The mouthpiece/straw MUST be completely dry
before installation.
-If Sip-n-Puff does not function properly, inspect
system for blockages, clogged saliva trap or air leaks.
As necessary, replace mouthpiece, breath tube and
saliva trap.
Contact your Invacare provider for more
information about maintaining and
troubleshooting the Sip-n-Puff system.
WARNING!
Risk of Injury, Damage or Death
Exposure to liquids may cause injury, damage
or death.
-DO NOT expose electrical connections to sources of
liquid or dampness. This includes, but is not limited
to, water, body fluids or cleaning agents.
-DO NOT expose battery charger or other accessories
to sources of liquid or dampness.
-Wheelchairs that are used by incontinent
users and/or are frequently exposed to
water/liquids may require replacement and
inspection of electrical components more
frequently than normal schedule dictates.
-Electrical components damaged by corrosion MUST
be replaced immediately.
60101916-A 9
2 Safety

CAUTION!
Risk of Damage
Operating the wheelchair in rain or dampness may
cause the wheelchair to malfunction electrically and
mechanically, may cause the wheelchair to
prematurely rust or may damage the upholstery.
-DO NOT leave wheelchair in a rain storm of any kind.
-DO NOT use wheelchair in a shower.
-DO NOT leave wheelchair in a damp area for any
length of time.
-Check to ensure that the battery covers are secured
in place, joystick boot is NOT torn or cracked where
water can enter and that all electrical connections
are secure at all times. DO NOT use if the joystick
boot is torn or cracked. If the joystick boot becomes
torn or cracked, replace IMMEDIATELY.
WARNING!
Risk of Injury or Damage
Use of the power wheelchair outside of specified
operating conditions may cause unintended or erratic
movement. This may include, but is not limited to
impacts and sudden stops. To avoid injury or damage:
-Only use the power wheelchair in the operating
conditions specified in the Technical Data chapter of
this manual.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS
SUBJECT TO CHANGE WITHOUT NOTICE.
As a manufacturer of wheelchairs, Invacare endeavors
to supply a wide variety of wheelchairs to meet many
needs of the end user. However, final selection of the
type of wheelchair to be used by an individual rests
solely with the user and his/her healthcare
professional capable of making such a selection.
Invacare recommends working with a qualified rehab
technology provider, such as an ATP, (Assistive
Technology Professional).
2.1.1 USB Charger
WARNING!
Risk of Injury
If you use mobile phone while operating
mobility device, accidents could lead to injury
or property damage.
-Only use mobile phone in conjunction with
hands-free equipment to operate mobility
device while driving.
Risk of property damage
Handle USB charger with care, otherwise damage
could occur.
-Always keep the USB charger dry. If USB charger gets
wet, let USB charger dry before use.
-Do not use or store USB charger in dusty or
dirty areas.
-Do not insert sharp objects into the USB ports.
10 60101916-A
Invacare® AVIVA™ FX

WARNING!
Risk of Injury or Damage
Erratic or unintended movement of the wheelchair
may occur if wireless transmitters are connected to
the wheelchair. To avoid injury or damage:
-DO NOT use the USB charger connector as a wireless
transmitter.
-The USB Port is NOT intended for communication
purposes or to upload information to the device.
-Only use the USB charger for the purposes described
in the remote manual.
2.2 Pinch Points
WARNING!
Risk of Minor to Serious Injury
Pinch points can cause minor to serious injury.
-Be mindful of potential pinch points and use caution
when using this product.
WARNING!
Risk of Injury
Pinch points can cause injury.

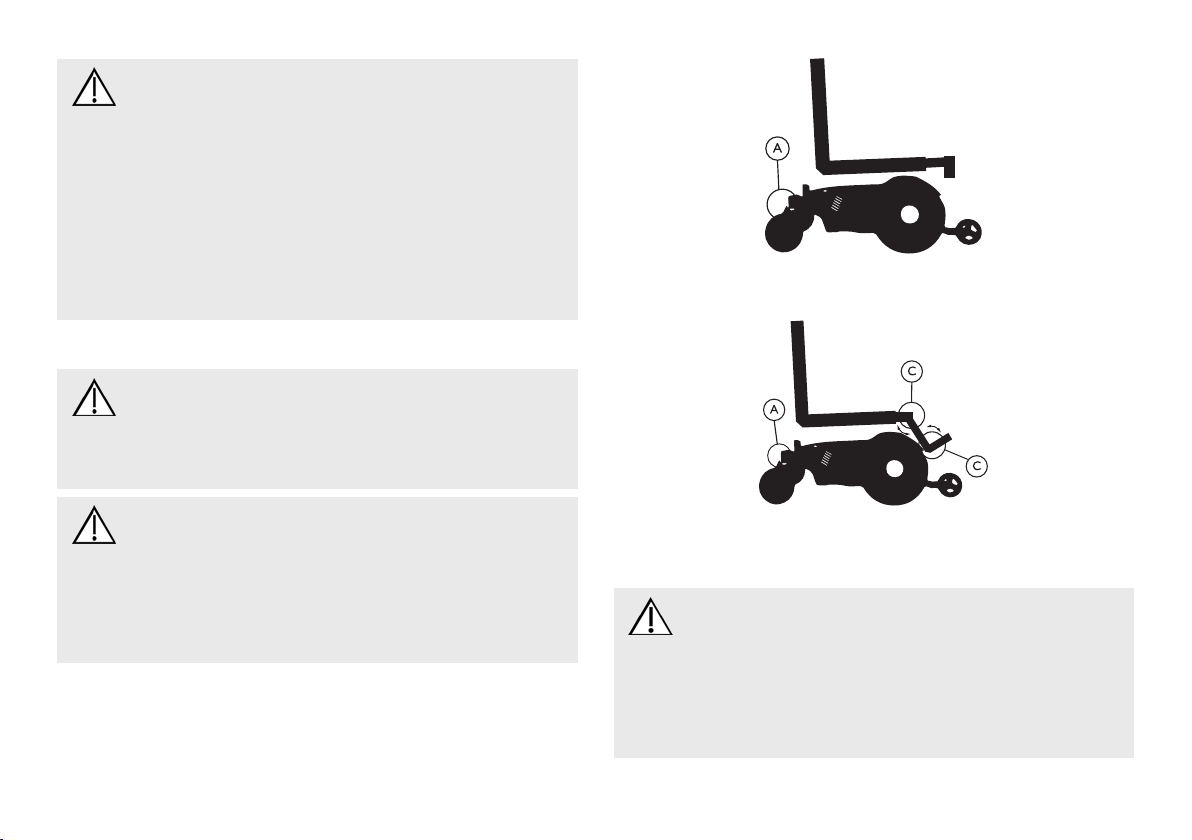

-Be aware that a pinch point A exists between the
head tube cap and rear swingarm.
-Be aware that a pinch point C may occur when
rotating the center mount front rigging assembly.
Fig. 2-1 Pinch Points — Head Tube Cap/Walking Beam and
Telescoping Tube
Fig. 2-2 Pinch Points — Center Mount Front Rigging
2.3 Footplates and Front Rigging
WARNING!
Risk of Serious Injury or Damage
Operating the wheelchair with a clearance of
less than 75 mm (3 inches) between the
footplates and the ground/floor may cause
serious injury or property damage.
-ALWAYS maintain a minimum of 75 mm (3 inches)
60101916-A 11
2 Safety

between the bottom of the footplates and
ground/floor to ensure proper clearance while the
wheelchair is in motion. If necessary, adjust the
footplates height to achieve proper clearance. After
footplates height adjustment, if the wheelchair dips
forward and the footplates touch the ground while in
motion, please contact your provider for an
inspection and avoid use of the wheelchair if
possible.
2.4 Storage
WARNING!
Risk of Injury, Damage or Death
Storage or use near heat sources and combustible
products may result in injury or damage.
-DO NOT store or use wheelchair near open flames or
other heat sources.
-DO NOT store or use wheelchair near
combustible products.
2.5 Travel Information
This section contains information useful when making travel
arrangements for your power wheelchair.
Before Traveling
Contact your travel carrier and/or tour guide about your travel
plans and provide information about your intent to travel with
your power wheelchair. The carrier will let you know of any
additional requirements.
Battery Information
Batteries
lNumber: 2
lType: GP24
lChemistry: Sealed VRLA Gel
lOperating Voltage: 24V nominal
(2 x 12 V)
lGP24 Battery weight:
approximately 51.5 lbs (23.4 kg)
per battery
lGP24 Amp-Hour Rating: 73.6 Ah
(C20) (63 Ah (C5))
lCircuit breaker: 63 Amps, 5 KA
rated break capacity
Dimension Information
Overall height (with
elevate and
headrest)
l43 in (1100 mm)
Maximum base
width l24.25 in (616 mm)
12 60101916-A
Invacare® AVIVA™ FX

Maximum length
(including center-
mounted front
rigging)
l51.4 in (1305 mm) at 0°
Weight Information
Total mass 379.2–434.3 lb (172–197 kg)
Lifting Information
Use the transport brackets C for lifting/handhold locations.
Drive Disconnect Information
To push the power wheelchair, ensure it is off, then rotate the
motor locks B to engage/disengage the motor:
lDisengage (PUSH) - Rotate the motor locks UP to disengage
the motors and push the wheelchair.
lEngage (DRIVE) - Rotate the motor locks DOWN to engage
the motors and drive the wheelchair.
Power Disconnect Information
60101916-A 13
2 Safety

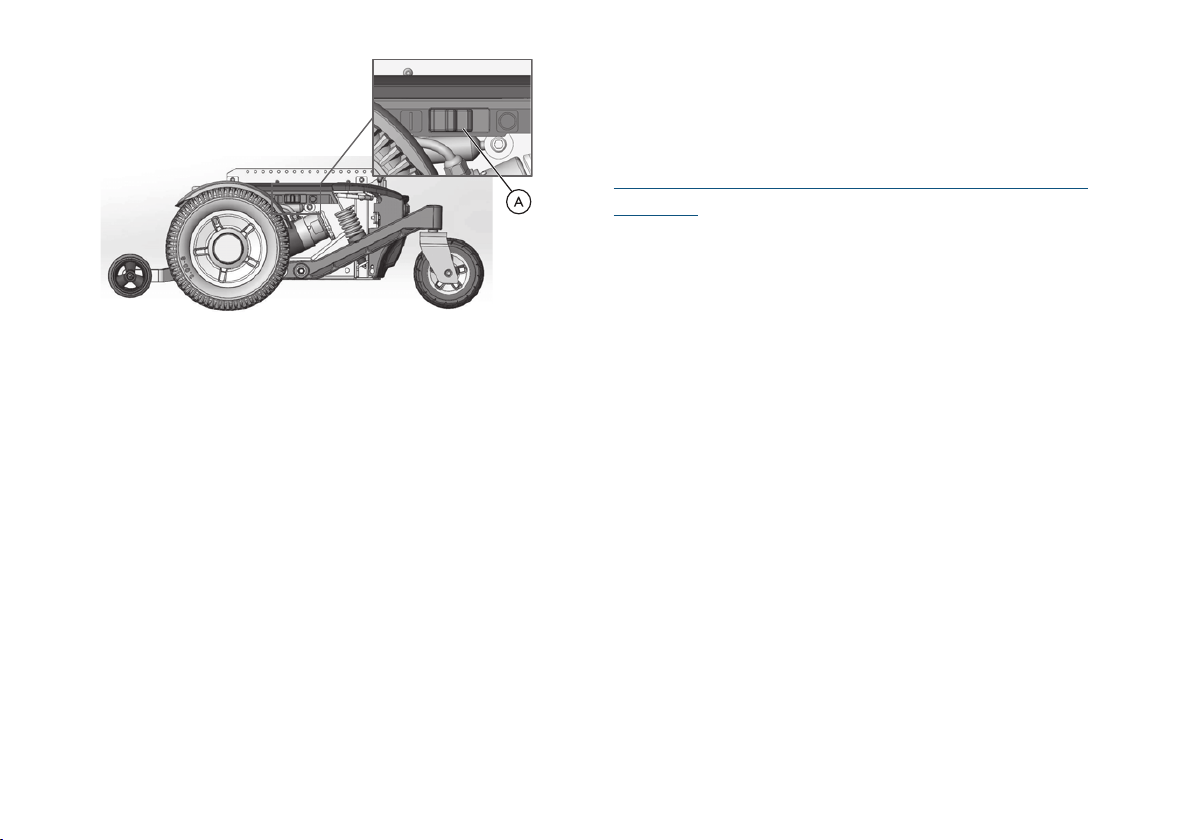

Use the battery isolation switch A to disconnect the power.
lDisconnect — Slide the switch towards the BACK of the
wheelchair. The power will turn off.
lConnect — Slide the switch towards the FRONT of the
wheelchair. The power will turn on.
Damage Prevention
Secure or remove fragile components prior to transporting the
wheelchair. The wheelchair controls can often be folded in
towards the center of the chair. Wrap sensitive components
(electronics, etc.) in soft, shock-absorbing material (foam,
bubble wrap, towel, etc.). Ensure cables are secured.
Reference Information
U.S. Air Carrier Access Act — 49 USC § 41705
14 CFR Part 382
U. S. Department of Transportation — 49 CFR Parts
171, 172, 173, 175
General information regarding Passengers with Disabilities may
be found at
https://www.transportation.gov/airconsumer/passengers-
disabilities
14 60101916-A
Invacare® AVIVA™ FX

3 Electromagnetic Compatibility (EMC)
Information
3.1 Electromagnetic Interference (EMI) From Radio
Frequency Sources
Powered wheelchairs and motorized scooters (in this text, both
will be referred to as mobility devices) may be susceptible to
electromagnetic interference (EMI), which is interfering
electromagnetic energy (EM) emitted from sources such as
radio stations, TV stations, amateur radio (HAM) transmitters,
two way radios, and cellular phones. The interference (from
radio wave sources) can cause the mobility devices to release
its brakes, move by itself, or move in unintended directions. It
can also permanently damage the mobility devices control
system. The intensity of the interfering EM energy can be
measured in volts per meter (V/m). Each powered mobility
device can resist EMI up to a certain intensity. This is called its
"immunity level." The higher the immunity level, the greater
the protection. At this time, current technology is capable of
achieving at least a 20 V/m immunity level, which would
provide useful protection from the more common sources of
radiated EMI.
There are a number of sources of relatively intense
electromagnetic fields in the everyday environment. Some of
these sources are obvious and easy to avoid. Others are not
apparent and exposure is unavoidable. However, we believe
that by following the warnings listed below, your risk to EMI will
be minimized.
The sources of radiated EMI can be broadly classified
into three types:
1. Hand-held Portable transceivers (transmitters/receivers
with the antenna mounted directly on the transmitting
unit. Examples include: citizens band (CB) radios, “walkie
talkie”, security, fire and police transceivers, cellular
telephones, and other personal communication devices).
Some cellular telephones and similar devices
transmit signals while they are ON, even when
not being used.
2. Medium-range mobile transceivers, such as those used in
police cars, fire trucks, ambulances and taxis. These usually
have the antenna mounted on the outside of the vehicle.
3. Long-range transmitters and transceivers, such as
commercial broadcast transmitters (radio and TV
broadcast antenna towers) and amateur (HAM) radios.
60101916-A 15
3 Electromagnetic Compatibility (EMC) Information

Other types of handheld devices, such as cordless
phones, laptop computers, AM/FM radios, TV sets, CD
players, cassette players, and small appliances, such as
electric shavers and hair dryers, so far as we know, are
not likely to cause EMI problems to your powered
mobility device.
3.2 Powered Wheelchair Electromagnetic
Interference (EMI)
Because EM energy rapidly becomes more intense as one
moves closer to the transmitting antenna (source), the EM fields
from handheld radio wave sources (transceivers) are of special
concern. It is possible to unintentionally bring high levels of EM
energy very close to the mobility devices control system while
using these devices. This can affect the mobility device’s
movement and braking. Therefore, the warnings listed below
are recommended to prevent possible interference with the
control system of the mobility device.
Electromagnetic interference (EMI) from sources such as radio
and TV stations, amateur radio (HAM) transmitters, two-way
radios, and cellular phones can affect powered wheelchairs and
motorized scooters.
FOLLOWING THE WARNINGS LISTED BELOW SHOULD
REDUCE THE CHANCE OF UNINTENDED BRAKE RELEASE
OR POWERED WHEELCHAIR MOVEMENT WHICH COULD
RESULT IN SERIOUS INJURY.
WARNING!
-DO NOT operate handheld transceivers (transmitters
receivers), such as citizens band (CB) radios, or turn
ON personal communication devices, such as cellular
phones, while the mobility device is turned ON;
-Be aware of nearby transmitters, such as radio or TV
stations, and try to avoid coming close to them;
-If unintended movement or brake release occurs,
turn the mobility device OFF as soon as it is safe;
-Be aware that adding accessories or components, or
modifying the mobility device, may make it more
susceptible to EMI (Note: There is no easy way to
evaluate their effect on the overall immunity of the
mobility device); and
-Report all incidents of unintended movement or
brake release to Invacare and note whether there is
a source of EMI nearby.
16 60101916-A
Invacare® AVIVA™ FX

WARNING!
Important Information
-20 volts per meter (V/m) is a generally achievable
and useful immunity level against EMI (as of May
1994) (the higher the level, the greater the
protection);
-This device has been tested to a radiated immunity
level of 20 volts per meter.
-The immunity level of the product is unknown.
-Modification of any kind to the electronics of this
mobility device as manufactured by Invacare may
adversely affect the EMI immunity levels.
3.3 Powered Wheelchair Electromagnetic
Emissions
CAUTION!
Risk of Injury or Damage
EMC interference affecting other products may result
in injury or damage.
To avoid impacting the operation and function of
other products:
-Products not specified by Invacare that may be used
on or near the mobility device may be impacted by
emissions from this product if they have a sensitivity
level that is lower than the recognized standard and
provided by this mobility device. Refer to the
manufacturer specifications for any electronic device
BEFORE use near this product to determine its level
of immunity and potential risk.
60101916-A 17
3 Electromagnetic Compatibility (EMC) Information

3.4 EMI Tables
Guidance and manufacturer’s declaration – electromagnetic immunity
The AVIVA FX Power Wheelchair is intended for use in the electromagnetic environment specified below. The customer or the user of the AVIVA
FX Power Wheelchair should assure that it is used in such an environment.
IMMUNITY test IEC 60601 test level Compliance level Electromagnetic environment – guidance
Electrostatic discharge (ESD)
IEC 61000-4-2
± 6 kV contact ± 8 kV air ISO 7176-21: +/- 6
kV contact, +/- 8 kV
air
Floors should be wood, concrete or ceramic tile. If
floors are covered with synthetic material, the
relative humidity should be at least 30 %.
Electrical fast
transient/burst IEC 61000-4-
4
± 2 kV for power supply lines ± 1 kV for
input/output
+/-1 kV Mains power quality should be that of a typical
commercial or hospital environment.
Surge IEC 61000-4-5 ± 1 kV line(s) to line(s) ± 2 kV line(s) to
earth
+/-1 kV line to line Mains power quality should be that of a typical
commercial or hospital environment.
Voltage dips, short
interruptions and voltage
variations on power supply
input lines
<5 % UT
(>95 % dip in UT) for 0,5 cycle
Mains power quality should be that of a typical
commercial or hospital environment. If the user of
the AVIVA FX Power Wheelchair Battery Charger
requires continued operation during power mains
interruptions, it is recommended that the AVIVA
FX Power Wheelchair Battery Charger be powered
from an uninterruptible power supply or battery.
IEC 61000-4-11 40 % UT
(60 % dip in UT) for 5 cycles
40 % UT
(60 % dip in UT) for
5 cycles
70 % UT
(30 % dip in UT) for 25 cycles
70 % UT
(30 % dip in UT) for
25 cycles
<5 % UT
(>95 % dip in UT) for 5 s
<5 % UT
(>95 % dip in UT) for
5 s
18 60101916-A
Invacare® AVIVA™ FX

Power frequency (50/60 Hz)
magnetic field IEC 61000-4-
8
3 A/m 30 A/m Power frequency magnetic fields should be at
levels characteristic of a typical location in a
typical commercial or hospital environment.
NOTE: UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer’s declaration – electromagnetic immunity
The AVIVA FX Power Wheelchair is intended for use in the electromagnetic environment specified below. The customer or the user of the AVIVA
FX Power Wheelchair should assure that it is used in such an environment.
IMMUNITY test IEC 60601 TEST
LEVEL
Compliance level Electromagnetic environment – guidance
Conducted RF
IEC 61000-4-6
3 Vrms
150 kHz to 80 MHz 3 Vrms
Portable and mobile RF communications equipment should be
used no closer to any part of the AVIVA FX Power Wheelchair,
including cables, than the recommended separation distance
calculated from the equation applicable to the frequency of the
transmitter.
Radiated RF IEC
61000-4-3
3 V/m
80 MHz to 2,5 GHz
20 V/m
26 MHz to 2.5 GHz per
ISO 7176-21

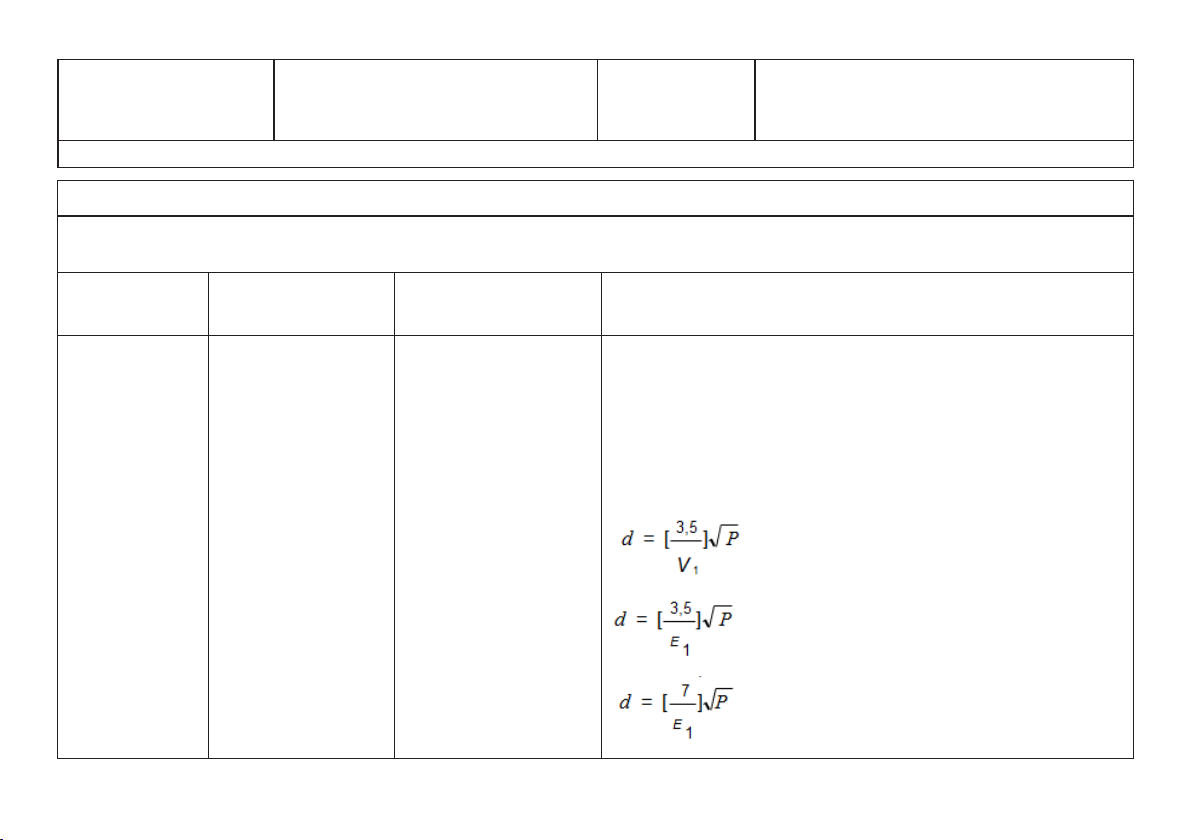

Recommended separation distance
(3.5/ 3 V/m = 1.667)
26 MHz to 800 MHz (3.5/ 20 V/m = 0.175)
800 MHz to 2,5 GHz (7/ 20V/m = 0.35)
60101916-A 19
3 Electromagnetic Compatibility (EMC) Information

where P is the maximum output power rating of the transmitter
in watts (W) according to the transmitter manufacturer and dis
the recommended separation distance in metres (m).
Field strengths from fixed RF transmitters, as deter- mined by an
electromagnetic site survey,a should be less than the
compliance level in each frequency range.b
Interference may occur in the vicinity of equipment marked
with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from
structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and landmobile radios,
amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the
electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured
field strength in the location in which the AVIVA FX Power Wheelchair is used exceeds the applicable RF compliance level above,
the AVIVA FX Power Wheelchair should be observed to verify normal operation. If abnormal performance is observed, additional
measures may be necessary, such as re-orienting or relocating the AVIVA FX Power Wheelchair.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [V1] V/m.
Recommended separation distances between portable and mobile RF communications equipment and the AVIVA FX Power
Wheelchair
The AVIVA FX Power Wheelchair is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The
20 60101916-A
Invacare® AVIVA™ FX
