inVENTer sMove S4 Long User manual

sMove
s4 • s8
Installation and operating instructions

2
sMove controller •Installation and operating manual
Trademarks, copyrights and property rights
inVENTer®is a registered trademark of inVENTer GmbH..
The copyright of this document remains with the manufacturer.
Rights to all contents and images: © inVENTer GmbH 2014-19.
All trademarks used in this document are the property of their respective
manufacturers and are hereby acknowledged.
Disclaimer
This documentation is a translation of the original German operating in-
structions. After completion of the installation it must be given to the user
(tenant, owner, property management, etc.). The content of this docu-
mentation has been checked for compliance with the described hard-
ware and software. Nevertheless deviations may still occur, therefore
no guarantee of compliance can be provided. This documentation de-
scribes the functionality of the standard scope. The documentation does
not purport to cover all details on all types of the product and cannot
cover every conceivable scenario for operation, cleaning and maintenance.
The illustrations in this document may di󰀨er slightly from the design of the
product that you have purchased. The same functionality is ensured despite
any design deviations.
This documentation is updated regularly. Necessary corrections and ap-
propriate supplements are always included in subsequent editions.
You can nd the latest version at www.inventer.eu/downloads
Version 2.0

3
sMove controller •Installation and operation manual
Inhaltsverzeichnis
1 User and safety instructions .................................................................................................. 4
1.1 User information............................................................................................................. 4
1.2 Safety instructions.......................................................................................................... 4
2 System overview .................................................................................................................... 6
2.1 Construction................................................................................................................... 7
2.2 Function ......................................................................................................................... 8
2.3 Design and features....................................................................................................... 10
3 Electrical connections ............................................................................................................ 11
3.1 Controller sMove s4 ...................................................................................................... 12
3.2 Controller sMove s8 ....................................................................................................... 14
3.3 Terminal assignments .................................................................................................... 16
3.4 Jumper ........................................................................................................................... 17
4 Preparing for installation ........................................................................................................ 18
4.1 Mounting instructions and installation locations............................................................. 18
4.2 Dimensions .................................................................................................................... 18
4.3 Dimensioned drawings................................................................................................... 19
5 Installation and assembly....................................................................................................... 21
5.1 Check the scope of supply............................................................................................. 21
5.2 Fitting the wall openings................................................................................................. 22
5.3 Laying the cables ........................................................................................................... 23
5.4 sMove s4 / s8 controller: Installation with cabinted mounted PSU ................................ 24
5.5 sMove s4 controller: Installation with ush-mounted switching PSU ............................. 26
5.6 sMove s8 controller: Installation with ush-mounted switching PSU ............................. 27
5.7 Installing the operating unit ............................................................................................ 30
6 Operation.................................................................................................................................. 33
6.1 First activation................................................................................................................ 35
6.2 Setting heat recovery and continuous ventilation modes............................................... 36
6.3 Pause function ............................................................................................................... 37
6.4 Set output level .............................................................................................................. 39
6.5 Conrm lter change...................................................................................................... 40
6.6 View hours run ............................................................................................................... 41
7 Cleaning and maintenance ..................................................................................................... 42
8 Specications .......................................................................................................................... 43
9 Scope of supply....................................................................................................................... 43
10 Accessories and spare parts.................................................................................................. 44
11 Troubleshooting and disposal ............................................................................................... 45
12 Guarantee and warranty ......................................................................................................... 46
13 Service...................................................................................................................................... 46

4
USER AND SAFETY INSTRUCTIONS
sMove controller •Installation and operating manual
1 User and safety instructions
1.1 User information
Concept of safety instructions
The safety and warning instructions in these operating instructions have a uniform structure
and are marked with a symbol on the left side of the instruction. A signal word in front of the text
also indicates the hazard level. If several hazard levels exist, the highest level safety instruction
is always used.
The safety and warning instructions contain the following information.
SIGNAL WORD: Type and origin of the hazard. Possible consequences of the hazard!
•Measures to avoid the hazard.
The signal word indicates the severity of the potential hazard unless the preventative measures
are taken.
DANGER indicates imminent danger of serious injury or death.
CAUTION indicates possible danger of minor/signicant injury.
NOTE indicates: Imminent or possible damage to property due to an adverse event/state.
If you see this sign, ensure you observe the described measures to prevent possible hazards
and/or damage.
Other symbols and notices used in this documentation
In addition to the safety instructions, the following symbols are used:
A TIP symbol indicates practical and useful tips for handling the sMove controller.
A tool symbol before an installation sequence lists any additional tools and materials
required for the described task.
► Action required: this requires the user to perform a specic action.
 Check the results: this requires you to check the results of the action you have performed.
The graphics in section 6 show the interior wall. The installation displayed in the documentation
is based on the ush-mounted box. Follow the same procedure for the plasterboard wall box.
1.2 Safety instructions
These installation and operating instructions are part of the ventilation unit and must be perma-
nently available. When handing the equipment/system to a third party, the instructions must be
handed over also. Before performing any work on the system, read the installation and oper-
ating instructions carefully and observe all notices that refer to the process in this section. Also
note the safety instructions that precede the described handling instructions. Non-observance
of safety warnings could result in injury and/or property damage.

5
USER AND SAFETY INSTRUCTIONS
sMove controller •Installation and operation manual
Intended use
The sMove controller is used to control inVENTer®ventilation systems with heat recovery.
• When installing the controller, ensure compliance with the current building regulations, re
protection regulations and accident prevention regulations of the relevant professional asso-
ciation.
• Use the controller exclusively for the applications that are described in this documentation
and only in conjunction with components that are recommended, authorised and described
by inVENTer GmbH in this documentation. Changes or modications to the controller are not
permitted.
• Trouble-free and safe operation of the controller depends upon proper transportation, proper
storage and installation as well as careful operation and maintenance. These instructions are
part of the controller and must be permanently available.
• These installation instructions are only valid in conjunction with the installation and operat-
ing instructions for the corresponding ventilation unit of the iV-Smart+, iV14-Zero, iV-Light,
iV-Compact, iV25 oder iV-Twin+ product ranges, as well as the USTS wall vent ventilation
system, which it supplements. All legal notices that are listed in the documentation, also apply
to this document without restriction.
• DANGER: Installation of the sMove controller may only be carried out by qualied
electricians.
• DANGER: when laying the power supply cable, observe the requirements of protection
class II. Do not lay live cables. The mains power supply must correspond to the specications
on the device information plate. Before working on electrical installations, disconnect all af-
fected equipment from the power supply. Connect all controllers for one ventilation systemon
the same circuit breaker.
• CAUTION: Operation and/or maintenance of the ventilation unit and its controllers must not
be carried out by children and/or persons who are not fully capable of doing so due to their
physical, sensory or mental capabilities, inexperience or lack of knowledge. Young children
should be supervised to ensure that they do not play with the device.
• NOTE: Lay cables without a plaster-resistant cable sheath inside an empty conduit to avoid
damage to property.
If your controller has a defect, contact your nearest distributor or our technical service.
Any kind of use other than the intended use will exclude all liability claims.
Improper use
The controller is exclusively designed to control the ventilation units mentioned in the intended
use section. Any other use is strictly prohibited.
Qualied personnel
The sMove controller complies with the applicable technical safety requirements and standards
for electrical equipment. It may only be set up and operated in conjunction with this docu-
mentation. Installation, electrical connection and commissioning of the controller may only be
performed by qualied personnel.
Qualied personnel within the meaning of the safety notices in this documentation are persons
who are authorised to install, put it into operation and identify equipment, systems and circuits
in accordance with established safety procedures.

6
SYSTEM OVERVIEW
sMove controller •Installation and operating manual
2 System overview
The sMove controller is an electronic programming unit for controlling inVENTer®
ventilation devices with heat recovery. It is available in the sMove s4 and sMove s8 versions.
Each sMove controller can control the following maximum number of ventilation units:
Ventilation units
sMove s4 sMove s8
iV-Smart+ / iV14-Zero /
iV-Light / iV-Compact
4 ventilation units 8 ventilation units
iV-Twin+ / iV25 2 ventilation units 4 ventilation units
It is characterised by a timeless and slim design, easy installation and a simple touch-based
operating concept.
The controller is operated by touching the capacitive buttons and the slide controller on the
control panel. The control panel also serves as a display surface due to integrated illuminated
displays.
The sMove can be used either as a base module or with additional sensors connected.
When used as a basic control unit, it is possible to select the operating mode of the ventilation
unit and to set the air volume ow, either continuously or in 4 predened steps.
The connected ventilation unitss can be controlled in the following modes:
• Heat recovery • Pause function
• Continuous ventilation • O󰀨 (only sMove standard version)
An external interface extends the functional scope by connecting a potential-free switching
contact: hygrostat, CO2sensor, VOC sensor1) (NO) or pressure switch (NC) or integration into
an existing home automation system via an analogue input.
Optionally, a CO2sensor and a humidistat can be purchased as an accessory from inVENTer
GmbH.
Features
• available with ush-mounted switching power supply or cabinet switching power supply.
• available in Standard or Flat version.
1) VOC = Volatile organic compounds

2.1 Construction
The sMove controller consists of a base plate for mounting on the inner wall and an operating
unit. The operating unit contains the electronics of the sMove and the control panel (acrylic
glass cover). With its integrated indicator lights, the control panel also serves as a display
interface for the user.

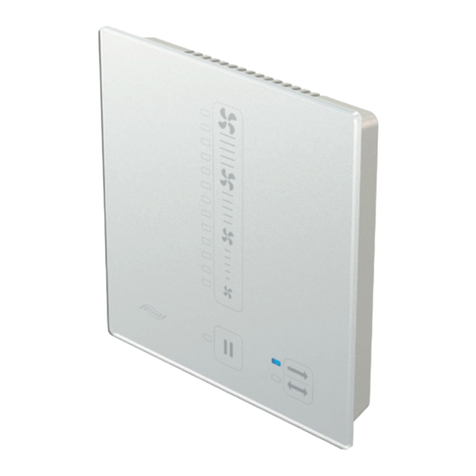

Figure 1: Front view of sMove controller operating unit
7
SYSTEM OVERVIEW
sMove controller •Installation and operation manual
Models
The controller sMove is available in standard and at versions.
Flat version: the controller switches o󰀨 the ventilation device for one hour when in pause
mode. Subsequently, the ventilation device continues to work in heat recovery mode at the
lowest output level.
The use of the at version is recommended in areas where it is desirable not to turn o󰀨 the
ventilation system in order to maintain humidity levels.
Standard version: in addition to pause mode, the standard version provides the option to
switch o󰀨 the ventilation device completely.
Die Leistungsstufen des Lüftungsgerätes lassen sich in allen Betriebsarten einstellen.
Output level Flow rate (%)1)
Standard version Flat version
1 25
2 35
3 50
4 100
1) The gures refer to the paired operation of two ventilation units.
1 Holding plate
2 Operating unit
3 Acrylic glass cover (control panel)
4 Mode button
5 Pause/Off button
6 Slide control for output levels 1 – 4
1
3
4
6
2
5

8
SYSTEM OVERVIEW
sMove controller •Installation and operating manual
2.2 Function
Regler sMove ohne angeschlossene Schnittstelle
sMove controller without connected interface
If the external interface is not connected, the mode and the intensity of the air ow can be set
on the sMove controller.
The heat recovery and ventilation modes can easily be set by touching the Mode button. The
OFF mode or the pause function can be selected by touching the O󰀨/Pause button.
The intensity of the ventilation can be adjusted continuously by moving the slide control, or in
four steps by touching the fan icons on the slide control. The fan symbols on the slide control
serve as a guide.
Output level Symbol Flow rate (%)
1 25
2 35
3 50
not specied LED 10 70
4 100
The new setting takes e󰀨ect immediately, so that adjustments can be made purely by listening
to changes in the sound level.
An indicator light next to the button indicates the selected mode. The position of the illuminated
display on the left side of the slide control indicates the currently set output level.
sMove controller with connected interface (advanced features)
The external interface is a bi-functional port on the back of the operating unit. It enables the
connection of a sensor with a potential-free switching contact (NO/NC) or the use of an
analogue input to integrate the ventilation system into an existing home automation system.
Connecting the external interface changes the functionality of your controller as follows:
A. Interface as external switching contact (sensors)
The sensor used must have a potential-free relay contact. The function settings of the interface
are adjusted via the jumper on the back of the operating unit (4.4: Electrical connection).
The connection of a pressure monitor is necessary in rooms with air-ventilated replaces.
Please consult a chimney sweep/construction planner about this.
If the interface is used for a pressure switch, the air pressure in the interior is measured contin-
uously. Once the air pressure exceeds or falls below the safety threshold, the sensor reacts and
turns o󰀨 all connected ventilation unitss. The function remains active until the air pressure falls
below the safety-relevant limit value again.

9
SYSTEM OVERVIEW
sMove controller •Installation and operation manual
If the external interface is used to connect a
• CO2sensor, the CO2content in the interior is measured continuously.
• hygrostat, the relative humidity in the interior is measured continuously.
• VOC1) sensor, the composition of the air and the resulting air quality are measured continu-
ously.
A CO2sensor and a hygrostat are optionally available as accessories.
Once the respective value exceeds the upper limit or falls below the lower limit, the sensor
reacts and switches all connected ventilation units to ventilation mode, output level 3.
Sensor Switch Upper limit exceeded /
Switch opened
Lowerlimit exceeded /
Switch closed
Pressure
monitor
(4 Pa)
Opener
contact
(NC)
Switch all ventilation devices
connected to the controller to
the OFF mode.
Switch all ventilation devices-
connected to the controller to
the originally set mode.
CO2sensor Closer
contact
(NO)
Switch all ventilation devices
connected to the controller to
ventilation mode, output level 3.
Switch all ventilation devices
connected to the originally set
mode.
VOC sensor
Hygrostat
B. Interface as analogue input
If the interface is used as an analogue input, the ventilation system can be integrated into an
existing home automation system. To do so, a predened direct voltage level is set in the home
automation control unit, depending on the desired function.
Depending on the control voltage, the operating modes continuous ventilation and heat recovery
are possible in output levels 1 – 4, as well as switching o󰀨 the connected ventilation units (for
control voltages, see chapter 4.4: Electrical connection – jumper).
1) VOC = volatile organic compounds

10
SYSTEM OVERVIEW
sMove controller •Installation and operating manual
2.3 Design and features
Control panel
The control panel is located on the front of the control unit and also serves as a display surface.
It is composed of capacitive buttons and various indicator lights. It is operated by touching the
various buttons (marked in grey in gure 2).
Figure 2: Operating and display elements on the control
panel
Slide control:
Briey pressing the fan symbol allows you to select one of the four specic output levels.
Touching the slide control for approx. one second lets you continuously adjust the output level by
moving it. The position of the illuminated display on the left side of the slide control indicates the
currently set output level.
Mode button:
Pressing repeqtedly lets you switch between the heat recovery and continuous ventilation
modes. The indicator lights to the left of the Mode button displays the currently set mode.
Pause/O󰀨 button:
A brief press of the controller allows you to switch to the pause function for a chosen time.
In the standard version, pressing the button for 5 seconds allows you to completely switch o󰀨 all
ventilation units connected to the controller. Pressing it again switches the connected ventilation
units back on. In Flat version the ventilation unit cannot be shut o󰀨 completely.
1 Marker for output levels 1 – 4
2 Continuous ventilation mode
(blue) indicator light /
lter change indicator (blue ashing)
3 Operating mode button
4 Heat recovery mode
(orange) indicator light /
lter change indicator (orange ashing)
5 Pause/O󰀨 indicator light
6 Pause/O󰀨 button
7 Output level indicator lights
8 Slide control
1
2
3
4
5
6
7
8

3 Electrical connections
DANGER
Exposed electrical components.
Electric shock and injury due to live components (230V, 50Hz)!
• Before working on electrical installations, disconnect all a󰀨ected equipment from the power supply.
• Observe the requirements for protection class II when laying the power supply cable.
Do not lay or connect live cables.
• Lay the fan-BUS and power cables separately.
• The installation and connection must only be performed by qualied and trained
personnel.
NOTE
Insu󰀩cient wire cross-section.
Excessive voltage drop and/or contact cannot be guaranteed!
• Only use the following cable cross-sections:
Fan-BUS: Min. 0.75 mm²
Operating voltage cable: 0.75 – 1.5 mm²
Power supply cable: 1.5 mm²
TIP:
Connect the reversible fans in a star-shaped conguration and ensure su󰀩cient clearance for
the cables. Observe the maximum distances (maximum cable lengths).
Schematic sketches: Connection options for ventilation units to the sMove
Cabinet mounted power supply unit Flush mounted power supply unit
s4 / s8, 1 mounting box,
min. 66 mm depth
s4, 1 mounting box,
min. 85 mm depth
s4 / s8: 2 mounting boxes,
min. 66 mm depth
11
ELECTRICAL CONNECTIONS
sMove controller •Installation and operation manual
xyz
xyz
xyz
xyz
Power supply unit (PSU)
Connecting terminals
potential-free opener contact (NC)
Ventilation unit iV-Smart+, iV14-Zero, iV-Light, iV-Compact

12
ELECTRICAL CONNECTIONS
sMove controller •Installation and operating manual
3.1 Controller sMove s4
Maximum cable lengths
Operating voltage cable, 2-wire, 24 V DC
Between power supply unit (PSU) and controller: Max. 100 m
Fan-BUS (cable LiYY3x0,75):
1. Star-shaped connection of the fans to the controller:
• Between sMove s4 and iV-Smart+/ iV14-Zero/ iV-Light/ iV-Compact: Max. 33 m
• Between sMove s4 and iV25/iV-Twin+: Max. 25 m
2. Connect the fans to the controller in series,
maximum distance between controller and the last connected ventilation unit:
• sMove s4 with 4 x iV-Smart+/ iV14-Zero/ iV-Light/ iV-Compact: Max. 15 m
• sMove s4 with 2 x iV-Smart+/ iV14-Zero/ iV-Light/ iV-Compact: Max. 25 m
• sMove s4 with 2 x iV25/ iV-Twin+: ...... Max. 15 m
Connection example for controller sMove s4 with cabinet mounted PSU
Figure 3: Connection example for controller sMove s4 with cabinet mounted PSU and distribution
Fan-BUS: cable type LiYY3x0.75 /
Maximale Kabel-Länge: 33 m (sternförmig)
+ 24 V DC
GND
Lü1
Ub (+)
Lü2
III
IV
V
III
IV
V
III
IV
V
III
IV
V
L
PE
N
AC
DC II
II
II
III
IV
V
VI
VII
III
IV
V
2
1
Steckbrücke/
Jumper
2
1
cable 2x1.5/
maximum length: 100 m
3
4
5
6
7
8
9
10
11
4
4

13
ELECTRICAL CONNECTIONS
sMove controller •Installation and operation manual
Components
Power cable
N Neutral conductor Blue
PE Protective earth Green/yellow
L Phase conductor Brown
I Controller operating voltage (+) Red
II Controller operating voltage (–) Black
Fan-BUS (cable: LiYY3x0.75 – max. 33 m with star-shaped connection)
III Ground 1 (Lü1, –) White
IV Fan operating voltage (Ub (+)) Green
V Ground 2 (Lü2,–) Brown
External interface (potential-free switching contact or analogue control cable 0 – 10 V)
1 Switching contact 1 Sk1 Analogue input (+)
2 Switching contact 2 Sk2 Analogue input (–)
Figure 4: Connection example for controller sMove s4 with ush mounted PSU and distribution
+ 24 V DC
GND
Lü1
Ub (+)
Lü2
III
IV
V
III
IV
V
III
IV
V
III
IV
V
L
PE
N
AC
DC II
II
II
III
IV
V
1
2
III
IV
V
Steckbrücke /
Jumper
2
1
1 Plug-in connection
2 Reversible fan
3 Mounting box
4 Connecting terminal block
5 Rear side of operating unit
6 Jumper for external interface
7 Jumper for service settings
8 Terminal, 2-pole (External interface)
9 Terminal, 5-pole (fan-BUS/
controller operating voltage)
10 Control cabinet PSU NT17-s4 (fig. 3) /
Flush mounted PSU NT17-s4 (fig. 4)
11 Control cabinet
Connection example for controller sMove s4 with ush mounted PSU
2
1
3
4
5
6
7
8
9
10
4
4

14
ELECTRICAL CONNECTIONS
sMove controller •Installation and operating manual
3.2 Controller sMove s8
Maximum cable lengths
Operating voltage cable, 2-wire, 24 V DC
Between power supply unit (PSU) and controller: Max. 100 m
Fan-BUS (cable LiYY3x0,75):
1. Star-shaped connection of the fans to the controller:
• Between sMove s8 and iV-Smart+/ iV14-Zero/ iV-Light/ iV-Compact: Max. 33 m
• Between sMove s8 and iV25/iV-Twin+: Max. 20 m
2. Connect the fans to the controller in series,
maximum distance between controller and the last connected ventilation unit:
• sMove s8 with 8 x iV-Smart+/ iV14-Zero/ iV-Light/ iV-Compact: Max. 10 m
• sMove s8 with 4 x iV-Smart+/ iV14-Zero/ iV-Light/ iV-Compact: Max. 20 m
• sMove s8 with 4 x iV25/ iV-Twin+: ...... Max. 10 m
Connection example for controller sMove s8 with cabinet mounted PSU
Figure 5: Connection example for controller sMove s8 with cabinet mounted PSU and distribution
Fan-BUS:
cable type LiYY3x0.75 /
Maximum length: 33 m each
(star-shaped)
+ 24 V DC
GND (–)
Lü1 (–)
Ub (+)
Lü2 (–)
3
3
3
3
3
3
3
3
3
2
1
V IV III
VIV
III
VIV III
VIV
III
V IV III
VIV
III
VIV
III VIV III III VIV
I
II III
IV
V
VI
VII
L
PE
NAC
DC
2
1
3
4
5
6
7
8
12
10
Cable 2x1.5/
Max. length: 100 m
11

15
ELECTRICAL CONNECTIONS
sMove controller •Installation and operation manual
Connection example for controller sMove s8 with ush-mounted PSU
Figure 6: Connection example for controller sMove s8 with ush mounted PSU and distribution
Components
Versorgungskabel
Power cable
N Neutral conductor Blue
PE Protective earth Green/yellow
L Phase conductor Brown
I Controller operating voltage (+) Red
II Controller operating voltage (–) Black
Fan-BUS (cable: LiYY3x0.75 – max. 33 m with star-shaped connection)
III Ground 1 (Lü1, –) White
IV Fan operating voltage (Ub (+)) Green
V Ground 2 (Lü2,–) Brown
External interface (potential-free switching contact or analogue control cable 0 – 10 V)
1 Switching contact 1 Sk1 Analogue input (+)
2 Switching contact 2 Sk2 Analogue input (–)
1 Reversible fan
2 Plug-in connection
3 Mounting box for operating unit
4 Rear side of operating unit
5 Jumper for external interface
6 Jumper for service settings
7 Terminal, 5-pole (Fan-BUS /
Controller operating voltage)
8 Terminal, 2-pole (External interface)
9 Mounting box for PSU
10 Connecting terminal block
11 Cabinet mounted PSU NT17-s8 (fig. 5)/
Flush mounted PSU NT17-s8 (fig. 6)
12 Control cabinet
3
3
3
3
3
3
3
3
3
+ 24 V DC
GND
Lü1
Ub (+)
Lü2
V IV III
V
IV
III
VIV III
VIV
III
VIV III
VIV
III
VIV
III VIV III
III VIV
I
II III
IV
V
L
PE
NAC
DC
Fan-BUS:
cable type LiYY3x0.75 /
Maximum length: 33 m each
(star-shaped)
2
1
3
4
5
6
9
7
8
11
10

16
ELECTRICAL CONNECTIONS
sMove controller •Installation and operating manual
3.3 Terminal assignments
The terminals on the circuit board are nger-operated spring-loaded terminals. The terminals
have a connection capacity of 0.1 to 1.5 mm². They are suitable for solid and stranded wires.
The use of wire ferrules is not necessary. If wire ferrules are used, they must increase the
cross-section (their material thickness is thereby not included).
Figure 7: Rear of sMove operating unit: PCB interfaces
Connector Ter-
minal
block
Name Description
Switching power supply unit
Power supply cable (mains)/
Input cable for ush mounted PSU
L AC/L Phase conductor
N AC/N Neutral conductor
Controler operating voltage
Output cable for ush mounted PSU
+ + 24 V Controller operating voltage
–GND (‒)
Rear side of sMove controller operating unit
Terminal, 5-pole
Controller operating
voltage
I + 24 V Controller operating voltage
II GND (‒)
Fan-BUS connection III – (Lü1) Ground 1
IV Ub+ Fan operating voltage
V – (Lü2) Ground 2
Terminal, 2-pole External interface
(optional)
VI Sk1 Switching contact 1, analogue (+)
VII Sk2 Switching contact 2, analogue (–)
Jumpers
NO attached
2
on switching: normal operation
not attached on switching: ventilation mode, level 3
NC attached on switching: OFF
not attached on switching: normal operation
– 1 Only for service sttings
1 2-pin plug for Jumper
2 Terminal, 2-pole
3 Terminal, 5-pole
1
2
3
4
5
1
2
1
2
1
21
2
3

17
ELECTRICAL CONNECTIONS
sMove controller •Installation and operation manual
3.4 Jumper
Jumper 21) is used to assign functions to the external interface when a potential-free switching
contact is connected (pressure monitor: Opener (normally closed NC) / other sensors: Closer
(normally open NO) and for integration into a house control system.
The position of the jumper may only be changed in a voltage-free state.
Function assignment depending on switching contact
NO (Closer) NC (Opener) Sensor
Position of Jumper 2 Function at switch actuation / switching
attached Normal operation OFF
(replace function)
Opener:
Pressure mo-
nitor (4 Pa)
not
attached
Continuous ventilation
Output level 3 Normal operation
Closer:
Hygrostat
CO2
VOC
Interface used as analogue input
The 2-pin plug for jumper 2 is located on the rear side of the operating unit. The jumper 2 is not
plugged in at the factory and is located inside the accessories pack of the controller. It must be
attached if necessary. Jumper 1 is used for service settings and must be left as delivered to
ensure correct functioning of the controller.
If a pressure monitor with normally open contact is connected, e.g. if the sMove controller is exch-
anged, it must be congured as a normally closed contact (switch with changeover contact) or, if
this is not possible, it must be replaced by a pressure monitor with normally closed contact.
It is not possible to connect a potential-free switch and an analogue input simultaneously. A
connected analogue input always has priority over a potential-free switching contact. If a pres-
sure monitor is connected, the pressure monitor has priority to other connected sensors.
If Jumper 2 is not attached and the sMove controller is integrated into an home automation
system, the following direct voltages must be set:
Function Control voltage [V DC]
Ventilation output level 3 0.00 V ≤ U ≤ 0.25 V
Ventilation output level 4 0.75 V ≤ U ≤ 1.25 V
Ventilation output level 2 1.75 V ≤ U ≤ 2.25 V
Ventilation output level 1 2.75 V ≤ U ≤ 3.25 V
OFF 3.75 V ≤ U ≤ 4.25 V
Heat recovery output level 1 4.75 V ≤ U ≤ 5.25 V
Heat recovery output level 2 5.75 V ≤ U ≤ 6.25 V
Heat recovery output level 3 6.75 V ≤ U ≤ 7.25 V
Heat recovery output level 4 7.75 V ≤ U ≤ 8.25 V
2
2
2
2

18
PREPARING FOR INSTALLATION
sMove controller •Installation and operating manual
4 Preparing for installation
4.1 Mounting instructions and installation locations
• Read the Installation and Electrical Connection chapters carefully before installation to avoid
installation errors. Installation and connection of the controller must be carried out by qualied
and trained personnel.
• Observe the following steps before mounting the sensor:
Step 1: Disconnect all e󰀨ected electronical components/live parts from power supply.
Step 2: Secure all e󰀨ected electronical components against being switched on again.
Step 3: Check all e󰀨ected electronic components for voltage.
• Mount the ush-mounted box / cavity/plasterboard wall box for mounting the operating unit
preferably at a height of 1.50 m above the oor edge (accessibility for operation).
• NOTE: Always use stranded wires to connect the fan-BUS to the ventilation unit.
The connection terminal for the fan-BUS can connect strands up to 1.5 mm².
4.2 Dimensions
TIP: ideally, install the ush-mounted box or ush-mounted plasterboard box for the operating
unit at the same height as the existing light switches.
• sMove s4 / s8 incl. control panel PSU: 1 ush-mounted / plasterboard box, min. depth 66 mm
• sMove s4 incl. ush-mounted PSU: 1 ush-mounted box / 1 wall-installation box, min. depth 87 mm
• sMove s8 incl. ush-mounted PSU: 2 ush-mounted boxes / 2 wall-installation boxes, min. depth 66 mm:
1 box for the ush-mounted PSU and for installation of the operating unit
1 box for the fan-BUS distribution box
Designation Width
[mm]
Height
[mm]
Depth
[mm] Ø [mm]
Mounting boxes
Wall opening for ush-mounted box 60x66 ‒ ‒ 66 82
Flush-mounted box 60x66 –‒66 60
Wall opening for ush-mounted box 60x90 ‒ ‒ ≥ 95 82
Flush-mounted box 60x90 91 60
Wall opening for wall installation 70x87 ‒ ‒ 87 68
Wall-installation box 70x87(plasterboard wall) –‒87 69
Wall opening for plasterboard wall box 68x61 – – 61 68
Plasterboardwall box 68x61 – – 61 68
Controller
sMove controller operating unit 86 86 24 ‒

19
PREPARING FOR INSTALLATION
sMove controller •Installation and operation manual
Designation Width
[mm]
Height
[mm]
Depth
[mm] Ø [mm]
Control panel switching PSU NT17-s4 25 93 56 ‒
Control panel switching PSU NT17-s8 78 93 56 ‒
Flush-mounted switching PSU NT17-s8 – 33 – 54
Flush-mounted switching PSU NT17-s4 – 32,5 – 54
4.3 Dimensioned drawings
sMove controller
1 Receiver for locking lever
2 Receiver (4 x) for base plate guides
1 Guides (4 x) for attaching the
operating unit
2 Installation marking TOP
3 Box fixing points (4 x)
4 Locking lever for the operating unit
73
70
70
73
2
4
60
3
1
1
86
86
24 14
2
1
Figure 8: Dimensioned drawing – front view: base plate for sMove controller
Figure 9: Dimensioned drawing – rear view: sMove controller operating unit

20
PREPARING FOR INSTALLATION
sMove controller •Installation and operating manual
1 Fixing screw for plasterboard wall box 2 Fixing screw for operating unit (2x)
61
71
Ø 75
87
Ø
69
1
2
Ø
60
Ø
66
80
6625
Ø
80
≥95 (66)
4
1
3
Ø
60
4
23
Figure 10: Flush-mounted box 60x92 (60x66)
1 Flush-mounted box 60x66
2 Putzausgleichsring
(preassembled, box 60x92 only)
3 Base plate xing points (2 x)
4 Wall opening
61
Ø
68
60
Ø 75
2
1
2
1 Fixing screw for plasterboard wall box 2 Fixing screw for operating unit (2x)
Mounting boxes
Figure 11: Plasterboard wall box 61x68
Figure 12: Plasterboard wall box 70x87
