INVENTOR L5VI32-09WFR User manual

• USER’S MANUAL

• MANUAL UTILIZATORULUI
• BENUTZERHANDBUCH
ENGLISH | ΕΛΛΗΝΙΚΑ | ROMANA | DEUTSCH
WALL MOUNTED UNIT
AIR CONDITIONING SYSTEMS
MODELS:
L5VI32-09WFR / L5VO32-09
L5VI32-12WFR / L5VO32-12
L5VI32-18WFR / L5VO32-18
L5VI32-24WFR / L5VO32-24

Safety Precautions.......................................................04
Unit Specications and Features ..............................06
Table of Contents
Owner’s Manual
0
1
SAFETY
FIRST

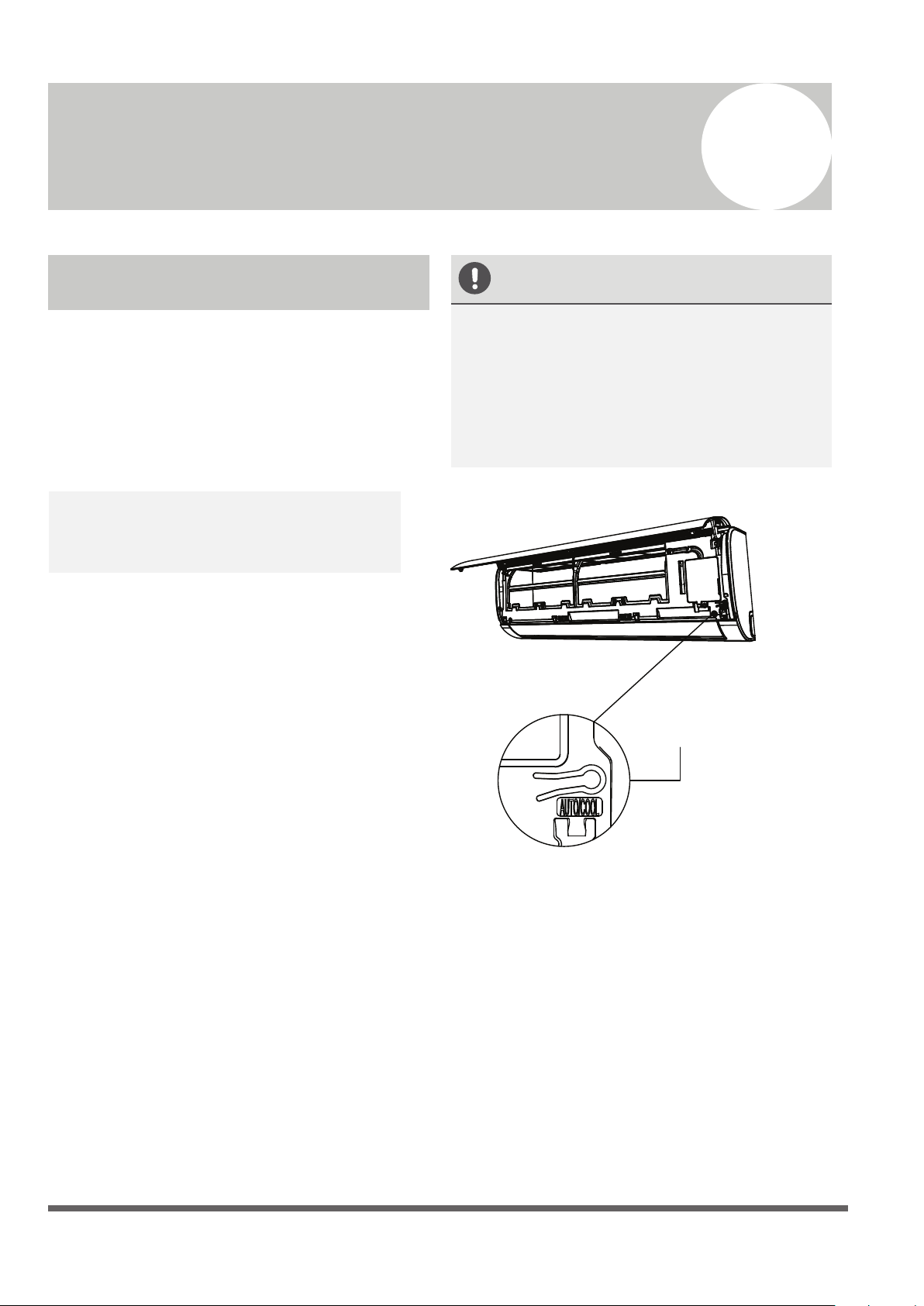

Manual Operation
(Without Remote)................11
2

Safety Precautions.......................................................04
Unit Specications and Features ..............................06
Table of Contents
Owner’s Manual
0
1
SAFETY
FIRST
Manual Operation
(Without Remote)................11
2

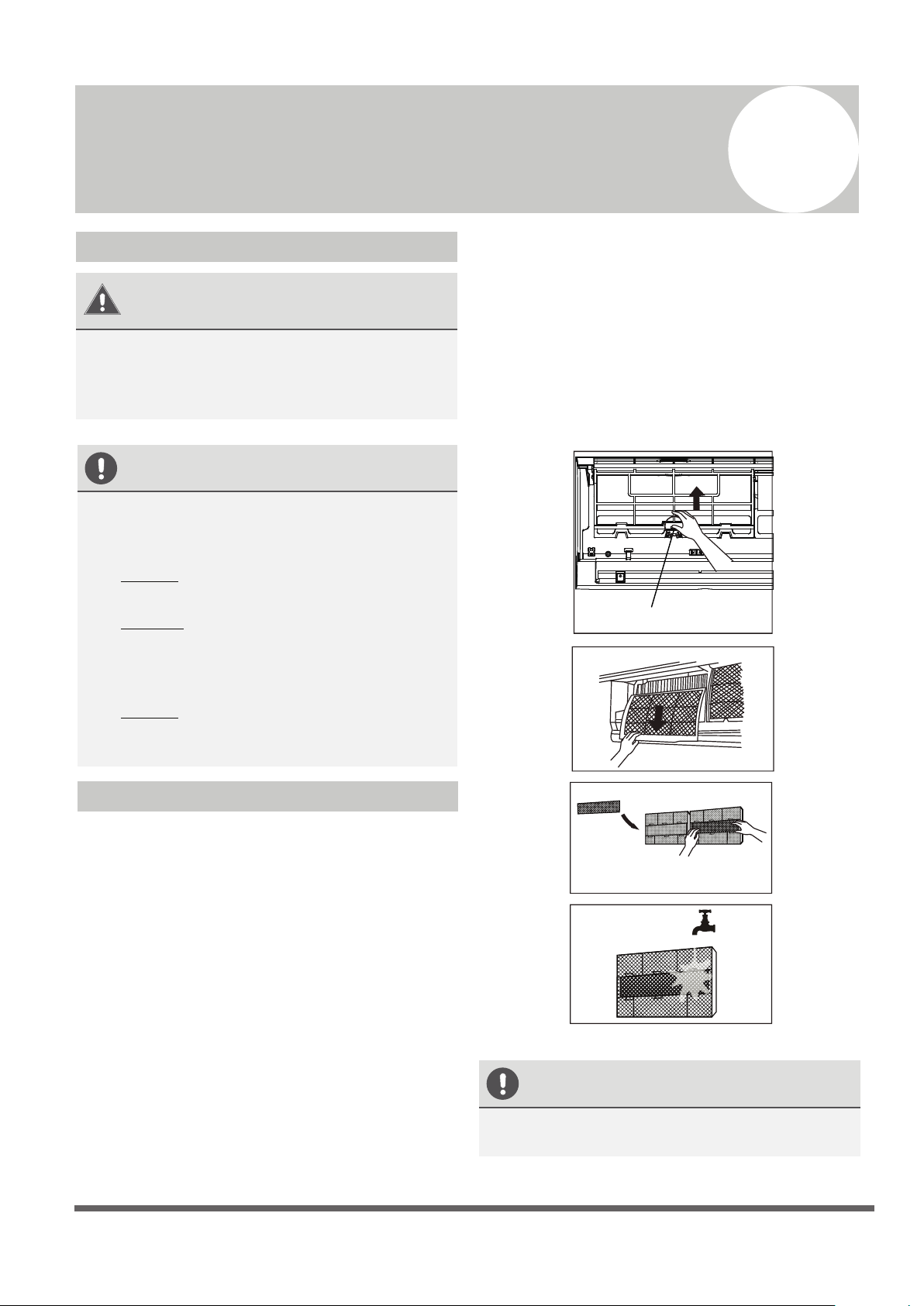

Care and Maintenance.....................................................12
3
Troubleshooting...................................................................14
4
European Disposal Guidelines....................................18
5

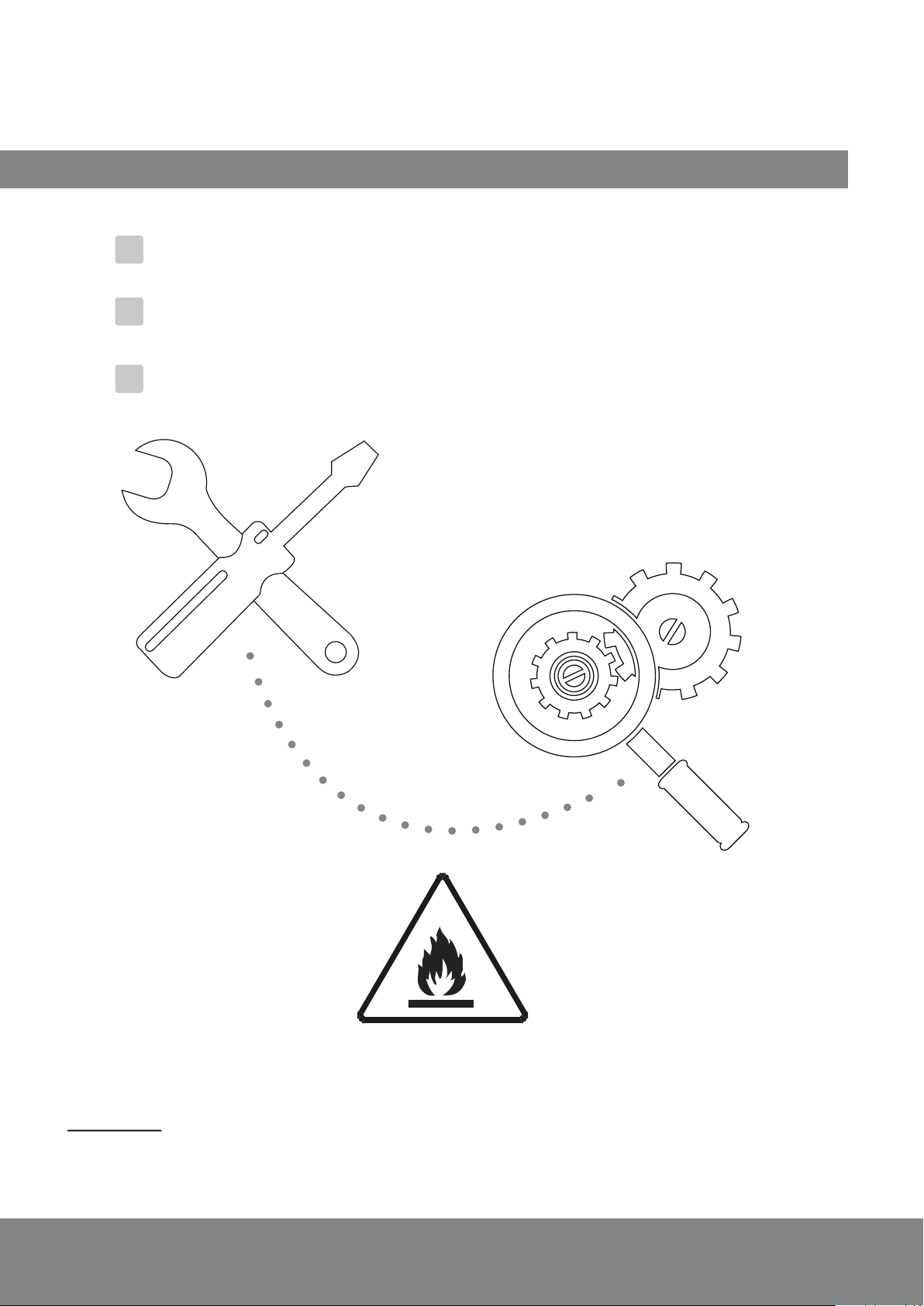

WARNING: Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance
and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the
person competent in the use of ammable refrigerants. For more details, please refer to the Information on
servicing on INSTALLATION MANUAL.
C au t i o n: Risk of fire/
flammable materials

Page 4 
Page 4 
Safety Precautions
Read Safety Precautions Before Installation
The seriousness of potential damage or injuries is classied as either a WARNING or CAUTION.
WARNING
This symbol indicates that ignoring instructions may cause death or serious
Incorrect installation due to ignoring instructions can cause serious damage or injury.
injury.
This symbol indicates that ignoring instructions may cause moderate injury
to your person, or damage to your appliance or other property.
CAUTION
WARNING
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
INSTALLATION WARNINGS
•
Ask an authorized dealer to install this air conditioner. Inappropriate installation may cause water
leakage, electric shock, or re.
•
All repairs, maintenance and relocation of this unit must be performed by an authorized service
technician. Inappropriate repairs can lead to serious injury or product failure.
WARNINGS FOR PRODUCT USE
•
If an abnormal situation arises (like a burning smell), immediately turn off the unit and pull the
power plug. Call your dealer for instructions to avoid electric shock, re or injury.
•
Do not
insert ngers, rods or other objects into the air inlet or outlet. This may cause injury, since
the fan may be rotating at high speeds.
•
Do not
use ammable sprays such as hair spray, lacquer or paint near the unit. This may cause
re or combustion.
•
Do not
operate the air conditioner in places near or around combustible gases. Emitted gas may
collect around the unit and cause explosion.
•
Do not
operate the air conditioner in a wet room (e.g., bathroom or laundry room). This can
cause electrical shock and cause the product to deteriorate.
•
Do not
expose your body directly to cool air for a prolonged period of time.

Page 5 
Page 5 
ELECTRICAL WARNINGS
• Only use the specied power cord. If the power cord is damaged, it must be replaced by the
manufacturer or certied service agent.
• Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty
plugs can cause re or electric shock.
• Do not pull power cord to unplug unit. Hold the plug rmly and pull it from the outlet. Pulling
directly on the cord can damage it, which can lead to re or electric shock.
• Do not use an extension cord, manually extend the power cord, or connect other appliances to
the same outlet as the air conditioner. Poor electrical connections, poor insulation, and insufcient
voltage can cause re.
CLEANING AND MAINTENANCE WARNINGS
• Turn off the device and pull the plug before cleaning. Failure to do so can cause electrical shock.
• Do not clean the air conditioner with excessive amounts of water.
• Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents
can cause re or deformation.
CAUTION
• If the air conditioner is used together with burners or other heating devices, thoroughly ventilate
the room to avoid oxygen deciency.
• Turn off the air conditioner and unplug the unit if you are not going to use it for a long time.
• Turn off and unplug the unit during storms.
• Make sure that water condensation can drain unhindered from the unit.
• Do not operate the air conditioner with wet hands. This may cause electric shock.
• Do not use device for any other purpose than its intended use.
• Do not climb onto or place objects on top of the outdoor unit.
• Do not allow the air conditioner to operate for long periods of time with doors or windows open,
or if the humidity is very high.
CAUTION
CAUTION
CAUTION
CAUTION
WARNING
This symbol shows that this appliance used a ammable refrigerant. If the
refrigerant is leaked and exposed to an external ignition source, there is
a risk of re.
This symbol shows that the operation manual should be read carefully.
This symbol shows that information is available such as the operating
manual or installation manual.
This symbol shows that a service personnel should be handling this
equipment with reference to the installation manual.
Explanation of symbols displayed on the indoor unit or outdoor unit:

Page 6 
Page 6 
Unit Specications and Features 1
NOTE:
A guide on using the infrared remote is not included
in this literature package.
Unit Parts
fresh defrost run timer
Power Cable (not available)
Remote Control
Remote Control Holder
Louver
Front Panel
Display window(A) Display window(B) Display window(C)
“ ” for 3 seconds when:
• TIMER ON is set
• FRESH, SWING, TURBO, or SILENCE features are turned on
“ ” when Fresh feature is activated
“ ” for 3 seconds when:
• TIMER OFF is set
• FRESH, SWING, TURBO, or SILENCE features are turned off
“ ” when defrosting
“ ” when anti-cold air feature is turned on
“ ” when unit is self-cleaning
“ ” when freeze protection is turned on
“ ” when defrost feature is activated.
Display Code
Meanings
In Fan mode, the unit will display the room temperature.
In other modes, the unit will display your temperature setting.
,
,
“ ” Not available for all units.
When ECO function is activated, the
illuminates gradually one by one as --
-- --set temperature -- ...... in one second interval.
fresh defrost run timer
“ ” when the unit is on.
“ ” when TIMER is set.
When error occurs, it displays error code.
fresh
defrost
run
timer
“ ” when Wireless Control feature is activated (some units)

Page 7 
Page 6 
Unit Specications and Features 1
NOTE:
A guide on using the infrared remote is not included
in this literature package.
Unit Parts
fresh defrost run timer
Power Cable (not available)
Remote Control
Remote Control Holder
Louver
Front Panel
Display window(A) Display window(B) Display window(C)
“ ” for 3 seconds when:
• TIMER ON is set
• FRESH, SWING, TURBO, or SILENCE features are turned on
“ ” when Fresh feature is activated
“ ” for 3 seconds when:
• TIMER OFF is set
• FRESH, SWING, TURBO, or SILENCE features are turned off
“ ” when defrosting
“ ” when anti-cold air feature is turned on
“ ” when unit is self-cleaning
“ ” when freeze protection is turned on
“ ” when defrost feature is activated.
Display Code
Meanings
In Fan mode, the unit will display the room temperature.
In other modes, the unit will display your temperature setting.
,
,
“ ” Not available for all units.
When ECO function is activated, the
illuminates gradually one by one as --
-- --set temperature -- ...... in one second interval.
fresh defrost run timer
“ ” when the unit is on.
“ ” when TIMER is set.
When error occurs, it displays error code.
fresh
defrost
run
timer
“ ” when Wireless Control feature is activated (some units)
and Features
Page 7 
Achieving Optimal Performance
Optimal performance for the COOL, HEAT, and DRY modes can be achieved in the following
temperature ranges. When your air conditioner is used outside of these ranges, certain safety
protection features will activate and cause the unit to perform less than optimally.
Room
Temperature 17°-32°C (63°-90°F) 0°-30°C (32°-86°F) 10°-32°C (50°-90°F)
Outdoor
Temperature
18°-43°C (64°-109°F)
-7°-24°C (19°-75°F)
11°-43°C (52°-109°F)
-7°-43°C (19°-109°F)
(For models with low-temp cooling systems) 18°-43°C (64°-109°F)
18°-54°C (64°-129°F)
(For special tropical models) 18°-54°C (64°-129°F) (For special tropical models)
COOL mode HEAT mode DRY mode
COOL mode HEAT mode DRY mode
Room Temperature 17°C - 32°C
(63°F - 90°F)
0°C - 30°C
(32°F - 86°F)
10°C - 32°C
(50°F - 90°F)
Outdoor
Temperature
0°C - 50°C
(32°F - 122°F)
-15°C - 30°C
(5°F - 86°F)
0°C - 50°C
(32°F - 122°F)
0°C - 60°C
(32°F - 140°F)
(For special
tropical models)
0°C - 60°C
(32°F - 140°F)
(For special
tropical models)
-15°C - 50°C
(5°F - 122°F)
(For models with
low temp. cooling
systems.)
To further optimize the performance of your unit, do the following:
• Keep doors and windows closed.
• Limit energy usage by using TIMER ON and TIMER OFF functions.
• Do not block air inlets or outlets.
• Regularly inspect and clean air lters.
FOR OUTDOOR UNITS
WITH AUXILIARY
ELECTRIC HEATER
Inverter Split Type
Fixed-speed Type
When outside
temperature is below 0°C
(32°F ), we strongly
recommend keeping the
unit plugged in at all
time to ensure smooth
ongoing performance.

Page 8 
Page 8 
For a detailed explanation of each function,
refer to the Remote Control Manual.
Other Features
• Auto-Restart
If the unit loses power, it will automatically
restart with the prior settings once power has
been restored.
• Anti-mildew (not available)
When turning off the unit from COOL, AUTO
(COOL), or DRY modes, the air conditioner will
continue operate at very low power to dry up
condensed water and prevent mildew growth.
• Wireless Control
Wireless control allows you to control
your air conditioner using your mobile
phone and a Wireless connection.
• Louver Angle Memory
When turning on your unit, the louver
will automatically resume its former
angle.
• Refrigerant Leakage Detection
The indoor unit will automatically
display “EC” when the unit detects
refrigerant leakage.
NOTE ON ILLUSTRATIONS
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor
unit may be slightly different. The actual shape shall prevail.
For a detailed explanation of your unit’s
advanced functionality (such as TURBO
mode and its self-cleaning functions),
refer to the Remote Control Manual.
For the USB device access, replacement,
maintenance operations must be carried
out by professional staff.
Page 9 
The horizontal angle of the airow must be set
manually. Grip the deector rod (See Fig.B)
and manually adjust it to your preferred direction.
For some units, the horizontal angle of the airow
can be set by remote control. please refer to the
Remote Control Manual.
NOTE ON LOUVER ANGLES
When using COOL or DRY mode, do not set
louver at too vertical an angle for long periods
of time. This can cause water to condense on
the louver blade, which will drop on your oor
or furnishings. (See Fig.A)
When using COOL or HEAT mode, setting the
louver at too vertical an angle can reduce the
performance of the unit due to restricted air
ow.
Do not move louver by hand. This will cause the
louver to become out of sync. If this occurs, turn
off the unit and unplug it for a few seconds,
then restart the unit. This will reset the louver.
Fig. A
CAUTION
Do not put your ngers in or near the blower
and suction side of the unit. The high-speed
fan inside the unit may cause injury.
Fig. B
Setting Angle of Air Flow
Setting horizontal angle of air ow
•
Range
Caution: Do not keep louver at too
vertical an angle for long periods of
time. This can cause water condensation
to drip on your furnishings.
Deector rod

Page 9 
Page 8 
For a detailed explanation of each function,
refer to the Remote Control Manual.
Other Features
• Auto-Restart
If the unit loses power, it will automatically
restart with the prior settings once power has
been restored.
• Anti-mildew (not available)
When turning off the unit from COOL, AUTO
(COOL), or DRY modes, the air conditioner will
continue operate at very low power to dry up
condensed water and prevent mildew growth.
• Wireless Control
Wireless control allows you to control
your air conditioner using your mobile
phone and a Wireless connection.
• Louver Angle Memory
When turning on your unit, the louver
will automatically resume its former
angle.
• Refrigerant Leakage Detection
The indoor unit will automatically
display “EC” when the unit detects
refrigerant leakage.
NOTE ON ILLUSTRATIONS
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor
unit may be slightly different. The actual shape shall prevail.
For a detailed explanation of your unit’s
advanced functionality (such as TURBO
mode and its self-cleaning functions),
refer to the Remote Control Manual.
For the USB device access, replacement,
maintenance operations must be carried
out by professional staff.
Page 9 
The horizontal angle of the airow must be set
manually. Grip the deector rod (See Fig.B)
and manually adjust it to your preferred direction.
For some units, the horizontal angle of the airow
can be set by remote control. please refer to the
Remote Control Manual.
NOTE ON LOUVER ANGLES
When using COOL or DRY mode, do not set
louver at too vertical an angle for long periods
of time. This can cause water to condense on
the louver blade, which will drop on your oor
or furnishings. (See Fig.A)
When using COOL or HEAT mode, setting the
louver at too vertical an angle can reduce the
performance of the unit due to restricted air
ow.
Do not move louver by hand. This will cause the
louver to become out of sync. If this occurs, turn
off the unit and unplug it for a few seconds,
then restart the unit. This will reset the louver.
Fig. A
CAUTION
Do not put your ngers in or near the blower
and suction side of the unit. The high-speed
fan inside the unit may cause injury.
Fig. B
Setting Angle of Air Flow
Setting horizontal angle of air ow
•
Range
Caution: Do not keep louver at too
vertical an angle for long periods of
time. This can cause water condensation
to drip on your furnishings.
Deector rod

Page 10 
Page 10 
The SLEEP function is used to decrease energy
use while you sleep (and don’t need the same
temperature settings to stay comfortable). This
function can only be activated via remote control.
Press the SLEEP button when you are ready to
go to sleep. When in COOL mode, the unit will
increase the temperature by 1°C (2°F) after 1
hour, and will increase an additional 1°C (2°F)
after another hour. When in HEAT mode, the unit
will decrease the temperature by 1°C (2°F) after
1 hour, and will decrease an additional 1°C (2°F)
after another hour.
It will hold the new temperature for 5 hours, then
the unit will turn off automatically.
Note:The SLEEP function is not available in
FAN or DRY mode.
Sleep Operation
Set
temperature
Saving energy during sleep
1hr 1hr
7 hours
timer o
+/- 1 C/2 F
SLEEP Operation
+/- 1 C/2 F
•
How to operate your unit without
the remote control
In the event that your remote control fails to
work, your unit can be operated manually with
the MANUAL CONTROLbutton located on
the indoor unit. Note that manual operation is
not a long-term solution, and that operating
the unit with your remote control is strongly
recommended.
BEFORE MANUAL OPERATION
Unit must be turned off before manual
operation.
To operate your unit manually:
1. Open the front panel of the indoor unit.
2. Locate the MANUAL CONTROL button on
the right-hand side of the unit.
3. Press the MANUAL CONTROL button one
time to activate FORCED AUTO mode.
4. Press the MANUAL CONTROL button again
to activate FORCED COOLING mode.
5. Press the MANUAL CONTROL button a third
time to turn the unit off.
6. Close the front panel.
Manual Operation (Without Remote) 2
CAUTION
Manual control button
The manual button is intended for testing
purposes and emergency operation only. Please
do not use this function unless the remote control
is lost and it is absolutely necessary. To restore
regular operation, use the remote control to
activate the unit.
