inveo RFID IND-M1 User manual

User manual
RFID IND Modbus-Mif
Soft >= v1.40
INVEO s.c.
ul. Rzemieślnicza 21
43-340 Kozy
Poland
mobile [phone]
www.inveo.com.pl
[email protected]

Dear Customer!
Thank you very much for choosing our product. Before its use, please read these
instructions carefully. Here you find the most appropriate ways of dealing with this
device, the basic principles of safety and maintenance. Please also keep the user manual
so that you can read it during later use.
Remember!
T e manufacturer is not liable for any damage caused by improper use of
t e device w ic differ from its intended purpose, or improper andling, as well
as a fault of driver resulting from improper use.
User manual RFID IND Modbus Mif Page 2 z 22
[B03]

Table of contents
1 PRELIMINARY INFORMATION...................................................................................................................4
2 APPLICATIONS OF THE DEVICE................................................................................................................5
3 WARRANTY AND LIABILITY OF THE MANUFACTURER...................................................................5
4 SAFETY GUIDELINES.....................................................................................................................................6
4.1 POWER SUPPLY...................................................................................................................................................6
4.2 STORAGE, WORK CONDITIONS................................................................................................................................6
4.3 INSTALLATION AND USE OF THE READER.................................................................................................................6
4.4 UTILIZATION OF THE READER................................................................................................................................6
5 CONSTRUCTION OF THE MODULE...........................................................................................................7
5.1 GENERAL FEATURES............................................................................................................................................7
5.2 GENERAL VIEW...................................................................................................................................................
5.3 VISUAL AND SOUND SIGNALS................................................................................................................................
6 DEVICE CONFIGURATION...........................................................................................................................9
6.1 OUTPUTS.........................................................................................................................................................10
6.2 INPUTS............................................................................................................................................................11
6.3 LEDS AND SOUND SIGNALING CONTROL...............................................................................................................11
6.4 CONTINUOUS READ MODE.................................................................................................................................12
6.5 RS4 5 – CONFIGURATION OF TRANSMISSION........................................................................................................12
7 MODBUS API..................................................................................................................................................13
7.1 MIFARE TAG STRUCTURE....................................................................................................................................13
7.2 MODBUS ADDRESS...........................................................................................................................................14
MEMORY BUFFER.........................................................................................................................................17
.1 MEMORY BUFFER ADDRESSING............................................................................................................................17
.2 BUFFER DATA REPRESENTATION (ENDIANESS).......................................................................................................19
9 BLOCK KEY.....................................................................................................................................................20
10 EXAMPLES.....................................................................................................................................................21
10.1 STEP BY STEP CARD ID READ...........................................................................................................................21
10.2 STEP BY STEP READ OPERATION.........................................................................................................................21
10.3 STEP BY STEP WRITE OPERATION........................................................................................................................21
10.4 STEP BY STEP MULTIPLE TAGS...........................................................................................................................22
11 DESCRIPTION OF TERMINALS...............................................................................................................22
User manual RFID IND Modbus Mif Page 3 z 22
[B03]

1 Preliminary information
Before starting work wit t e device, read T e User manual and follow t e
instructions contained t erein!
Description of visual symbols used in this user manual
This symbol is responsible for reviewing the appropriate place
in the user instructions, warnings and important information.
Failure to follow warnings could cause injury or damage to the
reader
Important information and guidelines
Following this guidelines makes the use of the reader easier
Attention The screenshots in this manual can be dissimilar from actual images
at the time of the device purchase. Due to continuous development of the devices
software, some of the functions may differ from these in the manual. The manufacturer
claims no responsibility for any undesirable effects (misunderstanding) caused
by changes of the software.
User manual RFID IND Modbus Mif Page 4 z 22
[B03]

2 Applications of t e device
The RFID IND Modbus-Mif device is used to read RFID Mifare Classic tags.
The device is used for an integration with other systems using Modbus RTU.
3 Warranty and liability of t e manufacturer
The manufacturer provides a 2-year warranty on the device. The manufacturer also
provides post-warranty service for 10 years from the date of the introducing the device
on the market. The warranty covers all defects in material and workmanship.
The manufacturer undertakes to comply with the contract of guarantee, if the following
conditions are met
•all repairs, alterations, extensions and device calibrations are performed by the
manufacturer or authorized service,
•supply network installation meets applicable standards in this regard,
•the device is operated in accordance with the recommendations outlined in this
manual,
•the device is used as intended.
The manufacturer assumes no responsibility for consequences resulting from improper
installation, improper use of the device, not following this manual and the repairs of the
device by individuals without permission.
T is device doesn’t contain serviceable parts.
User manual RFID IND Modbus Mif Page 5 z 22
[B03]

4 Safety guidelines
The reader has been designed and built using modern electronic components, according
to the latest trends in the global electronics. In particular, much emphasis was placed on
ensuring optimum safety and reliability of control.
The device has a housing with a high-quality plastic.
4.1 Power supply
The module is suitable for power supply 10-24VDC.
4.2 Storage, work conditions.
The reader is equipped with a sealed IP65 enclosure which means
total resistance to foreign objects
resistance to water jet directed directly to the device
storage and operation at temperatures from -25°C to + 60°C,
4.3 Installation and use of the reader
T e reader s ould be used following t e guidelines s own in next part of t e
user manual.
4.4 Utilization of the reader
When it becomes necessary to liquidate the device (for instance retiring of the device
from service), please contact the manufacturer or its representative, who are obliged to
respond, appropriately, i.e. collecting the reader from the user. You can also ask the
companies involved in utilization and/or liquidation of electrical or computer equipment.
Under no circumstances should you place the device along with other waste material.
User manual RFID IND Modbus Mif Page 6 z 22
[B03]

5 Construction of t e module
.1 General features
The reader is equipped with an RS485 port supporting Modbus RTU protocol and a USB
port used for configuration and testing of the module.
The device has two relay outputs and two inputs.
Tec nical data:
Supply voltage 12-24VDC
Power supply 40mA (12V)
Transponders:
Supported transponder standard Mifare
Carrier frequency 13,56 MHz
Reading distance to 10cm (depending on the type of transponder used)
Communication:
1 RS485 port – modbus RTU
1 USB port to configuration
Inputs/Outputs
2 relay outputs 1A@30VDC
2 inputs
Enclosure
IP Rating IP65
Dimensions
User manual RFID IND Modbus Mif Page 7 z 22
[B03]

.2 General view
.3 Visual and sound signals
The device has been equipped with 3 LEDs indicating the module operation status and a
sound generator informing about the application of the tag.
RFID IND Modbus-Mif
Name Description
POWER Power LED
Status 1 Error
Status 2 Correct tag read
User manual RFID IND Modbus Mif Page 8 z 22
[B03]

6 Device configuration
To configure the device use the Inveo RFID M1 / U1 Configurator software, which
allows you to define the basic functions of the device. The program can be downloaded
from https //inveo.com.pl/software.
After installing the RFID M1 / U1 Configurator configuration program and starting it,
connect the USB cable to the computer and the module (in this case, the external power
supply of the module is not required – the device is powered via the USB port).
The first line of the program window displays information about the version of the
configuration program – PC version, reader software version – RFID Software and
reader version – RFID Hardware.
It is also an information on whether the configuration program was connected to a reader
Connected / Not connected.
User manual RFID IND Modbus Mif Page 9 z 22
[B03]

6.1 Outputs
The reader is has 2 relay outputs. Each output can be programmed separately. The fields
in the Outputs segment are used to configure the output settings.
Mode – Sets the output mode. The output can work in the following modes
•Disable – output is disabled,
•Bistable mode – a relay has one determined status (is engaged or disengaged).
•Astable mode – if the channel will be enabled, the relay is engage and disengage
cyclically. Time of engage and disengage relay
- Time On – time when a relay is engaged,
- Time Off – time when a relay is disengaged.
•TIME – the output will enable for the Time ON and then the output will disable
(e.g. the control of the electromagnet).
User manual RFID IND Modbus Mif Page 10 z 22
[B03]
t
on
t
off
t
on
t
off
t
on
t
off
t
on
t
on
t
on
t
off
t
on
t
off
t
on
t
off
t
on
t
on
t
on
t
off
t
on
t
off
t
on
t
off
t
on
t
on

Power ON – the state of the output after powering the device
•Active – output enabled,
•Inactive – output disabled.
State – visualization of the output, if a rectangle is yellow it means that the output
current is turned on.
Buttons Out 1 and Out 2 outputs can activate or deactivate the output.
Active Relay on Card – if the TAG will be read, the output enables.
To set the duration of the active output it is necessary to select the TIME mode and set
appropriate Time ON.
6.2 Inputs
Fields STATE INPUT 1 and STATE INPUT 2 displays the actual state of inputs. Square
field in black – input inactive, field in yellow – active input.
6.3 LEDs and sound signaling control
The RFID M1/U1 Configurator allows user to customize visual and sound indication.
All you have to do is select the appropriate configuration settings and upload it to the
module.
Two options can be set for the Buzzer
•OFF – signaling device switched off,
•ON – sound signaling at the moment of reading the TAG.
The device has 3 LEDs
•Power supply diode, green LED,
•LED 1 – red LED,
•LED 2 – green LED.
Regardless of t e selected setting, it is always possible to control t e signaling
via t e Modbus RTU protocol.
User manual RFID IND Modbus Mif Page 11 z 22
[B03]

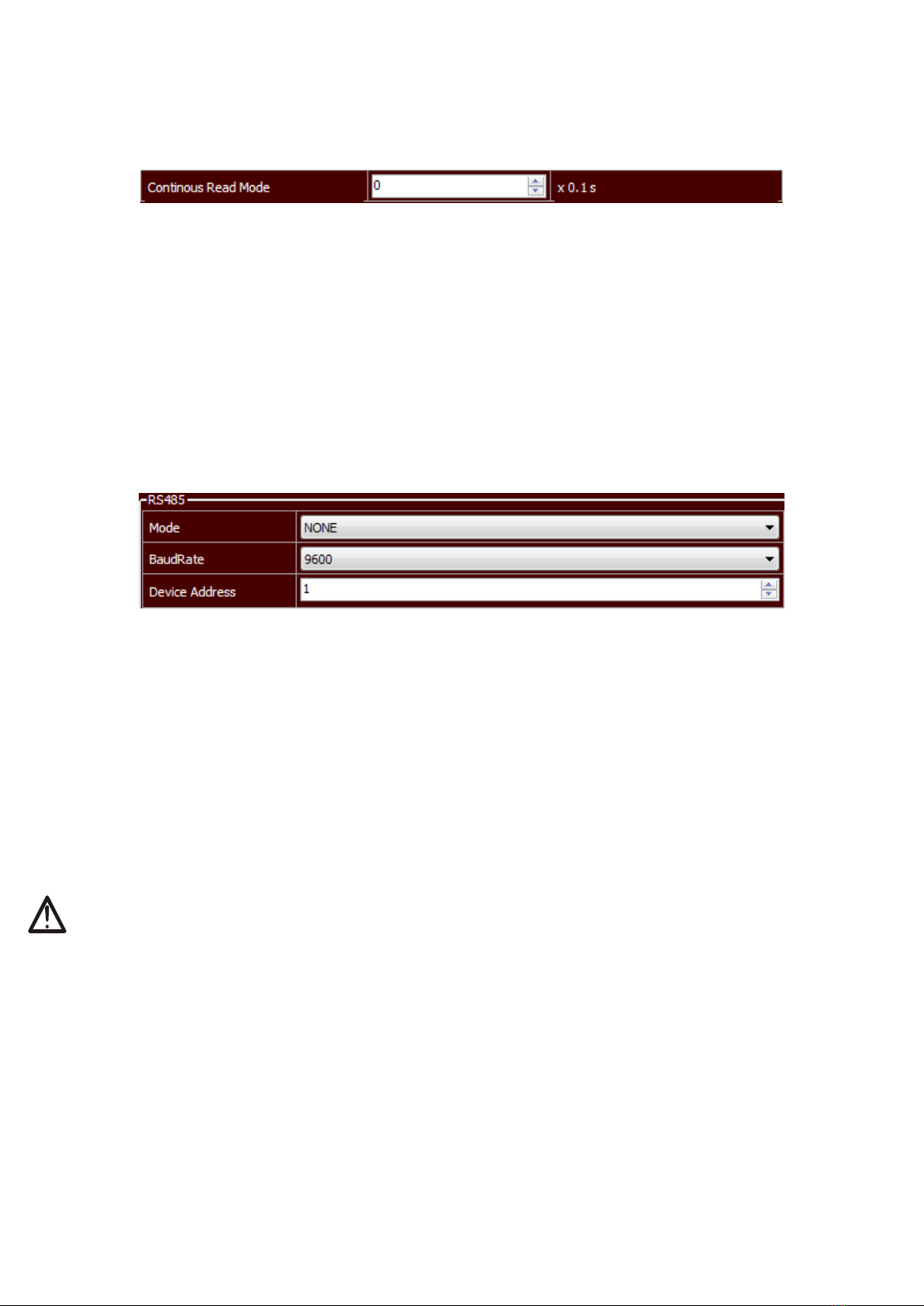

6.4 Continuous Read Mode
The device allows the user to define the delay of reading TAGs.
The Continuous Read Mode means that the same TAG can be read only after
the defined time has elapsed but another TAG is read immediately. This means that
the same card will not be accidentally read several times. (30 = 3 seconds)
Attention! If the user uses this option, the read flag of the new TAG will NOT appear.
The device will operate autonomously and automatically allow another reading of the
same TAG after the declared time.
6. RS48 – Configuration of transmission
This field is used to configure the communication of the reader with the MASTER device.
MODE (setting of 9th bit of transmission)
None
Even – parity bit
Odd – odd bit
BaudRate – transmission speed (1200, 2400, 4800, 9600, 19200, 38400, 57600,
115200)
Device Address – device address for Modbus protocol
Card Serial Number – the field displays the last RFID transponder code read and the
type of card.
Attention! After customizing t e settings and saving in t e device, it is
necessary to restart t e device.
User manual RFID IND Modbus Mif Page 12 z 22
[B03]

7 Modbus API
Modbus API allow user to
- read and write any block of data from MIFARE tag
- set authorization credential for every Mifare tag blocks for write and read
- control user action (LED, Buzzer)
- control result of operation
7.1 Mifare tag structure
Below is Mifare 1k tag structure (note from NXP Semiconductor MF1S503x pdf)
Tag has 1kB EEPROM memory.
Memory is organized as 16-bytes block.
At one time tag can read or write exactly 16 bytes. So if user want to write 2 bytes to
block without erase other, it is necessary to read 16 bytes, change 2 bytes and write 16
bytes.
User manual RFID IND Modbus Mif Page 13 z 22
[B03]

Manufacturer Data
First block is Manufacturer Data. It is consist UID number (sometimes known as Card ID
or Serial Number). In general it is readonly block but some manufacturer produce fake
Mifare tag which be able to write that block.
Data block
Each sector contains 3 data blocks (except sector 0, which contains 2 blocks). Each block
stores 16 bytes of data.
Data block can be configured by the access bit as
- read/write block
- value block
Sector Tralier
At end of every block is Sector Trailer. It contains secret key
- key A (obligatory key)
- key B (optionally key)
and configuration bits for access data block.
7.2 Modbus Address
The following MODBUS RTU functions are supported
- 0x01 Read Coils
- 0x03 Read Holding Register
- 0x05 Write Single Coil
- 0x06 Write Single Register
- 0x0F Write Multiple Coils
- 0x10 Write Multiple Registers
For proper operation of modbus protocol it is necessary to disable t e RFID M1/
U1 Configurator application.
Holding Registers table:
Address R/W Description
1000 R/W IsNewTag
1-tag recognized
0-no tag
Flag must be reset (clear to 0) before read next tag.
Same as Coil Register 1016
1001 R UID Lengt – lenght of Mifare UID (4,7 or 10)
1002 -1011 R UID
1012 R Card Type type of read tag
1017 R MODEL ID
1018 R Software Version
1019 R Hardware Version
1020 R/W Mode OUT1
1- bistable
2- astable
3- time
1021 R/W Time On OUT1 – time determining how long the output will be
enabled (1-65535) (*0,1 sec) e.g. 120 = 12 seconds
User manual RFID IND Modbus Mif Page 14 z 22
[B03]

Address R/W Description
1022 R/W Time Off OUT1 – time determining how long the output will be
disabled (1-65535) (*0,1 sec)
1023 R/W Mode OUT2
output number 2 mode, as above
1024 R/W Time On OUT2
as above
1025 R/W Time Off OUT2
as above
2000 R/W WriteEnable – Write TAG enable for next operation
2001 R/W ReadEnable – Read TAG enable for next operation
2002 R/W TagType – select 1k Mifare (0) or 4k Mifare (1)
2003 R/W MemoryMode – linear (0) or full (1) buffer memory mode. See
description
2004 R/W DataMode – mode of representation data in buffer. (0-2) see
description
2005 R/W User Signaling mode for every recognized card
Format (binary) xxxx xxxx xxxx BB12 where
BB – 0 no signal, 1 signal accept, 2 signal reject
1 – led 1
2 – led 2
2006 R/W User signaling mode for result read operation
Format (binary) xxxx xxxx EE34 BB12 where
EE – 0 no signal, 1 signal accept, 2 signal reject for error operation
1 – led 1 for error operation
2 – led 2 for error operation
BB – 0 no signal, 1 signal accept, 2 signal reject for valid operation
1 – led 1 for valid operation
2 – led 2 for valid operation
2007 R/W User signaling mode for result write operation
Same as above.
2008 R/W HaltTag – Write 1 will halt current tag and reader will be waiting for
next tag. IsNewId and HaltTag is cleared after that.
2009 R/W WakeAll – Write 1 release power from antenna for short time, so every
Tag will be reset and accessible. IsNewId and WakeAll is cleared after
that.
2010 R/W ReadResultGlobal – result of last read operation 0 no read error, 1 –
error. It is logical sum of read errors at all readed block
(ReadResultCode)
2011 R/W ReadResultGlobal – result of last write operation 0 no write error, 1 –
error. It is logical sum of read errors at all written block
(WriteResultCode)
2020-2035 R/W RunReadFlag – select block for read operation. Each bit control one
block.
Ex. 0x0031 mean read block 0 from sector 0, and block 0+1 from
sector 1
2040-2055 R/W RunWriteFlag – select block for write operation. Each bit control one
block.
User manual RFID IND Modbus Mif Page 15 z 22
[B03]

Address R/W Description
2100-2355 R/W ReadAuthorization – authorization setting for any block on read
operation.
Format (hex) xAxK, where A – authorization type for block 0-A, 1-B,
K-number of stored key 0-7.
Ex. 0001 mean authorization type A and second stored key
2400-2655 R/W WriteAuthorization – authorization setting for write operation. Same as
above
2700-2955 R/W ReadResultCode – result code for every read block operation (0-no
error)
3000-3255 R/W WriteResultCode – result code for every write block operation (0-no
error)
4000-8095 R/W Read Buffer Memory
10000-
14095
R/W Write Buffer Memory
Single Coil:
Address R/W Description
1000 R/W ON 1 – control relay 1 (off/on)
1001 R/W ON 2 – control relay 1 (off/on)
1002 R COIL STATE 1 – relay 1 coil state
1003 R COIL STATE 2 – relay 2 coil state
1010 R INPUT 1 – input 1 state
1011 R INPUT 2 – input 2 state
1012 R/W LED1 – control LED 1
1013 R/W LED2 – control LED 2
1014 W BUZZ ACCEPT – enable accept sound
1015 W BUZZ REJECT – enable reject sound
1016 R/W IsNewTag
1-tag recognized
0-no tag
Flag must be reset (clear to 0) before read
next tag.
Same as Holding Register 1000.
1017 R/W ResetFlag
1 – default state for power-on reader
It can be clear and set by user for diagnostic
purpose
In general use, you have to polling Coil 1016. When it change to 1 it is mean that the
RFID device read new tag. Holding registers 1002-1011 contains tag ID.
When you read ID number you should release Coil 1016 (or Holding Reg 1000) flag
(clear to 0). Only after that the reader is able to read next ID tag.
Modification of the output parameters can be done by the Modbus protocol. It is not
stored in the module's permanent memory. That means after reboot, the output
parameters previously saved to the EEPROM by the configuration program will be
restored.
User manual RFID IND Modbus Mif Page 16 z 22
[B03]

8 Memory buffer
RFID reader has built-in memory for store tag data. It is two 4kB buffers, first for read
operation and second for write operation. Memory is accessible by Modbus Holding
Registers.
8.1 Memory buffer addressing
Reader can work at two types of memory adressing (reg MemoryMode)
•Full mode – read and write memory is addressed exactly like tag memory
structure. To read second byte from fisrst block data user has to read 18 + buffer
offset Modbus Register (1*16 + 2 = 18). Block 0 from 15 sector start at 15(sector
number)*4(block in sector)*16(bytes in block) + offset Modbus Register.
User must be careful to not write unwanted data to Sector Trailer because it can
block access to sector.
User manual RFID IND Modbus Mif Page 17 z 22
[B03]

•Linear – reader calculate address and omit manufacturer data and Sector Trailer
block. User has 752 bytes for use at 1k Mifare tag.
This mode is safe for Sector Trailer but application has not granted access to all
tag data.
Attention!
RunReadFlag/RunWriteFlag has affect by this setting. When mode is Linear,
RunReadFlag/RunWriteFlag omitt first block and any Trailer Sector. So first bit mean
second block of first sector instead first block of first sector in Full Mode.
The memory addressing mode is set by sending the proper value Linear mode (0) or Full
mode (1) to the 2003 Holding Registers.
User manual RFID IND Modbus Mif Page 18 z 22
[B03]

8.2 Buffer data representation (Endianess)
Reader has configuration for buffer data read/write modbus operation. There are 3
options (register DataMode)
•default – every Modbus Holding Register keep one byte of tag data
Example
If Tag block 0 has first two bytes MSB 0x55 LSB 0xAA, than Modbus Reg
0(+Buffer Memory offset) contain 0xAA and Modbus Reg 1 constain 0x55
•Endian 1 – every Modbus Holding Register contains 2 byte of data
Example
If Tag block 0 has first two bytes MSB 0x55 LSB 0xAA, than Modbus Reg
0(+Buffer Memory offset) contain 0x55AA
User manual RFID IND Modbus Mif Page 19 z 22
[B03]

•Endian 2 – every Modbus Holding Register contains 2 byte of data.
Example
If Tag block 0 has first two bytes MSB 0x55 LSB 0xAA, than Modbus Reg
0(+Buffer Memory offset) contain 0xAA55
Endian 1 and 2 can reduce data transfer between RFID Reader and Master Controller
(PLC or other).
9 Block key
Followed by Mifare specification every block of data has own security setting. Trailer
Sector descript which key (A or B) is needed to read and/or write block.
Key program is done by USB software. Factory security key for any block is key
FFFFFFFFFFFF. Key is 6 bytes length. User can select one of 7 key stored in EEPROM
write only memory. As default RFID Reader use FFFFFFFFFFFF key for all operation.
Every block has own selector of key and authentication type, separately for read and
write operation (ReadAuthorization and WriteAuthorization registers).
User manual RFID IND Modbus Mif Page 20 z 22
[B03]
