InWin A1 User manual

Product Story
The A1 presents a perfect combination of innovation and
classy materials. The modern Scandinavian style design is
complemented with tempered glass and sleek anodized
aluminium, which is suitable to any environment.
The A1 possesses detailed craftsmanship from top to base.
The square structure provides hassle-free installation, and the
capacity to house powerful hardware despite its compact size.
An In Win 600W, 80 PLUS Bronze PSU is prebuilt within the A1
with cables already managed. A wireless charger makes life
easier and charges your mobile device anytime!
The A1 not only presents the elegant aesthetics of simplicity,
but also shows the spirit of In Win’s motto, “Contemporary
and Innovative.”

Specifications
■In Win products comply with RoHS regulation.
■Specifications may vary based on different regions.
Model
Part Number
Colors
Case Type
Case Materials
M/B Compatibility
Expansion Slots
Maximum Compatibility
Front Ports
Internal Drive Bays
Thermal Solution
Compatibility
Power Supply
Compatibility
Product Dimensions
(H x W x D)
Product Dimensions
(H x W x D)
with screw & handle & stand height
Package Dimensions
(H x W x D)
Net Weight
Gross Weight
A1
IW-A1-BLA-P
IW-A1-WHI-P
Black , White
Mini-ITX Tower
SECC Steel , Tempered Glass
Mini-ITX
PCI-E x 2
VGA Card Length: 320mm
CPU Heatsink Height :160mm
2 x USB 3.0
HD Audio
2 x 2.5"
1 x 120mm Side Fan
1 x 120mm Rear Fan / 120mm Radiator
2 x 120mm Bottom Fan
In Win 600W PSU Included
231 x 210 x 343mm
(9.1" x 8.3" x 13.5")
273 x 224 x 357mm
(10.7" x 8.8" x 14.1")
344 x 295 x 414 mm
(13.5” x 11.6” x 16.2”)
6 kg/ 13.2lbs
6.9 kg/ 15.3lbs
A1 case

In Win 600W power
Model
Total Power
Material
Type
PFC
Efficiency
MTBF (Hours)
AC Input
Hold-up time (ms)
Fan
Operating Temperature
Range(°C)
Full Protection
Safety Certifications
Dimensions(L x W x D)
Warranty
Connectors
IP-P600KQ3-2
600W
SECC Steel
ATX12V V2.4
Active PFC
80 PLUS Bronze
> 100,000
100 ‒ 240Vac. 50-60Hz
> 16ms
120mm
0~50°C
OCP/OVP/UVP/SCP/OTP/OPP
TUV/cTUVus/BSMI/CB/CE/FCC/EAC/RCM
140 x 150 x 86 mm
3 Years
Motherboard 24-pin
CPU 4+4-pin
PCIE 6+2 pin
Peripherals
SATA
Floppy Power
Micro USB
1
1
2
0
3
0
1
■In Win products comply with RoHS regulations
■Specifications may vary based on different regions

Package Content
A1 Chassis
QR Code Card
Accessories Bag

Accessories Bag
b. 2.5” HDD Screws X 10
a. Hexagon Head Screws X 8
c. Graphic Card Holder X 1
d. Cable Ties X 5
f. LED 4-Pin Header X 1
g. LED-SATA Connector X 1
e. Anti-Slip Strips X 4
c
b
a
d
If your motherboard doesn't have an RGB header,
please use the provided LED-SATA connector and
LED 4-Pin header to set default LEDs.
g
e f

Case Structure
1
2
3
4
5
6
1. SECC Front/ Side Panel
2. Audio Ports (Earphone and Microphone)
3. USB 3.0 Ports
4. HDD/Power LED Indicator
5. Power Button
6. Logo
7. Tempered Glass
7

ab
c
g
j
e
f
d
h
i
k

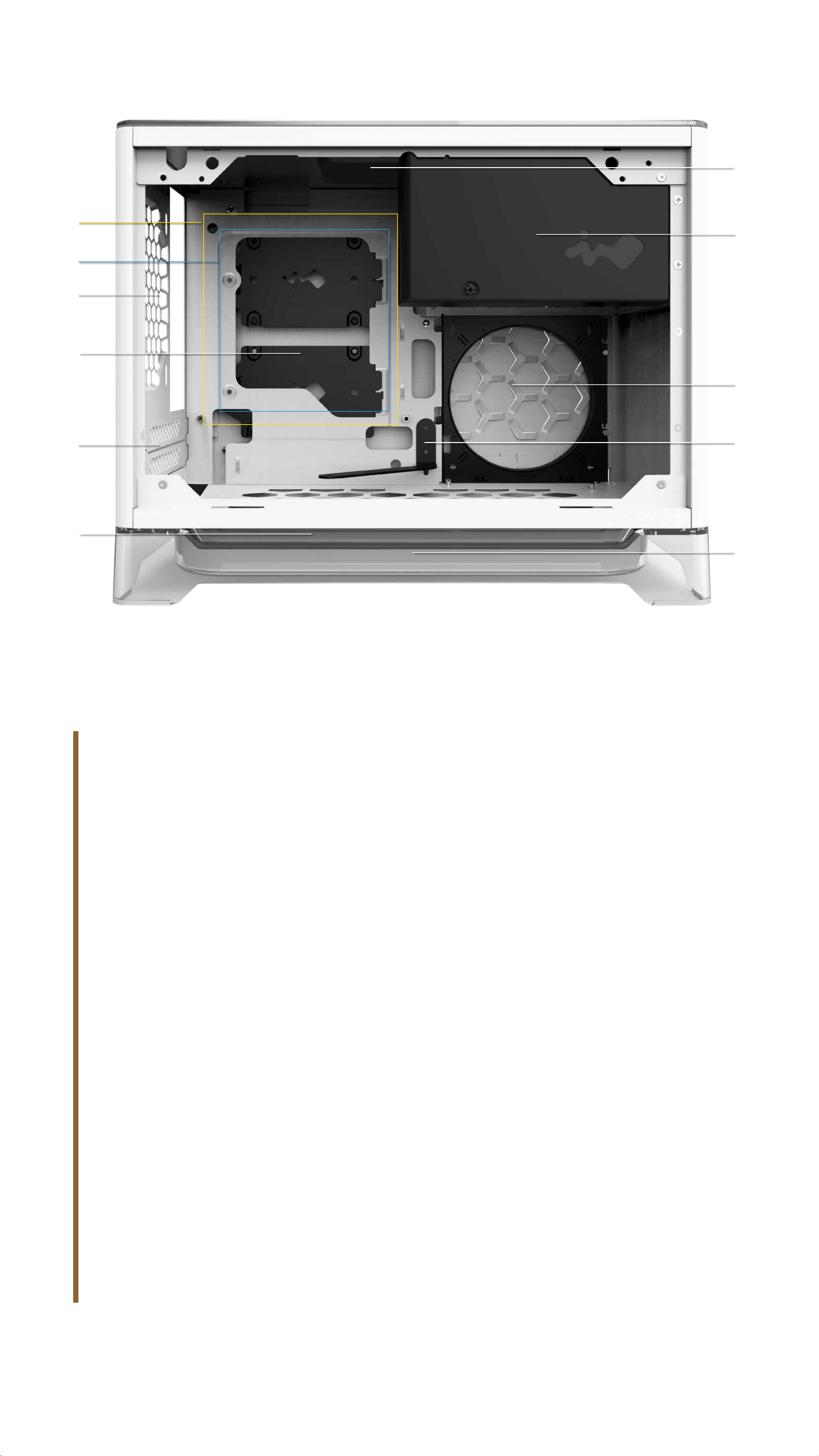

a. 2.5 Drive Bay
b. Side Fan Mounting Area
c. Rear Fan/ Radiator Mounting Area
d. Bottom Fan Mounting Area
e. Motherboard Mounting Area
f . CPU Cooler Installation Cut-Out Hole
g. PCI-E Expansion Slot
h. Extra PCI-E Supporting Mounting Hole
i. Power Supply Area
j. Fan Dust Filter

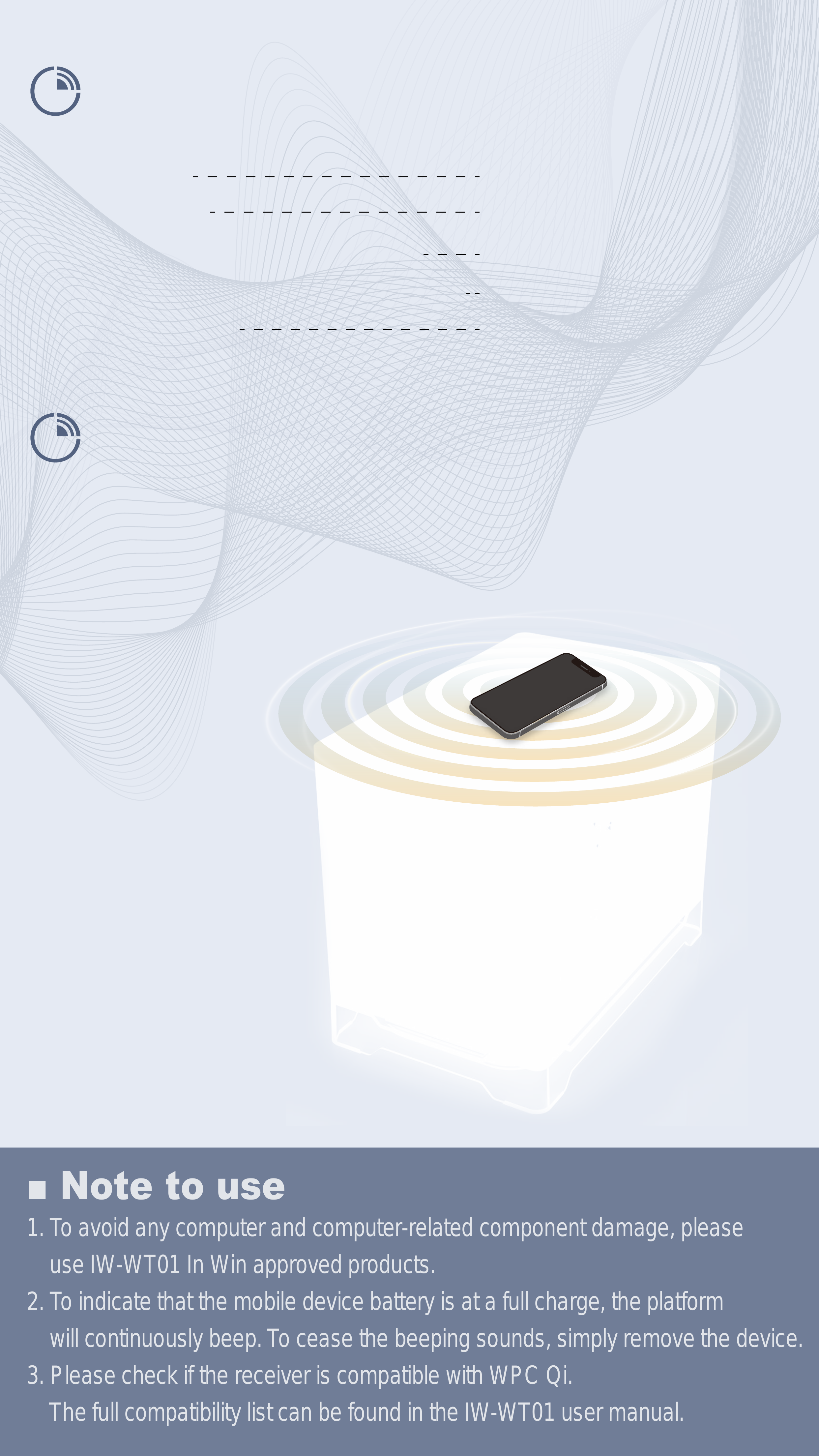

k. Wireless Mobile Device Charging Area

Installation Guide
Please follow the related chapters to asseble
Opening the Chassis
For the side panel, please pull
the two tool-less tabs and lift up.
01

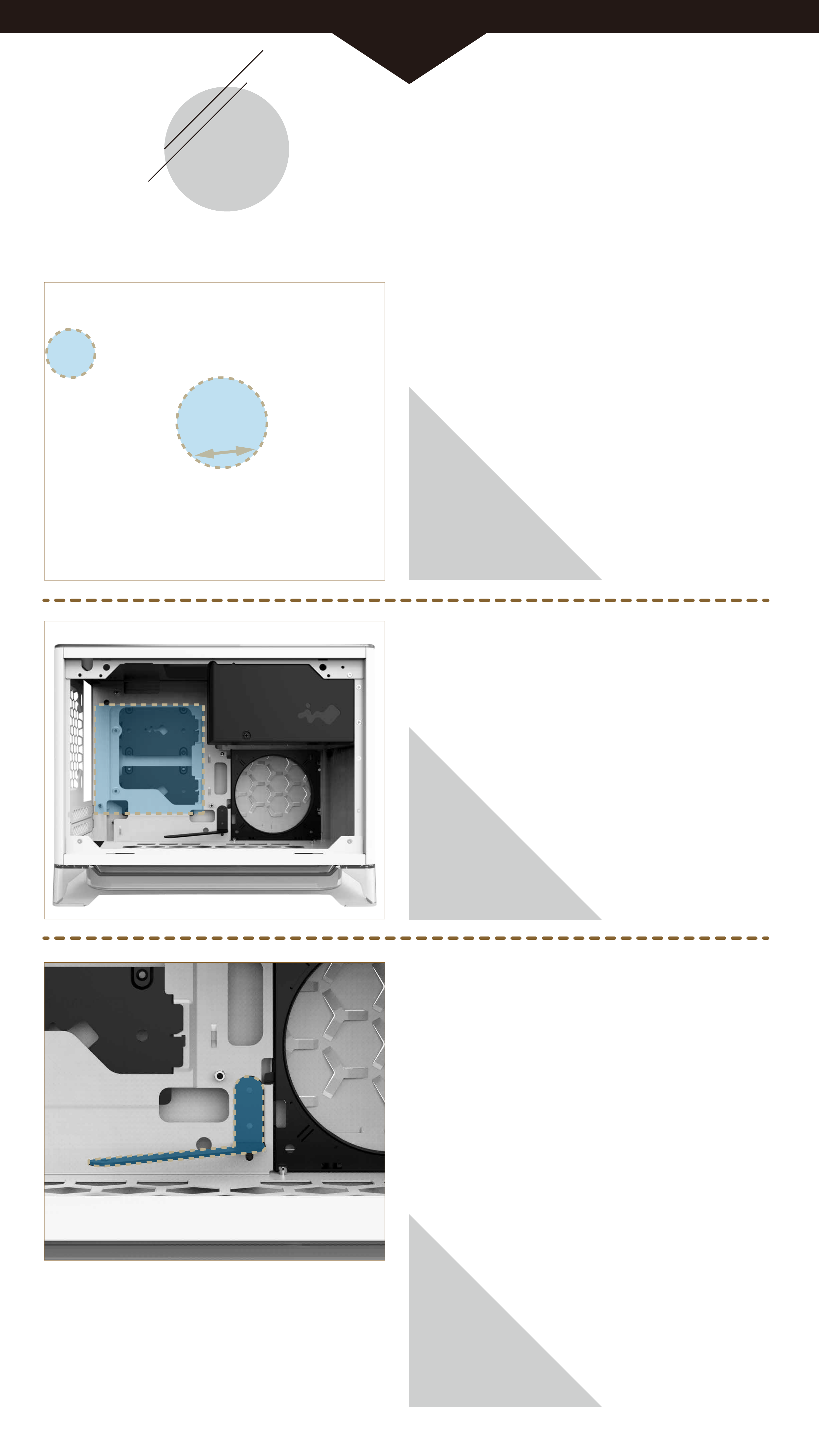

Motherboard
Installation
Parts Required: Hexagon Head
Screws
02
Expansion Card
Installation
Parts Required:
Hexagon Head Screws,
Graphics Card Holder
03

I/O Wires Installation
04
Switch/LED Connector
Blue(P_LED) 1
White(P_LED) 3
Brown(P_SW) 5
White(P_SW) 7
Key 9
2 Red (HDD)
4 White (HDD)
6 NC
8 NC
10 NC
