ION Mustang LP User manual

Confidential ION Audio Service Manual
ION Audio
Mustang LP
[iT69]
Service Manual
v1.0
The information in this document contains privileged and confidential information. It is
intended only for the use of those authorized by ION Audio. If you are not the authorized,
intended recipient, you are hereby notified that any review, dissemination, distribution or
duplication of this document is strictly prohibited. If you are not authorized, please
contact ION Audio and destroy all copies of this document. You may contact ION Audio
at [e-mail].
© Copyright ION Audio
ATTENTION!
This document contains sensitive proprietary information.
All recipients must have a current non-disclosure agreement
on file with ION Audio.
Do not make illegal copies of this document.

Confidential ION Audio Service Manual
Preface
This document is intended to assist the service technician in the operation, maintenance and
repair of the ION Audio device. Together with the User Reference Manual, this document provides
a complete description of the functionality and serviceability of the Device. Any comments or
suggestions you may have pertaining to the document are welcome and encouraged.
Read This!
In addition to any purchase price that ION Audio may charge as consideration for ION Audio
selling or otherwise transferring this service manual (“Manual”) to you, if you are not a service and
repair facility (“Service Center”) authorized by ION Audio in writing to be an authorized Service
Center, ION Audio sells or transfers the Manual to you on the following terms and conditions:
Only Service Centers authorized by ION Audio in writing are authorized to perform service and
repairs covered by an ION Audio warranty (if any), and transfer of the Manual to you does not
authorize you to be an authorized Service Center. Therefore, if you perform, or if the Manual is used
to perform, any service or repairs on any ION Audio product or part thereof, any and all warranties
of ION Audio as to that product and any service contract with ION Audio for that product shall be
voided and shall no longer apply for such product, even if your services or repairs were done in
accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your responsibility,
and ION Audio shall have no liability for any such repairs or service work. All such service or repairs
are performed at the sole risk of the person performing the service or repairs. You agree that all
such work will be performed in a competent, professional and safe manner at all times and to
indemnify and fully hold ION Audio and its successors and assigns harmless in the event of any
failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of
resale or other transfer.
As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the
Manual, and you agree not to copy the Manual without the written authorization of ION Audio.
ION Audio has no obligation to provide to you any correction of, or supplement to, the Manual, or
any new or superseding version thereof.
ION Audio shall have the right to refuse to sell or otherwise transfer repair parts or materials to you in
its sole discretion. You shall not use, sell or otherwise transfer spare or replacement parts supplied by
ION Audio to you (i) to repair or be used in products manufactured for or by third parties or (ii) to
any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of ION Audio or the
use thereof on behalf of ION Audio or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you,
and no other terms shall apply unless in a writing signed by an authorized representative of ION
Audio.
All Trademarks are property of their respective companies.

Confidential ION Audio Service Manual
Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS PRODUCT TO
WATER OR MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the
enclosed product which may be of sufficient magnitude to constitute a risk
of electric shock to persons.
The exclamation point inside a triangle is intended to alert the user to the
presence of important operating, maintenance and servicing instructions in
the literature which accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION AUDIO SERVICE
CENTER WILL VOID THE ION AUDIO WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO COMPETE WITH ANY
ION AUDIO DISTRIBUTOR OR AUTHORIZED REPAIR SERVICE CENTER IN THE PROVISION OF
REPAIR SERVICES OR TO BE OR MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED ION AUDIO SERVICE
CENTER SHALL BE SOLELY THE RESPONSIBILITY OF THAT ENTITY, AND ION AUDIO SHALL HAVE
NO LIABILITY TO THAT ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
Caution: The product under service may employ the use of a
replaceable fuse. Danger of fire or electrocution if fuse is
incorrectly replaced. Replace with only the same type or
equivalent type recommended by the equipment manufacturer.
Regarding the Internal Battery
Caution: The product under service may employ the use of a
internal battery. Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instruction.

Confidential ION Audio Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions
before using this product. Use extra care to follow the warnings written on the product itself and in
the operating instructions. Keep the operating instructions and safety suggestions for reference in
the future.
1. Power Source. The product should only be connected to a power supply which is described
either in the operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to
step on the cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the product’s
AC power supply cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any
openings of the product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or
other heat producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate ventilation.
Improperly ventilating the product may cause overheating, which may damage the product.
8. Mounting. The product should only be used with a rack which the manufacturer recommends.
The combination of the product and rack should be moved carefully. Quick movements,
excessive force or uneven surfaces may overturn the combination which may damage the
product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in
the operating instructions for the user. For any other service required, the product should be
taken to an authorized service center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain situations
including without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate
normally, or
e. The enclosure of the product has been damaged.

Model No.: iT69 / MUSTSANGLP Date: 7-Nov-16
Brand: I N Rev:
Part number Part Name Description Remarks
Which region
can parts be
used
PCB
114# PCB:M552-PM1
双
面板
130*47.3*1.2MM
PCBA Assembly (ROHS, REACH USA/EU/UK/JP
047M535P0000 Stylus & Cartridge
唱
头
（客定）唱針
YUE DING STYLUS & CARTRIDGE USA/EU/UK/JP
P WER TRANSF RMER:
4111311 EI-41 AC/AC TRANSFORMER 输入电压：AC120V/60HZ USA
4111314
EI-41 AC/AC TRANSFORMER
输
入
电压
：
AC240V/50HZ
Transformer for unit with ERP EU/UK
4111315
EI-41 AC/AC TRANSFORMER
输
入
电压
：
AC100V/50/60HZ
Transformer for unit with ERP JP
CABLES:
4111304
UL
头
插
头电
源
线
L=2.03M L2
开
叉
100MM
L3裸线芯10MM不上锡 USA
4111284 BS插头电源线 L=2.03M L2开叉100MM L3裸线芯10MM不上锡 UK
4111316 VDE插头电源线 L=2.03M L2开叉100MM L3裸线芯10MM不上锡 EU
4111317 PSE插头电源线 L=2.03M L2开叉100MM L3裸线芯10MM不上锡 JP
PACKAGING:
5040566 Mainframe plastic bag 主机胶袋(500X550mm,500开口）
包主机
For main unit USA/EU/UK/JP
5040394 Antenna plastic bag 天线胶袋（51x165mm 50开口）
包
FM
天
线
For FM
Antenna USA/EU/UK/JP
5040563
AC cord plastic bag AC线胶袋（101x330mm 101开口）
包
电
源
线
For Power
Cord USA/EU/UK/JP
5040564 I/B plastic bag 说明书胶袋（6"X8" 6"开口）
包
说
明
书
For QSG USA/EU/UK/JP
5011224 彩盒(SIZE:L420*W152*H425MM Black EU EU/USA/UK/JP
5011223 彩盒(SIZE:L420*W152*H425MM Red EU EU/USA/UK/JP
卡通箱(卡通箱(L435*W435*H337mm （含天地盖） Black USA/EU/UK/JP
卡通箱(卡通箱(L435*W435*H337mm （含天地盖） Red USA/EU/UKJP
4390162 PolyFoam iT69 MUSTANG LP
Polyfoam (Left, right - 1 set , and 1pc on phono (98x98x28mm
发泡胶(分R,L 98x98x28mm (发泡胶载片
包
装
主机
for main unit
USA/EU/UK/JP
5460045/5110955 Pearl cotton sheet/tissue paper 珍珠绵片220*50*3mm / 雪梨纸675x980mm
保
护
唱
盘
/
包
装主机
For platter &
main unit USA/EU/UK/JP
5061256/5061257 QSG (Safety manual & IM & Support Insert QSG 说明书 安全手册 支持卡 USA/EU/UK/JP
431150 Dial scale plastic plate (Adhesive 台位尺胶片（单面粘性） USA/EU/UK/JP
4130789 iT69 Hinge Lid 唱盘扣 iT69 USA/EU/UK/JP
00435BT0003 Phono board M535-BTPHM3UEI-ERP2 PHONO BOARD唱盘板 USA/EU/UK/JP
4790112/114/115 Button 功能按钮 音量按钮 单选按钮（function/vol/radio button USA/EU/UK/JP
IT67TTMECH Turntable Mechanism J-183唱盘机芯 USA/EU/UK/JP
iT69 MUSTANG LP C STED B M
MEGAGOLD M-552
Giftbox iT69 MUSTANG LP EU
Carton iT69 MUSTANG LP
Power cord
5096979810311

Packaging Operation Guide
Model: iT69 (T199-V)

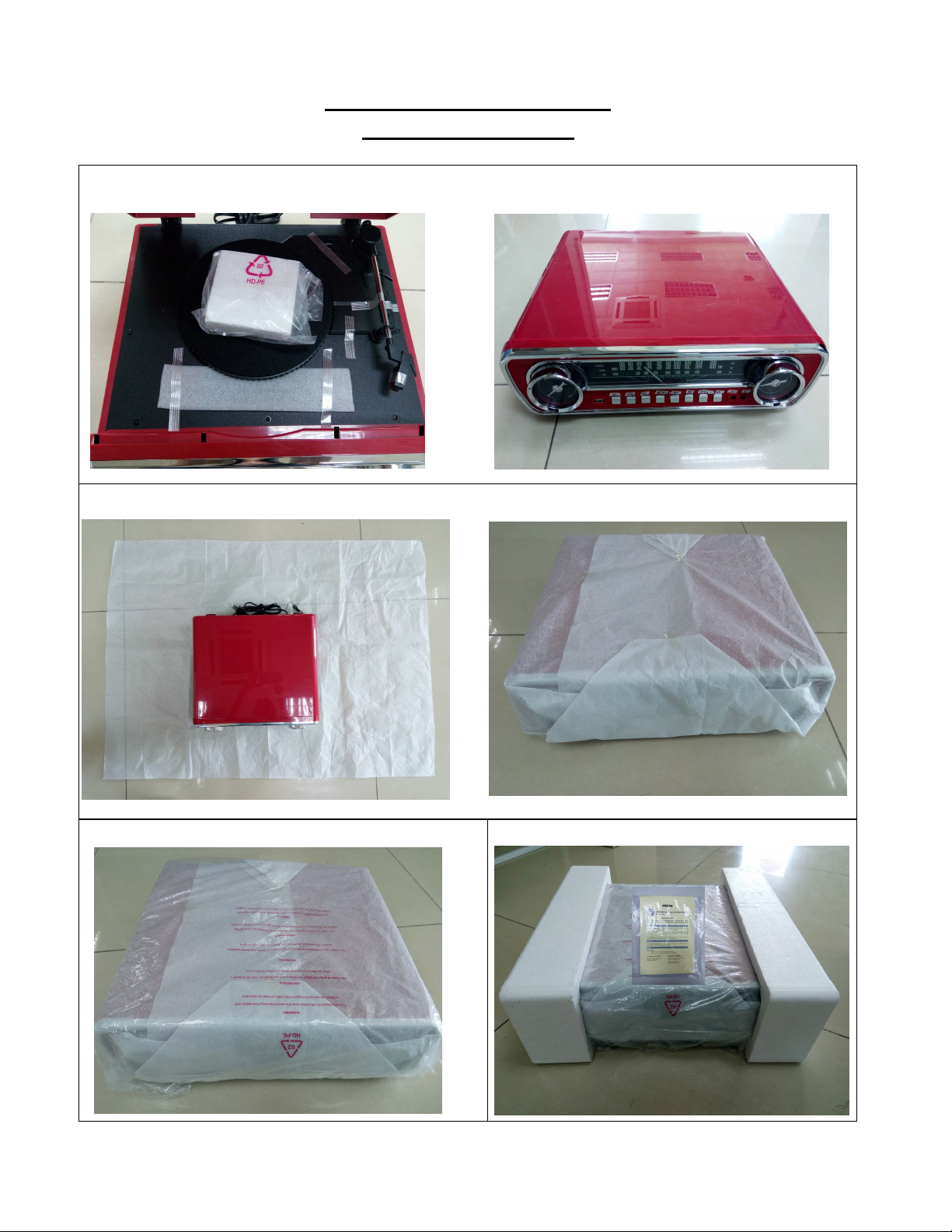

1.Fixed by Fiber tape，polyfoam bag on PHONO board, tied tonearm
2. Wrapped with tissue paper
3. Packed into polybag 4. Set polyfoam on left and right side.
iT69_Packaging Operation Guide 1 of 3

5. All document (QSG, Safety manual & support insert) are packed in plastic bag
6. Power cord is packed in plastic bag, and the antenna is packed in plastic bag.
iT69_Packaging Operation Guide 2 of 3

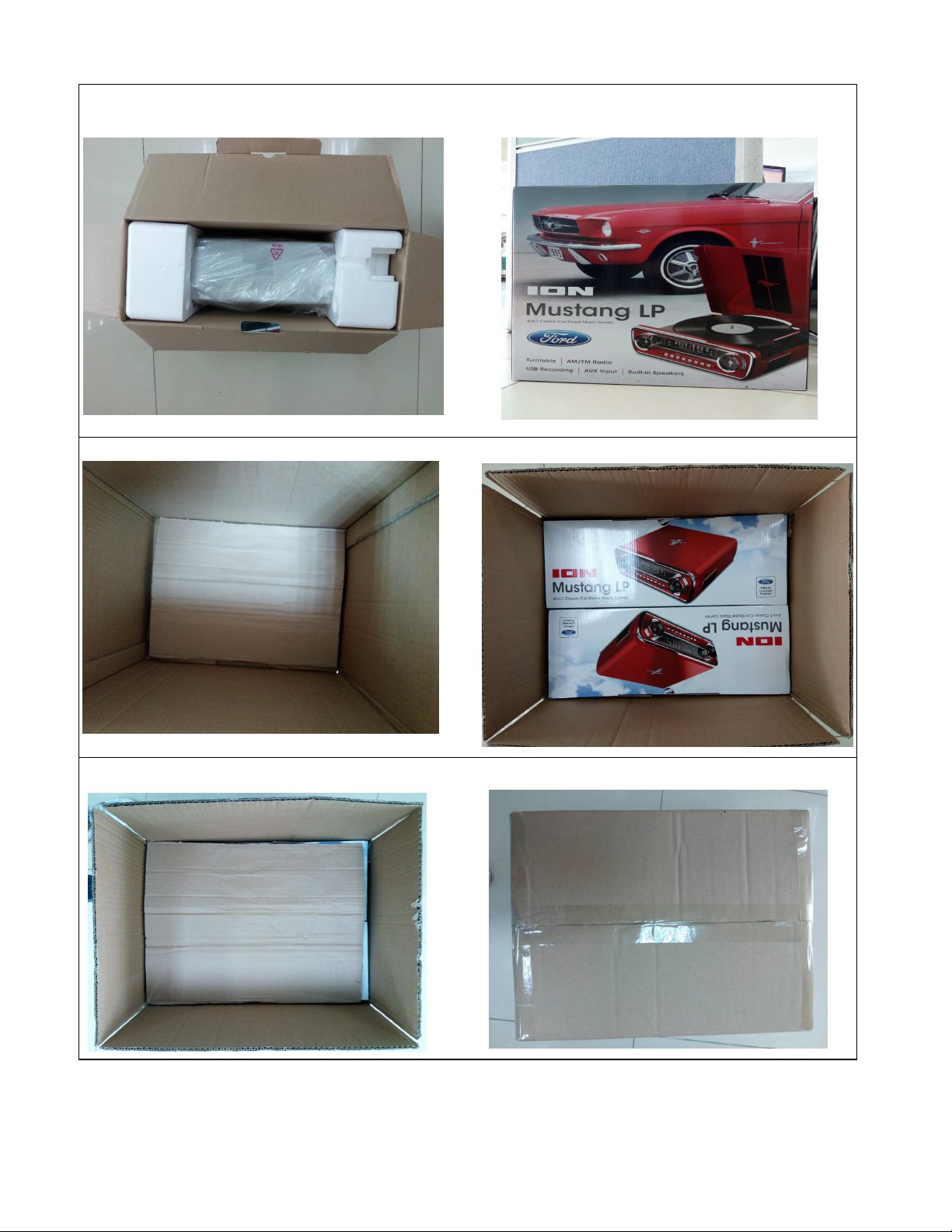

7. Then put in to gift box.
8. Put paperboard on the buttom of carton 9. Put Gift box in to carton
10. Put paperboard on the top of Gift box 11. Sealing carton box by sealing tape
iT69_Packaging Operation Guide 3 of 3
