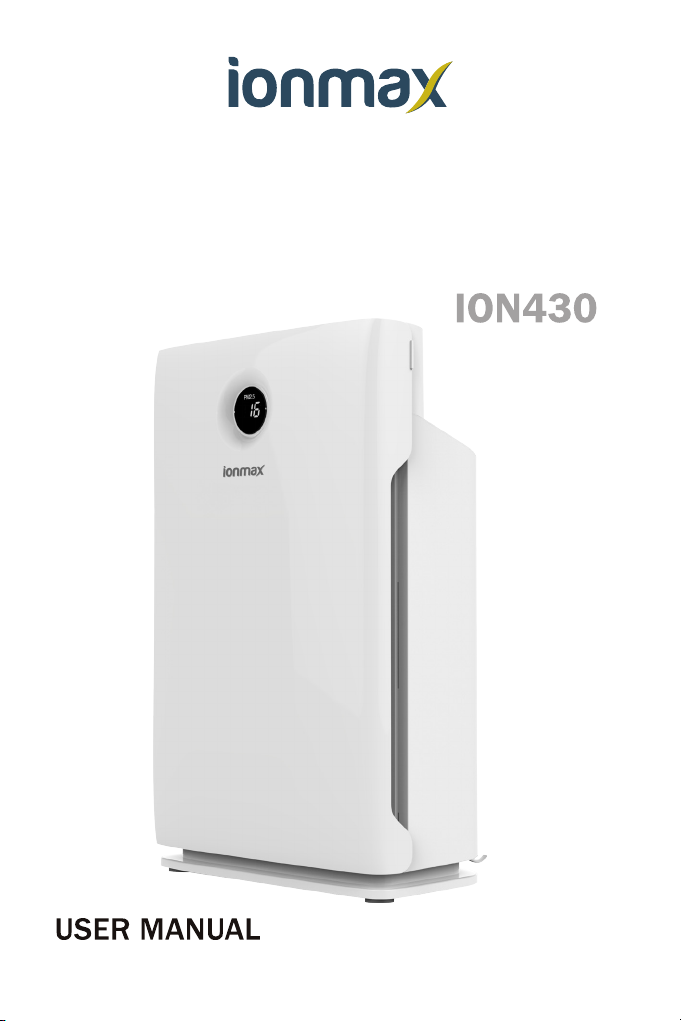

ionmax ION430 User manual

Version 1.0. Updated April 2020.
UV HEPA
AIR PURIFIER

Thank you for purchasing the Ionmax ION430 UV HEPA Air Purier. The Ionmax
ION430 can help to improve the indoor quality in your home or ofce.
Please read this manual carefully before use to ensure proper usage and save
these instructions for future reference.
The package includes:
●ION430 air purier
●User manual
Note: Remove plastic bags from lters before rst use
SAFETY INSTRUCTIONS 4
PRODUCT DIAGRAM 5
SPECIFICATIONS 5
PURIFICATION SYSTEM 6
AIR QUALITY INDICATOR 7
CONTROL PANEL 8
OPERATING INSTRUCTIONS 9
MAINTENANCE INSTRUCTIONS 9
FILTER REPLACEMENT 10
TROUBLESHOOTING GUIDE 13
WARRANTY DETAILS 14
WARRANTY REGISTRATION 16
DEAR CUSTOMER SAFETY INSTRUCTIONS
CONTENTS
3

SAFETY INSTRUCTIONS
PLEASE READ ALL THE TIPS AND WARNINGS BELOW
BEFORE USING THE AIR PURIFIER.
●Use only as directed in the User Manual.
●Do not allow children or persons with reduced physical, sensory, or mental
capabilities to operate the unit without adult supervision.
●Only designed for use in a 220-240V, 50Hz outlet.
●Use indoors only.
●Only operate the unit when it is fully assembled.
●Never touch the unit with wet hands or allow it to come into contact with water.
●Turn off all controls before unplugging the power supply.
●Always disconnect the unit from the power supply before moving or cleaning the
unit, and when the unit is not in use.
●When removing the power plug, always hold the plug and never pull the cord.
●This air purier is not a substitute for proper ventilation, regular vacuum cleaning
or an extractor hood or fan while cooking.
●Leave at least 20cm of space behind and on both sides of the unit and leave at
least 30cm space above the unit.
●When the unit is in operation, please place it at least 2m away from equipment
that emits electric waves such as televisions, radios and clocks, to prevent
electrical interference from occurring.
●Do not use the unit in bathrooms, kitchens, humid areas, near replaces, or place
it in proximity to ammable or combustible products, as electric shock and a re
hazard may result.
●Do not clean the unit with water or any other liquid including ammable products.
●Never operate the unit if the plug or cord appears damaged. Contact the
authorised distributor or qualied personnel immediately for examination and
repair.
●Do not insert ngers or foreign objects into the air intake or air outlet, or block
them by placing items on the air outlet or in front of the air intake.
●Do not place anything on top of the unit and do not sit on the unit.
●Do not place the unit directly below an air conditioner as condensation may drip
into the unit.
●Do not operate this unit when using indoor insect repellents (aerosols) or in
places with oily residues, burning incense or chemical fumes.
●Do not use the unit in a room with major temperature changes, as this may cause
condensation inside the unit.
4

PRODUCT DIAGRAM PURIFICATION SYSTEM
Model Ionmax ION430
Voltage 220-240V, 50Hz
Power Rating 80W
Coverage Area Up to 40sqm
Noise Level 66dBA (max)
CADR 340m³/h
Filter Life 2,000 hours
Weight 7.0 KG
Dimensions 380 (W) x 210 (D) x 590 (H) mm
SPECIFICATIONS
UV bulb
5

PURIFICATION SYSTEM
1. Cleanable Pre-Filter
Traps large particles such as human hair, pet dander and dust particles.
Helps to extend the life of the HEPA and Activated Carbon lters.
2. True HEPA Filter
Traps up to 99.97% of allergens and airborne contaminants down to 0.3
microns in size. These allergens include lung damaging dust, mould spores,
plant spores, pet dander and pollen.
3. Activated Carbon Filter
Neutralises odours and Volatile Organic Compounds (VOC’s) such as
formaldehyde and benzene, as well as other harmful fumes emitted by
household products.
4. UV-C Light (254nm)
Inactivates microbes such as germs, viruses, fungi and bacteria.
1 2 3 4
Polluted
Air
Clean
Air
6

AIR QUALITY INDICATOR
Fine Particulate Matter
(PM2.5)
Relative Air Humidity in % Temperature in °C
The digital display on the front of the air purier indicates the current air quality
by measuring the level of ne particulate matter (PM2.5), indoor relative humidity,
and indoor temperature.
Fine Particulate Matter (PM2.5)
PM2.5 refers to atmospheric particulate matter (PM) that have a diameter of less
than 2.5 micrometers, which is about 3% the diameter of a human hair. These
particulate matter can come from various sources indoors, from chemicals
in cleaning supplies, building products, furniture and carpeting, to mould,
bacteria, dust mites and even from cooking. Studies have shown that inhaling
too much ne particulate matter can cause health issues and trigger or worsen
chronic disease such as asthma, heart attack, bronchitis and other respiratory
problems.
Due to the many adverse effects ne particles can inict on a large number
of people, PM2.5 is one of the major pollutants closely monitored by health
authorities around the world. The table below provides a rough indication of
what levels of PM2.5 are harmful:
μg/m3Indoor air quality
<75 Good
76-150 Average
>151 Bad
Indoor Relative Humidity
Indoor humidity levels also provide a good indication of healthy indoor air
quality. In general, a relative humidity level of 45 to 60% is optimum indoors. A
humidity level of 50% is recommended to inhibit dust mites, mould, and bacteria
growth. In colder climates, a lower humidity level of 30 to 40% may be preferred
to prevent condensation on windows and other surfaces.
CONTROL PANEL
7

CONTROL PANEL
TIMER BUTTON
The air purier can be timed to operate for intervals of 1, 2, 4, or 8 hours,
stopping automatically when the selected operating time has elapsed.
Press this button repeatedly until the desired timer setting is selected (the LED
will light up).
To select the continuous operating mode, press the button repeatedly until all
the timer lights are off.
UV BUTTON
Press this button to turn the UV-C light function on or off.
POWER BUTTON
Press this button to turn the air purier on or off.
FILTER RESET BUTTON
This light ashes after 2,000 hours of use to indicate that the lters need
replacement. Press this button to reset this after the lters have been replaced.
FAN SPEED BUTTON
The air purier has three fan speeds and three modes (sleep, turbo, auto).
Press this button repeatedly until the desired fan speed setting is selected (the
LED will light up).
CHILD LOCK FUNCTION
Press and hold the Filter Reset and Fan Speed buttons for 3 seconds to turn on
the Child Lock function.
The power button light will ash (0.5 seconds on and 0.5 seconds off) to
indicate that Child Lock function is activated. When Child Lock is activated,
pressing the control panel buttons will not have any effect.
To deactivate the Child Lock function, press and hold the Filter Reset and Fan
Speed buttons for 3 seconds. All control panel buttons will return to normal
function.
Timer
button
UV
button
Power
On/Off button
Filter reset
button
Fan speed
button
Child lock
8

OPERATING INSTRUCTIONS
Note: Remove plastic bags from lters before rst use.
1. Plug the appliance into a suitable electrical outlet.
2. Press the power button to turn the appliance on.
3. Change the timer, fan speed or UV settings if desired (refer to Control Panel
description).
4. Press the power button to turn the appliance off.
When the unit is not in use, switch it off and unplug it from the electrical outlet.
CLEANING THE UNIT
●Always unplug the power supply before cleaning the unit.
●Do not put the unit into water or use water to wash it directly.
●Do not use alcohol, oil, benzene, or any corrosive or ammable detergent to
clean the unit.
●Use a soft cloth with mild detergent to clean the unit, and make sure the unit
is completely dry after cleaning.
●Regularly clean the inside and outer surface to prevent dust from gathering.
●To maintain or replace lters, see Filter Replacement instructions.
STORAGE INSTRUCTIONS
If the unit will not be in use for a long time, please pack and store it properly
away from moisture and direct sunlight:
●Unplug the power supply of the unit.
●Clean the pre-lter.
●Use a soft cloth to clean the air intake and air outlet.
CAUTION
Proper use and regular maintenance can ensure efcient operation and extend
the life of the unit. Do not attempt to repair or adjust any electrical or mechanical
functions on this unit. All servicing should be performed by qualied personnel
only.
CLEANING AND MAINTENANCE
9

FILTER REPLACEMENT INDICATOR
After 2,000 hours of use, the “Filter Reset” button light will ash during
operation. This indicates that the lters in the air purier need to be replaced.
Replace the lters according to the instructions below. Then, press the Filter
Reset button to reset the built-in lter replacement timer.
FILTER REPLACEMENT INSTRUCTIONS
The ION430 comes with the lters tted inside, but you will need to remove the
plastic packaging from the lters before using the air purier for the rst time.
When replacing with new lters, remove all packaging and place lters into the
unit as described below.
Tip: Place the appliance against a wall for more stability when you remove or
insert lters.
Note: Make sure you insert the lters in the correct order and position.
FILTER REPLACEMENT
Step 1.
Hold the top of the front panel and pull it
forward to remove it from the air purier.
Step 2.
Remove all packaging materials from the
Pre+HEPA lter and the Carbon lter.
10

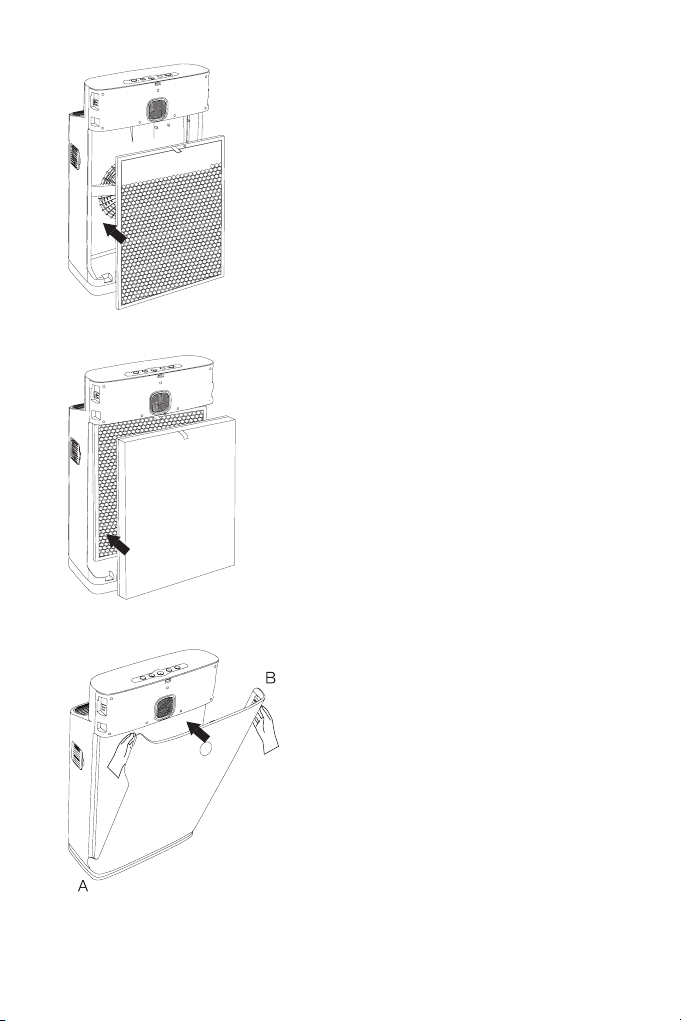

Step 3.
Place the Carbon lter into the air purier
with the tag pointing out towards you.
Step 4.
Place the pre+HEPA lter into the air purier
with the tag pointing out towards you.
Step 5.
Reattach the front panel by mounting the
panel onto the bottom of the air purier
rst (A). Then, gently push the top of the
panel against the body of the air purier
(B) to secure it into place.
11

PRE-FILTER MAINTENANCE
●Clean the pre-lter regularly to maintain air purier performance.
●The pre-lter can be gently vacuumed using hand tool attachments (no
rotating brushes).
●Do not use any solutions, brushes or sharp objects to clean the pre-lter, as
this can damage the lter.
HEPA / ACTIVATED CARBON FILTER MAINTENANCE
●The HEPA / Activated Carbon lter is not washable.
●A vacuum cleaner may be used to gently clean the HEPA lter periodically.
●Replace with new lters when the lter replacement light comes on.
12

TROUBLESHOOTING GUIDE
Problem Probable Cause Solution
Unit not
operating
Power cable not plugged in Plug in power cable
Power cable not plugged in
properly
Plug in power cable
correctly
Front cover not attached
properly
Reattach the front cover
Loud noise
Filters not unpacked Unpack the lter packaging
(see Filter Replacement
Instructions)
Too much dust on pre-lter Clean the pre-lter
HEPA and Activated Carbon
lters dirty
Replace HEPA and
Activated Carbon lters
Abnormal
noise
Loose parts inside the unit Contact customer service
centre
Motor broken
Indicator
lights not
switched on
Product circuit control failure Contact customer service
centre
UV-C
indicator light
is off
UV-C is switched off Press the UV-C button
UV-C light broken or needs
replacement
Contact customer service
centre
Reduced
airow
Filters are dirty Replace lters
Filters not unpacked Unpack lters
13

WARRANTY DETAILS
Congratulations on your purchase! It is our aim to provide you with quality products that you
can trust. Our products come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or a refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
The Guarantee
The product is guaranteed to be free from defects in workmanship and parts for a period of 12
months for domestic use (3 months for commercial use) from date of purchase. Defects that occur
within this warranty period, under normal use and care, will be repaired, replaced or refunded at
our discretion, solely at our option with no charge for parts and labour. The benets conferred by
this warranty are in addition to all rights and remedies in respect of the product that the consumer
has under the Trade Practices Act and similar state laws.
Proof of Purchase
This warranty is valid for the original purchase and is not transferable. Please keep your purchase
docket or receipt as proof of purchase and as proof of date on which the purchase was made. The
purchase docket (or a copy) or receipt must be presented with the warranty when making a claim
under this warranty.
Service during the Warranty Period
To claim for warranty, contact us on 1300 800 200 or [email protected] to get an
RA# (Return Authorisation Number) or submit a support ticket on my.andatech.com.au. Ensure
that the RA# is clearly stated on the outside of the packaging and that the product is properly
packaged so that no damage occurs to the product during transit. Shipping of the product back to
us for warranty will be at your cost. A product return without the RA# will not be accepted.
Extent of Warranty
This warranty is limited to defects in workmanship or parts. All defective products or parts will be
repaired or replaced. This warranty does not cover manuals and packaging.
Normal Wear and Tear
This warranty does not cover normal wear and tear to the product or parts.
Exclusions
This warranty does not cover:
●Any defect caused by an accident, misuse, abuse, improper operation, lack of reasonable
care, unauthorised modication, loss of parts, tampering or attempted repair by a person not
authorised by the distributor.
●Any product that has been damaged by a lightning strike either directly or indirectly or a main
power surge or liquid ingress.
●The product if it is located outside of Australia.
●Any damage caused by improper power input or improper cable connection.
Andatech Pty. Ltd.
PO Box 3038, Nunawading VIC 3131, Australia.
Phone: [phone] Fax: [phone] Email: [email protected]

15

Product : Ionmax ION430
Date of Purchase : ____________________________________
Place of Purchase : ____________________________________
Serial No. : ____________________________________
Surname : ____________________________________
Given Name : ____________________________________
Address : ____________________________________
Suburb : ____________________________________
Postcode : ____________________________________
State : ____________________________________
Contact No. : ____________________________________
Email : ____________________________________
WARRANTY REGISTRATION
Register your Ionmax ION430 online at my.andatech.com.au or ll out
this form and forward to the address below with a copy of your proof of
purchase. Contact us on 1300 800 200 or visit andatechdistribution.com.au
for options to extend your warranty.
Andatech Pty Ltd
PO Box 3038, Nunawading VIC 3131, Australia.

andatechdistribution.com.au
1300 800 200
