IP Power 9858S S+Ping User manual

- 1 -
IP Power 9858S / S+Ping
9858T / T+Ping
User Manual
Firmware Version: 1.0B
Date Released: SEP. 2014

- 2 -
Warning: Any changes made to this equipment without permission may cause damages to the device!
IMPORTANT NOTICE
1. IP Power 9858 was designed for indoor use, we carry no responsibility for possible damages
caused by outdoor use, especially in the rain.
2. Please use the power adapter provided by the dealer, we carry no responsibility for the
possible damage from using power adapters not provided by us .
4. Do not shake the IP Power 9858 in any fashion
5. Please contact the dealer If IP Power 9858 is not working properly.
Copyright © 2014 All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording or otherwise, without the prior written consent of us.
All trademarks and products mentioned in this document are the properties of us.

- 3 -
Table of Content
WELCOME...........................................................................................................5
Introduction .................................................................................................................................................. 5
Features :....................................................................................................................................................... 6
Specification.................................................................................................................................................. 6
Minimum System Requirements................................................................................................................. 6
Package Contents ......................................................................................................................................... 7
INTERFACE DESCRIPTION................................................................................8
Front View..................................................................................................................................................... 8
Rear View...................................................................................................................................................... 9
Fuse replacement.........................................................................................................................................10
SETTING UP YOUR DEVICE.............................................................................11
Before Starting.............................................................................................................................................11
Hardware Connection.................................................................................................................................11
Software Installation ...................................................................................................................................11
Installing Software....................................................................................................................................11
Connection by WiFi- WPS ( WiFi Protection Service ) ...........................................................................13
Connecting first by LAN –Network cable then setup for WiFi connection..............................................16
Internet Setup............................................................................................................................................21
Using IP Server.........................................................................................................................................21
WEB INTERFACE..............................................................................................23
Connect to your Device..............................................................................................................................23
Device name .............................................................................................................................................25
Information :.............................................................................................................................................26
IO Control :...............................................................................................................................................26
Network :..................................................................................................................................................36
Application Settings..................................................................................................................................47
System Setting..........................................................................................................................................50
CONTROLLING THE DEVICE...........................................................................59
CGI HTTP Commands.............................................................................................................................59
Telnet Control..............................................................................................................................................60

- 4 -
FAQ :..................................................................................................................61

- 5 -
Welcome
Introduction

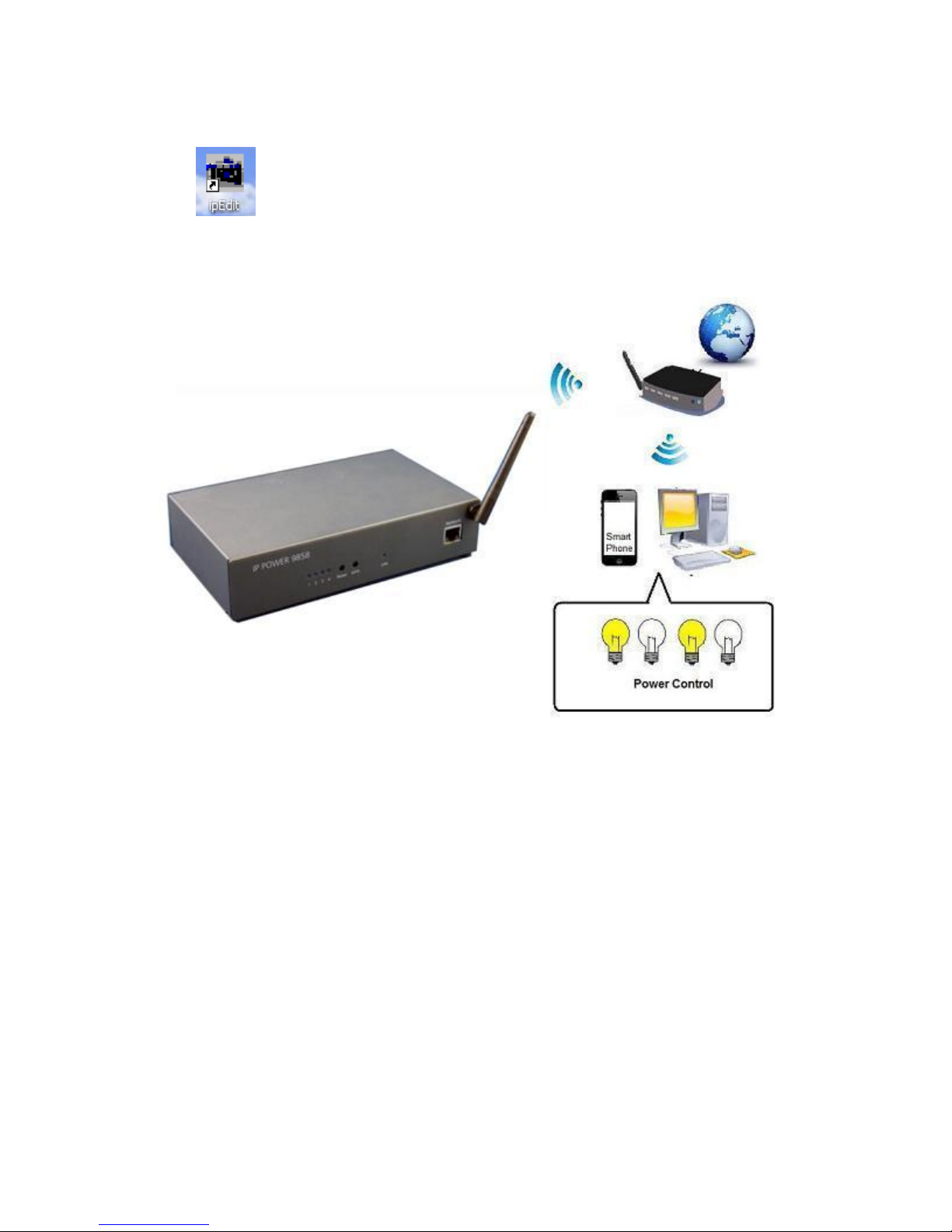

IP Power 9858 is a new generation of the Power Distribution Unit (PDU) & Remote Power
Control (RPC) system. Its able to connect to the WiFi network plus WPS function for easy &
quick set up a device to user’s wireless home/office network and control in the network
With embedded web server and HTTPS protection , 9858 supports higher grade security as
working on Internet. User can control power easily and more safely through the web browser on
Windows PC or on Smartphone like Internet Explorer (IE) , Firefox , Google
Chrome , Safari ( iOS ) and Android system.
9858 allows user to remote control power up to 4 separate devices on/off via network . As
support SSL & SNMP, user can use public email like Gmail / Hotmail / Yahoo Mail to get the
email as the ON/OFF status change . User can also control by e-mail without doing port
forwarding / port mapping and search the other IP Device in webpage directly .
Besides control through web browser , there is Android Apps name “IP Power “ for Android
user to control the outlet power turn ON / OFF and quick search device in LAN / WAN Android
phone / touch panel . No PC system environment or emergency use for quick response in
second.
Not only control manually, 9858 supports Auto Ping ( 9258S+Ping & 9258T+.Ping only ) ,
Time Scheduler which is more suitable for factory / commercial / office / home automation .
There is LOG information & send LOG to assign IP (SYSLOG ) in webpage.
For system integrator, there are several popular developing tolls like TelNet and HTTP
Command ( SDK) for 2nd development .
The various applications of the 9858 includes:
Power Management, Server Management, Internet Controllable Timer,
System Integration, Remote Power Control in Remote locations ………….. etc.
User Friendly . Convenience & Powerful ,

- 6 -
Product Overview
Features :
1. 4 port Remote power controller for power On, Off and Reboot.
2. Web Server built-in design, directly control by web browser –PC & Smartphone
Internet Explore (IE) , Firefox , Google Chrome , Safari - iPhone and Android
browser of Smartphone. ( Windows , Android & iOS) .
3. Android Apps “IP Power “ – free download
- Controls the outlet power ON/OFF without doing Port Forwarding / Port Mapping
- Quick search in LAN / WAN ( like IPEDIT & IP Service )
4. Support WiFi - Wireless 802.11 N/ B/ G and WPS connection
( WPA-PSK, WPA2-PSK, AES,128-bit WEP,64-bit WEP,TKIP, WPA2,WPA )
5. Support HTTPS , SSL , TCP/ IP , PPPOE, DHCP, DDNS , SMTP & Telnet.
6. Power Surge protection & FUSE embedded in.
7. LOG : Support Log function .
8. Time Schedule - can pre-set a suitable time to turn power on / off automatically .
9. Auto Ping for network control & segment management automatically (( 9858S+Ping
& 9858T+.Ping only )
10. Back Up for quick setup for multiple devices like Time Schedule, Network Setting.
11. Support public e-mail -- @gmail.com , @yahoo.com , @hotmail. com ..........etc.
12. E-mail Control & Advice as device boot up.
13. Specific software developed by Aviosys and provided free of charge :
- SDK Available : HTTP Command & Language
- IP Power Center - for control multiple Aviosys IP devices in same software
- CNT software ( Cross Network Technology )- allows user eliminate set up work on
any Router without port forwarding , simply Plug & Play .
Specification
Power input : 100V - 240V
Maximum loading of each output: 8 amp
Maximum of Total loading : 8 amp
Fuse protection : 10 amp ( with spare fuse in socket )
Dimensions: 200 x 140 x 50 mm ( L x W x H )
Weight: 990g
Enclosure –Matel case in Gray color
Minimum System Requirements
Windows PC OS with network capacity.
Browser : Google Chrome , Safari , IE 9.0 or above .
RJ45 LAN & Internet HUB / Switch
Internet ( for remote access) or Ethernet Network ( Internal Network use) with some type of
Internet connection, (i.e. ADSL, Cable, Dial up or any other forms of Internet service)

- 7 -
Package Contents

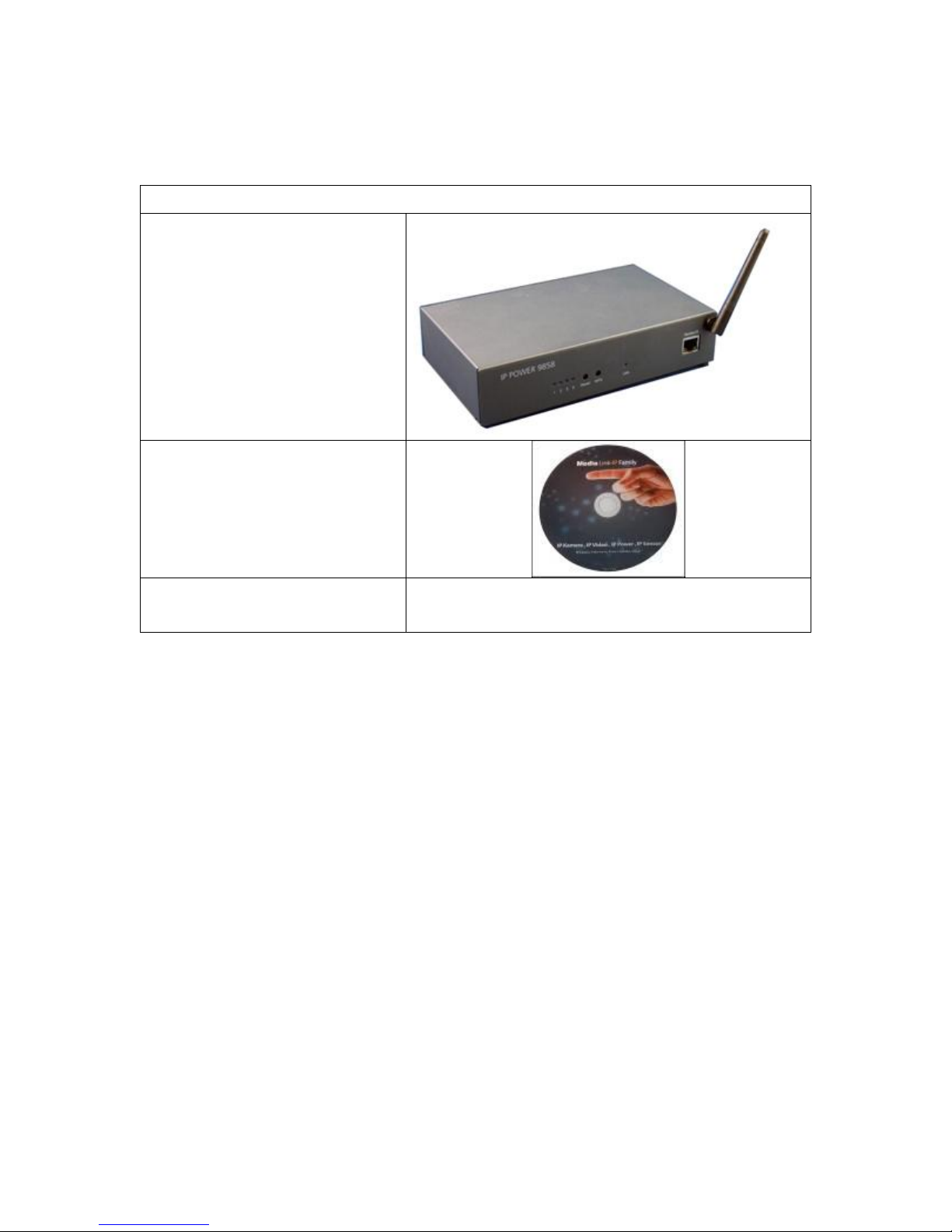

1. 9858 Unit x 1
2. 9858 Installation CD
3. Power IN Cable (option)
Please double check the power cable compatible
for 10 amp current loading .

- 8 -
Interface Description
Front View
From Left to right :
Power Status Indicator:
The Power Status #1 ~ #4 Indicator - Green
light ON as output power ON.
Reset :
Set back to default setting by long press
To reset to original manufacture settings, hold
down the reset button with a sharpen pin for
5- 6 seconds then RELEASE. There are 3
beeps sound which means reset start and
9858 will be rebooted itself -there is one beep
after reboot ) and most information go back to
default setting ( LAN IP ).
WPS :
Enable WPS function by one short click
There is one long beep as enable WPS
function. Please refer page #13 for details.
Link:
The Link Indicator shows the WiFi signal
transfer status. The light will be ON all the time
and flashing while transfer data.
Network: LAN
LAN 10/100 Mbps network
Network :WIFI
WIFI 802.11N-B/G

- 9 -
Rear View
From Left to right :
4 Output Power Ports:
9858-T ( Upper picture )
9858-S ( Down picture )
There are 2 models outlet :
* 9858-T : NEMA
* 9858-S : IEC320
Connect up to 4 separate devices
that will be controlled by the 9858.
Ports 1 - 4
1 Input Power Port :
In this socket, there is power input
and Fuse socket .
The input power sends power
to the 9858.
Fuse : To prevent electrical
surges from damaging the unit.
The 9858 comes with one
spare fuse in the unit.
TYPE：U/C GFE 10A 250V (PF)
1 Power Switch:
The Power switch turns on the
input power.

- 10 -
Fuse replacement
1.) The fuse is located between the power switch and the power input plugs.
2.) Carefully remove the fuse holder with a flat screwdriver.
3.) The fuse can be purchased from electronic shops.
Specification : U/C GFE 10A 250V (PF)
