IPC iRelief User manual

(English)
User Manual

CONTENTS
Cauons
TABLE OF CONTENTS
Quick Start Guide …………………………………………………2
Technology Background …………………………………………4
iRelief Main Unit …………………………………………………6
Operation Guide …………………………………………………7
Product Information ……………………………………………13
Warranty ………………………………………………………14
Packaging ………………………………………………………15
Technical Specicaons …………………………………………16
Disclaimers ………………………………………………………16
• People with heart problems, pacemaker users, pregnant women,
toddlers and frail people should seek medical advice before use
• Do not apply iRelief Pad on wounds or infected skin
• Some users may feel itchy and have slight redness around the
iRelief Pads during the usage of iRelief. This is normal due to the
enhanced blood circulation in the applied acupoint area. This
should disappear in a few minutes aer applicaon

QUICK START GUIDE
1. Connect 3V AC/DC power adapter or insert two 1.5V (D size)
baeries to iRelief (suggested to use Alkaline baery; do not
use rechargeable baeries)
2. Apply iRelief Pads to the appropriate acupoints or the pain
areas
3. Connect the iRelief Pad cables to the iRlief Pads from channel
1 of the iRelief
4. Turn the level knob to the most counter clockwise position,
start iRelief by pressing the on/o buon. Turn the level knob
clockwise to the highest level comfortable to the user. Note:
higher level will achieve more eecve result
5. iRelief has a 20 minutes automatic shutdown timer (each
green light represents 4 minutes usage). All 5 green lights will
be turned o automacally aer 20 minutes usage. (suggested
usage duraon: Healthcare purpose - 12 minutes; Pain Relief
purpose - 20 minutes)
6. Stick the iRelief Pad to the transparent protective storage
sheet aer each use
7. To stop or turn o iRelief at anyme, press the on/o buon
QUICK START GUIDE
2

QUICK START GUIDE
1
3
76
5
2
4
1
2
3
12 mins0 mins 20 mins
12 mins 20 mins
Start
3

TECHNOLOGY BACKGROUND
TECHNOLOGY BACKGROUND
Improving microcirculaon is the core treatment method
Advanced “Proton Vibraon Alignment” Field Technology
iRelief is a revolutionary portable therapeutic device combining
Traditional Chinese Acupuncture, Chinese QiGong and modern
physiotherapy. With a non-invasive approach unique to our PVA
field technology, (namely “Proton Vibration Alignment”), iRelief
works to enhance the level of posive energy ow (known as ‘Qi’
in Chinese medicine) in the user’s body through acupoints.
With over 30 years of clinical applications and research
advancement, together with the intensive research in physiology
done with the aim to investigate ways to resolve disruptions in
meridians, we come up with this new version of iRelief which
outdo all the previous models. In simple terms, meridians can
be thought of as Qi channels or pathways throughout the body
whereas acupoints are considered special entry points along the
meridians. Working on our unique PVA eld technology, iRelief will
work through the targeted acupoints to produce the opmal level
of Qi to the meridians, regulang vibraon along the meridians to
achieve improved microcirculaon and relieve pain.
Disruptions in the Qi flow (or 'microcirculation' – see remarks)
cause blockages of energy that will generally manifest as illness
or pain. According to the Chinese medicine: Wherever there
is blockage of Qi, there is pain. When Qi flows properly, pain
disappears. Pain is treated by enabling the ow of Qi. iRelief helps
clear the disrupons by the improving Qi energy ow in the body.
Remarks:
Microcirculaon refers to the ow of blood through very thin channels or
gaps between cells (smaller than 100 µm). It’s responsible for transporng
blood cells and enabling the supply of nutrients and chemical substances
to/from tissues. In simple words, microcirculation delivers oxygen and
nutrients to ssues and carries away metabolic waste from ssues.
4

TECHNOLOGY BACKGROUND
Features and Benets
• Non-invasive Acupuncture, no side eects
• Eecve pain relief in 10 - 15 minutes
• Relieve from many types of pains (headaches, neck and
shoulder pain, back pain, knee pain, arthritis, muscle aches,
menstrual pain, etc), indigeson, conspaon, insomnia, skin
allergies and chronic condions
• Quick recovery from fatigue and pain caused by poor
microcirculaon
• Enhance immunity and promote metabolism
• Enhance microcirculaon
• Completely safe and easy to operate
Photos show the microcirculaon before and aer use of iRelief. The
microcirculaon improves aer an extended period use of iRelief.
before use of iRelief aer use of iRelief
5

iRelief MAIN UNIT
iRelief MAIN UNIT
1. On/o buon
2. Automatic timer (each green light represents 4 minutes
usage), all 5 green lights will be turned o automacally aer
20 minutes usage
3. Output frequency level indicator (higher output by turning the
level knob clockwise)
4. Level knob
5. Low baery indicator
6. Channel 1 output
7. Channel 2 output
8. Cable management stand
9. AC/DC power adapter socket
10. Screw locaons for baery replacement
1
2
3
4
65 7
108
9
Front Back
6

OPERATION GUIDE
OPERATION GUIDE
Or
1. Find a comfortable place and relax. Connect the 3V AC/DC
adapter or insert two size 1.5V (D size) batteries into iRelief
(suggested to use Alkaline battery; do not use rechargeable
baeries)
2. Apply iRelief Pads to the appropriate acupoints or pain areas
7

OPERATION GUIDE
1
2
3

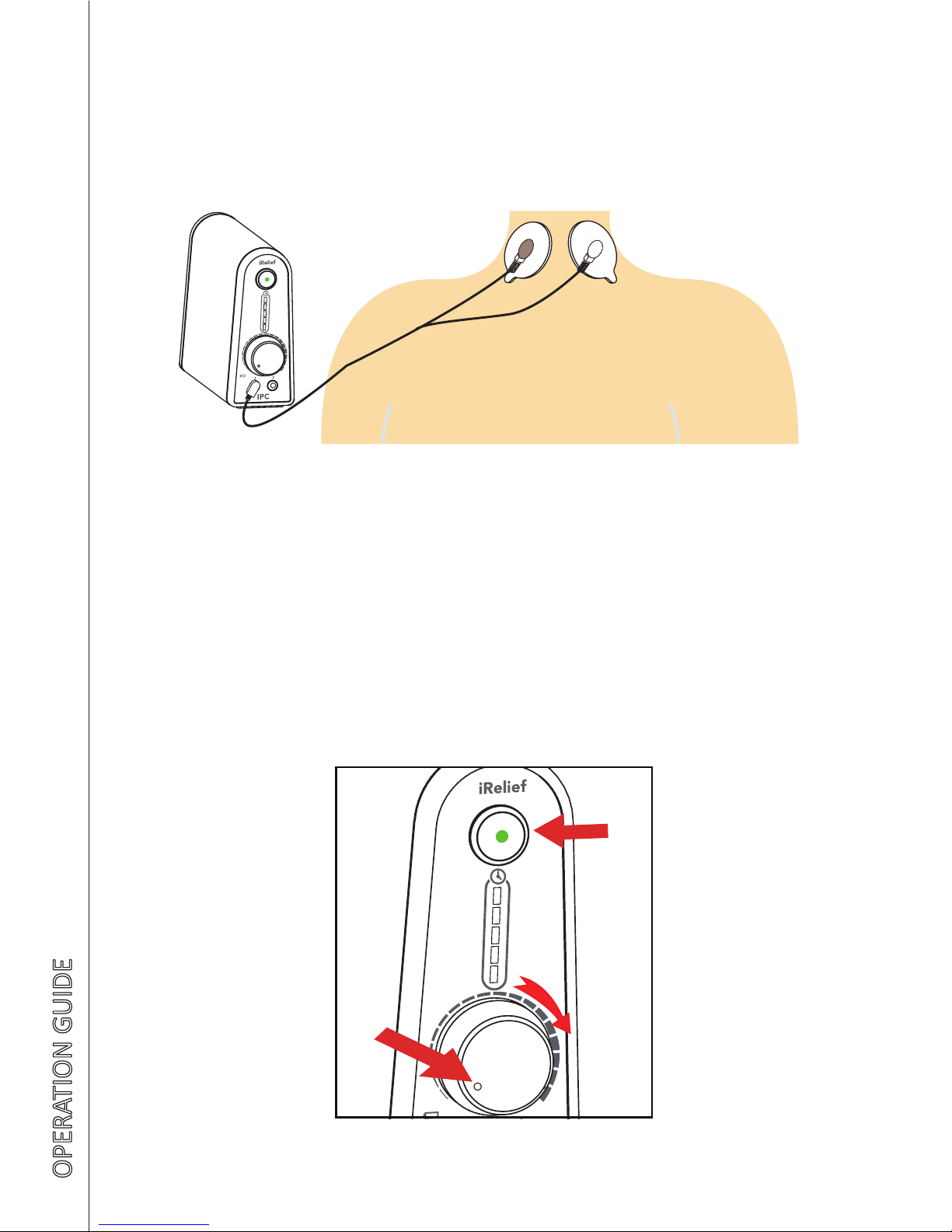

3. Connect iRelief Pad cables to iRelief Pads from one channel
(channel 1 or 2) or both
4. Turn the level knob to the most counter clockwise position,
start iRelief by pressing the on/o buon. Turn the level knob
clockwise to the highest level comfortable to the user. Note:
higher level will achieve more eecve result
8

OPERATION GUIDE
12 mins0 mins 20 mins
12 mins 20 mins
Start
5. iRelief has a 20 minutes automatic shutdown timer. When
iRelief starts, the 5 green lights will illuminate, each green
light represents 4 minutes usage. iRelief will be shutdown
automacally in 20 minutes when all 5 green lights are turned
off. (suggested usage duration: Healthcare purpose – 12
minutes; Pain Relief purpose - 20 minutes)
6. Stick the iRelief Pad to the transparent protective storage
sheet aer each use
9

OPERATION GUIDE
7. To stop or turn o iRelief at anyme, press the on/o buon
8. During baery operaon only, the low baery indicator ashes
to indicate that the battery should be replaced soon. Should
iRelief not operated when pressing on/o buon to start the
iRelief, it indicates that the baeries are totally consumed and
need to be replaced. Use the provided screw driver to open
the baery door for baery replacement. Follow the “+” and
“-” terminal to replace the baery accordingly before closing
the baery door
10

iRelief Pad Usage Guide
4. Stick the iRelief Pad to the transparent protective storage
sheet aer each use
OPERATION GUIDE
11
2. Clean the applicaon area using rubbing alcohol or soap and
water before use to remove oil from skin
3. Always use the white handle on the iRelief Pad to avoid
damage to the gel pad; pull o slowly aer use
1. Apply the iRelief Pads on the pain areas (called Ashi points in
Chinese medicine) or appropriate acupoints (for pain relief or
illness prevenon) depending on personal needs. Placing the
center of iRelief Pad on the pain area or acupoint will give the
best overall effect. However, superior result will be achieved
for the tissues, acupoints and meridians covered by iRelief
Pads

OPERATION GUIDE
Cauons for operang iRelief
• Stop using iRelief if there is discomfort
• Children or persons who are unable to express themselves,
should seek medical advice before use; children must be
accompanied by adults when using iRelief
• For battery operation, iRelief works only with 1.5V D size
baery. Do not use rechargeable baeries
• Clean iRelief with a dry towel. Do not clean iRelief with water,
detergent, organic solvent or bleach. Unplug the AC/DC power
adapter and switch o iRelief before cleaning
• Do not overlap iRelief Pads when using iRelief
• Do not apply iRelief Pads while iRelief is turned on
• Ensure iRelief is not used before placing iRelief Pads on the
body
• Keep away from any metal objects (watch, bracelet, belt
buckle or necklace) when using iRelief Pads
• Under normal use iRelief Pads should last 30 - 40 sessions.
Replace aer an extended period of use
• iRelief operates ONLY with iRelief Pad. Do not use other
brands of electrode pads with iRelief. Doing so will void the
manufacturer warranty and IPC will not be responsible for any
negave eects
12

PRODUCT INFORMATION
Cauon
Storage
PRODUCT INFORMATION
Carefully review the following cautions for proper and safe
condions when using iRelief.
• Store the unit where there is no moisture (make sure iRelief
and iRelief Pads are not exposed to water)
• Do not place or use the main unit in areas of high temperature,
high humidity or under direct sunlight
• Do not overbend or pull o the power cable
• Do not pull o the power adapter by force. Do not repair the
cable if it is broken
• Do not use the device while driving
• Do not use the device while you are asleep
• Do not use the device when taking bath
• Beware of the danger of electric shock (do not put metal object
to the main unit)
• Only use the provided AC/DC power adapter
• Turn o power before pull o power adapter
• Do not open, repair, modify, remove parts, make use of
components not provided by the main unit, throw the device
from high place or put too much pressure to the device
• Store iRelief and iRelief Pads in a dry environment. Do not
place the main unit in areas of high temperature, high
humidity or under direct sunlight
• Remove the baeries if the unit will not be used for extended
period of me
13

WARRANTY
WARRANTY
There is 1 year warranty service (free labour and components cost) from
the purchase date. Customer will be required to present the original
invoice stang the serial number for repair service during the warranty
period.
Customer will contact the local distributor (details refer to our web
site) or dealer for more details about the warranty service. The device
must be inspected by IPC’s appointed authorized representative. The
customer will be informed whether the unit can be repaired immediately
or longer period is required for repair. IPC reserves the right for the nal
repair period. Local distributor will contact the customer to collect the
repaired device after service. If there is no local distributor or repair
centre for the customer, he / she should contact the corresponding
dealer to arrange the repair service. Customer is responsible for all
related courier cost and risk if any.
If there is any additional repair cost involved, the local distributor will
inform the customer about the repair cost and repair will take place
once conrmed by customer.
If the components or the parcular model has been disconnued, the
local distributor reserves the right to replace another model with similar
funcon to the customer. The nal replaced model and associated cost
will be decided by the local distributor.
Importance: The warranty is void if iRelief is damaged or defective as
a result of misuse, abuse, contamination, unauthorized maintenance,
parts removal, damaged or rendered defecve caused by incorrect input
voltage or using components not provided in the product packaging. If
customer chooses the representative not appointed or authorized by
IPC for repair service, the product warranty will be voided immediately.
14

PACKAGING
PACKAGING
6
1 2
3 4
5
iRelief (1 pc) iRelief Pad (1 pack - with 4 pcs)
iRelief Pad cables (2 pcs) 3V AC/DC power adapter (1 pc) with
two interchangeable power sockets
(UK & US plug type)
iRelief User Manual (1 pc)Screwdriver (1 pc)
15

TECHNICAL SPECIFICATIONS & DISCLAIMERS
DISCLAIMERS
TECHNICAL SPECIFICATIONS
Size: 60mm (W) x 142mm (H) x 185mm (D)
Weight: 744g (baery and other accessories excluded)
Power: 3V AC/DC power adapter or two 1.5V (D size) baeries
Maximum power consumpon: less than 1.3W
Output pulse frequency: 20 - 22Hz
• All provided information is based on the standard testing method
designated by Innoworks Product Creation Ltd. They are subjected to
change without noce.
• IPC has done the best in preparing this user manual for the
overall completeness and correctness. However, IPC cannot
guarantee any mistake or missing information for the user
manual
• IPC reserves the right to make changes without any noce on
the hardware, soware or accessories menoned in this user
manual
• This user manual (or any part of the content) cannot be
duplicated, transmitted, copied, stored or translated in
any language and/or any format without formal written
authorizaon by IPC
• IPC assumes no liability, obligation or responsibility for any
misuse of iRelief’s hardware, soware and accessories or other
components not provided as part of packaging
• As there are many considerations for the theory of Chinese
Acupuncture treatment and meridians, the effectiveness of
the iRelief will be subjected to individual applicaon. IPC will
not guarantee the outcome of individual usage of iRelief
16

©2009 Innoworks Product Creaon Ltd.
www.innoworkspc.com
