1 Introduction
All technical information, descriptions and illustrations contained in this ‘Operating, Maintenance and
Installation Manual’remain our property and shall not be used otherwise than for operating this system,
nor shall they be copied, reproduced or passed on to third parties or brought to their notice without our
prior written consent.
The information represented in this manual is in keeping with current standards and is subject to later
alterations.
This manual contains important instructions referring to safe installation, commissioning, operation and
maintenance.
Read this manual carefully before starting up the gateway and observe the instructions.
In order to comply with the guidelines for electro-magnetic compatibility in industrial PCs (or other
variants) only CE-certified components are used in compliance with project-specific requirements.
Moreover, a maximum cable length of 30 meters shall be allowed.
All trademarks and brand names contained in this user manual are for identification purposes only and
can be owned by their respective holders.
Finally we want to draw your attention to the fact that any warranties with respect to the industrial PC
will be invalid in the event that:
•Operation, servicing and maintenance are not carried out accurately according to the
instructions; repairs are not carried out by our personnel or without our prior written consent.
•Commissioning is not carried out by our personnel or we have not given our approval for the
commissioning or the commissioning is carried out by untrained personnel.
•The unit is used inadequately, incorrectly, negligently or inappropriately or for a purpose other
than that originally intended.
•The serial number is removed from the product.
For your protection, observe the following safety precautions when setting up your
equipment:
•Follow all cautions and instructions marked on the equipment.
•Ensure that the voltage and frequency of your power source match the voltage and frequency
inscribed on the equipment's electrical rating label.
•Never push objects of any kind through openings in the equipment. Dangerous voltages may
be present. Conductive foreign objects could produce a short circuit that could cause fire,
electric shock, or damage to your equipment
•The industrial PC must be mounted on an equipment carrier (1HE) in a 19” rack. A free floating
or unilateral mounting may cause defects.
•To ensure the compliance with the EMI and EMC standard, shielded Ethernet and serial cables
with the shell grounded at both ends of the cable must be used.
All trademarks or brand marks mentioned in this document are used for identification and are property
of their respective owners.

Subject to alterations Version 3.1
IPCOMM GmbH - 3 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
2 Hardware Description
2.1 General
As hardware platform for the gateway a 19” industrial PC is used. This solution offers a high degree of
flexibility, performance and reliability. This model is characterized by a very high output and energy
efficiency.
Mounting and intensive tests of the industrial PC are done in our company. Before and after a 48 hour
burn-in test each device must run through a complete function test.
The housing has an excellent air flow for maximum heat dissipation.
Important for the selection of our components are particular items like quality, availability and a high
durability.
The industrial PC consists of a 19“ chassis (1U) with two PCIe slots (8 x and 8 x) which enable
installation of two PCIe cards.
The mains power supply are 85 –264 V AC, 104 –350 V DC auto range, optional 9 –32 V DC power
supply (others on request). The basic system can be extended with corresponding PCIe cards as
required.
Figure 1: front view IPC191I7
type label
S/N, type, voltage
COM2
CFast
CPU LED
power button
power LED

Subject to alterations Version 3.1
IPCOMM GmbH - 4 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany

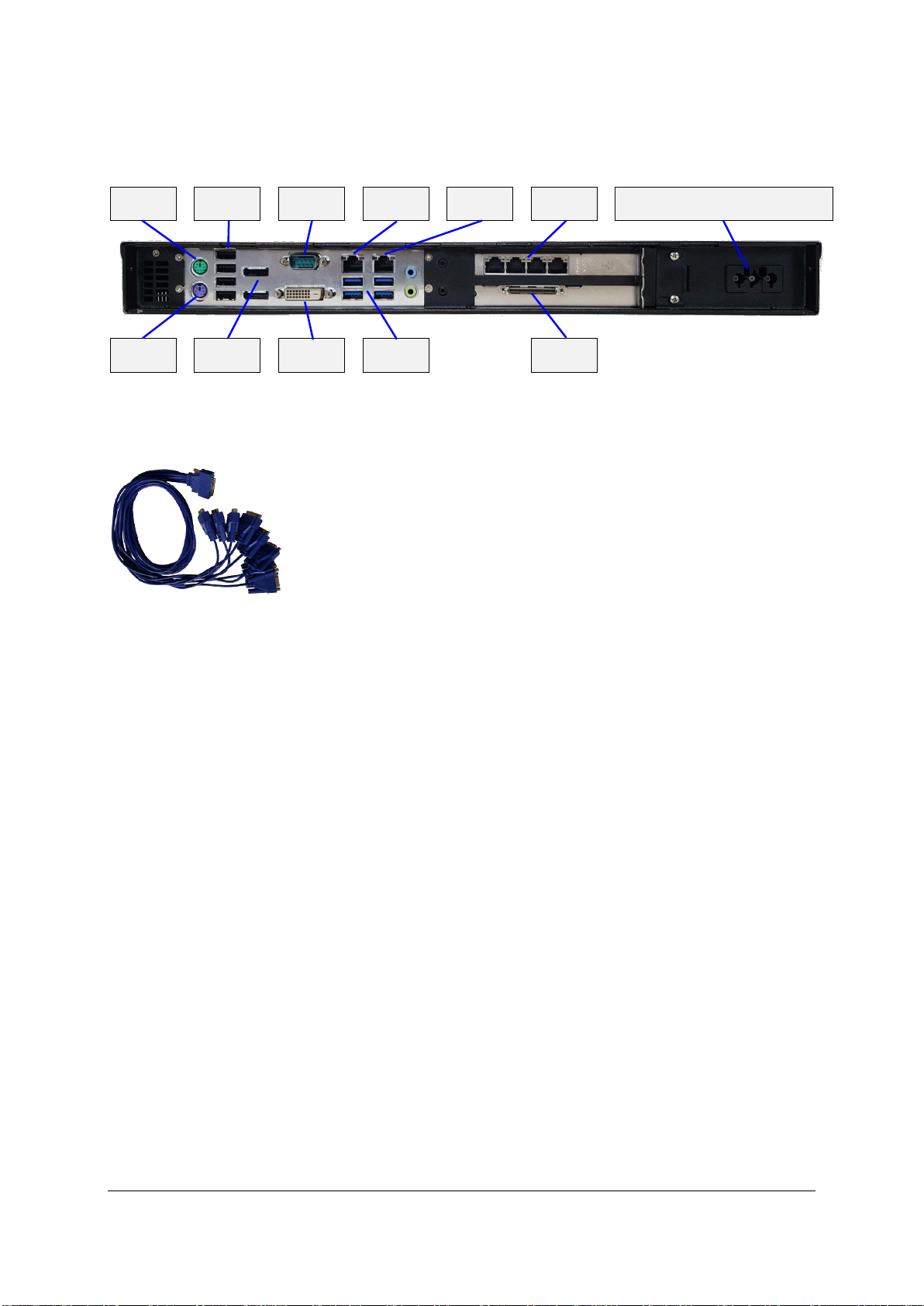

Figure 2 shows the reverse side of our Industrial PC. The pin assignments vary according to
execution. Overview of the different models can be found in chapter 3 ‘Overview of Variants / Interface
Configuration’.
mouse
4 x USB
COM1
LAN1
LAN2
PCIe 8x
slot 2
main power supply input
keyboard
2 x
display port
DVI
4 x USB
PCIe 8x
slot 1
Figure 2: overview interfaces
Figure 3: 8-Port DB9 male connector cable
2.2 Hardware Components
2.2.1 Mainboard
The Mini-ITX mainboard is an ultra-compact x86 platform with two integrated network interfaces and
all other necessary interfaces. Its heart consists of a highly energy-efficient Intel i7 processor. The
mainboard provides two SODIMM slots for DDR4 memory modules and supports up to 32 GB system
memory.
Further interfaces:
•2 x RS-232
•4 x SATA
•2 x LAN 10/100/1000 Mbps BaseT (RJ45)
•DVI
•2 x display port
•USB
•Two PCIe 8 x

Subject to alterations Version 3.1
IPCOMM GmbH - 5 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
2.2.2 Onboard RS-232 Interfaces
The installed mainboard provides two integrated serial interfaces.
COM1 –COM2
SERIAL PORT
RS-232 DTE
DB9 male connector
Pin
Direction
Description
1
INPUT
DCD Data Carrier Detect
2
INPUT
RXD Receive Data
3
OUTPUT
TXD Transmit Data
4
OUTPUT
DTR Data Terminal Ready
5
GND Ground
6
INPUT
DSR Data Set Ready
7
OUTPUT
RTS Request To Send
8
INPUT
CTS Clear To Send
9
INPUT
RI Ring Indicator

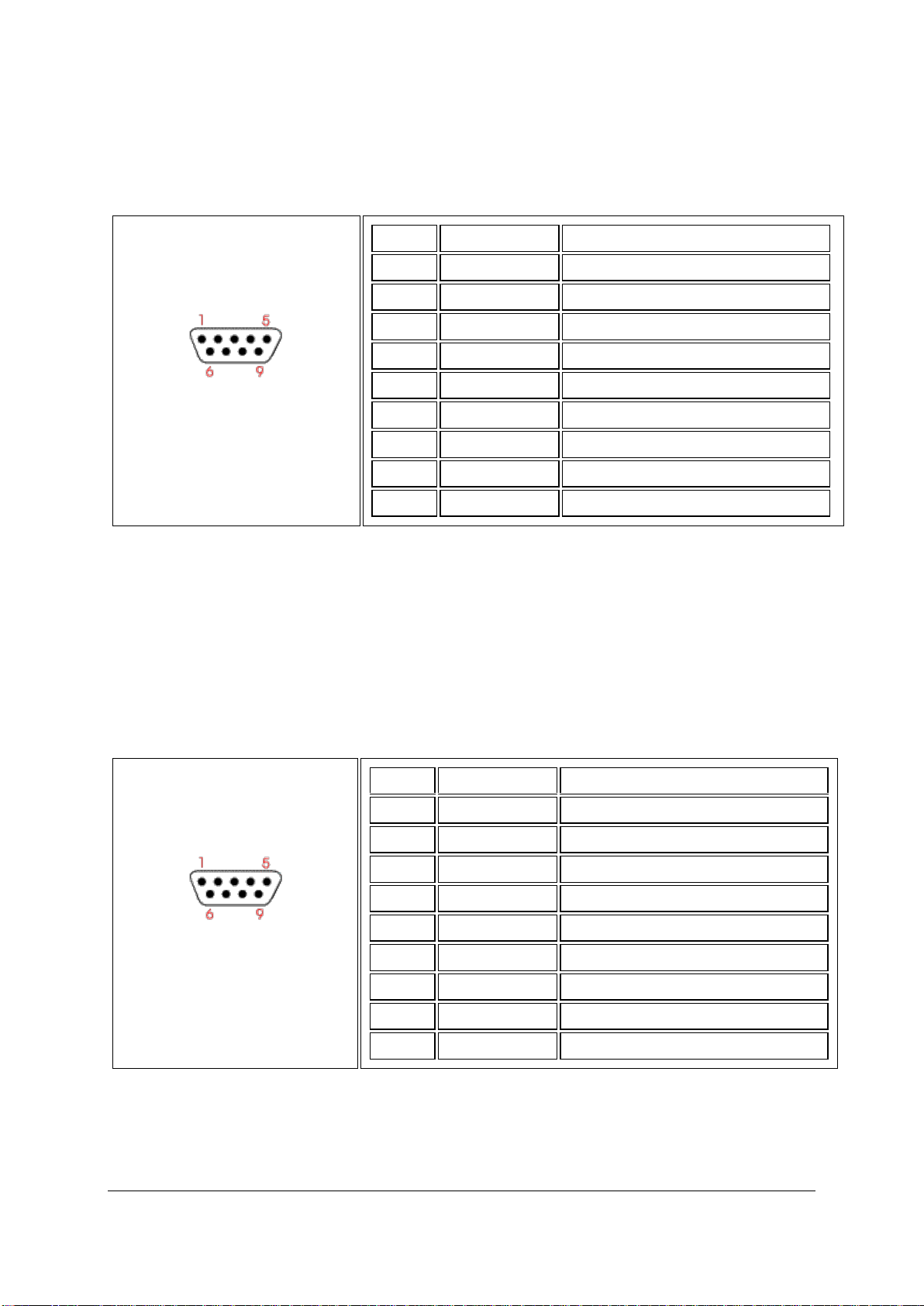

Figure 4: pin assignment of DB9 9-PIN DTE RS-232 interface (mainboard) COM1-COM2
Note: For the adequate protection against the impact of switching interferences (Burst) and surge
voltage, we recommend the use of our 4 kV isolated RS-232 isolator. The used RS-232 transceivers
have ESD protection up to 15 kV. The isolator was tested according to EMC guidelines and climatic
and mechanical requirements in compliance with the standard IEC 61850-3.
2.2.3 8-Port RS-232 Serial Interface Card
(RS-232 interface for remote communication)
Depending on the model each IPC191I7 can be equipped with an 8-port or 16-port serial interface
card. The following pin assignment is realized with an 8-port DB9 male connector cable (see Figure 3).
SERIAL PORT
RS-232 DTE
DB9 male connector
Pin
Direction
Description
1
INPUT
DCD Data Carrier Detect
2
INPUT
RXD Receive Data
3
OUTPUT
TXD Transmit Data
4
OUTPUT
DTR Data Terminal Ready
5
GND Ground
6
INPUT
DSR Data Set Ready
7
OUTPUT
RTS Request To Send
8
INPUT
CTS Clear To Send
9
INPUT
RI Ring Indicator
Figure 5: pin assignment of DB9 interface at serial interface card
See note chapter 2.2.2

Subject to alterations Version 3.1
IPCOMM GmbH - 6 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
2.2.4 Ethernet Interfaces
The industrial PC features three 10/100/1000 Mbps BaseT (RJ45) interfaces. Further interfaces with
10/100 Mbps or 10/100/1000 Mbps BaseT via PCIe are possible on request (up to 10 interfaces per
device).
Figure 6: RJ45 network interface
2.2.5 CFast Memory Card
The CFast card serves as a mass storage device, i.e. for storing the operating system, the
applications and configuration data. As a result the disadvantages involved with the use of a rotating
hard disk are avoided, thus improving the reliability of the system substantially since a CFast has an
MTBF of at least 4,000,000 hours.
The CFast adapter is simply connected to the SATA bus of the CPU module and treated just like a
hard disk.
Figure 7: CFast adapter
When the power supply is switched off the CFast card with the entire software can simply be taken out
or inserted enabling a quick change to different hardware.
It is possible to install the CFast card inside the device, inaccessible from the outside.
Press to eject
the CFast card.

Subject to alterations Version 3.1
IPCOMM GmbH - 7 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
2.2.6 CMOS Lithium Battery
The battery-backed CMOS stores the BIOS system settings. The long-life lithium battery has normally
a lifetime of at least six years.
If the CMOS battery is empty and the CMOS information has been deleted, the CMOS-RAM is
programmed by the BIOS with default settings.
The converter can be operated faultlessly even if the CMOS RAM is not provided by the battery. After
the battery has been changed, only time and date must be input.
Remove six screws on the top to open the housing. The battery holder is soldered in the mainboard
and well visible.
Attention! Open-frame power supply units are used. Because of this, the process should be carried
out only by experienced electronic engineers. The device must be completely disconnected from any
power supply. Before opening please push the power button (without electricity supply) several times
to eliminate residual voltages of the power supply.
Battery replacement must be carried out by qualified specialists.
Caution! Incorrect replacement might cause the danger of explosion. Replace the battery exclusively
by the same type (model label: CR-2032).
The battery should be certified for air transport. Alternatively, it can be ordered directly from us.
Used batteries are to be disposed absolutely in accordance with the manufacturer's instructions.
Please pay attention to the correct polarity!
2.2.7 CPU LED
The CPU LED shows the states of conversion software and operating system.
Following figure shows all possible indications:
Figure 8: CPU LED indications
ON
OFF
passive
mode
(standby)
0.5 s
ON
OFF
active mode
0.5 s
5 s
ON
OFF
software has
stopped

Subject to alterations Version 3.1
IPCOMM GmbH - 8 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
2.2.8 Power Supply
Power supplies with different input voltages can be used in the IPC191I7. Please pay attention to the
correct polarity and input voltage. The input voltage of the respective device is labeled on top of the
housing (see Figure 1).

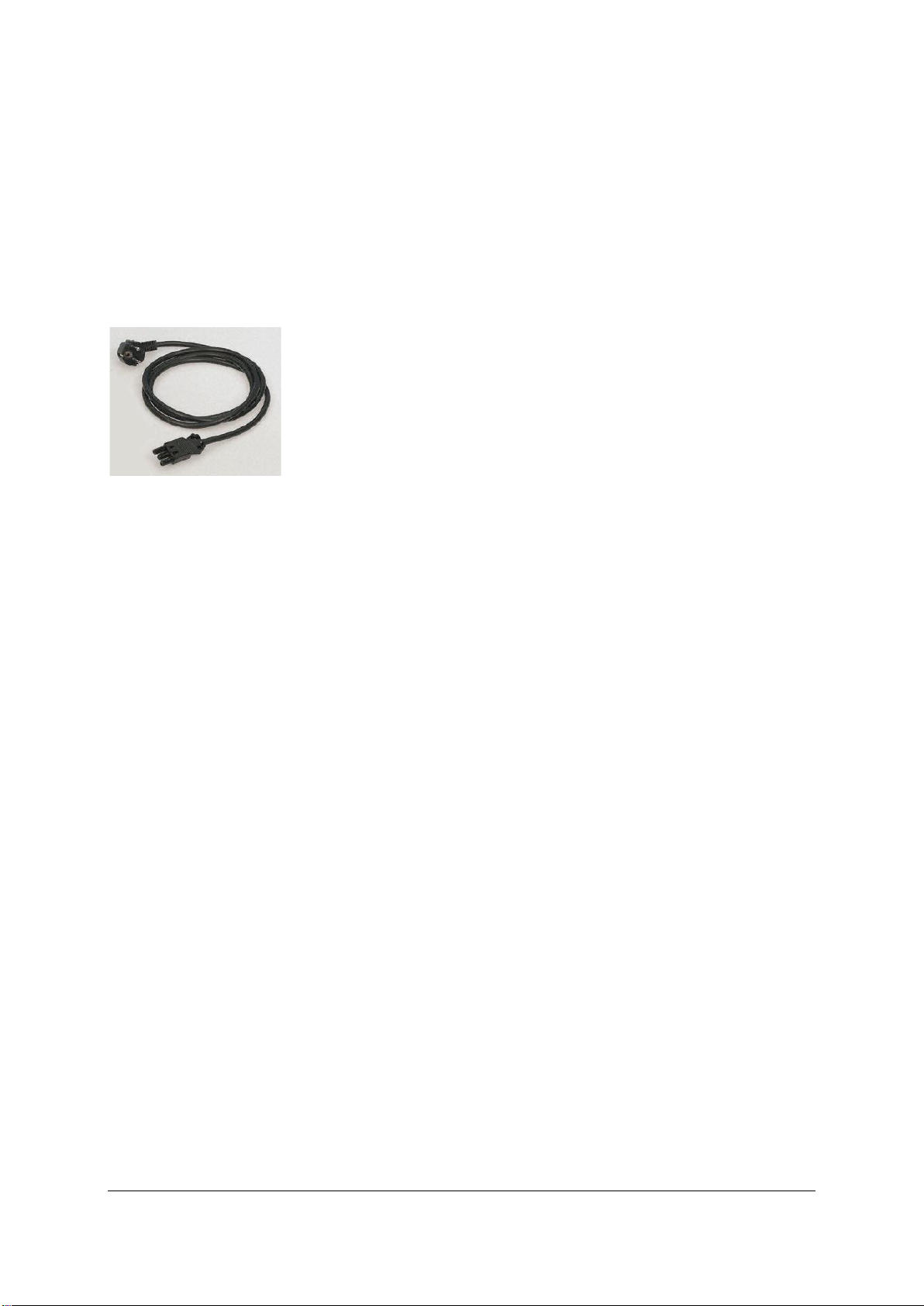

2.2.8.1 AC Power Supply
By using AC voltages a specific power supply cable (see figure below) is supplied. Please use this
mapped cable exclusively.
Figure 9: power cable
Note: This device is protected against surge according to the standard IEC 61850-3. When measuring
the insulation resistance of devices equipped with surge arresters according to the standard
DIN VDE 0701-0702, the test voltage may be reduced to 250 V DC.

Subject to alterations Version 3.1
IPCOMM GmbH - 9 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
2.2.8.2 DC Power Supply
By using DC voltages only a male connector is supplied. This connector has to be used. By
connecting the cable with the male connector the correct polarity must be kept. The wire cross-section
must be at least 1.5 mm2.
connection for
earth potential
power supply input
-
power supply input
+
Figure 10: DC voltage connection at power supply
Figure 11: DC power cable (example –not part of the scope of delivery)

Subject to alterations Version 3.1
IPCOMM GmbH - 10 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
3 Overview of Variants / Interface Configuration
The following tables represent the configuration of the individual interfaces of miscellaneous variants.
Further variants are available on request.
3.1 Variant A
The device variant A corresponds to the item code HP.I7L.xyz1-0.x.
(See chapter 5 ‘Nomenclature of IPC191I7 Item Code’)
Assembly
Linux
Device
I/O Port
IRQ
Label
Connector
mainboard
ttyS0
3F8
4
COM1 (chassis rear)
DB9ST
ttyS1
2F8
3
COM2 (chassis front)
DB9ST
eth0
PCIe (onboard)
auto
ETH0
RJ45
eth1
PCIe (onboard)
auto
ETH1
RJ45
UART
adapter 8x
ttyS4
PCIe 8x (slot bottom)
auto
COM5
DB9ST
ttyS5
PCIe 8x (slot bottom)
auto
COM6
DB9ST
ttyS6
PCIe 8x (slot bottom)
auto
COM7
DB9ST
ttyS7
PCIe 8x (slot bottom)
auto
COM8
DB9ST
ttyS8
PCIe 8x (slot bottom)
auto
COM9
DB9ST
ttyS9
PCIe 8x (slot bottom)
auto
COM10
DB9ST
ttyS10
PCIe 8x (slot bottom)
auto
COM11
DB9ST
ttyS11
PCIe 8x (slot bottom)
auto
COM12
DB9ST
3.2 Variant E4M
The device variant E4M corresponds to the item code HP.I7L.xyz1-2.x.
(See chapter 5 ‘Nomenclature of IPC191I7 Item Code’)
Assembly
Linux
Device
I/O Port
IRQ
Label
Connector
mainboard
ttyS0
3F8
4
COM1 (chassis rear)
DB9ST
ttyS1
2F8
3
COM2 (chassis front)
DB9ST
eth0
PCIe (onboard)
auto
ETH0
RJ45
eth1
PCIe (onboard)
auto
ETH1
RJ45
Ethernet
adapter 4x
eth2
PCIe 8x (slot top)
auto
ETH2
RJ45
eth3
PCIe 8x (slot top)
auto
ETH3
RJ45
eth4
PCIe 8x (slot top)
auto
ETH4
RJ45
eth5
PCIe 8x (slot top)
auto
ETH5
RJ45
UART
adapter 8x
ttyS4
PCIe 8x (slot bottom)
auto
COM5
DB9ST
ttyS5
PCIe 8x (slot bottom)
auto
COM6
DB9ST
ttyS6
PCIe 8x (slot bottom)
auto
COM7
DB9ST
ttyS7
PCIe 8x (slot bottom)
auto
COM8
DB9ST
ttyS8
PCIe 8x (slot bottom)
auto
COM9
DB9ST
ttyS9
PCIe 8x (slot bottom)
auto
COM10
DB9ST
ttyS10
PCIe 8x (slot bottom)
auto
COM11
DB9ST
ttyS11
PCIe 8x (slot bottom)
auto
COM12
DB9ST

Subject to alterations Version 3.1
IPCOMM GmbH - 11 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
3.3 Variant E4
The device variant E4 corresponds to the item code HP.I7L.xyz0-2.x.
(See chapter 5 ‘Nomenclature of IPC191I7 Item Code’)
Assembly
Linux
Device
I/O Port
IRQ
Label
Connector
mainboard
ttyS0
3F8
4
COM1 (chassis rear)
DB9ST
ttyS1
2F8
3
COM2 (chassis front)
DB9ST
eth0
PCIe (onboard)
auto
ETH0
RJ45
eth1
PCIe (onboard)
auto
ETH1
RJ45
Ethernet
adapter 4x
eth2
PCIe 8x (slot top)
auto
ETH2
RJ45
eth3
PCIe 8x (slot top)
auto
ETH3
RJ45
eth4
PCIe 8x (slot top)
auto
ETH4
RJ45
eth5
PCIe 8x (slot top)
auto
ETH5
RJ45
3.4 Variant E8
The device variant E8 corresponds to the item code HP.I7L.xyz2-2.x.
(See chapter 5 ‘Nomenclature of IPC191I7 Item Code’)
Assembly
Linux
Device
I/O Port
IRQ
Label
Connector
mainboard
ttyS0
3F8
4
COM1 (chassis rear)
DB9ST
ttyS1
2F8
3
COM2 (chassis front)
DB9ST
eth0
PCIe (onboard)
auto
ETH0
RJ45
eth1
PCIe (onboard)
auto
ETH1
RJ45
Ethernet
adapter 4x
eth2
PCIe 8x (slot top)
auto
ETH2
RJ45
eth3
PCIe 8x (slot top)
auto
ETH3
RJ45
eth4
PCIe 8x (slot top)
auto
ETH4
RJ45
eth5
PCIe 8x (slot top)
auto
ETH5
RJ45
Ethernet
adapter 4x
eth6
PCIe 8x (slot bottom)
auto
ETH6
RJ45
eth7
PCIe 8x (slot bottom)
auto
ETH7
RJ45
eth8
PCIe 8x (slot bottom)
auto
ETH8
RJ45
eth9
PCIe 8x (slot bottom)
auto
ETH9
RJ45
3.5 Variant L
The device variant L corresponds to the item code HP.I7L.xyz0-0.x.
(See chapter 5 ‘Nomenclature of IPC191I7 Item Code’)
Assembly
Linux
Device
I/O Port
IRQ
Label
Connector
mainboard
ttyS0
3F8
4
COM1 (chassis rear)
DB9ST
ttyS1
2F8
3
COM2 (chassis front)
DB9ST
eth0
PCIe (onboard)
auto
ETH0
RJ45
eth1
PCIe (onboard)
auto
ETH1
RJ45

Subject to alterations Version 3.1
IPCOMM GmbH - 12 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
4 Technical Data
Chassis
•19“ rack mount chassis (1U)
•Dual PCIe riser card
•Excellent air flow for maximum heat dissipation with ball bearing mounted industrial fans
Power Supply AC
•Fanless
•85 –264 V AC, 104 –350 V DC auto range
•Input frequency: 47 –63 Hz
•Hold up time: > 40 ms at 230 V AC and full load, 10 ms at 115 V AC and full load
•Switch-on delay: 300 - 500 ms
•Power consumption: max. 100 W (depending on the used type)
•CE, UL 60950-1, EN 60950-1, IEC 61850-3
Power Supply DC (optional)
•Fanless
•9 –32 V DC
•Hold up time: > 50 ms
•Switch-on delay: 100…500 ms
•Power consumption: max. 70 W (depending on the used type)
•CE, UL 60950-1, EN 60950-1, IEC 61850-3
Mainboard / CPU
•Intel Core i7 Quad-Core CPU 3,4 GHz with Hyper-Threading Technology
•DDR4 RAM max. 32 GB
•SATA interfaces
•2 serial interfaces outward
•2 x RJ45 10/100/1000 BaseT LAN interfaces onboard
•6 x USB 2.0 outward
•4 x USB 3.0 outward
Serial Cards
•Up to 32 RS-232 interfaces
•DB9 male connector
•Baud rate 300 bps to 921,600 bps
•15 KV ESD protection
Diagnostics
•Power LED
•LED to show different software conditions
Additional Functions
•Battery buffered real-time clock (RTC)
•Reset

Subject to alterations Version 3.1
IPCOMM GmbH - 13 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
Mass Storage CFast
•Rugged CFast card, industrial –grade
•Max. 64 GB capacity
•MTBF ≥ 4,000,000 hours
•No moving parts
•Removable flash card
•Bad Block Scanning/Handling
•Static Wear-Leveling System
•ECC
•Very short access time
Mass storage in removable frame (optional)
•SATA 2,5" SSD or HDD
Supported Operating Systems
•Linux
Optical Drive (optional)
•CD/DVD writer with slot-in technology
Video
•1 x DVI interface, 2 x display port
Operating Environment
•Operating temperature: 0 °C to 45 °C
•Storage temperature: 0 °C to 60 °C
•Relative humidity: 5 % to 95 % not condensing
General
•Height: 1 U
•Dimension (W x H x D): 19" x 1.75" x 15" (482.6 mm x 44.45 mm x 381 mm)
•Weight: approx. 6 kg (depending on the used type)

Subject to alterations Version 3.1
IPCOMM GmbH - 14 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
Standards
IEC 61850-3:2013*)
IEC 61000-6-2:2005
IEC 61000-6-4:2006 + A1:2010
CISPR 22:2008
Electromagnetic Compatibility (EMC) - Emissions
Conducted and Radiated Emissions:
IEC 61000-6-4
CISPR 22:2008
Voltage Flicker:
IEC 61000-3-3:2013
Harmonic Current:
61000-3-2:2014
Electromagnetic Compatibility (EMC) - Immunity
Fast Transient/Burst:
IEC 61000-4-4:2012
Severity Level: Class A
4 kV on power supply and outputs;
1 kV, 4 kV on communications lines
Surge Immunity:
IEC 61000-4-5:2014
AC Power Supply: 4 kV line <-> ground
2 kV line <-> line
DC Power Supply: 2 kV line <-> ground
1 kV line <-> line
Conducted RF:
IEC 61000-4-6:2014
Severity Level: 10 Vrms
Power Supply:
IEC 61000-4-11
IEC 61000-4-17
IEC 61000-4-29
Electrostatic Discharge:
IEC 61000-4-2
2, 4, 6 kV contact discharge;
2, 4, 8 kV air discharge
Radiated Radio Frequency:
IEC 61000-4-3:2006 + A1:2007 + A2:2010
Severity Level: 10 V/m
Immunity to damped oscillatory
waves:
IEC 61000-4-18:2006+A1:2010
Power supply and outputs
Severity Level: 2.5 kV peak common mode
1.0 kV peak differential mode
*) except serial, USB and Ethernet interfaces
(If required, corresponding interfaces must be externally protected e.g., by using our RS-232 Isolator.)
(The test report is available on request.)
Assembled by IPCOMM GmbH/Germany

Subject to alterations Version 3.1
IPCOMM GmbH - 15 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
5 Nomenclature of IPC191I7 Item Code
The IPC191I7 item code gives information about the gateway configuration.
Power supply
Value
Description
A
85 –264 V AC
B
24V DC
C
30 –120 V DC
RAM
Value
Description
I
8 GB
J
16 GB
S
32 GB
CFast1)
Value
Description
F
4 GB
H
16 GB
I
32 GB
J
64 GB
SSD1)
Value
Description
S4
120 GB
S5
150 GB
PCI express sockets 1/2
Value
Description
0
Not equipped
1
8-port RS232 PCIe adapter
2
Ethernet adapter 4-port
9
16-port RS232 PCIe adapter
1) combinations of CF and SSD are hyphenated e.g., F-S4 (CF = 4 GB, SSD = 120 GB)
Version
HP.
I7L.XYZ0-0.1
PCIe socket 2
RAM
PCIe socket 1
CFast / SSD1)
Power supply

Subject to alterations Version 3.1
IPCOMM GmbH - 16 - Industrial PC IPC191I7
Walter-Bouhon-Strasse 4 Copyright © IPCOMM GmbH, 2021
90427 Nuremberg All rights reserved
Germany
6 IPC191 CAD-Chart
