iRED Stretch Chair User manual

使用說明書
6WUHWFK&KDLU

Thank you for purchasing . Before using
this unit, please read these instructions completely
for correct usage and operation.
Contents
Safety Precautions................................
Proper Use of the Chair........................
Maintenance of the Chair......................
Components and Accessories.............
Assembly lnstruction.............................
Move / Transport Your Chair................
Remote Display.....................................
Product Specifications...........................
Warranty Card.......................................
Notices For Customer..........................
01
03
04
05
06
11
12
17
18
20
Stretch Chair

Grounding instructions
120 (UL/cUL)
220~240 (CE)

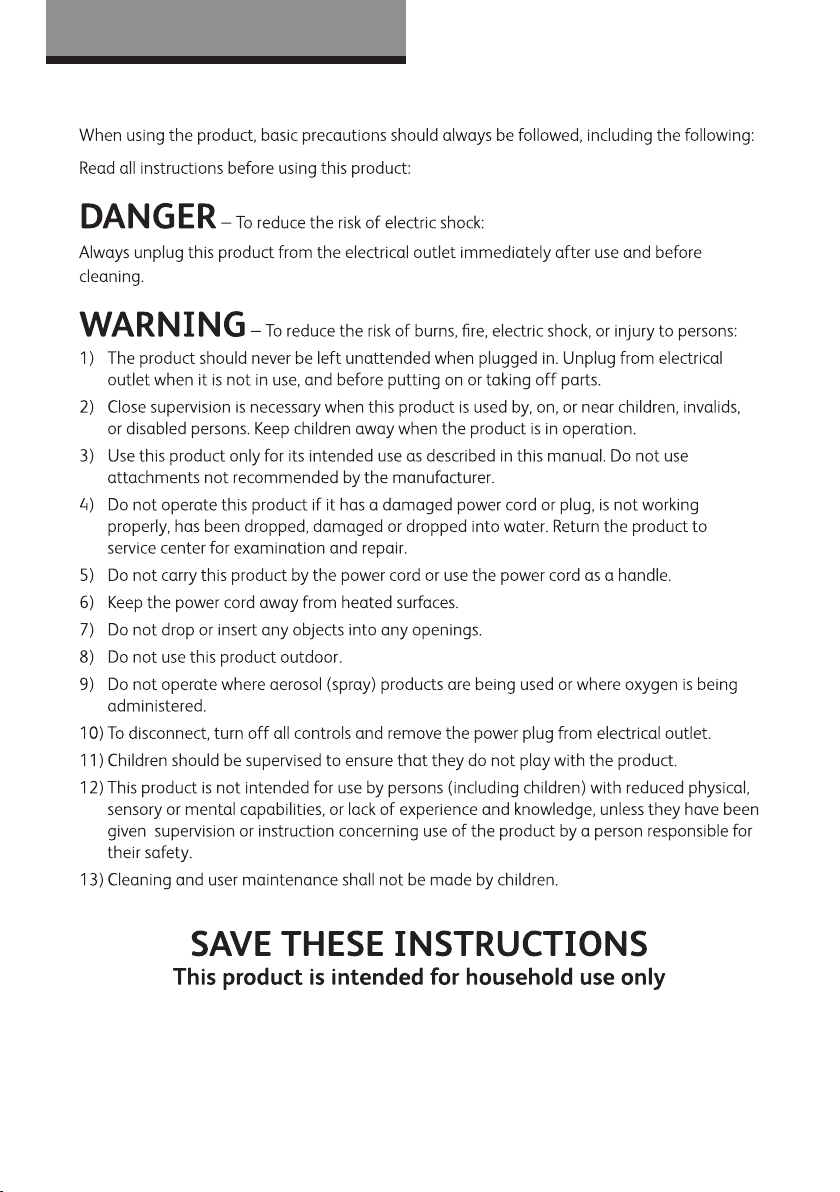

Important safety instructions

Important safety instructions
IMPORTANT
The instructions shall state the substance of the following:
This appliance is not intended for use by persons (including
children with deduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by person responsible for their safety.

1
Safety Precautions
- To prevent any injuries
or accidents, children and
pets should be kept away
from the chair.
- Users must stop and
turn the power off imme -
diately if they feel unwell
or ill when using the chair.
- Keep hands / foot
away from all chair
mechanisms.
- UNPLUG the power
cord and keep hands dry
before doing any mainte -
nance.
Whenever the chair is functioning abnormally, turn off the main
power switch, and unplug. Call our service department immediately.
DO NOT attempt to disassemble / repair the chair yourself.
Note
Users with any of the following conditions MUST consult their physicians before
using the chair :
1. People suffering from heart disease.
2. People with malignant tumors.
3. Pregnant women or on period.
4. People with irregular curvatures of spine.
5. People who are undergoing medical treatment
or suffering from medical condition.
6. People with osteoporosis.
7. People who need convalescent care.
1

STOP using the chair and UNPLUG the power cord if the leather or
fabric cover is torn or worn-out and causes exposure of the mecha -
nism.
Note
PROHIBITIONS
- Prohibit more than 1 person using the chair at the same time.
- The chair is not recommended for children under the age of 16.
- People weighing over 260 lbs / 120kgs utilizing the chair
will void the warranty.
- DO NOT eat or drink during operation.
Safety Precautions
2
- Use dry cloth to wipe
the machine, and never
use wet towels; do not
use any type of cor
rosive chemicals on
this machine
- DO NOT clean the chair
with alcoholic or evapo
-
rative solutions in order
to protect the fabric or
leather cover.
Towel - Users with chemically
treated hair, place a towel
under your head to pro
-
tect chair fabric.
- DO NOT expose the
chair directly to the sun.
- DO NOT place the chair
near other electric appli-
ances.

Proper Use of the Chair
3
In order to protect the chair and extend its life-span, please careful -
ly pay attention to the following instructions while using the chair.
IMPORTANT
1. This massage chair is designed for 60 minutes continuously use.
Exceeding 60 mins may result in the automatic shutdown of functions to
protect the internal mechanisms.
2. It is not receommended that any person use the massage chair for longer
than 30 minutes at one time.
3. DO NOT rest or place heavy objects on the armrest, footrest, or backrest as
this may result in damage
4. Please avoid standing at the back of the chair and beneath the footrest when
the vibrating function is activated or the footrest is lifted.
5. If the chair is stored at temperatures below 40°C for a period of time it is
recommended that you settle the chair to stand at room temperature for an
hour before use.
6. It is recommended to drink approximately 8oz of water after using the chair.
This may improve blood circulation.

4
- In order to protect the chair and not void your warranty, please
follow the instructions below.
- Damage resulting from user attempts to disassemble the chair, or
replace parts without our direction may void the warranty.
IMPORTANT
1. Storage
3. Remote Control
2. Maintenance
· Store the chair in a dry environment and cover it with cloth, to prevent dust and
scratches to the leather upholstery.
· DO NOT expose the chair directly to the sun and DO NOT place the chair to other electric
appliances, it may cause upholstery faded or cracked.
· Use only dry cloth to wipe the Remote Control, to avoid damaging the components.
· DO NOT pull, stretch the Remote Wire or expose it under pressure, carefully using the remote
may reduce any fallen or damage.
· Make sure the power is off and unplugged before cleaning the chair.
· Apply a mild cleanser or leather cleanser to clean the chair, then polish with dry cloth.
· DO NOT clean the chair with cleansers containing alcohol such as toluene. This could cause
leather upholstery faded scratched or cracked.
· DO NOT use heating devices such as irons or hair dryers to dry the chair.
· DO NOT clean the upholstery with washing machine or dryer. It will cause damage to the
fabric.
· DO NOT drink liquid while using the chair, the warranty shall not cover any liquid sprikle on to
this product.
Maintenance of the Chair


Components and Accessories
Front View
Side View
Accessories
Pillow
Backrest
Pillow Backrest
Power
Cord
Instruction
Manual
Armrest
Moving Wheel
Seatrest
Footrest
Seatrest Screw Bonnet


Assembly Instruction
Step 1:
1. Take out the accessories from the carton.
2. Moving the chair requires at least two or more people to hold the grip
point of the product as shown in the following drawing.
Grip point
(armrests on
both sides)
Grip point
(armrests on
both sides)


Step 2Unfold the backrest
1. Settle down the chair and raise the backrest.
2. Take out the cap and screw in the aceesory box. Then raise the
backrest approx 90~100˚, then asemble connecting rod with backrest
connecting seat . Finally the screw through both ,use cap to lock .
Assembly Instruction
3. Put the Backtrest into the Backrest frame and the
backstrest leather stick on cushion canvas .


Step 3: Install Seatrest
Assembly Instruction - Seattresr/Backrest leather
Step 4: Stick the backrest leather


Step 5: Pillow
Assembly Instruction - Pillow

1. Ensure the power cord is not broken or damaged.
Step 6: Power cord check
1. Connect the power cord to the connector at the bottom left corner of
the rear seat back.
2. Press the power switch to turn on the machine.
Step 7: Power cord connection
Fuse
Power cord
Main switch
ON
OFF
Assembly Instruction


Method:
Adjust chair to the upright position, with one person holding and push down
the grippoint, then move the chair to the desired area.
Note: Only use above method to move the chair. Do not drag the chair when
it is not lifted up; otherwise ,it may damage the bottom of the chair and
may cause malfunction.

Move / Transport Your Chair
Grip point
Casters


Power on / off button
Power LED Indicator
Pause button
Waist stretching
Full body stretch
Speed UP
Stop button
Fundamental functions:
Remote Display
Stop program light
Pause program light
Leg extension
Back stretch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Inversion
Inversion LED Indicator
Leg extension LED Indicator
( , , )
Waist stretching LED Indicator
( , , )
Full body stretch LED Indicator
( , , )
Back stretch LED Indicator
( , , )
1
2
3
4
5
6
7
9
11
13
14
12
10
8
15
16
17
18
Speed DOWN
