Rechargeable Mop Cleaner
IC-M01
User manual
2
Safety precautions
Carefully read the following "safety precautions" before using. Rules which must be abided by in order to prevent avoid-
able personal injury or damage to property are described here.
Danger Indicates content where improper usage carries a high risk of death or
serious injury.
Unplug the
product
●In case of abnormalities or malfunction-
ing, you should immediately stop using
and unplug the charging adapter from the
power socket
-
cal shock.
[Examples of abnormalities]
• Smell of scorching or abnormal sounds
• A
bnormal heating up of the charging adapter
➡
Stop using and contact the store where you pur-
chased the product, or contact the IRIS customer
service center.
Important notes about the battery
Do not
disassemble
●Do not disassemble the battery
●Do not change the battery
Doing so may cause the battery to heat up and
Do not remove the battery except when dispos-
ing of the product.
Warning Indicates content where improper usage carries a risk of death
or serious injury.
Prohibited
●-
secticides, hair products, lubricating
oils, kerosene, gasoline thinners and
etc.)
Avoid getting
the product wet
●Do not put the mop head or the charg-
ing adapter in water, or get wet
Do not
touch
●Do not touch power spin board when in
operation
Doing so may cause injury.
Do not
disassemble
●Do not disassemble, repair or modify
this product
injury.
Contact the store where you purchased the prod-
uct, or contact the IRIS customer service center.
Prohibited
●Do not sit or lean on the product
Doing so may cause injury or malfunction.
●Do not use on towels or clothing
●Do not allow children to use the prod-
uct by themselves
Doing so may cause injury.
●Do not use near anything that falls over
easily or breaks easily
Doing so may cause injury or malfunction.
Prohibited
●Do not plug or unplug the charging
adapter with wet hands
Doing so may result in electrical shock, burns
or injury.
This symbol means
"reminding".
Prohibited
This symbol means
"forbidden".
Be sure to
This symbol means nec-
essary "instructions".
Prohibited
●Do not charge the battery in a way other
●Do not charge the battery in locations
with high temperatures or exposure to
direct sunlight
●-
erwise heat it up in any way
●Do not drop the battery from high plac-
es, throw the battery, pierce the battery
with nails, strike the battery with a ham-
mer, or trample the battery
●Keep the battery from getting wet
Not doing so may cause the battery to heat up,
or contamination of the surrounding environment.
Examplse of symbols
3
Important notes about the battery
Be sure to
●I
n the event of electrolyte leakage or
unpleasant odors, immediately distance
Doing so may cause .
●
contact with skin or clothing, immedi-
ately wash with water
Not doing so may cause skin irritation or dam-
age to clothing.
Use the charging adapter
Be sure to
●Product must be used with the accom-
panying charging adapter
If the product gets connected to other charging
adapters, or if the charging adapter gets connected
●
the charging plug
Dust buildup and humidity can cause the insu-
●
way into the power socket
to a short circuit.
Avoid getting
the product wet
●Do not plug or unplug the charging
adapter with wet hands
Doing so may result in electrical shock, burns
or injury.
Caution Indicates content where improper usage carries a risk of per-
sonal injury or damage to property.
Prohibited
●Do not use for any purpose other than
cleaning
●This product was designed for house-
hold use only
Do not use this product for commercial purpos-
Prohibited
●Do not turn on the power while the bat-
tery is charging
Doing so may cause an accident or malfunc-
tion.
●Do not push down forcefully or force to
stop
It may also damage the mop head and cause
malfunctioning.
Prohibited
●Do not use on rugs, carpets, mats, etc.
Doing so may cause power spin board to stop,
and cause malfunctioning.
●Do not peer into the nozzle
Or liquid that gets sprayed out may get on your
face or in your eyes.
●Do not block the nozzle
Doing so may cause malfunctioning.
No fire
●
to deformation of the mop head.
Prohibited
●In the event of electrolyte leakage or
unpleasant odors, do not use
Doing so-
tamination of the surrounding environment.
●Keep the battery out of reach of infants
and young children
Not doing so may cause electrical shock or
injury.
Prohibited
●Do not drop the product or strike it with
heavy blows
Doing so may cause injury or malfunctioning.
●Do not store in places with high tem-
peratures or high humidity
Doing so may cause electrical shock due to
deterioration in the insulation.
●Throw out the water in the water reser-
voir after use
Not doing so may cause putrefaction or clog-
ging.
●Do not leave wet mop padss attached
to the mop
Doing so may cause discoloration or deteriora-
Prohibited
●Do not use if the charging adapter is
damaged or if it does not plug into the
to a short circuit.
●U
se power sockets that have a rating of 15A
and a voltage of 100~240V, and use the prod-
uct by itself without anything else plugged in
Using this product in combination with other
devices may cause it to overheat, which could
then cause or malfunctioning.
●Do not allow infants or young children
to lick the charging adapter
Doing so may cause injury or electrical shock.
●Do not damage, forcefully bend, pull,
twist, squeeze, place heavy objects on,
or pinch the charging cord
Doing so may damage the charging cord, and
4
Safety precautions Continued
●
for wiping and cleaning with water. Also, avoid
using on delicate materials or expensive items.
●
chemically treated dust cloths.
Doing so may cause deterioration in performance or
malfunctioning.
●Do not use anything other than the mop pads on
this unit
●Frequently clean and maintain the mop pads
Continuing to use while dirty will reduce the mop’s
ability to clean.
●Do not use if there are hard or abrasive bits of trash
or sand stuck to the mop
●Because the mop pads absorb oil easily, they can
end up darkening. This will not cause any prob-
lems in using it.
●Do not place the mop head on surfaces such as
carpets if the Mop Pads have been removed.
Or the attachment surface will get entangled with the
carpet, fur / tassels and may damage the carpet linen /
carpet fur.
●When replenishing water, use the attached mea-
suring cup to measure out the water, and do not
exceed 90ml.
●
as mineral water or cleaning solution) into the wa-
ter reservoir.
Doing so may cause malfunctioning in the nozzle.
Precautions for use
Unplug the
product
●When unplugging the charging adapter,
be sure to unplug by holding the charg-
ing adapter itself; do not pull on the
power cord
or electrical shock.
●Unplug the charging adapter from the
power socket after each use
Consumable parts
●
Soft pads
MC-S01
Scrubby pads
MC-P01
Be sure to
●Make sure to attach the mop pads before
using
It may also damage the mop head of the prod-
uct and cause malfunctioning.
●When placing the mop head in an up-
right position, place on a level surface
so that it will not fall over
Not doing so may cause injury or damage.
●
the swivel
Doing so may cause injury.
●Do not use within the reach of infants
or young children
●Do not let children play with this product
Doing so may cause injury.
Be sure to
●When plugging in or unplugging the
charging adapter, make sure that the
Not doing so may cause electrical shock or mal-
function.
●The soft mop pad is mainly used to wipe with the water.
●
5
Parts
■Back of the mop head
■Main unit
Shaft
Operating handle
Water
supply
port
Mop head
Mop Pads
Nozzle
LED headlights
Power spin board
Release button
Release button
Battery indicator light
Charging
port
Charging
port cover
Water reser-
voir
Pad attachment surface
Swivel
6
Parts Continued
■Accessories
■Operating handle
Replacing the handle battery
※ If power button does not turn on the machine, the han-
dle battery may have ran out. Replacement of battery
may be necessary.
!
Using a small coin, turn clockwise to open the
cover.
#
-
er-clockwise to close the cover.
Cleaning side
Attaching side
※Place the pads on the ground with cleaning
side facing down. Then, place the machine
Measuring cup
Charging adapter
Charging cordCharging plug
Soft pads
Scrubby pads
Pin for cleaning the
nozzle
Water spray
button
Power
button
7
Assembly
• Remove the shaft, the operating handle can be
directly connected to the mop head.
How to remove
• To rem o v e t h e a s sembled operating han d l e , s h a f t , and
mop head, put the swivel in a vertical upright position,
down on the release button.
■Assembly
How to assemble
!
Stand the product up vertically until you
hear the Swivel make a "clicking" sound
Click
#
Connect the shaft to the operating handle
and to the mop head
Click
Click
8
Charging the battery
■How to charge
●
a long period, battery must be put on charge.
charging time may be shorter depending on how
much power is remaining in the battery.)
●
Do not plug in or unplug the
charging adapter / charging plug
with wet hands.
●
Do not operate while the battery is
still charging.
Doing so may cause electrical shock or
a short circuit.
!
Stand the product up vertically until you
hear the swivel make a "clicking" sound
Click
#
Insert the charging adapter securely into
the socket
$
Connect the charging plug to the mop
head
Pull open the charging port cover on the mop head,
and then insert the charging plug into the port.
• O
nce the charging plug has been plugged in, the bat-
tery indicator light will light up, and it will start charging.
Battery indicator light Status
Right after plugging
in the Charging plug
Indicator lights turn on
in order
Checks to see how much power
is remaining in the battery, and to
see if there is anything abnormal.
Charging
Flashes Once the check is complete, the
battery will start charging.
※
The location of the ashing indicator
lights may move depending on how
much power is remaining in the bat-
tery.
Charging
complete
All indicator lights are on.
※
After the battery is fully charged
and 30 minutes have passed, the
battery indicator lights will turn off.
※W
hen the charging plug is connected, the power will not
turn on even if the swivel is pushed down.
%
A
fter the battery has been charged, unplug
the charging plug from the mop head, and
unplug the charging adapter from the socket
• Close the charging port cover on the mop head.
●
T
he charging port cover must be closed
after the battery has been charged.
Or dust and dirt may get into the charging
9
Preparation
→
!
want to clean, and push the swivel into
place until hearing it "click"
• Turn on the power, and then the battery indicator
lights and the LED headlights will light up.
Click
※If you go for 3 minutes without operating the prod-
uct while the power is turned on, the power will
When resuming operation, stand the swivel back up verti-
cally and then push it down once again.
#
Press the start button
Press the start button, and the mop pads will begin
moving back and forth.
• W
henever this button is pressed, the mode gets switched
from "high" to "low" to "stop" and then back to "high."
• W
hen the mop pads is moving, move the mop head
forward and back slowly without using excessive force.
Press
How to use
■Attaching the mop pads
!
Open the mop pads, leaving a space of about
#
Press down on the mop head from above to at-
tach the mop pads.
3cm
●
Do not press down forcefully on the
Mop head.
Doing so may cause injury or malfunc-
tion.
■Putting water in the water
reservoir
!
Open the water reservoir.
#
Use the measuring cup to put tap water in the
water reservoir.
• Do not put more than 90ml. of water into the Wa-
ter Reservoir.
$
Close the water reservoir tightly.
●
as mineral water or cleaning solution) into the
water reservoir.
Doing so may cause malfunctioning in the nozzle.
10
How to use Continued
Battery indicator light
Battery indicator light Status
Power remaining in the battery is
Indicator lights go out one by
one from the right as the power
remaining decreases
Flashes
If the indicator light on the far
power remaining in the battery,
and operation will stop.
※Be sure to charge the battery.
When there is no more power
remaining in the battery, the
battery indicator lights will go out.
■About the safety device
This product has a built-in safety setting in order to
prevent accidents from occurring due to malfunction-
ing of the mop head or overheating of the battery.
When the power spin board is bearing too much of a
burden, the safety device will activate and movement
will stop.
• If the safety setting has been activated, stand the
swivel up vertically until there is a "clicking" sound,
again.
• Check to make sure that there is no trash or de-
bris that has gotten stuck in the power spin board.
→
$
Once cleaning is complete, stand the
swivel up vertically until there is a "click-
• O
indicator lights and the LED headlights will go out.
Click
●During operation, if the unit is being charged, op-
eration will stop and it will switch over to charging
mode.
It is not possible to operate the product while the bat-
tery is charging.
■About movements during
operation
Nozzle
If the Water spray button is pressed while the power is
on, water will get sprayed out of the nozzle.
Press
11
→
Cleaning and maintenance
●Before cleaning and maintaining,
charging adapter.
●Do not spray with water. Doing so
may result in electrical shock, injury
or malfunctioning.
●Do not use cleaners, thinners, benzene, bleach, etc.
●Do not use chemically treated dust cloths.
■Mop head, Shaft, Operating
handle
• Refer to the method for removing (P7), and then
remove the mop head, the Shaft, and the operating
Handle, fully wring out a soft cloth which has been
dampened with cool or warm water (no warmer
• I
-
-
ened with a diluted neutral kitchen cleaning agent. Then
fully wring out the cloth so that there is no cleaning
■Pad attachment surface
If dust or dirt accumulates on the attachment surface
part of the mop pads, the attachment surface will
easily. If dust or dirt accumulates, use a toothbrush or
something similar to remove it.
※If there is water in the water reservoir, that water
and maintaining.
●When holding and moving the mop
head with water in the water res-
ervoir, make sure not to tilt. Or the
water may spill out and cause mal-
functioning.
■How to drain the water from
the water reservoir
!
Open the water reservoir, tilt the mop
head, and drain out any water remaining
in the water reservoir
#
Press the water spray button several
times to get all of the water out
Press
■Nozzle
If the nozzle gets clogged up, use the attached pin for
cleaning nozzle to clean it out.
12
Cleaning and maintenance Continued

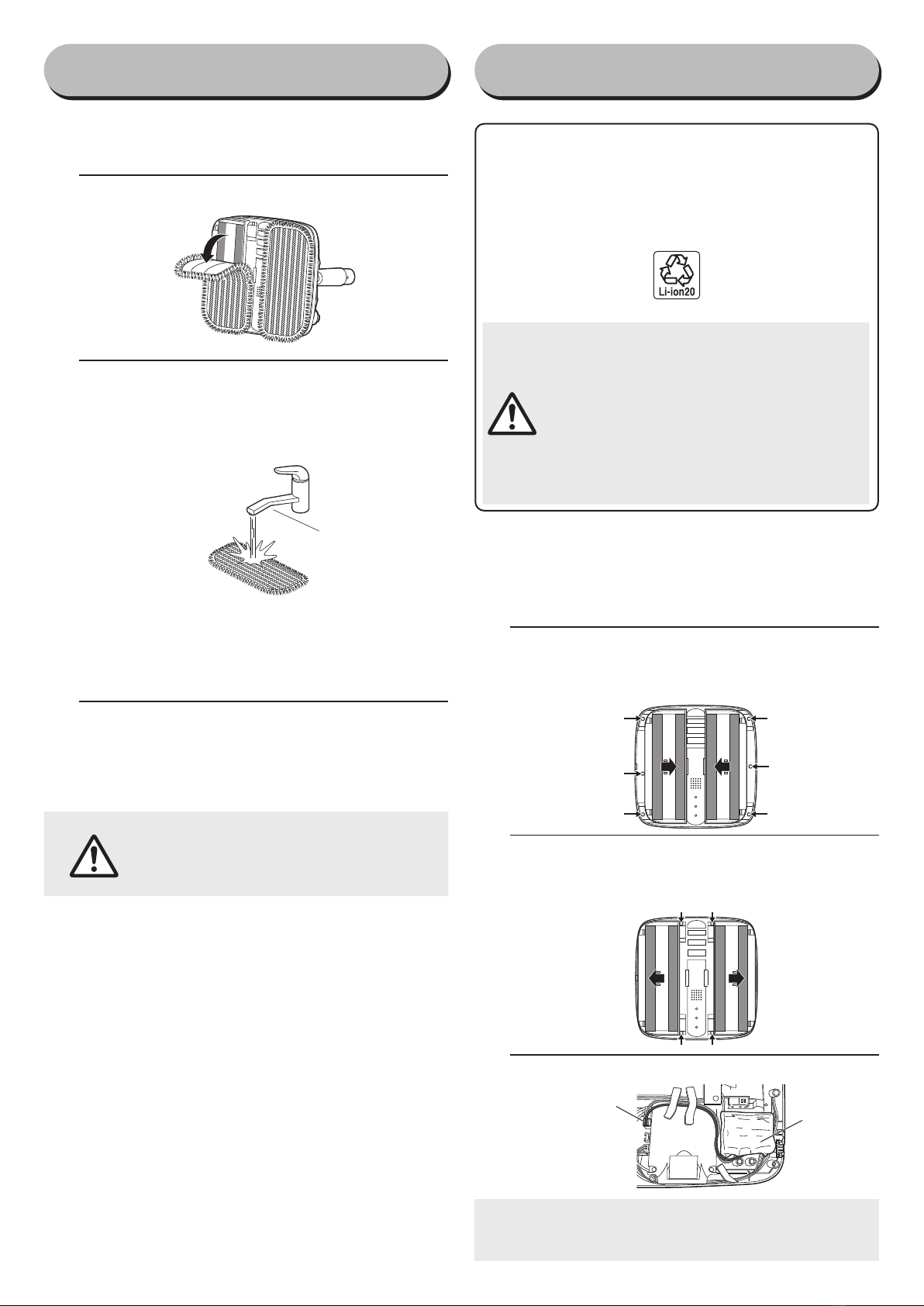

Removing the battery
■Battery removal
Use up the battery completely before removing it.
the swivel has been pushed down.)
!
Push the vibration surface of the mop
screws in six places)
#
Push the vibration surface of the mop
are screws in four places)
$
R
emove the connector and take out the battery
Battery
Connector
●After the battery has been removed, do not recon-
nect it to the mop head.
Doing so
■Mop pads
!
Remove the mop pads
#
Rinse the mop pads with water
• Wash your hands using tap water. If there is dirt,
neutral cleaning agent.
※Do not use a washing machine. Do not wash to-
gether with other laundry.
※Do not rub or knead the mop pads forcefully. Doing
so may cause fraying.
$
Remove all the water from the mop pads,
and dry it out in the shade
• Remove all the water, and dry out in the shade.
※Do not wring out forcefully.
●Do not use a hairdryer, iron, or dry-
ing machine to dry mop padss. Or
the heat may cause the mop pads to
lose its shape.
About used batteries
●Remove the used battery and take it to the nearest bat-
tery recycling location. Do not throw away used batter-
ies as general household waste.
●After removing the battery, use tape to insulate the
two ends of the battery connector.
Recycling lithium-ion batteries
●U
sed batteries must be recycled. Also,
abide by the following.
• Do not throw away used batteries as
general waste.
• D
• Do not disassemble.
• Do not put used batteries in places with
high temperatures.
• D
o not use in any other machines or devices.
13
➡ ➡
➡ ➡
➡ ➡
➡ ➡
➡ ➡
➡ ➡
➡ ➡
➡ ➡
Status Possible causes Solutions
following problems before calling for repairs.
Troubleshooting
The power does
not turn on
Does not move
or perform any
operations even
after pressing
the button
➡ ➡
●There is no remaining power
●→
●The safety setting is turned on
●Clean out any trash or debris that has gotten
stuck in the power spin board→
●The power is "OFF"
●Push down the Swivel on the Mop Head, turn the
power to "ON," and press the "start" button.
During opera-
tion, movements
are slow or de-
layed
Water does not
spray out
Water leaks out
Leaves a residue
of water on the
●The remaining power in the
charger is low
●T
he mop pads is excessively wet
●There is no water in the water
reservoir
●The Water Reservoir cap is not
attached correctly
●The charging plug
plug into the charging port on the
mop head
●The mop pads is dirty
●The mop pads is wet
●→
●Use dry mop pads.
●Fill up Reservoir with water.
●Close the water reservoir cap tightly.
●
plugged into the charging port on the back of the
mop head.
●Wash the mop pads and dry out before using.
➡ ➡
●The nozzle is spraying out too
wet
●
you should increase or decrease the number of
times you use the nozzle.
➡ ➡
●Connect the charging adapter
●First remove the charging adapter, and then try
operating.
If you still cannot solve the problem even after trying all of the solutions described above, contact the store
where you purchased the product, or contact the IRIS customer service center.
●Do not disassemble, repair or modify the product by yourself.
Cannot charge
➡ ➡
●The battery is fully charged
●F
irst remove the charging adapter, and then try using.
➡ ➡
●The battery for the button is
dead
●Change the battery for the button.
➡ ➡
●There is dust, dirt or other trash
and debris clogging up the noz-
zle
●Clean out any trash or debris by using the pin
that is for cleaning out the nozzle.（→）
Disposal
●
regulations.
14
※1 The Battery lifetime may vary depending on the environment in which it is used, as well as conditions such as the
surrounding temperature, frequency of use, etc.
※
Continuous operation time 70 minutes (when operating on ‘high’ mode)
Water reservoir capacity 90mL
Battery Lithium ion 2-D battery
Battery capacity 11.1V / 2,200mAh
Battery lifetime※1The battery can be recharged about 300 times
Rated voltage 11.1V
Charging power supply
Charging adapter)
Input 100-240V~, 50 / 60Hz
Output 15.0V / 450mA
Charging time
About 5 hours
(The charging time may be longer depending on how long
you use the product for)
Charging adapter, power cord length About 1.5m
Product dimensions W260×D260×H1150mm (Mop head only)
Product mass 2.3kg (not including the mop)
Mop Pads size Soft pads: 270mm x 115mm
Scrubby pads: 305mm x 145mm
Mop Pads materials 80% polyester, 20% nylon
Accessories
Charging adapter, measuring cup
Soft padss (2 Mop Padss)
Scrubby padss (2 Mop Padss)
Pin for cleaning the Nozzle
15
Warranty and after-sales services
Please make sure to carefully read the following contents.
■Purchase Receipt
Be sure to request a Purchase Receipt at the retail
shop when purchase the product.
The repair fee needs to be paid if you are unable to
present a Purchase Receipt. Therefore, you must
keep the Purchase Receipt securely.
■Within the warranty period
card (Back cover).
The company will provide free repair as per the "War-
ranty Provisions" under abnormal operating condi-
tions within the warranty period.
■Over the warranty period
Please check with retail shop and you will have to pay
for related repair expenses. It will be possible to main-
tain the functions of the product after repair. A certain
repair cost will be charged according to customer’s
requirements.
■About the remaining period of
spares parts
The remaining period of the company's major spare
parts is 5 years after stopped production of this prod-
uct. The spare parts in operation correspond to the
spare needed to maintain the functions of parts need-
ed to maintain the functions of the product.
■About after-sales service
Please check with retail shop for other after-sales
issues.
This manual suits for next models
1
Table of contents
