IRIS OC821 User manual

OC821 Iris™Outdoor Camera Set-Up Guide

On(Green)-
Of-
1. LANport
4.MemoryCardSlot
2
OC821 Iris™Outdoor Camera
C

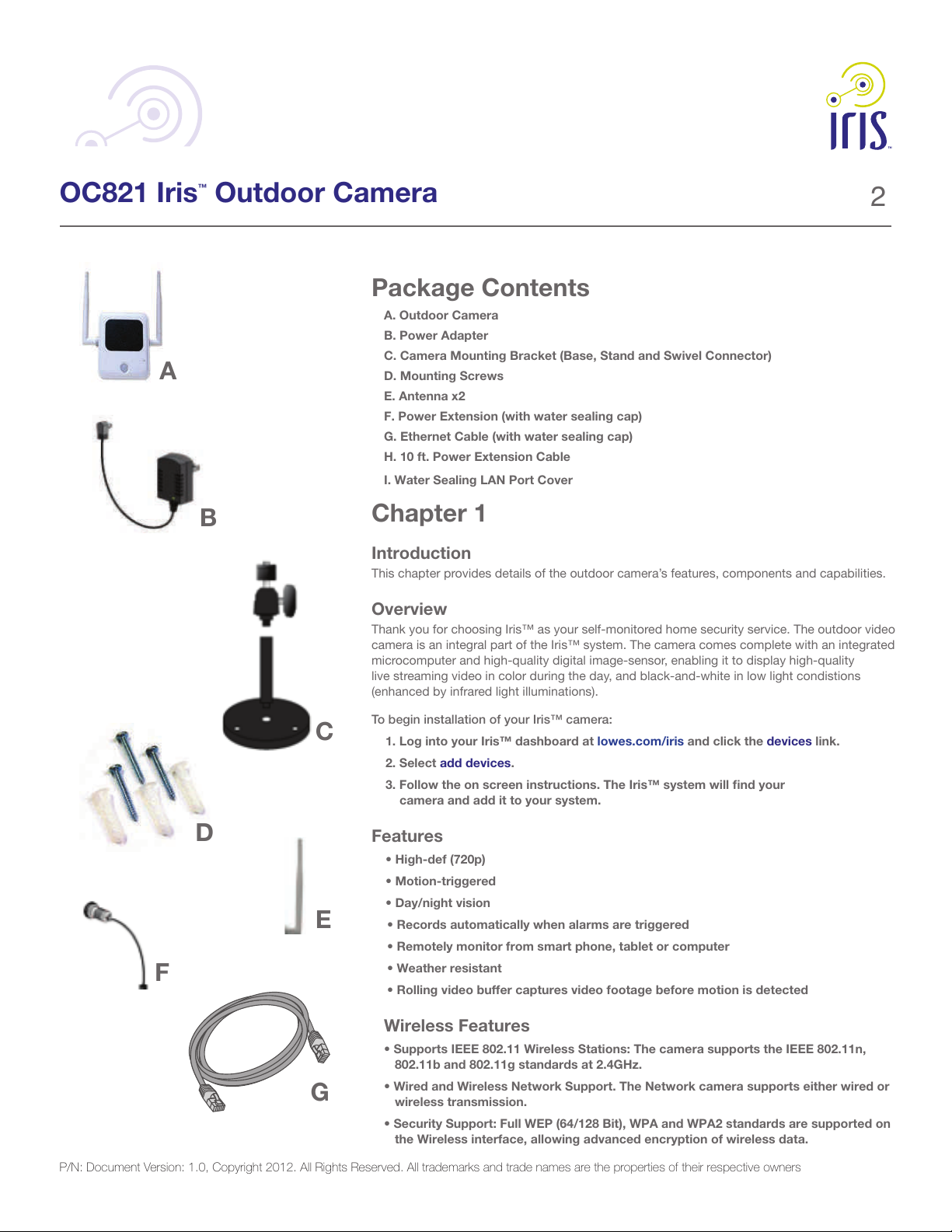

Package Contents
A. Outdoor Camera
B. Power Adapter
C. Camera Mounting Bracket (Base, Stand and Swivel Connector)
D. Mounting Screws
E. Antenna x2
F. Power Extension (with water sealing cap)
G. Ethernet Cable (with water sealing cap)
H. 10 ft. Power Extension Cable
I. Water Sealing LAN Port Cover
Chapter 1
Introduction
This chapter provides details of the outdoor camera’s features, components and capabilities.
Overview
Thank you for choosing Iris™ as your self-monitored home security service. The outdoor video
camera is an integral part of the Iris™ system. The camera comes complete with an integrated
microcomputer and high-quality digital image-sensor, enabling it to display high-quality
live streaming video in color during the day, and black-and-white in low light condistions
(enhanced by infrared light illuminations).
To begin installation of your Iris™ camera:
1. Log into your Iris™ dashboard at lowes.com/iris and click the devices link.
2. Select add devices.
3. Follow the on screen instructions. The Iris™ system will find your
camera and add it to your system.
Features
Wireless Features
802.11b and 802.11g standards at 2.4GHz.
wireless transmission.
the Wireless interface, allowing advanced encryption of wireless data.
D
G
B
A
E
F
P/N: Document Version: 1.0, Copyright 2012. All Rights Reserved. All trademarks and trade names are the properties of their respective owners

On(Green)-
Of-
1. LANport
4.MemoryCardSlot
3
OC821 Iris™Outdoor Camera
Chapter 2
Basic Setup
This chapter provides details on how to setup and mount the camera.
The Iris™ camera requires the Iris™ smart hub for operation. To use the wireless
interface on the wireless model, other wireless devices must be compliant with the

use compatible settings.
Front Panel
1. Lens
No physical adjustment is required or possible for the lens, but you should ensure
that the lens cover remains clean. The image quality is degraded if the lens cover is
dirty or smudged.
2. Mircrophone
The built-in microphone is mounted on the front.
3. Network LED
On (Green) - Network (Wireless or LAN) connection is available.
Off - Wireless or LAN is not connected or camera is not sending/receiving data.
Blinking (Green) - Data is being transmitted or received via the LAN or
Wireless connection.
4. Motion Sensor
Passive infrared sensor (PIR) detects motion in front of the camera.
5. Day/Night Sensor
This is a hardware sensor to detect lighting levels. In low light conditions the camera
will automatically switch to black-and-white mode and the IR LEDs will illuminate.
These lights are nearly invisible to the human eye. Turning on in low light conditions,
the IR LEDs illuminate the image to allow the camera to record a better image.

On(Green)-
Of-
1. LANport
4.MemoryCardSlot
4
OC821 Iris™Outdoor Camera
1. Antenna
The antennae are adjustable. Best results are usually obtained with the antennae
 
install location.
2. Power Port
The supplied 12V power adapter plugs in here to power on the Outdoor Camera. Do
not use any other power adapters since doing so may damage the Outdoor Camera.
When pressed and held over 10 seconds, the settings of Network camera will be set to
their default values. This button is recessed; you need a paper clip to depress it. It can
be activated at any time the camera is powered on.
After this procedure is completed, the Network LED will blink orange while the
 
successfully.
Before restoring the camera to its factory defaults, make sure that you
 
about removing devices from Iris™.
4. LAN Port
The supplied Ethernet cable plugs in here enabling you to connect your Outdoor
 
you may add your home network wireless settings to the camera via the Iris website. The
camera can then be disconnected from the router, and the supplied water sealing LAN
port cover should be installed.
Plugging in the Ethernet cable will disable the Wireless interface. Only one (1)
interface can be active at any time.
The Ethernet cable should only be connected or disconnected when the camera
is powered OFF. Attaching or detaching the Ethernet cable while the camera is powered
on does NOT switch the interface between wired and wireless.
5. Speaker
The built-in speaker is mounted on the back.

On(Green)-
Of-
1. LANport
4.MemoryCardSlot
5
OC821 Iris™Outdoor Camera

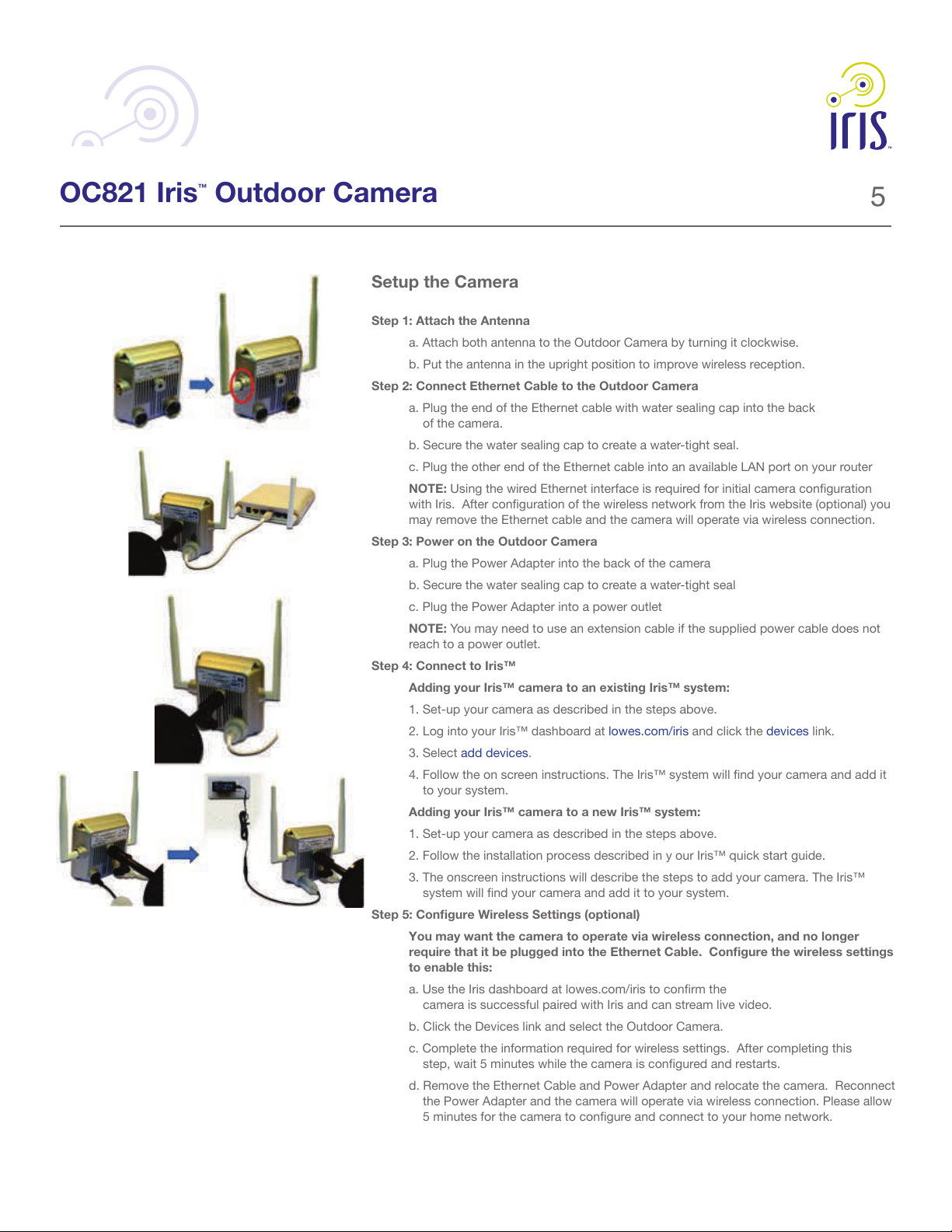

Setup the Camera
a. Attach both antenna to the Outdoor Camera by turning it clockwise.
b. Put the antenna in the upright position to improve wireless reception.
a. Plug the end of the Ethernet cable with water sealing cap into the back
of the camera.
b. Secure the water sealing cap to create a water-tight seal.
c. Plug the other end of the Ethernet cable into an available LAN port on your router


may remove the Ethernet cable and the camera will operate via wireless connection.
a. Plug the Power Adapter into the back of the camera
b. Secure the water sealing cap to create a water-tight seal
c. Plug the Power Adapter into a power outlet

reach to a power outlet.
1. Set-up your camera as described in the steps above.
2. Log into your Iris™ dashboard at lowes.com/iris and click the devices link.
3. Select add devices.
4. Follow the on screen instructions. The Iris™ system will 
to your system.
1. Set-up your camera as described in the steps above.
2. Follow the installation process described in y our Iris™ quick start guide.
3. The onscreen instructions will describe the steps to add your camera. The Iris™
 
You may want the camera to operate via wireless connection, and no longer

camera is successful paired with Iris and can stream live video.
b. Click the Devices link and select the Outdoor Camera.
c. Complete the information required for wireless settings. After completing this
 
d. Remove the Ethernet Cable and Power Adapter and relocate the camera. Reconnect
the Power Adapter and the camera will operate via wireless connection. Please allow
 

On(Green)-
Of-
1. LANport
4.MemoryCardSlot
6
OC821 Iris™Outdoor Camera

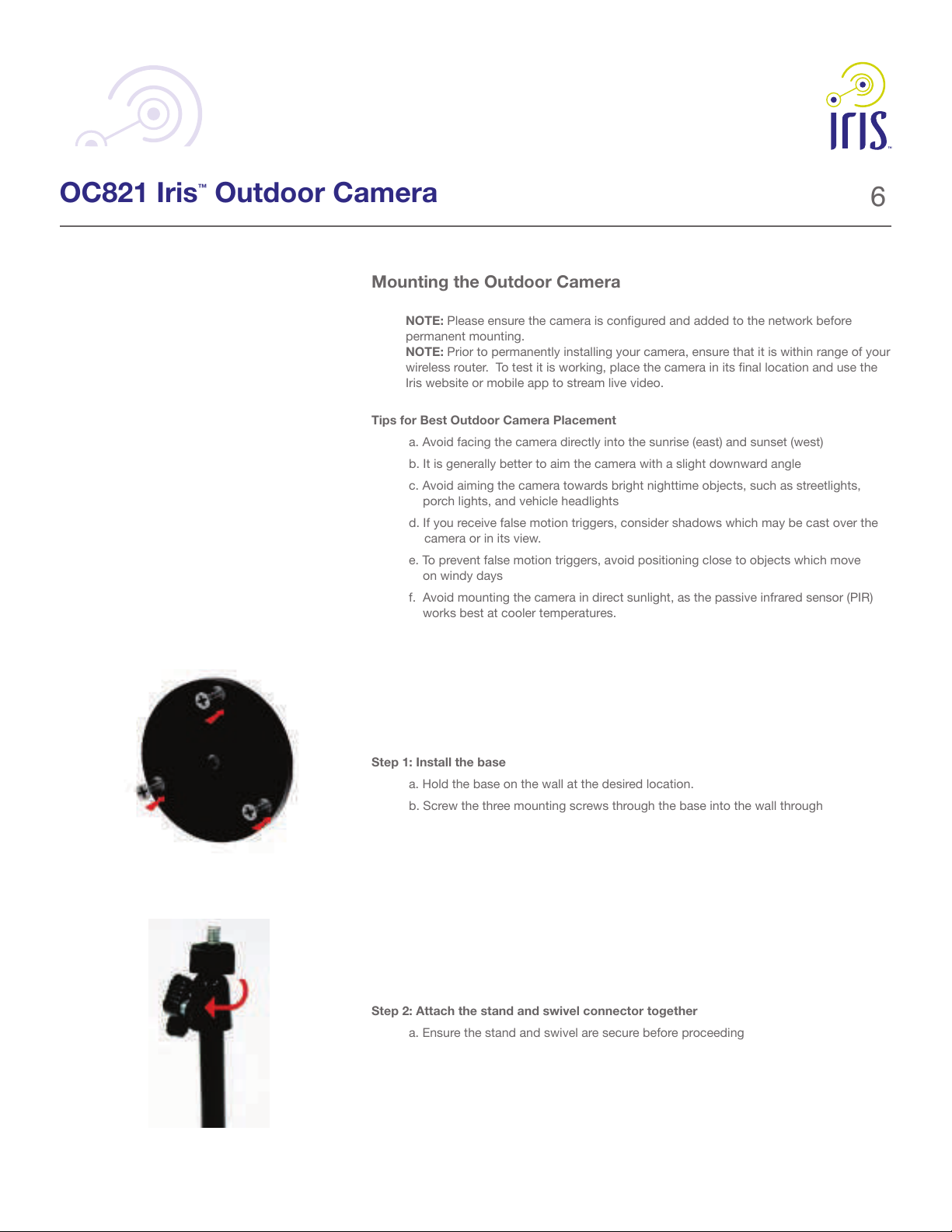

Mounting the Outdoor Camera

permanent mounting.
Prior to permanently installing your camera, ensure that it is within range of your

Iris website or mobile app to stream live video.
Tips for Best Outdoor Camera Placement
a. Avoid facing the camera directly into the sunrise (east) and sunset (west)
b. It is generally better to aim the camera with a slight downward angle
c. Avoid aiming the camera towards bright nighttime objects, such as streetlights,
porch lights, and vehicle headlights
d. If you receive false motion triggers, consider shadows which may be cast over the
camera or in its view.
e. To prevent false motion triggers, avoid positioning close to objects which move
on windy days
f. Avoid mounting the camera in direct sunlight, as the passive infrared sensor (PIR)
works best at cooler temperatures.
a. Hold the base on the wall at the desired location.
b. Screw the three mounting screws through the base into the wall through
a. Ensure the stand and swivel are secure before proceeding

On(Green)-
Of-
1. LANport
4.MemoryCardSlot
7
OC821 Iris™Outdoor Camera

b. Adjust the Outdoor Camera to the preferred position.

On(Green)-
Of-
1. LANport
4.MemoryCardSlot
8
OC821 Iris™Outdoor Camera

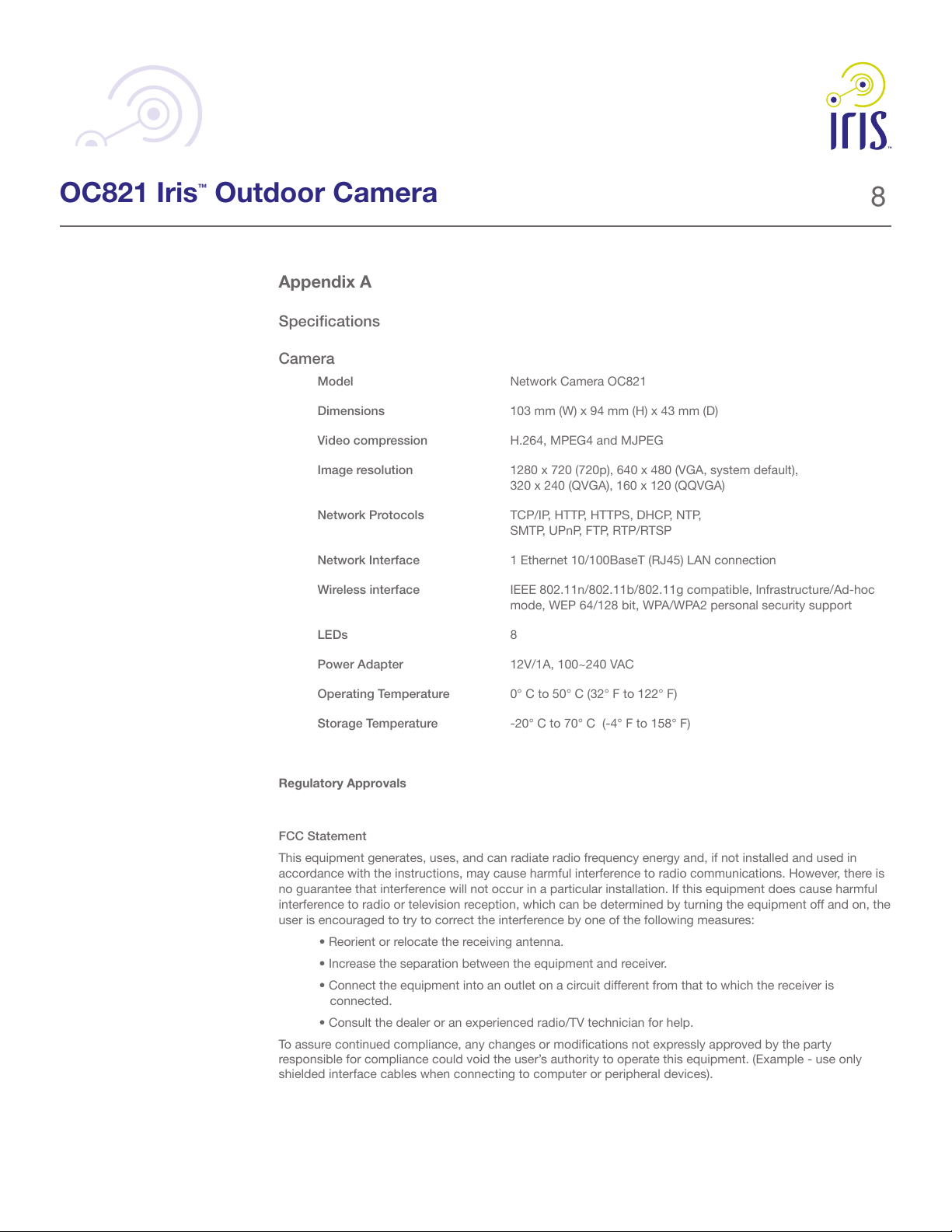

Appendix A
Specifications
Camera
Model Network Camera OC821
Dimensions 
Video compression H.264, MPEG4 and MJPEG
Image resolution 

Network Protocols TCP/IP, HTTP, HTTPS, DHCP, NTP,
SMTP, UPnP, FTP, RTP/RTSP
Network Interface 1 Ethernet 10/100BaseT (RJ45) LAN connection
Wireless interface IEEE 802.11n/802.11b/802.11g compatible, Infrastructure/Ad-hoc
mode, WEP 64/128 bit, WPA/WPA2 personal security support
LEDs 8
Power Adapter 12V/1A, 100~240 VAC
Operating Temperature 0° C to 50° C (32° F to 122° F)
Storage Temperature 
FCC Statement
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:



connected.



shielded interface cables when connecting to computer or peripheral devices).

On(Green)-
Of-
1. LANport
4.MemoryCardSlot
9
OC821 Iris™Outdoor Camera


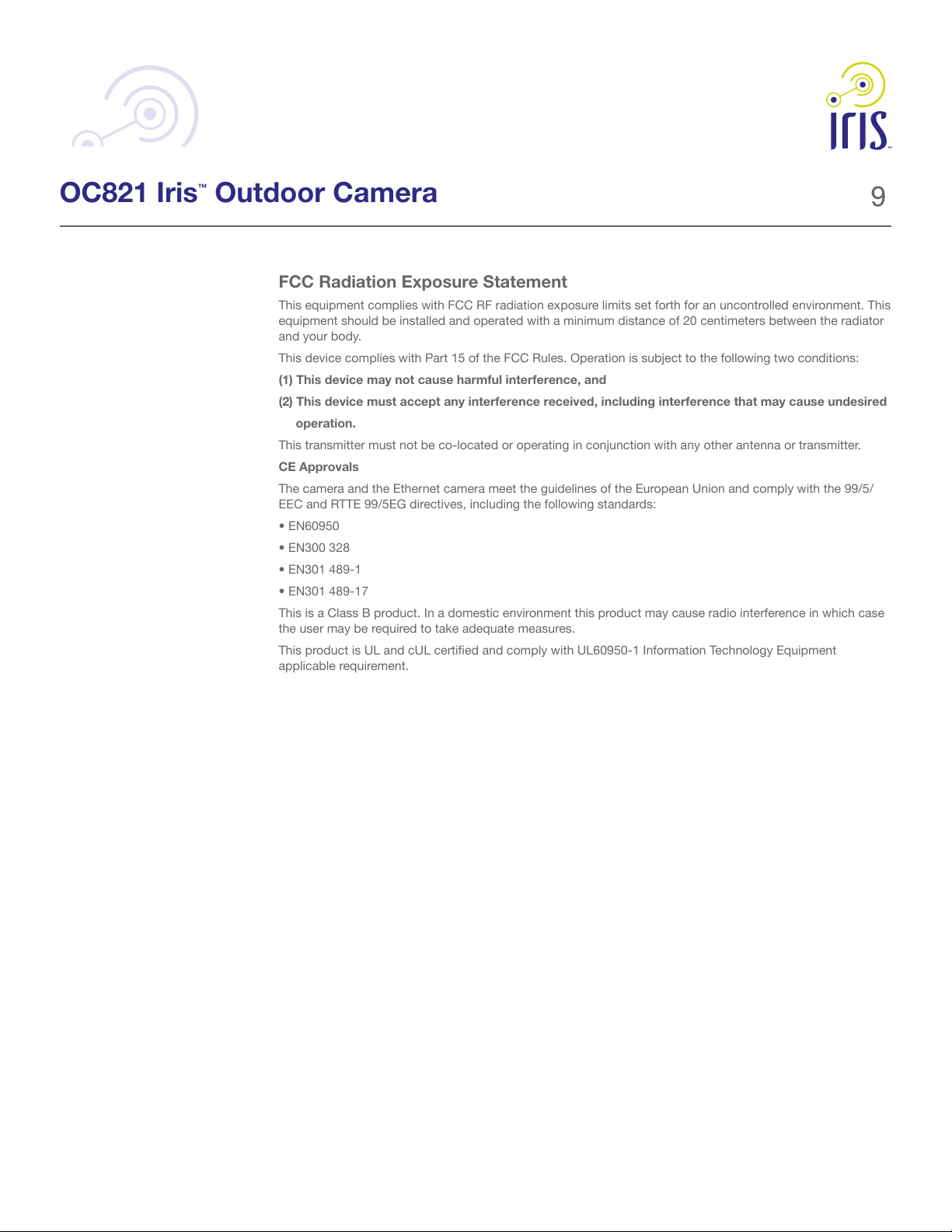

equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator
and your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
CE Approvals






This is a Class B product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.

applicable requirement.
