ISAFE MOBILE CHALLENGER 2.0 Operator's manual

CHALLENGER 2.0
Quick Start Manual
and
Safety Instructions
Schnellstartanleitung
und
Sicherheitshinweise

Template: TEMPMD01REV00 2
Document No. 1009DI02REV02
Version: 2015-02-05
(c) 2015 i.safe MOBILE GmbH
i.safe MOBILE GmbH
i_PARK TAUBERFRANKEN 10
97922 Lauda-Koenigshofen
Germany
Tel. [phone]
[e-mail]
www.isafe-mobile.com

English
3
This document contains information and safety regulations which are to be
observed without fail for safe operation of the mobile phone CHALLENGER
2.0 under the described conditions. Non-observance of this information and
instructions can have serious consequences and / or may violate regulations.
More detailed instructions on the use of the phone can be found at
www.isafe-MOBILE.com or directly at i.safe MOBILE GmbH.
Please read the manual and these safety instructions before using the
phone. In case of contradicting information, the text of these safety instruc-
tions shall apply.
In case of any doubt, the German version shall apply.
The current EC declaration of conformity, EC and IECEx certificates of con-
formity, safety instructions and manual can be found at www.isafe-
mobile.com, or requested from i.safe MOBILE GmbH.
Reservation: Technical Data is subject to change without notice. Changes,
errors and misprints may not be used as a basis for any claim for damages.
All rights reserved.
i.safe MOBILE GmbH cannot be held responsible for any data or other loss
and direct or indirect damages caused by any improper use of this phone.
Ex-Specifications
The CHALLENGER 2.0 is a mobile phone suitable for use in potentially explo-
sive atmospheres classified as Zone 2 in accordance with directives 94/9/EC
(ATEX 95) and 99/92/EC (ATEX 137).
Ex-markings
ATEX II 3G Ex ic IIC T4 Gc
EPS 14 ATEX 1 662 X
2004
Temperature range: -20 ... +60°C
Manufactured by: i.safe MOBILE GmbH
i_PARK TAUBERFRANKEN 10
97922 Lauda-Koenigshofen
Germany

English
4
EC Declaration of Conformity
The EC declaration can be found at the end of this manual.
Faults and Damages
If there is any reason to suspect that the safety of the phone has been com-
promised, it must be withdrawn from use and removed from any ex-
hazardous areas immediately.
Measures must be taken to prevent any accidental restarting of the phone.
The safety of the phone may be compromised, if, for example:
malfunctions occur.
the housing of the phone or the battery shows damage.
the phone has been subjected to excessive loads.
the phone has been stored improperly.
markings or labels on the phone are illegible.
It is recommended that a phone which shows or which is suspected of faults
and damages is returned i.safe MOBILE GmbH for inspection.
Ex-relevant Safety Regulations
Use of this phone assumes that the operator observes the conventional safe-
ty regulations and has read and understood manual, safety instructions and
certificate.
The following safety regulations must also be complied with:
Inside ex-hazardous areas the phone must be closed. The battery cover
has to be fixed by the two screws and the covers of the interfaces have to
be closed.
To ensure the IP-protection, it has to be ensured that all gaskets are pre-
sent and functional. The screws at the top and the bottom of the back of
the phone need to be covered by the black gaskets, so that the screw
heads are not visible. There must be no large gap between the two halves
of the housing.
The battery may only be exchanged or charged outside ex-hazardous are-
as.

English
5
The phone may only be charged outside ex-hazardous areas using the
appropriate charger or other equipment approved by i.safe MOBILE
GmbH.
Use only the appropriate battery type BPC02A.
It is not allowed to carry spare batteries into ex-hazardous areas.
The phone may be charged only at temperatures in between 0°C ... 45°C.
The phone must not be exposed to abrasive acids or bases.
The phone must not be taken into zones 0, 1, 20, 21 or 22.
Only accessories approved by i.safe MOBILE GmbH may be used.
Further Safety Advises
Do not touch the screen of the phone with sharp objects. Dust particles
and nails may scratch the screen. Please maintain the screen clean. Re-
move dust on the screen with a soft cloth gently, and do not scratch the
screen.
Charge the phone under indoor conditions only.
Do not put the phone in environments with excessive temperatures, as
this could lead to heating of the battery, resulting in fire or explosion.
Do not charge the phone near any flammable or explosive substances.
Do not charge the phone in environments with much dust, humidity, or
excessively high or low temperatures (the permitted charging tempera-
ture range is 0 ... 45°C).
Do not use the phone in areas where regulations or legislatives prohibit
the use of a mobile phone.
Do not expose the phone, battery or charger to strong magnetic fields,
such as are emitted from induction ovens or micro-waves.
Do not attempt to open or repair the phone. Improper repair or opening
can lead to the destruction of the phone, fire or explosion. Only author-
ized personnel are allowed to repair the phone.
Only use accessories approved by i.safe MOBILE GmbH.
Please do not directly connect the poles of the battery, to avoid short-
circuiting the battery.
Power off the phone in hospitals or other places where the use of mobile
phones is prohibited. This phone may affect proper work of medical
equipment, such as pacemakers, so always keep a distance of at least 15
cm between the phone and these devices.
Observe all corresponding laws that are in force in the respective coun-
tries regarding the use of mobile phones while operating a vehicle.

English
6
Please power off the phone and disconnect the charging cable before
cleaning the phone.
Do not use any chemical cleaning agents to clean the phone or the
charger. Use a damp and anti-static soft cloth for cleaning.
Do not discard old and abandoned lithium batteries into the trash, send
them to designated waste disposal locations or return them to i.safe
MOBILE GmbH.
The user alone is responsible for any and all damages and liabilities caused
by malware downloaded when using the network or other data-exchange
functions of the phone. i.safe MOBILE GmbH cannot be held responsible
for any of those claims.
Warning
i.safe MOBILE GmbH will not assume any liability for damages caused by
disregarding any of these advices or by any inappropriate use of the phone.
Maintenance / Repair
Thank you for using the CHALLENGER 2.0. If there is a problem with the
phone, please contact your vendor or consult the service center. If your
phone is in need of repair, you can either contact the service center or your
vendor.
Battery
The battery is inserted into the back of the phone. The battery is not fully
charged when the phone is purchased, but it contains enough energy to
power on the phone. To obtain best battery performance and battery life, let
the battery discharge completely before charging it completely for the first
three charging cycles.
Installing the Battery
Turn the mobile phone upside down, open the screws and remove the bat-
tery cover. Install the battery by inserting the teeth at the top of the battery
into the corresponding notches of the phone.
When installing the battery cover, insert the teeth at the bottom of the cover
into the corresponding notches of the mobile phone, then press the battery
cover down and secure it by turning the two screws. Ensure that the battery
is safely in place before installing the battery cover and powering on the
phone.

English
7
Charging the Battery
Connect the USB-cable with the USB connector at the bottom of the phone.
Connect the other side of the USB cable with the socket of the Power Supply.
After charging, remove the USB-cable from the charger.
Battery Use
In actual use, the standby time and talk time of the phone varies with the
network status, working environment and usage.
When the power of the battery is lower than normal, the phone will prompt
you to charge it. Please charge the battery; otherwise you may lose any files
which are not saved.
If you do not charge for a long time, the phone will be powered off automat-
ically.
Warning
The phone may only be charged at ambient temperatures in a range from
0°C…45°C. Please do not use charging equipment if the temperature exceeds
this range.
Installation of the SIM Cards
The phone features two SIM card slots. The slots are accessible after removal
of the battery. If you have installed two SIM cards, you can choose your pri-
mary card in <Settings> → <Dual SIM settings>.
Warning
Do not try to insert or remove any of the SIM cards when any external power
supply is connected, otherwise the SIM cards or the phone may be damaged.
Installation of the Micro-SD Card
The slot for the Micro-SD card is accessible after removal of the battery.
Open the Micro-SD card holder, and insert the Micro-SD card into the slot,
then close the Micro-SD card holder.

English
8
Keys and Special Features

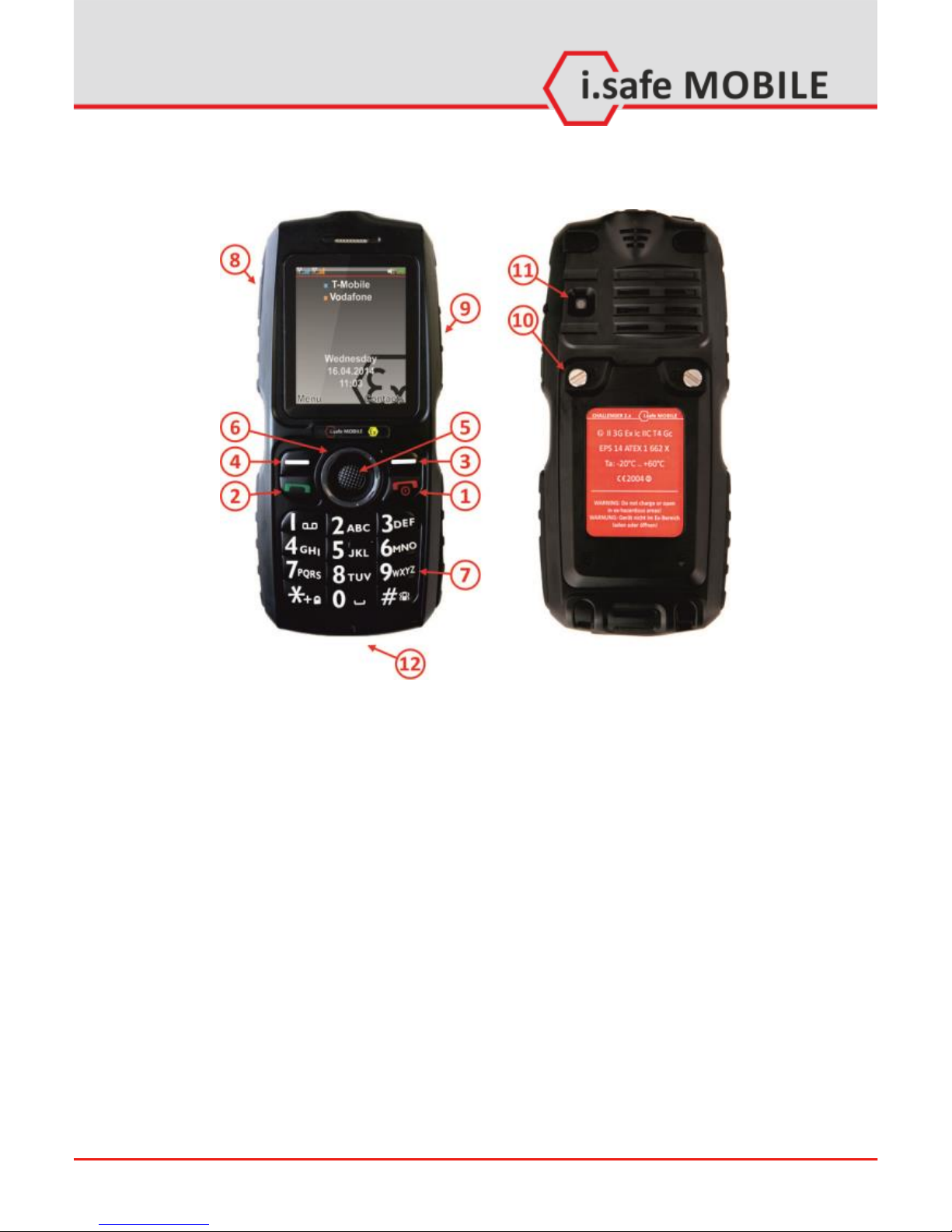

(see figure on page 2)
(1) Power: Lock the phone.
Long press to power up or down the phone.
(2) Send: Bring up the call log.
Answer a call when the phone is ringing.
(3) Contacts: Context sensitive key.
Opens the Phonebook while on the home screen.
(4) Menu:Context sensitive key.
Enter settings while on the home screen.
(5) OK: Confirm the selected item or function.
(6) Navigation: 4-way navigation through menus.
(7) Keypad: Use for text or number entry.
(8) Torch: Turn the torch on or off.
(9) Volume: Adjust the volume.
(10) Battery: Use these screws to open the battery compartment.
(11) Camera: Not installed in CHALLENGER 2.1.
(12) USB: USB connector for charging and data-transfer.
Security Settings
To change security relevant settings, the phone may ask for a password. The
standard password is 1122.
Recycling
The crossed-out wheeled-bin symbol on your product, battery, literature, or
packaging reminds you that all electrical and electronic products, batteries,
and accumulators must be taken to separate collection at the end of their
working life. This requirement applies in the European Union. Do not dispose
of these products as unsorted municipal waste.
Always return your used electronic products, batteries, and packaging mate-
rials to dedicated collection points. This way you help prevent uncontrolled
waste disposal and promote the recycling of materials.
More detailed information is available from the product retailer, local waste
authorities, national producer responsibility organisations, or your local
i.safe MOBILE GmbH representative.

English
9
The content of this document is presented as it currently exists. i.safe
MOBILE GmbH does not provide any explicit or tacit guarantee for the accu-
racy or completeness of the content of this document, including, but not
restricted to, the tacit guarantee of market suitability or fitness for a specific
purpose unless applicable laws or court decisions make liability mandatory.
i.safe MOBILE GmbH reserves the right to make changes to this document or
to withdraw it any time without prior notice.

Deutsch
10
Dieses Dokument enthält Informationen und Sicherheitsvorschriften die für
einen sicheren Betrieb des Mobiltelefons CHALLENGER 2.0 unter den be-
schriebenen Bedingungen unbedingt zu berücksichtigen sind. Nichtbeach-
tung dieser Informationen und Anweisungen kann gefährliche Folgen haben
oder gegen Vorschriften verstoßen.
Lesen Sie die Bedienungsanleitung und diese Sicherheitshinweise bevor Sie
das Telefon benutzen!
Im Falle widersprüchlicher Informationen gelten die deutschen Anweisungen
in diesen Sicherheitshinweisen.
Die gültige EG-Konformitätserklärung, EG und IECEx Baumusterprüfbeschei-
nigung, Sicherheitshinweise und Bedienungsanleitung können unter
www.isafe-mobile.com heruntergeladen oder bei der i.safe MOBILE GmbH
angefordert werden.
Vorbehalt: Technische Änderungen behalten wir uns vor. Änderungen, Irr-
tümer und Druckfehler begründen keinen Anspruch auf Schadensersatz.
Alle Rechte vorbehalten.
Für Datenverluste oder andere Schäden gleich welcher Art, die durch den
unsachgemäßen Gebrauch des Mobiltelefons entstanden sind, übernimmt
die i.safe MOBILE GmbH keine Haftung.
Ex-Spezifikationen
Das Mobiltelefon CHALLENGER 2.0 ist geeignet für den industriellen Einsatz
in explosionsgefährdeten Bereichen der Zone 2 nach Richtlinien 94/9/EG
(ATEX 95) und 99/92/EG (ATEX 137) und dem IECEx-System.
Ex-Kennzeichnungen
ATEX II 3G Ex ic IIC T4 Gc
EPS 14 ATEX 1 662 X
2004
Temperaturbereich: -20 ... +60°C
Hersteller: i.safe MOBILE GmbH
i_PARK TAUBERFRANKEN 10
97922 Lauda-Koenigshofen
Germany
