ENGLISH
READ AND UNDERSTAND THE INSTRUCTIONS
PROTECT YOUR LIFE AND READ THE OPERATING MANUAL
This Operating Manual is part of the device IS540.1 (model M540A01). This Operating
Manual provides important information for safe use of the device.
Before using the device, read this Operating Manual carefully and pay particular attention
to the “Safety” section and the warnings highlighted with the warning symbol.
Also read the Safety Instructions before using the device.
You can nd these at www.isafe-mobile.com/en/support/downloads
Make sure you have access to this Operating Manual when you need it. You can nd the
current Operating Manual at www.isafe-mobile.com/en/support/downloads
Follow all instructions given on the device and on the packaging.
Follow local safety regulations.
INTENDED USE
The IS540.1 is an Internet-capable communication device for industrial use in explosion
hazardous areas of Zone 1/21 and 2/22, in accordance with Directives 2014/34/EU,
SI 2016 No. 1107, 1999/92/EC and the IECEx system, among others.
Only use the device as described in this Operating Manual. Any other use is considered impro-
per and can lead to death, severe injuries and damage to the device.
The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by
improper use. The warranty expires in the event of improper use.
WARRANTY
You can nd the warranty conditions at www.isafe-mobile.com/en/support/service
For any damage caused by computer viruses that you download while using the Internet
functions responsibility is at your hand.
There is no right of recourse against i.safe MOBILE GmbH.

EN
5
EU DECLARATION OF CONFORMITY
You will nd the EU declaration of conformity at
www.isafe-mobile.com/en/support/downloads
FCC/IC STATEMENT
The FCC/IC declaration can be found at
www.isafe-mobile.com/en/support/downloads
EX MARKINGS
ATEX:
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
EU Type Examination Certicate:
EPS 22 ATEX 1 341 X
CE-designation: 2004
IECEx:
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
IECEx Certicate: IECEx EPS 22.0076X
UKEX:
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
UK Type Examination Certicate:
EPS 22 UKEX 1 341 X
UKCA-designation: 2503
Temperature range:
-20°C … +55°C (EN/IEC 60079-0)
-10°C … +55°C (EN/IEC 62368-1)
Manufactured by:
i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany

6

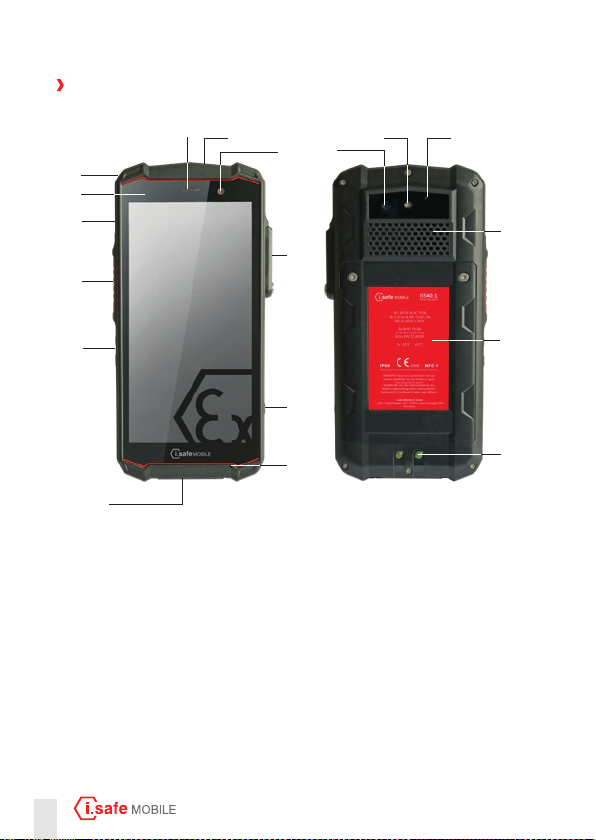

DEVICE OVERVIEW/FUNCTIONS
23
5
10
9
7
4
18
16
11
13 14 15
1
8
12
6
17

EN
7
1 LOUDSPEAKER
2 FUNCTION KEY RED: Optional function, e.g. SOS - function can be assigned via
Button App (system integrated).
3 FRONT CAMERA
4 ISM INTERFACE: Connection for approved accessories. Also see section “Connecting
approved accessories”.
5 SIDE KEY RIGHT: Optional function, e.g. camera - function can be assigned via Button
App (system integrated).
6 MICROPHONE
7 USB INTERFACE: Connection for the i.safe PROTECTOR2.0 USB-C Cable or for other
equipment approved by i.safe MOBILE GmbH. Also see sections “Charging” and
“Connecting approved accessories”.
8 LOUDNESS CONTROL: Volume up/Volume down.
9 SIDE KEY LEFT: Optional function - function can be assigned via Button App (system
integrated).
10 POWER KEY: A long press switches the device on/o. A short press switches the stand-
by mode on/o.
11 SENSORS: Proximity sensor, light sensor.
12 EYELET: Eyelet for hand strap.
13 BACK CAMERA
14 LED FLASH
15 NOISE CANCELLING: Noise cancelling microphone.
16 LOUDSPEAKER: Loudspeaker for hands-free function.
17 BATTERY
18 CHARGING CONTACTS

8
SAFETY
Read the “Safety” section of this Operating Manual carefully before using the device. If you
do not follow these instructions or do not understand them, this could lead to death, severe
injuries and damage to the device.
USER
Only trained users who are qualied in the use of Ex devices in explosion hazardous areas and
who have read and understood this Operating Manual may use this device.
USE IN EXPLOSION HAZARDOUS AREAS
DANGER
Improper use can result in death or severe injuries!
Only use the device in explosion hazardous areas of zones1/21 and2/22 or outside of
explosion hazardous areas.
Before entering an explosion hazardous area with the device,
•make sure that only approved accessories are connected to the device, see section
“Connecting approved accessories”,
•make sure that no gap can be seen between the two halves of the device,
•make sure the device is not damaged,
•make sure that all the labels on the device are readable,
•make sure the battery is screwed tight.
If you use the device in an explosion hazardous area,
read and follow the instructions in the “Possible User Errors” section.
Switch o the device immediately and leave the explosion hazardous area without delay if
•malfunctions occur on the device,
•you have damaged the housing of the device,
•you have exposed the device to excessive loads,
•the labels on the device are no longer readable.
USE OUTSIDE OF EXPLOSION HAZARDOUS AREAS
DANGER
Improper use can result in death or severe injuries!
Do not use the device in places where its use is prohibited.
Turn o the device in clinics or other medical facilities.
Always keep a safety distance of at least 15cm between the device and a pacemaker or
hearing aid. The device can aect the functioning of medical devices such as pacemakers and
hearing aids.
When using the device while driving a motor vehicle, be sure to comply with applicable
national laws.
Make sure you prevent the user errors described in the section entitled “Possible User Errors”.
Only charge the device as described in the “Charging” section.

EN
9
CAUTION
When using earphones or headsets at the maximum volume setting, you can
damage your hearing.
First set the volume control on the device to 50% of the maximum volume.
Gradually adjust the volume.
NOTICE
Incorrect use can damage the device.
Only use accessories approved by i.safe MOBILE GmbH, as described in the section on
“Connecting approved accessories”.
Protect the device and the Power Adapter from strong electrical magnetic elds as for examp-
le those emitted by induction cookers or microwave ovens, for example.
Do not touch the display with sharp objects.
POSSIBLE USER ERRORS
DANGER
Improper use can result in death or severe injuries! Follow the instructions below:
Do not modify the device structurally.
Do not expose the device to high temperatures.
Do not expose the device to strong UV radiation.
Do not expose the device to processes with high electrical charges.
Do not expose the device to aggressive acids or bases.
When working in explosion hazardous areas, please note:
Do not loosen the screws on the device.
Do not connect any accessories to the device.
Do not open any interface cover.
Do not charge the device.
Do not open the device.
Do not damage the device.

10
SCOPE OF DELIVERY
Your device packaging contains the following:
1 x IS540.1
1 x Battery
1 x Quick Start Manual
1 x Safety Instructions
1 x Display Protection Foil
1 x i.safe PROTECTOR2.0 USB-CCable
1 x Power Adapter universal (power supply unit and various country-specic adapters)
1 x Torx Screwdriver
1 x Display cleaning cloth
CELL BROADCAST
The device supports cell broadcast. Cell broadcast is a cellular service for sending messages to
all recipients within a cell.
INSTALLING THE BATTERY
DANGER
Installing the wrong battery in the device, poses a risk of explosion, which could result in
death or serious injuries! Only t the battery supplied or an approved replacement battery in
the device outside of explosion hazardous areas. The approved replacement battery can be
found on the website www.isafe-mobile.com/en/products
Place the battery in the battery compartment as shown.
Hand-tighten the screws using the Torx Screwdriver provided.
Check that the battery is seated correctly and securely.

EN
11

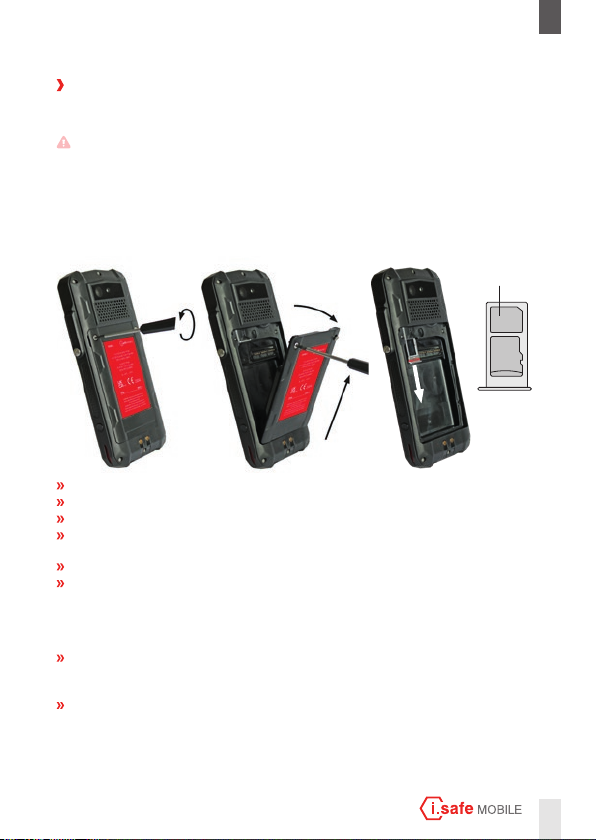

INSERT/REMOVE SIM CARD
The device has a nano-SIM card slot and an additional eSIM. The eSIM is a non-removable,
integrated digital SIM. eSIM is not supported by all mobile service provider.
DANGER
An incorrect procedure in explosion hazardous areas poses a risk of death or severe injuries!
Only open the device outside of explosion hazardous areas to insert or remove the SIM card.
NOTICE
Proceeding incorrectly when inserting/removing the SIM card can damage the device and
the SIM card. Switch o the device before inserting or removing a SIM card. Do not charge the
device while inserting or removing a SIM card.
1
Loosen the screws on the battery using the Torx Screwdriver provided.
Remove the battery from the battery compartment.
Carefully pull the card holder out of the card slot.
Insert the SIM card into the nano-SIM card slot (1) with the gold-coloured contacts facing
down.
Carefully slide the card holder into the card slot.
Reinstall the battery. See section “Installing the battery”.
Activate eSIM
You can activate the eSIM in several ways:
1. Via the Android Setup Wizard during initial device setup:
Scan the eSIM QR code that you have received from your service provider or manually enter
the eID that you have received from your service provider.
2. Via the settings menu of the smartphone:
> Settings > Network & Internet > Mobile network (add Network) > Download SIM > scan (or
manually enter) eSIM QR code that you have received from your service provider.

12

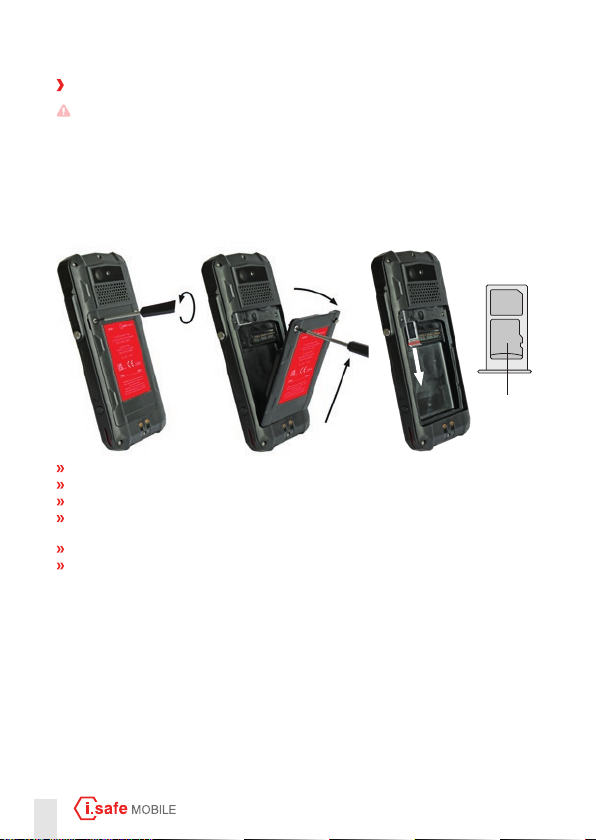

INSERT/REMOVE microSD CARD
DANGER
An incorrect procedure in explosion hazardous areas poses a risk of death or severe injuries!
Only open the device outside of explosion hazardous areas to insert or remove the microSD
card.
NOTICE
Proceeding incorrectly when inserting/removing the microSD card can damage the device
and the microSD card. Switch o the device before inserting or removing a microSD card. Do
not charge the device while inserting or removing a microSD card.
2
Loosen the screws on the battery using the Torx Screwdriver provided.
Remove the battery from the battery compartment.
Carefully pull the card holder out of the card slot.
Insert the microSD card into the slot provided (2) with the gold-colored contacts facing down.
The device has a slot for a microSD card up to 128 GB.
Carefully slide the card holder into the card slot.
Reinstall the battery. See section “Installing the battery”.

EN
13
CHARGING
DANGER
An incorrect procedure in explosion hazardous areas poses risk of death or severe injuries!
Only charge the device outside of explosion hazardous areas. Do not charge the device in the
vicinity of ammable substances.
NOTICE
Incorrect charging can cause damage to the device. Please note the following when charging:
Only charge the device using the i.safe PROTECTOR2.0 USB-C Cable supplied or other
charging equipment approved by i.safe MOBILE GmbH.
Only charge the device at ambient temperatures between 0°C to +45°C (+32°F to +113°F).
Charge the device under dry indoor conditions only.
Do not charge the device in environments dusty or humid.
Your device package contains a power supply unit, various country-specic adapters and an
i.safe PROTECTOR2.0 USB-C Cable.
Connect the adapter suitable for your country to the power supply unit.
Connect the i.safe PROTECTOR2.0 USB-C Cable to the power supply unit.
Connect the i.safe PROTECTOR2.0 USB-C Cable to the USB interface of the device.
SWITCHING ON/OFF
Press and hold the power key for about 3 seconds.
Enter the device or SIM PIN when the input dialog for the device or SIM PIN appears after
switching on.
Press and hold the power key to enter the power o menu. Select <power o> to switch o
the device.
USING THE DEVICE
When turning on the device for the rst time, follow the instructions on the screen.
Further information on operating the device can be found at
www.isafe-mobile.com/en/support/service under the menu item “FAQ”.
Detailed information on operating the Android operating system can be found at:
https://support.google.com/android

14
CONNECTING APPROVED ACCESSORIES
Only connect accessories approved by i.safe MOBILE GmbH to the device. Accessories
approved by i.safe MOBILE GmbH can be found at www.isafe-mobile.com/en/products
Approved accessories can be connected to any ISM interface and to the USB interface.
DANGER
Improper use can result in death or severe injuries! If you need approved accessories in
explosion hazardous areas, please note the following before connecting:
Connect approved accessories to the ISM interface of the device only outside of explosion
hazardous areas.
Never open the cover of the ISM interface in explosion hazardous areas.
Operate approved accessories in explosion hazardous areas only on the ISM interface of the
device. Wired connections via the USB interface are prohibited.
Connect the plug of the accessory securely to the ISM interface on the device.
Only remove approved accessories from the ISM interface outside of explosion hazardous
areas.
Close the ISM interface with the cover provided when you are not using accessories.
ISM INTERFACE
Loosen the screw on the ISM interface cover using the Screwdriver included in the approved
accessory package. Remove the cover as shown.
Connect the plug of the approved accessory to the ISM interface as shown.
Hand-tighten the screws.
Check that the plug is seated correctly and securely.

EN
15
USB INTERFACE
DANGER
Improper use can result in death or severe injuries! Only use USB interface outside of explosi-
on hazardous areas. Never open the cover of the USB interface in explosion hazardous areas.
The USB interface is used for charging and data transfer.
Connect approved accessories or other devices to the USB interface only by using the
i.safe PROTECTOR2.0 USB-C Cable or by using other equipment approved by
i.safe MOBILE GmbH.
CHANGING THE BATTERY
WARNING
If you replace the battery with the wrong battery in the device, there is a risk of explosion,
which could result in death or serious injuries! Only replace the battery with an approved
replacement battery outside of explosion hazardous areas. An approved replacement battery
can be found on the website www.isafe-mobile.com/en/products
Loosen the screws on the battery using the Torx Screwdriver provided.
Remove the battery from the battery compartment as shown.
Place the approved replacement battery in the battery compartment as shown.
Hand-tighten the screws using the Torx Screwdriver provided.
Check that the battery is seated correctly and securely.

16
POSSIBLE DEVICE PROBLEMS
You can nd information on possible device problems and how to rectify them at
www.isafe-mobile.com/en/support/service under the menu item “FAQ”.
If you have any further questions, please contact the i.safe MOBILE GmbH repair service at
www.isafe-mobile.com/en/support/service
MAINTENANCE/REPAIR
The device itself has no serviceable parts.
WARNING
Incorrect repairs present a risk of explosion or re, which can result in death or severe injuries!
Do not open the device or carry out any repairs yourself.
Contact the i.safe MOBILE GmbH repair service at
www.isafe-mobile.com/en/support/service if the device is not working normally, if the
device needs to be repaired or if a replacement part is required.
RETURN SHIPMENT
Contact the i.safe MOBILE GmbH repair service at
www.isafe-mobile.com/en/support/service
DISTRIBUTION PARTNER
You can nd the specialist distribution partner responsible for your country at
www.isafe-mobile.com/en/contact
CLEANING
NOTICE
Incorrect cleaning can cause damage to the device. Please note the following when cleaning:
Turn o the device before cleaning.
Do not charge the device while cleaning.
Do not use chemical agents for cleaning.
Clean the device and the Power Adapter with a soft, moistened antistatic cloth.
Clean the display screen regularly with a soft, antistatic cloth.

EN
17
STORAGE
NOTICE
Incorrect storage can cause damage to the device. Store the device at a humidity of 10% to
60% at the following ambient temperatures:
Up to one month: -20°C to +45°C (-4°F to +113°F)
Up to 3 months: -10°C to +35°C (+14°F to +95°F)
Over 3 months: -10°C to +25°C (+14°F to +77°F)
If you do not use the device for a longer period of time, note the following:
Switch o the device.
For longer storage without use, charge the device to approx. 50% to 70% using the
i.safe PROTECTOR2.0 USB-C Cable supplied or other charging equipment approved
by i.safe MOBILE GmbH.
Charge the device every 3 to 6 months to avoid deep discharge.
Store it in a cool, dry place to keep the battery functional.
RECYCLING
NOTICE
Incorrect disposal of electronic products, batteries and packaging material puts the
environment at risk. Please note the following when disposing of items:
DO NOT throw away batteries with household waste.
Always dispose electronic products, batteries and packaging material at the appro-
priate collection points. This way, you prevent uncontrolled waste disposal and promote the
recycling of material resources.
You can obtain further information from regional waste disposal companies, state authorities or
the i.safe MOBILE GmbH service centre responsible for your country or region at
www.isafe-mobile.com/en/support/service
TRADEMARKS
i.safe MOBILE GmbH and the i.safe MOBILE GmbH logo are registered trademarks of the
i.safe MOBILE GmbH.
Comes with the Google™ app and Google Chrome™
Google and Google Chrome are trademarks of Google LLC.
All other trademarks and copyrights are the properties of their respective owners.

18
DEUTSCH
ANWEISUNGEN LESEN UND VERSTEHEN
SCHÜTZEN SIE IHR LEBEN UND LESEN SIE DIE BEDIENUNGSANLEITUNG
Diese Bedienungsanleitung ist Teil des Geräts IS540.1 (Modell M540A01). Die Bedienungsan-
leitung liefert wichtige Informationen für eine sichere Verwendung des Geräts.
Lesen Sie vor der Verwendung des Geräts diese Bedienungsanleitung sorgfältig durch und
beachten Sie insbesondere den Abschnitt „Sicherheit“ und die mit dem Warnsymbol hervor-
gehobenen Warnhinweise.
Lesen Sie vor der Verwendung des Geräts auch die Sicherheitsvorschriften. Diese nden Sie
unter www.isafe-mobile.com/de/support/downloads
Sorgen Sie dafür, dass Sie bei Bedarf Zugri auf diese Bedienungsanleitung haben. Die
aktuelle Bedienungsanleitung nden Sie unter
www.isafe-mobile.com/de/support/downloads
Beachten Sie alle Anweisungen auf dem Gerät und auf der Verpackung.
Befolgen Sie die örtlichen Sicherheitsvorschriften.
BESTIMMUNGSGEMÄSSE VERWENDUNG
Das IS540.1 ist ein internetfähiges Kommunikationsgerät für den industriellen Einsatz in
explosionsgefährdeten Bereichen
der Zone 1/21 und 2/22 unter anderem nach den Richtlinien
2014/34/EU, SI 2016 No. 1107, 1999/92/EG
und dem IECEx-System.
Verwenden Sie das Gerät nur, wie in dieser Bedienungsanleitung beschrieben. Jede andere
Verwendung gilt als nicht bestimmungsgemäß und kann zu Tod, schweren Verletzungen und
Schäden am Gerät führen.
Der Hersteller i.safe MOBILE GmbH übernimmt keine Haftung für Schäden, die durch nicht
bestimmungsgemäße Verwendung entstanden sind. Die Garantie erlischt bei nicht bestim-
mungsgemäßer Verwendung.
GARANTIE
Die Garantiebestimmungen nden Sie unter
www.isafe-mobile.com/ de/ support/service
Für Schäden durch Computerviren, die Sie beim Verwenden der Internetfunktionen
herunterladen, sind Sie selbst verantwortlich. Ein Regressanspruch gegenüber der
i.safe MOBILE GmbH besteht nicht.

DE
19
EUKONFORMITÄTSERKLÄRUNG
Die EU-Konformitätserklärung nden Sie unter
www.isafe-mobile.com/de/ support/downloads
FCC/IC ERKLÄRUNG
Die FCC/IC Erklärung nden Sie unter
www.isafe-mobile.com/ de/support/downloads
EXKENNZEICHNUNGEN
ATEX:
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
EU-Baumusterprüfbescheinigung:
EPS 22 ATEX 1 341 X
CE-Kennzeichnung: 2004
IECEx:
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
IECEx-Zertikat: IECEx EPS 22.0076X
UKEX:
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
UK Type Examination Certicate:
EPS 22 UKEX 1 341 X
UKCA-Kennzeichnung: 2503
Temperaturbereich:
-20°C … +55°C (EN/IEC 60079-0)
-10°C … +55°C (EN/IEC 62368-1)
Hersteller:
i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany

20
GERÄTEÜBERSICHT/FUNKTIONEN
23
5
10
9
7
4
18
16
11
13 14 15
1
8
12
6
17
