ENGLISH
READ AND UNDERSTAND THE INSTRUCTIONS
PROTECT YOUR LIFE AND READ THE OPERATING MANUAL
This Operating Manual is part of the device IS530.M1 (model M53A01). This Operating
Manual provides important information for safe use of the device.
Before using the device, read this Operating Manual carefully and pay particular attention
to the “Safety” section and the warnings highlighted with the warning symbol.
Also read the Safety Instructions before using the device.
You can nd these at www.isafe-mobile.com/en/support/downloads.
Make sure you have access to this Operating Manual when you need it. You can nd the
current Operating Manual at www.isafe-mobile.com/en/support/downloads.
Follow all instructions given on the device and on the packaging.
Follow local safety regulations.
INTENDED USE
The IS530.M1 is an Internet-capable communication device for industrial use in explosion
hazardous areas of Zone 1, 21, 2, 22, M1 and M2, in accordance with Directives 2014/34/EU,
1999/92/EC and the IECEx system, among others.
Only use the device as described in this Operating Manual. Any other use is considered impro-
per and can lead to death, severe injuries and damage to the device.
The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by
improper use. The warranty expires in the event of improper use.

EN 5
WARRANTY
You can nd the warranty conditions at www.isafe-mobile.com/en/support/service.
For any damage caused by computer viruses that you download while using the Internet
functions responsibility is at your hand.
There is no right of recourse against i.safe MOBILE GmbH.
EU DECLARATION OF CONFORMITY
You will nd the EU declaration of conformity at
www.isafe-mobile.com/en/support/downloads.
FCC/IC STATEMENT
The FCC/IC declaration can be found at www.isafe-mobile.com/en/support/downloads.
EX MARKINGS
ATEX:
I M1 Ex ia I Ma IP64
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db IP6X
EU Type Examination Certicate:
EPS 19 ATEX 1 126 X
CE-designation: 2004
IECEx:
Ex ia I Ma IP64
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
IECEx Certicate: IECEx EPS 19.0062X
ANZEx:
Ex ia I Ma IP64
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
ANZEx Certicate: ANZEx 20.2002X
Temperature range:
-20°C … +60°C
Manufactured by:
i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany

6
DEVICE OVERVIEW/FUNCTIONS
14
7
5
8
15
14
9
2
12 1011
6
21
20
16
13
17 18 19
3

EN 7

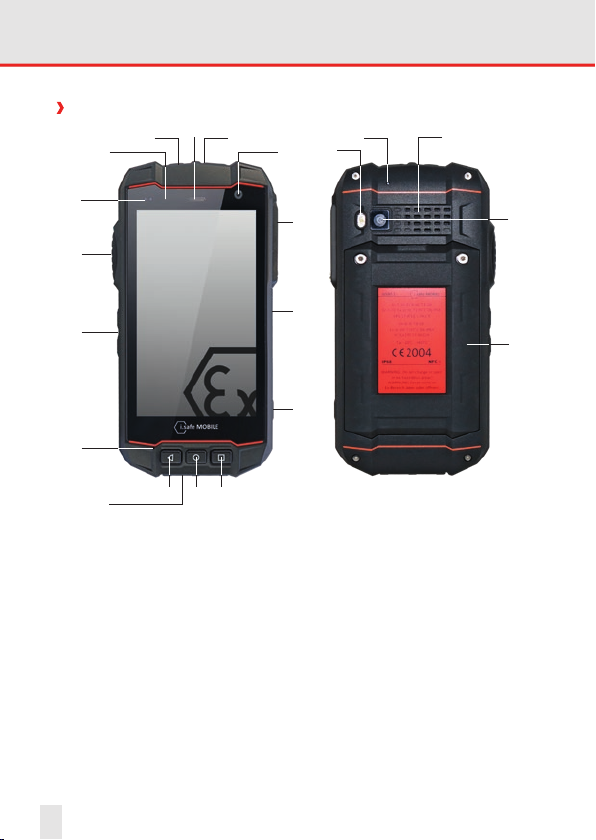

1 STATUS LED: Display for notications and charging status.
2 SOS KEY: A long press of the SOS key sends an emergency call to a pre-saved emer-
gency number (only in connection with a Lone Worker Protection app).
3 LOUDSPEAKER
4 POWER KEY: A long press switches the device on/o. A short press switches the stand-
by mode on/o.
5 FRONT CAMERA
6 ISM INTERFACE: Connection for approved accessories. Also see section “Connecting
approved accessories”.
7 MAGNETIC CHARGER PORT: Connection for the i.safe PROTECTOR3.0 Magnetic
Charger Cable. Also see section “Charging”.
8 SIDE KEY RIGHT: Optional function, e.g. camera - function can be assigned via Button
App (system integrated).
9 CURRENT APPLICATION: Shows all open applications.
10 HOME KEY: Switch to the main screen.
11 BACK KEY: Go to the previous screen.
12 USB INTERFACE: Connection for the i.safe PROTECTOR2.0 TypeC USB Cable or for
connection to other devices. Also see sections “Charging” and “Connecting approved
accessories”.
13 MICROPHONE
14 LOUDNESS CONTROL: Volume up/Volume down.
15 SIDE KEY LEFT: Optional function - function can be assigned via Button App (system
integrated).
16 SENSORS: Proximity sensor, light sensor.
17 LED FLASH
18 NOISE CANCELLING: Noise cancelling microphone.
19 LOUDSPEAKER: Loudspeaker for hands-free function.
20 BACK CAMERA
21 BATTERY

8
SAFETY
Read the “Safety” section of this Operating Manual carefully before using the device. If you
do not follow these instructions or do not understand them, this could lead to death, severe
injuries and damage to the device.
USER
Only trained users who are qualied in the use of Ex devices in explosion hazardous areas and
who have read and understood this Operating Manual may use this device.
USE IN EXPLOSION HAZARDOUS AREAS
DANGER
Improper use can result in death or severe injuries!
Only use the device in explosion hazardous areas of zones1, 21, 2, 22, M1 andM2 or outside of
explosion hazardous areas.
Before entering an explosion hazardous area with the device,
•make sure that only approved accessories are connected to the device, see section
“Connecting approved accessories”,
•make sure that no gap can be seen between the two halves of the device,
•make sure the device is not damaged,
•make sure that all the labels on the device are readable,
•make sure the battery is screwed tight.
If you use the device in an explosion hazardous area,
read and follow the instructions in the “Possible User Errors” section.
Switch o the device immediately and leave the explosion hazardous area without delay if
•malfunctions occur on the device,
•you have damaged the housing of the device,
•you have exposed the device to excessive loads,
•the labels on the device are no longer readable.
USE OUTSIDE OF EXPLOSION HAZARDOUS AREAS
DANGER
Improper use can result in death or severe injuries!
Do not use the device in places where its use is prohibited.
Turn o the device in clinics or other medical facilities.
Always keep a safety distance of at least 15cm between the device and a pacemaker or
hearing aid. The device can aect the functioning of medical devices such as pacemakers and
hearing aids.
When using the device while driving a motor vehicle, be sure to comply with applicable
national laws.
Make sure you prevent the user errors described in the section entitled “Possible User Errors”.
Only charge the device as described in the “Charging” section.

EN 9
CAUTION
When using earphones or headsets at the maximum volume setting, you can
damage your hearing.
First set the volume control on the device to 50% of the maximum volume.
Gradually adjust the volume.
NOTICE
Incorrect use can damage the device.
Only use accessories approved by i.safe MOBILE, as described in the section on
“Connecting approved accessories”.
Protect the device and the Power Adapter from strong electrical magnetic elds as for examp-
le those emitted by induction cookers or microwave ovens, for example.
Protect the device from oils, greases and hydraulic uids.
Protect the unit from high mechanical hazards, strong UV radiation and highly electrically
charging processes.
Do not touch the display with sharp objects.
POSSIBLE USER ERRORS
DANGER
Improper use can result in death or severe injuries! Follow the instructions below:
Do not modify the device structurally.
Do not expose the device to high temperatures.
Do not expose the device to strong UV radiation.
Do not expose the device to processes with high electrical charges.
Do not expose the device to aggressive acids or bases.
When working in explosion hazardous areas, please note:
Do not loosen the screws on the device.
Do not connect any accessories to the device.
Do not open any interface cover.
Do not charge the device.
Do not open the device.
Do not damage the device.

10
SCOPE OF DELIVERY
Your device packaging contains the following:
1 x IS530.M1
1 x Battery
1 x Quick Start Manual
1 x Safety Instructions
1 x Display Protection Foil
1 x i.safe PROTECTOR2.0 TypeC USB Cable
1 x i.safe PROTECTOR3.0 Magnetic Charger Cable
1 x Power Adapter universal (power supply unit and various country-specic adapters)
1 x Torx Screwdriver
1 x Display cleaning cloth
CELL BROADCAST
The device supports cell broadcast. Cell broadcast is a cellular service for sending messages to
all recipients within a cell.
INSTALLING THE BATTERY
DANGER
Installing the wrong battery in the device, poses a risk of explosion, which could result in
death or serious injuries! Only t the battery supplied or an approved replacement battery in
the device outside of explosion hazardous areas. The approved replacement battery can be
found on the website www.isafe-mobile.com/en/products.

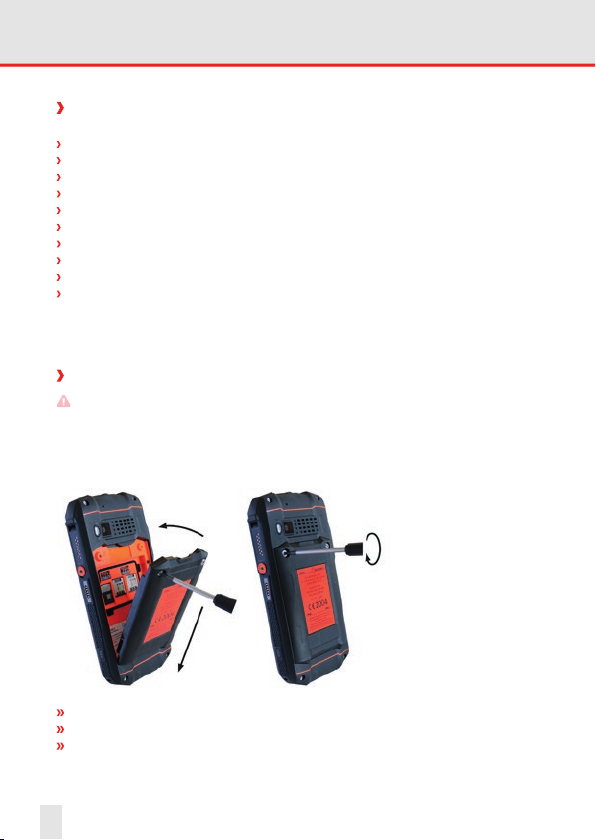

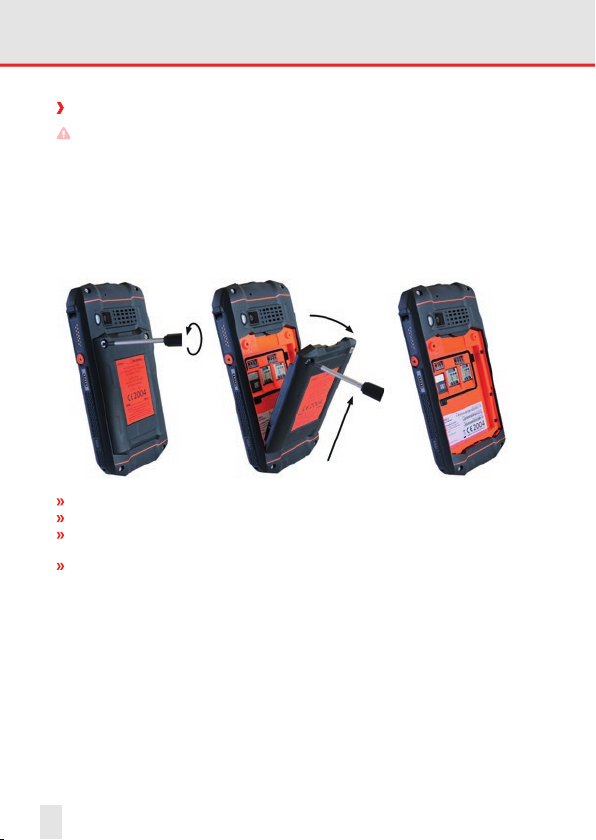

Place the battery in the battery compartment as shown.
Hand-tighten the screws using the Torx Screwdriver provided.
Check that the battery is seated correctly and securely.

EN 11
INSERT/REMOVE SIM CARD
DANGER
An incorrect procedure in explosion hazardous areas poses a risk of death or severe injuries!
Only open the device outside of explosion hazardous areas to insert or remove the SIM card.
NOTICE
Proceeding incorrectly when inserting/removing the SIM card can damage the device and
the SIM card. Switch o the device before inserting or removing a SIM card. Do not charge the
device while inserting or removing a SIM card.
Loosen the screws on the battery using the Torx Screwdriver provided.
Remove the battery from the battery compartment.
Insert the SIM card into the slot. The device has two slots for one SIM card each. The slots are
marked “SIM 1” and “SIM 2”.
If you have inserted two SIM cards, select a favorite card. Information on operating the device
can be found at www.isafe-mobile.com/en/support/service under the menu item „FAQ“.
Reinstall the battery. See section “Installing the battery”.

12
INSERT/REMOVE microSD CARD
DANGER
An incorrect procedure in explosion hazardous areas poses a risk of death or severe injuries!
Only open the device outside of explosion hazardous areas to insert or remove the microSD
card.
NOTICE
Proceeding incorrectly when inserting/removing the microSD card can damage the device
and the microSD card. Switch o the device before inserting or removing a microSD card. Do
not charge the device while inserting or removing a microSD card.
Loosen the screws on the battery using the Torx Screwdriver provided.
Remove the battery from the battery compartment.
Insert the microSD card into the slot provided. The device has a slot for a microSD card up to
128GB. The slot is marked “microSD”.
Reinstall the battery. See section “Installing the battery”.

EN 13
CHARGING
DANGER
An incorrect procedure in explosion hazardous areas poses risk of death or severe injuries!
Only charge the device outside of explosion hazardous areas. Do not charge the device in the
vicinity of ammable substances.
NOTICE
Incorrect charging can cause damage to the device. Please note the following when charging:
Only charge the device using the i.safe PROTECTOR2.0 TypeC USB Cable supplied or with
the i.safe PROTECTOR3.0 Magnetic Charger Cable supplied.
Only charge the device at ambient temperatures between +5°C to +35°C (+41°F to +95°F).
Charge the device under dry indoor conditions only.
Do not charge the device in environments dusty or humid.
Your device package contains a power supply unit, various country-specic adapters, an i.sa-
fe PROTECTOR2.0 TypeC USB Cable and an i.safe PROTECTOR3.0 Magnetic Charger Cable.
Connect the adapter suitable for your country to the power supply unit.
Connect the i.safe PROTECTOR2.0 TypeC USB Cable or the i.safe PROTECTOR3.0 Magnetic
Charger Cable to the power supply unit.
Connect the i.safe PROTECTOR2.0 TypeC USB Cable to the USB interface of the device, or
connect the i.safe PROTECTOR3.0 Magnetic Charger Cable to the magnetic charging port
on the device.
SWITCHING ON/OFF
Press and hold the on/o key for about 3 seconds.
Enter the device or SIM PIN when the input dialog for the device or SIM PIN appears after
switching on.
Select the <Switch o> menu item if the power o menu appears when switching o.
USING THE DEVICE
When turning on the device for the rst time, follow the instructions on the screen.
Further information on operating the device can be found at
www.isafe-mobile.com/en/support/service under the menu item “FAQ”.
Detailed information on operating the Android operating system can be found at:
https://support.google.com/android.

14
CONNECTING APPROVED ACCESSORIES
Only connect accessories approved by i.safe MOBILE to the device. Accessories approved by
i.safe MOBILE can be found at www.isafe-mobile.com/en/products.
Approved accessories can be connected to any ISM interface and to the USB interface.
DANGER
Improper use can result in death or severe injuries! If you need approved accessories in
explosion hazardous areas, please note the following before connecting:
Connect approved accessories to the ISM interface of the device only outside of explosion
hazardous areas.
Operate approved accessories in explosion hazardous areas only on the ISM interface of the
device. Wired connections via the USB interface are prohibited.
Connect the plug of the accessory securely to the ISM interface on the device.
Close the ISM interface with the cover provided when you are not using accessories.
ISM INTERFACE
Loosen the screw on the ISM interface cover using the Screwdriver provided and remove the
cover as shown. The Screwdriver is included in the accessory package.
Connect the plug of the approved accessory to the ISM interface as shown.
Hand-tighten the screws using the Screwdriver provided.
Check that the plug is seated correctly and securely.

EN 15
USB INTERFACE
DANGER
Improper use can result in death or severe injuries! Only use USB interface outside of explo-
sion hazardous areas. You should never open the cover of the USB interface in explosion
hazardous areas.
The USB interface is used for charging and data transfer.
Connect approved accessories or other devices to the USB interface only by using the
i.safe PROTECTOR2.0 TypeC USB Cable.
CHANGING THE BATTERY
WARNING
If you replace the battery with the wrong battery in the device, there is a risk of explosion,
which could result in death or serious injuries! Only replace the battery with an approved
replacement battery outside of explosion hazardous areas. An approved replacement battery
can be found on the website www.isafe-mobile.com/en/products.
Loosen the screws on the battery using the Torx Screwdriver provided.
Remove the battery from the battery compartment as shown.
Place the approved replacement battery in the battery compartment as shown.
Hand-tighten the screws using the Torx Screwdriver provided.
Check that the battery is seated correctly and securely.

16
POSSIBLE DEVICE PROBLEMS
You can nd information on possible device problems and how to rectify them at
www.isafe-mobile.com/en/support/service under the menu item “FAQ”.
If you have any further questions, please contact the i.safe MOBILE repair service at
www.isafe-mobile.com/en/support/service.
MAINTENANCE/REPAIR
The device itself has no serviceable parts.
WARNING
Incorrect repairs present a risk of explosion or re, which can result in death or severe injuries!
Do not open the device or carry out any repairs yourself.
Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service if
the device is not working normally, if the device needs to be repaired or if a replacement part
is required.
RETURN SHIPMENT
Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service.
DISTRIBUTION PARTNER
You can nd the specialist distribution partner responsible for your country at
www.isafe-mobile.com/en/contact.
CLEANING
NOTICE
Incorrect cleaning can cause damage to the device. Please note the following when cleaning:
Turn o the device before cleaning.
Do not charge the device while cleaning.
Do not use chemical agents for cleaning.
Clean the device and the Power Adapter with a soft, moistened antistatic cloth.
Clean the display screen regularly with a soft, antistatic cloth.
STORAGE
NOTICE
Incorrect storage can cause damage to the device. Store the device at ambient temperatures
between +5°C to +35°C (+41°F to +95°F) and a humidity between 10% to 60%.

EN 17
RECYCLING
NOTICE
Incorrect disposal of electronic products, batteries and packaging material puts the environ-
ment at risk. Please note the following when disposing of items:
DO NOT throw away batteries with household waste.
Always dispose electronic products, batteries and packaging material at the
appropriate collection points. This way, you prevent uncontrolled waste disposal and
promote the recycling of material resources.
You can obtain further information from regional waste disposal companies, state authorities or
the i.safe MOBILE service centre responsible for your country or region at
www.isafe-mobile.com/en/support/service.
TRADEMARKS
i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the
i.safe MOBILE GmbH.
EEA Version: Comes with the Google™ app and Google Chrome™
Google and Google Play are trademarks of Google LLC.
All other trademarks and copyrights are the properties of their respective owners.

18
DEUTSCH
ANWEISUNGEN LESEN UND VERSTEHEN
SCHÜTZEN SIE IHR LEBEN UND LESEN SIE DIE BEDIENUNGSANLEITUNG
Diese Bedienungsanleitung ist Teil des Geräts IS530.M1 (Modell M53A01). Die Bedienungs-
anleitung liefert wichtige Informationen für eine sichere Verwendung des Geräts.
Lesen Sie vor der Verwendung des Geräts diese Bedienungsanleitung sorgfältig durch und
beachten Sie insbesondere den Abschnitt „Sicherheit“ und die mit dem Warnsymbol hervor-
gehobenen Warnhinweise.
Lesen Sie vor der Verwendung des Geräts auch die Sicherheitsvorschriften. Diese nden Sie
unter www.isafe-mobile.com/de/support/downloads.
Sorgen Sie dafür, dass Sie bei Bedarf Zugri auf diese Bedienungsanleitung haben.
Die aktuelle Bedienungsanleitung nden Sie unter
www.isafe-mobile.com/de/support/downloads.
Beachten Sie alle Anweisungen auf dem Gerät und auf der Verpackung.
Befolgen Sie die örtlichen Sicherheitsvorschriften.
BESTIMMUNGSGEMÄSSE VERWENDUNG
Das IS530.M1 ist ein internetfähiges Kommunikationsgerät für den industriellen Einsatz in
explosionsgefährdeten Bereichen
der Zone 1, 21, 2, 22, M1 und M2 unter anderem nach den
Richtlinien 2014/34/EU, 1999/92/EG
und dem IECEx-System.
Verwenden Sie das Gerät nur, wie in dieser Bedienungsanleitung beschrieben. Jede andere
Verwendung gilt als nicht bestimmungsgemäß und kann zu Tod, schweren Verletzungen und
Schäden am Gerät führen.
Der Hersteller i.safe MOBILE GmbH übernimmt keine Haftung für Schäden, die durch nicht
bestimmungsgemäße Verwendung entstanden sind. Die Garantie erlischt bei nicht bestim-
mungsgemäßer Verwendung.

DE 19
GARANTIE
Die Garantiebestimmungen nden Sie unter
www.isafe-mobile.com/ de/ support/service .
Für Schäden durch Computerviren, die Sie beim Verwenden der Internetfunktionen
herunterladen, sind Sie selbst verantwortlich. Ein Regressanspruch gegenüber der
i.safe MOBILE GmbH besteht nicht.
EUKONFORMITÄTSERKLÄRUNG
Die EU-Konformitätserklärung nden Sie unter
www.isafe-mobile.com/de/ support/downloads.
FCC/IC ERKLÄRUNG
Die FCC/IC Erklärung nden Sie unter
www.isafe-mobile.com/ de/support/downloads.
EXKENNZEICHNUNGEN
ATEX:
I M1 Ex ia I Ma IP64
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db IP6X
EU-Baumusterprüfbescheinigung:
EPS 19 ATEX 1 126 X
CE-Kennzeichnung: 2004
IECEx:
Ex ia I Ma IP64
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
IECEx-Zertikat: IECEx EPS 19.0062X
ANZEx:
Ex ia I Ma IP64
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
ANZEx Zertikat: ANZEx 20.2002X
Temperaturbereich:
-20°C … +60°C
Hersteller:
i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany

20
GERÄTEÜBERSICHT/FUNKTIONEN
14
7
5
8
15
14
9
2
12 1011
6
21
20
16
13
17 18 19
3
