Note / Hinweis
3
This document contains a quick start guide and the safety instructions
necessary for the safe use of the mobile phone EXECUTIVE 1.0 in explo-
sive atmospheres. The first part details the English instructions, the
second part the German translation.
More detailed instructions on the use of the phone can be found at
www.isafe-MOBILE.com or directly at i.safe MOBILE GmbH.
Dieses Dokument enthält die notwendigen Sicherheitshinweise für die
sichere Verwendung des Mobiltelefons EXECUTIVE 1.0 in explosionsfä-
higen Bereichen. Der erste Teil enthält die englischen Anweisungen, der
zweite Teil die deutsche Übersetzung.
Detailliertere Informationen erhalten sie unter www.isafe-MOBILE.com
oder direkt bei der i.safe MOBILE GmbH.

Contents
4
1Introduction 5
2Specifications 5
3Faults and Damages 6
4Ex-relevant Safety Regulations 6
5Further Safety Advises 7
6Identifying Hardware Components 10
7Getting Your Device Ready for Use 11
7.1 Installation 11
7.2Charging the Battery 12
7.3 Performing the Initial Startup 13
8Operating Basics 13
8.1 Sleeping 13
8.2 Shutting Down 13
8.3 Using the Touchscreen 13
8.4 Making a Call 14
8.5 During a Call 14
8.6 Home Screen 15
8.7 Start Menu 15
8.8 Synchronizing with Your Computer 16
9Specifications 17
10 Maintenance 17

Safety Instructions
5
1Introduction
This document contains information and safety regulations which are to
be observed without fail for safe operation of the mobile phone
EXECUTIVE 1.0 under the described conditions. Non-observance of this
information and instructions can have serious consequences and / or
may violate regulations.
Please read the manual and these safety instructions before using the
phone. In case of contradicting information, the text of these safety
instructions shall apply.
In case of any doubts, the German version shall apply.
The current EC conformity certificate, EC declaration of conformity,
safety instructions and manual can be found at www.isafe-mobile.com,
or requested from i.safe MOBILE GmbH.
2Specifications
The EXECUTIVE 1.0 is a mobile phone suitable for use in potentially
explosive atmospheres (zone 2) in accordance with directive 94/9/EC
(ATEX 95) and directive 99/92/EC (ATEX 137).
Name: EXECUTIVE 1.0
Ex-marking: II 3 G Ex ic IIC T4
EC certificate of conformity: EPS 12 ATEX 1 403 X
Temperature range: -20°C .. +40°C
Manufactured by: i.safe MOBILE GmbH
i_PARK TAUBERFRANKEN 14
97922 Lauda-Koenigshofen
Germany
CE-designation: 2004

Safety Instructions
6
3Faults and Damages
If there is any reason to suspect that the safety of the phone has been
compromised, it must be withdrawn from use and removed from any
ex-hazardous areas immediately.
Measures must be taken to prevent any accidental restarting of the
phone.
The safety of the phone may be compromised, if, for example:
malfunctions occur.
the housing of the phone or the battery shows damage.
the phone has been subjected to excessive loads.
the phone has been stored improperly.
markings or labels on the phone are illegible.
It is recommended that a phone which shows or which is suspected of
faults and damages is returned to the manufacturer for inspection.
4Ex-relevant Safety Regulations
Use of this phone assumes that the operator observes the conventional
safety regulations and has read and understood manual, safety instruc-
tions and certificate.
The following safety regulations must also be complied with:
The housing of the phone must not be opened inside ex-hazardous
areas. This also relates to the battery compartment.
The battery may only be exchanged or charged outside ex-hazardous
areas.
Use only the appropriate battery type BPE01A or BPE01B.
It is not allowed to carry spare batteries into Ex-hazardous areas.
The battery may only be charged outside the Ex-hazardous area using
the appropriate charger or other equipment approved by i.safe
MOBILE GmbH.
The battery may be charged only at temperatures in between
0°C..40°C.
The phone must not be exposed to abrasive acids or bases.
The phone must not be taken into zones 0, 1, 20, 21 or 22.
Only accessories approved by i.safe MOBILE GmbH may be used.

Safety Instructions
7
5Further Safety Advises
Do not touch the screen of the mobile phone with sharp objects.
Dust particles and nails may scratch the screen. Please maintain the
screen clean. Remove dust on the screen with a soft cloth gently, and
do not scratch the screen.
Charge the phone under indoor conditions only.
Please do not put the battery in high-temperature environments
(high temperature will lead to heating of the battery), or else it may
result in fire or explosion.
Do not charge the mobile phone near any flammable or explosive
substances in order to avoid fire, explosion or other dangers.
Do not charge the mobile phone in environments with much dust,
humidity, or excessively high or low temperatures (the permitted
charging temperature range is 0..40°C).
Do not use the phone in areas where regulations or legislatives pro-
hibit the use of a mobile phone.
Do not expose the phone to strong magnetic fields, such as are emit-
ted from induction ovens or micro-waves.
Do not attempt to open or repair the mobile phone. Improper repair
or opening can lead to the destruction of the phone, fire or explo-
sion. Only authorized personnel are allowed to repair the phone.
Only use batteries charger and accessories approved by i.safe
MOBILE GmbH.
Please do not directly connect the two poles of the battery, to avoid
a short-circuit of the battery.
Power off the phone in hospitals or other places where the use of
mobile phones is prohibited. This Mobile phone may affect proper
work of medical equipment, such as pacemakers, so always keep a
distance of at least 15 cm between the mobile phone and these de-
vices.
Observe all corresponding laws that are in force in the respective
countries regarding the use of mobile phones while operating a vehi-
cle.
Please power off the mobile phone and disconnect the charging cable
before cleaning the phone.
Do not use any chemical cleaning agents to clean the mobile phone
or the charger. Use a damp and anti-static soft cloth for cleaning.

Safety Instructions
8
Do not discard old and abandoned lithium batteries into the trash,
send them to designated waste disposal locations or return them to
the manufacturer of the phone.
The user alone is responsible for any and all damages and liabilities
caused by malware downloaded when using the network functions of
the phone. The manufacturer cannot be held responsible for any of
those claims.
Warning: The manufacturer will not assume any liability for damages
caused by disregarding any of these advices or by any inappropriate
use of the phone.

Quick Start
9
Introduction
Dear customer, thank you very much for choosing the
EXECUTIVE 1.0 GSM digital mobile phone. This quick start manual gives
you access to the basic functions of the phone. For a more detailed
explanation of all the functions, please refer to the user manual.
With IP protection, rugged housing and Microsoft Windows Mobile® 6.5
Professional, the EXECUTIVE 1.0 is the ultimate smartphone for ATEX
zone 2 explosion hazardous areas.
The phone features GPS, HSDPA, EDGE, Bluetooth and Wi-Fi, 3,2 Mega-
pixels camera and support for Micro-cards.
To ensure the IP protection of the phone, please make sure that the
seals of the battery cover and all ports are in place correctly.
Please read this Quick start manual before using the phone and follow
the tips and advices in order to be able to use the mobile phone for
your full satisfaction and safety.

Quick Start
10

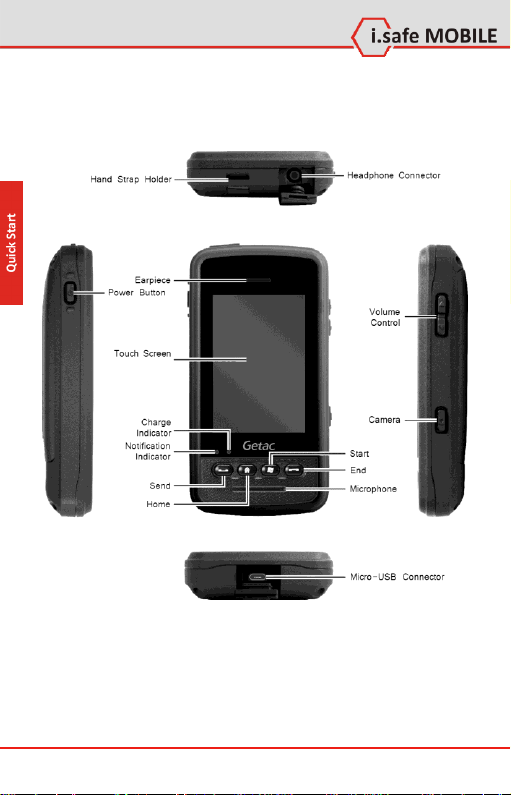

6Identifying Hardware Components
CAUTION: You need to open the protective covers to access the con-
nectors. When not using a connector, make sure to close the cover
completely for water- and dust-proof integrity.

Quick Start
11
7Getting Your Device Ready for Use
7.1 Installation
1. Loosen the two screws to remove the battery cover.
CAUTION: Never use a metallic screw driver as a stylus to tap the touch
screen.
2. Insert the SIM card and microSD card (optional).

Quick Start
12
3. Align the connectors and install the battery.
4. Replace the battery cover.
7.2 Charging the Battery
Assemble the power plug and connect the USB cable. Then plug into an
electrical outlet.
The charge indicator lights up red when charging is in progress. When
the battery is fully charged, the red indicator turns into green.

Quick Start
13
7.3 Performing the Initial Startup
1. Press and hold the power button until the device vibrates.
2. The device powers up and you will see the message “Tap the screen
to set up your Windows® Phone.”
3. Follow the on-screen instructions to complete the setup wizard.
4. After the setup is completed, the Home screen appears. You can now
use your device.
8Operating Basics
8.1 Sleeping
Your device automatically sleeps after a period of inactivity (default 1
minute on battery power). To resume operation, press the power but-
ton.
8.2 Shutting Down
To shut down the device, press and hold the power button for at least 3
seconds until the device plays a notification sound and a message ap-
pears requesting for confirmation. Tap Yes for the device to shut down.
8.3 Using the Touchscreen
Use your finger to navigate and select objects on the screen. You can:
Tap by touching the screen once with your finger to open items and
select options.
Drag by holding your finger on the screen and dragging across the
screen to select text and images.
Tap and hold by tapping and holding your finger on an item to see a
list of actions available for that item.
Scroll or pan by brushing up/down/left/right on the touch screen
with your finger.

Quick Start
14
8.4 Making a Call
1. Press the Send button on your device to open the Phone
screen.
2. Tap the numbers on the onscreen keypad.
3. Press the Send button to make the call.
8.5 During a Call
During a call, you can use the soft keys for various operations.

Quick Start
15

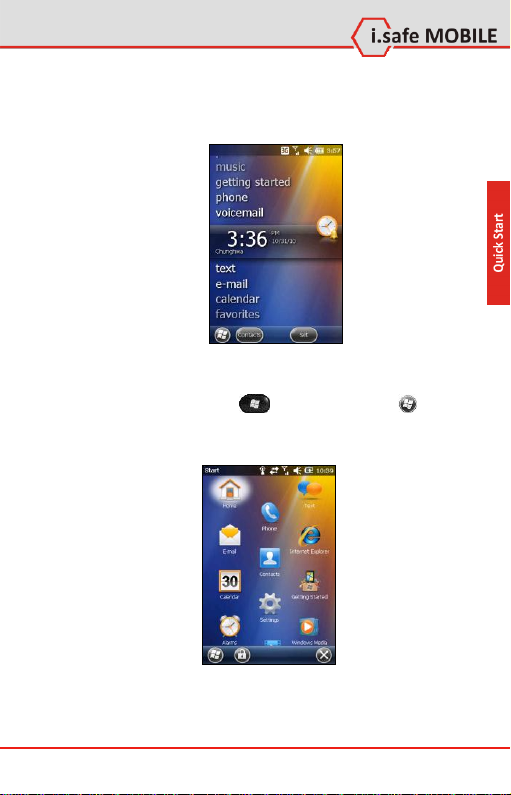

8.6 Home Screen
The Home screen provides shortcuts to frequently-used features.
When an item is active, it displays additional information and ac-
tion(s) you can take.
8.7 Start Menu
You can access any program from the Start menu. To open the Start
menu, press the Start button on your device or tap at the left-
bottom corner of the screen. The Start menu contains all the program
icons.

Quick Start
16
8.8 Synchronizing with Your Computer
If you are using Windows XP or earlier versions of Windows, download
and install the latest ActiveSync. If you are using Windows Vista or Win-
dows 7, download and install the latest Windows Mobile Device Center.
Visit the Microsoft website to download the program and to obtain
operating instructions.

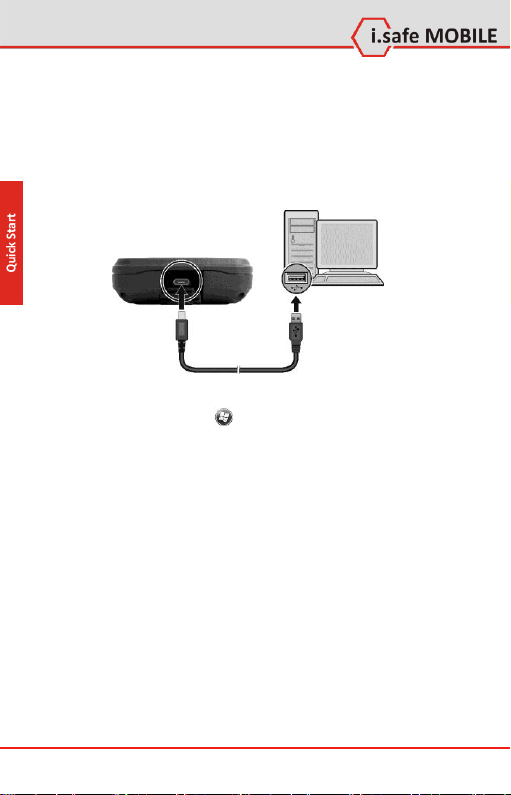

After the software installation, connect your device to your computer
with the USB cable.
NOTE: In case your computer does not respond after the cable connec-
tion for ActiveSync mode, tap Settings Connections USB to
PC, and then clear “Enable advanced network functionality”. This should
resolve the problem.

Quick Start
17
9Specifications
Communication-interface: WWAN (HSUPA / HSDPA / UMTS / EDGE /
GPRS / GSM)
Dimension: 70 mm X 136 mm X 25 mm
Screen size: 3.2" TFT-LCD, HVGA
Camera: 3.2 MP
Battery Capacity: BPE01A: 1030 mAh; BPE01B: 2060 mAh
Operating Temperature: -20°C..40 C
Memory: supports up to 32GB
10 Maintenance
Thank you for using the EXECUTIVE 1.0. If there is a problem with the
mobile phone, please contact your vendor or consult the service center.
If your mobile phone is in need of repair, you can either contact the
service center or your vendor.

Quick Start
18
The content of this document is presented as it currently exists. The
manufacturer does not provide any explicit or tacit guarantee for the
accuracy or completeness of the content of this document, including,
but not restricted to, the tacit guarantee of market suitability or fitness
for a specific purpose unless applicable laws or court decisions make
liability mandatory. The manufacturer reserves the right to make
changes to this document or to withdraw it any time without prior no-
tice.
TRADEMARKS
Microsoft, Windows, the Windows logo, Windows Media, Outlook and
ActiveSync are registered trademarks or trademarks of Microsoft Cor-
poration in the United States and/or other countries. Microsoft prod-
ucts are licensed to OEMs by Microsoft Licensing, Inc., a wholly owned
subsidiary of Microsoft Corporation.
All other brand and product names are trademarks or registered
trademarks of their respective owners.

19

Inhalt
20
1Einführung 21
2Spezifikationen 21
3Fehler und unzulässige Belastungen 22
4Ex-relevante Sicherheitsvorschriften 22
5Weitere Sicherheitshinweise 23
6Komponentenbeschreibung 26
7Erste Schritte zur Benutzung 27
7.1 Installation 27
7.2 Aufladen des Akkus 28
7.3 Erstmaliges Starten 29
8Grundsätzliche Bedienung 29
8.1 Suspend-Modus 29
8.2 Ausschalten 29
8.3 Bedienung des Touchscreens 29
8.4 Einen Anruf tätigen 30
8.5 Während eines Gespräches 30
8.6 Homescreen 31
8.7 Startmenü 31
8.8 Synchronisieren mit Ihrem Computer 31
9Spezifikationen 33
10 Wartungshinweis 33
