ISAFE MOBILE CHALLENGER 2.0 Instruction manual

i.safe MOBILECHALLENGER 2.0
Quick Start Manual
and
Safety Instrucons
Schnellstartanleitung
und
Sicherheitshinweise

Template: TEMPMD01REV00 2
Document No. 1009DI02REV03
Version: 2015-01-19
(c) 2014 i.safe MOBILE GmbH
i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany
Tel. [phone]
[e-mail]
www.isafe-mobile.com
i.safe MOBILE
1
3
5
7
910
11
2
4
6
8
12

i.safe MOBILEEnglish
3
This document contains informaon and safety regulaons which are to be
observed without fail for safe operaon of the mobile phone CHALLENGER
2.0 under the described condions. Non-observance of this informaon and
instrucons can have serious consequences and / or may violate regulaons.
More detailed instrucons on the use of the phone can be found at
www.isafe-MOBILE.com or directly at i.safe MOBILE GmbH.
Please read the manual and these safety instrucons before using the
phone. In case of contradicng informaon, the text of these safety instruc-
ons shall apply.
In case of any doubt, the German version shall apply.
The current EC declaraon of conformity, EC and IECEx cerficates of con-
formity, safety instrucons and manual can be found at www.isafe-
mobile.com, or requested from i.safe MOBILE GmbH.
Reservaon: Technical Data is subject to change without noce. Changes,
errors and misprints may not be used as a basis for any claim for damages.
All rights reserved.
i.safe MOBILE GmbH cannot be held responsible for any data or other loss
and direct or indirect damages caused by any improper use of this phone.
Ex-Specificaons
The CHALLENGER 2.0 is a mobile phone suitable for use in potenally explo-
sive atmospheres classified as Zone 2 in accordance with direcves 94/9/EC
(ATEX 95) and 99/92/EC (ATEX 137).
Ex-markings
ATEX II 3G Ex ic IIC T4 Gc
EPS 14 ATEX 1 662 X
2004
Temperature range: -20 ... +60°C
Manufactured by: i.safe MOBILE GmbH
i_PARK TAUBERFRANKEN 10
97922 Lauda-Koenigshofen
Germany

i.safe MOBILEEnglish
4

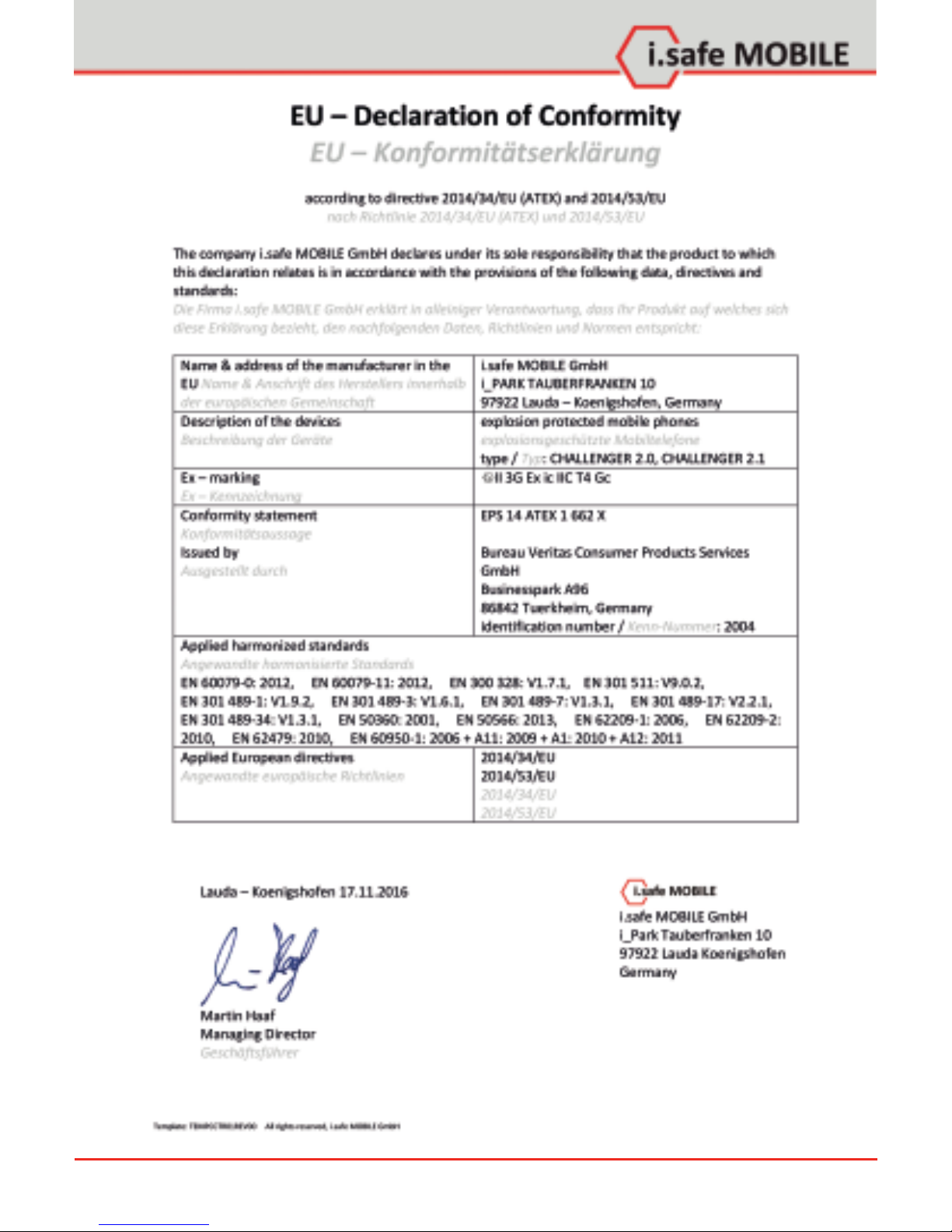

EC Declaraon of Conformity
The EC declaraon can be found at the end of this manual.
Faults and Damages
If there is any reason to suspect that the safety of the phone has been com-
promised, it must be withdrawn from use and removed from any ex-
hazardous areas immediately.
Measures must be taken to prevent any accidental restarng of the phone.
The safety of the phone may be compromised, if, for example:
· malfuncons occur.
· the housing of the phone or the baery shows damage.
· the phone has been subjected to excessive loads.
· the phone has been stored improperly.
· markings or labels on the phone are illegible.
It is recommended that a phone which shows or which is suspected of faults
and damages is returned i.safe MOBILE GmbH for inspecon.
Ex-relevant Safety Regulaons
Use of this phone assumes that the operator observes the convenonal safe-
ty regulaons and has read and understood manual, safety instrucons and
cerficate.
The following safety regulaons must also be complied with:
· Inside ex-hazardous areas the phone must be closed. The baery cover
has to be fixed by the two screws and the covers of the interfaces have to
be closed.
· To ensure the IP-protecon, it has to be ensured that all gaskets are pre-
sent and funconal. The screws at the top and the boom of the back of
the phone need to be covered by the black gaskets, so that the screw
heads are not visible. There must be no large gap between the two halves
of the housing.
· The baery may only be exchanged or charged outside ex-hazardous are-
as.

i.safe MOBILEEnglish
5
· The phone may only be charged outside ex-hazardous areas using the
appropriate charger or other equipment approved by i.safe MOBILE
GmbH.
· Use only the appropriate baery type BPC02A.
· It is not allowed to carry spare baeries into ex-hazardous areas.
· The phone may be charged only at temperatures in between 0°C ... 45°C.
· The phone must not be exposed to abrasive acids or bases.
· The phone must not be taken into zones 0, 1, 20, 21 or 22.
· Only accessories approved by i.safe MOBILE GmbH may be used.
Further Safety Advises
· Do not touch the screen of the phone with sharp objects. Dust parcles
and nails may scratch the screen. Please maintain the screen clean. Re-
move dust on the screen with a so cloth gently, and do not scratch the
screen.
· Charge the phone under indoor condions only.
· Do not put the phone in environments with excessive temperatures, as
this could lead to heating of the battery, resulng in fire or explosion.
· Do not charge the phone near any flammable or explosive substances.
· Do not charge the phone in environments with much dust, humidity, or
excessively high or low temperatures (the permied charging tempera-
ture range is 0 ... 45°C).
· Do not use the phone in areas where regulaons or legislaves prohibit
the use of a mobile phone.
· Do not expose the phone, baery or charger to strong magnec fields,
such as are emied from inducon ovens or micro-waves.
· Do not aempt to open or repair the phone. Improper repair or opening
can lead to the destrucon of the phone, fire or explosion. Only author-
ized personnel are allowed to repair the phone.
· Only use accessories approved by i.safe MOBILE GmbH.
· Please do not directly connect the poles of the baery, to avoid short-
circuiting the baery.
· Power off the phone in hospitals or other places where the use of mobile
phones is prohibited. This phone may affect proper work of medical
equipment, such as pacemakers, so always keep a distance of at least 15
cm between the phone and these devices.
· Observe all corresponding laws that are in force in the respecve coun-
tries regarding the use of mobile phones while operang a vehicle.

i.safe MOBILE
English
6
· Please power off the phone and disconnect the charging cable before
cleaning the phone.
· Do not use any chemical cleaning agents to clean the phone or the
charger. Use a damp and an-stac so cloth for cleaning.
· Do not discard old and abandoned lithium baeries into the trash, send
them to designated waste disposal locaons or return them to i.safe
MOBILE GmbH.
· The user alone is responsible for any and all damages and liabilies caused
by malware downloaded when using the network or other data-exchange
funcons of the phone. i.safe MOBILE GmbH cannot be held responsible
for any of those claims.
Warning
i.safe MOBILE GmbH will not assume any liability for damages caused by
disregarding any of these advices or by any inappropriate use of the phone.
Maintenance / Repair
Thank you for using the CHALLENGER 2.0. If there is a problem with the
phone, please contact your vendor or consult the service center. If your
phone is in need of repair, you can either contact the service center or your
vendor.
Baery
The baery is inserted into the back of the phone. The baery is not fully
charged when the phone is purchased, but it contains enough energy to
power on the phone. To obtain best baery performance and baery life, let
the baery discharge completely before charging it completely for the first
three charging cycles.
Installing the Baery
Turn the mobile phone upside down, open the screws and remove the bat-
tery cover. Install the baery by inserting the teeth at the top of the baery
into the corresponding notches of the phone.
When installing the baery cover, insert the teeth at the boom of the cover
into the corresponding notches of the mobile phone, then press the baery
cover down and secure it by turning the two screws. Ensure that the baery
is safely in place before installing the baery cover and powering on the
phone.

i.safe MOBILEEnglish
7
Charging the Baery
Connect the USB-cable with the USB connector at the boom of the phone.
Connect the other side of the USB cable with the socket of the Power Supply.
Aer charging, remove the USB-cable from the charger.
Baery Use
In actual use, the standby me and talk me of the phone varies with the
network status, working environment and usage.
When the power of the baery is lower than normal, the phone will prompt
you to charge it. Please charge the baery; otherwise you may lose any files
which are not saved.
If you do not charge for a long me, the phone will be powered off automat-
ically.
Warning
The phone may only be charged at ambient temperatures in a range from
0°C…45°C. Please do not use charging equipment if the temperature exceeds
this range.
Installaon of the SIM Cards
The phone features two SIM card slots. The slots are accessible aer removal
of the baery. If you have installed two SIM cards, you can choose your pri-
mary card in <Sengs> → <Dual SIM sengs>.
Warning
Do not try to insert or remove any of the SIM cards when any external power
supply is connected, otherwise the SIM cards or the phone may be damaged.
Installaon of the Micro-SD Card
The slot for the Micro-SD card is accessible aer removal of the baery.
Open the Micro-SD card holder, and insert the Micro -SD card into the slot,
then close the Micro-SD card holder.

8
Keys and Special Features
(see figure on page 2)
(1) Power: Lock the phone.
Long press to power up or down the phone.
(2) Send: Bring up the call log.
Answer a call when the phone is ringing.
(3) Contacts: Context sensive key.
Opens the Phonebook while on the home screen.
(4) Menu: Context sensive key.
Enter sengs while on the home screen.
(5) OK: Confirm the selected item or funcon.
(6) Navigaon: 4-way navigation through menus.
(7) Keypad: Use for text or number entry.
(8) Torch: Turn the torch on or off.
(9) Volume: Adjust the volume.
(10) Baery: Use these screws to open the baery compartment.
(11) Camera: Not installed in CHALLENGER 2.1.
(12) USB: USB connector for charging and data-transfer.
Security Sengs
To change security relevant sengs, the phone may ask for a password. The
standard password is 1122.
Recycling
The crossed-out wheeled-bin symbol on your product, baery, literature, or
packaging reminds you that all electrical and electronic products, baeries,
and accumulators must be taken to separate collecon at the end of their
working life. This requirement applies in the European Union. Do not dispose
of these products as unsorted municipal waste.
Always return your used electronic products, baeries, and packaging mate-
rials to dedicated collecon points. This way you help prevent uncontrolled
waste disposal and promote the recycling of materials.
More detailed informaon is available from the product retailer, local waste
authories, naonal producer responsibility organisaons, or your local
i.safe MOBILE GmbH representave.
i.safe MOBILEEnglish

9
The content of this document is presented as it currently exists. i.safe
MOBILE GmbH does not provide any explicit or tacit guarantee for the accu-
racy or completeness of the content of this document, including, but not
restricted to, the tacit guarantee of market suitability or fitness for a specific
purpose unless applicable laws or court decisions make liability mandatory.
i.safe MOBILE GmbH reserves the right to make changes to this document or
to withdraw it any me without prior noce.
i.safe MOBILEEnglish

i.safe MOBILEDeutsch
10
Dieses Dokument enthält Informaonen und Sicherheitsvorschrien die für
einen sicheren Betrieb des Mobiltelefons CHALLENGER 2.0 unter den be-
schriebenen Bedingungen unbedingt zu berücksichgen sind. Nichtbeach-
tung dieser Informaonen und Anweisungen kann gefährliche Folgen haben
oder gegen Vorschrien verstoßen.
Lesen Sie die Bedienungsanleitung und diese Sicherheitshinweise bevor Sie
das Telefon benutzen!
Im Falle widersprüchlicher Informaonen gelten die deutschen Anweisungen
in diesen Sicherheitshinweisen.
Die gülge EG-Konformitätserklärung, EG und IECEx Baumusterprüeschei-
nigung, Sicherheitshinweise und Bedienungsanleitung können unter
www.isafe-mobile.com heruntergeladen oder bei der i.safe MOBILE GmbH
angefordert werden.
Vorbehalt: Technische Änderungen behalten wir uns vor. Änderungen, Irr-
tümer und Druckfehler begründen keinen Anspruch auf Schadensersatz.
Alle Rechte vorbehalten.
Für Datenverluste oder andere Schäden gleich welcher Art, die durch den
unsachgemäßen Gebrauch des Mobiltelefons entstanden sind, übernimmt
die i.safe MOBILE GmbH keine Haung.
Ex-Spezifikaonen
Das Mobiltelefon CHALLENGER 2.0 ist geeignet für den industriellen Einsatz
in explosionsgefährdeten Bereichen der Zone 2 nach Richtlinien 94/9/EG
(ATEX 95) und 99/92/EG (ATEX 137) und dem IECEx-System.
Ex-Kennzeichnungen
ATEX II 3G Ex ic IIC T4 Gc
EPS 14 ATEX 1 662 X
2004
Temperaturbereich: -20 ... +60°C
Hersteller: i.safe MOBILE GmbH
i_PARK TAUBERFRANKEN 10
97922 Lauda-Koenigshofen
Germany
