Iseki SZ330 User manual

ISEKI ZERO TURN MOWER
ZERO TURN MOWER:
MOWER DECKS:
SZ330
SSM60 & SSM72

1
INTRODUCTION
INTRODUCTION
Thank you very much for purchasing an ISEKI ZERO TURN MOWER.
This operator’s manual provides the information necessary for operating and maintaining
your tractor safely and properly. The contents are mainly composed of the following two
items:
Safety instructions: Essential items which you should observe while
operating the tractor
Technical instructions: Essential items which you should observe while
operating the tractor
Before starting to operate the machine for the first time, you should read this operation man-
ual thoroughly and carefully until you are sufficiently familiar with the operation of the
machine to do jobs safely and properly. The manual should be kept in a handy place so you
can refer to it when required. You are advised to refer to it from time to time to refresh your
understanding of the machine.
Your dealer has performed the pre-delivery service on your new machine.
He will discuss with you the operating and maintenance instructions gives in this manual,
and instruct you in the proper and varied applications of this machine. Call on him at any
time when you have a question, or need equipment related do the use of your machine.
Paragraphs in the manual and labels on the machine which are
accompanied by a caution particularly important information about
safe operation to avoid accidents. You should always keep precau-
tions in mind and follow them during operation.
Be sure to wear
personnel protective equipment
during operation
In some of the illustrations used in this operation manual, panels or
guards may have been remove for clarify. Never operate the machine
with these panels and guards removed.
If the removal of a shield is necessary to make a repair, it must be
replaced before operation
All information, illustrations, and specifications contained in this manual are based on the lat-
est information available at the time of publication. The right is reserved to make changes at
any time without notice.

2
ZERO TURN MOWER
INTRODUCTION .......................................................... 1
TABLE OF CONTENTS ............................................... 2
ABBREVIATION LIST................................................... 4
UNIVERSAL SYMBOLS ............................................... 5
SAFETY FIRST ............................................................. 6
1. FOR SAFE OPERATION ......................................... 7
1. HOW TO BE A SAFE OPERATOR ..................... 7
2. BEFORE STARTING
2. THE ZERO TURN MOWER ................................. 8
3. OPERATION OF THE ZERO TURN MOWER ..... 10
4. OPERATION ON A SLOPE.................................. 11
5. DRIVING ON PUBLIC ROADS:............................ 11
6. LOADING ONTO OR UNLOADING FROM A
TRUCK: ................................................................ 12
7. WHEN FILLING WITH FUEL:............................... 14
8. MOUNTING AND DISMOUNTING OF THE
MOWER DRIVE SHAFT ...................................... 14
9. ZERO TURN MOWER MAINTENANCE: ............. 14
10.MAINTENANCE OF THE ELECTRIC SYSTEM... 16
10.1.TO MAINTAIN ELECTRIC WIRING ............. 16
10.2.TO HANDLE THE BATTERY ....................... 16
10.3.TO HANDLE BOOSTER CABLES ............... 17
11. TYRES AND WHEELS ........................................ 17
12. BEFORE STORING THE ZERO TURN
MOWER.................................................... 18
13. LONG TERM STORAGE............................ 18
14. CAUTION LABELS & THEIR POSITIONS ......... 19
2. WARRANTY AND AFTER-SALE CARE ................. 25
WARRANTY ............................................................. 25
AFTER-SALE CARE................................................. 25
Zero turn mower .................................................. 25
Mower deck ......................................................... 25
SUPPLY LIMIT OF SPARE PARTS ......................... 25
3. SPECIFICATIONS .................................................... 26
ZERO TURN MOWER.............................................. 26
ACCESSORIES........................................................ 27
4. NAME OF MAJOR COMPONENTS ......................... 28
5. CONTROLS AND METERS ..................................... 29
1. CONTROL PANEL ............................................... 29
1.1. STARTER SWITCH...................................... 30
1.2. THROTTLE LEVER...................................... 30
1.3. MONITOR LAMP ARRAY ............................ 30
1.4. PTO SWITCH............................................... 31
1.5. HOURMETER .............................................. 31
1.6. LIFT LEVER ................................................. 31
1.7. FUEL GAUGE .............................................. 31
1.8. CUTTING HEIGHT ADJUST DIAL............... 31
2.1.BRAKE PEDAL.............................................. 32
2.2.PARKING BRAKE LEVER ............................ 32
2.3 DRIVE CONTROL LEVER ............................ 32
3. OTHER CONTROLS ............................................ 33
3.1. SAFTY SWITCHES...................................... 33
6. PRE-OPERATIONAL ROUTINE INSPECTION ....... 34
1.INSPECTION ITEMS............................................. 34
2.WAY OF INSPECTION AND MAINTENANCE...... 34
7. OPERATION ............................................................. 35
1. BEFORE STARTING THE ENGINE..................... 35
2. STARTING THE ENGINE..................................... 36
3. STOPPING THE ENGINE .................................... 37
4. TRAVELLING ....................................................... 38
5. STOPPING ........................................................... 39
6. PTO SWITCH ....................................................... 39
8. MAINTENANCE ....................................................... 40
1. ENGINE OIL LEVEL............................................. 41
2. HST OIL LEVEL.................................................... 42
3. COOLANT LEVEL ................................................ 42
4. FUEL LEVEL ........................................................ 43
5. AIR-CLEANER...................................................... 44
6. FUEL STRAINER ................................................. 45
7. INSPECTION OF FUEL HOSES.......................... 45
8. FAN BELT............................................................. 45
9. ADJUSTMENT OF BRAKE .................................. 46
10. ADJUSTMENT NEUTRAL OF HST CONTROL
LEVER................................................................ 47
11. ADJUSTMENT OF STRAIGHT DRIVE .............. 47
12. ADJUSTMENT PHASE OF DRIVE CONTROL
LEVER................................................................ 48
13. ADJUSTMENT CLEARANCE OF DRIVE CON-
TROL LEVER ..................................................... 48
14. INSPECTION OF WHEEL TIGHTEN ING BOLTS
AND NUTS ......................................................... 48
15. BATTERY ........................................................... 49
16. TYRE PRESSURE (INFLATION) ....................... 50
17. ENGINE OIL REPLACEMENT ........................... 50
18. ENGINE OIL FILTER REPLACEMENT.............. 51
19. REAR AXLE GEAR OIL REPLACEMENT.......... 52
20. REPLACEMENT OF HYDRAULIC OIL SUCTION
FILTER ............................................................... 52
21. INSPECTION AND CLEANING OF AIR-INTAKE
OPENINGS......................................................... 52
22. CLEANING OF THE RADIATOR........................ 53
23. COOLANT REPLACEMENT .............................. 53
24. INSPECTION OF FUSES AND WIRING............ 54
25. MAINTENANCE OF HYDRAULIC SYSTEM
PARTS ............................................................. 55
26. INSPECTION OF SAFETY SWITCHES........... 55
TABLE OF CONTENTS

3
TABLE OF CONTENTS
9. STORAGE ................................................................ 58
10. TROUBLESHOOTING ........................................... 59
1. ENGINE................................................................ 59
2. BRAKE SYSTEM.................................................. 61
3. LIFT SYSTEM....................................................... 61
4. DRIVE CONTROL SYSTEM ............................... 62
5. HST (HYDROSTATIC TRANSMISSION)............. 62
6. ELECTRICAL ACCESSORIES............................. 63
1. NAME OF MAJOR COMPONENTS ......................... 64
2. SPECIFICATIONS .................................................... 66
3. ATTACHING AND DETACHING MOWER DECK ... 67
1. ATTACHING THE MOWER DECK....................... 67
2. DETACHING THE MOWER DECK ...................... 68
3. ADJUSTMENT OF CUTTING HEIGHT................ 69
4. MOWER OPERATION ............................................. 70
1. BEFORE OPERATION......................................... 70
2. CUTTING HEIGHT ADJUSTMENT...................... 70
3. STARTING MOWING OPERATION..................... 71
4. EMERGENCY STOP............................................ 72
5. STOPPING MOWING OPERATION .................... 72
6. EFFICIENT MOWING........................................... 73
5. INSPECTION AND MAINTENANCE OF MAJOR
PARTS ...................................................................... 74
1. INSPECTION AND REPLACEMENT OF GEAR
CASE OIL ............................................................. 74
2. INSPECTION AND REPLACEMENT OF TIMING-
BELT..................................................................... 75
■ HOW TO JACK UP.............................................. 76
3. INSPECTION & REPLACEMENT OF BLADES ... 78
Blade Removal .................................................... 78
Shimming of Blades............................................. 78
4. INSPECTION OF GAUGE WHEELS &
ROLLERS ................................................. 79
5. CLEANING OF MOWER DECK ........................... 79
6. ADJUSTMENT OF DISCHARGE COVER
ANGLE ..................................................... 80
7. FILLING DIAGRAM .............................................. 80
8. PERIODICAL INSPECTION TABLE..................... 81
6. STORAGE ................................................................ 82
7. TROUBLESHOOTING ............................................. 83

4
ABBREVIATION LIST
Abbreviations
PTO
PT
RH / LH
ROPS
RPM
SAE
SSM
Definitions
Power Take Off
Permanent Type
Right - hand and Left - hand sides are determined by facing in the direction of
forward travel
Roll - Over Protective Structure
Revolutions Per Minute
Society of Automotive Engineers
Side discharge Mower
ZERO TURN MOWER

5

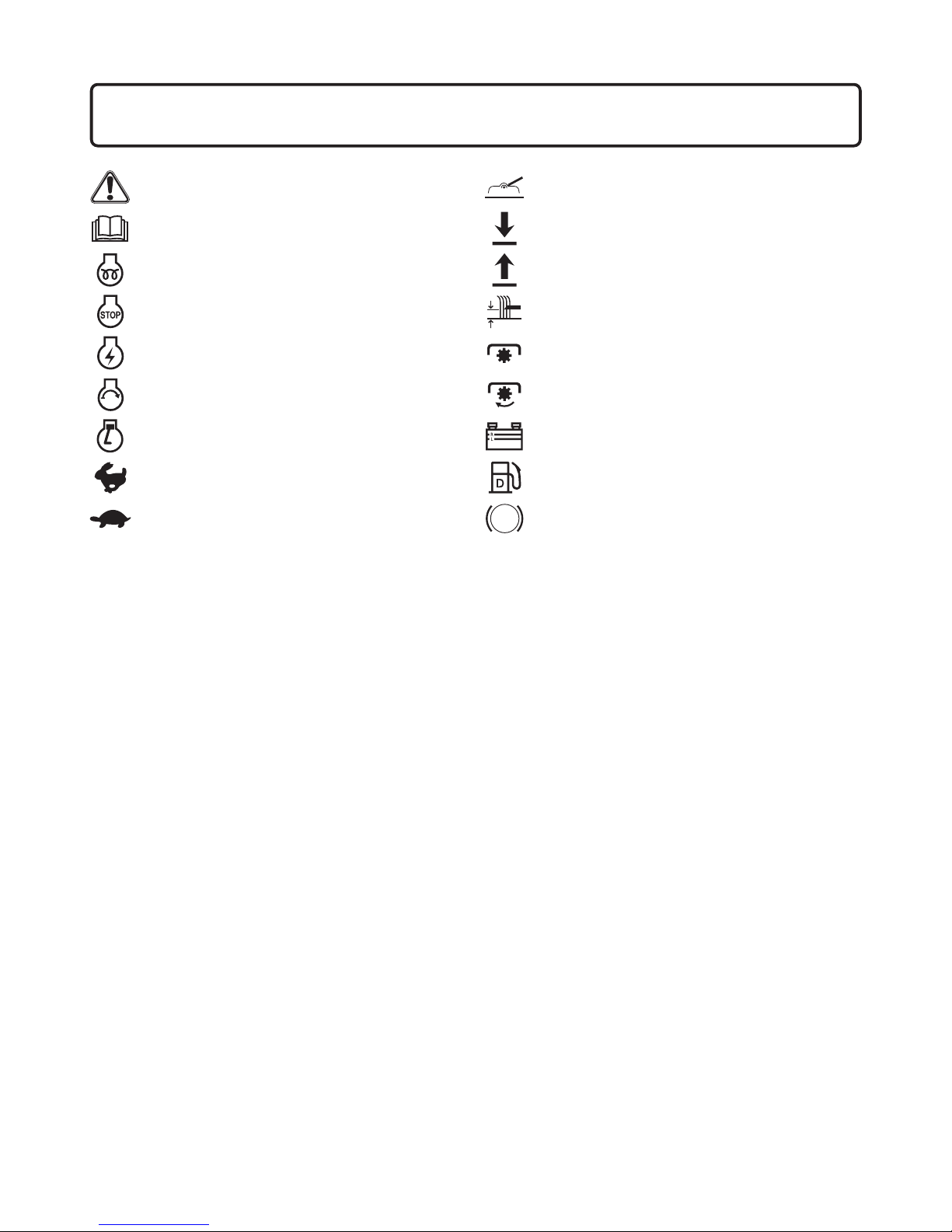

UNIVERSAL SYMBOLS
Safety Alert Symbol
Operation manual
Preheat
Engine - Stop
Engine - Run
Starter Control
Engine - Revolution
Fast
Slow
Mower - deck
Mower -Lowered position
Mower - Raised position
Cutting Height
Power Take - Off Clutch Control - Off position
Power Take - Off Clutch Control - On position
Battery
Diesel Fuel
P
Parking Brake
UNIVERSAL SYMBOLS

6
Every time you see the words and symbols shown below in the manual and on the safety decals, you must take note
of their instructions and warning.
DANGER: This symbol together with the words DANGER indicates an imminently hazadous situation that, if
not avoided, will result in VERY SERIOUS INJURY OR EVEN DEATH.
WARNING: This symbol together with the word WARNING indicates a potentially hazardous situation that, if
not avoided, could result in SERIOUS INJURY OR EVEN DEATH.
CAUTION: This symbol together with the word CAUTION is used to indicate a potentially hazardous situation
that, if not avoided, may result in MINOR INJURY.
IMPORTANT: The word IMPORTANT is used to provide instructions or advice in order to let the Zero turn mower pro-
vide the optimum performance.
NOTE: The word NOTE is used to indicate points of particular interest for more efficient and convenient repair or oper-
ation.
SAFETY INSTRUCTION: Essential items which you should observe while operating the Zero turn mower.
TECHNICAL INSTRUCTION: Items which are necessary to operate, adjust, and servise the Zero turn mower properly.
Before starting to operate the Zero turn mower for the first time, you should read this operation manual thoroughly
and carefully until you are sufficiently familiar with the operation of the Zero turn mower in order to do jobs safely and
properly. You are advised to refer to it from time to time to refresh your understanding of the Zero turn mower.
The manual should be kept in a handy place so you can refer to it when required.
The parts employed in this Zero turn mower may be modified without notice for better performance and quality
and for safety purposes, which may lead to some inconsistency found on your Zero turn mower with the contents of
this manual.
The Zero turn mower is designed to be used on well-kept lawns. Using the Zero turn mower in other places is not
authorized. Besides, the manufacturer will not pay for any damage caused by unauthorized use and the risk is only
borne by the user. Proper use of the Zero turn mower also implies that the user follows the operational, adjusting, and
servicing instructions indicated in the operation manual.
When you have any question about your Zero turn mower, you are always welcome to ask your dealers.
ZERO TURN MOWER
SAFETY FIRST

DANGER : Failure to observe the following
safety instructions can result in serious
injury or death. As the owner or operator of
the front mower,you are responsible for pre-
venting accidents or injuries.
1. HOW TO BE A SAFE OPERATOR
1.1. Follow all the safety signs on the Zero turn mower
and all the manufacturer's instructions before start-
ing the Zero turn mower. If you do not, it may result
in body injuries.
1.2. Pay attention to the caution labels on the Zero turn
mower and mower deck and observe the instruc-
tions they give to avoid physical injuries.
1.3. Ensure that all operators are responsible individuals
who have read the instructions or been fully trained
on the safe operation of the Zero turn mower.
1.4. All operators should evaluate their health and ability
to operate the Zero turn mower safely enough to
protect themselves and others from serious injury.
Do not operate the Zero turn mower while you are
under the influence of alcohol or drugs.
1.5. Understand how to properly and safely operate and
maintain the Zero turn mower. Seek and obtain
practical instruction on how to operate and maintain
the Zero turn mower properly.
1.6. Be sure to use necessary protective devices such
as headgear, safety glasses, safety shoes, ear
plugs, gloves, etc.
1.7. Wear appropriate protective clothing and equipment
when you are operating, adjusting, or servicing the
Zero turn mower, such as safety glasses, long
pants, substantial footwear, and ear protection.
Long hair, loose clothing, or jewellery can get tan-
gled in moving parts.
1.8. Never permit the following persons to operate the
Zero turn mower:
-Persons not properly trained to operate the Zero
turn mower
-Persons who cannot understand the instructions
mentioned in this operation manual and on the
caution labels
- Children
Local regulations may restrict the age of the operator.
7
CHAPTER 1. FOR SAFE OPERATION
CHAPTER 1. FOR SAFE OPERATION
FIG. 1
FIG. 2
FIG. 3

8
1.9. Inspect the Zero turn mower periodically. If not, this
may not only shorten the Zero turn mower's service
life but also make safe and efficient operation
impossible.
1.10. Never use the front mower out of normal usage
even if it is not mentioned at this operation manual.
ZERO TURN MOWER

9
2. BEFORE STARTING THE ZERO TURN MOWER
2.1. Set up an operation plan with sufficient time
allowance. A tight plan may result in unexpected
accidents. Especially when operating the Zero turn
mower under extremely hot, cold, or humid circum-
stances, set up an operation schedule or method
which will ensure operational safety.
2.2. Mow only in daylight or good artificial light. Mowing
in the dark may couse unexpected accidents.
2.3. Thoroughly inspect the mowig area and remove all
objects from the mowing area that the front mower
can throw, such as stones, toys, sticks, and wires,
which may lead to serious accidents.
2.4. Ensure that there are no people or pets in the area
where you will mow. Keep children out of the mow-
ing area and under the watchful care of a responsi-
ble adult.
2.5. Do not operate the Zero turn mower unless the
operator's presence controls, safety switches, and
guards are attached and functioning properly.
2.6. Start the engine from the operating or designated
starting position.
2.7. Before starting the engine, make sure that every-
thing is safe around the Zero turn and put the trac-
tion drive in neutral, set parking brake, and disen-
gage the cutting unit(s). Otherwise, unexpected
accidents may occur.
2.8. Start the engine with the starter switch only. Never
attempt to start the engine by shorting the termi-
nals, or the Zero turn mower may move abruptly,
and result in unexpected accidents.

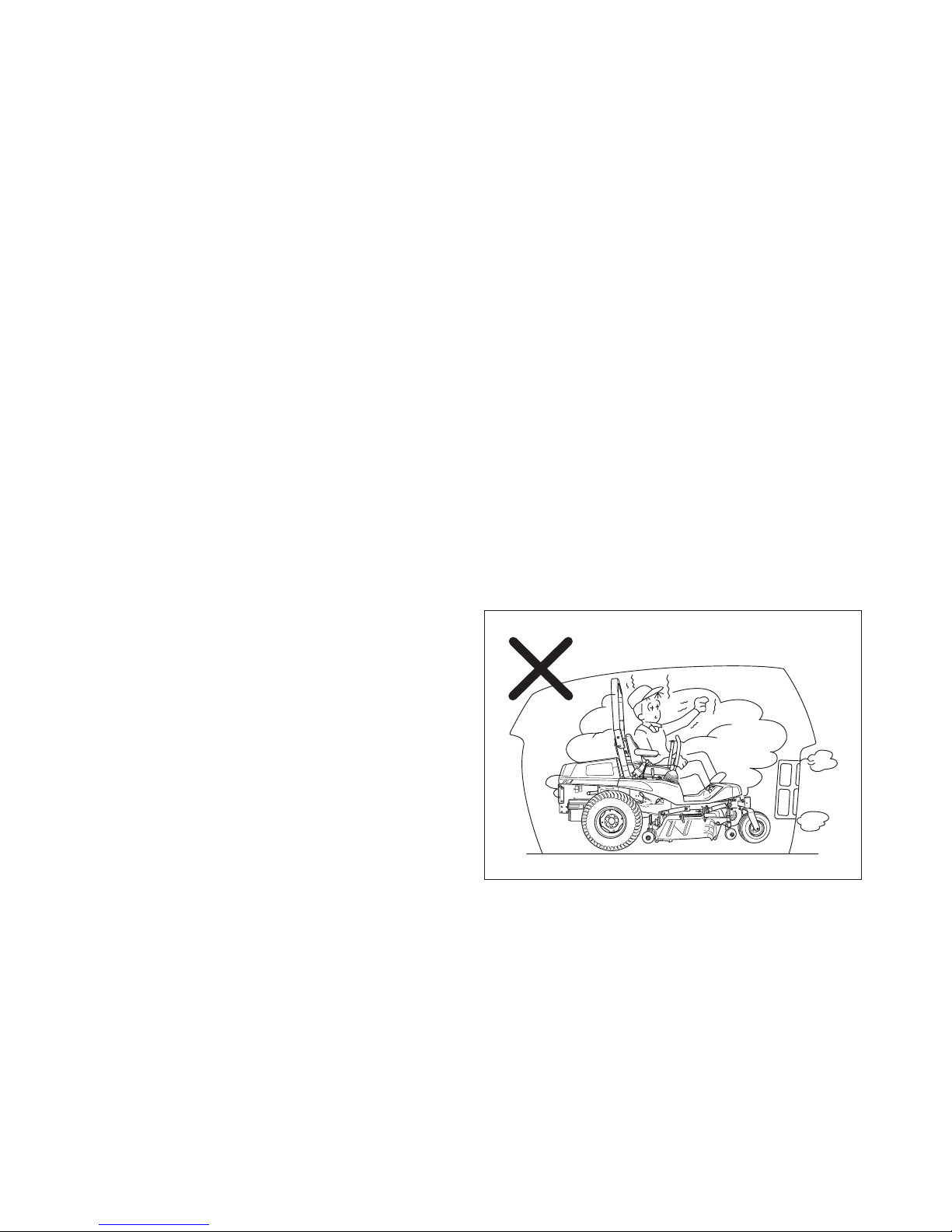

2.9. Do not run the engine in an enclosed area where
dangerous carbon monoxide fumes can collect.
Sufficient ventilation shoud be provided when start-
ing the engine in an enclosed area.
2.10. Make sure of safety around the Zero turn mower
and move slowly when starting. Abrupt starting may
casue unexpected accidents.
2.11. Become familiar with the operation, particularly, the
stopping of the Zero turn mower. You should be
skilful enough to be able to stop the Zero turn
mower at will.
2.12. Use only attachments and accessories approved by
the manufacturer and install and operate them as
directed.
FIG. 4
CHAPTER 1. FOR SAFE OPERATION

10
2.13. When your Zero turn mower is equipped with an
implement other than a standard mower deck,
never fail to ask your dealers about machine bal-
ance. Always follow their advice.
2.14. Keep in mind that the operator or user is responsi-
ble for the accidents or hazards caused by the Zero
turn mower to other people or their property.
2.15. Inspect the Zero turn mower for wear or damage.
Replace any worn or damaged parts.
2.16. Especially before starting the mower, be sure to
perform advised pre-operation inspections especial-
ly on the brakes and inspect visually to see that the
blade and blade tightening nuts are not worn, dam-
aged or loose. Replace worn or damaged blade and
nuts as an assembly to preserve blade balance.
Otherwise, poor braking or scattered broken blades
may result, which is very dangerous.
2.17. When operating the Zero turn mower equipped with
attachment which is not ISEKI made at the slope,
be sure to equip with Zero turn mower with balance
weights. Order the following parts to secure your
safety at the slope and install suitable weights with
the Zero turn mower.
2.12. •Front hitch (Opt.)
2.12 .(1725-433-003-0A)...........................1pc
2.12 If you have any question, please consult your dealer.
2.18. Machine weight balance is a very important factor
for safe operation. When your machine is equipped
with an implement, never fail to ask your dealers
about machine balance. Always follow their advise.
ZERO TURN MOWER

11
3. OPERATION OF THE ZERO TURN MOWER
3.1. When the Zero turn mower is running, stay away
from the discharge opening, the cutting unit(s), and
all moving parts.
3.2. During operation, never allow anyone, especially
children, and animals to be in the vicinity of the
Zero turn mower. Do not direct the discharge at
anyone.
3.3. When you are working with co-workers, be sure to
alert them by signalling before you take a new
action.
3.4. When operating the Zero turn mower with the
ROPS turned up, you should be seated in the oper-
ator's seat properly with seatbelt, hold the Control
lever by both hands, and look in the direction in
which the Zero turn mower advances.
3.5. Always be sure to operate the Zero turn mower
from the driver's seat with seat belt. Never attempt
to get on or off the Zero turn mower wihile it is trav-
elling.
3.6. Do not mow on wet grass. the front mower may
slide.
3.7. Slow down before turning the front mower. Turning
at high speed may cause the front mower to turn
over.
3.8. Look down and behind you and ensure a clear path
before you move the front mower backward.
3.9. Do not mow while moving backward unless it is
absolutely necessary.
3.10. Never operate the Zero turn mower in terrain where
there are ditches, holes, or steps easy to collapse.
In such a place, the Zero turn mower could turn
over or fall.
3.11. Before making access to moving parts, stop the
engine, and keep your hands, feet, clothing, acces-
sories and etc. away so as not to be caught in the
moving parts or the Zero turn mower.
3.12. Be alert when you approach blind corners and
objects that may obscure your vision. Watch for
holes ruts or bumps. Tall grass can hide obstacles.
3.13. Never rest a foot on the brake pedal. If so, the
brakes disc wear rapidly, which may lead to serious
accidents.
3.14. Never attempt to do the mowing operation without
the discharge cover in place or with the cover left
open.
3.15. Do not attempt to adjust the cutting height while the
engine is running.
3.16. Adjust the cutting height with the gauge wheels in
accordance with the condition of the ground surface
at the working site. Mowing on rough ground with
low cutting height may cause the blades to hit soil
or stones, which is very dangerous.
3.17. If you strike an object or if the Zero turn mower
vibrates abnormally, stop the front mower immedi-
ately, wait for all moving parts to stop, and inspect
the cutting unit(s). Make all repairs before you
resume operation.
3.18. Be sure to keep the grass discharging part clean. A
clogged discharging part may cause the discharge
cover to open, resulting in scattering of grass and
stones, which is very dangerous.
3.19. Never allow grass or leaves to accumulate around
heated parts such as the engine and the muffler, or
this may cause a fire.
3.20. Before moving the Zero turn mower to another
place, be sure to stop the mower blades and lift up
the mower deck. Otherwise, they may hit stones
and scatter them around, which is very dangerous.
3.21. When driving over a levee or step, stop the mower
blades, lift up the mower deck, and move the Zero
turn mower straight to the levee and make it climb
over slowly. Avoid climbing over a levee too high, or
the Zero turn mower may fall sideways or turn over.
3.22. Stop the cutting unit(s) when you are crossing grav-
el areas.
3.23. Watch for traffic when you are operating the Zero
turn mower near a roadway or when crossing a
roadway.
3.24. Never attempt to use the Zero turn mower to draw
an implement or a trailer. It is not designed to draw
a load.
3.25. Stay alert and stop the lawn mower if people or pets
enter the area.
3.26. Do not carry passengers.
3.27. Never carry children , even when the cutting means
are not moving. Children may fall off the Zero turn
mower and become seriously injured or prevent you
from operating the Zero turn mower safely. Children
who have been given rides in the past may sudden-
ly appear in the mowing area for another ride and
be run over or backed over by the lawn mower.
CHAPTER 1. FOR SAFE OPERATION

12
3.28. Before stopping the engine, be sure to lower the
mower deck onto the ground, apply the parking
brakes, and turn off the PTO switch to the OFF
position.
3.29. Before leaving the operating position of the Zero
turn for any reason , always do the following:
- Stop the Zero turn on level ground.
-Stop the cutting unit(s), disengage PTO, and
lower the attachment(s).
- Disengage the drive(s).
- Set the parking brake.
-Stop the engine and wait for all moving parts to
stop.
ZERO TURN MOWER

HITCH/WEIGHT
Weight (15) SET
Parts code of weight
1752-433-003-00
1614-922-200-20
Quantity
Note
1
Set equipment
2(Max)
13
4. OPERATION ON A SLOPE
DANGER: Slopes are a major factor related to
accidents with the Zero turn mowers, result-
ing in severe injuries.
We cannot recomended the Zero turn mower with mower
deck be oparated on a slope. All slopes require extra cau-
tion; no slope is safe.
You can lose control of the Zero turn mower on a slope
because of one of the following:
-the wheels lack traction; you are driving the front
mower too fast.
-you are not braking properly; the Zero turn mower type
is not suited for the task.
-you are unaware of the ground conditions (especially
slopes).
-you incorrectly hitch an attachment or distribute a load.
If the Zero turn mower has to be used on a slope, Never
use it on a slope of more than "12°". Even if using it on a
siope of less than "12°", be sure to abide by the foiiowing
instructions.
A slope angle of 12°is specified with the Zero turn mower
equipped with the attachments mentioned respectively.
-The Zero turn mower is not equipped with any attach-
ments or a cabin.
-The Zero turn mower is equipped with a standard
mower deck.
Grass catchers and other attachments can change the
stability of the Zero turn mower. Follow the instructions
for adding weight to improve the stability of the Zero turn
mower.
When your Zero turn mower is equipped with an imple-
ment other than standard, such as a collector, a cabin,
etc., never fail to ask your dealers about machine bal-
ance. Always follow their advice.
We recommended that you use a ROPS if you will oper-
ate the Zero turn mower on steep slopes.
A ROPS consists of both a rollover protection device and
a seat belt. Always wear the seat belt with your ROPS; do
not use the seat belt unless the rollover protection device
is also properly installed.
4.1. Be sure to wear a helmet during operation.
4.2. If you feel uneasy operating your Zero turn mower
on a slope, do not mow it.
4.3. Evaluate the terrain to determine what accessories
and attachments you will need to be safe.
4.4. Do not mow near drop-offs, ditches, or embank-
ments. You can tip the Zero turn mower over if a
wheel is over the edge of a drop-off or if an edge
caves in. Uneven terrain can cause the Zero turn
mower to overturn.
CHAPTER 1. FOR SAFE OPERATION
FIG. 5

14
4.5. Never perform mowing operation on wet grass.
4.6. Avoid sudden starting and stopping.
4.7. Mow up and down a slope; do not mow across it.
4.8. Mow a slope by moving slowly. Do not suddenly
change your speed or direction.
4.9. Do not turn on a slope unless it is necessary, and
then, turn slowly downhill, if possible.
4.10. If the tyres lose traction, disengage the cutting
unit(s) and proceed slowly, straight down the slope.
Do not apply the brake on the Zero turn mower that
is sliding down a slope. Engage the clutch slowly
and always keep the Zero turn mower in gear,
especially when travelling downhill.
4.11. Do not use the grass catcher(s) while you are mow-
ing a steep slope.
4.12. Do not try to stabilize the Zero turn mower by put-
ting your foot on the ground.
4.13. Avoid stopping the Zero turn mower on a slope.
5. DRIVING ON PUBLIC ROADS:
5.1. This Zero turn mower cannot be driven on a public
road without authorization by a local government
agency. etc. Therefore it may be illegal for the Zero
turn mower not only to travel on but also to cross a
public road.
5.2. When transporting the Zero turn mower on a public
road, load it on a truck or trailer.
ZERO TURN MOWER

15
6. LOADING ONTO OR UNLOADING FROM A TRUCK:
6.1. When loading the Zero turn mower onto a truck,
turn off the truck's engine, apply the parking brakes
to the truck, and chock the wheels to avoid unex-
pected moving of the truck or trailer.
6.2. Pay sufficient attention to safety conditions around
the Zero turn mower and have it guided by some-
one to assist the operator. Never allow other per-
sons to approach the Zero turn mower, especially in
front of or behind it.

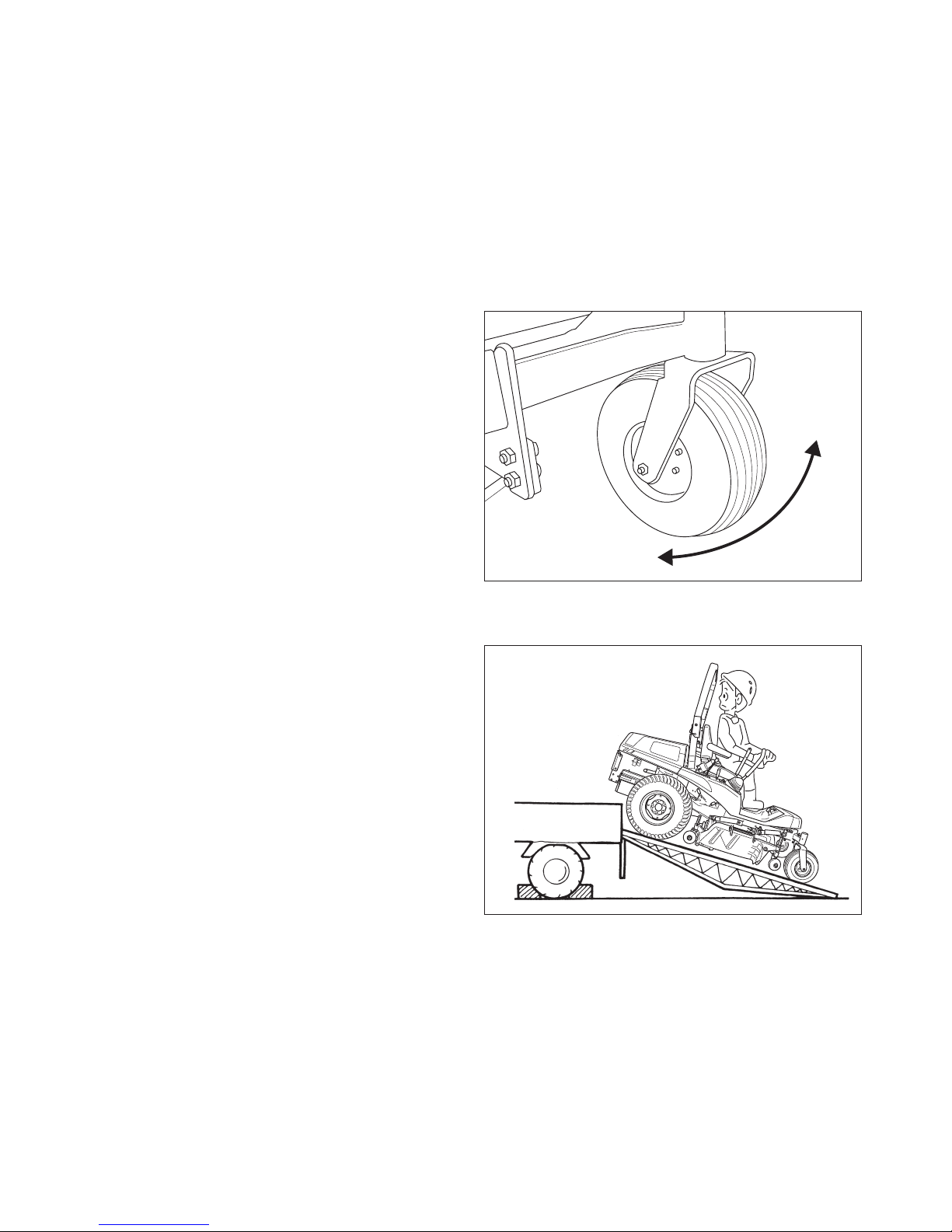

6.3Use a wide ramp for loading and unloading the
mower. Avoid switching from forward motion to
backward motion (or vice-versa) as this will cause
the front wheels to rotate sideways. Sideway rota-
tion of the front wheels poses some danger when
the mower is on the ramp.
6.4. When loading the Zero turn mower onto a truck, lift
up the mower deck fully and rearward it straight at
sufficiently low speeds. Drive it advance when
unloading it from the truck or trailer.
6.5. If the engine stalls unexpectedly on the ramps,
depress the brake pedals immediately and roll the
Zero turn mower to the ground by releasing the
brakes gradually. Then start the engine and try
again.
FIG. 6
FIG. 7
CHAPTER 1. FOR SAFE OPERATION

16
6.6. Use ramps with the same or better specifications
mentioned below. When the Zero turn mower is
equipped with the attachments other than those
included in the specifications mentioned below, ask
your dealers for advice.
Specifications of the ramps for the SZ330
• Length......more than 4 times the height of the platform
of the truck
•Width (effective width)........................more than 30 cm
• Required quantity ............................................2 ramps
• Capacity (one ramp)..........................more than 750 kg
• Ramps should have anti-skid surfaces.
•The above specifications are effective with the Zero
turn mower with the following configurations.
•The Zero turn mower is not equipped with any attach-
ments or a cabin.
•The Zero turn mower is equipped with a standard
mower deck.
6.7. Park the truck on hard level ground. Hook the
ramps securely on the platform of the truck with the
top of the ramp level with the platform.
6.8. Drive the Zero turn mower carefully at the moment
the Zero turn mower moves from the ramps onto
the platform, for it changes angles abruptly.
6.9. When the Zero turn mower is loaded on the truck,
lower the mower deck onto the truck bed, stop the
engine, apply parking brakes, and withdraw the
starter key, chock the wheels, and rope it securely
to the truck. Refrain from unnecessary abrupt start-
ing, stopping, and turning during transportation, or
the Zero turn mower may shift position on the truck,
which is very dangerous.
7. WHEN FILLING WITH FUEL
DANGER : Fuel is highly flammable and a
explosive. Take the following precautions.
7.1. Do not add or drain fuel indoors, while smoking, or
near a source of flame.
7.2. Do not remove the fuel tank cap or add fuel to the
tank while the engine is running or hot. Wait until
the engine cools down sufficiently.
7.3. Do not completely fill the fuel tank.Add fuel to the
tank until the level inside the tank is just below the
bottom of the filler neck. The empty space allows
the fuel to expand.
7.4. If you spill fuel, clean it up and do not attempt to
start the engine until the vapour has dissipated.
7.5. When fuelling under certain circumstances, a static
charge may develop and ignite the fuel.
FIG. 8
ZERO TURN MOWER

17
7.6. Use only an approved fuel container to store fuel.
7.7. Do not store the front mower or the fuel container
near a source of open flame, such as a water
heater.
7.8. Replace all fuel tank and container caps securely.
7.9. To prevent personal injury and property damage do
the following:
-Always place fuel containers on the ground and
away from the vehicle before fuelling.
-Do not fill the fuel container(s) inside a vehicle or
on a truck or trailer bed.
-When practical remove a fuel-powered the front
mower from the truck or trailer and refuel it with
its wheels on the ground.
-If it is not practical to do this, refuel the front
mower on a truck or trailer from a portable con-
tainer, not fuel dispenser nozzle.
-If you must use a fuel dispenser nozzle, keep the
nozzle in contact with the rim of the fuel tank or
fuel container opening until you have completed
fuelling.
8. MOUNTING AND DISMOUNTING OF THE MOWER
DRIVE SHAFT
The mower gear box is driven through a drive shaft with
universal joints from the Zero turn mower. When connect-
ing or disconnecting the shaft, follow the next instructions.
8.1. Lower the mower deck onto the gournd, stop the
engine, draw the engine key, and apply the parking
brakes before mounting or dismounting the drive
shaft.
8.2. Shift the PTO switch to the OFF position (N).
8.3. Make sure that the PTO shaft and mower blades
stop completely.
8.4. The drive shaft should be mounted or dismounted
at the Zero turn mower side. Never leave the shaft
connected only at the Zero turn mower side. If the
PTO shaft be driven unexpectedly, the shaft will be
swung around and damage the Zero turn mower or
cause serious accidents.
9. ZERO TURN MOWER MAINTENANCE:
9.1. Never start the engine in a closed place. Exhaust
fumes contain poisonous carbon monoxide, so suf-
ficient ventilation should be provided when starting
the engine indoors.
9.2. Be sure to wear safety glasses and gloves when
servicing the Zero turn mower.
FIG. 9
CHAPTER 1. FOR SAFE OPERATION

18
9.3. When servicing the Zero turn mower or mounting or
dismounting the mower deck, place the Zero turn
mower on level, hard ground.
9.4. Service the Zero turn mower in a place sufficiently
illuminated, or darkness may cause unexpected
accidents.
9.5. Do not adjust or repair the Zero turn mower while
the engine is running.
9.6. When servicing the Zero turn mower or mounting or
dismounting the mower deck, stop the engine and
remove the key (if applicable) to prevent someone
from accidentally starting the engine and apply the
parking brakes.
9.7. The engine, muffler, radiator, etc. are very hot just
after operation, so wait until those heated parts cool
down sufficiently to avoid burns.

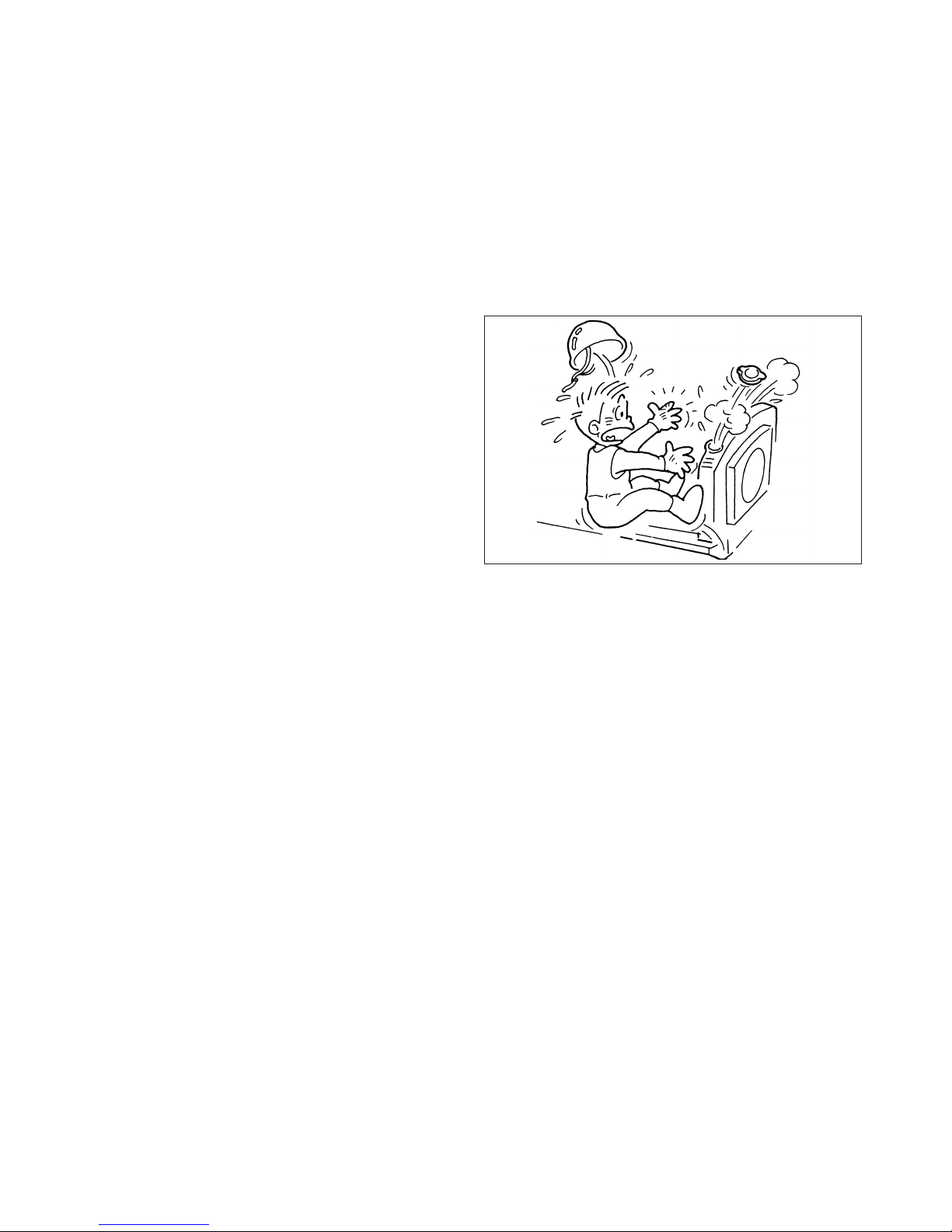

9.8. Never remove the radiator cap while the engine is
hot or running. Wait until the engine cools down and
then relieve the radiator pressure by releasing the
radiator cap. Carelessly pouring cooling water into
the heated radiator can cause serious damage to
the radiator and the engine. Careless removal of
the radiator cap can cause serious injury because
of superheated water vapor.
9.9. Before servicing the Zero turn mower, be sure to
turn off the PTO switch to the OFF position and
make sure that the mower blades have stopped
completely. Rotating blades may casue serious
accidents.
9.10. While adjusting the Zero turn mower, keep your fin-
gers away from all pinch points.
9.11. When servicing the Zero turn mower, use proper
tools. Using makeshift tools may lead to injuries or
poor service, which may result in unexpected acci-
dents during operation.
9.12. When removing a tyre, chock other tyres and sup-
port the Zero turn mower securely. When installing
tyres, be sure to tighten the wheel nuts to the speci-
fied torque. Loose nuts may cause serious acci-
dents.
9.13. The cutting means(s) are sharp and can cut you.
Wrap the cutting means(s) or wear leather gloves
when you service them.On the front mower with two
or more cutting means rotating one cutting means
may cause the other cutting means(s) to rotate.
9.14. Never step on the mower deck, or the mower deck
may be damaged or deformed, which may lead to
breakdown or accidents.
FIG. 10
ZERO TURN MOWER

19
9.15. A first aid kit and a fire extinguisher should be kept
in a place always in instant access.
9.16. On the front mowers with hydraulic devices
hydraulic fluid escaping under pressure can pene-
trate and seriously damage the skin, requiring
immediate medical assistance. Do not use your
hand to check for a hydraulic leak; use a piece of
cardboard. Be sure to consult your dealer about the
hydraulic and fuel injection system troubles.
9.17. If any hydraulic fluid is injected accidentally into the
skin, it must be removed within a few hours by a
doctor familiar with this type of injury.
9.18. Never allow grass or leaves to accumulate around
heated parts such as the engine and the muffler, or
this may cause a fire.
9.19. Replace any worn or damaged parts with the manu-
facturer's recommended parts.
9.20. To reduce the fire hazard, keep the engine, muffler
(silencer), battery area, and fuel storage area free
of debris.
9.21. If fuel has to be drained, this should be done out-
doors.
9.22. Check the brake(s) on the front mower frequently
and adjust and service the brake(s) as required.
9.23. Replace faulty mufflers (silencers).
9.24. Do not change the engine governor settings or
overspeed the engine. Operating an engine at an
excessive speed can increase the risk of personal
injury.
9.25. The grass catcher components are subject to wear
and damage, exposing you to moving parts or
thrown objects. Frequently check and replace them
with the manufacturer's recommended parts when
necessary.
9.26. Be sure to reinstall the removed parts in place.
Never attempt to start the engine with any parts
removed.
9.27. Never attempt unauthorized modification of the
Zero turn mower as this could be very hazardous.
Damaged or worn parts should be replaced with
ISEKI genuine spare parts. Unauthorized parts may
cause breakdown of the Zero turn mower, acci-
dents, and ISEKI warranty to expire.
9.28. Keep all fasteners tight, especially those that hold
the cutting means(s).
Parts code of blade Punched ID
SSM60 8654-306-006-10 I 8654 C
SSM72 8655-306-003-10 I 8655 C
CHAPTER 1. FOR SAFE OPERATION
