OPERATING MANUAL
Masterflex®Ismatec®
Multichannel Peristaltic
Pumps
MODEL NUMBERS
IPC 45 RPM
MFLX78006-22
MFLX78006-24
MFLX78006-26
MFLX78006-28
IPC 11.25 RPM
MFLX78006-42
MFLX78006-44
MFLX78006-46
MFLX78006-48
A-1299-5227
Edition 01
(US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739
(Outside US & Canada) 1-847-381-7050
www.avantorsciences.com/masterex • master[email protected]

ii Masterflex®Ismatec®Multichannel Peristaltic Pumpsii
© 2023 Masterex LLC. All rights reserved.
Masterex® and Ismatec® are a registered trademarks of Avantor, Inc.
Trademarks bearing the ®symbol in this publication are registered in the US and in other countries.
PUMP FOR LIQUIDS
ORIGINAL INSTRUCTIONS

iii Masterflex®Ismatec®Multichannel Peristaltic Pumpsiii
Table of Contents
SECTION 1: INTRODUCTION 11
Safe Operation 1-1
About the IPC Pumps 1-2
Package Contents 1-2
Features 1-2
Available Models 1-3
SECTION 2: BASIC SETUP & SETTINGS 21
Front & Rear of the Pump 2-1
Touchscreen Icons 2-2
Before Starting the Pump 2-3
Switching on the Pump 2-4
Settings 2-5
Language Settings 2-5
Setting the Time 2-5
Setting the Date 2-6
Display Brightness 2-6
Dispense Completion Alerts 2-6
Batch Completion Alerts 2-6
Analog Output 2-6
Device Information 2-7
Screen Saver 2-7
Device Name 2-7
Wi-Fi Settings 2-8
Ethernet Settings 2-8
User Management 2-9
Auto Start 2-11
EtherNet/IP 2-11
Tube Life Timer 2-12
Tubing 2-13
Color-Coded Two-Stop Tubing 2-13
Tubing Material 2-14
Barb Adapter Fitting 2-15
Tubing Part Numbers 2-15
Tube Splicing 2-18
Tube Loading 2-18
Priming the Pump 2-21
Tube Calibration 2-22
Tube Calibration Screen 2-22
SECTION 3: LOCAL OPERATION 31
Mode Selection Screen 3-1
Table of Contents

iv Masterflex®Ismatec®Multichannel Peristaltic Pumpsiv
Table of Contents
Continuous Mode 3-2
Continuous Mode Run Screen 3-2
Continuous Mode Operation 3-3
Saving Continuous Mode Settings as a New Program 3-4
Time Mode 3-5
Time Mode Run Screen 3-5
Time Flow Options Screen 3-6
Time Mode Operation 3-6
Saving Time Mode Settings as a New Program 3-8
Volume Mode 3-9
Volume Mode Run Screen 3-9
Volume Flow Options Screen 3-10
Volume Mode Operation 3-10
Saving Volume Mode Settings as a New Program 3-12
Pillow Volume 3-12
Anti-Drip 3-14
Volume Record 3-14
Custom Program Modes 3-16
Adding a New Program: Continuous Mode 3-16
Adding a New Program: Time Mode 3-16
Adding a New Program: Volume Mode 3-17
Adding a New Program: Analog Input Mode 3-19
Using Program Modes 3-20
Editing a Program 3-20
Deleting a Program 3-21
SECTION 4: REMOTE OPERATION 422
Analog Input Mode 4-22
Analog Input Mode Run Screen 4-22
Analog Input Operation 4-23
Saving Analog Input Mode Settings as a New Program 4-24
MasterexLive™ 4-24
EtherNet/IP Mode 4-25
EtherNet/IP Run Screen 4-25
EtherNet/IP Setup 4-26
Masterex EtherNet/IP 4-27
Serial Communications Mode 4-30
Serial Communication Ports 4-30
SerialComms Run Screen 4-30
Serial Communications Setup 4-31
Serial Communications Commands 4-31
Electrical Connections 4-34
DB-25 Connection 4-34
DB-9 Connection 4-35

vMasterflex®Ismatec®Multichannel Peristaltic Pumps
SECTION 5: SERVICE & MAINTENANCE 51
Firmware Updates 5-1
Restore Factory Settings 5-1
Cleaning the Pump 5-2
Accessories 5-2
Pump Accessories 5-2
Troubleshooting 5-3
Error Denitions 5-4
Specications 5-5
Technical Assistance 5-7
Product Return 5-7
Warranty 5-7
Disposal 5-7

1-1 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 1: Introduction
SECTION 1: INTRODUCTION
SAFE OPERATION
e IPC Masterex® Ismatec® Multichannel Peristaltic Pumps are designed for uid pumping and dispensing
applications in laboratory and process environments. Ensure that the pump is operated only in the manner
specied in this operating manual and that Good Laboratory Practice (GLP) and safe work practices are
followed. Misuse of the pump may compromise built-in safety protections and result in injury and/or damage to
equipment. Do not operate the pump with water on the surface of the touchscreen.
e following safety symbols are used in this documentation:
!CAUTION: Risk of Danger. Consult operating manual for nature of hazard and corrective actions.
CAUTION: Crushing risk. Consult operating manual for nature of hazard and corrective actions.
CAUTION: Hot Surface. Do not touch.
CAUTION: Risk of electric shock. Consult operating manual for nature of hazard and corrective
actions.
Please observe the following cautions and recommendations:
CAUTION: To avoid injury from the pump rollers, ensure all cassettes are loaded onto the pump
to cover the rollers before operation.
!CAUTION: Do not operate the pump in a way that exceeds the designed operating and environ-
mental conditions outlined in this operating manual.
!
CAUTION: e pump must not be used:
• As a medical device.
• In explosion proof chambers or in the presence of ammable gases or fumes.
CAUTION: e circuit between the mains power supply and the pump must be connected to
earth ground.
CAUTION: Turn the pump o before removing or installing cassettes and tubing. Fingers or
loose clothing could get caught in the pump rollers.
!CAUTION: Do not open or remove the housing while the pump is operating.
!CAUTION: Tubing can tear and burst during operation. It is the responsibility of the user to take
the necessary precautions to avoid injury or damage to equipment.
!
CAUTION: It is recommended that any repairs be performed only by an authorized technician.
If service and repairs are performed by the customer or by any third party company, Masterex
denies all responsibility.

1-2 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 1: Introduction
ABOUT THE IPC PUMPS
e Masterex® Ismatec® Multichannel Peristaltic Pumps oer precise ow control and highly accurate uid
dispensing ideal for laboratory, process, and eld use. All pumps include a highly accurate, maintenance-free
motor and an easy to navigate touchscreen that makes setup and operation easier than ever. e IPC pumps
feature Ethernet, Wi-Fi, DB-25, DB-9, and USB-A connections for remote control and monitoring through
the MasterexLive™ website (see www.avantorsciences.com/masterex), as well as analog input control, serial
communications, and EtherNet/IP network protocol.
Package Contents
NOTE: Please check the package and its contents for any visible signs of damage. If any damage is found
please contact Technical Assistance immediately (see "Technical Assistance" on page 5-7).
• Pump
• 24 VDC Desktop Power Supply Set
• Quick Start Guide
Features
• A 5-inch multi-language touchscreen display providing easy access to user-dened operation parameters
and direct readouts of pump operation data, including pump speed, ow rates, ow direction, and batch
totals
• Volume, Time, Continuous, and Analog Input modes for quick and easy operation
• User selectable dispense volumes, tube diameters, ow rates, pump speeds, and run times
• Anti-drip control
• Easy user management with three levels of access: ADMIN, SUPER USER and USER
• Advanced connectivity through Wi-Fi, Ethernet, DB-25, DB-9, and USB-A
• Easy pump priming and tube calibration
• IPC 45 RPM model pumps have a maximum speed of 45 RPM and ow rate capacities that range from
0.0016 mL/min to 45 mL/min (depending on the tube size). IPC 11.25 RPM model pumps have a
maximum speed of 11.25 RPM and ow rate capacities that range from 0.00039 mL/min to 11.25 mL/
min (depending on tube size)
• Takes Click’n’go tube cassettes for easy loading and unloading
• Multichannel pumping options ranging from eight to twenty-four channels (depending on the model)
allowing simultaneous uid channels on the same pump
Visit www.avantorsciences.com/masterex for further information.

1-3 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 1: Introduction
Available Models
Model Description RPM Range
(Min – Max) Channels Cassettes/Heads
MFLX78006-22 IPC 45 RPM 8CH
Click'n'go Pump 0.45 –45 8 Click‘n’go
MFLX78006-24 IPC 45 RPM 12CH
Click'n'go Pump 0.45 –45 12 Click‘n’go
MFLX78006-26 IPC 45 RPM 16CH
Click'n'go Pump 0.45 –45 16 Click’n’go
MFLX78006-28 IPC 45 RPM 24CH
Click'n'go Pump 0.45 –45 24 Click’n’go
MFLX78006-42 IPC 11.25 RPM 8CH
Click'n'go Pump 0.11 –11.25 8 Click‘n’go
MFLX78006-44 IPC 11.25 RPM 12CH
Click'n'go Pump 0.11 –11.25 12 Click‘n’go
MFLX78006-46 IPC 11.25 RPM 16CH
Click'n'go Pump 0.11 –11.25 16 Click’n’go
MFLX78006-48 IPC 11.25 RPM 24CH
Click'n'go Pump 0.11 –11.25 24 Click’n’go
NOTE: For additional cassette options see "Accessories" on page 5-2.

2-1 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings
SECTION 2: BASIC SETUP & SETTINGS
FRONT & REAR OF THE PUMP
Pump Head
Power Indicator Light
Click'n'go Cassettes
Cassette Release Levers
Touchscreen
Power Switch
Ethernet Port
USB-A Port
Power Cable Locking Barrel Connector
DB-9 Port
DB-25 Port

2-2 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings

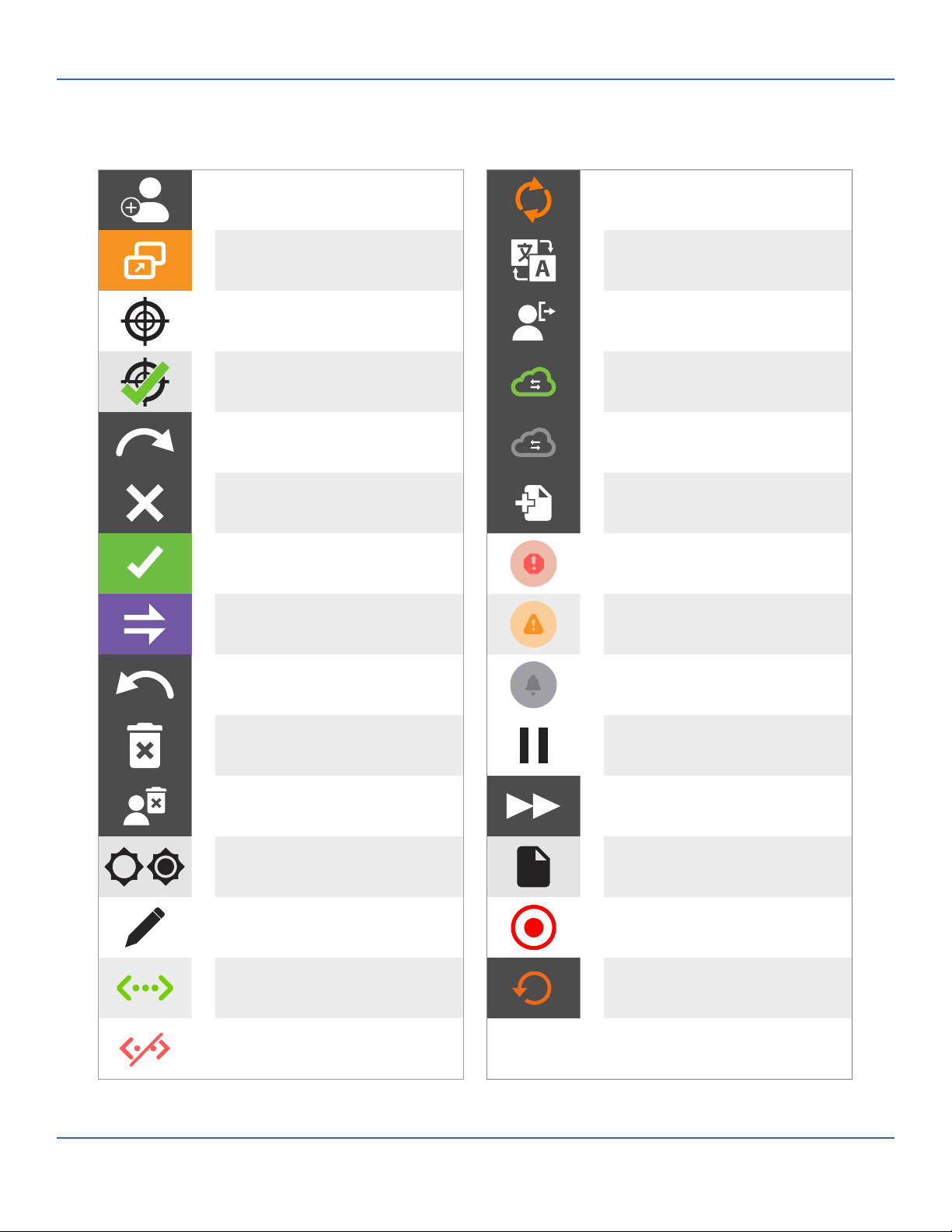

TOUCHSCREEN ICONS
Add New User Factory Reset
Analog Input Mode Language
Calibrate Logout
Calibration Complete MasterflexLive
Connected
Clockwise MasterflexLive
Not Connected
Close/Cancel New Program
Confirm Notification Alert
High Priority
Continuous Mode Notification Alert
Medium Priority
Counterclockwise Notification Alert
Low Priority
Delete Pause
Delete User Prime
Display Brightness Program
Edit Record Volume
EtherNet/IP Connected Reset
EtherNet/IP
Lost Connection

2-3 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings
Screen Lock Tube Life Timer
Scroll Down Tube Life Timer Expired
Scroll Up Update Available
Settings User
Start User Access Level
Stop Volume Mode
Time Mode Wi-Fi
BEFORE STARTING THE PUMP
CAUTION: To avoid injury from the pump rollers, ensure all cassettes are loaded onto the
pump to cover the rollers before operation.
!CAUTION: Do not block the rear panel of the pump. e power switch must always be
easy to access and the power supply must always be easy to disconnect.
CAUTION: Turn the pump o before removing or installing cassettes and tubing. Fingers
or loose clothing could get caught in the pump rollers.
!
CAUTION: e power supply provided with your pump meets the requirements of the
country where you purchased the pump. If you use the pump in another country, you must
use a power supply that meets the requirements of that country.
CAUTION: To avoid electrical shock, the power cord protective grounding conductor must
be connected to ground. Not for operation in wet locations as dened by EN61010-1.
• e cassettes cover the pump rollers. Ensure all cassettes are loaded into the pump channels before
operating the pump (NOTE: Cassettes can be loaded without tubing to ensure that all the pump rollers
are covered).
• Ensure the pump is mounted on a at surface.
• Ensure adequate air ow around the pump and ensure that the ambient air temperature does not exceed
104° F (40° C).

2-4 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings
• Tubing should be clean and routed so that bend radii are at a minimum of four (4) times the outside tube
diameter and are as short as possible.
• Use the appropriate tube diameter for the required ow rate and viscosity.
• Recalibrate tubing regularly to maintain the best ow rate accuracy (for further information see "Tube
Calibration" on page 2-22).
• For tubing selection and compatibility see "Tubing" on page 2-13 or visit www.avantorsciences.com/
masterex.
• Unplug the pump power cable from the mains power outlet when cleaning or performing maintenance
on the pump.
SWITCHING ON THE PUMP
1. Plug in and securely fasten the supplied 24 VDC desktop power supply to the power cable barrel
connector located at the rear of the pump.
2. Plug the opposite end of the power cable into a mains power outlet.
3. Switch the pump on using the power switch located at the rear of the pump. NOTE: e pump takes
approximately one to two minutes to complete start-up.
NOTE:
• On the initial start-up the Language Settings Screen will be displayed. A language must be selected before
pump operation (for further information see "Language Settings" on page 2-5).
• If User Management is enabled you will be prompted for a username and password (for further
information see "User Management" on page 2-9 ).
• Following the initial start-up, all subsequent start-ups will revert to the mode of operation screen
previously in use.
• After 30 minutes of inactivity the pump will enter sleep mode and the display will turn o. Tapping the
touchscreen will reactivate the screen. To enable (default) or disable the screen saver see "Screen Saver" on
page 2-7. NOTE: e power indicator light will remain on as long as power is connected to the pump.

2-5 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings
SETTINGS
e Settings Menu Screen allows access to basic conguration settings. e Settings Menu Screen is accessed by
tapping SETTINGS from any of the mode screens. NOTE: If User Management is enabled only users with
authorization can access the Settings Menu Screen (for further information see "User Management" on page 2-9).
Language Settings
e pump can display Chinese, English, French, German, Italian, Japanese, and Spanish languages. e
default display language is English.
To change the display language:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. Tap LANGUAGE.
3. Select the desired language from the available list.
4. Tap CONFIRM to save the new language selection.
Setting the Time
To change the time:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. Tap TIME.
3. Select either 12-HOUR or 24-HOUR time.
4. Tap HH to select hours and enter the desired time using the onscreen keypad.
5. Tap MM to select minutes and enter the desired time using the onscreen keypad.
6. If using 12-HOUR time, tap AM/PM to select either AM or PM.
7. Tap CONFIRM to save or CANCEL to discard changes.
The icon will change to green
when the pump is connected
to MasterflexLive™
Log out the current pump user (see
"User Management" on page 2-9).
NOTE: Log out will only be displayed if
User Management is enabled
Settings Menu
Update Available
EtherNet/IP
Connection Status
Scroll
Connectivity Status
User Logout
When the pump is connected to the
internet this icon indicates that an
update is available for installation (see
"Firmware Updates" on page 5-1)
The icon will change to green when
the pump has an active EtherNet/IP
connection (see "EtherNet/IP" on page
2-11)
Confirm

2-6 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings
Setting the Date
To change the date:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. Tap DATE.
3. Select the desired date format (either month/day/year or day/month/year).
4. Tap the desired MM, DD, or YYYY eld to select and then enter the date using the onscreen keypad.
5. Tap CONFIRM to save or CANCEL to discard changes.
Display Brightness
To adjust the display brightness:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. Use the DISPLAY BRIGHTNESS slider to adjust the touchscreen brightness to the desired level.
Dispense Completion Alerts
When Sound Dispense is enabled a short beep will sound at the completion of each pump dispense.
To enable or disable the dispense completion alert:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. Tap the SOUND DISPENSE toggle to select either ON or OFF.
Batch Completion Alerts
When Sound Batch is enabled a single long beep will sound at the completion of each batch cycle.
To enable or disable the batch cycle completion alert:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. Tap the SOUND BATCH toggle to select either ON or OFF.
Analog Output
e pump supports and controls analog output through the 25-pin connection on the rear of the pump (for
further information see "DB-25 Connection" on page 4-34).
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. Tap ANALOG OUTPUT. e Analog Output Screen will be displayed.
3. Tap to select the desired analog output type from the available list.
4. If using either ANALOG: VOLTAGE or ANALOG: CURRENT:
a. Tap EDIT . e Analog: Voltage Edit Screen or Analog: Current Edit Screen will be displayed.
b. Select the desired current or voltage operating range from the available list.
c. Tap CONFIRM to save or CANCEL to discard changes. e Analog Output Screen will be
displayed.
5. Tap CONFIRM .

2-7 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings
Device Information
e Device Information Screen provides details such as pump model, serial number, device ID, MAC
address, IP address, software version, and rmware version. Factory reset and updates are also accessed from
the Device Information Screen.
To access the Device Information Screen:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages and tap DEVICE INFORMATION. e Device
Information Screen will be displayed.
See also "Firmware Updates" on page 5-1, and "Restore Factory Settings" on page 5-1.
Screen Saver
e pump has a screen saver to help extend the display life of the touchscreen. After 30 minutes of inactivity
the pump will enter sleep mode and the display will turn o. Tapping the touchscreen will reactivate the screen.
NOTE: e power indicator light will remain on as long as power is connected to the pump.
To enable or disable the screen saver:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages to locate SCREEN SAVER.
3. Tap the SCREEN SAVER toggle to select either ON or OFF.
Device Name
Individual names can be assigned to each pump to make identication easier when using more than one
pump.
To assign a pump name:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages and tap DEVICE NAME. e Device Name
Screen will be displayed.
3. Enter the desired pump name using the onscreen keypad (up to 8 characters).
4. Tap SAVE to save name or CANCEL to discard changes.

2-8 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings
Wi-Fi Settings
e pump can connect to a network using Wi-Fi and Ethernet connections.
NOTE:
• e Ethernet connection will take priority if both Wi-Fi and Ethernet are used simultaneously.
• e pump supports WEP, WPA, WPA2, and None (open) Wi-Fi security protocols.
To select a Wi-Fi network:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages and tap WIFI SETTINGS. e Wi-Fi Settings
Screen will be displayed.
3. If required, tap the WIFI toggle to select either ON or OFF.
4. Tap the desired Wi-Fi network from the available list.
5. If required, enter the network password using the onscreen keypad.
6. Tap CONNECT to join the network or CANCEL to cancel.
7. Tap CONFIRM to return to the Settings Menu Screen.
To remove a Wi-Fi network:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages and tap WIFI SETTINGS. e WIFI Settings
Screen will be displayed.
3. Locate the desired Wi-Fi network and tap REMOVE WIFI .
4. Tap REMOVE to remove the network or CANCEL to discard changes.
5. Tap CONFIRM to return to the Settings Menu Screen.
Ethernet Settings
e pump can connect to a network using Wi-Fi and Ethernet connections.
NOTE:
• Conrm that the Ethernet cable is securely attached to the Ethernet port at the rear of the pump.
• e Ethernet connection will take priority if both Wi-Fi and Ethernet are used simultaneously.
To congure Ethernet settings:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages and tap ETHERNET SETTINGS. e Ethernet
Settings Screen will be displayed.
3. Tap DHCP to automatically congure IP settings or STATIC to manually edit settings using the onscreen
keypad.
4. Tap CONFIRM to save or CANCEL to discard changes.

2-9 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings
User Management
e pump allows user access to be controlled using congurable permission levels.
Default permissions:
• USER: Able to use basic pump functions and run programs.
• SUPER USER: Same level of access as USER but with the ability to create and modify programs.
• ADMIN: Full administrative access to the pump.
User and Super User permission levels can be congured to allow access to dierent Settings Menu items.
Default ADMIN username and password:
When switching on User Management for the rst time, or following a factory reset, you will be prompted
for a username and password. You must log in using the below default ADMIN user account details to access
user management settings.
Default username: admin
Default password: 123456
It is recommended that the default password be changed after logging in (see Editing an existing user below
for information on changing user passwords). NOTE: Performing a factory reset will restore the default
password and remove all user settings and programs (See "Restore Factory Settings" on page 5-1).
Enabling user management:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages to locate USER MANAGEMENT.
3. Tap the USER MANAGEMENT toggle to select ON.
4. Tap APPLY to enable User Management or DISMISS to cancel. If enabling User Management, the Login
Screen will be displayed.
5. Enter your USERNAME and PASSWORD using the onscreen keypad. NOTE: If enabling User
Management for the rst time, use the default ADMIN username and password (see above).
Conguring user level permissions:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages to locate MODIFY USER.
3. Tap MODIFY USER.
4. Tap ACCESS LEVELS.
5. Tap USER or SUPERUSER.
6. Select the desired settings menu items to be included in the user level.
7. Tap CONFIRM to save or CANCEL to discard any changes.

2-10 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings
Adding a new user:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages to locate MODIFY USER.
3. Tap MODIFY USER.
4. Tap NEW USER .
5. Tap USERNAME and enter the new username using the onscreen keypad.
6. Tap PASSWORD and enter the desired password using the onscreen keypad. NOTE: e password must
be at least six characters long.
7. Tap the required PERMISSION LEVEL. NOTE: ere must always be at least one ADMIN user.
8. Tap CONFIRM to save or CANCEL to discard any changes.
Deleting a user:
NOTE: ere must always be at least one ADMIN user. ADMIN users cannot delete their own user prole.
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages to locate USER MANAGEMENT.
3. Tap MODIFY USER.
4. Locate the desired username from the available list and then tap the DELETE USER icon located
next to the username.
5. Tap DELETE to delete user or CANCEL to cancel.
Editing an existing user:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages to locate USER MANAGEMENT.
3. Tap MODIFY USER.
4. Select the desired username.
5. Edit as required.
6. Tap CONFIRM to save or CANCEL to discard any changes.
Logging out the current user:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. Tap LOGOUT (located in the bottom right corner of the screen).
3. Tap LOGOUT on the popup window to conrm.
NOTE: After logging out, you will be prompted to log in again as a new user.

2-11 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings
Auto Start
e pump has an auto start feature that will allow the pump to resume operation when power is restored after a
power outage.
To enable auto start:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages to locate AUTO START.
3. Tap the AUTO START toggle to select either ON or OFF.
4. Tap CONFIRM to save or CANCEL to discard any changes.
EtherNet/IP
e pump can be remotely monitored and controlled using EtherNet/IP network protocol (see "EtherNet/IP
Mode" on page 4-25). NOTE: e pump can be set to stop the pump if the EtherNet/IP connection is lost
during operation (see below).
To enable EtherNet/IP:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages and tap EtherNet/IP. e EtherNet/IP Screen will
be displayed.
3. Tap the ENABLE toggle to select either ON or OFF.
4. Tap ACCEPT or CANCEL on the popup window.
5. Tap CONFIRM to save or CANCEL to discard any changes.
To enable the pump stop feature for EtherNet/IP disconnection:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages and tap EtherNet/IP. e EtherNet/IP Screen will
be displayed.
3. Tap the STOP PUMP WHEN EtherNet/IP IS DISCONNECTED toggle to select either ON or OFF.
4. Tap CONFIRM to save or CANCEL to discard any changes.

2-12 Masterflex®Ismatec®Multichannel Peristaltic Pumps
Section 2: Basic Setup & Settings
Tube Life Timer
e pump features a Tube Life Timer that enables tube usage to be tracked during operation. When enabled,
the Tube Life Timer counts down from the entered time (in hours) and, if required, can be set to stop the
pump operation when the timer nishes. NOTE: e Tube Life Timer is used as a guide only. Tube life can
vary based on several factors, including tubing formulation, frequency of use, uid viscosity, and speed.
NOTE: Tube Life Timer settings are also accessible by tapping TUBE LIFE TIMER on the Mode Run
Screens.
To congure the tube life timer:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages and tap TUBE LIFE TIMER. e Tube Life Timer
Screen will be displayed.
3. Tap the TIMER ENABLE toggle to select either ON or OFF.
4. Tap DISMISS on the popup.
5. Enter the tube life time in hours and then tap CONFIRM to save or CANCEL to discard any
changes.
6. Tap CONFIRM to save.
To enable pump shuto functionality on tube life timer expiration:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages and tap TUBE LIFE TIMER. e Tube Life Timer
Screen will be displayed.
3. Tap the SHUT OFF PUMP WHEN TIMER EXPIRES toggle to select either ON or OFF.
4. Tap CONFIRM to save.
To reset the tube life timer:
1. Tap SETTINGS from any of the mode screens. e Settings Menu Screen will be displayed.
2. SCROLL through the Settings Menu Screen pages and tap TUBE LIFE TIMER. e Tube Life Timer
Screen will be displayed.
3. Tap RESET and then tap CONFIRM in the popup.
4. Tap CONFIRM to save.
