1. Copyright and Disclaimer
Shenzhen iStartek Technology Co., Ltd. All rights reserved Copyright © 2021 iStartek.
iStartek and are registered trademarks of Shenzhen iStartek Technology Co., Ltd.
This manual cannot be copied for any purpose, disseminated in any way without the written authorization of
iStartek.
iStartek shall not be liable for direct, indirect or all losses (including but not limited to economic losses, personal
injuries, property and assets) caused by the use or inappropriate use of the product or documents.
2. Product Description
VT100-L is a 4G based vehicle GPS Tracker with built-in high-precision, GPS+BDS dual-mode positioning module;
It integrates functions of driving behavior monitoring, remote fuel cut, low power alarm, external power
disconnect alarm, various abnormal alarms, electronic geo-fences etc., and uploads information to the platform to
create comprehensive supervision and security for vehicle driving. By its ultra mini size, it is easier to install and
hide, which is suitable for the automotive risk control industry, vehicle supervision, anti-theft and shared travel
industries.
VT100-L has a built-in 16Mb Flash memory. When the device enters a place without network, it will automatically
save the historical positioning data. When the network returns to normal, it will automatically resend the historical
positioning data to the tracking platform.
3. Product Function
GPS+BDS dual mode positioning
Real-time tracking
Track by time interval
Track by distance
SMS Alarm
SOS Alarm
External power disconnection alarm
Low battery alarm
Engine and door status change alarm
Support dual servers
Geo-fence alarm
Speeding alarm
GPS signal loss alarm
Harsh acceleration alarm
Harsh deceleration alarm
Harsh turning alarm

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
4of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
Impact alarm
Vibration (towing) alarm
Idling alarm
Fatigue driving alarm
Mileage report
Heading change report
16 Mb Flash
FOTA upgrade
Set ACC ON, ACC OFF time interval
Remote control fuel/electricity
Buzzer alarm (optional)
Fuel sensor (optional)
Fuel theft alarm (optional)
Low fuel alarm (optional)
4. Product Specification
Item
Specification
Size
80*34*15mm
Weight
Around 48g
Input voltage
DC 9 - 100V/1.5A
Waterproof level
IP66
Inbuilt Battery
55mAh
MCU
Cortex-M4，AT32F415CBT7
Average standby power
consumption
51mA/h
Operating temperature
-20~80℃
Battery operating hours
30min
LTE/WCDMA/GSM Bands
Cat-1(A7670），4G LTE，SIMCOM
VT100-L CN：
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
GSM: 900/1800MHz
Standard version I/O: DCIN+GND+OUT1+IN2+SOS+MIC (8-wire)
VT100-L EU：
LTE-FDD: B1/B3/B5/B7/B8/B20
GSM: 900/1800MHz
Standard version I/O: DCIN+GND+OUT1+IN2+SOS+MIC (8-wire)
VT100-L SA：
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
5of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
GSM: 850/900/1800/1900MHz
Standard version I/O: DCIN+GND+OUT1+IN2+SOS+MIC (8-wire)
Cat-M/Cat-NB/GSM(SIM7070G)，SIMCOM
VT100-L MNG：
Cat-M:
B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
Cat-NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/
B66/B71/B85
GSM: 850/900/1800/1900MHz
Standard version I/O: DCIN+GND+OUT1+IN2+SOS (6-wire)
Cat-1(SIM7500），4G LTE，SIMCOM
VT100-L NA-7500：
LTE-FDD: B2/B4/B12
WCDMA: B2/B5
Standard version I/O: DCIN+GND+OUT1+IN2+SOS (6-wire)
VT100-L SA-7500:
LTE-FDD: B1/B3/B5/B7/B8/B28
WCDMA: B1/B5
Standard version I/O: DCIN+GND+OUT1+IN2+SOS (6-wire)
VT100-L GL
LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/ B20/B25/B26/B27/B2
8/B31/B39/B66/B71/B85
GSM/GPRS/EDGE 900/1800MHz
GPS Module
L76K（GPS+BDS）dual mode positioning
GPS Sensitivity
-165dB
Positioning accuracy
2.5 meters
LED Indicator
2 LED lights indicate GPS/GSM status. 1 each of blue and green LED indicators,
built-in indicators, visible from the outside through light
GSM antenna
Inbuilt FPC
GPS antenna
Built-in ceramic antenna（25 X 25 X 4mm）
Flash
16M bit
Sensor
3D accelerometer
Switch
Plug and unplug the SIM card to automatically turn on and turn off the device
SIM Card
Nano SIM card
I/O
2 Digital inputs（Can be configured by software for high and low level trigger,
Analog input. IN2 is set to ACC detection by default）
1 Output
1 Micro USB

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
6of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
1 Microphone（Only available for VT100-L LCN/LEU/LSA version）
1 RS32/TTL（Customizable）
Customized version:
DICIN+GND+OUT1+IN2+SOS+RS232 （Customizable, MOQ500pcs）
DICIN+GND+OUT1+IN2+MIC+RS232 （Customizable, MOQ500pcs）
DICIN+GND+OUT1+IN2+IN1+MIC+RS232（Can only receive
data） （Customizable, MOQ500pcs）
5. Products and accessories
5.1 Standard accessories
Main Unit with 8 Wires Main Unit with 6 Wires Power Cable
5.2 Optional accessories
12V/24V Relay USB Cable Buzzer

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
7of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
Microphone SOS Button Ultrasonic Fuel Sensor
Capactive Fuel Sensor Speed Limiter
5.3 Customizable accessories
RFID Reader RFID Tag OBD Decoder Magnetic Card Reader

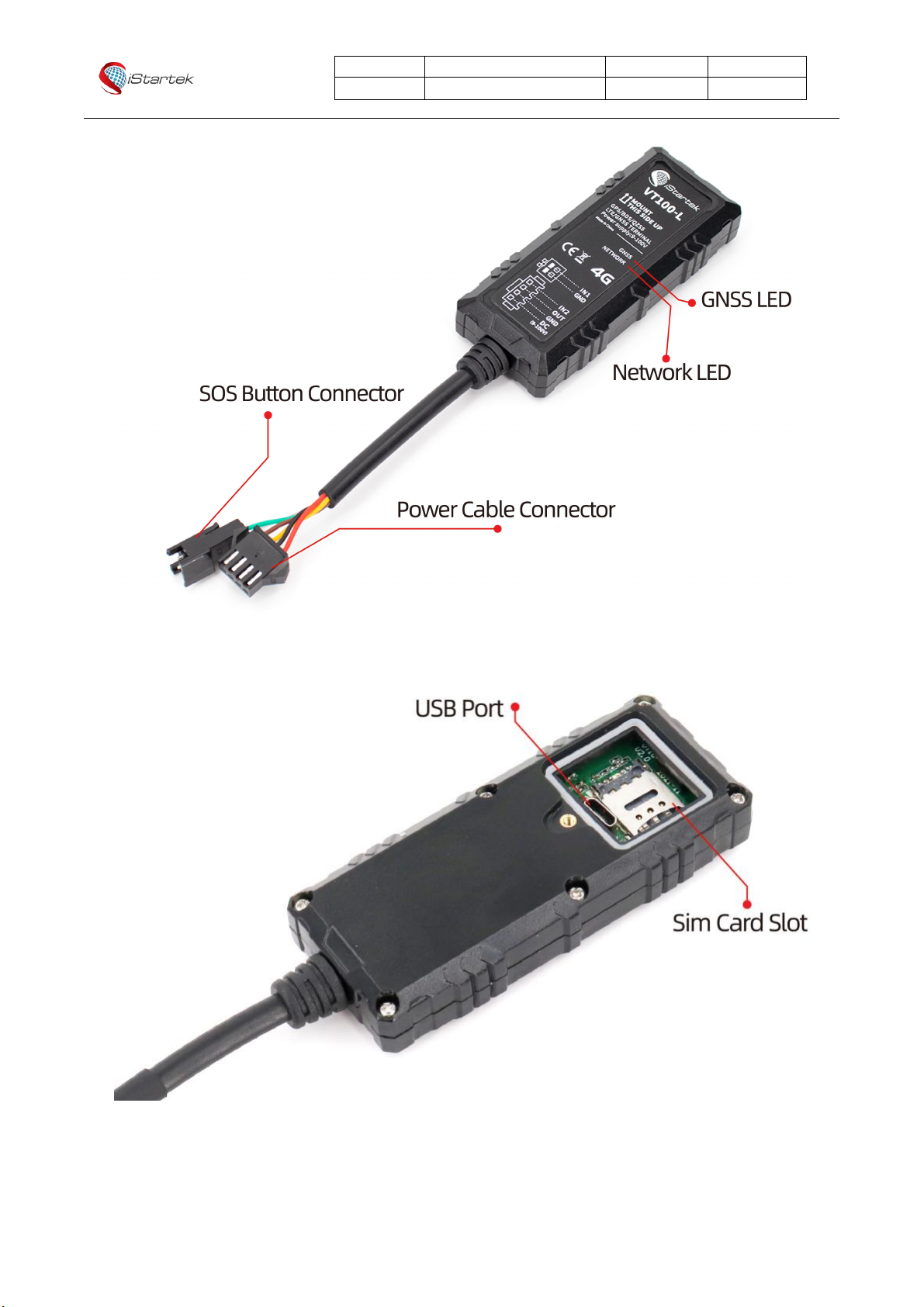

6. Product Appearance
Front view of 8-wire device

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
8of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
Front view of 6-wire device
Back image

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
9of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
7. Product Operation
7.1 Recharge
When using VT100-L for the first time, please connect the tracker's red wire (positive) and black (ground wire) to a
12V or 24V power supply and charge for at least 2 hours to ensure sufficient power. After configuration and
testing are completed, install it on the vehicle.
7.2 Install SIM card
The device supports 4G SIM card;
Please make sure that the SIM card has sufficient balance, the GPRS function has been activated and the correct
APN of the SIM card has been confirmed;
Please make sure that the PIN lock function of the SIM card is turned off;
If you need to use the function: Call to reply location, please make sure that the SIM card has the caller ID display
function;
Please make sure the device is turned off before installing SIM.
A. Remove the back cover;
B. Install the SIM card in the correct direction.
7.3 Turn on Device
Switch ON device or connect to external power supply, VT100-L will start up and run.
LED lights indicate operating conditions:
GPS Indicator (Blue)
OFF
Power OFF or in sleep mode
Flash (every 0.1 sec)
GPS module is starting or restarting
Fast Flash (0.1 sec ON, 2.9 sec OFF)
GPS signal received
Slow Flash (1sec ON, 2 Sec OFF)
No GPS signal
GSM Indicator (Green)
ON
There is an incoming call or is in a call
OFF
Device is OFF or in sleep mode
Fast Flash (every 0.1 sec)
GSM module is starting or restarting
Fast Flash(0.1 sec ON, 2.9 sec OFF)
GSM signal received
Slow Flash (1sec ON, 2 Sec OFF)
No GSM signal
7.4 Track by SMS
Send SMS command to VT100-L:
0000,800
You will receive a text message with a link to Google maps. Click to open the link to display the current location on
Google maps.

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
10 of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
Please refer to "iStartek GPS Tracker Communication Protocol V1.4" for the description of SMS content and
more SMS commands
7.5 Parameter configuration
Download and install the USB driver《PL2303_Prolific_Driver》.
After the device is turned on, connect the VT100-L to the computer via iStartek USB cable, run the "iStartek
Parameter Editor_V1.6" configuration software and open the port to enter the parameter configuration state.
For more parameter configuration, please refer to "iStartek Parameter Editor User Manual V1.5".
7.6 Track by GPS Tracking Platform
1. You can set the server IP, Port, and APN parameters through SMS commands 100, 102, and 109, and you can
also use the iStartek Parameter Editor software to configure related parameters.
2. Use SMS command 808 to query the parameters of commands 100, 101, 102, 105, 106, and 109. You can also
use iStartek Parameter Editor to configure related parameters.

File Name VT100-L User Manual Ver. 1.0
Update 2022-02-28 Page 11 of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
For more SMS command functions and parameter configuration, please refer to "iStartek GPS tracker
Communication Protocol V1.3" and "iStartek Parameter Editor User Manual V1.5".
8. Product Installation

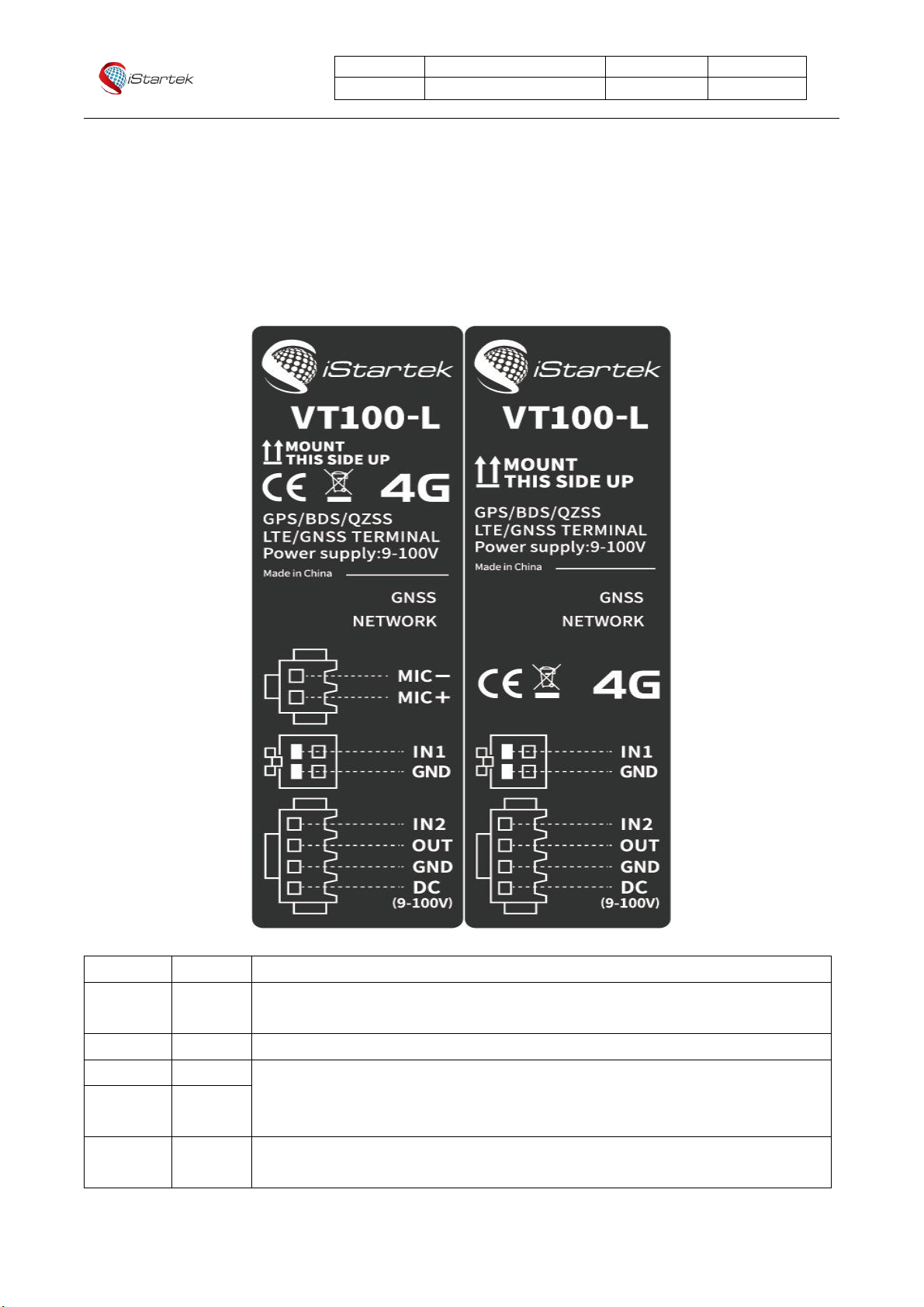

8.1 Power Cable Function Introduction
PIN Color Function
DC Red DC In (power input), connect to the positive pole of the car battery. Input voltage:
9V~100V
GND Black GND, connect to the negative pole of the car battery, or to the iron place on the car.
IN1 White
GN
Digital input 1, default is negative trigger. Can config by software to set positive and
negative trigger, AD1 input (0-6.6/13.2V)
Connected to the SOS button defaultly
DGreen
IN2 Orange Digital input 2, default is positive trigger. Can config by software to set positive and
negative trigger, AD2 input (0-36V).

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
12 of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
Used for ACC detection.
OUT
Yellow
Open-drain output, drive capacity greater than 500MA, withstand voltage 100V;
An external relay can be connected to remotely cut off the car's fuel/engine power
supply, etc.
Mic+
Brown
External Microphone, used for listening.
Mic-
Blue
8.2 Device Installation

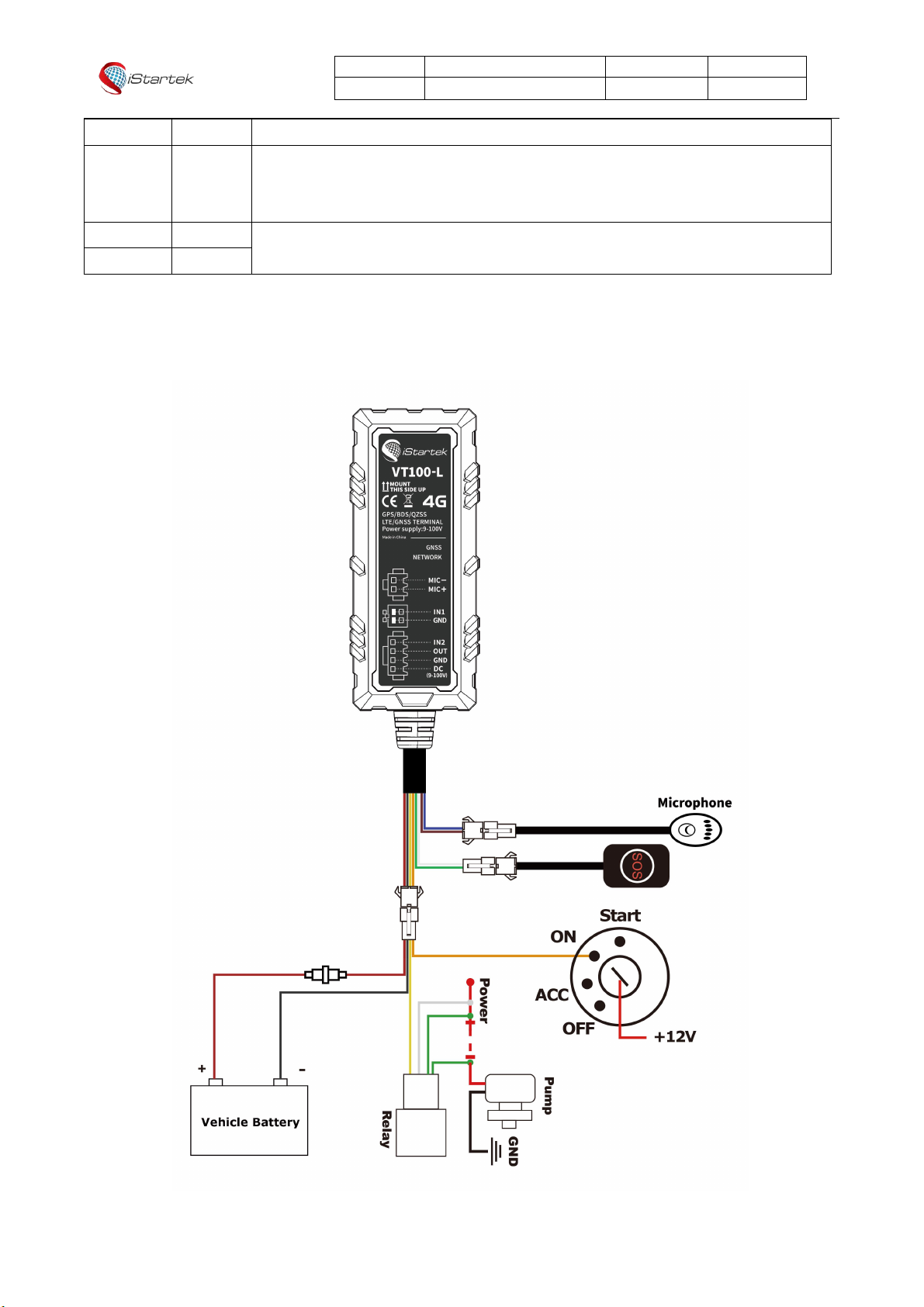

①．8-wire standard version of VT100-L wire connection：

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
13 of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
②．6-wire standard version of VT100-L wire connection：
8.3 Analog Input Installation

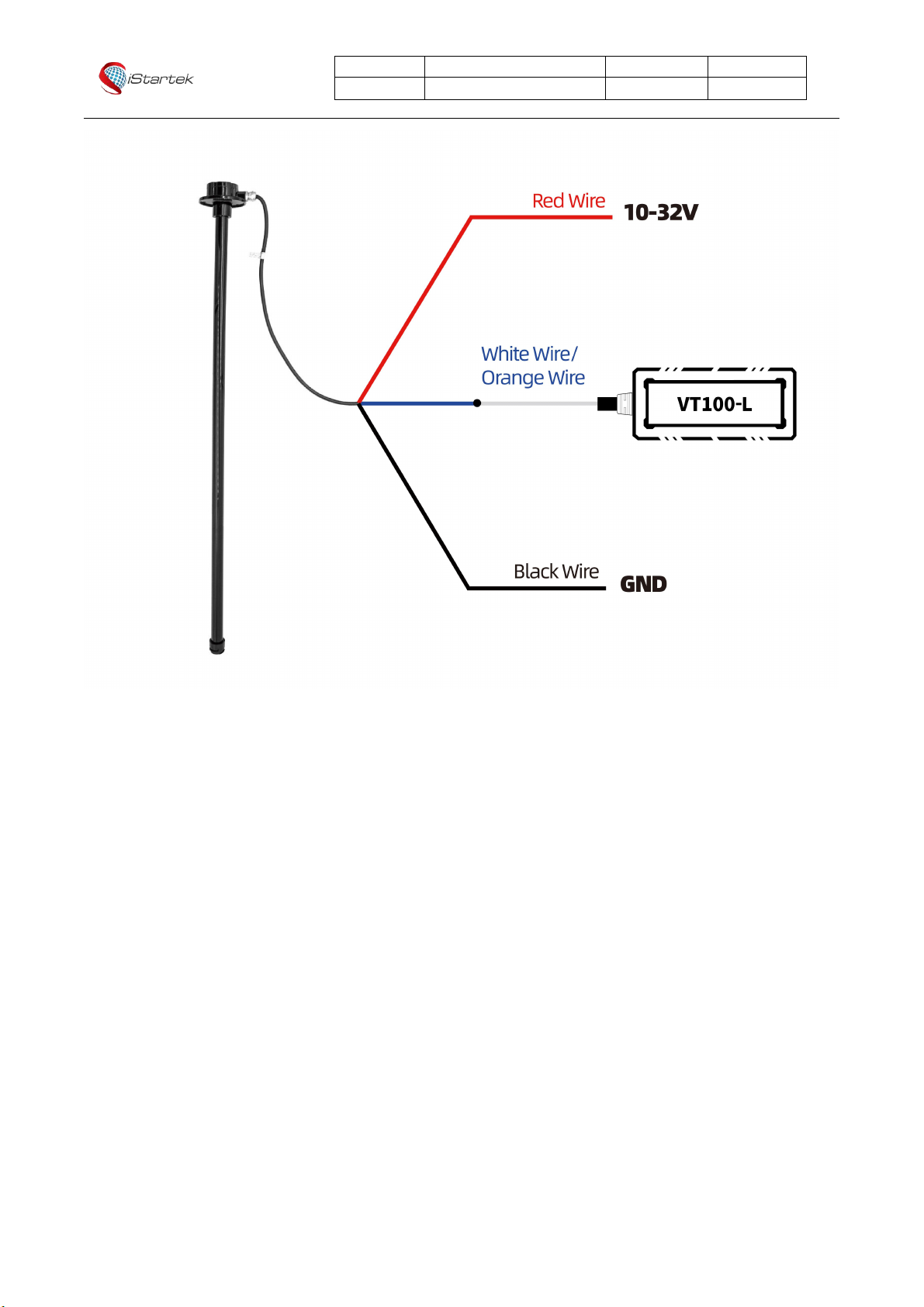

The range of analog input AD1 and AD2 is 0-6.6V. Need to configure IN1 (white wire) or IN2 (orange wire) as AD
INPUT, up to two fuel sensors (voltage output type sensors) can be connected, the wiring connection is as follows

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
14 of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
After connected wires, can set the size of the fuel tank (length, width, height), data source (AD1/AD2), sensor type
(capacitive fuel sensor or ultrasonic fuel sensor), liters of fuel stolen, fuel stolen time, low fuel alarm by Parameter
Editor.

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
15 of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
For example, as above parameters setting, if the fuel tank connected to AD1 decreases more than 20 liters within
60 seconds, an fuel theft alarm will be generated; and if the fuel volume is less than 10 liters, a low fuel alarm will
be generated.
Example: The fuel tank height is 100cm and full fuel is 50 liters, GPRS data as below:
&&A147,021104023195429,000,0,,180106093046,A,22.646430,114.065730,8,0.9,54,86,76,326781,460|0|27B3|0EA
7,27,0000000F,02,01,04E2|018C|01C8 |0000,1,0104B0,01013D|02813546\r\n
AD1 voltage is 0x01C8 (hexadecimal)=456 (decimal), AD1=456/100 (fixed value)=4.56V;
AD2 voltage is 0x0000=0,AD2=0/100=0V;
Example: Connect the GPS Tracker analog input to capactive fuel sensor, the yellow-green wire of the sensor are
connected to the white wires (AD) of the VT100-L.
When the fuel is empty, the sensor output voltage is 0V, when the fuel is full, the sensor output voltage is 5V
Calculate the percentage of remaining fuel:
Fuel percentage=(AD/5)*100%=(4.56/5)*100%=91.2%.
Calculate the remaining fuel in liters:
The remaining fuel in liters = (AD/5) * 50 liters = 45.6 liters

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
16 of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
8.4 Ultrasonic Fuel Sensor Installation
8.4.1 Connect ultrasonic fuel sensor to VT100-L AD
Take the analog input of VT100-L connected to the fuel sensor as an example, the green wire of the sensor is
connected to the IN1 white wire of VT100-L (Need to configure IN1 as AD1 by parameter editor) or the IN2 orange
wire (Need to configure IN2 as AD2 by parameter editor)
① The height measurement range of the ultrasonic fuel sensor is 0~100cm (0-250cm optional) , and the
corresponding voltage output range is 0~5V.
If the height of the fuel tank is H0cm and the fuel tank is full of F liters, the fuel sensor output voltage is V=H0/50
when the fuel is full.
Calculate the remaining fuel volume:
Percentage of fuel = (AD/V)*100%
The fuel volume height is: H=(AD/5)*100cm
The remaining liters of fuel volume = (AD/V)*F liters
② he height measurement range of the ultrasonic fuel sensor is 0~250cm , and the corresponding voltage output
range is 0~5V.
Example: When the fuel is empty, the sensor output voltage is 0V. With a fuel tank height of 250cm as the
standard, then fuel sensor output voltage is 5V when fuel is full.
If the height of the fuel tank is H0cm and the fuel tank is full of F liters, the fuel sensor output voltage is V=H0/50
when the fuel is full.
Calculate the remaining fuel volume:
Percentage of fuel = (AD/V)*100%
The fuel volume height is: H=(AD/5)*250cm
The remaining liters of fuel volume = (AD/V)*F liters

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
17 of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
Example: The range of ultrasonic fuel sensor is 0-100cm, the height of the fuel tank is 100cm, and full oil is 50
liters:
&&A147,021104023195429,000,0,,180106093046,A,22.646430,114.065730,8,0.9,54,86,76,326781,460|0|27B3|0EA
7,27,0000000F,02,01,04E2|018C|00BA|0000,1,0104B0, 46\r\n
The voltage value of the AD1 is 0x00BA (hexadecimal)=186 (decimal), AD1=186/100 (fixed value)=1.86V;
The voltage value of AD2 is 0x0000=0, AD2=0/100=0V;
The output voltage when the fuel is full = H0/50=100/50=2V
Percentage of remaining fuel=(AD1/2)*100%=(1.86/2)*100%=93%
Height of remaining fuel volume:H=(AD1/5)*250cm=(1.86/5)*250cm =93 cm
The remaining fuel volume in liters = (AD1/2) * 50 liters = 45.6 liters

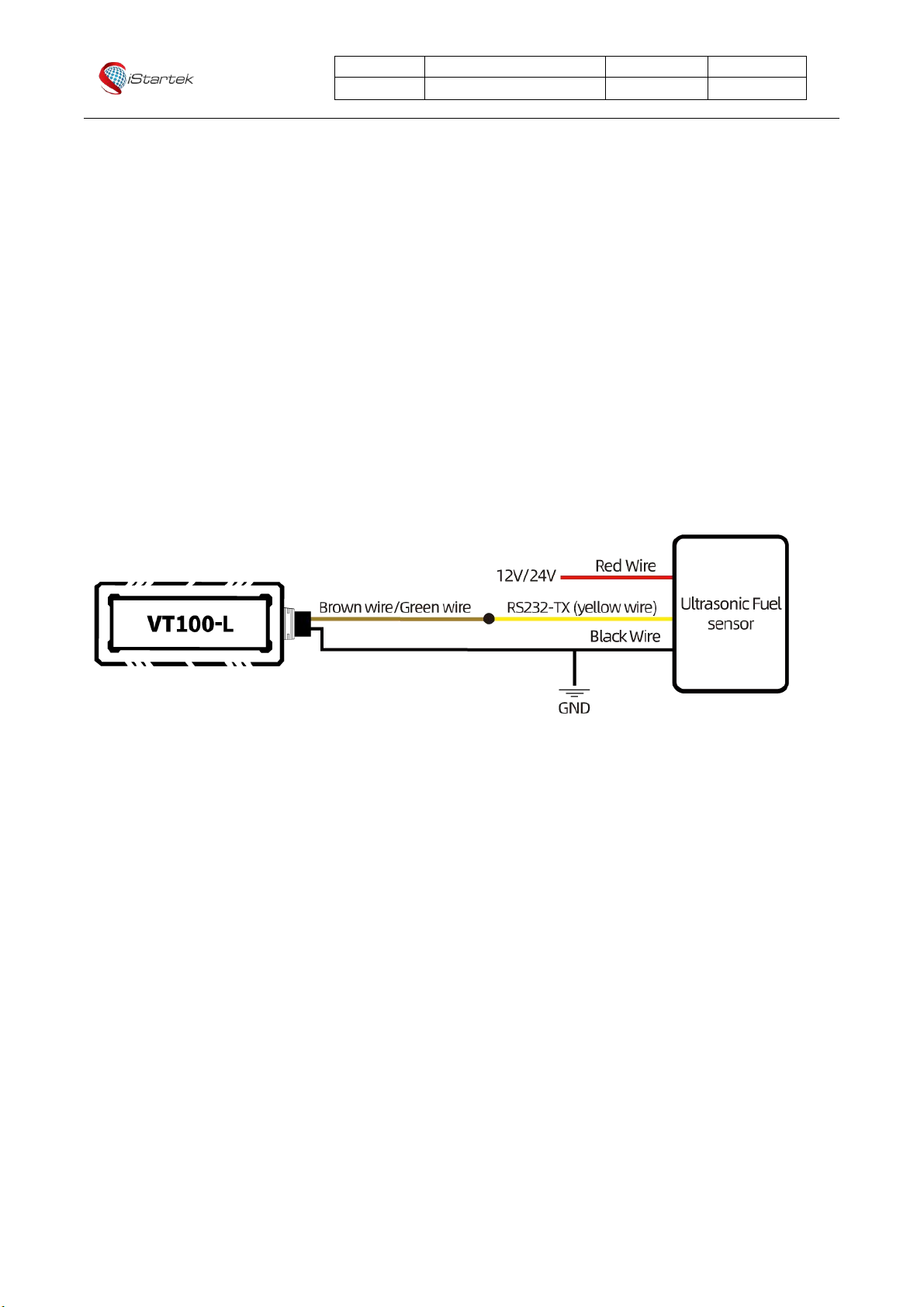

8.4.2 Connect ultrasonic fuel sensor to VT100-L RS232
Note: need hardware customization, the software version is only supported in V113 standard version and above
After connecting the wires and powering on, set the parameters:
8.4.2.1 Set parameters through parameter configuration software or SMS commands:
①. Configration by Parameter Editor:
Select "Ultrasonic Sensorr" and set the data source of the fuel tank (select RS232-1/2), the sensor type is ultrasonic
fuel sensor (Ultrasonic(100cm)/(250cm)), the size of the fuel tank (length, width, height) these parameters, then
the tracker can obtain the remaining oil value

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
18 of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
② Configration by SMS command:
Set by SMS command 138, 139, 142, 252
Send SMS commands according to the parameters set in the above figure,
Set fuel tank parameters, can send commands: 0000, 138, 1, 180, 180, 200
1 is the serial number of the fuel tank, the length of the fuel tank is 180mm, the width is 180mm, and the height is
200mm.
Set the fuel sensor type, you can send the command: 0000,139,1,3,Right Tank
"1" is the serial number of the fuel tank, "3" is the ultrasonic fuel sensor 250cm, and Right Tank is the name of the
fuel tank.
Set the data source of the fuel tank, can send 0000,142,1,2
Set the data source of the 1# fuel tank to be RS232-1
Set serial port to connect with external device, send: 0000,252,1,4
Set 1# RS232 Ultrasonic fuel sensor
8.4.2.2 Set the baud rate of the ultrasonic fuel sensor
After opening the APP of the ultrasonic fuel sensor and connecting the Bluetooth, click "Settings", then enter the
password "52381", click "Read" first - modify the baud rate as "115200" - click "Modify" - power off and restart
ultrasonic fuel sensor.

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
19 of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
If the remaining fuel volume read by the tracker is L0 liters, the full fuel is F liters, and the fuel tank height is Hcm,
the percentage and height of remaining fuel volume can be calculated:
Percentage of remaining fuel = (L0/F)*100%
The height of remaining oil is: H0= (L0/F)*H
Take the fuel tank height of 200cm and full fuel of 60 liters as an example of GPRS data:
&&k147,860262050015374,000,0,,210814070734,A,22.678986,114.046146,12,0.9,0,279,13,65,460|1|2609|061E278
3,31,0000003F,00,00,049 ,01001F,,D6\r\n
01001F: 01# fuel tank; 0x001F, the decimal value is 31, and the remaining fuel volume is 31/10=3.1 liters
Percentage of remaining oil = (L0/F)*100% =(3.1/60)*100%=5.17%
Height of remaining oil volume: H0= (L0/F)*H=(3.1/60)*200cm =10.4 cm
8.4.2 Set fuel theft alarm and low fuel alarm
After connected wires, can set the size of the fuel tank (length, width, height), sensor type (capacitive fuel sensor
or ultrasonic fuel sensor), fuel theft time, low fuel alarm by Parameter Editor.
1) Configuration by Parameter Editor: Set the fuel tank name to Right Tank; The data source of the fuel tank is
AD1, Fuel tank type is ultrasonic fuel sensor; Fuel tank size, 1000mm in length, 500mm in width, and 1000mm
in height; Set the fuel theft alarm to active when the fuel reduction exceeds 20 liters within 60 seconds; Set
low fuel alarm to active when the fuel volume is less than 10 liters.

File Name
VT100-L User Manual
Ver.
1.0
Update
2022-02-28
Page
20 of 23
Copyright Notice ©Shenzhen iStartek Technology Co., Ltd. All rights reserved
2) Configuration by SMS Command: Set fuel tank parameters through SMS commands 138, 139, 140, and
141, 142. For related parameter setting commands, please refer to "iStartek GPS tracker Communication
Protocol V1.3".
Send above parameters by SMS commands:
Set fuel tank parameters, you can send commands: 0000,138,1,1000,500,1000
Description: 1 is the serial number of the fuel tank. The length of the fuel tank is 1000mm, the width is 500mm, and
the height is 1000mm.
Set the type of fuel sensor, you can send commands: 0000,139,1,1,Right Tank
Description: The first "1" is for the serial number of the fuel tank, the second "1" is AD1 connected to ultrasonic
fuel sensor, and Right Tank is the name of the fuel tank.
Set the fuel theft alarm, you can send commands: 0000,140,1,20,60
Description: Set AD1 as the corresponding fuel tank, and the fuel theft alarm will be triggered when the fuel
reduction exceeds 20 liters within 60 seconds.
Set low fuel alarm, you can send commands: 0000,141,1,10
Description: Set AD1 as the corresponding fuel tank, and a low fuel alarm will be triggered when the fuel volume is
less than 10 liters.
Note: The default data source of the fuel tank is AD1, and the default data source of the 2# fuel tank is AD2
Note: The 138, 139, 140, 141, 142 commands must be used to set the fuel tank parameters to detect the alarm.
