Technical Data / Instruction Manual
DALI-16B-SL
Article no. 80027161

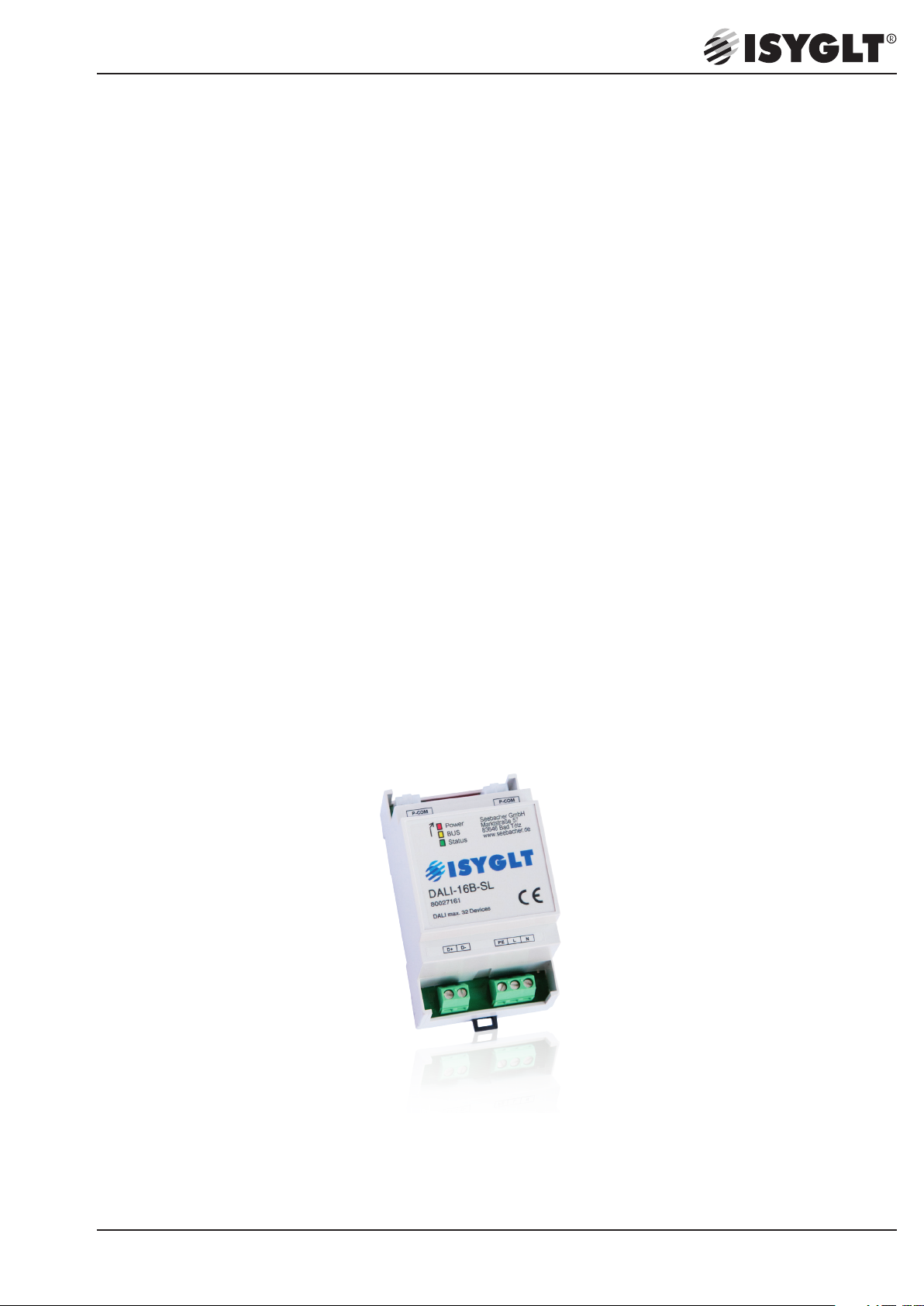

DALI module slim-line for controlling DALI lights

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
2
1. Notes on documentation
These instructions are intended for qualified personnel who are
familiar with the assembly, installation and operation of the ISYGLT
system. It is essential that you read these operating instructions
through before commissioning and keep them accessible for further
use.
SEEBACHER cannot accept any liability for damage or malfunctions
resulting from failure to observe these instructions.
1.1. Retention of documents
These instructions and all other applicable documents are part
of the product. They must be handed over to the device operator.
The operator will store the documents so that they can be made
available if necessary.
1.2. Symbols used
Observe the following safety and other instructions in the manual:
Handling instruction
The hand indicates that you should carry out an act.
Danger!
Immediate danger to life!
Attention!
General notes, useful information and special features
Directory of Content
1. Notes on documentation
1.1. Retention of documents
1.2. Symbols used
2. Safety instructions
2.1. Intended usage
2.2. Predictable mishandling
2.3. Safe handling
2.4. Qualification of staff
2.5. Changes to the product
2.6. Use of spare parts and additional equipment
2.7. Liability notes
3. Warranty
4. Declaration of Conformity
5. Service address
6. Maintenance / Care / Disposal
7. Storage
8. Assembly
9. Product description
10. Technical Data
10.1. Pin assignment
11. Wiring diagram

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
3
The module is designed for cabinet installation on a 35mm DIN
rail according to EN 60715 in corresponding standard housings.
Extreme environmental conditions impair the function of the pro-
duct.
• Protect module from shocks
• Use module indoors only
• Protect module from humidity
In addition to these safety instructions, you must also observe
the special safety instructions listed in the individual chapters for
the individual acts.
2.4. Qualification of staff
Assembly, commissioning, operation, maintenance, decommis-
sioning and disposal may only be carried out by qualified staff.
Work on electrical parts may only be carried out by a trained
electrician in accordance with the applicable regulations and
directives. Other activities in connection with the ISYGLT module,
such as assembly and installation of system components with
tested standard plug connections, as well as operation and con-
figuration of the ISYGLT module may only be carried out by trai-
ned staff.
2.5. Changes to the product
Unauthorized modifications to the ISYGLT module which are not
described in this or the other applicable instructions can lead to
malfunctions and are prohibited for safety reasons.
2.6. Use of spare parts and additional equipment
The module may be damaged if unsuitable spare parts and addi-
tional equipment are used. Only use original spare parts and
additional equipment from the manufacturer.
2.7. Liability notes
SEEBACHER accepts no liability or warranty whatsoever for
damage and consequential damage caused by non-compliance
with the technical regulations, instructions and recommendati-
ons. SEEBACHER shall not be liable for any costs or damage
incurred by the user or third parties as a result of the use of this
equipment, in particular improper use of the equipment, misuse
or malfunction of the connection, malfunction of the equipment
or connected devices.
SEEBACHER accepts no liability for printing errors.
2. Safety instructions
Observe the following general safety instructions when installing
and commissioning the device:
Assembly and installation of the ISYGLT module may only be carried
out by a qualified electrician. Other activities in connection with the
ISYGLT module, such as assembly and installation of system com-
ponents with tested standard plug connections, as well as operation
and configuration of the ISYGLT module may only be carried out by
trained staff.
Observe the electrical installation regulations of the country in which
the device is installed and operated as well as its national accident
prevention regulations. In addition, observe internal company regu-
lations (work, operating and safety regulations).
Before working on the ISYGLT module system, it must be
disconnected from the power supply and secured against
being switched on again. After completion of the assembly,
installation and maintenance work, an electrical check must
be carried out! Check all protective conductor connections
and the voltages at all connection plugs as well as at each
individual module slot.
2.1. Intended usage
The module is exclusively suitable for regulation (control) in con-
nection with ISYGLT system components. Any other use is not
intended. The limit values stated in the technical data must not be
exceeded under any circumstances. This applies in particular to
the permissible ambient temperature range and the permissible
IP protection type. For applications with a higher required IP pro-
tection type, the ISYGLT module must be installed in a housing
or a cabinet with a higher IP protection type.
2.2. Predictable mishandling
The module must not be used in the following cases in particular:
•explosive area
When operating in explosive areas, sparking can lead to defla-
gration, fire or explosions.
2.3. Safe handling
This module corresponds to the state of the art and the recog-
nised safety regulations. Each device is tested for function and
safety before delivery.
Only operate this module in perfect condition in accordance with
the operating instructions, the applicable regulations and directi-
ves of the country in which the device is installed and operated,
and the applicable safety and accident prevention regulations.

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
4
6. Maintenance / Care / Disposal
The product is maintenance-free. It is sufficient from time to time to
remove any dust deposits. This may only be done in a power-free
state.
Disposal (European Union)
Do not dispose of product in household waste! Products with this
symbol
7. Storage
The product must be stored in a dry place, protected from dirt and
mechanical stress. After damp or dirty storage, the product may only
be operated after a condition check by an authorised electrician.
8. Assembly
(Only by certified electrician!)
Mount the product only when it is in a power-free state!
Switch off the power supply, check that there is no voltage, secure
against being switched on again!
The device may only be operated at voltages according to the tech-
nical data and loaded with the currents defined therein. Only use
suitable equipment (system modules).
Check that there are no loose parts in the product. If this is the case
and the presence of such parts is not explicitly described, do not
install or commission the product.
Only use suitable cables and fixing screws.
Assembly site
• The product can be installed in any position in a casing to be deter-
mined by the electrician (distribution box, switch cabinet). Observe
maximum ambient temperature!
Assembly steps
(Read completely before assembly!)
• Mount the device in a suitable casing.
• Make the electrical connections according to the wiring diagram.
• Congure the DIP switches according to your requirements.
• Only after a complete connection and a visual test by a qualied
electrician, the system may be put under voltage.
Seebacher GmbH
Marktstrasse 57
83646 Bad Tölz
GERMANY
Phone: [phone] / 77 77 6
Fax: [phone] / 77 77 2
www.seebacher.de
[e-mail]
5. Service address
4. Declaration of Conformity
The valid declaration of conformity for the module can be requested
from us free of charge by stating type and article no. as follows:
By phone: [phone]
By fax: [phone]
By mail: [e-mail]
3. Warranty
We provide warranty within the framework of the statutory provisi-
ons. These are limited to the intended use of the module and refer
to the repair or replacement of the ISYGLT module. Please send the
device with an attached error description to our company address
given below.
must be disposed of according to the EU directive WEEE 2012/19/
EU on waste electrical and electronic equipment at the local collec-
tion points for waste electrical and electronic equipment!

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
5
9. Product description
The DALI-16B-SL module (slim-line) is an ISYGLT DALI gateway with integrated DALI power supply and is designed for space-saving installation
in control cabinets. This module is particularly suitable for systems with many DALI groups or single circuit control. Up to 32 DALI ECGs (DALI
standard loads) can be operated on one DALI BUS. Each of these 32 DALI devices (ECGs or electronic transformers) must be programmed
with a unique device address (DALI short address). Each device address can be assigned one of 4, 8, 12 or 16 ISYGLT dimming groups in up
to 3 configurations (setups) by parameterizing the DALI-16B-SL module. These dimming groups have all the properties possible in the ISYGLT
system with regard to scene storage, fade time calculations etc.
The module is equipped with its own mains supply, which is designed for 32 standard DALI loads. This enables a freely configurable emergency
function for the corresponding DALI BUS. All DALI output devices are completely integrated into the possibilities of the ISYGLT system through
our concept. Thus the functional range of the ISYGLT system is available. The module occupies 4 module addresses on the BUS. The DALI
devices are monitored for lamp faults or ECG faults.The DALI failure level (value in case of DALI BUS failure) can be parameterised via the DALI-
16B-SL. Maintenance intervals can be easily calculated via an operating hours counter.
According to the standard, the DALI ECGs always remain live, which ultimately leads to unnecessary energy consumption when switched off. A
main contactor for the DALI ECGs can be controlled via a virtual output. If the mains voltage is simply switched on or off, operating devices may
no longer operate correctly, as protocols can already be sent during the start phase. This effect is avoided by our new circuit logic.
The following functions are available for commissioning and operating the devices:
• DALI broadcast for commissioning and emergency operation
• automatic addressing of new ECGs during exchange work
• ECG addressing and control in conjunction with the IP Master and the DALI web plug-in
The following functions can be performed stand-alone by the DALI module:
• calculation of ups with time constants from 0.5 seconds to 18 hours
• automatic dimming from current analog actual values to predened analog target values at a predened speed (optionally in predened time)
• feedback of the termination of the analog value output after the performance of time functions
• stop function during the performance of time functions
• OVERSAMPLING error correction (With the so-called „OVERSAMPLING“, the DALI module automatically corrects the jumps of the analog
values caused by the cycle times of the BUS system. For this purpose, the analog values between the BUS cycles are transformed back into
the resolution of 8 bits by linearization.)
• performance of blinking functions
Inputs / Outputs
• 1 DALI-BUS
Function displays
LED state Meaning
1 x LED (red) OFF No operating voltage
ON Operating voltage, no error
1 x LED (yellow)
Operating voltage / BUS
OFF BUS wiring error
ON Error BUS communication (address)
Blinking Interference-free data transmission via the BUS line
1 x LED (green)
Blinking 1 Hz No parameter data in the module
ON Module works only as DALI power supply (DIP switch S1 = ON)
Blinking 2 Hz Module works in DALI broadcast mode, sending a low fixed value for test
purposes (DIP switch S1+S2 = ON)

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
6
Connections
• 1 voltage connection 230V / 50Hz
• 2 outputs DALI BUS
• 1 connection for the subnet (BUS A and B, RS-485)
Design
• plastic housing light grey, snap-on on 35mm DIN rail, 3 HP
Special function DIP switch
DIP switch 8-pole
• S1 OFF = Normal operation
• S1 ON = Device works DALI-sided only as power supply (from version 1.01), i.e. no DALI commands are sent; necessary e.g. for addressing
by external systems.
• S1+S2 ON = Module works in DALI broadcast mode. The module sends a low dimming value to the lights to test the DALI function if no devi-
ces have been addressed yet.
• S2 to S8 = Module address ISYGLT
Parameterisation
In the ISYGLT ProgramDesigner there are various parameterisation possibilities:
• grouping of the individual ECGs
• 3 congurations can be stored
• determination of the switch-on behaviour
• crossfade times
• emergency operation in case of BUS failure DALI and ISYGLT
10. Technical Data
Type designation DALI-16B-SL
Article no. 80027161
Mains supply 230V / 50-60 Hz
Current consumption 15mA
Isolation voltage 3500V (ISYGLT, DALI / mains)
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Dimensions WxHxD 53x90x59mm DIN rail device (3 HP)
Weight 86g
Connection Screw terminals 1.5mm² pluggable
Operating temperature -10°C to +50°C
Storage temperature -25°C to +70°C
Humidity 0-85% r.h. not condensing
Protection type IP 30
Protection class I
CE mark yes

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
7
2-pole plug (left)
DALI+ DALI BUS +
DALI- DALI BUS -
3-pole plug (right)
PE Protective conductor
LMains voltage 230V (50-60Hz)
N Neutral conductor
10.1. Pin assignment
View

Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
8

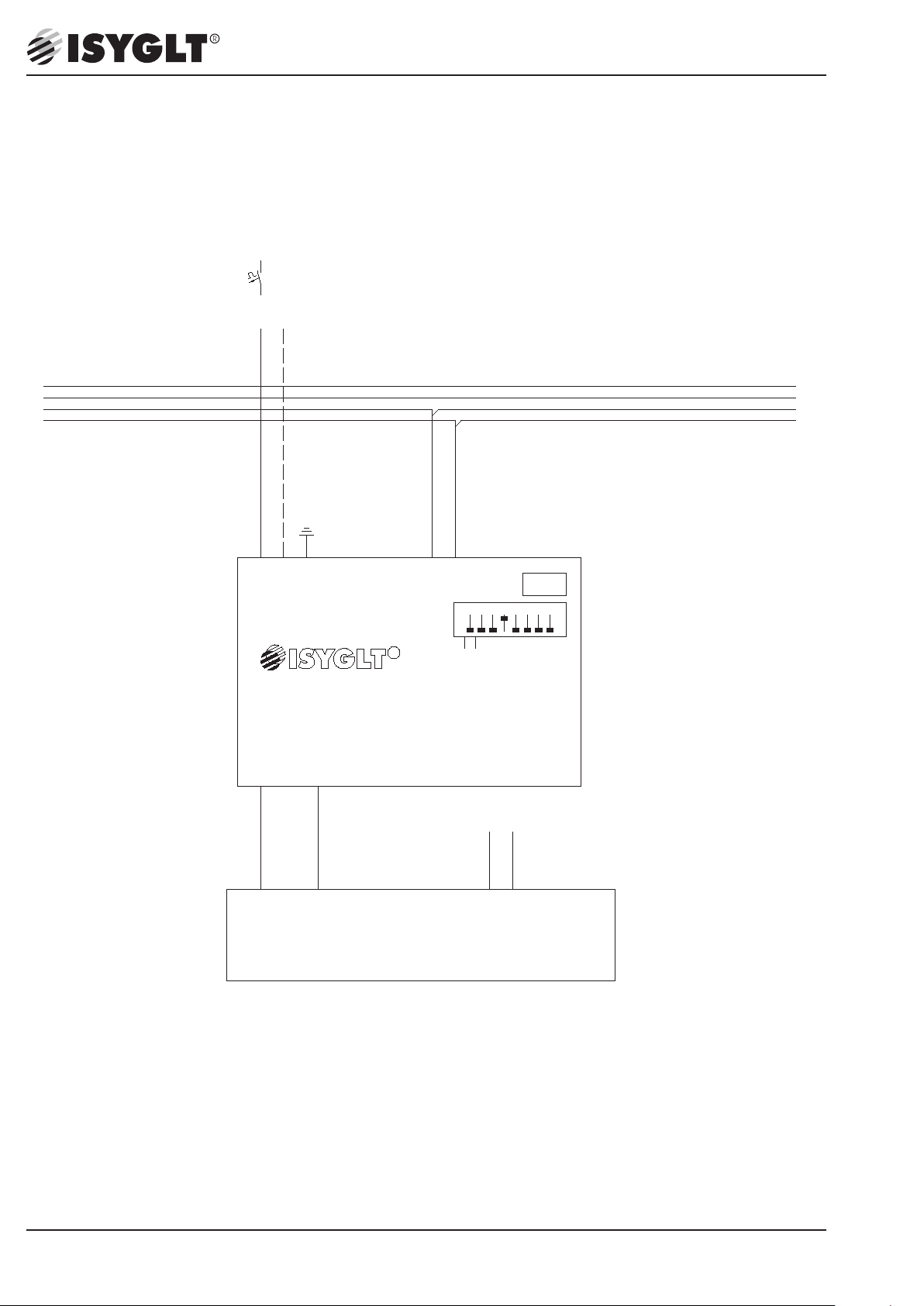

11. Wiring diagram
230V !
Article no.
ISYGLT-DALI-16B-SL
12345678
BUS addressS
ON
OFF
R
2 x
P-COM
DALI max. 32 Devices
80027161
L N
BUS A BUS B
D+ D-
PE
/2.
+24V
/2.
0V=
/2.
BUS-A
/2.
BUS-B
230V 50Hz
DALI ECG no. 1...32
DALI-BUS
230V 50Hz
016
L N
Misprints and technical changes reserved.
