ITALTINTO i252 User manual

Italtinto Europe S.r.l.
Sede Legale: V.le Andrea Doria, 7 – 20124 Milano
Unità operativa: Via Zibido, 3 -20080 Zibido S. Giacomo (MI) ITALIA
Tel. [phone] - Fax [phone]
ITALTINTO COLOR DISPENSER i252
User’s manual
Serial N. ITE000
“Translation from original instructions in Italian language”
This manual forms an integral part of the machine and it shall always be kept available to operators working on the same machinery;
the manual shall always accompany the machine, also when this is sold to another user.
Operators must read this manual and carefully follow the indications contained herein, as the manufacturer will
not be liable for damages caused to people and/or objects or suffered to the machinery, should the conditions
reported below not be respected.
The Client shall respect the trade secret, therefore the following documentation and annexes cannot be altered neither modified,
reproduced nor transferred to third parties, without the manufacturer’s authorization

2
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
INDEX
Warranty and supply conditions ............................................................................................................................3
The manual and receivers ......................................................................................................................................4
Standard reference .................................................................................................................................................5
Symbols and sign ....................................................................................................................................................5
Field of use ..............................................................................................................................................................7
Characteristics ........................................................................................................................................................8
Machine description ............................................................................................................................................ 10
Accident prevention ............................................................................................................................................ 12
Lifting and transport ............................................................................................................................................ 14
Installation ........................................................................................................................................................... 15
Equipment ........................................................................................................................................................... 16
Start-Up ............................................................................................................................................................... 17
Maintenance ........................................................................................................................................................ 18
Canister replacement .......................................................................................................................................... 20
Stop Drop maintenance ....................................................................................................................................... 21
Fuses replacement ............................................................................................................................................... 22
Troubleshooting .................................................................................................................................................. 23
Spare parts request form..................................................................................................................................... 25
Table A ................................................................................................................................................................ 26
Table B ................................................................................................................................................................ 27
Table C ................................................................................................................................................................. 29
Electrical scheme ................................................................................................................................................. 30

3
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Warranty and supply conditions
The Manufacturer is the subject who manufactures the machine, and who designs and owns the project;
for Manufacturer, it is also intended his Agent, herein after simply referred to as Manufacturer;
The Client is the final user of the product;
The machine is regulated in Europe by EC Directive 2006/42/EC.
The Manufacturer declares that the machine complies with applicable laws in the member states of the European Community
and releases the CONFORMITY DECLARATION.
The Manufacturer is exclusively liable for defects caused by the regular use of the machine.
The warranty period is of 12 months from the purchase date.
The warranty does not cover machine downtimes, material discards, loss of production, etc…
ITEMS NOT INCLUDED IN THE SUPPLY
The Manufacturer will not be deemed liable for defects or failures caused by: improper use of the
machine; alterations due to transport or particular environmental conditions; lack of or improper
maintenance; temporary alterations or repairs; non-qualified people or accessories not part of the
machine.
Those parts subject to normal wear are excluded, or in case the cause for the failure or wear
derives from the improper use of the machine.
The Manufacturer will NOT be liable for damages caused to people and/or objects, or suffered by the same machine, due to
a use other than the intended one described in the manual or in case the machine’s safety features are not utilized, (excluded)
or they are altered
The Client shall use exclusively original spare parts and install them according to the intended use, with the aid of authorized
personnel.
The manufacturer will not be liable for materials being processed, neither for damages that the latter can
cause to the staff or environment.
The Manufacturer WILL NOT be liable for the disposal of the products intended for the operation,
maintenance of the machine or production.
.

4
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
The manual and receivers
This document is intended for professional figures that thanks to their experience or qualification are able to
operate in compliance with common safety standards and specific skills; it is assumed that
the aforementioned subjects boast basic knowledge on their role.
The Client must verify that the operator boasts the skills and suitable training required to
execute his job
All professional figures that interact with the machine must compulsorily read this manual;
moreover, these must be informed on the potential RESIDUAL RISKS related to the machine’s
use or products processed by it
The manual CANNOT make up for any cultural or intellectual lacks
of the various professional figures who interact with the machine
Scope and structure of the document
This document (USER AND MAINTENANCE MANUAL) is a useful guide that allows working in safety conditions
and performing those operations required for the optimal performance of the machine.
The original language of this document is ITALIAN; therefore, in case of inconsistencies or doubts, please
request the ‘’ORIGINAL INSTRUCTIONS’’ or additional information to the manufacturer. The indications
contained in this manual do not substitute safety instructions and technical data applied directly on the product
concerning machine’s installation and operation, neither rules dictated by common good practice and safety
standards applicable in the country of installation.
Characteristics of the personnel
The personnel intended to use or maintain the machine must be qualified, aware and responsible for the
described tasks, and it must be reliable to properly interpret the instructions contained in this manual and
ensure safety and accurate checks.
The employment of NOT qualified, disabled, incapable, not sober staff or addicted to drugs is
strictly prohibited.
In order to prevent damages to people or objects, we advice the Client to properly inform the
operators on potential RESIDUAL RISKS derived from use.
The Client will be fully liable on the qualification and mental or physical state of the professional
figures he employs.
The Client or employees are civilly liable for all damages caused to or suffered by staff that he
authorized to use the machine.
The staff who interacts with the machine shall always use the personal protection equipment
foreseen by the laws applicable in the destination country, and any other safety equipment
provided by the employer, such as: masks, gloves, safety shoes, etc…

5
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Standard reference
International standards and national laws implemented in the design and construction of the machine are indicated below.
• 2006/42/EC New machine directive for EC marking
• 2014/35/ UE LVD
• 2014/30 UE EMC
• Harmonized IEC 61010-1:2010
• UNI EN ISO 12100: 2010 Safety of machinery – Risk assessment.
Symbols and sign
Requirement to read the document, which must be stored for future reference and be kept intact
Hazard areas are indicated in the manual and/or on machine in some instances, with signs,
tags, symbols or icons that represent the hazard or requirement.
Operations or situations in which the staff shall be extremely cautious: General hazard
Dangerous voltage: generally located on the electrical cabinet, protected by general switch IG with
automatic release.
Requirement to ground the system.
Moving organs, crushing of hands or body parts, slipping or falling hazard: hazard signs that indicate
potential risks for the operator
Explosions: it notifies the potential explosion hazard or need for explosion-proof equipment
General prohibition: it notifies the prohibition to enter the surveyed area or prohibition to carry out
a certain operation.
Requirement: it notifies the requirement to carry out the described
operations using safety clothing and/or personal protection equipment
provided by the employer: masks, gloves, safety shoes, etc…
EC marking (2002/96/EC) which identifies the requirement to dispose electrical and electronic
products in dumps intended for the purpose and separate collection, to prevent environmental
pollution
Prohibition to remove the machine’s safety features.
Do not operate or carry out maintenance services on the machine with removed or open guards.

6
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
generic warning
danger
marking plate
warning for user and installer

7
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Field of use
The Manufacturer declines any liability for any damage caused by improper or imprudent
operations.
Intended use
The machine described in this manual has been designed to: Dispenses colorants
to obtain a mix of colors featuring the required tones. The colorants must be contained in suitable tanks
(canister) and dispensed in a can compliant with the characteristics and quantity of the compound.
It is strictly prohibited and dangerous to use the machine other than for the purpose foreseen
in the field of use.
Table: limits concerning the field of use
Minimum can sizes allowed ................................................................. ø 70 x 120 mm
Maximum can sizes allowed ................................................................ ø 360 x 370 mm
Maximum weight allowed on the can-holder platen … ......................................... 40 kg
N.B.: The containers can be of cylindrical or parallelepiped shape.
Use not allowed: It is strictly prohibited to use the machine or parts of it other than for the purpose foreseen
in the field of use
IT IS STRICTLY PROHIBITED:
- To use the machine or parts of it, without reading and properly interpreting the content of the user and
maintenance manual.
-use the machine with non functioning or disconnected safety features.
- use the machine or parts of it in particularly flammable environments.
- use of flammable colorants or colorants that diffuse potential explosive vapors may present fire
and explosion risks
-use corrosive products that may corrode machine parts or be harmful for the operator.
- modify operating parameters which are restricted to the operator.
-use machine parts or systems, connecting them to other equipment.
N.B. The machine IS NOT equipped to be installed in an explosion-proof environment.
The Manufacturer declines any liability for any damage caused by improper or imprudent operations

8
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Characteristics
The description of the machine’s characteristics allows identifying its main components to understand the
technical terminology implemented in the manual.
Chapter CHARACTERISTICS contains information concerning the machine’s components, characteristics, sizes
and identification. Adjustments, operation and maintenance services are described below, assuming the
information contained in this chapter is understood. In some instances, the operation or the machine’s software
may be described separately or integrative documents intended to qualified operators may be enclosed to this
manual.
TECHNICAL CHARACTERISTICS
Power supply voltage ………………………………………………..….…….………... 220-240V or 100-120V 50/60Hz + ground
Voltage for operator’s commands ………………………………..………….……….......................................... 24 Volt +/- 10%
Mains supply voltage fluctuations are not to exceed……….…….….. -10% and +10% of the nominal supply voltage
Total installed electric power …………………………………….....................................................................600 W +/- 10%
Dispensing ……………………......................................................................................... simultaneous- max. 6 canister
Mixing of colorants……………………………………............................................................................................ automatic
canisters capacity ………………………………………...................................................................................................... 3 lt
Number of canisters……………………………................................................................................................................16
Pump volume …………………………………………………………………………....................................................................... 2 Oz
Accuracy…………………………………………………………………………….…............................................................ 1/384 Fl. Oz
Number of operators …………………………………..………............................................................................................ 1 #
Average sound pressure or noise level………………………………………………………………………………….……….…... < 70 dBA
Weight ……………………………………………………………............................................................................................ 146 kg
Allowed ambient temperature………………………………………………………........................................................ 5 ÷ 40 ° C
Maximum relative humidity allowed without condensation………………………….……………………………..……. 30 ÷ 90 %
Pollution degree……………………………………………..……….............................................................................................2
Installation ……………………………………………………………….……..................................................................................... II
Altitude ………………............................................................................................................................. 2000 m (max)
Indoor use only
PC connection……………………………………………........................................................................................RS 232 / USB

9
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Dimensions are in mm
Electric power input
Operator’s area or work station
Dimensions and safety distances or overall sizes required for maintenance are indicated.
Identification of the machine and manufacturer
The tags affixed on-board the machine MUST NOT be absolutely removed, damaged,
stained, hidden, etc...
The tags must be cleaned on a regular basis and always kept well visible, meaning NOT HIDDEN
with foreign objects and parts (cloths, boxes, equipment, etc.).
The technical data included in this manual does not replace the information indicated on the tags
on-board the machine.

10
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Machine description
Our dispensing machine is made of robust enameled frame with accurate finish
The machine is completely isolated and protected through a series of casing which are either fixed or can be
exclusively removed using wrenches or equipment.
In the upper part are mounted: Canister 01 containing the colorants, the mixing system and the dispensing
pump system.
The pumps group is managed by one only reliable step motor that drives a round plate through an endless
screw. All pump stems 19 are connected to the plate and move together
Colorant is dispensed through a by pass valve activated by a solenoid. When dispense a recipe, only selected
canisters open the by pass and dispense, other canisters recirculate the colorant since the by pass is closed
while pumps move up and down. Up to 6 canisters can dispense simultaneously. All nozzles are connected to a
manifold 09 reducing the distance from pump to dispensing point.

11
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
The mixing system features one single step motor that enables pumps 19 and simultaneously moves the mixing
paddles 13 to mix the colorant inside canister 01.
The step-controlled motor lifts and lowers stems 17 simultaneously, all secured to a single upper disc, through
a recycling ball worm screw 16.
The lower part features a can shelf 07 that can be positioned on four different levels through suitable guides.
The shelf can be easily removed and positioned using the handle. Some
circle stickers help to place the can aligned with the dispensing center
To extract the removable shelf, it has to be pushed to the end limit then
raise it and pull it out
The machine is equipped with a “Stop Drop System” that prevents the
nozzles 05 from drying.
The Stop Drop System features a manifold 09 for the introduction of the
canisters’ nozzles.
The locked door 08 protect the main board from unauthorized access
The electronic components ensure the fully automatic control of the machine parts and its functions, are
located in the rear side of the machine protected by a locked panel
The electronics consist of two boards that perform all the necessary functions to manage the machine, from
power supply to the logic control of the commands. The photocell 02 which enables the colorant dispensing is
located in the upper internal part of the compartment where the tin-holder platen 07 is located. The general
switch 06 and the ready / busy lights 03 which indicates the status of the machine are located on the front side,
in a well visible and ergonomic position.
The mixing cycles, dispensing, cleaning nozzles and adjustments are carried out by PROSCAN/MATCHSCAN
software installed in a PC connected to the machine.
Machine is connected to the computer via USB port.
Connection cable is included and is plugged on the main board
manifold
stop drop

12
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Accident prevention
The machine has been built according to the strictest accident prevention standards and
equipped with suitable safety devices to protect components and operators.
Lifting devices must be used to handle and/or lift heavy parts or equipment (weight exceeding
25 kg).
Avoid any temporary repair; repairs must be performed exclusively using original spare parts,
which must be installed according to the intended use
Do not disconnect the plug by pulling the power supply cable. Do not damage it, bend it or
lay objects on it.
OPERATIONS AND RESIDUAL RISKS
UNI EN ISO 12100: 2010
Installation conditions and environmental risks
For obvious reasons, it is not possible to foresee all the various possible installations and environments where
the machine will be installed.

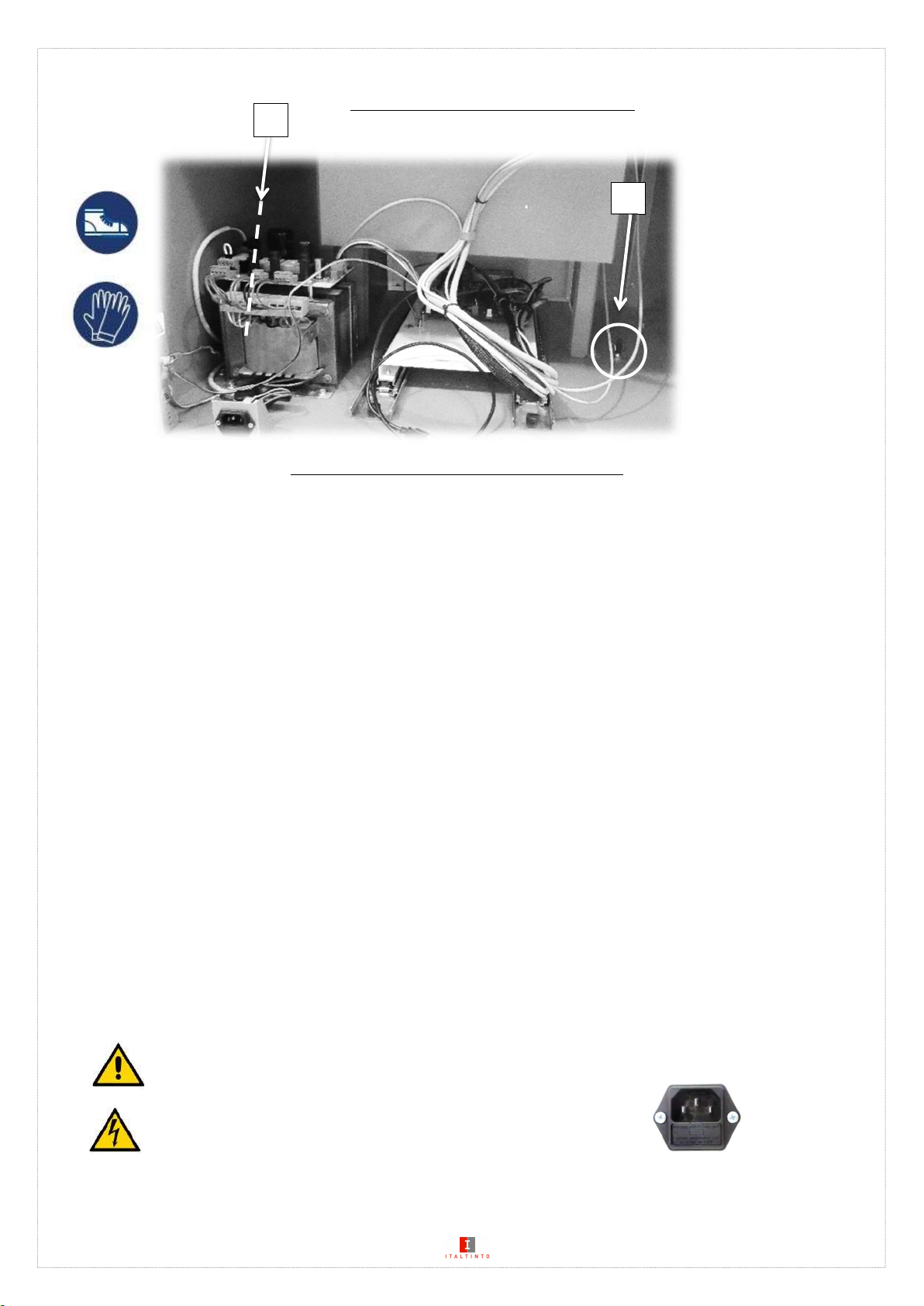

power board
main
board

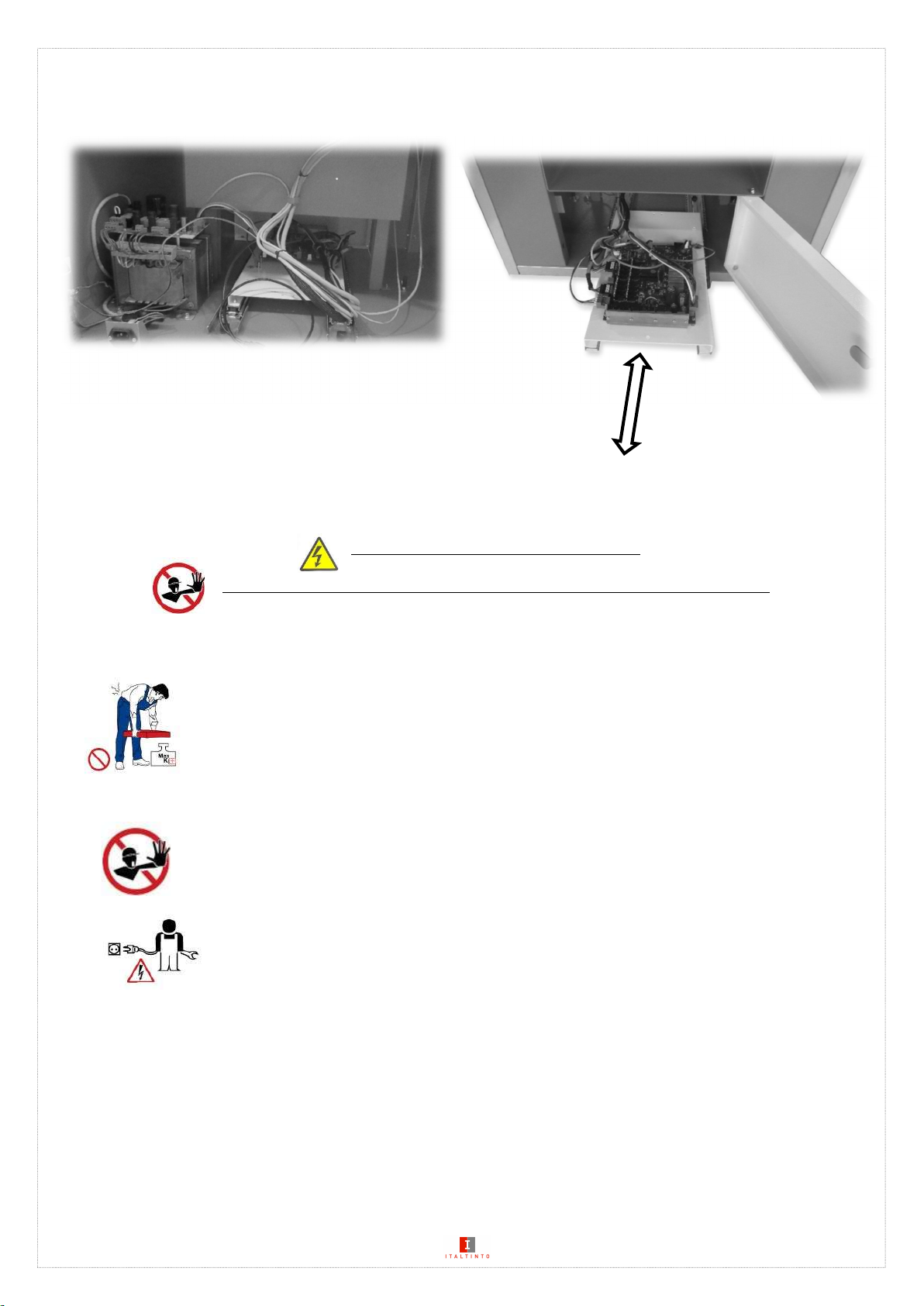

main board can be easily pulled out from the front door to simplify service operation
unplug power cord before open the door
operations must be performed by specialized staff, authorized to perform the service
main
board
usb cable
REAR
FRONT

13
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
The machine cannot be installed outdoors or exposed to atmospheric agents (sun, rain, wind,
etc…); moreover, safety distances must be respected to avoid dangerous situations. Make sure
no electro-magnetic interferences are present
The standard machine is not equipped to work in particularly flammable or explosive
environments; explosion-proof equipment is supplied upon request.
When the machine is on, it generates an average noise or sound pressure level lower than 70 dBA.
The work station must be properly lit to ensure the safety of all work and maintenance operations.
The Manufacturer WILL NOT be liable for the disposal of the products intended for the operation,
maintenance of the machine or production: colorants, solvents, exhausted lubricants, batteries,
etc…
Maintenance services and safety devices
Removing the casing IS PROHIBITED without pressing the emergency button 07 and disconnecting
the machine from the electric power grid
Warning: hot parts or residual voltage may be present inside the machine.
Maintenance operators must notify any anomaly or deterioration due to wear or aging. The
machine must be cleaned using suitable equipment and detergents that do not corrode the
machine’s components; it is strictly prohibited to clean or wash the machine by spraying water
on it
In case of fire, use CO2 foam fire extinguishers and use automatic exhaust systems to put out
fire in closed environments.
Operators and suitable clothing
The personnel MUST NOT operate the machine or equipment with bare feet or wet hands. Comply with the
number of operators indicated in the technical characteristics. The staff must wear the clothing and personal
protection equipment provided by the employer: masks, gloves, safety shoes, etc…The staff must not wear
clothing items with long sleeves, laces or belts that may jeopardize their safety.

14
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Machine’s maneuvers and use
The machine may represent a hazard, also when off: casing, corners, electric cables, etc., therefore use caution
when handling machine’s parts and use suitable protection equipment.
The machine features wheels, therefore it must not be positioned on ramps or inclined surfaces. Make sure the
machine does not pose any hazards once installed.
Should the machine be left unattended for long periods of time, any accidental movement must be prevented
since it is mounted on wheels.
A proper cleaning of the work area may prevent accidents or unnecessary risks. Any colorant leak, even if small,
may pose a hazard. Any foreign body not belonging to the machine (e.g. wrenches, bolts, screwdrivers, etc.)
must always be kept away from the machine
Lifting and transport
The lifting devices (ropes, polyester bands, etc.) must be suitable to withstand the machine’s load;
the ropes must form an opening angle smaller than or equal to 90° and they must not damage
the machine.
During handling, check the proper distribution of the weights and do not perform any sudden
movement or quick shifting that may create dangerous swinging motions
Lifting must be carried out exclusively by specialized staff (slingers, crane operators, road haulage
operators, etc.)
The machine is lifted using a fork lift, and secured firmly to the bench or base, paying attention
not to damage the wheels.
Transport
The machine’s transport, especially on road, shall take place with suitable devices and methods in order to
protect the components (in particular electronic components) against shocks, humidity, vibrations, etc..
Unpacking and cleaning of components
We remind you that the packaging components (wood, nails, cellophane, staples, adhesive tape,
etc.) may pose a hazard. These must be removed using suitable equipment and kept away from
non-authorized people (e.g. children); the same applies for tools used to remove the packaging
(scissors, hammers, tongs, etc.).
The packaging components must be discarded and disposed of, according to applicable laws in
the installation country.
When opening the packaging, make sure the machine is intact and complete, and check that no
defects or deteriorations are present; otherwise suspend the operations immediately and notify
the carrier or transport operator, and also inform the Manufacturer.

15
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Installation
The machine must be installed by specialized personnel, knowing the EQUIPMENT well and according to the
requirements of the Customer and place of installation
Installation method
 Check the foreseen environmental conditions (explosive atmospheres, excessively ventilated
atmospheres or boasting a high degree of humidity) and make sure the machine is not exposed to
atmospheric agents such as rain, wind, etc.;
 Once the machine is released, remove it from the pallet using a forklift
 Make sure the machine does not pose any hazards once installed
 Avoid electro-magnetic interferences.
 Position the machine in an area featuring safety distances, in order to allow the execution of regular
work/ maintenance operations.
 Make sure the floor is flat and suitable to sustain the load.
 Make sure that the machine is stable and it does not emit vibrations.
 The main socket positioned in the rear of machine MUST be easily accessed, after the installation and
during the use of the machine
 After positioning the machine in a well ventilated area, away from heat sources, sprays and dusts,
disassemble the machine from the pallet, removing the two screws that secure it to it, making sure the
machine does not roll off the same pallet
When handling the machine on wheels, pay attention to ramps or inclined surfaces.
The machine features an electric socket located on the rear side; make sure
the power voltage coincides with the voltage indicated on the tags. DO NOT use
extension cords or unsuitable cables.
Remove rear panel, remove butterfly screw A and B
A
B
machine is fixed on the pallet by two screws

16
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
INSTALL a differential magneto-thermal switch upstream the general switch 08 supplied by the
Manufacturer of suitable power (30 mA) check the grounding connection
An ergonomic shelf is available on the top side to house monitor and keyboard
Once the computer is installed, connect the USB cable that is connected in the main board, located inside the
rear compartment (in case your computer is installed outside of the machine will be required to pass the
cable through the prepared hole and then connect it to the computer. You have to plug an extension USB
cable, recommended not longer than 5 mt.
Turn the machine on, install software PROSCAN or MATCHSCAN. After installation you should find a new COM
port installed, it’s the mainboard driver. Go to SETUP page of the software (read the user’s manual) and set
the COM port assigned for the dispenser (see software manual). When machine is connected, a READY green
light will be displayed on the right bottom screen
Equipment
Knowing the EQUIPMENT well is one of the main conditions to avoid damages to the machine and operator.
Therefore, read this manual carefully and in case of doubt or inconsistent information, request
details to the manufacturer.
Please refer to the ‘’ORIGINAL INSTRUCTIONS’’ and the original language in which the document was drawn up,
that is ITALIAN, in case of inconsistencies in the technical information.
The employer must make sure that the aforesaid conditions are respected and that the staff in charge to
operate the machine boasts suitable training.
The Manufacturer will not be held liable for damages caused to the machine and operator if generated by lack
of skills, expertise or training.
Machine’s commands

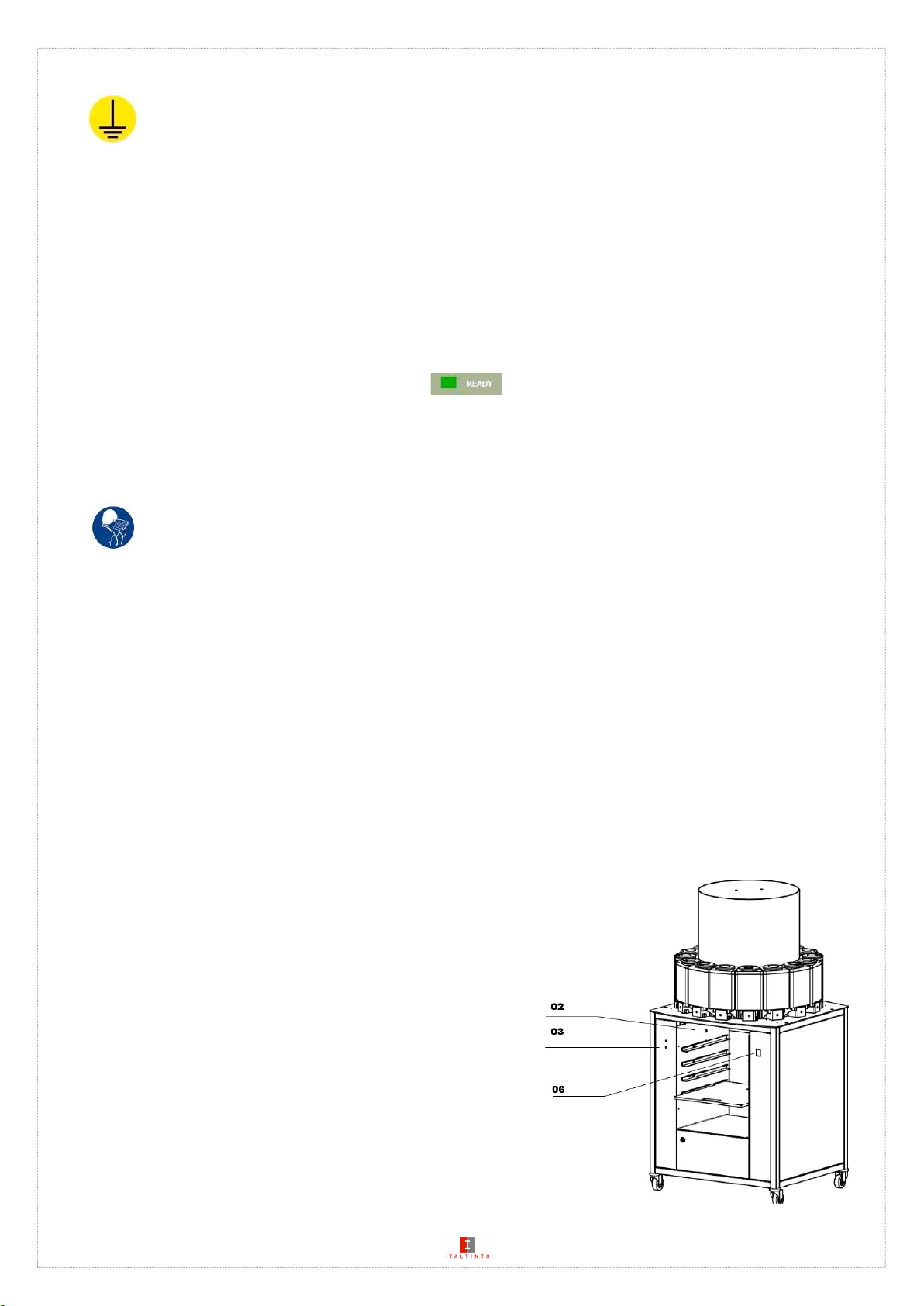

06 GENERAL SWITCH: the general switch 06 provides voltage to main circuit and prepares the machine for
operation in just a few seconds, during which it performs an auto-test
02 PHOTOCELL: photocells 02 check the presence of the can and enables the dispensing
03 BUSY: the busy light indicates that the machine is busy in operations and disabled to receive commands
03 READY: the ready light turns on when the machine is ready
for use, at the end of the auto-test cycle or at the end of any
operation

17
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Start-Up
Start up
Before enabling the machine, the operator must know the EQUIPMENT chapter and functions enabled by the
commands thoroughly. In addition, he must:
-- make sure the photocell 02 works properly.
- carefully assess any residual risk; make sure no objects are present on the machine and no non-authorized
people are standing in the work area;
- carry out the necessary adjustments.
Once the machine has been started up, by the general switch 06 the machine performs an auto-test to make
sure that all components are ready for use.
After completing the automatic test, the machine performs a complete cycle of mixing colorants, recirculation
and cleaning nozzles (all operations can be configured via software)
At the first start filling the canisters with colorants, switch the machine off to perform the operation. Be
careful to the label-matching color code.
To fill canisters remove the cap and pour the colorant inside, then close the cap in order to prevent drying.
it’s recommended to shake the colorants by hands before filling the canisters. Mix colorants in an automatic
shaker or mixer could cause development of foam and air bubbles that can affect the dispense accuracy. After
filling, update levels in the software SETUP page. Do not exceed in filling canister
Switch the machine ON and perform a cleaning nozzles cycle to get a rid of air inside
the pumps
Press ‘cleaning nozzles’ in the SETUP page of the software to start the operation,
machine opens the stop drop device and starts to dispense a small quantity of colorant
in the can. At the end of the cycle the machine will set to Ready status.
The machine performs a complete cycle of mixing colorants and cleaning nozzles at
every power on.
The cleaning nozzles will be performed only if a can is positioned between the sensors.
The operations performed when machine is turned ON (At Start) can be enabled and disabled by software.
The computer can be turned off, mixing functions are self-managed by the machine.
Machines with FT Technology
Machines that mount FT technology can activate mixing motors to perform colorant
mixing and pumps stems moving up and down, to perform recirculation
During the mixing of the colorants, operated by the motors you can use the machine,
the cycle will automatically stop and then resume at the end of dispensing. The
operation of recirculation cannot be interrupted until the end, commands will be
available only when ‘Ready’ light is on.
Mixing cycles and recirculation intervals can be customized in order to fit the
rheological properties of the colorants. Before filling the canister, consider to fill similar
colorant in the same group of canisters in order to set the same mixing interval.
Groups are composed of 8 canister each, starting from N. 1 (e.g. canister 1-8 are of same group, 9-16
are of same group) See software manual to configure group mixing intervals.

18
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Maintenance
Maintenance and lubrication operations must be performed by specialized staff, authorized to
perform the service
Make sure that the quantities and/or types of oil used comply with those recommended. Never mix oils of
different quality or brand.
To clean the machine, DO NOT USE fibrous cloths or products that may pollute or alter machine
parts.
Avoid any temporary repairs; repairs must be exclusively performed using original spare parts
In this case, inform the Manufacturer’s technical service. Should difficulties or anomalies arise
which are impossible to eliminate directly, do not attempt any hazardous repairs.
Always use the personal protection equipment provided by the employer (masks, gloves, safety shoes, etc.).
The maintenance operator must promptly notify any anomaly: dripping, abrasions, fraying, etc...
Prevent the use of the machine in case of issues of any nature and properly restore normal conditions or make
sure proper measures are taken in this regard.
The Manufacturer declines any liability in case the maintenance cycles indicated in this manual and enclosed
documents are not respected, and also in case maintenance is performed by unqualified staff or in case
procedures or lubricants are used, boasting characteristics that do not comply with those indicated
Please remember that grease and lubricant residues may pose a hazard. The same applies
for colorants and/or detergents used to operate or maintain the machine

19
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Periodical checks
Before performing any maintenance service, disconnect the plug and wait 5
minutes to disperse any residual voltage.
Clean the work environment and station, the technical and accident prevention tags
on a daily basis. In case of accidental spillage of colorant, see procedure ‘’Replace
canister’’ in order to access internal parts
Make sure there are no leaks and/or spills from the canisters or lubricated machine’s
components, on daily basis
Check the nozzles’ humidification on a monthly basis. To prevent drying, the Stop
Drop System features a water containers that must be inserted below the nozzles
during downtimes
Grease the endless screw 16 on an annual basis
Check the tightening torque of the lugs and terminal boards of the electrical system
on an annual basis; check the operating temperature and efficiency of motors and
transformers; check the integrity of power supply cables and protective sheaths
and/or any oxidation.
Inspect the entire machine and perform a complete and accurate review after
approx. five years of activity. For this purpose, contact the Manufacturer or one of
his Service Agents.
10.000 h

20
Italtinto
Color
Dispenser
i252
Rev.
0
–
02/2020
Canister replacement
WARNING: This step must be performed by service staff only, with extreme caution to avoid
damages or crushing hazards.
To remove / replace a canister follow steps as below:
1. Switch the machine OFF and remove the power cord
2. Remove the 2 screws that fix the top cover
3. remove the cover
4. temporarily connect the power and perform a mixing/recirculation cycle.
5. stop the run of the pumps disk at half way pressing the STOP emergency button
6. switch off the machine and unplug the power cable.
7. unscrew and remove bolt A of piston pump, and B mixing pad, unscrew and remove screws C, that fix
the canister to the turntable
8. Unplug the connector of solenoid.
9. Pull out the canister until the nozzle is just out of the manifold afterward take it out.
10. To re assemble the canister, just place it on the support plate and push it in order to insert the nozzle
into the manifold with care
WARNING: Prevent any colorant leaks and clean if any leaks are present.
Block the piston pump
before
removing
bolt
A
