ITALTINTO i302 User manual

Italtinto Europe S.r.l.
Sede Legale: V.le Andrea Doria, 7 – 20124 Milano
Unità operativa: Via Zibido, 3 -20080 Zibido S. Giacomo (MI) ITALIA
Tel. [phone] - Fax [phone]
ITALTINTO COLOR DISPENSER i302 – i352
Dispenser machine
User’s manual
Serial N. ITE000..........
“Translation from original instructions in Italian language”
This manual forms an integral part of the machine and it shall always be kept available to operators working on the same
machinery; the manual shall always accompany the machine, also when this is sold to another user..
Operators must read this manual and carefully follow the indications contained herein, as the manufacturer
will not be liable for damages caused to people and/or objects or suffered to the machinery, should the
conditions reported below not be respected.
The Client shall respect the trade secret, therefore the following documentation and annexes cannot be altered neither modified,
reproduced nor transferred to third parties, without the manufacturer’s authorization

2
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
INDEX
Warranty and supply conditions ....................................................................................................................... 3
The manual and receivers ................................................................................................................................. 4
Standard reference ............................................................................................................................................ 5
Symbols and sign ............................................................................................................................................... 6
Field of use......................................................................................................................................................... 8
Characteristics ................................................................................................................................................... 9
Machine description ........................................................................................................................................ 11
Accident prevention ........................................................................................................................................ 14
Lifting and transport ........................................................................................................................................ 16
Installation ....................................................................................................................................................... 17
Additional safety instruction for US – CAN version of the product................................................................. 17
Equipment ....................................................................................................................................................... 19
Start-Up ........................................................................................................................................................... 20
Maintenance .................................................................................................................................................... 21
Periodical checks ............................................................................................................................................. 22
Canister replacement ...................................................................................................................................... 23
Stop Drop maintenance ................................................................................................................................... 24
Fuses replacement........................................................................................................................................... 25
Troubleshooting .............................................................................................................................................. 26
Spare parts request form ................................................................................................................................ 28
Table A ............................................................................................................................................................. 29
Table B ............................................................................................................................................................ 30
Table C ............................................................................................................................................................ 31
Electrical scheme ............................................................................................................................................. 32

3
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Warranty and supply conditions
The Manufacturer is the subject who manufactures the machine, and who designs and owns the project;
for Manufacturer, it is also intended his Agent, herein after simply referred to as Manufacturer;
The Client is the final user of the product;;
The machine is regulated in Europe by EC Directive 2006/42/EC.
The Manufacturer declares that the machine complies with applicable laws in the member states of the European
Community and releases the CONFORMITY DECLARATION.
The Manufacturer is exclusively liable for defects caused by the regular use of the machine.
The warranty period is of 12 months from the purchase date.
The warranty does not cover machine downtimes, material discards, loss of production, etc…
ITEMS NOT INCLUDED IN THE SUPPLY
The Manufacturer will not be deemed liable for defects or failures caused by: improper use of
the machine; alterations due to transport or particular environmental conditions; lack of or
improper maintenance; temporary alterations or repairs; non-qualified people or accessories
not part of the machine.
Those parts subject to normal wear are excluded, or in case the cause for the failure or wear
derives from the improper use of the machine.
The Manufacturer will NOT be liable for damages caused to people and/or objects, or suffered by the same machine, due
to a use other than the intended one described in the manual or in case the machine’s safety features are not utilized
(excluded) or they are altered
The Client shall use exclusively original spare parts and install them according to the intended use, with the aid of
authorized personnel.
The manufacturer will not be liable for materials being processed, neither for damages that the latter can
cause to the staff or environment.
The Manufacturer WILL NOT be liable for the disposal of the products intended for the operation,
maintenance of the machine or production.
.

4
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
The manual and receivers
This document is intended for professional figures that thanks to their experience or qualification are able to
operate in compliance with common safety standards and specific skills; it is assumed that
the aforementioned subjects boast basic knowledge on their role.
The Client must verify that the operator boasts the skills and suitable training required to
execute his job
All professional figures that interact with the machine must compulsorily read this manual;
moreover, these must be informed on the potential RESIDUAL RISKS related to the machine’s
use or products processed by it
The manual CANNOT make up for any cultural or intellectual lacks
of the various professional figures who interact with the machine
Scope and structure of the document
This document (USER AND MAINTENANCE MANUAL) is a useful guide that allows working in safety conditions
and performing those operations required for the optimal performance of the machine.
The original language of this document is ITALIAN; therefore, in case of inconsistencies or doubts, please
request the ‘’ORIGINAL INSTRUCTIONS’’ or additional information to the manufacturer. The indications
contained in this manual do not substitute safety instructions and technical data applied directly on the
product concerning machine’s installation and operation, neither rules dictated by common good practice
and safety standards applicable in the country of installation.
Characteristics of the personnel
The personnel intended to use or maintain the machine must be qualified, aware and responsible for the
described tasks, and it must be reliable to properly interpret the instructions contained in this manual and
ensure safety and accurate checks.
The employment of NOT qualified, disabled, incapable, non-sober staff or addicted to drugs is
strictly prohibited.
In order to prevent damages to people or objects, we advise the Client to properly inform the
operators on potential RESIDUAL RISKS derived from.
The Client will be fully liable on the qualification and mental or physical state of the professional
figures he employs.
The Client or employees are civilly liable for all damages caused to or suffered by staff that he
authorized to use the machine.
The staff who interacts with the machine shall always use the personal protection equipment
foreseen by the laws applicable in the destination country, and any other safety equipment
provided by the employer, such as: masks, gloves, safety shoes, etc…

5
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Standard reference
International standards and national laws implemented in the design and construction of the machine are indicated
below.
• 2006/42/EC New machine directive for EC marking
• 2014/35/ UE LVD
• 2014/30 UE EMC
• Harmonized IEC 61010-1:2010
• UNI EN ISO 12100: 2010 Safety of machinery – Risk assessment.
• UNI EN 349: 2008 Safety of the machinery – Minimum gaps to avoid crushing of parts of the human body.
• IEC EN 60204-1: 2006 Safety of the machinery - Electrical equipment of machines. Part 1: General requirements.

6
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Symbols and sign
Requirement to read the document, which must be stored for future reference and be kept intact
Hazard areas are indicated in the manual and/or on machine in some instances, with signs,
tags, symbols or icons that represent the hazard or requirement.
Operations or situations in which the staff shall be extremely cautious: General hazard
Dangerous voltage: generally located on the electrical cabinet, protected by general switch IG
with automatic release.
Requirement to ground the system.
Moving organs, crushing of hands or body parts, slipping or falling hazard: hazard signs that
indicate potential risks for the operator
Explosions: it notifies the potential explosion hazard or need for explosion-proof equipment
General prohibition: it notifies the prohibition to enter the surveyed area or prohibition to carry
out a certain operation.
Requirement: it notifies the requirement to carry out the described
operations using safety clothing and/or personal protection
equipment provided by the employer: masks, gloves, safety shoes,
etc…
EC marking (2002/96/EC) which identifies the requirement to dispose electrical and electronic
products in dumps intended for the purpose and separate collection, to prevent environmental
pollution
Prohibition to remove the machine’s safety features.
Do not operate or carry out maintenance services on the machine with removed or open guards.

7
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8

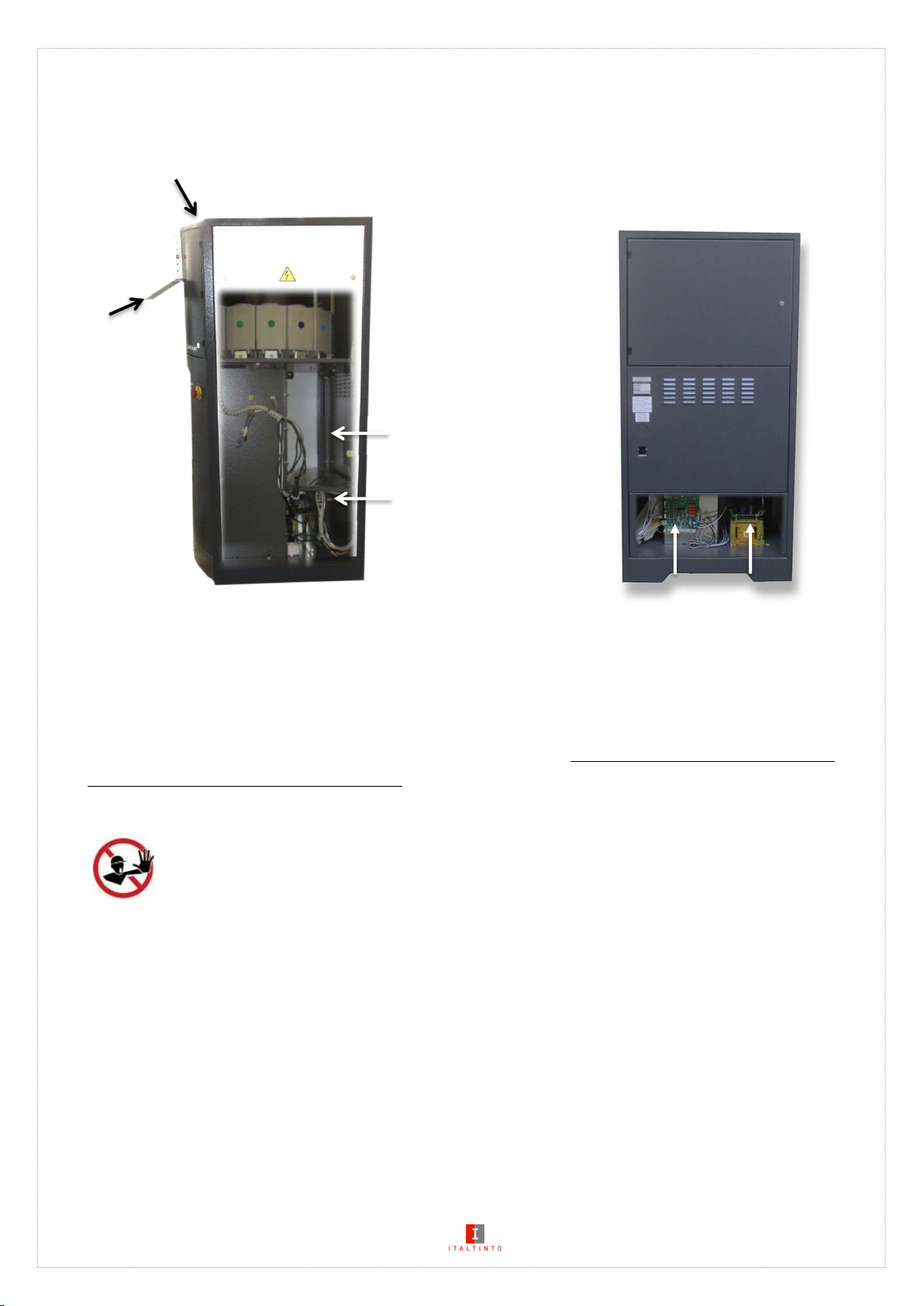

3
Generic warning
Warning for installer
2
Marking plate Danger
4
1
1500W/ 6,5A (220-240V)
400W 3,5A(100-120V)
5
Max power multi socket

8
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Field of use
The Manufacturer declines any liability for any damage caused by improper or imprudent
operations.
Intended use
The machine described in this manual has been designed to: Dispenses colorants
to obtain a mix of colors featuring the required tones. The colorants must be contained in suitable tanks
(canister) and dispensed in a can compliant with the characteristics and quantity of the compound.
It is strictly prohibited and also dangerous to use the machine other than for the purpose
foreseen in the field of use.
Table: limits concerning the field of use
Minimum can sizes allowed ................................................................. ø 70 x 120 mm
Maximum can sizes allowed ................................................................ ø 370 x 370 mm
Maximum weight allowed on the can-holder platen … ......................................... 40 kg
N.B.: The containers can be of cylindrical or parallelepiped shape.
Use not allowed: It is strictly prohibited to use the machine or parts of it other than for the purpose
foreseen in the field of use
IT IS STRICTLY PROHIBITED:
- To use the machine or parts of it, without reading and properly interpreting the content of the user and
maintenance manual.
-use the machine with not functioning or disconnected safety features.
- use the machine or parts of it in particularly flammable environments.
- use of flammable colorants or colorants that diffuse potential explosive vapors may present fire
and explosion risks
-use corrosive products that may corrode machine parts or be harmful for the operator.
- modify operating parameters which are restricted to the operator.
-use machine parts or systems, connecting them to other equipment.
N.B. The machine IS NOT equipped to be installed in an explosion-proof environment.
The Manufacturer declines any liability for any damage caused by improper or imprudent operations

9
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Characteristics
The description of the machine’s characteristics allows identifying its main components to understand the
technical terminology implemented in the manual.
Chapter CHARACTERISTICS contains information concerning the machine’s components, characteristics, sizes
and identification. Adjustments, operation and maintenance services are described below, assuming the
information contained in this chapter is understood. In some instances, the operation or the machine’s
software may be described separately or integrative documents intended to qualified operators may be
enclosed to this manual.
TECHNICAL CHARACTERISTICS
Power supply voltage ……………………………………………….……………………….. 220-240V or 100-120V 50/60Hz + ground
Make sure that the supply voltage corresponds with that indicated on the plate
Voltage for operator’s commands ………………………………..…………………................................................ 24 Volt +/- 10%
Mains supply voltage fluctuations are not to exceed……….……………… -10% and +10% of the nominal supply voltage
Total installed electric power …………………………………….........................................................................600 W +/- 10%
Multiple socket………………………………………………………………..………….1500W/ 6,5A (220/240V) – 400W 3,5A(100-120V)
Dispensing ……………………......................................................................................................................... simultaneous
Mixing of colorants……………………………………................................................................................................ automatic
canisters capacity ……………………………………….......................................................................................................... 3 lt
Number of canisters…………………………….....................................................................................................................16
Pump volume …………………………………………………………………………........................................................................... 2 Oz
Accuracy…………………………………………………………………………….…................................................................. 1/384 Fl. Oz
Number of operators …………………………………..………................................................................................................ 1 #
Average sound pressure or noise level………………………………………………………………………………….……………….... < 70 dBA
Weight ……………………………………………………………............................................................................................... 196 kg
Allowed ambient temperature………………………………………………………............................................................ 5 ÷ 40 ° C
Maximum relative humidity allowed without condensation………………………….……………………………………..…. 30 ÷ 90 %
Pollution degree……………………………………………..………...................................................................................................2
Installation ……………………………………………………………….……......................................................................................... II
Altitude ………………................................................................................................................................. 2000 m (max)
Indoor use only
PC connection…………………………………………….............................................................................................RS 232 / USB

10
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Dimensions are in mm
Electric power input
Operator’s area or work station
Dimensions and safety distances or overall sizes required for maintenance are indicated.
Identification of the machine and manufacturer
The tags affixed on-board the machine MUST NOT be absolutely removed, damaged,
stained, hidden, etc...
The tags must be cleaned on a regular basis and always kept well visible, meaning NOT HIDDEN
with foreign objects and parts (cloths, boxes, equipment, etc.).
The technical data included in this manual does not replace the information indicated on the
tags on-board the machine.

11
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8

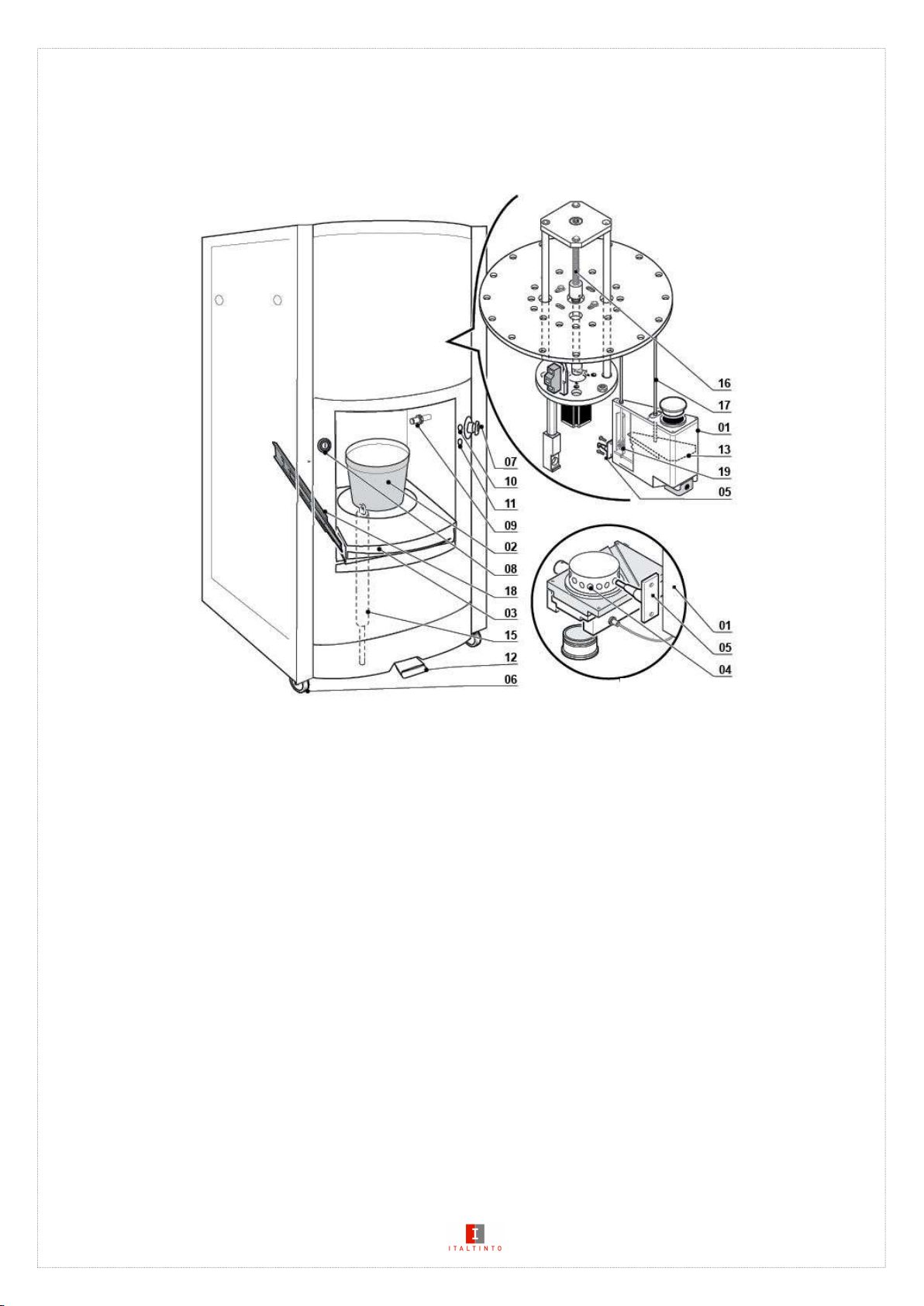

Machine description
Our dispensing machine is made of robust enameled frame with accurate finish, mounted on wheels 06 so
that it can be easily moved.
The machine is completely isolated and protected through a series of casing which are either fixed or can be
exclusively removed using wrenches or equipment.
In the upper part Canister 01 are fixed to a rotating plate to allow easy filling and maintenance. The pumps
group is managed by one only reliable step motor that drives a round plate through an endless screw. All
pump stems 19 are connected to the plate and move together
Colorant is dispensed through a by pass valve activated by a solenoid. When dispense a recipe, only selected
canisters open the by pass and dispense, other canisters recirculate the colorant since the by pass is closed
while pumps move up and down.
Up to 6 canisters can dispense simultaneously. All nozzles are connected to a manifold 04 reducing the
distance from pump to dispensing point.
The mixing system features one single step motor that enables pumps 19 and simultaneously moves the
mixing paddles 13 to mix the colorant inside canister 01.
The step-controlled motor lifts and lowers stems 17 simultaneously, all secured to a single upper disc,
through a recycling ball worm screw 16.

12
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
The lower part features a tin-holder platen 03 equipped with a suitable gas pressure spring that supports the
weight of the tin-holder platen. Place the can on the shelf and pull it up until the can is properly positioned
between the sensors, it locks by itself. To release the system, push the pedal to unlock the brake that fix the
can holder shelf, push down it manually to allow the descent. Some circle help to place the can aligned with
the dispensing center
The machine is equipped with a “Stop Drop System” that prevents
the nozzles 05 from drying.
The Stop Drop System 14 features a manifold 04 for the introduction
of the canisters’ nozzles.
The electronic components ensure the full automatic control of the machine parts and its functions, are
located in the rear side of the machine protected by a locked panel
The electronics consist of two boards that perform all the necessary functions
to manage the machine, from power supply to the logic control of the
commands. The photocell 09 which enables the colorant dispensing is located
in the upper internal part of the compartment where the tin-holder platen 03
is located.
The general switch 08, the emergency stop button 07, the busy light 10 which
indicates when the machine is enabled and the ready light 11 indicating machine-ready are located on the
front side, in a well visible and ergonomic position.
The mixing cycles, dispensing, cleaning nozzles and adjustments can be carried out by
PROSCAN/MATCHSCAN software installed in a PC connected to the machine. Two optional solutions are
foreseen for the positioning of the PC and keyboard: a suitable lateral table or a Top Shelf
Fish Tail Technology – Machine can be supplied with new mixing system applied to
all canisters or to some of them. The mixing system is performed by a blade which is
actuated by a motor through an eccentric movement. The blade moves like a 'fish
tail' mixing the colorant avoiding air bubbles and foam. Each canister is equipped with
a motor to drive the blade, the mixing time and intervals are managed by software.
Machine is connected to the
computer via USB port. Connection
cable is included and is plugged on
manifold
stop d
rop

13
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
In the rear of the machine is available an adequate room to house the computer, while the keyboard and the
monitor can be fixed on the shelf support1 in front of the machine. Computer, keyboard and monitor are
optional and not provided with the machine. To supply the computer equipment is available a multi plug
adapter (except for cMET US configuration
Only qualified personnel is authorized to remove panels. Do not open panels unless the
power cable is unplugged
Pwer supply for PC and monitor is provided by a multi socket 1500W/ 6,5A (220-240V)
400W /3,5A 100-120V (not available for cMET US).
In front of machine is available a useful USB port to connect devices without opening panels.
Computer room
USB
–
PC cable
USB port extension
Power board
Multi socket PC – Monitor Main board
Monitor and keyboard
shelf

14
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Accident prevention
The machine has been built according to the strictest accident prevention standards and
equipped with suitable safety devices to protect components and operators.
Lifting devices must be used to handle and/or lift heavy parts or equipment (weight
exceeding 25 kg).
Avoid any temporary repair; repairs must be performed exclusively using original spare
parts, which must be installed according to the intended use
Do not disconnect the plug by pulling the power supply cable. Do not damage it, bend it
or lay objects on it.
OPERATIONS AND RESIDUAL RISKS
UNI EN ISO 12100: 2010
Installation conditions and environmental risks
For obvious reasons, it is not possible to foresee all the various possible installations and environments
where the machine will be installed.
The machine cannot be installed outdoors or exposed to atmospheric agents (sun, rain, wind,
etc…); moreover, safety distances must be respected to avoid dangerous situations. Make
sure no electro-magnetic interferences are present
The standard machine is not equipped to work in particularly flammable or explosive
environments; explosion-proof equipment is supplied upon request.
When the machine is on, it generates an average noise or sound pressure level lower than 70 dBA.
The work station must be properly lit to ensure the safety of all work and maintenance operations.
The Manufacturer WILL NOT be liable for the disposal of the products intended for the operation,
maintenance of the machine or production: colorants, solvents, exhausted lubricants, batteries,
etc…

15
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Maintenance services and safety devices
Safety casing that can be removed only using equipment or wrenches prevent access to the
internal parts of the machine.
Removing the casing IS PROHIBITED without pressing the emergency button 07 and
disconnecting the machine from the electric power grid
Warning: hot parts or residual voltage may be present inside the machine.
Maintenance operators must notify any anomaly or deterioration due to wear or aging. The
machine must be cleaned using suitable equipment and detergents that do not corrode the
machine’s components; it is strictly prohibited to clean or wash the machine by spraying water
on it
In case of fire, use CO2 foam fire extinguishers and use automatic exhaust systems to put out
fire in closed environments.
Operators and suitable clothing
The personnel MUST NOT operate the machine or equipment with bare feet or wet hands. Comply with the
number of operators indicated in the technical characteristics. The staff must wear the clothing and personal
protection equipment provided by the employer: masks, gloves, safety shoes, etc…The staff must not wear
clothing items with long sleeves, laces or belts that may jeopardize their safety.
Machine’s maneuvers and use
The machine may represent a hazard, also when off: casing, corners, electric cables, etc., therefore use
caution when handling machine’s parts and use suitable protection equipment.
The machine features wheels 06, therefore it must not be positioned on ramps or inclined surfaces. Make
sure the machine does not pose any hazards once installed.
Should the machine be left unattended for long periods of time, any accidental movement must be
prevented since it is mounted on wheels.
A proper cleaning of the work area may prevent accidents or unnecessary risks. Any colorant leak, even if
small, may pose a hazard. Any foreign body not belonging to the machine (e.g. wrenches, bolts, screwdrivers,
etc.) must always be kept away from the machine

16
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Lifting and transport
The lifting devices (ropes, polyester bands, etc.) must be suitable to withstand the machine’s
load; the ropes must form an opening angle smaller than or equal to 90° and they must not
damage the machine.
During handling, check the proper distribution of the weights and do not perform any sudden
movement or quick shifting that may create dangerous swinging motions
Lifting must be carried out exclusively by specialized staff (slingers, crane operators, road
haulage operators, etc.)
The machine is lifted using a fork lift, and secured firmly to the bench or base, paying
attention not to damage the wheels.
Transport
The machine’s transport, especially on road, shall take place with suitable devices and methods in order to
protect the components (in particular electronic components) against shocks, humidity, vibrations, etc..
Unpacking and cleaning of components
We remind you that the packaging components (wood, nails, cellophane, staples, adhesive tape,
etc.) may pose a hazard. These must be removed using suitable equipment and kept away from
non-authorized people (e.g. children); the same applies for tools used to remove the packaging
(scissors, hammers, tongs, etc.).
The packaging components must be discarded and disposed of, according to applicable laws in
the installation country.
When opening the packaging, make sure the machine is intact and complete, and check that
no defects or deteriorations are present; otherwise suspend the operations immediately and
notify the carrier or transport operator, and also inform the Manufacturer.
Remove the side panels, unscrew butterfly bolts on the floor, push down the blocks
and remove the machine from the pallet
B
A

17
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Installation
The machine must be installed, knowing the EQUIPMENT well and according to the requirements of the
Customer and place of installation
Installation operations must be performed by qualified personnel
Installation method
 Check the foreseen environmental conditions (explosive atmospheres, excessively ventilated
atmospheres or boasting a high degree of humidity) and make sure the machine is not exposed to
atmospheric agents such as rain, wind, etc.;
 Once the machine is released, remove it from the pallet using a fork lift, paying attention to the
wheels 06 and using the same wheels to handle it.
 Make sure the machine does not pose any hazards once installed
 Avoid electro-magnetic interferences.
 Position the machine in an area featuring safety distances, in order to allow the execution of regular
work/ maintenance operations.
 Make sure the floor is flat and suitable to sustain the load.
 Make sure that the machine is stable and it does not emit vibrations.
 After positioning the machine in a well ventilated area, away from heat sources, sprays and dusts,
disassemble the machine from the pallet, removing the two screws that secure it to it, making sure
the machine does not roll off the same pallet
When handling the machine on wheels, pay attention to ramps or inclined surfaces.
The machine features an electric socket located on the rear side; make sure the
power voltage coincides with the voltage indicated on the tags. DO NOT use
extension cords or unsuitable cables.
INSTALL a differential magneto-thermal switch upstream the general switch 08 supplied by the
Manufacturer of suitable power (30 mA) check the grounding connection
Only qualified personnel is authorized to open the panels. Do not remove the panels unless the
power cable is unplugged
Additional safety instruction for US – CAN version of the product
GROUNDING INSTRUCTIONS
This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This product is equipped with a cord
having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded in accordance with all local codes and ordinances.

18
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
WARNING – Improper installation of the grounding plug is able to result in a risk of electric shock. When
repair or replacement of the cord or plug is required, do not connect the grounding wire to either flat
blade terminal. The wire with insulation having an outer surface that is green with or without yellow
stripes is the grounding wire.
Check with a qualified electrician or serviceman when the grounding instructions are not completely
understood, or when in doubt as to whether the product is properly grounded. Do not modify the plug
provided; if it does not fit the outlet, have the proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-V circuit and has a grounding plug similar to the plug illustrated
in figure below.
Only connect the product to an outlet having the same configuration as the plug. Do not use an adapter
with this product
Use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that accepts
the plug on the product. Make sure your extension cord is not damaged. When using an extension cord,
be sure to use one heavy enough to carry the current your product draws. For lengths less than 50 ft,
16 AWG extension cords shall be used.
An undersized cord results in a drop in line voltage and loss of power and overheating.
Computer can be positioned in the rear of the machine, where is also available a multi plug for the electrical
connections max. 1500W/ 6,5A (220-240V) o 400W 3,5A(100-120V) except eMET US
An ergonomic shelf is available on the top side to house monitor and keyboard
Once the computer is installed, connect the USB cable that is connected in the main board, located inside
the rear compartment (in case your computer is installed outside of the machine will be required to pass
the cable through the prepared hole and then connect it to the computer. You have to plug an extension
USB cable, recommended not longer than 5 mt.
Turn the machine on, install software PROSCAN or MATCHSCAN. After installation you should find a new
COM port installed, it is the mainboard driver.

19
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Go to SETUP page of the software (read the user’s manual) and set the COM port assigned for the
dispenser (see software manual).
Run the setup with the machine turned on and connected, hence repeat the steps above to set the
software. When machine is connected, a READY green light will be displayed on the right
bottom screen
Equipment
Knowing the EQUIPMENT well is one of the main conditions to avoid damages to the machine and operator.
Therefore, read this manual carefully and in case of doubt or inconsistent information,
request details to the manufacturer.
Please refer to the ‘’ORIGINAL INSTRUCTIONS’’ and the original language in which the document was drawn
up, that is ITALIAN, in case of inconsistencies in the technical information.
The employer must make sure that the aforesaid conditions are respected and that the staff in charge to
operate the machine boasts suitable training.
The Manufacturer will not be held liable for damages caused to the machine and operator if generated by
lack of skills, expertise or training.
Machine’s commands
07 EMERGENCY: the red emergency mushroom button 07 allows stopping the machine immediately, by
cutting-off the voltage.
08 GENERAL SWITCH: the general switch 08 provides voltage to main circuit and prepares the machine for
operation in just a few seconds, during which it performs an auto-test
09 PHOTOCELL: photocells 09 check the presence of the can and enables the dispensing
10 READY: the ready light 10 turns on when the machine is ready for use, at the end of the auto-test cycle or
at the end of any operation
11 BUSY: the busy light 11 indicates that the machine is busy in operations and disabled to receive commands
12 PUSH PEDAL to unlock the can holder lifter

20
Italtinto Dispenser
i302
–
i352
Release
2
–
06/ 201
8
Start-Up
Start up
Before enabling the machine, the operator must know the EQUIPMENT chapter and functions enabled by
the commands thoroughly. In addition, he must:
- memorize the position of the emergency button 07
- make sure the photocell 09 works properly.
- carefully assess any residual risk; make sure no objects are present on the machine and no non-authorized
people are standing in the work area;
- carry out the necessary adjustments.
Once the machine has been started up, by the general switch 08 the machine performs an auto-test to make
sure that all components are ready for use.
After completing the automatic test, the machine performs a complete cycle of mixing colorants,
recirculation and cleaning nozzles (all operations can be configured via software)
At the first start filling the canisters with colorants, switch the machine off to perform the operation. Be
careful to the label-matching color code.
To fill canisters remove the cap and pour the colorant inside, then close the cap in order to prevent drying.
it’s recommended to shake the colorants by hands before filling the canisters. Mix colorants in an
automatic shaker or mixer could cause development of foam and air bubbles that can affect the dispense
accuracy. After filling, update levels in the software SETUP page. Do not exceed in
filling canister
Switch the machine ON and perform a cleaning nozzles cycle to get a rid of air inside
the pumps
Press ‘cleaning nozzles’ in the SETUP page of the software to start the operation,
machine opens the stop drop device and starts to dispense a small quantity of
colorant in the can. At the end of the cycle the machine will set to Ready status.
The machine performs a complete cycle of mixing colorants and cleaning nozzles at every power on.
The cleaning nozzles will be performed only if a can is positioned between the sensors.
The operations performed when machine is turned ON (At Start) can be enabled and disabled by software.
The computer can be turned off, mixing functions are self-managed by the machine.
Machines with FT Technology
Machines that mount FT technology can activate mixing motors to perform colorant mixing and pumps stems
moving up and down, to perform recirculation
During the mixing of the colorants, operated by the motors you can use the machine, the cycle will
automatically stop and then resume at the end of dispensing. The operation of recirculation cannot be
interrupted until the end, commands will be available only when ‘Ready’ light is on.
Mixing cycles and recirculation intervals can be customized in order to fit the rheological properties of the
colorants. Before filling the canister, consider to fill similar colorant in the same group of canisters
in order to set the same mixing interval.
Groups are composed of 8 canister each, starting from N. 1 (e.g. canister 1-8 are of same group, 9-
16 are of same group) See software manual to configure group mixing intervals.
