IWAKI PUMPS FLP-75W User manual

©2014 IWAKI CO., LTD.
Thank you for choosing our product.
Please read through this instruction manual before use.
This instruction manual describes important precautions and instruc-
tions for the product. Always keep it on hand for quick reference.
Instruction manual
FLP-75W
Iwaki
Pneumatic Drive Bellows Pump
Safety instructions Overview Installation Operation Maintenance Specication
( )Country codes
IWAKI CO.,LTD. 6-6 Kanda-Sudacho 2-chome Chiyoda-ku Tokyo 101-8558 Japan
TEL:[phone] FAX:[phone](http://www.iwakipumps.jp)
T911 '15/02
Australia IWAKI Pumps Australia Pty. Ltd.
TEL:[phone] FAX:[phone]
Italy IWAKI Europe GmbH, Italy Branch
TEL:[phone] FAX:[phone]
Austria IWAKI EUROPE GmbH
TEL:[phone] FAX:[phone]
Korea IWAKI Korea Co.,Ltd.
TEL:[phone] FAX:[phone]
Belgium IWAKI Belgium n.v.
TEL:[phone] FAX:13672030
Malaysia IWAKIm Sdn. Bhd.
TEL:[phone] FAX:[phone]
China IWAKIPumps (Shanghai)Co.,Ltd.
TEL:[phone] FAX:[phone]
Norway IWAKI Norge AS
TEL:[phone] FAX:[phone]
China IWAKIPumps (Guangdong) Co., Ltd.
TEL:[phone] FAX:[phone]
Singapore IWAKI Singapore Pte. Ltd.
TEL:[phone] FAX:[phone]
China GFTZIWAKIEngineering&Trading(Guangzhou)
TEL:[phone] FAX:[phone]
Spain IWAKI Europe GmbH, Spain Branch
TEL:[phone] FAX:[phone]
China GFTZIWAKIEngineering&Trading(Beijing)
TEL:[phone] FAX:[phone]
Sweden IWAKI Sverige AB
TEL:[phone] FAX: [phone]
Denmark IWAKI Nordic A/S
TEL:[phone] FAX:[phone]
Switzerland IP Service SA
TEL:[phone] FAX:[phone]
Finland IWAKI Suomi Oy
TEL:[phone] FAX:[phone]
Taiwan IWAKI Pumps Taiwan Co., Ltd.
TEL:[phone] FAX:[phone]
France IWAKI France S.A.
TEL:[phone] FAX:[phone]
Taiwan IWAKIPumpsTaiwan(Hsin-chu)Co., Ltd. TEL:[phone] FAX:[phone]
Germany IWAKI EUROPE GmbH
TEL:[phone] FAX:[phone]
Thailand IWAKI (Thailand) Co.,Ltd.
TEL:[phone] FAX:[phone]
Holland IWAKI Europe GmbH, Netherlands Branch
TEL:[phone] FAX:[phone]
U.K. IWAKI Pumps (UK) LTD.
TEL:[phone] FAX:[phone]
HongKong IWAKI Pumps Co., Ltd.
TEL:[phone] FAX:[phone]
U.S.A. IWAKI AMERICA Inc.
TEL:[phone] FAX:[phone]
Indonesia IWAKISingapore(IndonesiaBranch)
TEL:[phone] FAX:[phone]
Vietnam IWAKI pumps Vietnam Co.,Ltd.
TEL:[phone] FAX:[phone]

2
Order conrmation
Open the package and check that the product conforms to your order. If any problem or
inconsistency is found, immediately contact your distributor.
a. Check if the delivery is correct.
Check the nameplate to see if the information such as model codes are as ordered.
b. Check if the required number of accessories is provided.
<Attached accessories>
• Four straight ttings (displacement sensor cooling air inlets/outlets) with plugs.
• Two silencers
*Necessary electrical wiring male connectors are attached to the LPC-1 controller package.
c. Check if the delivery is damaged or deformed.
Check for transit damage and loose bolts.
Order conrmation

3
Contents
Contents
Order conrmation ..........................................................................................................................................2
Safety instructions.................................................................... 7
Warning..........................................................................................................................................................8
Caution...........................................................................................................................................................9
Precautions for use ....................................................................................................................................11
Overview...................................................................................12
Introduction .................................................................................................................................................12
Pump structure & Operating principle......................................................................................................12
Features...................................................................................................................................................13
Operation mode .......................................................................................................................................13
Safety functions........................................................................................................................................13
Part names...................................................................................................................................................14
Pump........................................................................................................................................................14
LPC-1 .......................................................................................................................................................15

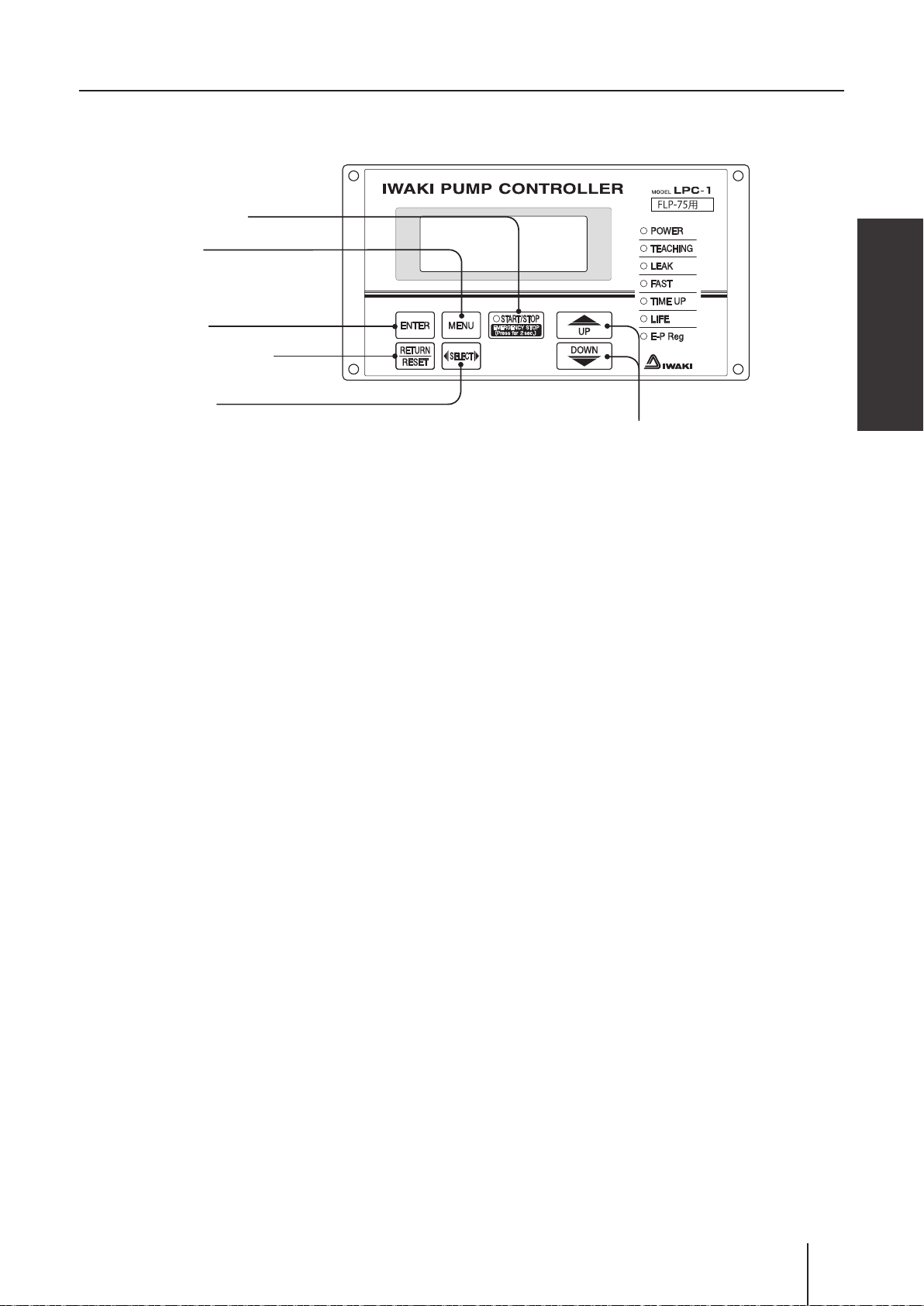

Control panel.......................................................................................................................................15
LEDs ...................................................................................................................................................16
Operating conditions..................................................................................................................................17
Pump stroke .............................................................................................................................................17
Supply air pressure range........................................................................................................................17
Liquid temperature range.........................................................................................................................17
Liquid characteristics ...............................................................................................................................17
Do not run the pump with the following liquid: ....................................................................................17
Use care handling the following liquid:................................................................................................17
Operation and Stoppage..........................................................................................................................18
During operation .................................................................................................................................18
When stopping the pump....................................................................................................................18
During stoppage..................................................................................................................................18
Air exhaust port........................................................................................................................................18
Leak sensor..............................................................................................................................................18
Ambient temperature................................................................................................................................18
Pump surface temperature.......................................................................................................................18
Noise from pump......................................................................................................................................18
Identication codes....................................................................................................................................19

4Contents
Installation .............................................................................. 20
Pump mounting...........................................................................................................................................20
Liquid line piping ........................................................................................................................................22
Suction line...............................................................................................................................................23

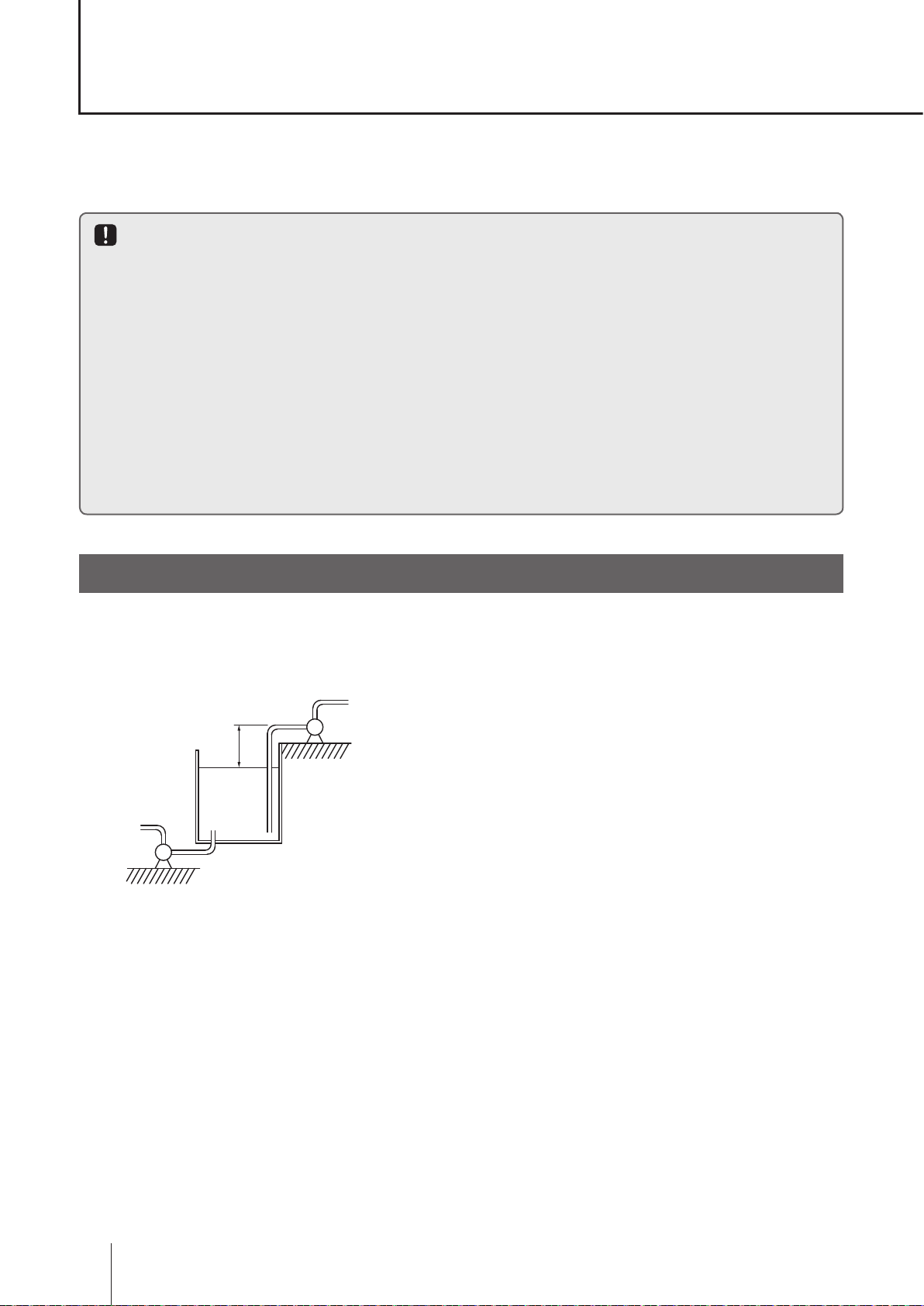

Flooded suction...................................................................................................................................23
Filtration (suction line end)..................................................................................................................23
When installing a valve on the suction line:........................................................................................23
Discharge line ..........................................................................................................................................23
When installing a valve on the discharge line:....................................................................................23
Filtration (circulation)...........................................................................................................................23
Filtration (discharge line end)..............................................................................................................23
Depressurization at pump stop...........................................................................................................23
Degassing................................................................................................................................................24
Air line piping ..............................................................................................................................................25
Before air piping.......................................................................................................................................25
Solenoid valve (SV).............................................................................................................................25
Regulator.............................................................................................................................................25
Air line piping layout (FLP-75W)..........................................................................................................25
Supply air port I.D...............................................................................................................................26
Effective cross-sectional area..................................................................................................................27
Effective cross-sectional area required for decompression process..................................................27
Composite effective cross-sectional area required for compression process....................................27
Air supply capacity of pneumatic devices...........................................................................................28
Preventive measures against condensation .......................................................................................28
Recommended pneumatic devices.....................................................................................................28
Air line piping diagram..............................................................................................................................29
Electric wiring .............................................................................................................................................31
Installation................................................................................................................................................31
Lead wires...........................................................................................................................................31
Extension of leak sensor wires ...........................................................................................................31
Installation of proximity switch wires...................................................................................................31
Extension of proximity switch wires ....................................................................................................31
Preventative measures against noise.................................................................................................31
Wiring diagram (LPC-1)............................................................................................................................32
Wiring diagram (normal operation with a single solenoid valve)..............................................................33
Wiring diagram (feedback control with a single solenoid valve)...............................................................34
End terminals ...........................................................................................................................................35
Power line............................................................................................................................................35
Single solenoid valve ..........................................................................................................................35
Double solenoid valve.........................................................................................................................36

5
Contents
User PLC.............................................................................................................................................36
Proximity switch/Displacement sensor/Leak sensor...........................................................................38
Electropneumatic regulator or Pressure sensor..................................................................................39
Operation................................................................................. 40
Before operation .........................................................................................................................................40
Programming menu ....................................................................................................................................42
Basic key operation..................................................................................................................................43
Main menu ..........................................................................................................................................43
Pump operation...........................................................................................................................................44
Pump model selection..............................................................................................................................44
Teaching...................................................................................................................................................45
Manual operation .....................................................................................................................................46
Operation start....................................................................................................................................46
Operation stop.....................................................................................................................................48
AUTO operation .......................................................................................................................................49
Display information...................................................................................................................................50
Operation display................................................................................................................................50
Total count display ..............................................................................................................................50
Speed compensation (AUTO mode)........................................................................................................50
External input for speed compensation operation..............................................................................50
Operation programming.............................................................................................................................51
Feedback control (4. SETTING: 1. QUANT. CONST. CTRL)...................................................................52
Target ow setting ...............................................................................................................................52
Electropneumatic regulator (EPREG) setting......................................................................................53
Liquid volume per shot setting ............................................................................................................54
Alarm output (4. SETTING: 2. ALARM)...................................................................................................55
Time up alarm setting (Default: 20sec)..............................................................................................55
Fast alarm setting (Default: 140spm)..................................................................................................55
Life alarm setting (Default: 99,999,999 counts).................................................................................55
Setting conrmation (4. SETTING: 3. SET VALUE CONFIRMATION)....................................................56
Stroke length conrmation ..................................................................................................................56
Pump model........................................................................................................................................56
MANU or AUTO ..................................................................................................................................56
Drive mode..........................................................................................................................................56
Default setting (4. SETTING: 4. RESET ALL DATA)................................................................................57
Keypad lock (5. KEY PROTECT).............................................................................................................58
Keypad lock activation ........................................................................................................................58
Keypad lock deactivation ....................................................................................................................58
Total number of pump shots conrmation/cancellation (6. TOTAL COUNT) ...........................................59

6Contents
Conrmation........................................................................................................................................59
Cancellation ........................................................................................................................................59
Regulator set pressure conrmation (8. PRESSURE SENSOR).............................................................60
Alarm output cancellation (9. ALARM RESET) .......................................................................................61
Maintenance............................................................................ 62
Troubleshooting..........................................................................................................................................62
Inspection ....................................................................................................................................................65
Daily inspection........................................................................................................................................65
Periodic inspection...................................................................................................................................65
Wear part list............................................................................................................................................66
Specication/Outer dimension..................................................................................................................67
Specication.............................................................................................................................................67
Pump...................................................................................................................................................67
LPC-1 controller..................................................................................................................................67
Proximity switch ..................................................................................................................................68
Displacement sensor ..........................................................................................................................68
Leak sensor.........................................................................................................................................68
Outer dimension.......................................................................................................................................69
FLP-75W .............................................................................................................................................69
LPC-1 controller..................................................................................................................................69
Part names...............................................................................................................................................70
FLP-75W .............................................................................................................................................70

7
Safety instructions
Safety instructions
WARNING
CAUTION
Safety instructions
Read through this section before use. This section describes important
information for you to prevent personal injury or property damage.
■ Symbols
In this instruction manual, the degree of risk caused by incorrect use is noted with the follow-
ing symbols. Please pay attention to the information associated with the symbols.
Indicates mishandling could lead to a fatal or serious acci-
dent.
Indicates mishandling could lead to personal injury or prop-
erty damage.
A symbol accompanies each precaution, suggesting the use of "Caution", "Prohibited actions"
or specic "Requirement".
Export Restrictions
Technical information contained in this instruction manual might be treated as controlled tech-
nology in your countries, due to agreements in international regime for export control.
Please be reminded that export license/permission could be required when this manual is
provided, due to export control regulations of your country.
Caution marks Prohibited marks Requirement marks
Prohibited
Electrical
shock
Caution Do not rework
or alter Requirement Wear
protection
Fire ban

8
WARNING
WARNING
Turn off power before work
Risk of electrical shock. Be sure to turn off power to stop the pump and
related devices before service is performed. Let other people know about
the situation by displaying a notice such as "POWER OFF (Maintenance)"
near the power switch.
Conrm safety in your working area
Keep away from the pump when turning on power. The pump doesn't have
an ON-OFF switch. The pump starts as a power cable is plugged in.
Stop operation
If you notice any abnormal or dangerous conditions, suspend operation
immediately and inspect/solve problems.
Do not use the pump in any condition other than its intended purpose
The use of the pump in any conditions other than those clearly specied
may result in failure or injury. Use this product in specied conditions only.
Do not modify the pump
Alterations to the pump carries a high degree of risk. It is not the manufac-
turer's responsibility for any failure or injury resulting from alterations to the
pump.
Wear protective clothing
Always wear protective clothing such as an eye protection, chemical re-
sistant gloves, a mask and a face shield during disassembly, assembly or
maintenance work. The specic solution will dictate the degree of protec-
tion. Refer to MSDS precautions from the solution supplier.
Spill precautions
Ensure protection and containment of solution in the event of plumbing or
pump damage (secondary containment).
Do not touch the pump or pipe with bare bands
Risk of burning. The surface temperature of the pump or pipe rises high
along with liquid temperature in or right after operation.
Do not remove covers
Do not remove the right-and-left cylinder head covers or the top-and-bot-
tom covers during operation. Or personal injury may result.
Depressurize piping before disassembly
Release a pressure from both liquid and air lines before dismantling the
pump or removing piping.
Requirement
Do not remodel
Wear
protectors
Requirement
Requirement
Requirement
Caution
Requirement
Prohibited
Prohibited

9
Safety instructions
CAUTION
Do not lift the pump by gripping the right-and-left cylinder head cov-
ers or the top-and-bottom covers
The pump can drop unintentionally as one of those parts breaks. Hold the
pump by the handgrips to lift it up.
Qualied personnel only
The pump should be handled or operated by qualied personnel with a
full understanding of the pump. Any person not familiar with the product
should not take part in the operation or maintenance of the pump.
Use specied power only
Do not apply any power other than that specied on the nameplate. Other-
wise, failure or re may result. Ensure the pump is properly grounded.
Ventilation
Fumes or vapours can be hazardous with certain solutions. Ensure proper
ventilation at the operation site.
Do not install or store the pump:
• In a ammable atmosphere.
• In a dusty/humid environment.
• In a corrosive atmosphere.
Do not stand on the pump
Do not use the pump as a platform. Injury or damage may result when the
pump turns over.
Flushing before operation
Flush the inside of the pump and piping with pure water or the liquid to be
delivered before the start of operation.
Do not run the pump with the following liquid:
• Liquid that easily crystallizes
• Slurry
• Low conductivity hydrocarbon liquid
Use care handling the following liquid:
• Stripper
• Solvent
• Hydrazine
• Fuming sulfuric acid
CAUTION
Requirement
Requirement
Requirement
Requirement
Requirement
Prohibited
Prohibited
Prohibited
Requirement

10
CAUTION
Static electricity
When low electric conductivity liquids such as ultra-pure water and fluor
inactive liquid (e.g. FluorinertTM) are handled, the static electricity may be
generated in the pump and may cause static discharge. Take counter-
measures to remove the static electricity.
Wear part replacement
Follow instructions in this manual for wear part replacement. Do not dis-
mantle the pump beyond the extent of the instructions.
Before returning product
Be sure to drain chemicals and clean the inside of the pump before return
so that a harmful chemical does not spill out in transit.
Observe the maximum stroke rate
Operation above the maximum stroke rate may reduce the life of bellows.
See "Specification" on page 67 for detail. Set a fast alarm speed to the
LPC-1 controller to avoid over-speed operation.
Disposal of a used pump
Dispose of any used or damaged pump in accordance with local rules
and regulations. If necessary, consult a licensed industrial waste disposal
company.
Requirement
Requirement
Requirement
Requirement
Requirement
CAUTION

11
Safety instructions
Precautions for use
Precautions for use
• During transit:
–Do not hit/wet the package.
–Do not place the package lateral/up side down.
–Do not stack the package on top of another.
• Electrical work should be performed by a qualied electrician. Otherwise,
personal injury or property damage could result.
• Do not install the pump:
–In a ammable atmosphere.
–In a dusty/humid place.
–In a corrosive/explosive atmosphere.
• Allow sufficient space around the pump for easy access and maintenance.
• Use care handling the pump. Do not drop. An impact may affect pump
performance. Do not use a pump that has been damaged to avoid the risk
of electrical damage or shock.
• Do not lift the pump by gripping the right-and-left cylinder head covers or
the top-and-bottom covers. The pump can drop unintentionally as one of
those parts breaks. Hold the pump by the handgrips to lift it up.
• The pump and controller are not waterproof. Do not operate the pump and
controller while wet with solution or water. Failure or injury may result. Im-
mediately dry off the pump and controller if they get wet.
• Do not close discharge line during operation. Solution may leak or piping
may break.
• Solution in the discharge line may be under pressure. Release the pres-
sure from the discharge line before disconnecting plumbing or disassembly
of the pump to avoid solution spray.
• Wear protective clothing when handling or working with pumps. Consult
solution MSDS for appropriate precautions. Do not come into contact with
residual solution.
• Do not leave the pump with any chemical in the bellows for a long period.
Some chemical gas can penetrate the bellows and corrode metal parts.
Run the pump for ten minutes a day for replacing gas when the pump is
going to be suspended two or three days.
Caution
Caution
Caution
Caution
Caution
Caution
Requirement
Requirement
Prohibited

12
Overview
Introduction
Pump characteristics, features and part names are described in this sec-
tion.
Introduction
Pump structure & Operating principle
The FLP-75W is a pneumatic drive pump with a pair of bellows and is controlled with the LPC-1 controller. The
special design of this pump alone reduces discharge pulsation without the assistance of a dampener, as low as
the combination of existing models and a dampener can achieve.
Principle of operation
The LPC-1 controller determines and keeps the optimal movement of the bellows with the right-and-left dis-
placement sensors and timely supply-air switching. This mechanism ensures the minimum discharge pulsation
at any operating conditions as long as specifications are met.
Supply-air switching
The LPC-1 controller determines an ON/OFF time of the solenoid valves by the input from displacement sen-
sors (ON time) and proximity switches (OFF time).
Left bellows
Spring
Left displacement sensor
Right proximity switch
Right leak sensor
Right displacement sensor
Left proximity switch
Left leak sensor
Right bellows
Connecting shaft
Pump shaft
Connecting plate

13
Overview
Introduction
Features
● Low discharge pulsation
Displacement sensors and proximity switches monitor bellows movement for the LPC-1 controller to deter-
mine the optimal time to offset ow pulsations one after the other without the support of a dampener.
● No need for a pressure and a ow sensor
Displacement sensors and proximity switches alone monitor bellows movement. Need for a pressure and a
ow sensor is eliminated.
● Capable of high-temperature liquid (up to 180ºC)
● Capable of high supply air pressure (up to 0.5MPa)
● Safety design
The bellows are welded into the pump head to reduce the possibility of a leak. A leak sensor also installed in
the air chamber to detects an accidental leak by bellows damage.
Operation mode
● MAN mode (Manual operation)
Start/Stop of the pump operation with the LPC-1 controller.
● AUTO mode (Automatic operation)
Start/Stop of the pump operation with the signal input from user's PLC.
● Feedback control
The LPC-1 controller adjusts supply-air pressure to keep a constant ow under pressure uctuation.
*Use of the CKD EVD3500-010AN-__-3 is required. Purchase separately.
Safety functions
● Leak detection
The LPC-1 controller stops the pump upon detecting a leak from bellows.
● Emergency stop
The pump stops at any time when the START/STOP key is pressed and held (2 sec).
● Interlock
The LPC-1 controller alarms over-seed operation when a pump runs at the fast alarm speed or above. If the
pump speed has reached the interlock speed (fast alarm speed plus 10spm), the LPC-1 controller behaves
to keep it below the interlock speed.

14
Part names
Pump
*Do not clean the pump or nameplate with a solvent such as benzine or thinner.
Part names
Supply air port
Inlet
Outlet
Base
Always anchor the pump
through the base.
Supply air port
Silencer
Cable outlet for the:
laser displacement sensor,
proximity switch, and leak
sensor
Quick exhaust valve
Handgrip
Displacement sensor cooling
air outlet (I.D. 6mm)
Displacement sensor
cooling air inlet (I.D. 6mm)

15
Overview
Part names
LPC-1
■ Control panel
START/STOP key
Used to start/stop the pump in MANU mode. The START/STOP LED lights during operation. The pump stops
at any time during MANU or AUTO mode if the key is pressed and held for 2 seconds (emergency stop) and
returns to the main menu after 7 seconds.
MENU key
Used to display the main menu screen (if pushed once) or to point "1. PUMP MODEL" of the main menu (if
pushed twice).
ENTER key
Used to determine setting.
RETURN/RESET key
Used to return to a previous menu or to reset an alarm.
SELECT key
Used to move through menu options and numerical digits or to select "YES" or "NO".
UP/DOWN key
Used to move through menu options, to change numerical values, or to select "YES" or "NO".
START/STOP key
MENU key
ENTER key
RETURN/RESET key
SELECT key
UP/DOWN key

16 Part names
■ LEDs
POWER LED
Lights green as powered on.
TEACHING LED
Lights orange when the LPC-1 is measuring the max stroke length and the origin position (teaching) by select-
ing "2. TEACHING".
* The screen will shows "TEACHING TIMEOUT!!" and the TEACHING LED will ush when teaching is not completed suc-
cessfully in 10 seconds. In this case reset the alarm condition through "9. ALARM REST" and check for wrong wiring or
closed discharge line before retry.
*TEACHING ABORT!" will be shown on the screen if the MENU or RESET key is pressed during teaching. In this case,
teaching is not completed. Just retry to perform teaching.
LEAK LED
Lights red when the leak sensor detects a liquid leak in the air chamber. The pump stops operation.
FAST LED
Lights red when the pump speed rises to the fast alarm speed or above and stops lightening when it falls below
that speed.
TIME UP LED
Lights red when neither the right nor left proximity switch detects the #20 connecting plate within the set period
of time ("TIME UP ALARM"). Stops lightening when detecting the plate in time.
LIFE LED
Lights red when the reciprocation times accumulated in "TOTAL COUNT 1" exceeds the set number of times
("LIFE ALARM").
*"TOTAL COUNT 1" only is available for the LIFE ALARM.
E-P Reg LED
Lights red when:
• The electropneumatic regulator is upset in feedback control (disconnection).
• Power voltage is out of range.
• EEPROM reading/writing failure
• Discharge line pressure does not reach a target rate within 5 seconds.
START/STOP LED
Lights green during operation.
POWER LED (green)
TEACHING LED (orange)
LEAK LED (red)
FAST LED (red)
TIME UP LED (red)
LIFE LED (red)
E-P Reg LED (red)
START/STOP LED (green)

17
Overview
Operating conditions
Operating conditions
Pump stroke
Operation over the maximum stroke rate can take in a large amount of air during operation. Set the maximum
allowable speed at each supply air pressure range as a fast alarm speed into the LPC-1 controller.
Stroke rate at each supply air pressure
Items Spec
Supply air pressure 0.41-0.5MPa 0.31-0.4MPa 0.21-0.3MPa 0.11-0.2MPa 0.10MPa
Max stroke rate 90spm 105spm 150spm 125spm 65spm
Supply air pressure range
Observe the allowable supply air pressure range at each liquid temperature below.
Liquid temperature Supply air pressure
5-100ºC 0.1-0.5MPa
101-150ºC 0.1-0.4MPa
151-180ºC 0.1-0.3MPa
* Try to use the lowest possible supply air pressure to protect the lter and bellows and reduce the risk of solution spray.
* A ow rate changes with supply air pressure. Use a regulator to keep the pressure constant.
*The minimum supply air pressure should satisfy the minimum operating pressure of the solenoid valve.
Liquid temperature range
Observe the allowable liquid temperature range of 5-180ºC. Note sharp temperature uctuation (heat shock)
may reduce the life of the pump. Contact us for detail.
Liquid characteristics
■ Do not run the pump with the following liquid:
• Liquid that easily crystallizes
• Slurry
• Low conductivity hydrocarbon liquid
*Crystallization or the delivery of slurry remarkably shorten the lives of valves and bellows.
*Delivery of low conductivity hydrocarbon liquid can cause electrostatic discharge (ESD) damage.
■ Use care handling the following liquid:
• Stripper
• Solvent
• Hydrazine
• Fuming sulfuric acid
*Some strippers cause cracks on the PFA bellows and piping, and therefore a warranty period is shortened. Contact us for
detail.

18 Operating conditions
Operation and Stoppage
■ During operation
Make sure a suction and a discharge line are fully opened.
■ When stopping the pump
•Before stopping the pump, make sure the discharge line is open to the atmosphere. Otherwise, the bellows
may deform.
•Do not close a discharge valve as stopping the pump, or an impact pressure may damage the bellows or
check valves.
■ During stoppage
• Always check the specication of the double solenoid valve before installation. Some types (pressure centre
types) are designed to pressurize both the right and left air chambers at the same time.
• Do not leave the pump with any chemical in the bellows for a long period. Some chemical gas can penetrate
the bellows and corrode metal parts.
Air exhaust port
Do not narrow an air exhaust line (for example by reducing the tube I.D.). Or the residual pressure in the pump
may damage the bellows.
*Always observe the minimum composite effective cross-sectional area. Do not extend the air exhaust port too far away
from the solenoid valve (SV) or the quick exhaust valve (QEV). Otherwise, increased pipe resistance may break the limit.
Leak sensors
The sensors occasionally fails to detect leakage depending on operating conditions. Contact us for detail.
Ambient temperature
Observe the allowable operating ambient temperature range of 0-60ºC.
Pump surface temperature
Risk of burning. The surface temperature of the pump or pipe rises high along with liquid temperature in or
right after operation. e.g. cylinder surface temperature rises up to 73ºC when liquid temperature is 180ºC and
ambient temperature is 60ºC.
Noise from pump
Exhaust noise accompanies pump operation. Provide noise insulation as necessary. e.g. a noise level rises up
to 79.4dB (A) at 150spm and 0.3MPa (supply air pressure).

19
Overview
Identication codes
Each code represents the following information.
FLP - 75 W H C 2 - 01
a b a c d e f
a. Series name
FLP-W : Medium & high liquid temperature (low pulsation)
b. Bellows size
c. Allowable liquid temperature range
H : 5-180ºC
d. Pump connection (Inlet/Outlet)
C : Connector (standard)
e. Pump head-bellows connection
2 : Welded (standard)
f. Special specications
No symbol : Standard
01 : Special specications (01, 02…)
Identication codes

20
Installation
Pump mounting
Flooded
suction
*
Suction lift
This section describes the installation of the pump, piping and wiring. Read through
this section before work. To operate this pump, a 5-port solenoid valve and LPC-1
controller is needed.
Points to be observed
Observe the following points when installing the pump.
• Be sure to turn off power to stop the pump and related devices before service is per-
formed.
• Be careful for the power not to be turned on during work.
• If you notice any abnormal or dangerous conditions, suspend operation immediately and
inspect/solve problems.
• Do not install the pump in a ammable atmosphere.
• Do not lift the pump by gripping the right-and-left cylinder head covers or the top-and-
bottom covers. The pump can drop unintentionally as one of those parts breaks. Hold
the pump by the handgrips to lift it up.
Pump mounting
Mount the pump in ooded suction or suction lift application.
In flooded suction application:
Place the pump as close to the supply tank as possible.
*Flooded suction is recommended for hot liquid transfer or for
looped system.
In suction lift application:
Observe the maximum suction lift* (1m). Place the pump
as close to the supply tank as possible.
*The maximum allowable suction lift shown above is based
on pumping clean water at ambient temperature and the
maximum stroke rate, and varies with liquid characteristics,
liquid temperature or total suction line length. Contact us for
detailed information.
*Have a suction line shortest with the minimum number of
bends.
