Thank you for selecting an Iwaki V Series Hicera Pump. This instruction manual deals with
"Safety instructions", "Outline", "Installation", "Operation" and "Maintenance" sections.
Please read through this manual carefully to ensure the optimum performance, safety and serv-
ice of your pump.
Contents
Important instructions ···································································· 1
Safety instructions·········································································· 2
Outline 1. Unpacking & Inspection ..................................................6
2. Product outline .................................................................6
3. Model code.......................................................................7
4. Specification.....................................................................8
Installation 1. Before installation ..........................................................10
2. Installation/Piping/Wiring .............................................12
Operation 1. Operation........................................................................15
Maintenance 1. Disassembly & Assembly...............................................18
2. Troubleshooting..............................................................24
3. Dimensions.....................................................................25
4. Wear parts ......................................................................27
This instruction manual should be kept on hand by the end user for
quick reference.
Contact us or your nearest dealer if you have any questions.

- 1 -
Important instruction
Export restrictions
Technical information contained in this instruction manual might be treated as controlled
technology in your countries, due to agreements in international regime for export control.
Please be reminded that export license/permission could be required when this manual is
provided, due to export control regulations of your country.
Nonobservance or misapplication of “Caution” sec-
tions could lead to a personal injury or property
damage.
For the Safe and
Correct Handling of the Pump
●"Safety Instruction" section deals with important details about handling of the product. Before
use, read this section carefully for the prevention of personal injury or property damage.
●Observe the instructions accompanied with "WARNING" or "CAUTION" in this manual. These
instructions are very important for protecting users from dangerous situations.
●The symbols on this instruction manual have the following meanings:
WARNING
Nonobservance or misapplication of “Warning” sec-
tions could lead to a serious accident which may
result in death.
CAUTION
Types of Symbols
Indicates that “Warning” or “Caution” must be exercised. Inside this triangle, a con-
crete and practical image provided as a warning or caution message is depicted.
Indicates a prohibited action or procedure. Inside or near this circle, a concrete and
practical image of the activity to be avoided is depicted.
Indicates an important action or procedure which must be performed or carried out
without fail. Failure to follow the instructions herein can lead to malfunction or
damage to the pump.

- 2 -
WARNING
● Turn off power before work
Be sure to turn off power before starting maintenance/repair work. Make
sure no one turns on power while working on the pump, otherwise it may
result in a serious accident. Let other people know about the situation by
displaying a notice such as "POWER OFF (Maintenance)" near power
switch.
● Stop operation
On sensing danger or abnormality in operation, stop operation immedi-
ately and solve problems.
● For a specified application only
Use of the pump in any application other than those clearly specified may
result in a personal injury or property damage.
● Do not remodel the pump
A remodelled pump will not be warranted. Also, we are not responsible for
a personal injury or property damage due to modification.
● Wear protective clothing
Always wear protective clothing such as eye protection and protective
gloves during pipework or dismantlement of the pump.
● Protect the pump from getting wet or high humidity
Risk of an electrical shock or a short circuit. The pump is not water-proof
or dust-proof structure. Do not wet the pump or place in a highly humid
place.
Specified application only
No modification
Prohibition
Safety instruction
Danger
Wear protective
gear
Electrical shock

- 3 -
Safety instruction
Danger
Grounding
Prohibition
Prohibition
CAUTION
● Earthing
Risk of electrical shock. Do not run the pump without earthing. Secure
earth protection to reduce the risk.
● Install an earth leakage breaker
Risk of electrical shock. Do not run the pump without a leakage breaker.
Secure a leakage breaker to reduce the risk.
● Do not damage the power cable
Do not pull or knot the power cable or place a heavy stuff on it. Damage
to the power cable could lead to a fire or an electrical shock.
● Observe instructions in this manual in dismantlement work
Do not dismantle the pump beyond the extent of instructions in this manu-
al.
● Limitations on working and storage areas
Do not install or store the pump in the following places where...
1. Ambient temperature exceeds 40°C or falls below 0°C.
2. in a flammable atmosphere
●Disposal of the used pump
Dispose of any used or damaged pump in accordance with relevant regu-
lations. Consult a licensed industrial waste products disposing company.
●A qualified operator only
The pump must be handled or operated by a qualied person with a full
understanding of the pump. Any person who is not familiar with this prod-
uct should not taka part in operation or management.
Electrical shock
Danger
Prohibition

- 4 -
CAUTION
● For a specied power only
Do not apply any voltage other than the specified one on the motor name-
plate. Otherwise, damage or fire may result.
● Do not run pump dry
Do not run pump dry (Operation without liquid). Friction heart builds up
during dry running operation and damages internal parts. If the pump is
operated with a suction side valve closed or without priming, the pump
runs dry.
● Do not wet electric parts or wiring
Risk of re or electrical shock. Install the pump free from liquid spill.
● Ventilation
Poisoning may result when handling a harmful liquid. Keep good ventila-
tion in your working area.
● Countermeasure against efflux
Take protective measures against accidental chemical efflux and splash at
pump or piping breakage. Do not allow an outflow to directly soak into the
ground.
●Do no use a damaged pump
Using a damaged pump could lead to an electric leak or shock.
Prohibition
Prohibition
Prohibition
Safety instruction
Caution
Caution
Do not wet
or dampen

- 5 -
Outline
1. Unpacking & Inspection ........................ 6
2. Product outline...................................... 6
3. Model code........................................... 7
4. Specification ......................................... 8

- 6 -
1. Unpacking & Inspection
On unpacking the product, check the following points. If you find any problems, contact your near-
est distributor.
1. Check the information on nameplate (model code, flow rate, head and voltage) to see if the product is
delivered as per order.
2. Check for transit damage, deformation and loose bolts.
2. Product outline
The Hicera pump is a metering pump with ceramic wet ends such as a plunger, a cylinder and other
related parts.
The plunger reciprocates and rotates in the cylinder where liquid is taken in from a suction line and
then delivered to a discharge line.

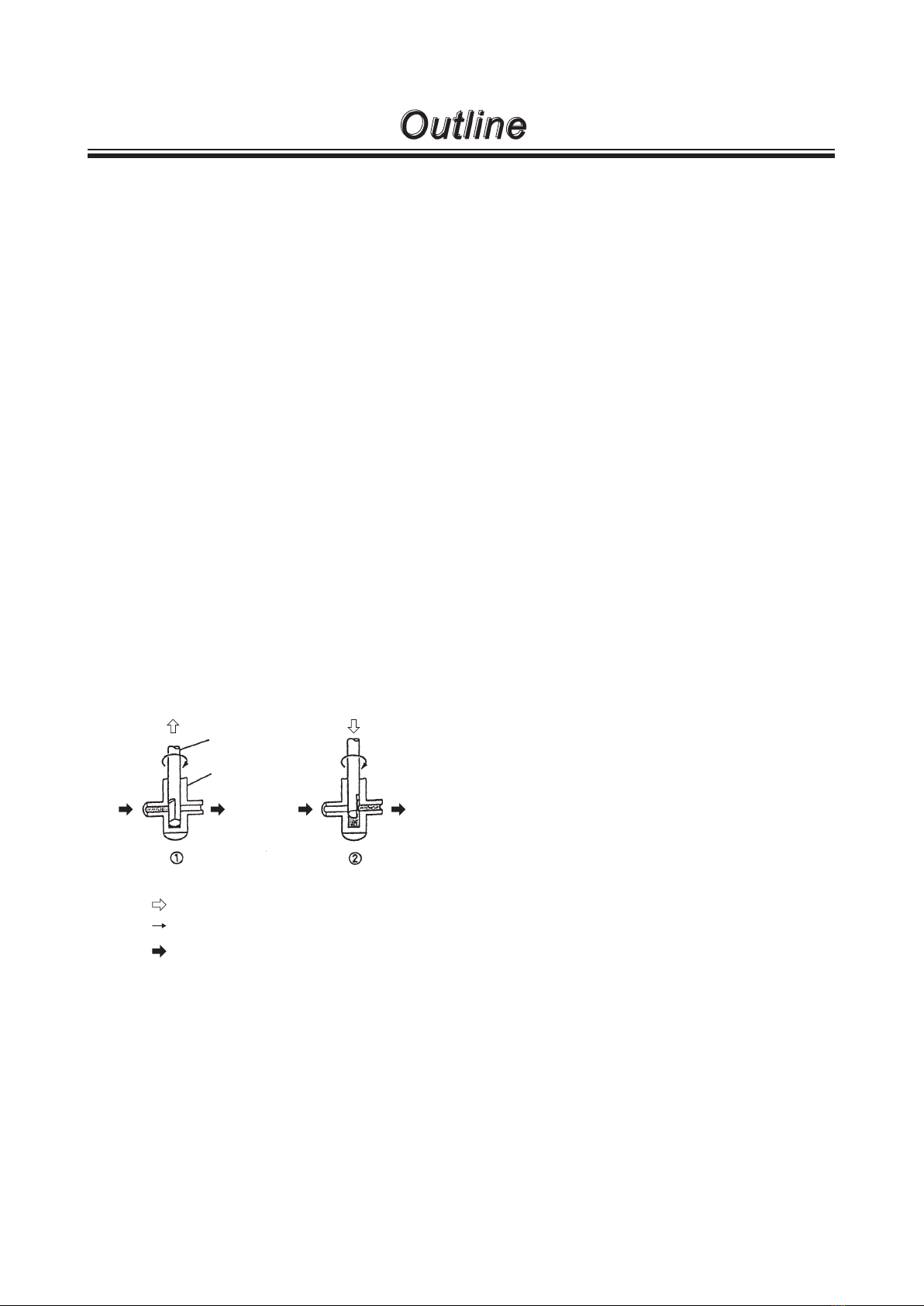

1. The rotating plunger contracts to take in liquid
into the cylinder from a suction line as the duct on
the plunger passes the inlet.
2. The rotating plunger extends to let out liquid from
the cylinder to a discharge line as the duct on the
plunger passes the outlet.
Contraction
Plunger
Cylinder
IN OUT IN OUT
: Plunger reciprocation
: Plunger rotation
: Flow direction
Outline
Extension

- 7 -
3. Model code
V - 05SLP 1 A 1 - X
a b c d e
a. Plunger diameter, Wet end materials, Flushing port
Code Plunger dia (mm) Plunger/Sylinder
material
Pump head ma-
terial Flushing port Applicable pumps
05SL ø5 SiC/SiC SCS14
- V-05
05SLP ø5 SiC/SiC SCS14 Equipped V-05
10AL ø10 AL2O3/AL2O3 SCS14
- V-10
10ALP ø10 AL2O3/AL2O3 SCS14 Equipped V-10
10SL ø10 SiC/SiC SCS14
- V-10
10SLP ø10 SiC/SiC SCS14 Equipped V-10
15AS ø15 AL2O3/AL2O3 SUS304
- V-15
15ASP ø15 AL2O3/AL2O3 SUS304 Equipped V-15
15SS ø15 SiC/SiC SUS304
- V-15
15SSP ø15 SiC/SiC SUS304 Equipped V-15
Pump head material code L: SCS14 (Lost-wax casting) for the V-05, 10
S: SUS304(machining) for the V-15
b. Joint
1: ø6mm SUS tube joint (V-05/-10)
2: ø10mm SUS tube joint (V-05/-10)
3: ø13mm SUS joint (V-15)
4: Rc1/4" SUS female thread joint (V-05/-10)
5: Rc3/8" SUS female thread joint (V-15)
6: Other joints
c. Induction motor speed reduction ratio
A: 1/150 B: 1/75 C: 1/30 D: 1/15 E: 1/7.5 F: 1/5 G: 1/3
d. Power voltage
1: 100VAC single-phase motor
2: 200VAC single-phase motor
3: 200VAC three-phase motor
4: 100-115VAC single-phase motor
5: 220-230VAC single-phase motor
0: Other motors
e. Special version code
X: Custom design (Contact us for detail)
Outline

- 8 -
4. Specification 50/60Hz
Outline
Model Gear ratio Speed (rpm) Max. flow
(ml/min)
Max.press.
(MPa)
Tube joint
(mm)
Standard
motor
Mass
(kg)
V-05SL1A5 1/150 9/11 1.6/1.9
0.7 ø6 SUS
tube joint
Induction
motor
100VAC 15W
2.3
V-05SL1B5 1/75 19/23 3.3/4.0
V-10�L1A 5 1/150 9/11 6.0/7.0
V-10�L1B 5 1/75 19/23 13/16
V-10�L1C 5 1/30 48/58 33/40
V-10�L1D 5 1/15 96 /116 67/81
V-10�L2E5 1/ 7. 5 193/232 135/163 0.6
ø10 SUS
tube joint
Induction
motor
100VAC 25W
3.0 V-10�L2F5 1/5 290/348 203/245 0.4
V-10�L2G5 1/3 483/580 338/409 0.3
V-15�S3E5 1/ 7. 5 193/232 559/673 0.5
ø13 SUS
tube joint
Induction
motor
100VAC 40W
8.0V-15�S3F5 1/5 290/348 841/1009 0.3
V-15�S3G5 1/3 483/580 1400/1682 0.2
● Either A: AL2O3/AL2O3or S: SiC/SiC comes in :
● Performance values in the above table are based on pumping clean water at ambient temperature.
● The revolution per minute is based on use of clean water and varies with liquid characteristics.
● Discharge capacity per revolution when the pump head is at an angle of 20º.
Approx. 0.17ml/rev for V-05
Approx. 0.7ml/rev for V-10
Approx. 2.9ml/rev for V-15
● The maximum suction lift with clean water is 4 meters and varies with liquid characteristics.
● Flush out crystallizing or adhesive liquid from the pump head after operation. Use of the pumps with flush-
ing ports is recommended.

- 9 -
Installation
1. Before installation ............................... 10
2. Installation/Piping/Wiring .................... 12

- 10 -
1. Before installation
1. Do not run pump dry (except for the start-up dry
running to fill the pump head with liquid.)
Friction heat builds up in the pump head during
dry running and the plunger seizes in the cylin-
der.
2. Do not close valves
Closed-discharge operation causes a sharp
pressure rise and may result in pump failure or
motor burning out. Be sure to open a suction line
and a discharge line before operation.
3. Degassing
Fully open a discharge line and set the pump
head angle to 20º(the maximum stroke length).
Run the pump in this condition to expel air from
the pump and tubing.
4. Temperature influence
A flow rate, liquid viscosity, vapour pressure and
corrosion resistance changes with liquid tem-
perature.
CAUTION:
The allowable liquid temperature range is
0-80ºC. Apply heat-resistant grease to the
motor bearing or use a cooling fan to cool
down motor temperature when liquid tem-
perature exceeds 65ºC.
5. Viscous liquid
The pump is capable of handling liquid up to
20,000 cP, but then keep pump rotation speed
lower as viscosity gets higher, especially when
liquid viscosity is 500 cP or more. Contact us for
detail.
Discharge valve
Suction valve
Viscous liquid
Installation

- 11 -
6. Precipitation or Crystallization
Flush out liquid that has property of precipitation
or crystallization from the pump head.
CAUTION
If the pump is left before flushing, the
plunger may be stuck in the cylinder. In this
case the pump does not start to run.

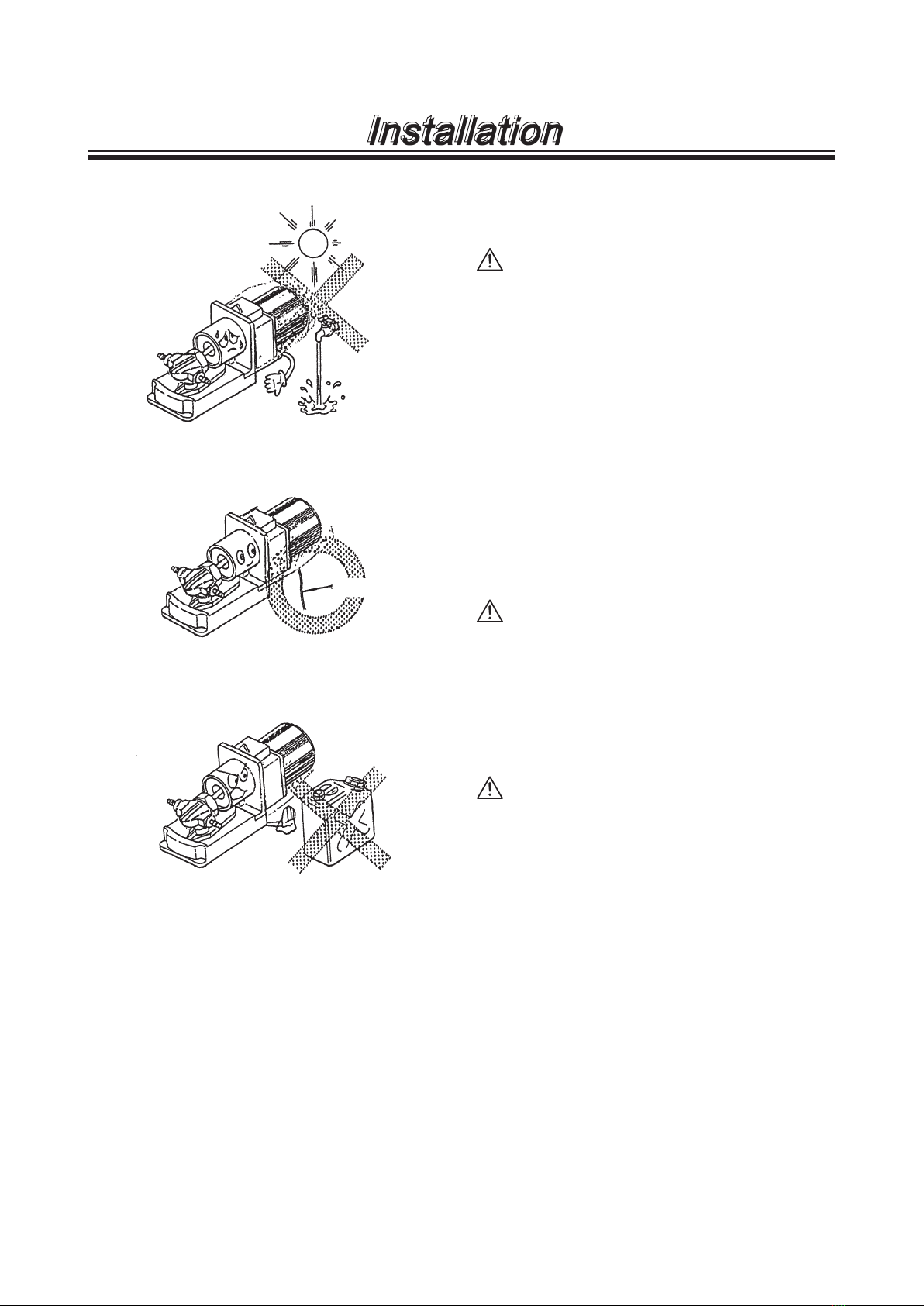

7. Operating conditions
Do not cover the motor tight. Avoid areas where
ambient temperature exceeds 40ºC or ambient
humidity exceeds 85% RH. Do not wet the pump,
or an electrical leak or a fire may result.

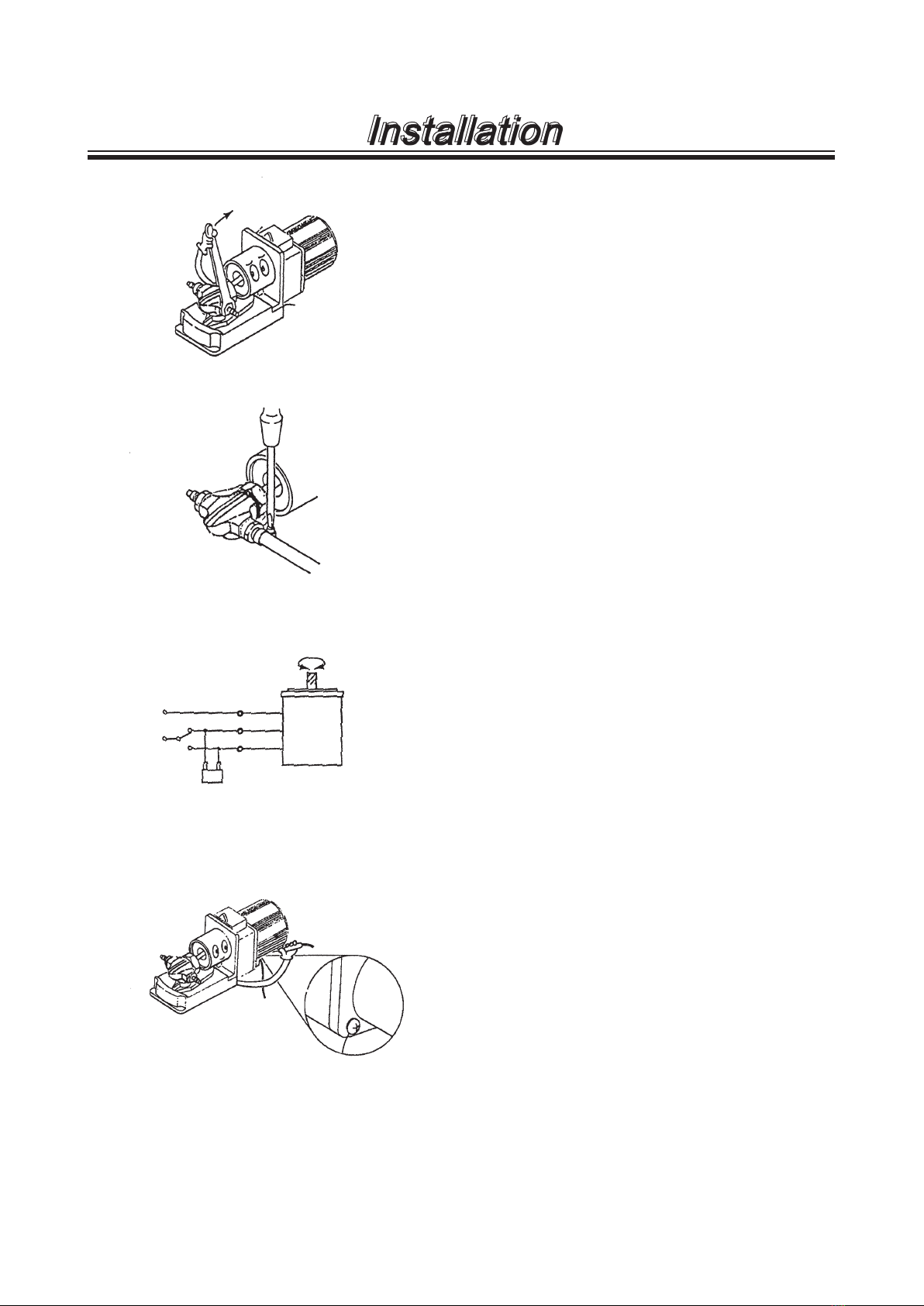

8. Earthing
Be sure to earth the pump. Install an earth leak-
age breaker as necessary.
CAUTION
If an earth leakage breaker has worked to
open a circuit, turn off a main power-supply
switch. Always determine a root cause and
solve problems before resuming operation.
9. Take preventative measures for fire and dust
CAUTION
Do not place a dangerous or a flamma-
ble substance near the pump. Protect the
motor from dust.
Earth
Installation

- 12 -
4m
Rubber plate
2. Installation/Piping/Wiring
■ Installation

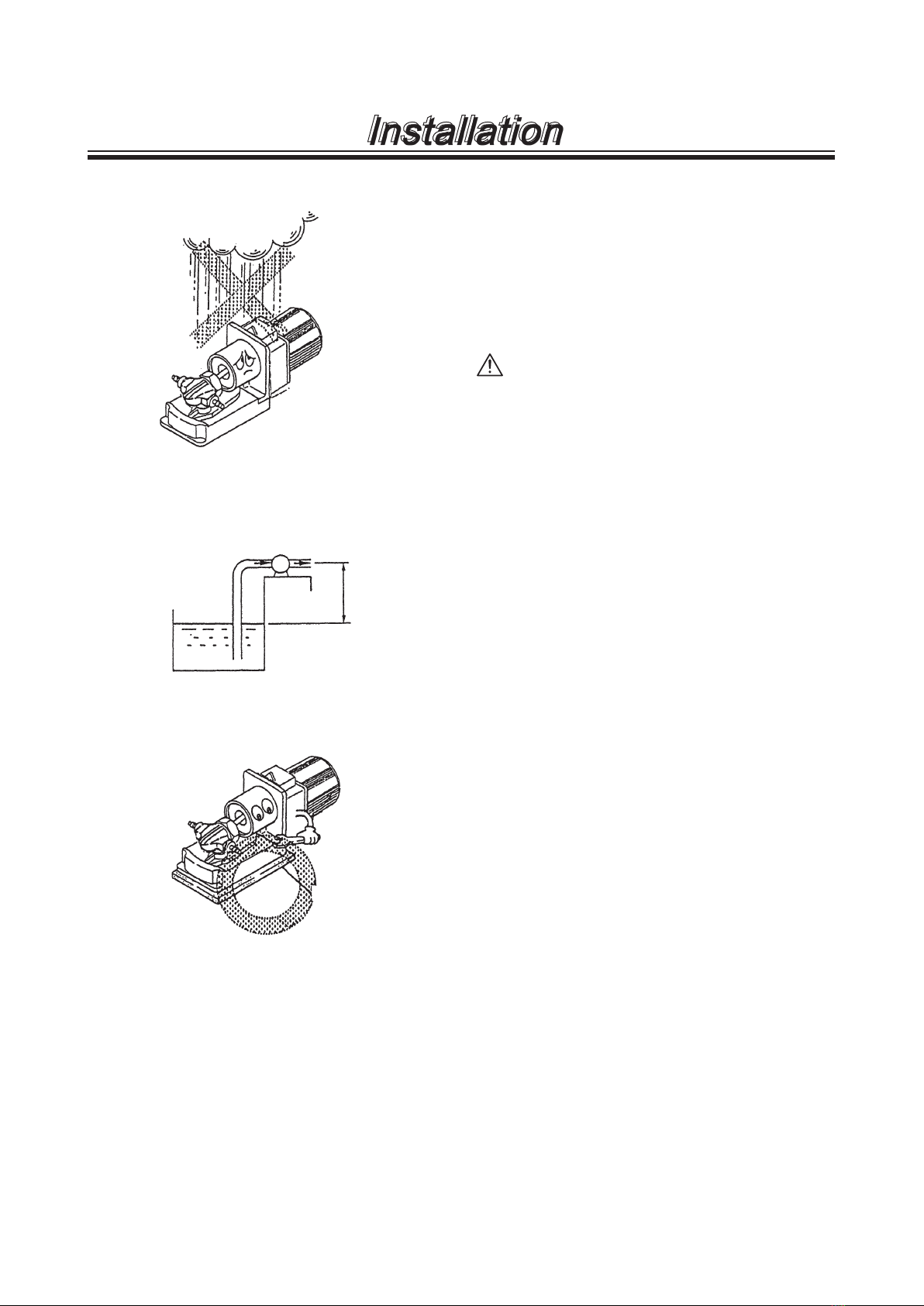

1. Select an installation location where is con-
venient for maintenance. Ambient temperature
should not exceed 40ºC or falls below 0ºC.
Observe the maximum ambient humidity of
85%RH. Do not install the pump out of doors.
CAUTION
When installing the pump, be careful not
to impact the pump. A strong impact may
adversely affect pump performance.
The pump can be mounted either verti-
cally or horizontally. A flow direction can be
reversed by inverting motor rotation.
2. The maximum suction lift is 4 meters based on
operation with clean water and changes accord-
ing to liquid characteristics.
3. Fix the pump with M5 screws. Place a rubber
plate beneath the pump base to reduce noise or
oscillation as necessary.
Installation

- 13 -
Motor
CW
CCW
Black
Red
White
Capacitor
CW
CCW
SW
Line
■ Plumbing
1. Have tubing length shortest with the minimum
number of bends in order to reduce pipe resist-
ance.
2. The inlet and outlet ports should be completely
sealed for the prevention of air ingress into a flow
line. Especially, an imperfect suction line connec-
tion entrains air and reduces performance.
3. Select tubes in accordance with an inlet and an
outlet bore.
A tube should be resistant to both the specified
pressure and the specified liquid.
■ Wiring
Check power-supply voltage and the rated voltage
of the pump motor before wiring. Observe an appli-
cable electric code.
■ Earthing
Remove one of fitting screws on the motor mount-
ing flange and the paint under the screw for con-
necting an earth wire.
Installation

- 14 -
Operation
1. Operation ............................................ 15

- 15 -
1. Operation
Do not run pump dry or run it with a discharge valve or a suction valve closed.
■Starting process
Operate the pump according to the following procedure after installation, tubing and wiring of pump.
No. Points to be checked Procedure
1
Tubing, wiring and voltage ● See "■ Plumbing" and "■ Wiring" sections.
● Check the spec label to see if the power supply voltage is
correct.
2 A discharge and a suction line. ● Fully open both suction and discharge valves.
3
Rotational direction ● Check if the direction of rotation is correct.
Prime the pump and run the motor for just a moment to
check a flow direction.
● Counter clockwise (CCW)
CCW rotation seen from the
motor end. Liquid flows in the
direction of "a".
● Clockwise (CW)
CW rotation seen from the
motor end. Liquid flows in the
direction of "b".
4
Starting ● Run the pump for a while and check liquid flows without a
hitch. Upon finding abnormality, turn off power and solve the
cause of abnormality. Refer to "Troubleshooting" section.
5
Operation ● Make sure air has been expelled from the pump and a tub-
ing system completely. If not, an accurate flow rate can not
be obtained. Angle the pump head to 20º and run the pump
until air is expelled completely. After air is all eliminated,
adjust discharge pressure to a specified level.
● Flow rate can be adjusted from 0 to the maximum by chang-
ing the pump head angle.
6
Points to be checked during
operation
● Do not allow foreign matters to enter the pump. Foreign mat-
ters may cause the plunger to be locked or damaged, hin-
dering a liquid circulation.
Install a dampener to reduce pulsation as necessary. Contact for us for detail.
■Stoppage
No. Points to be checked Procedure
1
Wet ends ● Flush the pump head with clean water after operation with
sticky or settling liquid. Dismantle the pump head for clean-
ing as necessary.
2Before a long period of stoppage ● Drain liquid from the pump head and dismantle it for clean-
ing before a long period of stoppage.
Operation
a
b

- 16 -
Operation
■ Daily inspection
See the following check items in operation. On detection of abnormality, stop operation immediately. Take
measures referring to the item "Trouble shooting".
No. States Points to be checked How to check
1
Pumping • If liquid is pumped. Flow meter or
visual inspection
• If discharge pressure/ suction pressure is normal. Check specica-
tion.
2
Noise and vibration • If abnormal noise or vibration occurs. They are signs
of abnormal operation.
Visual or audio
inspection
• Place a rubber plate beneath the pump base to reduce
noise or oscillation as necessary.
3
Air ingress from pump
head joints and a suc-
tion line
• If leakage occurs. Visual inspection
• If pumped liquid includes air bubbles, check lines for
leakage and retighten as necessary.
4
High surface tempera-
ture of the pump and the
motor
• Pump surface temperature gets higher along with liq-
uid temperature.
Touch or use a
thermometer
• Motor surface temperature should be 40ºC higher than
ambient temperature, or below.

- 17 -
Maintenance
1. Disassembly & Assembly.................... 18
2. Troubleshooting .................................. 24
3. Dimensions......................................... 25
4. Wear parts .......................................... 27

- 18 -
1. Disassembly & Assembly

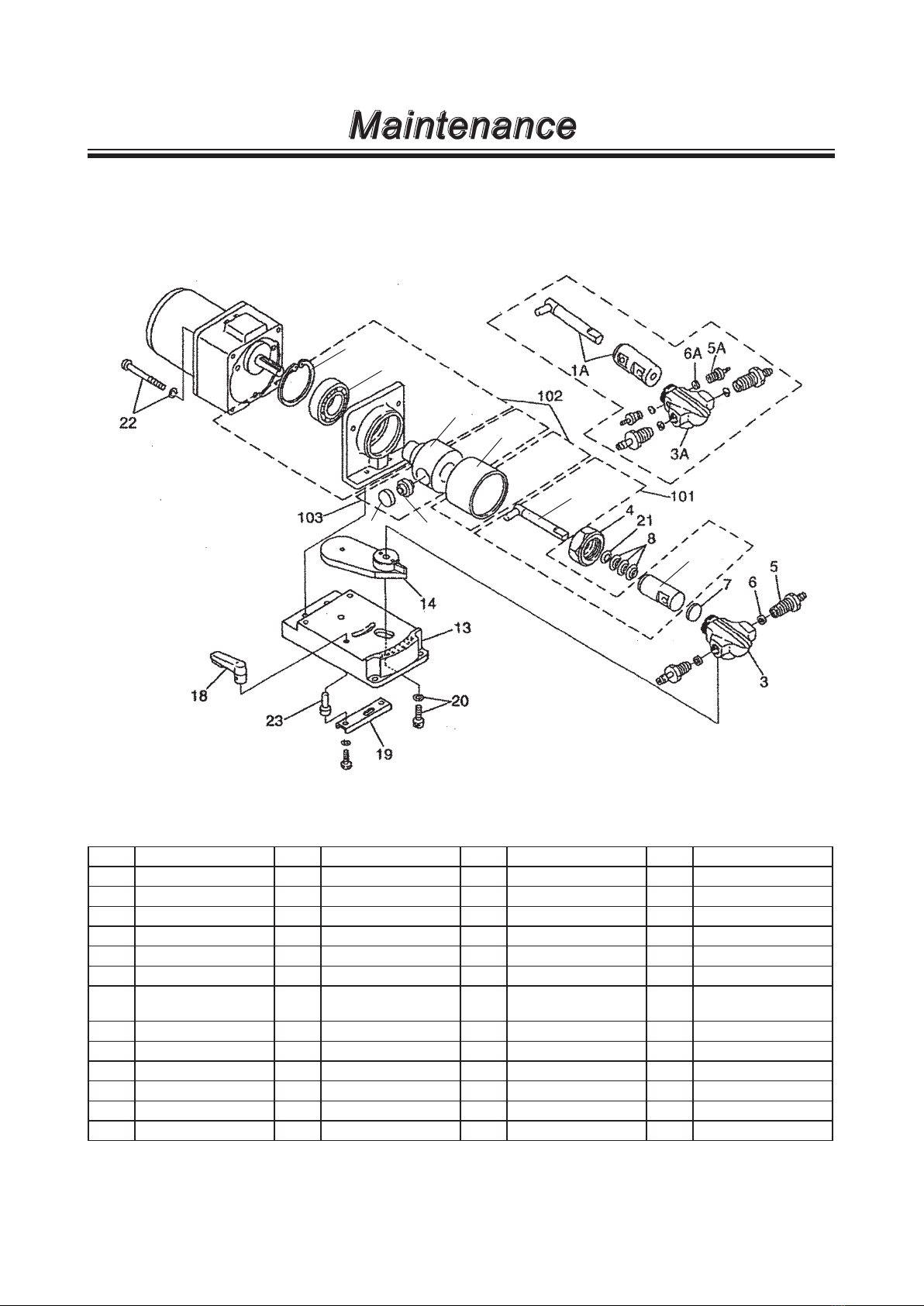

■ Exploded view (V-05/-10)
No. Part names Q'ty Remarks No. Part names Q'ty Remarks
1Plunger 1Al2O3/SiC 14 Mounting plate 1
2Cylinder 1Al2O3/SiC 15 Drive joint 1 AL
3 Pump head 1 SCS14 16 Spherical bearing 1
4 Cap nut 1 SUS303 17 Cap 1
5 Tube joint 2 SUS316 18 Lock lever 1 Zn
6Joint seal 2PTFE 19 Lock bar 1
7 Head seal 1 PTFE 20 Hex. sock head
bolt (with sw) 1SUS304
8 Lip seal 3 PTFE 21 Back seat 1 PTFE
9 Bearing case 1 AC4C 50 Induction motor 1
10 Bearing 16004ZZ 101 Plunger ass'y 1
11 Stop ring 1 102 Bearing case ass'y 1
12 Joint cover 1 AL 103 Drive joint ass'y 1
13 Base 1
11
10
15
12
1
2
17 16
Maintenance
